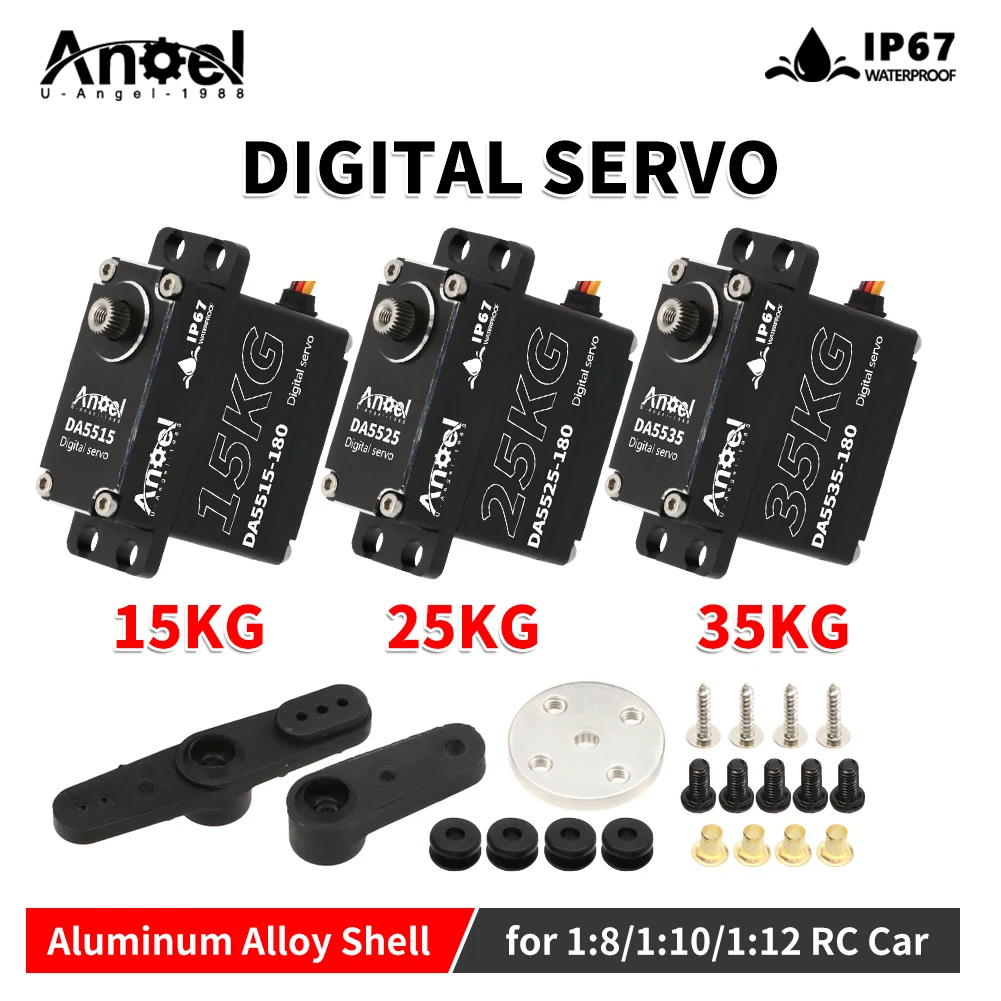

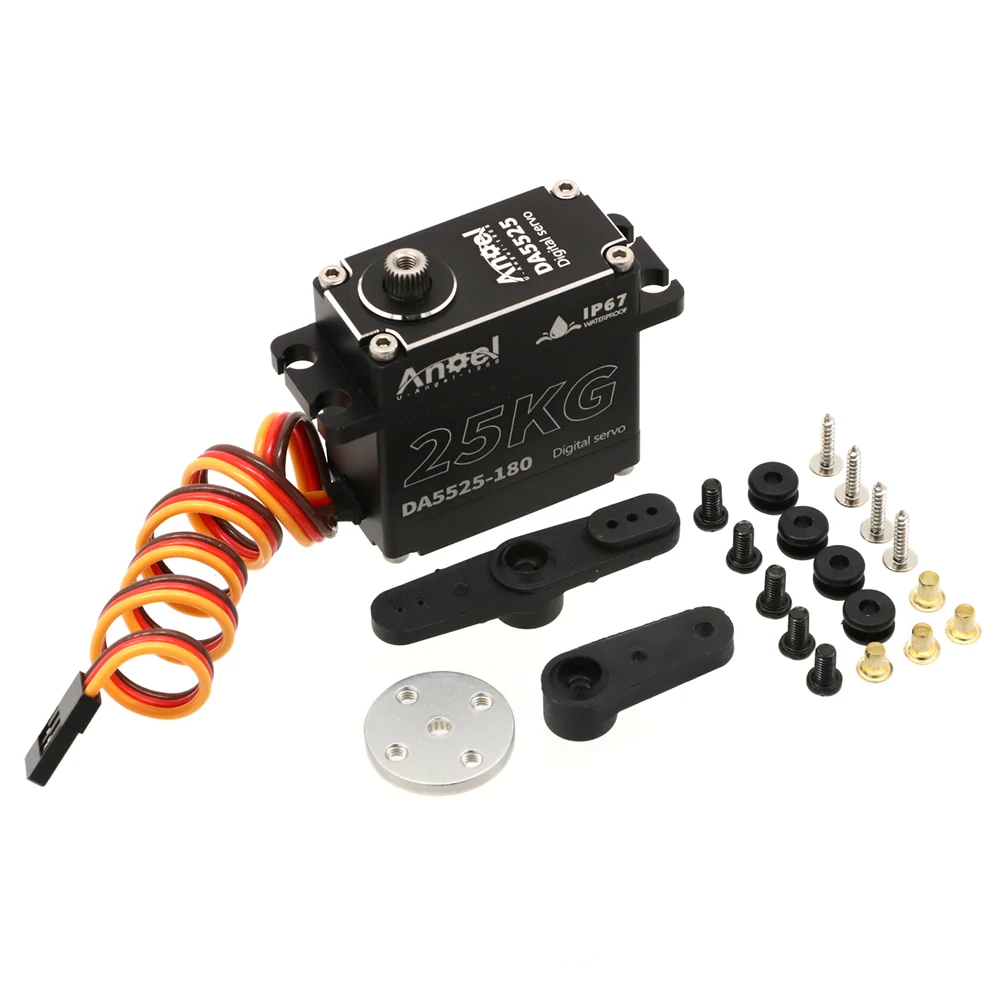

UAngel DA5515 15KG DA5525 25kg DA5535 35KG Waterproof Digital Servo Aluminum Case Metal Gear High Torque for 1/8 1/10 1/7 RC Car
Price range: $80.85 through $81.17
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Waterproof Servo
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: 35KG Digital Servo
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Servos
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Size: 40x20x40.50mm
Technical parameters: value 2
Tool Supplies: 25KG Digital Servo
Upgrade Parts/Accessories: 15KG Digital Servo
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

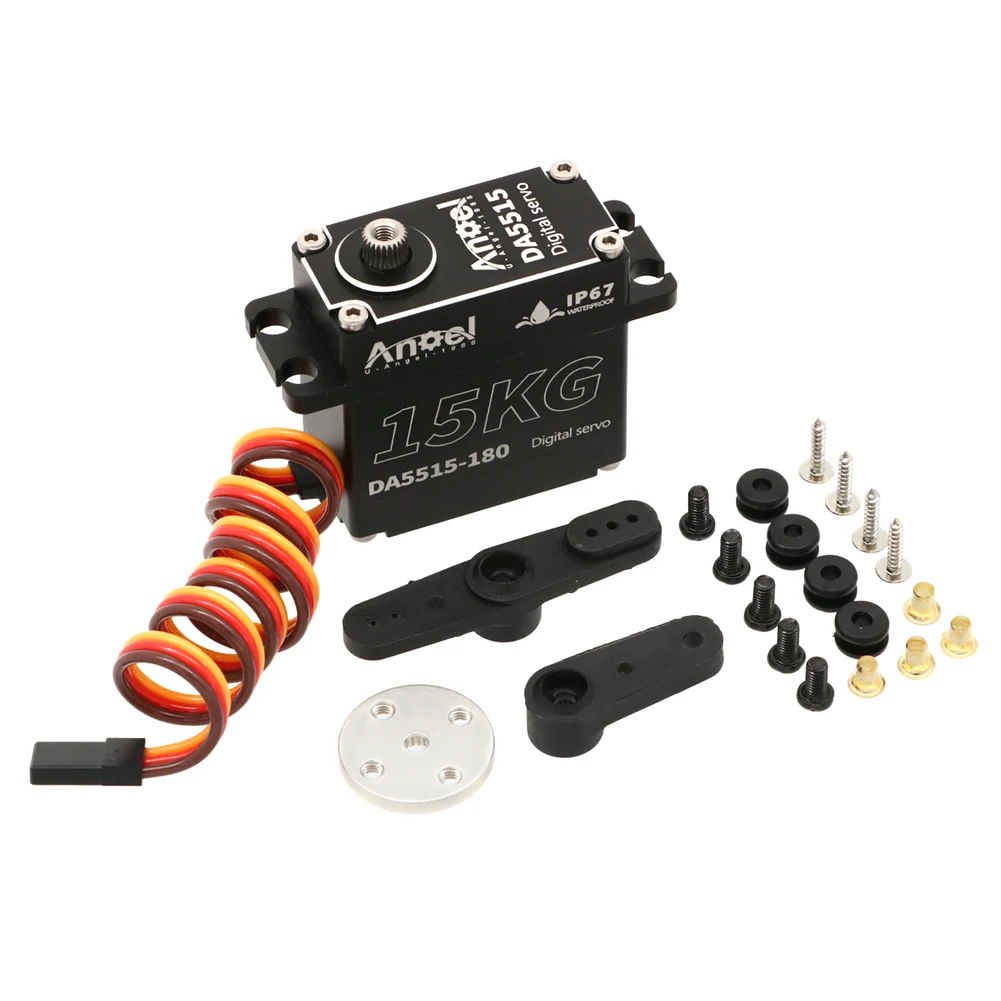

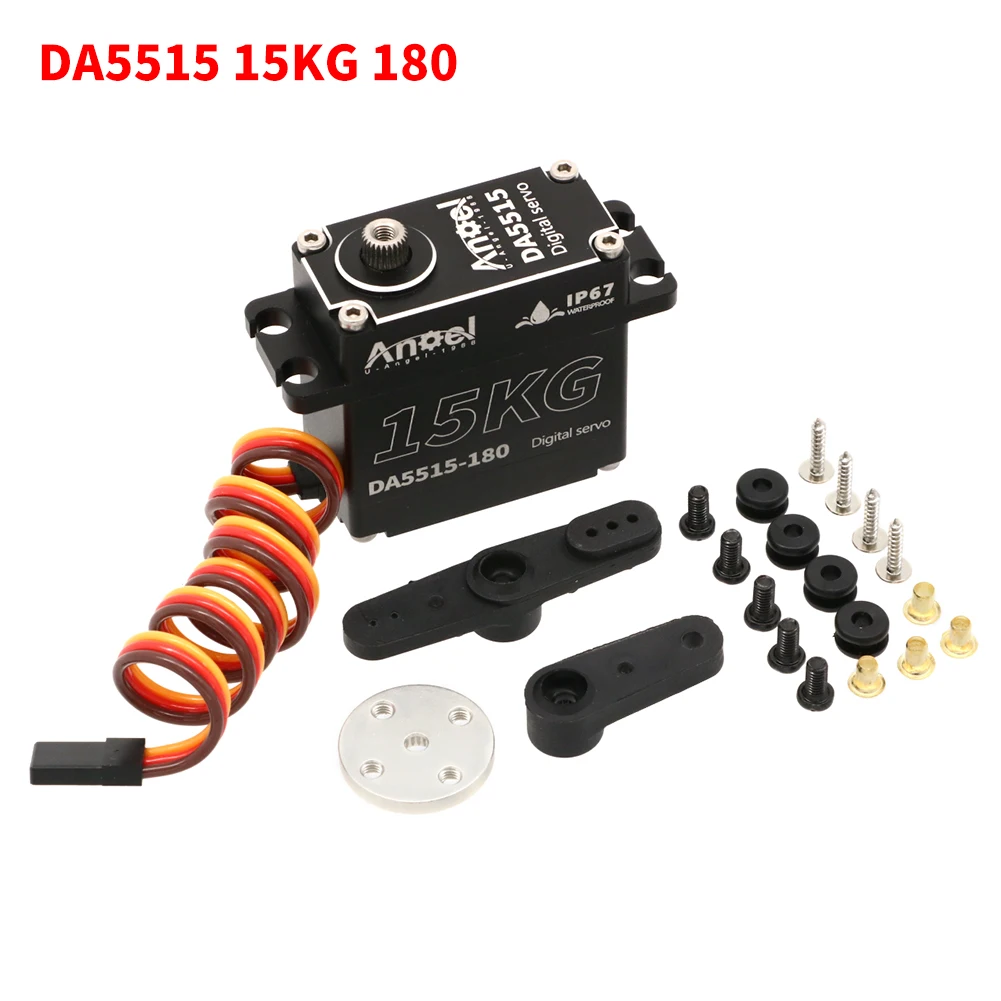

Product Model:DA5515
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:4.8V -8.4V
Operation Temperature Range:-20C°~ +60C°
Circle:>80000 times without load
Operation Travel:60°±1
Limit Angle:180°± 1/270°± 1 Optional
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver Type:Mos Drive
Motor Type:Dc Motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Dimensions:40x20x40.50mm
Weight:80g （without servo horn）

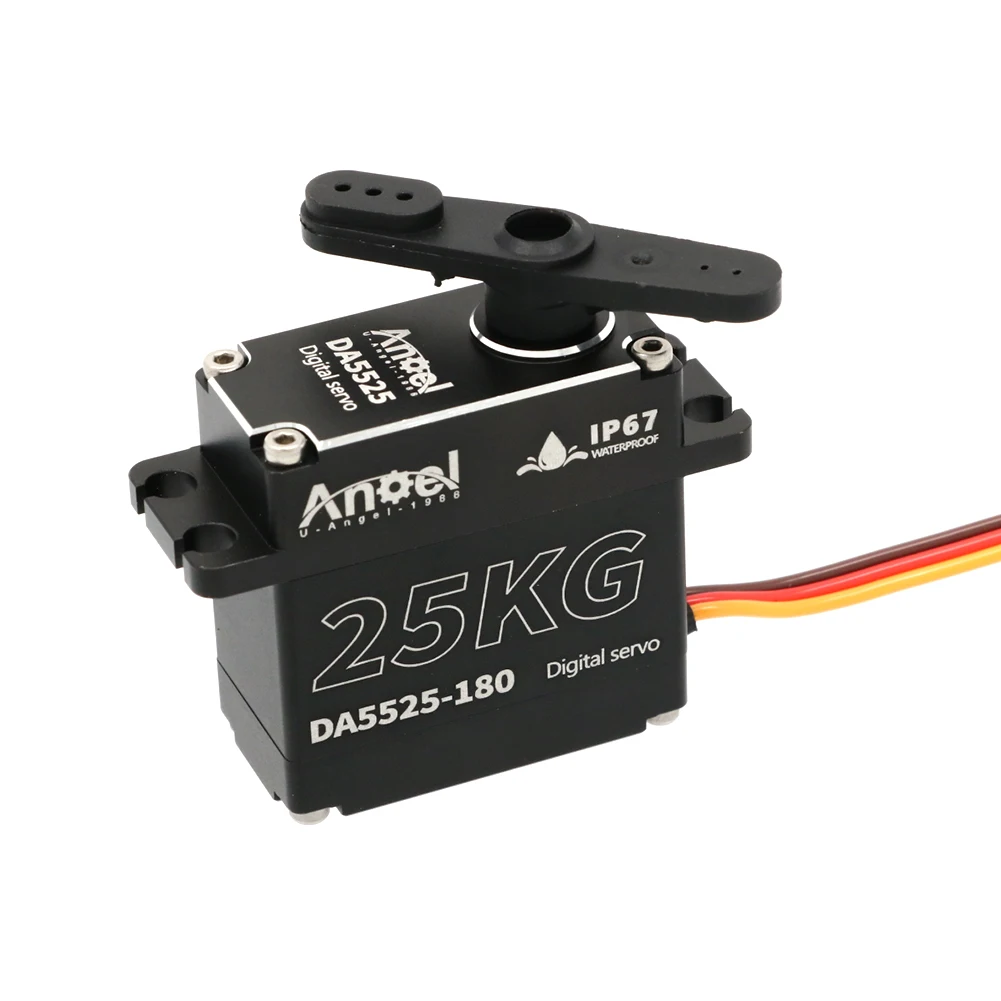

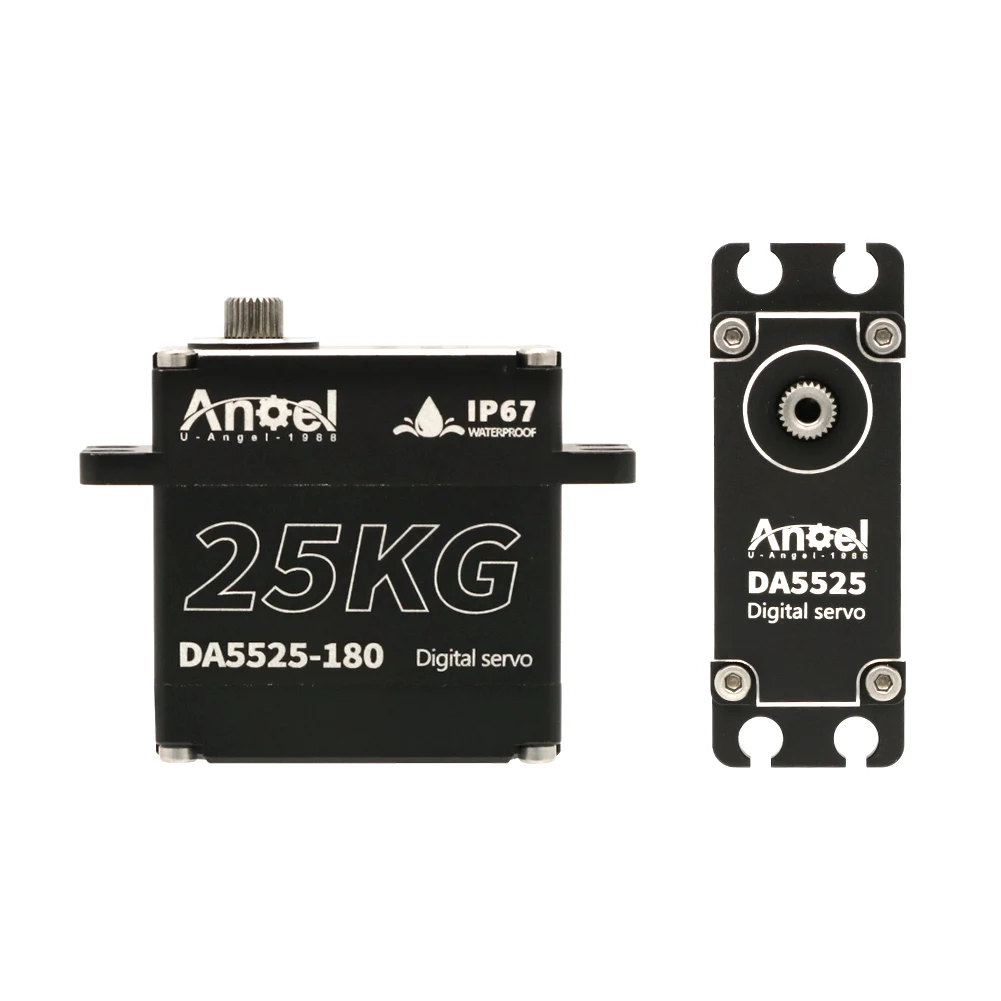

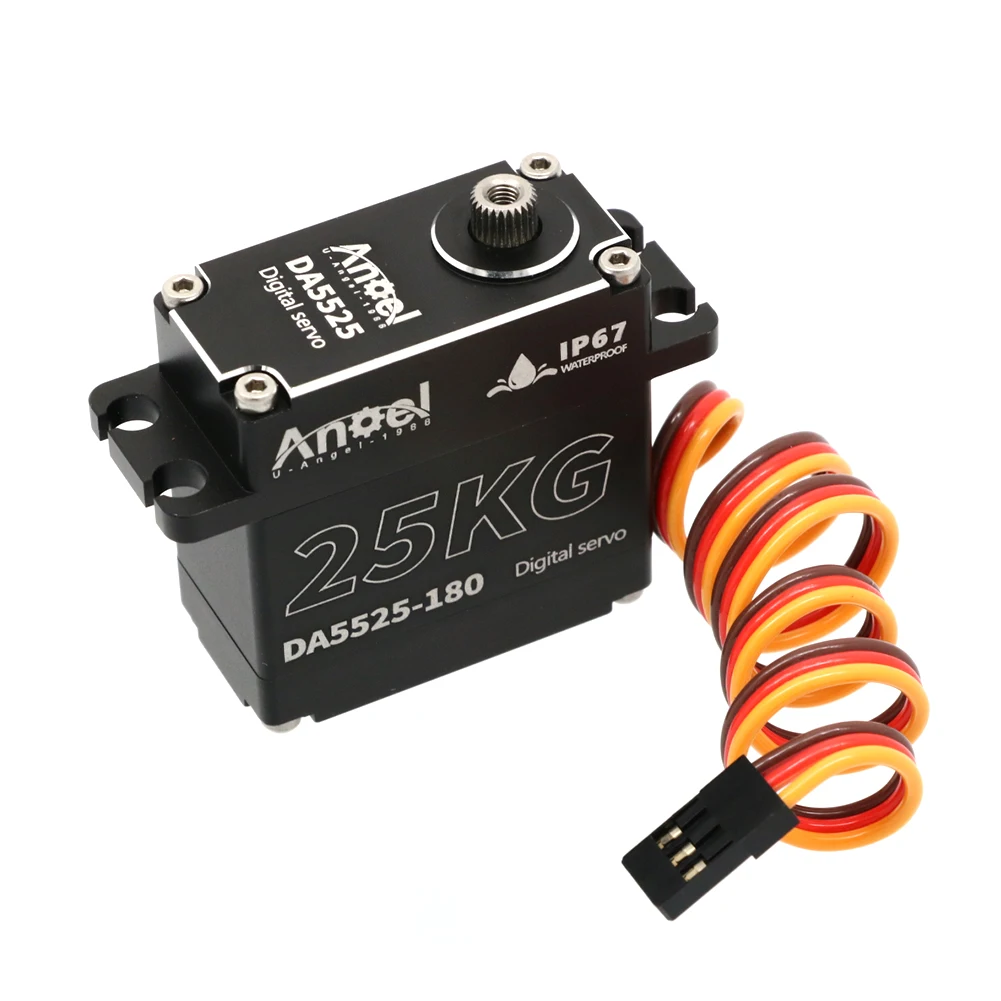

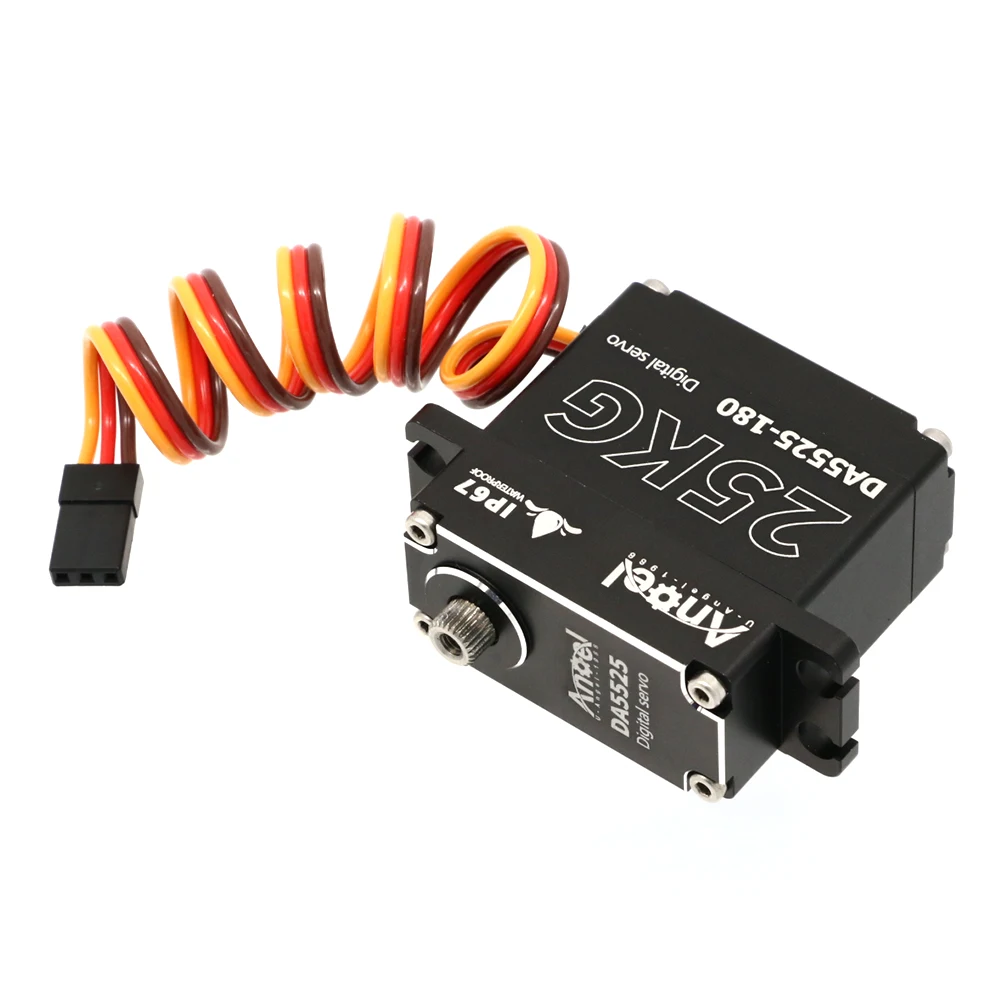

Product Model:DA5525
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:4.8V -8.4V
Operation Temperature Range:-20C°~ +60C°
Circle:>80000 times without load
Operation Travel:60°±1
Limit Angle:180°± 1/270°± 1 Optional
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver Type:Mos Drive
Motor Type:Dc Motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Dimensions:40x20x40.50mm
Weight:78g （without servo horn）

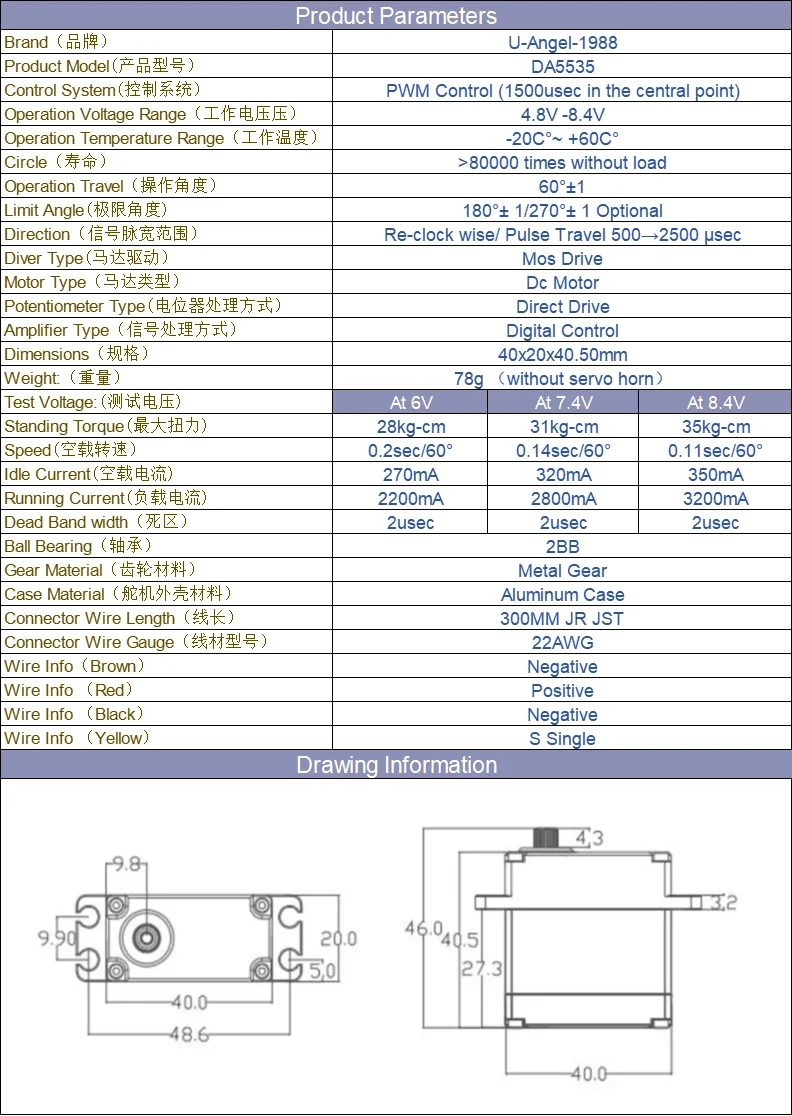

Product Model:DA5535
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:4.8V -8.4V
Operation Temperature Range:-20C°~ +60C°
Circle:>80000 times without load
Operation Travel:60°±1
Limit Angle:180°± 1/270°± 1 Optional
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver Type:Mos Drive
Motor Type:Dc Motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Dimensions:40x20x40.50mm
Weight:78g （without servo horn）
| Color | DA5515 15KG 180, DA5535 35KG 180, DA5525 25KG 180 |
|---|
