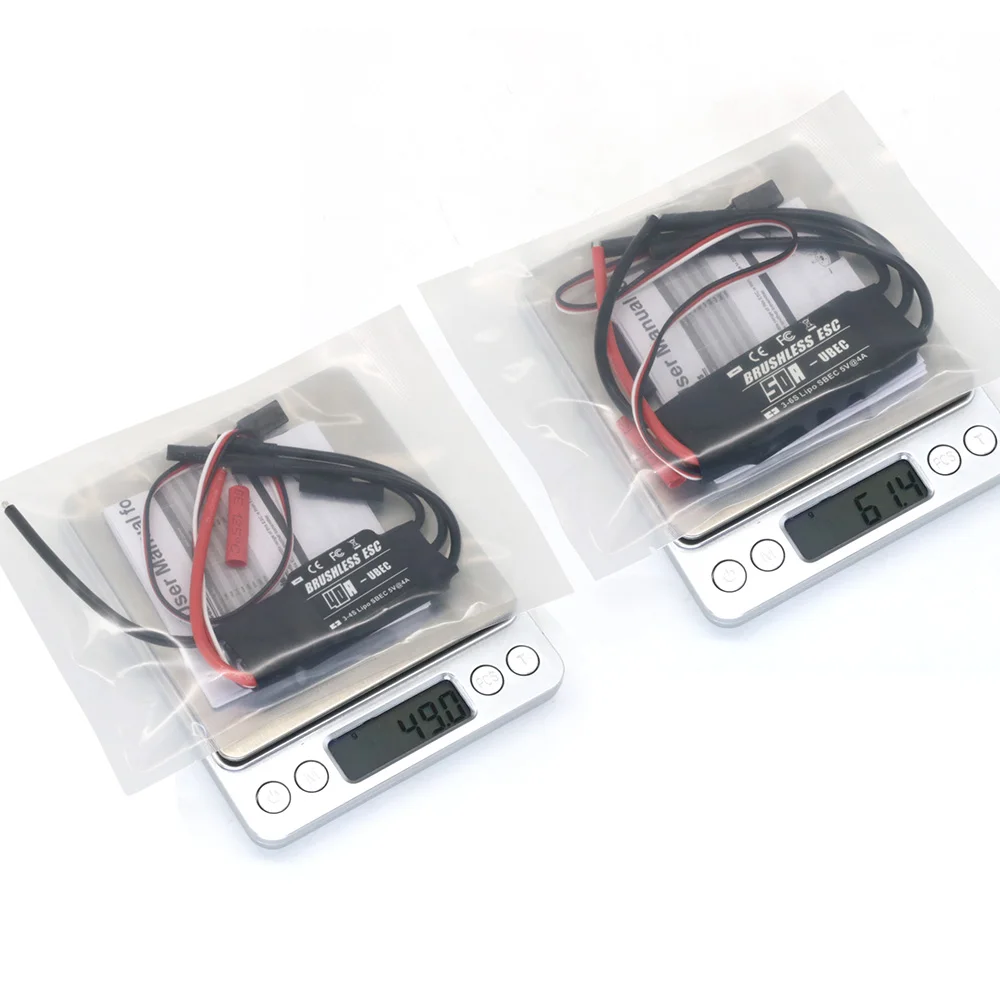

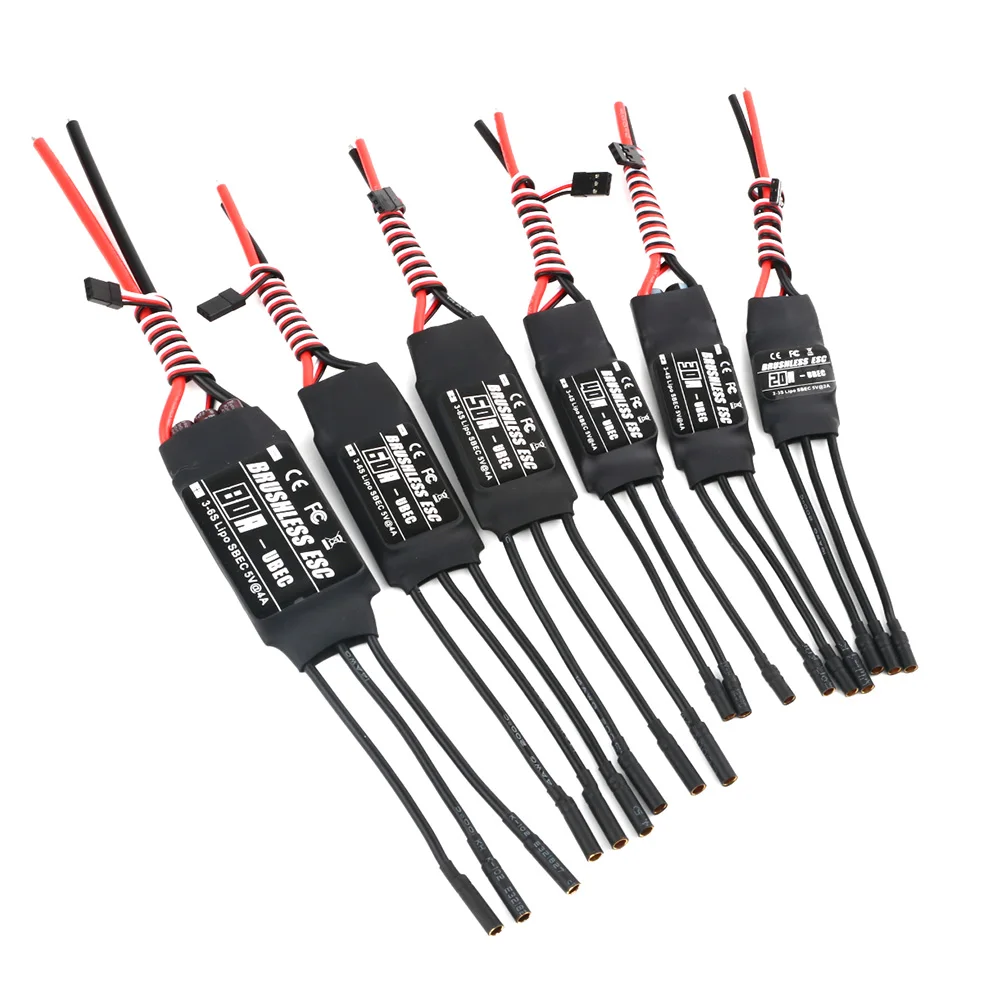

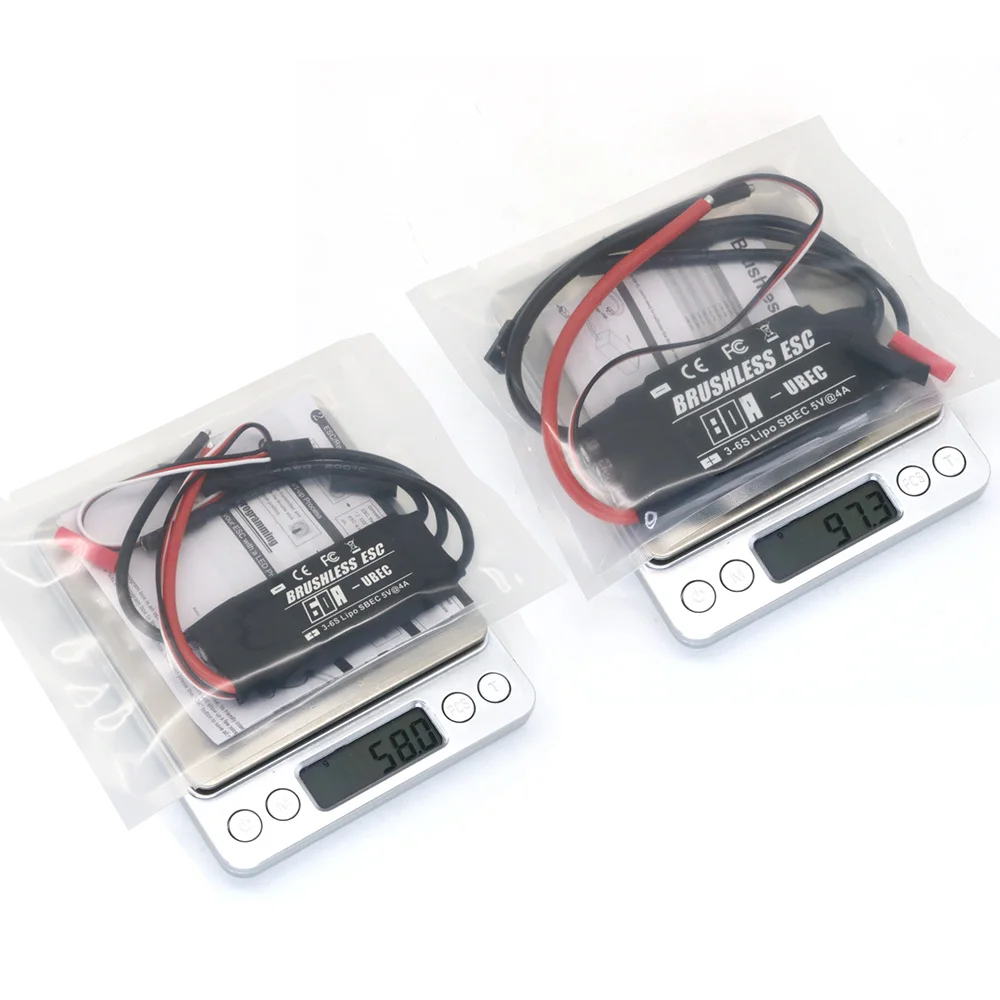

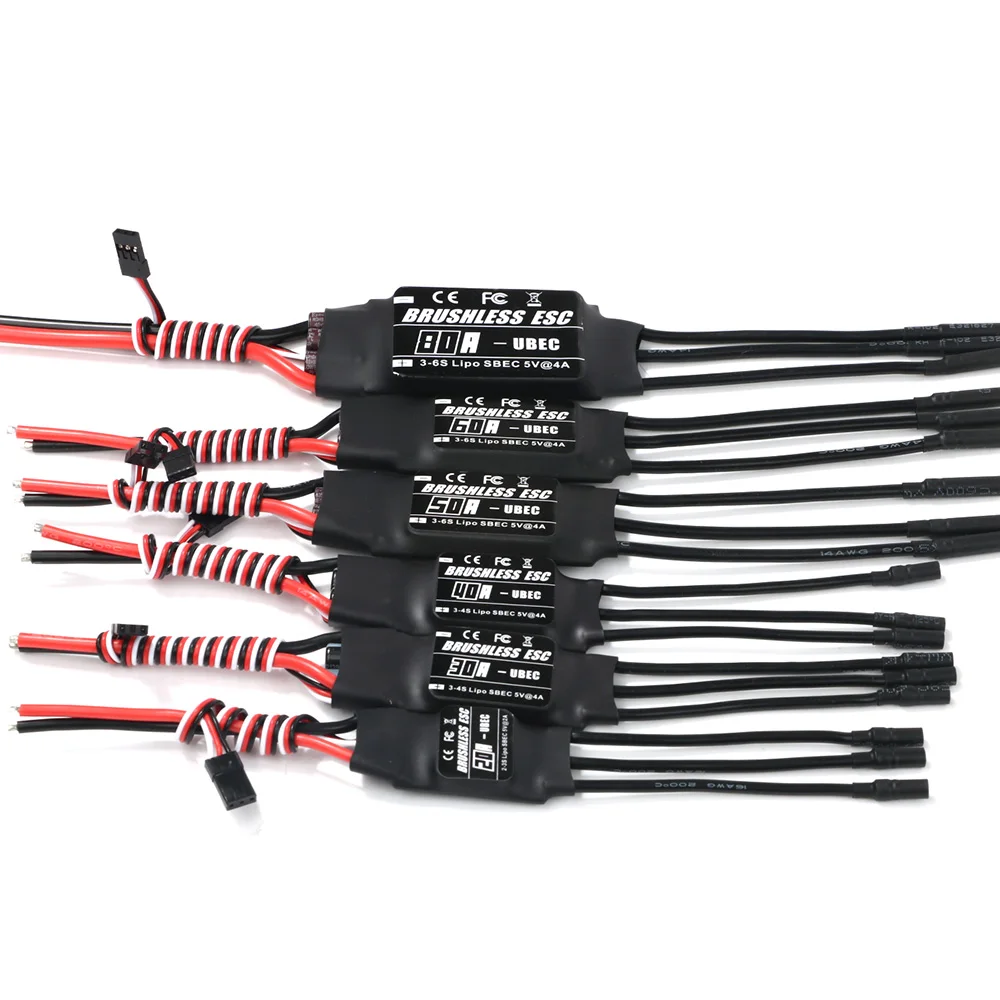

Wight and size：
20A:37G 145*110*12MM PE bag+menual
30A:48G 145*110*12MM PE bag+menual

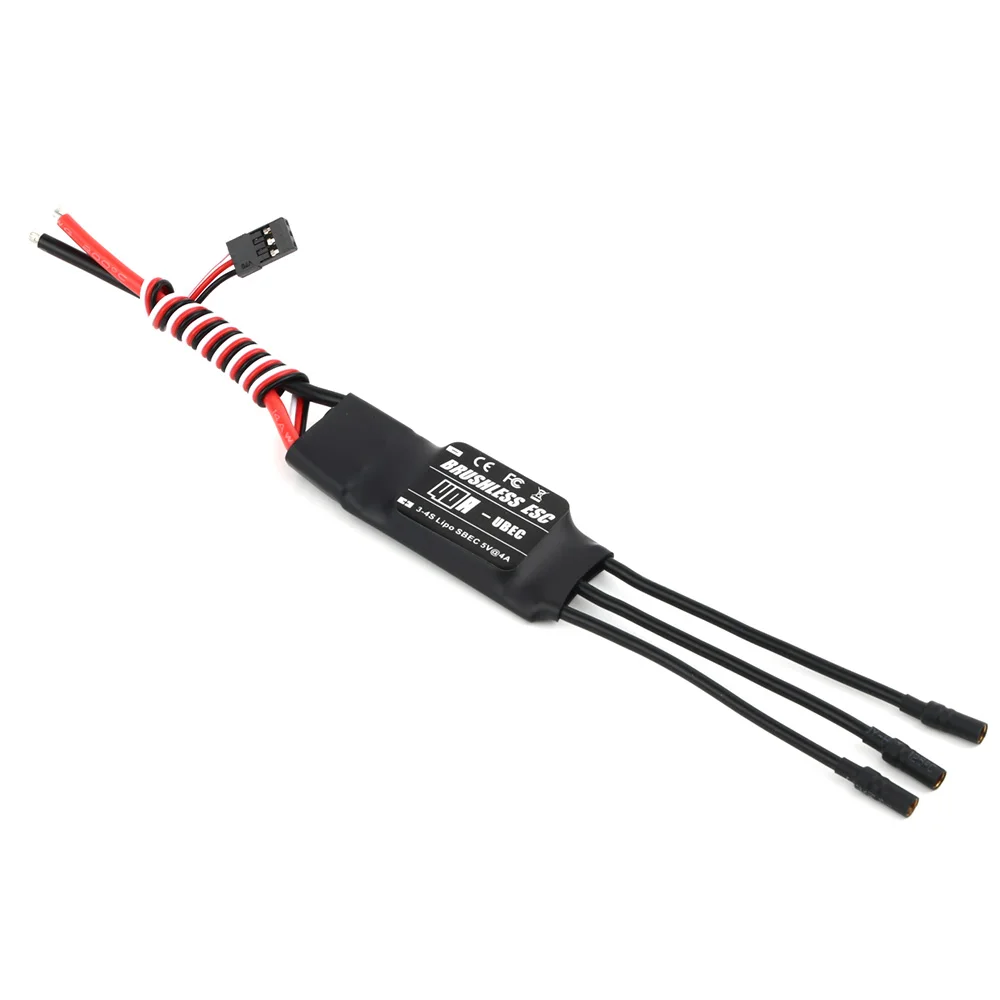

40A:50G 145*110*12MM PE bag+menual

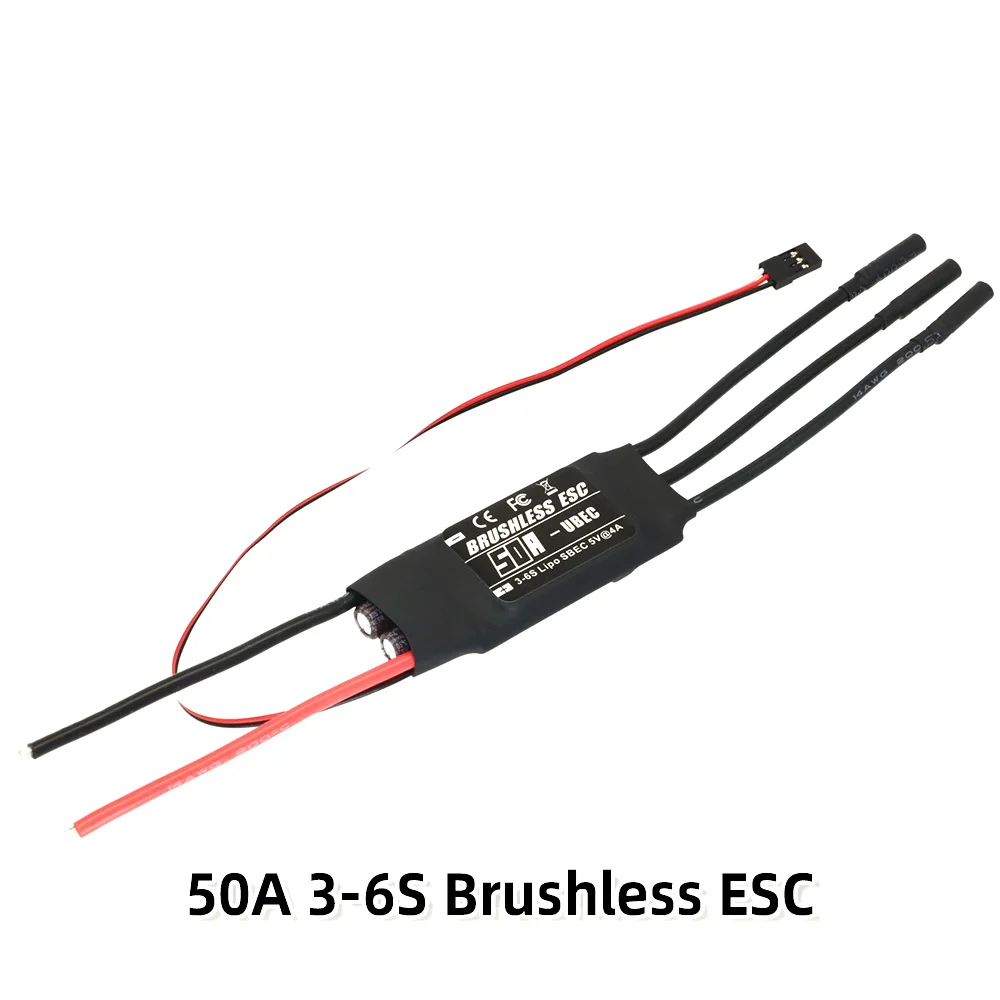

50A:60G 145*110*12MM PE bag+menual
60A:62G 145*110*12MM PE bag+menual

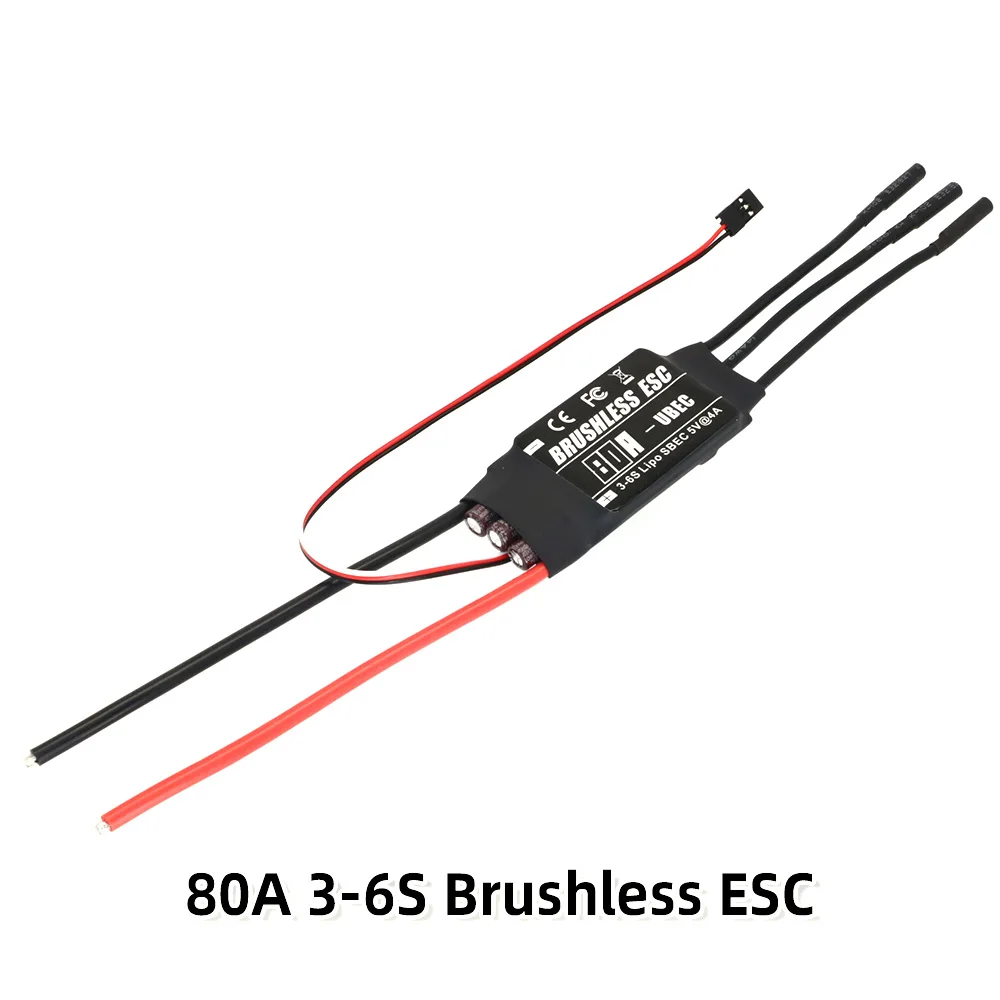

80A:98G 145*110*12MM PE bag+menual

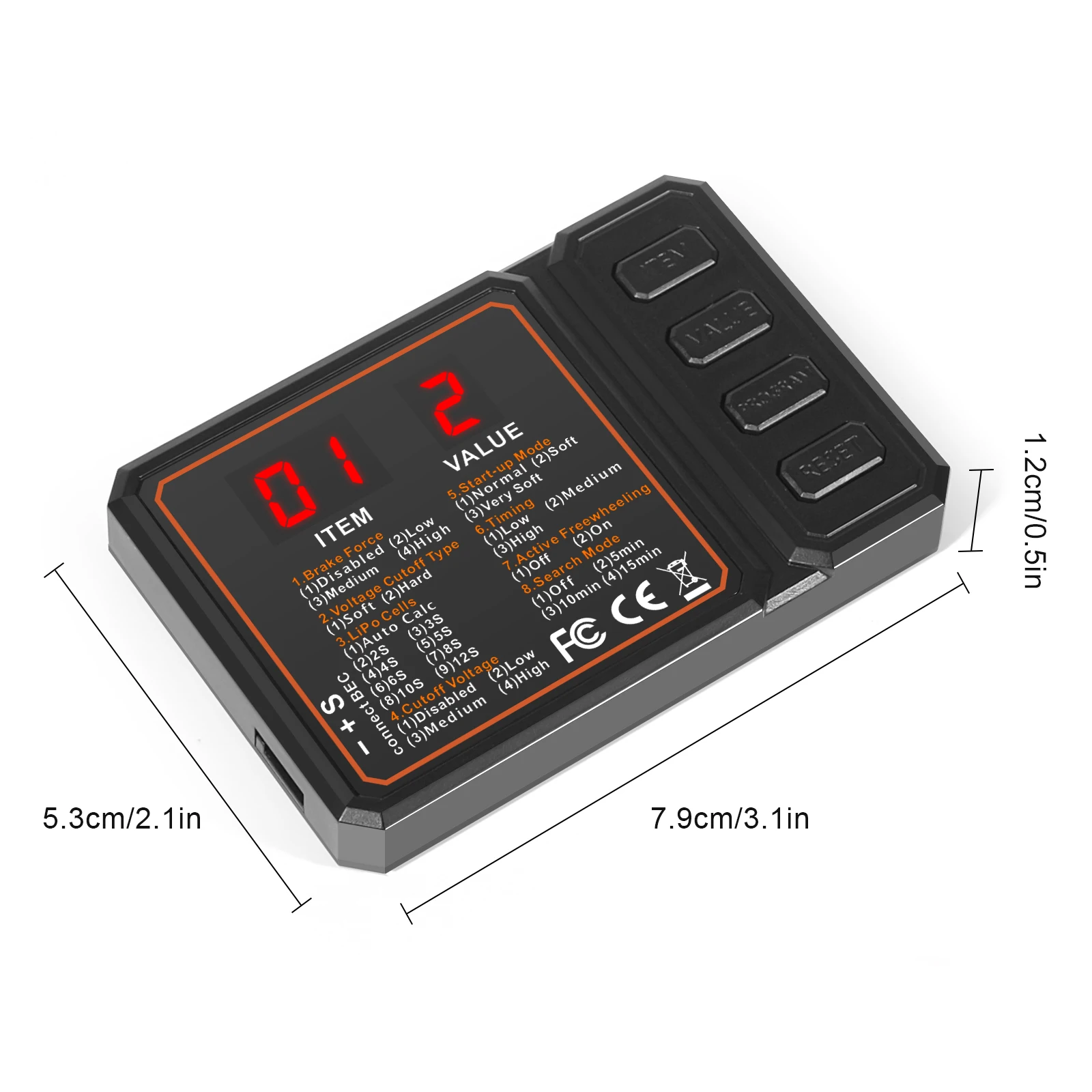

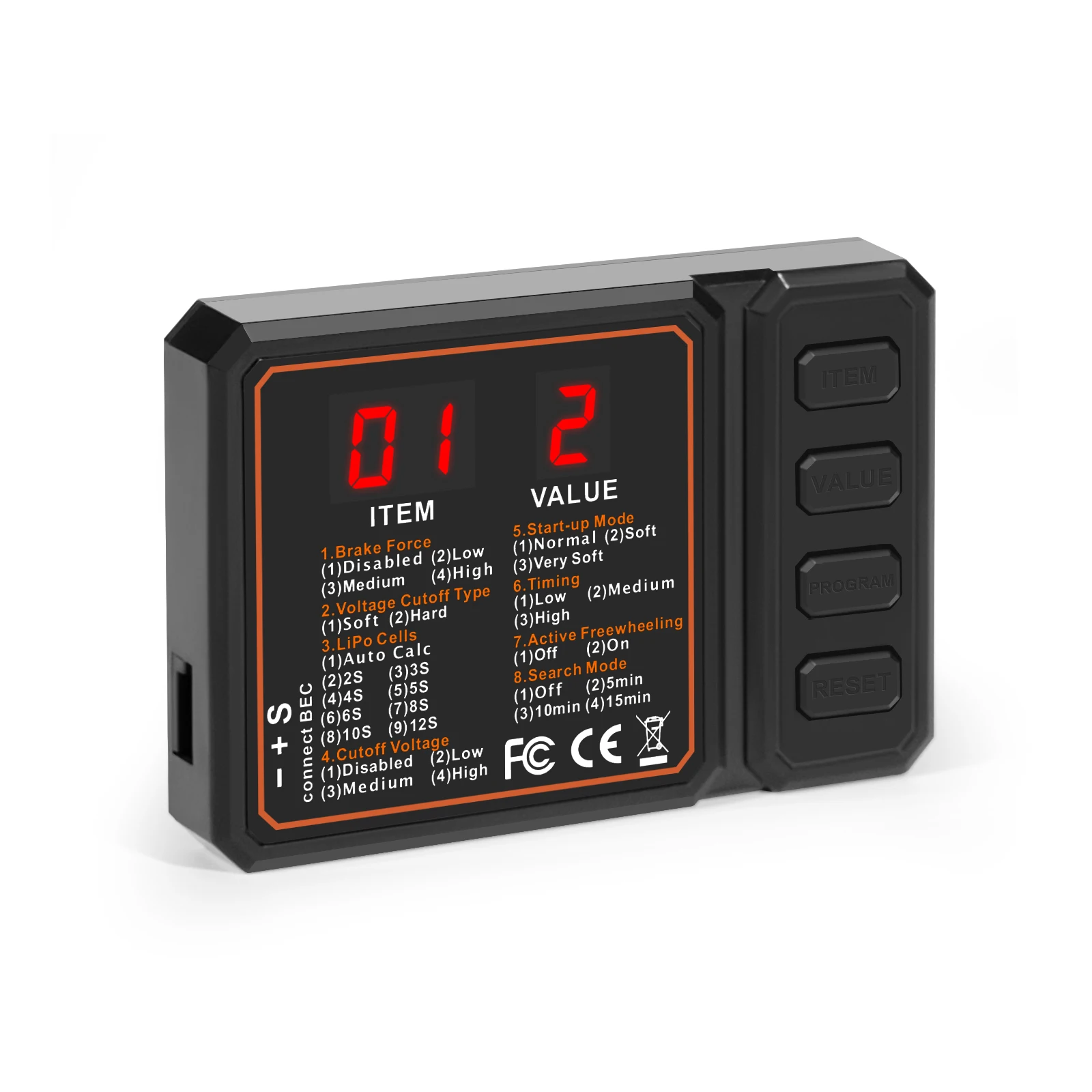

Programming card :35G 83*55*14MM PE bag

programming card needs to be sold with electrical adjustment, programming card can only be used for our electrical adjustment

Certification data: CE FCC RHOS

Attention! The default throttle range of this ESC is from 1100µs to 2000 U S (Futaba’s standard); users need to calibrate the throttle range when they start to use a new

brushless ESC or another transmitter.

Note: Those values marked with * in the form below are the factory default settings.

1. Brake Force

The brake function will be activated when you move the throttle stick to the bottom position. In this mode, the brake amount equals to the brake force you’ve preset.

2. Voltage Cutoff Type

2.1 Soft Cutoff

After selected this option, the ESC will gradually reduce the output to 60% of the full power in 3 seconds after the low-voltage cutoff protection is activated.

2.2 Hard Cutoff

After selected this option, the ESC will immediately cut off the output when the low-voltage cutoff protection is activated.

3. LiPo Cells

The ESC will automatically calculate the number of LiPo cells you have plugged in as per the “3.7V/Cell” rule if “Auto Calc.” is selected, or you can set this item manually.

Note: 15A, 20A can only select the following parameters: automatic calculation, 2S,3S.

4. Cutoff Voltage

If set off, the low-voltage protection function is disabled. In addition, the protection voltage value of the low-voltage protection function corresponding to the low/medium/three modes is about 2.8V/ section, 3.0V/ section

and 3.4V/ section. This value is the voltage of a single battery, multiplied by the number of lithium batteries automatically identified by the electronic governor or the number of lithium batteries manually set, which is the

protection voltage value of the battery. (For example, if the low voltage protection threshold of 3 lithium batteries is medium, the protection voltage of the batteries is 3X3.0=9.0V)

5. Start-up Mode

This is used to adjust the throttle response time of ESC acceleration from 0% to 100%. Normal/Soft/Very Soft correspond to approximately 200ms/500ms/800ms respectively

6. Timing

Can adjust the drive motor timing value. The low / Medium and high are respectively: 5°/15°/25°.

7. Active Freewheeling (DEO)

This item is adjustable between “Enabled” and “Disabled”, and it is enabled by default. With it enabled, you can have better throttle linearity or smoother throttle response.

8. Search Mode

After selected this option, ESC will drive the motor chirping prompt when the throttle is keep 0% and continues to the set time.
