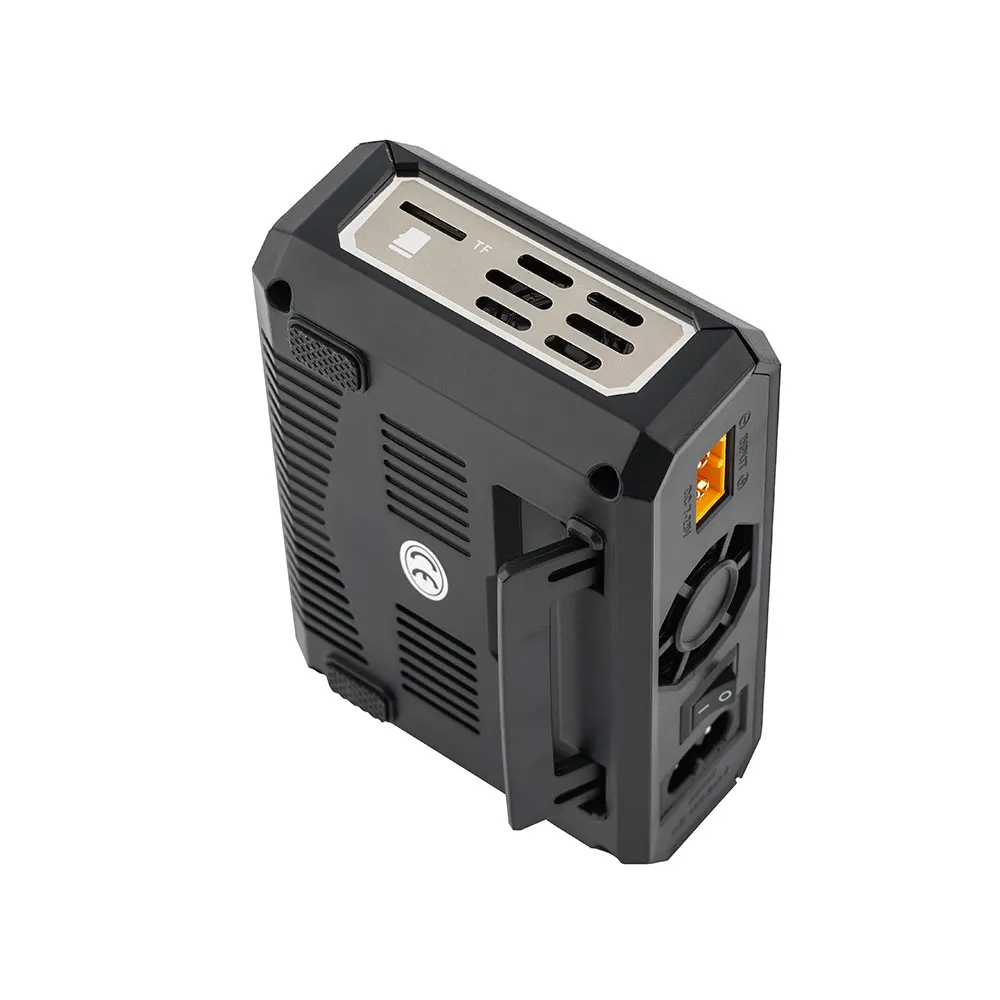

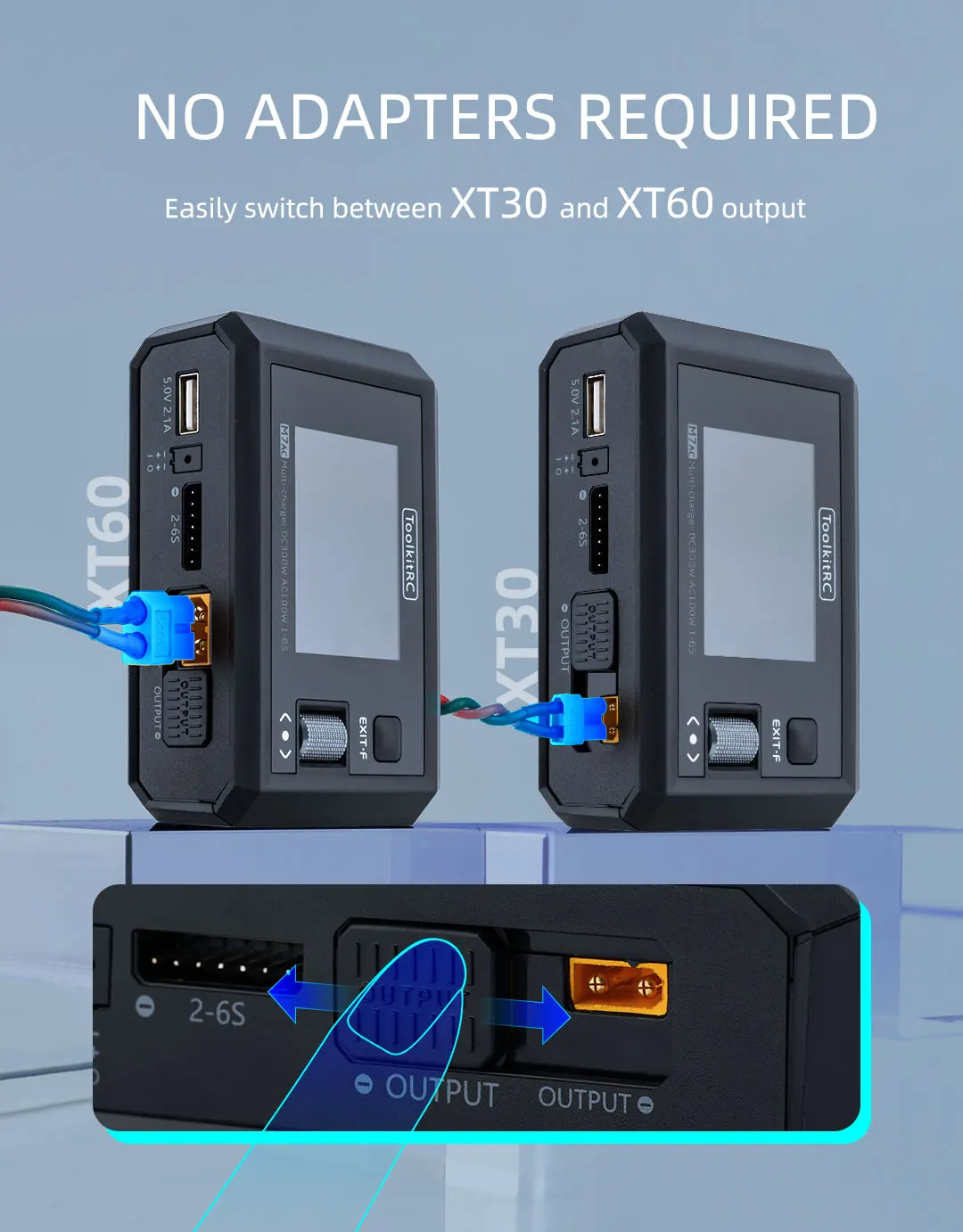

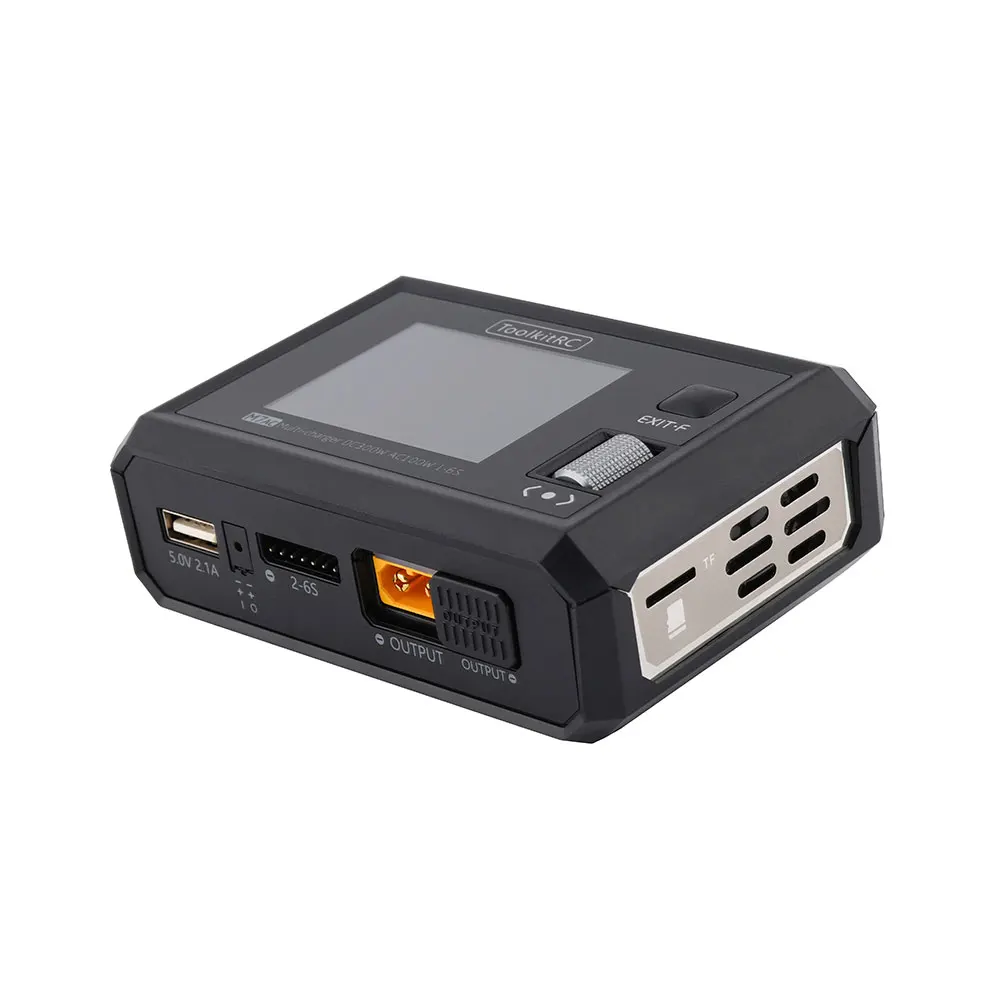

ToolkitRC M7AC 100W AC / 300W DC Input XT60 XT30 Output Multifunction Suppot Dual Smart Charger Signal Tester Drone Charge
Price range: $296.38 through $305.90
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Battery
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: Y
Is it charger/adapter: N
Material: Metal
Model Number: M7AC
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Batteries – LiPo
Recommend Age: 14+y
Remote Control Peripherals/Devices: Battery Charging Units
Size: 112*73*38mm
Technical parameters: value 2
Tool Supplies: Dual Smart Charger
Upgrade Parts/Accessories: Lithium Battery
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

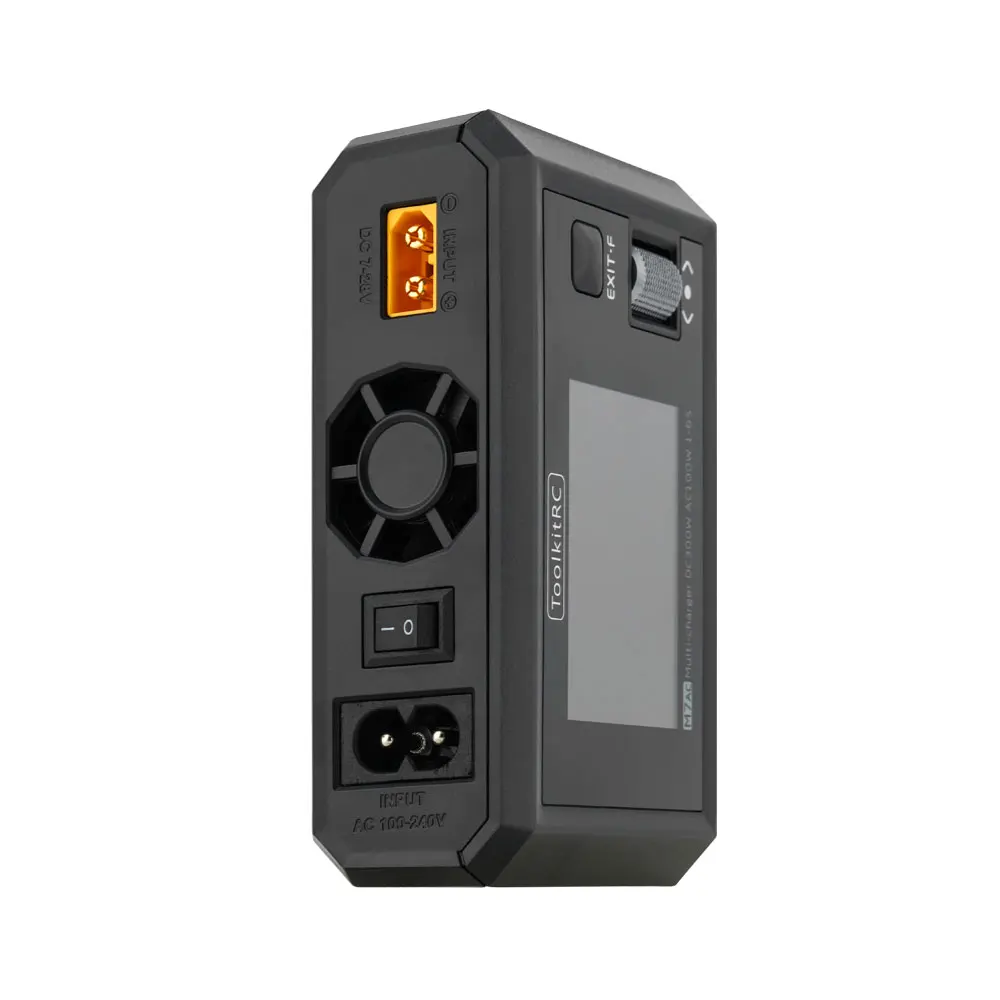

input voltage：AC 100-240V MAX 100W 1.5A
DC 7.0-28.0V @MAX 20A
battery type:Lipo LiHV LiFe Lion LTO@1-6S
NiMh @1-16S Pb @1-10S
balance current:800mA @ 4.2V
charging power:300W @MAX 15A
discharge power:300W @MAX 15A Recycle mode
15W@3A Normal mode
USBA:10W@5.0V or Upgrade
General
product size:112*73*38mm
product weight:245g
packing size:144*125*43mm
packaging weight:380g

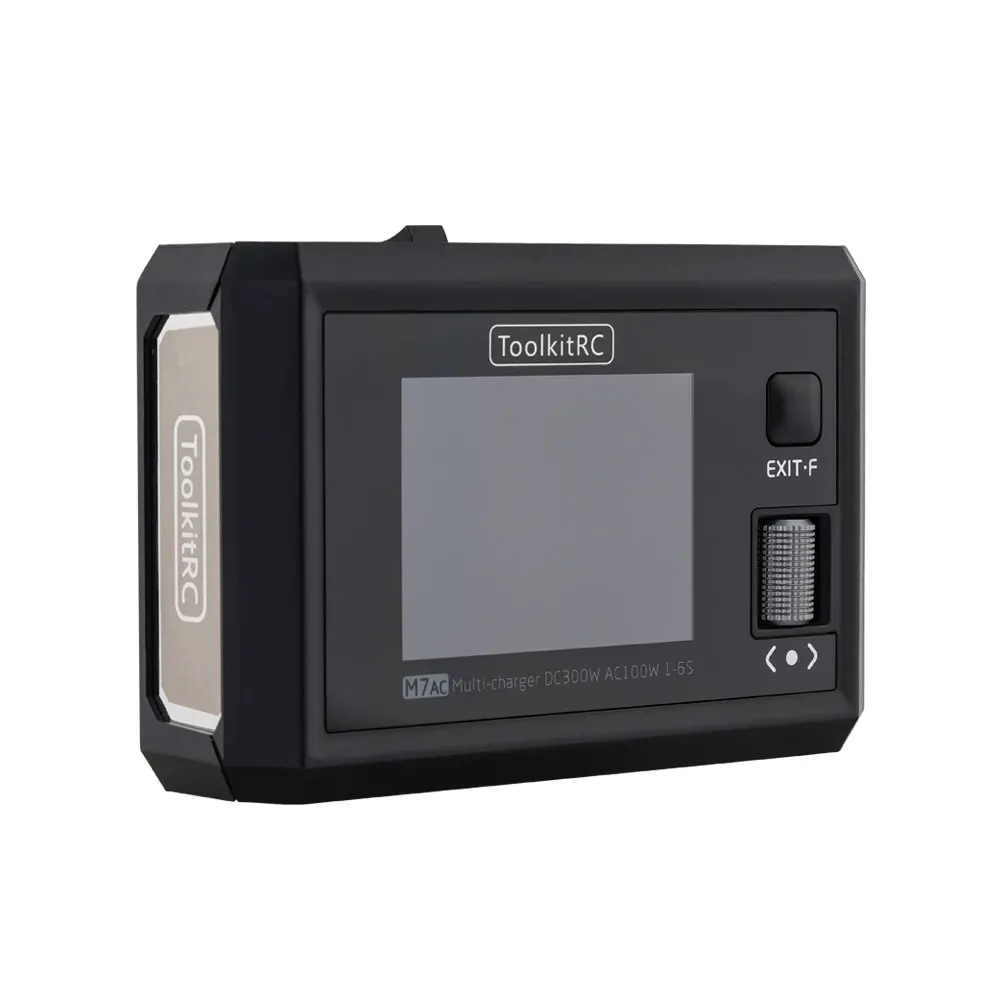

LCD:IPS 2.4 inch LCD 320*240
Measurer
PWM:880-2200us @ 20-400Hz
PPM:880-2200us * 8CH @ 20-50Hz
SBUS:880-2200us * 16CH @ 20-100Hz
voltage:1.0-5.0V @ 1-6S
Internal resistance:0.1 mR-99mR @ 1-6S
ESC:300W @ 15A

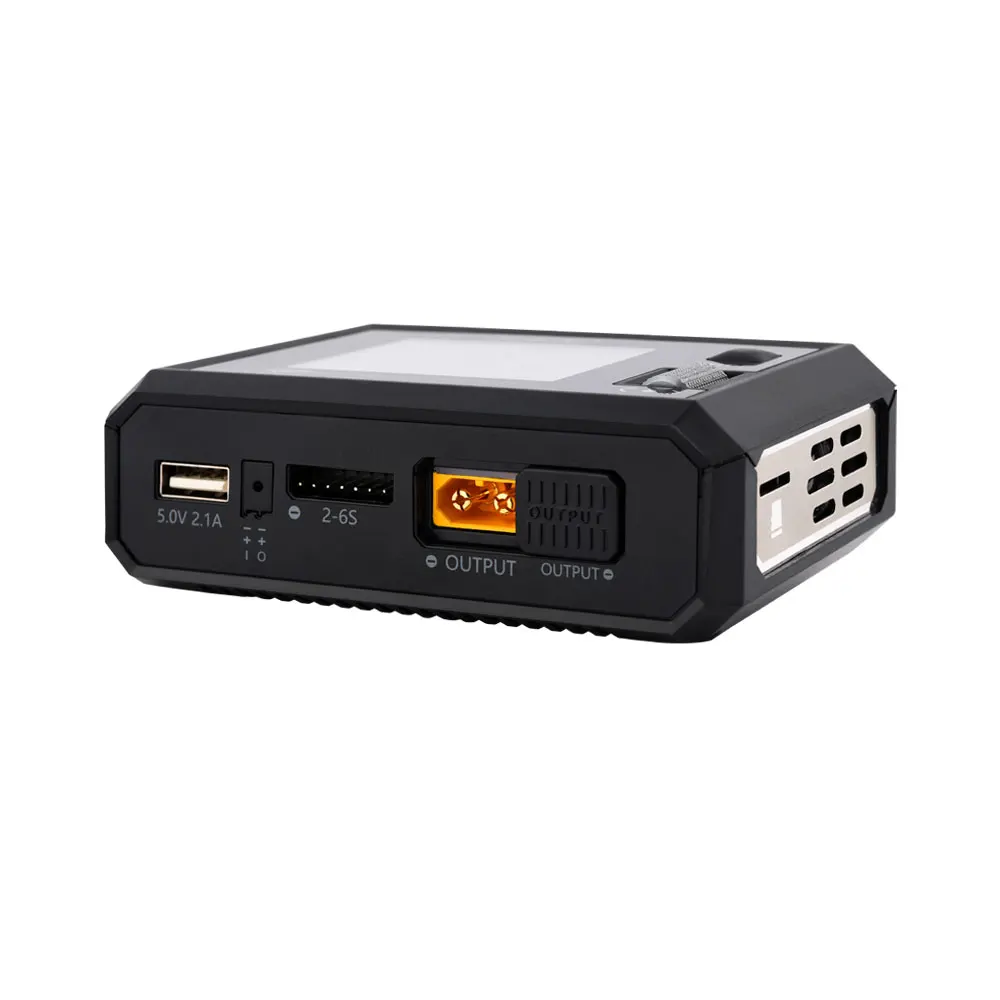

Output
PWM:500-2500us @ 20-1000Hz
PPM:880-2200us * 8CH @ 20-50Hz
SBUS:880-2200us * 16CH @ 20-100Hz
power supply:1.0-28.0V @0.5-15A mode:CC CV
Overcurrent response:<5ms
| Plug Type | EU Plug, US Plug |
|---|
