Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Motors
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: CYW115
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Motor Components
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Size: 95*85*62mm
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Brushless Motor
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

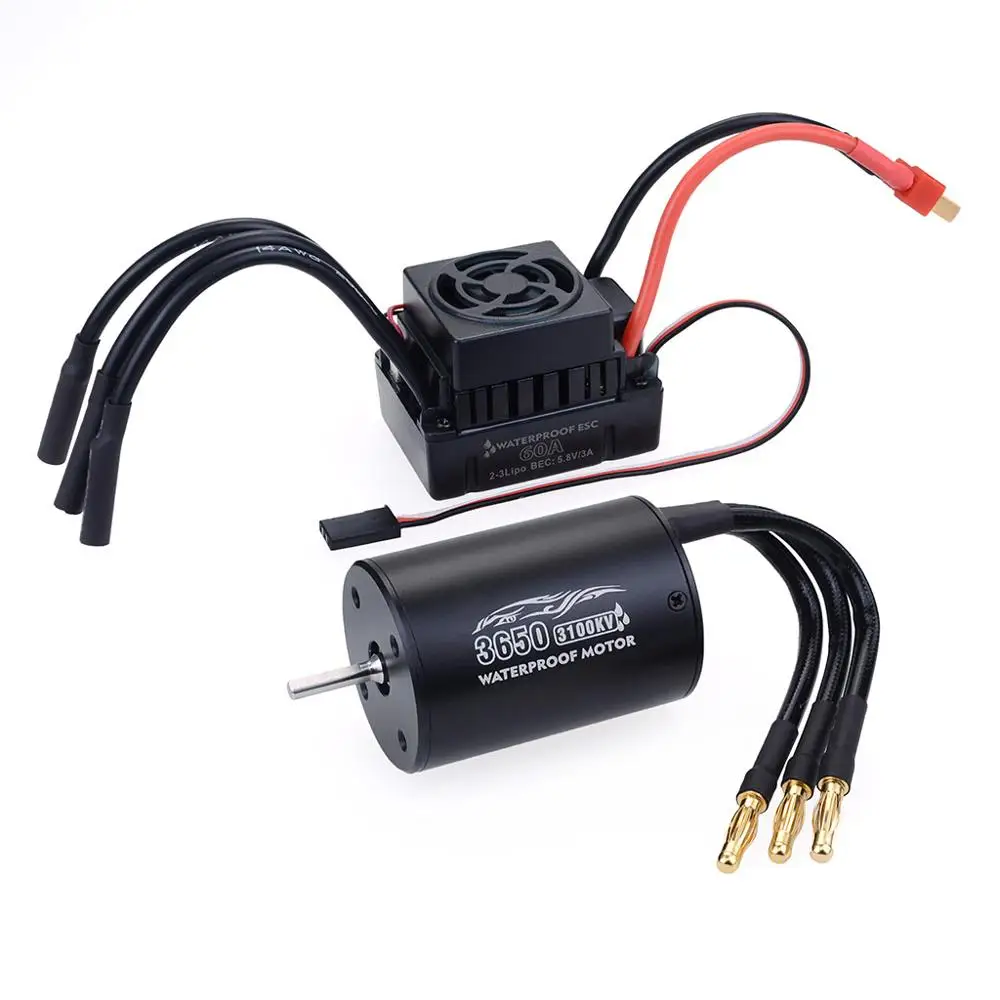

4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator – Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Motor Specifications：
3650 2300KV Motor
Watts: 900W
Max voltage: <22V
Max Amps: 41A
KV(RPM/Volt): 2300KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
3650 3100KV Motor
Watts: 900W
Max voltage: <16V
Max Amps: 56A
KV(RPM/Volt): 3100KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
3650 3900KV Motor
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 3900KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
60A ESC Specifications:
Item name: waterproof ESC
Continue current: 60A
Burst current: 360A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 51.5 * 38.5 * 38.5mm (without cables)
Additional information
| Color | 3650 2300KV Combo, 3650 3900KV Combo, 3650 3100KV Combo |
|---|
