Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: servos
High-concerned chemical: None
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: SP-860010-02
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Servos
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Size: 23*12*27.3mm
Technical parameters: value 2
Tool Supplies: servos
Upgrade Parts/Accessories: servos
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
S0017M
Brand: SURPASS Hobby
Model: S0017P
Torque: 2.3kgf.cm at 4.8V; 2.6kgf.cm at 6V;
No load speed: 0.19s/60° at 4.8V; 0.16s/60° at 6V;
Product weight: 15g(0.53oz);
Boundary dimension: 28*13.2*29.6mm (1.1*0.52*1.2 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: DC motor;
Gear type: Plastic gear;
S0017M
Torque: 3.2kgf.cm at 4.8V; 3.5kgf.cm at 6V;
No load speed: 0.23s/60° at 4.8V; 0.20s/60° at 6V;
Product weight: 21g (0.74oz);
Boundary dimension: 28*13.2*29.6mm (1.1*0.52*1.2 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: DC motor;
Gear type: Metal gear;

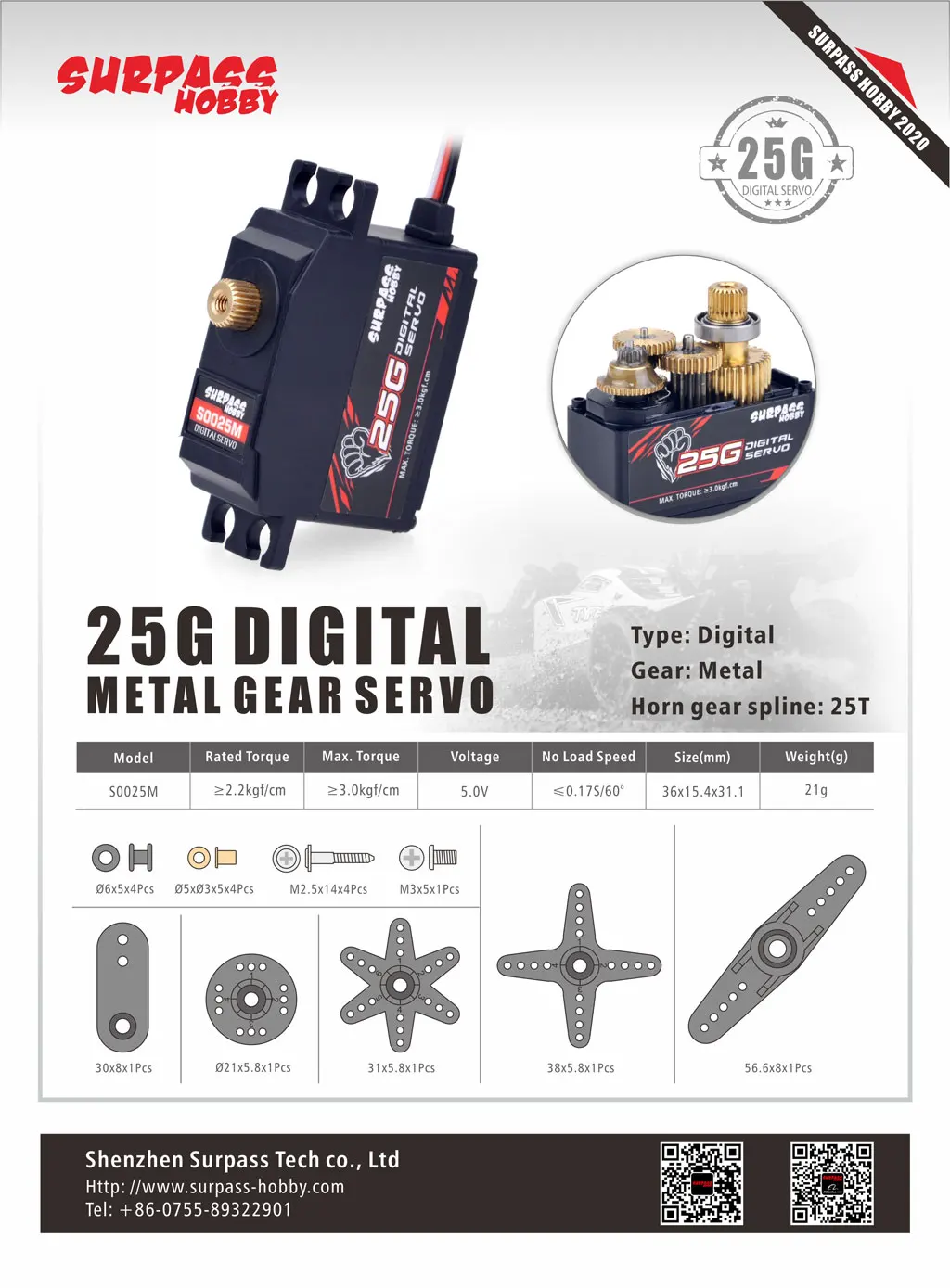

S0025M
Torque: 2.2kgf.cm at 4.8V; 3.0kgf.cm at 6V;
No load speed: 0.08s/60° at 4.8V; 0.06s/60° at 6V;
Product weight: 30g(1.05oz);
Boundary dimension: 36*15.4*31.1mm (1.41*0.60*1.22 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: core motor;
Gear type: metal gear;

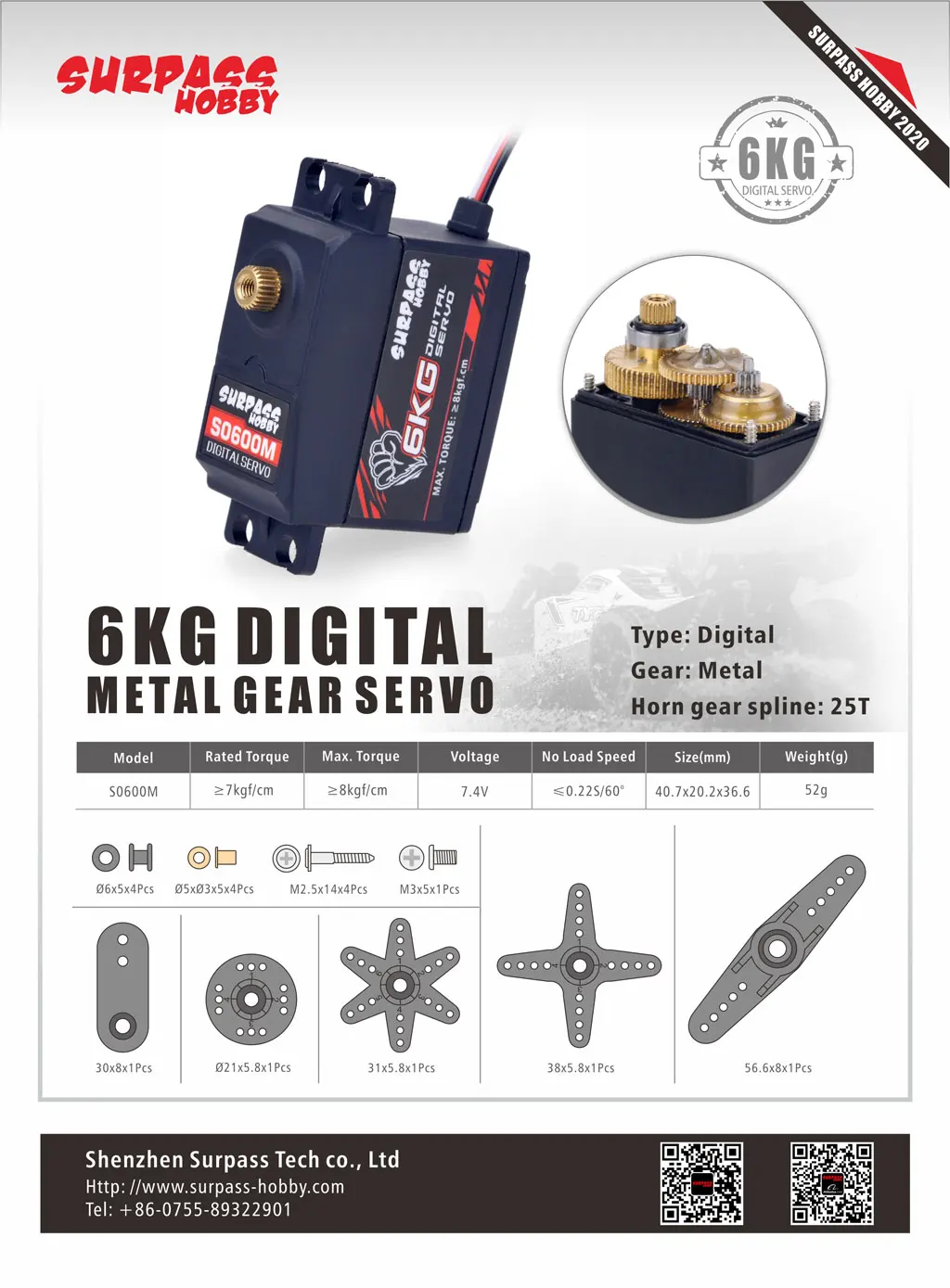

S0600M
Locked-rotor torque: 7kgf.cm at 4.8V; 8kgf.cm at 6V;
No-load speed: 0.18s/60° at 4.8V; 0.16s/60° at 6V;
Product weight: 50g (1.76oz);
Dimensions: 40.7*20.2*36.6mm (1.60*0.79*1.44 inch);
Working voltage: 4.8V~6VDC;
Working frequency: 1520us/333Hz;
Motor type: DC motor;
Gear type: metal gear;
Bearing type: 2BB;
If using a voltage regulator, please maintain the voltage at 4.8V~6VDC
S0900M
Locked rotor torque: 10kgf.cm at 4.8V; 14kgf.cm at 6V;
No-load speed: 0.21s/60° at 4.8V; 0.19s/60° at 6V;
Product weight: 55g (1.94oz);
Appearance size: 36.6*20.2*40.7mm (1.44*0.79*1.60 inch);
Operating voltage: 4.8V~6VDC;
Working frequency: 1520us/333Hz;
Motor type: DC motor;
Gear type: metal gear;
Bearing type: 2BB;
If using a voltage regulator, please maintain the voltage at 4.8V~6VDC

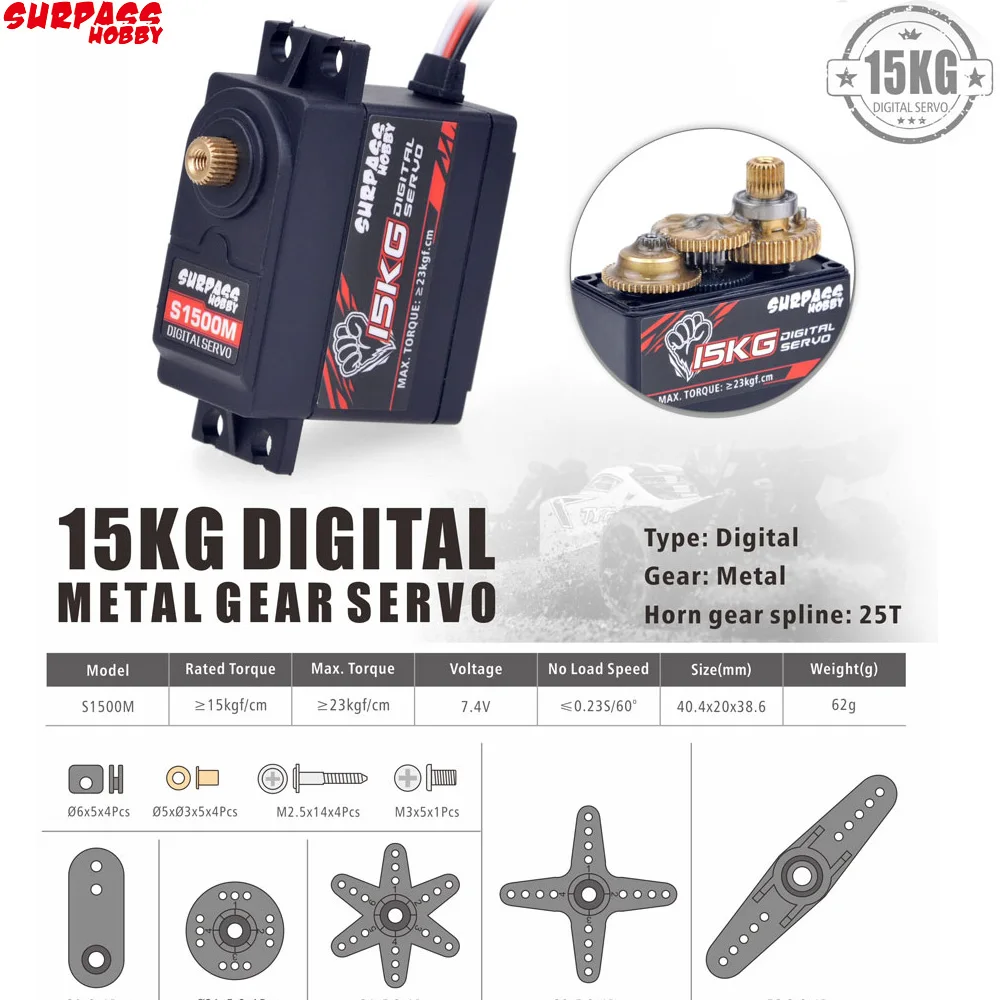

S1500M
Stall Torque : 15Kgf.cm at 6.0V;23Kgf.cm at 7.4V；
No Load Speed：0.20s/60° at 6.0V；0.18s/60° at 7.4V；
Weight : 58g(2.11oz);
Outside Dimension : 40.4*20.0*38.6mm（1.59*0.79*1.51 inch）;
Working Voltage : 6.0~7.4VDC;
Working Frequency：1520μs/333Hz；
Motor Type : DC Motor ;
Gears Type : Metal Gear ;
Bearing Type：2BB；

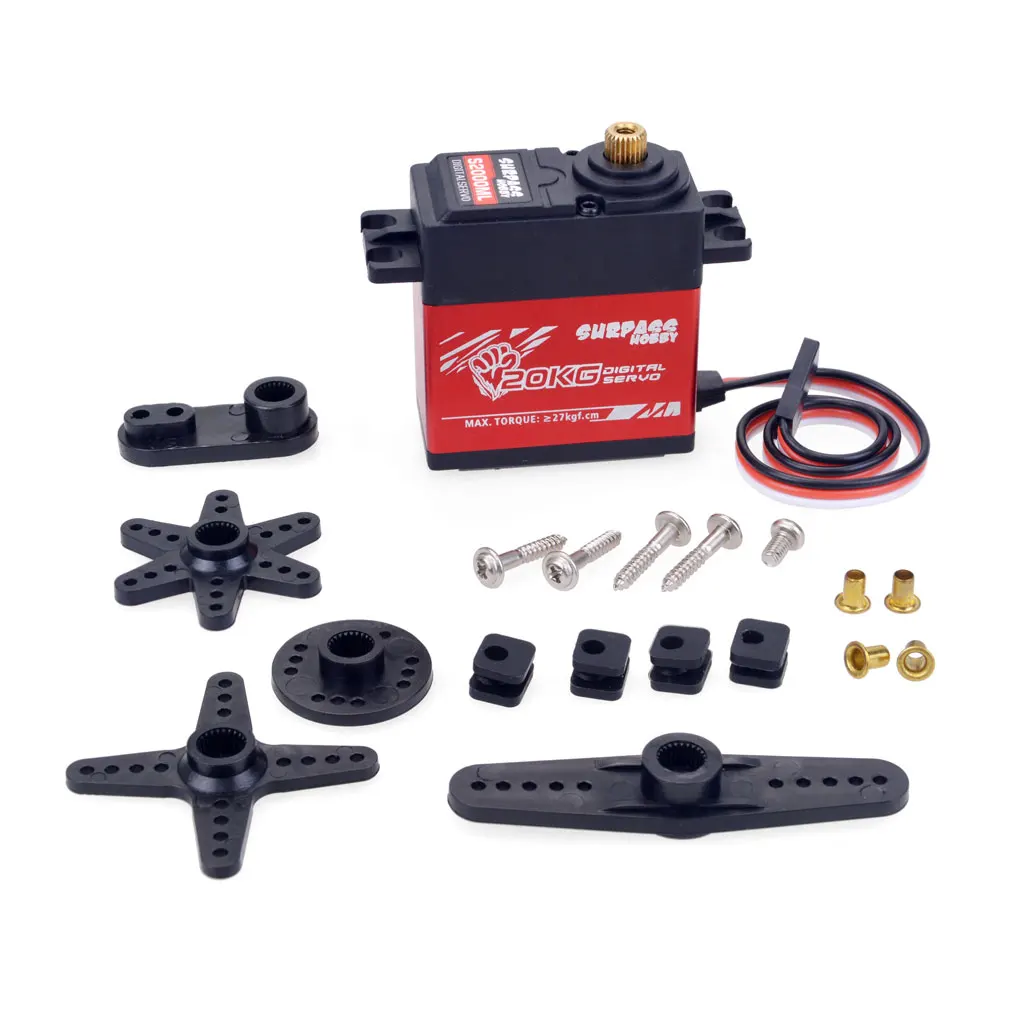

S2000ML
Stall Torque : 20Kgf.cm at 7.4V;
No Load Speed：0.2s/60° at 7.4V；
Weight : 58g(2.11oz);
Outside Dimension : 40.4*43.5*20mm;
Working Voltage : 7.4VDC;
Working Frequency：1500μs/333Hz；
Gears Type : Metal Gear ;
Bearing Type：2BB
Additional information
| Color | 17g S0017M, 20kg S2000ML, 9g S0009M, 25g S0025M, 6kg S0600M, 9kg S0900M, 15kg S1500M |
|---|
