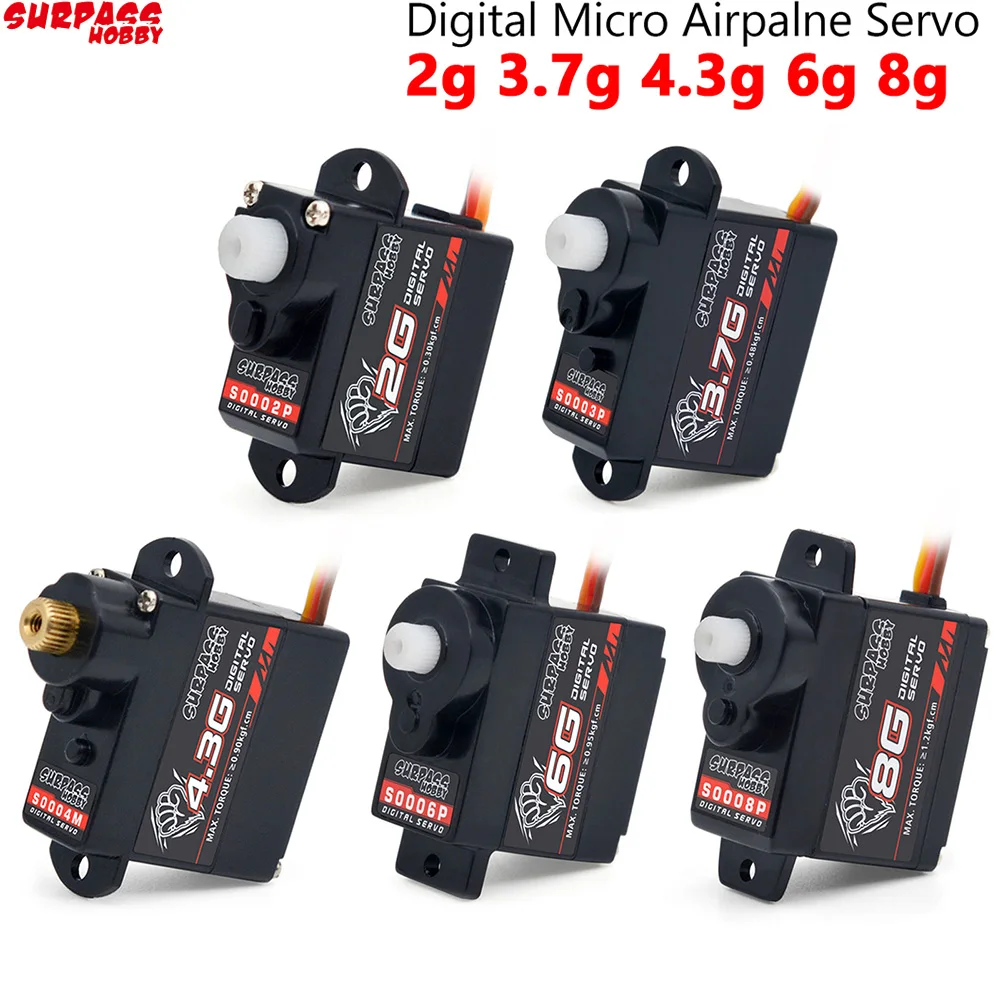

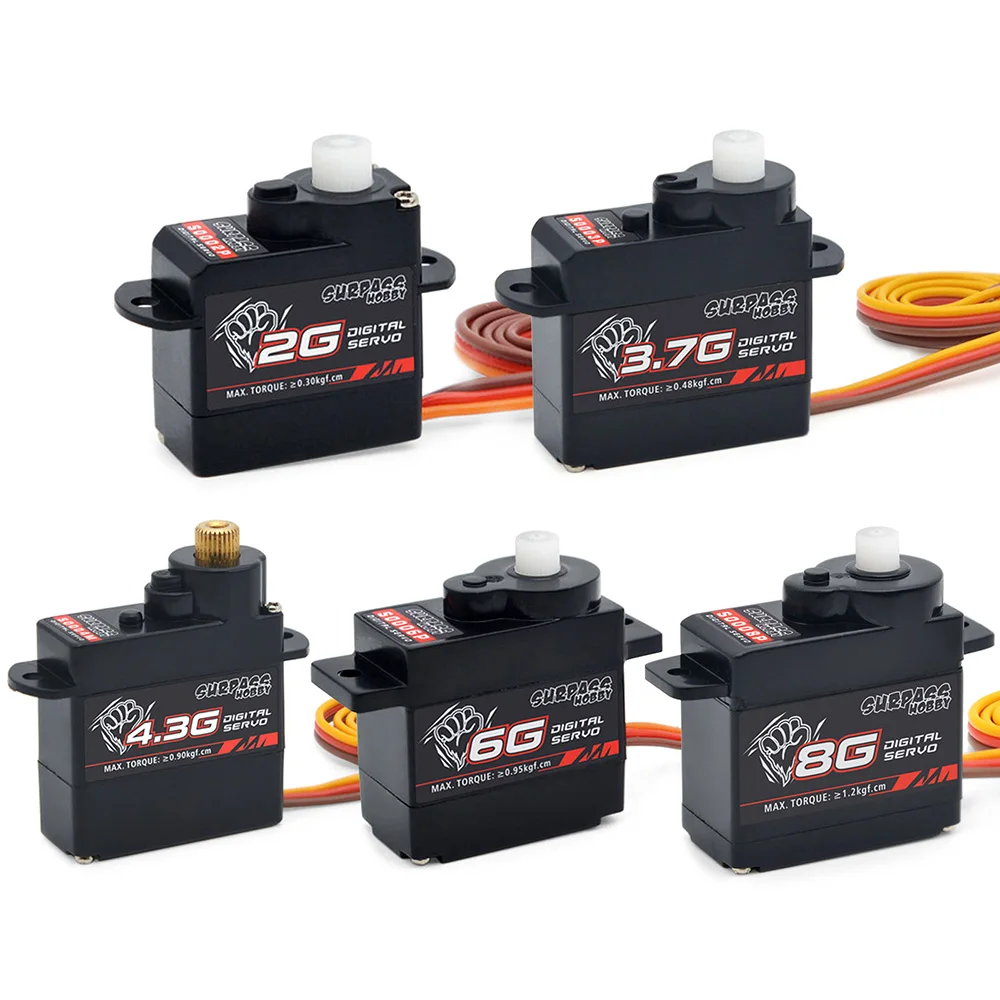

Surpass Hobby 2g 3.7g 4.3g 6g 8g Micro Digital Mini Servo Metal and Plastic Gear for Rc Drone Airplane Fixed-wing Car Robot
Price range: $20.62 through $51.73
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Other
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: CYW599
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Servos
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Size: 16.7×8.2x17mm
Technical parameters: value 2
Tool Supplies: Other
Upgrade Parts/Accessories: Other
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

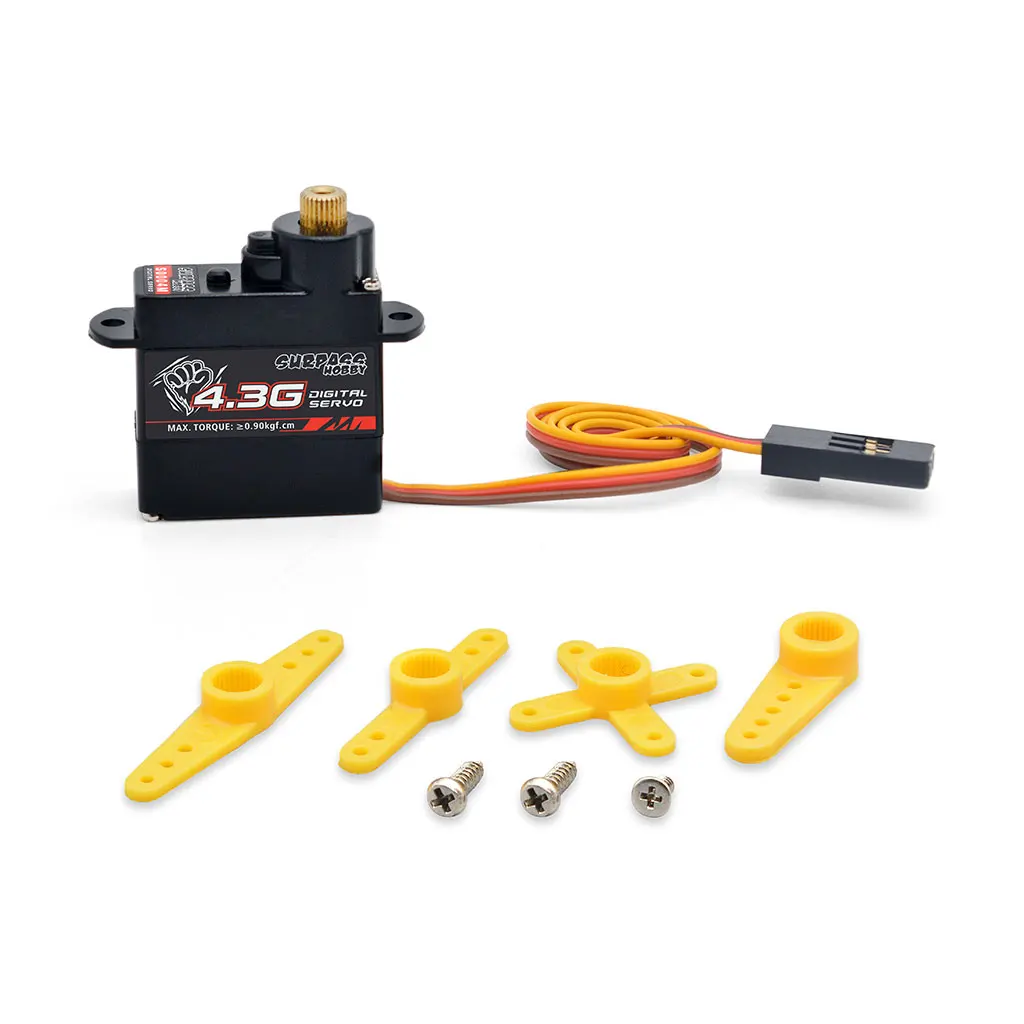

S0004M 4.3g Metal gear digital servo
Voltage: 4.8-6.0V DC
Torque *:≥0.65kgf·cm at 6.0V
Speed * : ≤0.12sec/60° at 6.0V
Operating Angle: 90°±10°(1000~2000μs)
Mechanical limit Angle: 360°
Weight: 5.8± 0.2g
Size: 20.2×8.5 x24.1mm
Shell material: ABS
Motor type: hollow cup motor"

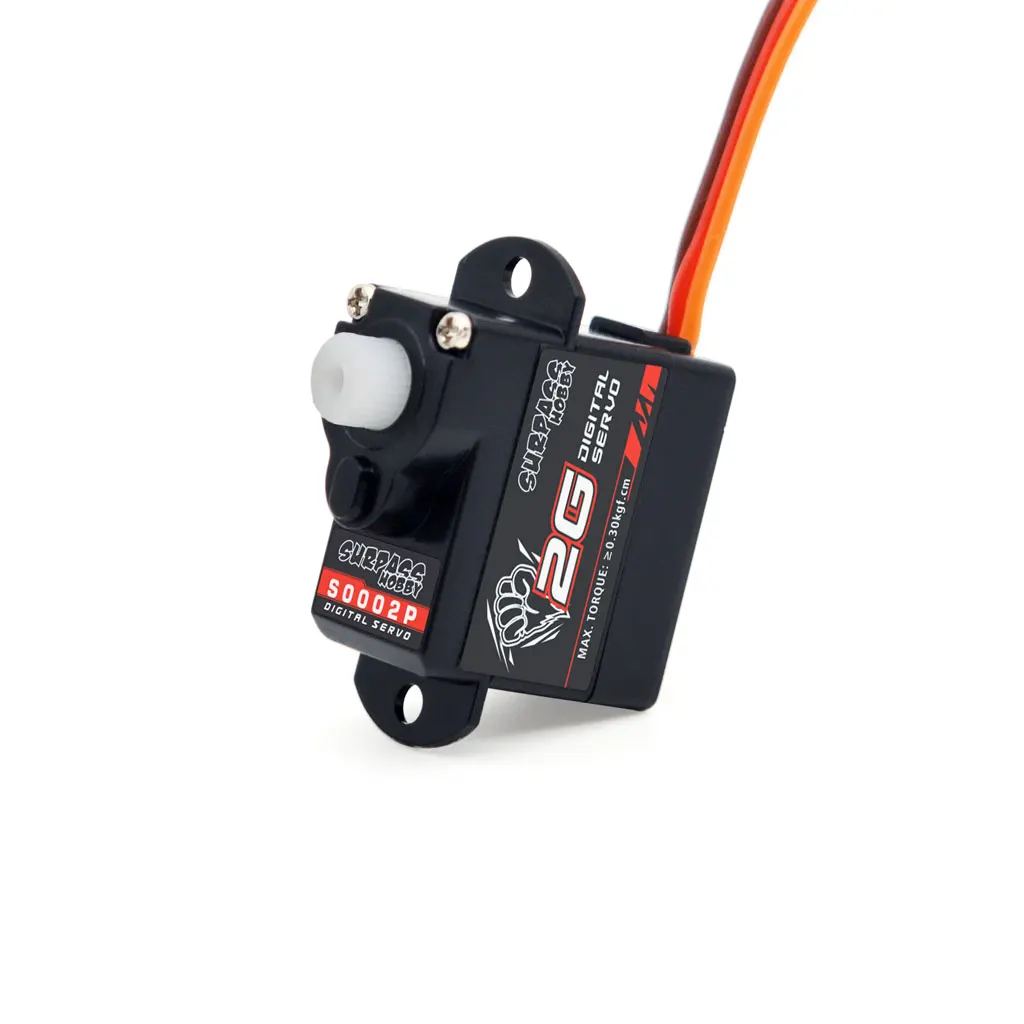

S0002P 2g plastic gear digital servo
Voltage: 3.7~4.2V DC
Torque *:≥0.4kgf·cm at 4.2V
Speed * : ≤0.06sec/60° at 4.2V
Operating Angle: 180°±10°(500~2500μs)
Mechanical limit Angle: 360°
Weight: 2.2 g
Size: 16.7 × 8.2 × 17mm
Shell material: ABS
Motor type: hollow cup motor"

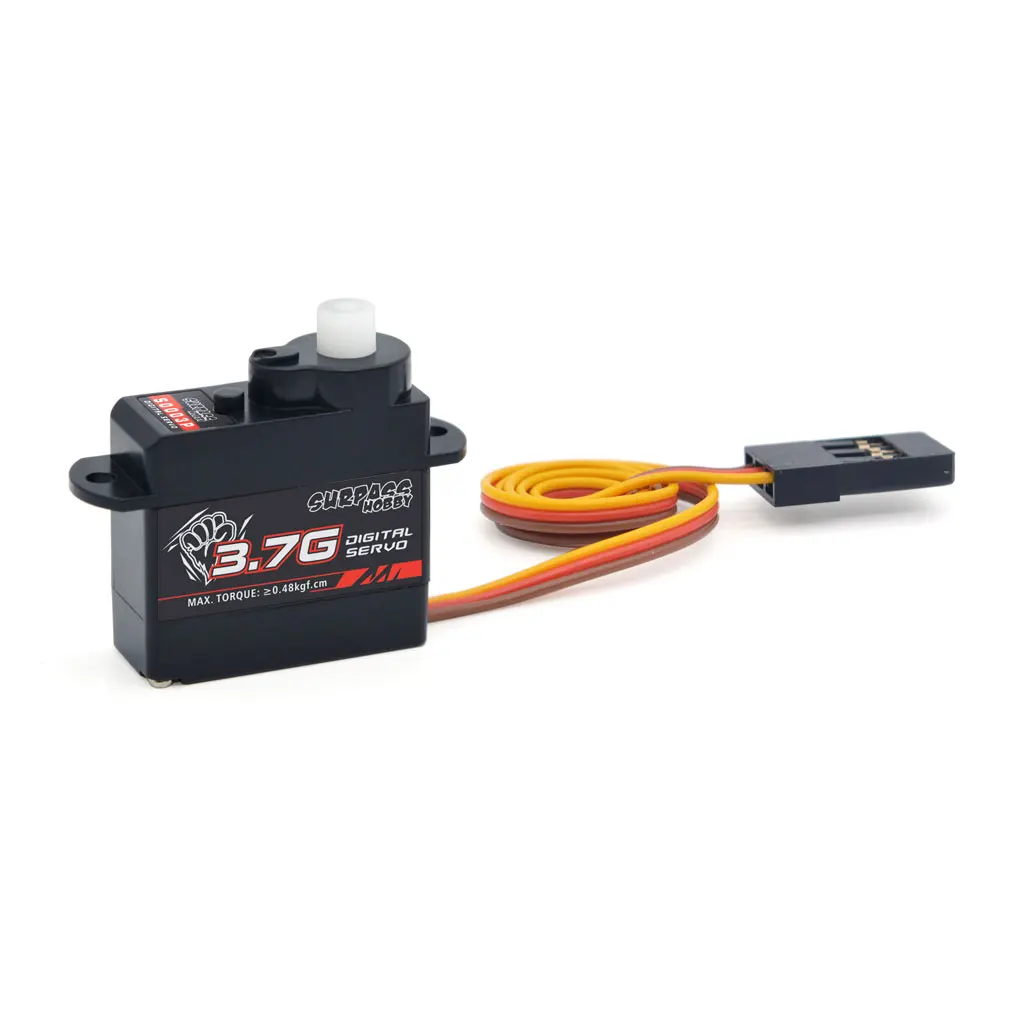

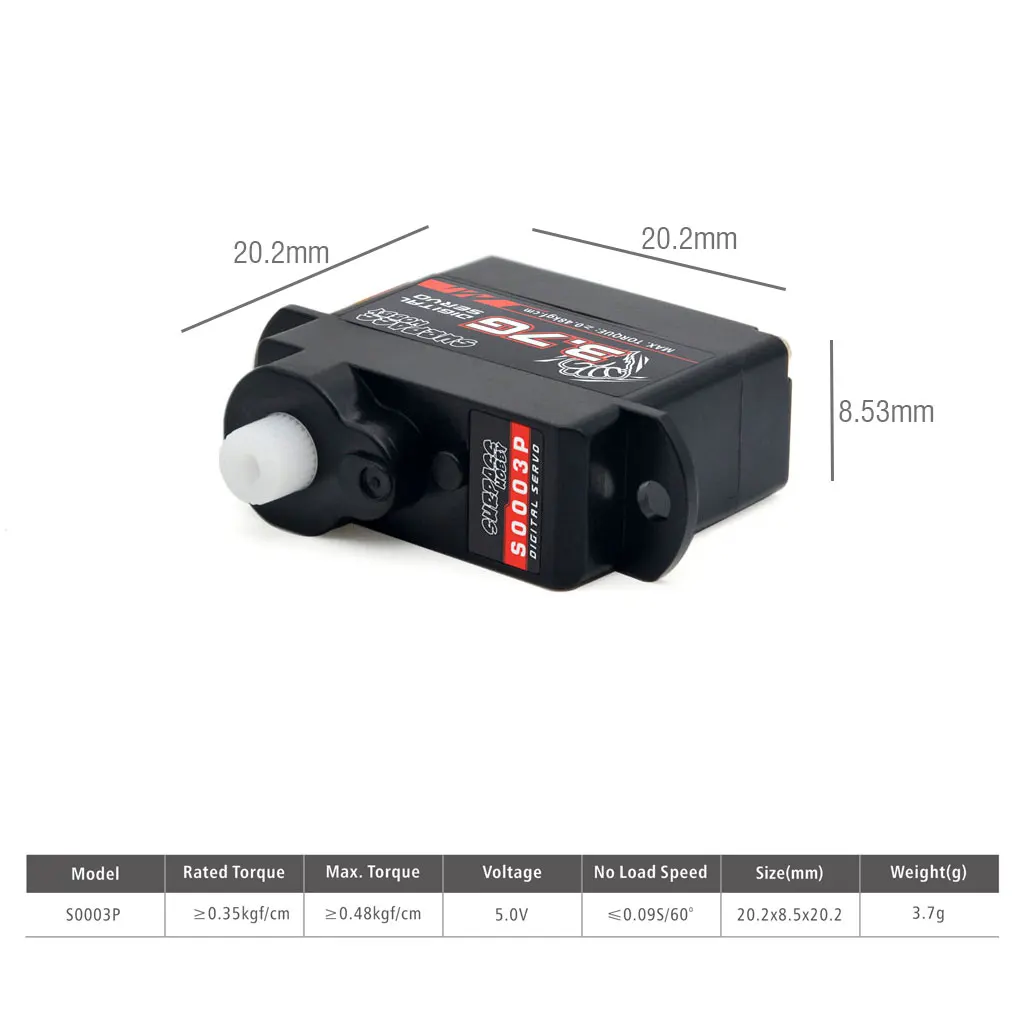

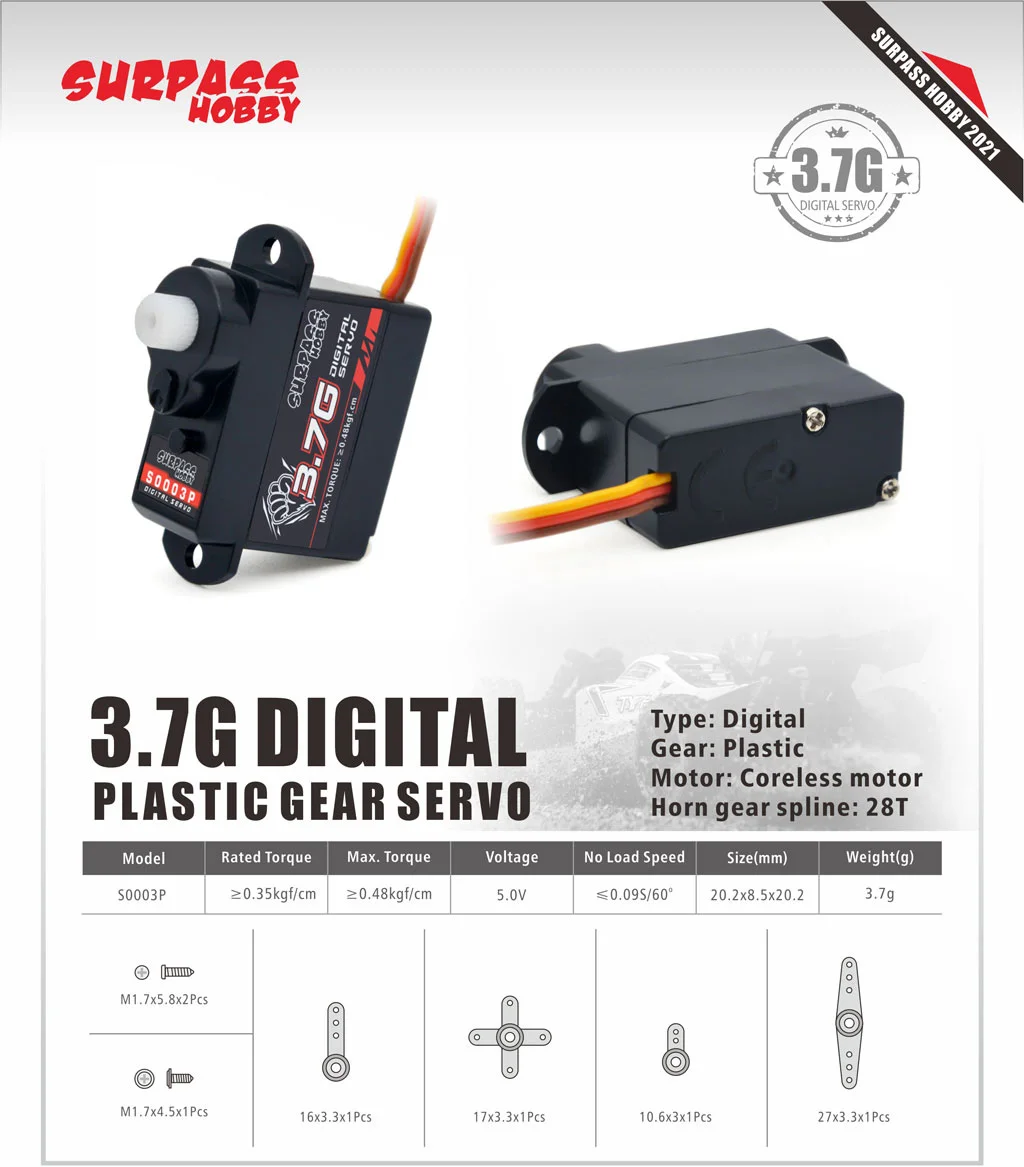

S0003P 3.7g plastic gear digital servo
Voltage: 2.8~4.2V DC
Torque *:≥0.45kgf·cm at 4.2V
Speed * : ≤0.1sec/60° at 4.2V
Operating Angle: 180°±10°(500~2500μs)
Mechanical limit Angle: 360°
Weight: 3.7 g
Size: 20.2 × 8.5 × 18.2mm
Shell material: ABS
Motor type: hollow cup motor"
S0006P 6g plastic gear digital servo
Voltage: 4.8-6.0V DC
Torque *:≥0.45kgf·cm at 4.2V
Speed * : ≤0.08sec/60° at 6.0V
Operating Angle: 90°±10°(1000~2000μs)
Mechanical limit Angle: 360°
Weight: 6 g
Size: 21.3×11.5×20.6mm
Shell material: ABS
Motor type: hollow cup motor"

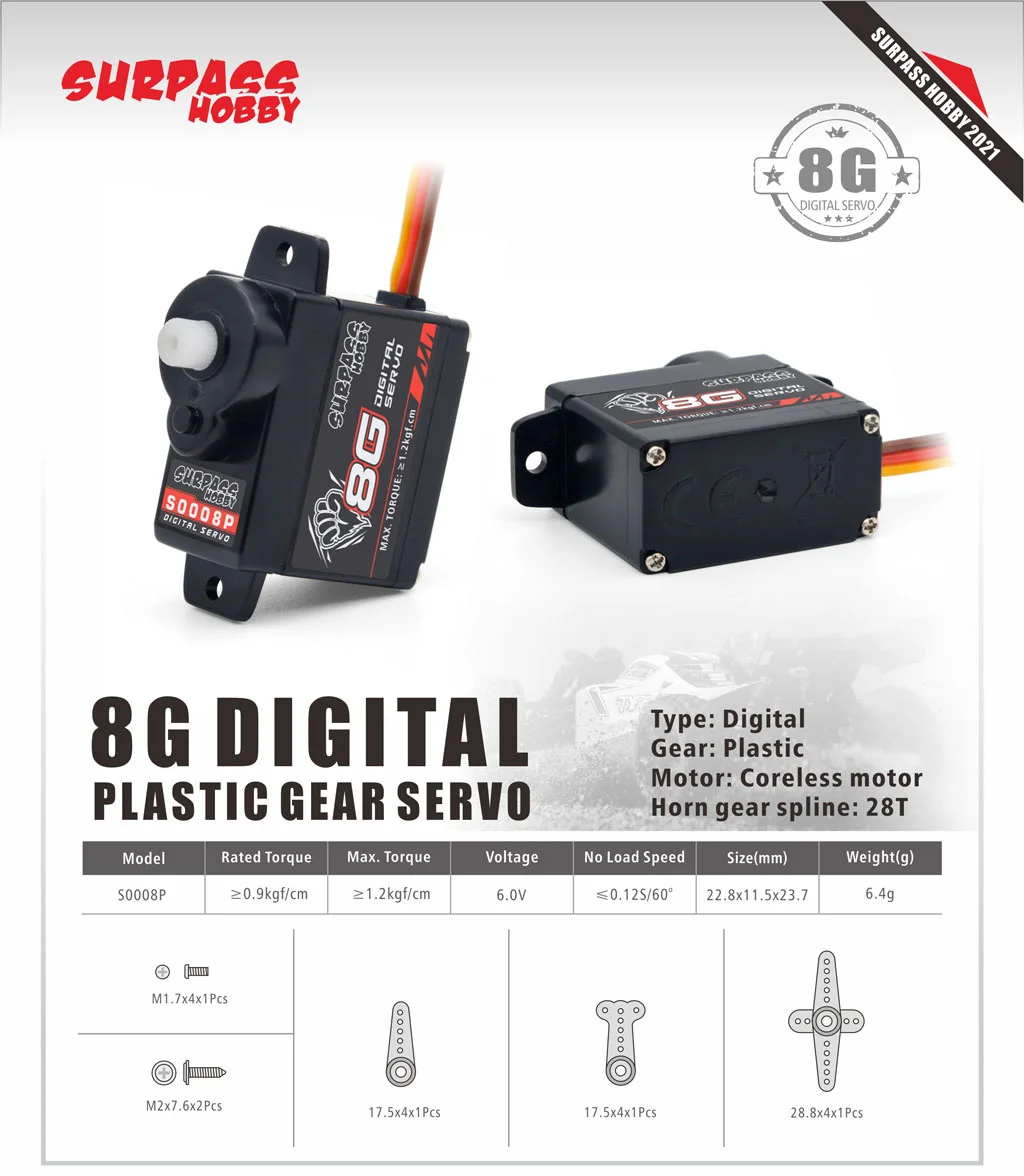

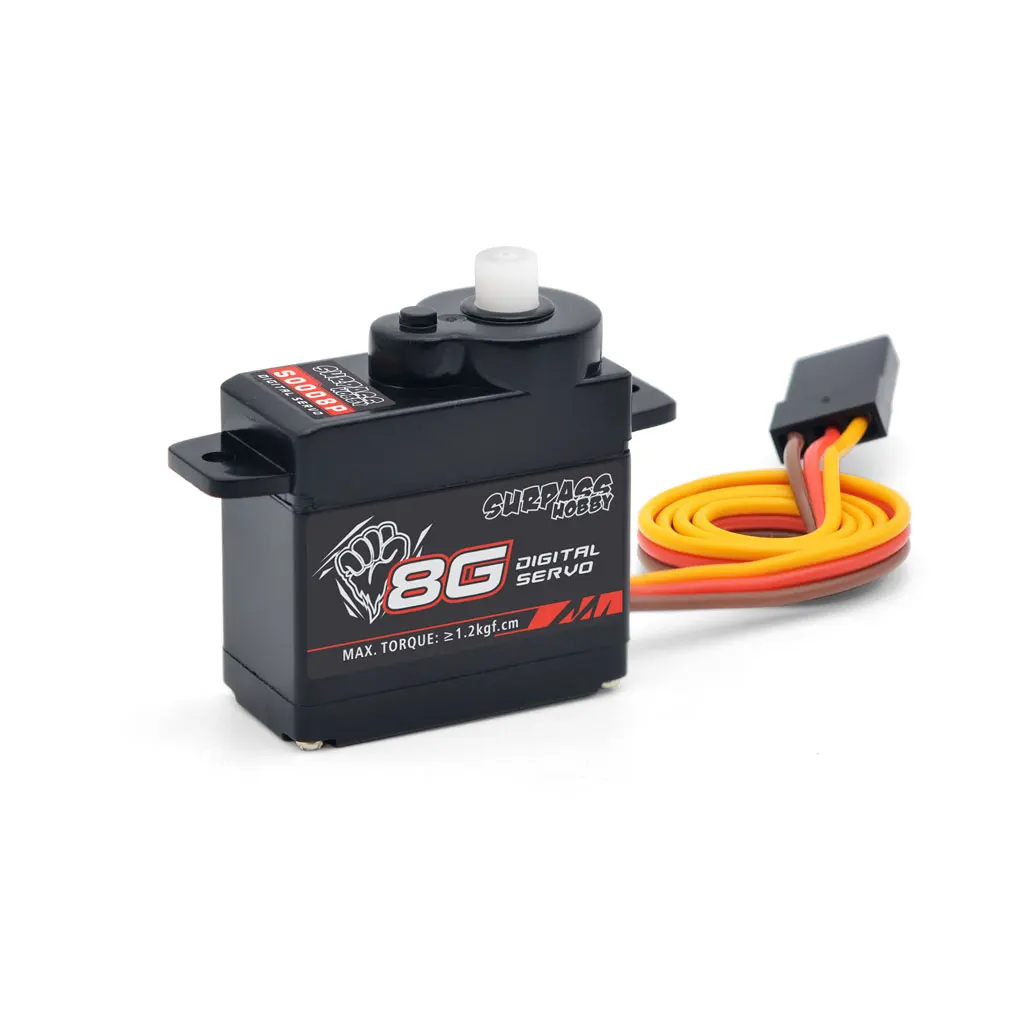

S0008P 8g plastic gear digital servo
Voltage: 4.8-6 DC
Torque *:≥1.4kgf.cm at 6v
Speed * : ≤0.12sec./60° at 4.8V
Operating Angle: 180±10°
Mechanical limit Angle: 360°
Weight: 8g
Size: 22.8×11.5×23.7mm
Shell material: ABS
Motor type: hollow cup motor"
| Color | S0002P 2g, S0003P 3.7g, S0008P 8g, S0004M 4.3g, S0006P 6g |
|---|
