SURPASS HOBBY 2204 C2822 1200KV 1400KV 4 Poles Brushless Motor for RC 3D Airplane Fixed-wing Cessna
$62.76 – $63.28Price range: $62.76 through $63.28
"*" indicates required fields
SKU:
d6l5fajmiq7000decdb0
Category: Others
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Motors
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: CYW257
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Spinners
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: C2822
Technical parameters: value 2
Tool Supplies: motor
Upgrade Parts/Accessories: motor
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

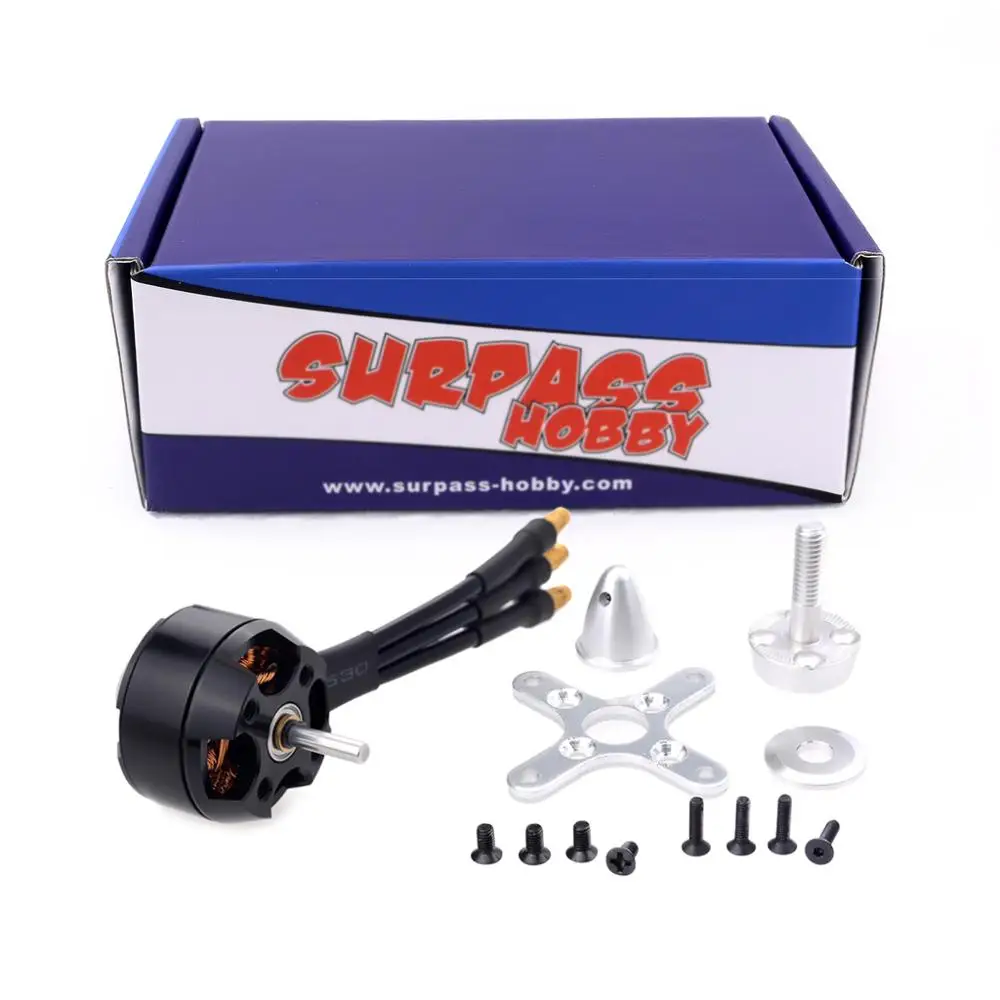

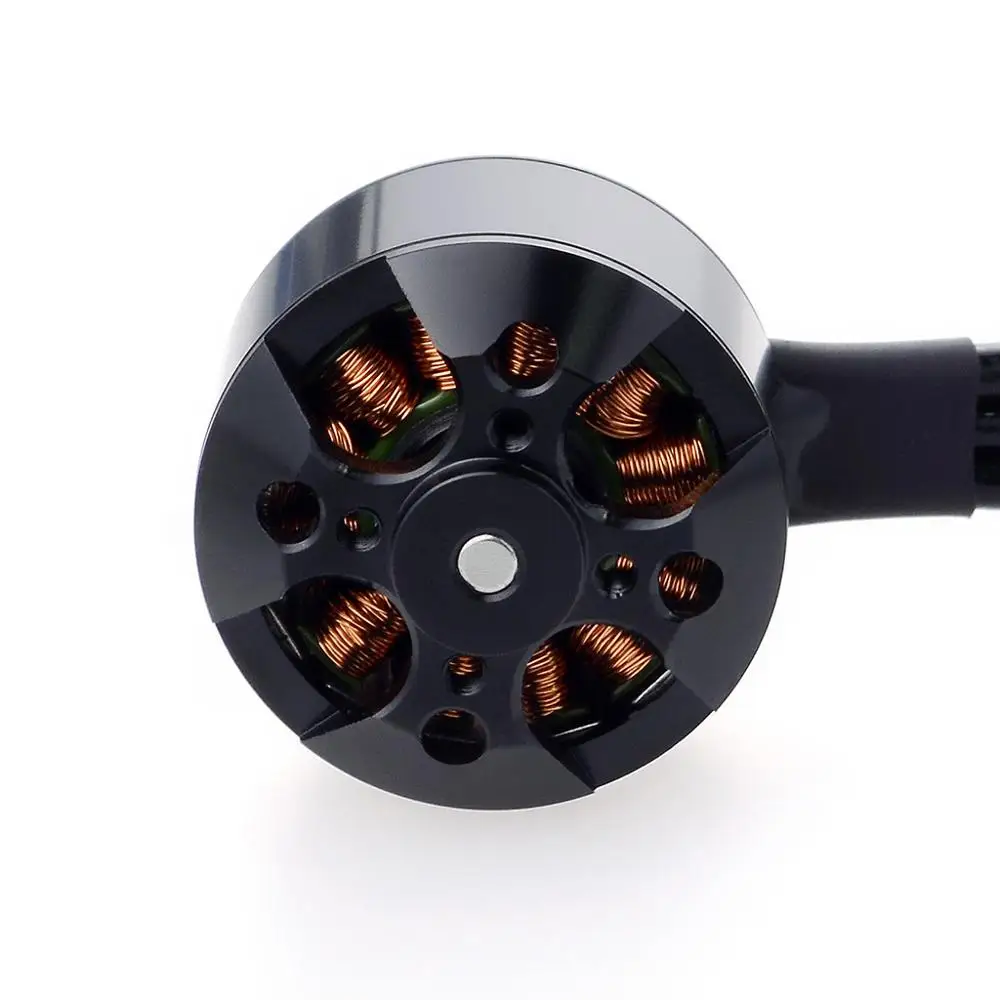

The original SURPASS 2204 brushless motor is designed to provide both quality and performance at an affordable price. It is built from high quality aluminum alloy which is produced from the latest CNC milling machines, and is designed with high power and rotation speed to provide longer run time for RC airplane fixed-wing.
Features:
14 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Precision engineered for maximum energy conversion
Specifications:
Brand name: SURPASS
Item No.: C2204
KV(RPM/Volt): 1200KV/1400KV Optional
Watt: 140W
Voltage range: 7-15V
Max amps: 11A
IO: 0.4A
Resistance: 0.368
Motor size: Ø28 * 22mm
Staror size: 2204
Recommended propeller: 7.5 * 3.5 / 8 * 4 / 9 * 5
Connector: 3.5mm golden banana connector
Weight: 28.1g
Package Information:
Package size: 8 * 6.5 * 5cm / 3.2 * 2.6 * 2.0in
Package weight: 59g / 2.1oz








Additional information
| Color | C2822 1200KV, C2822 1400KV |
|---|
