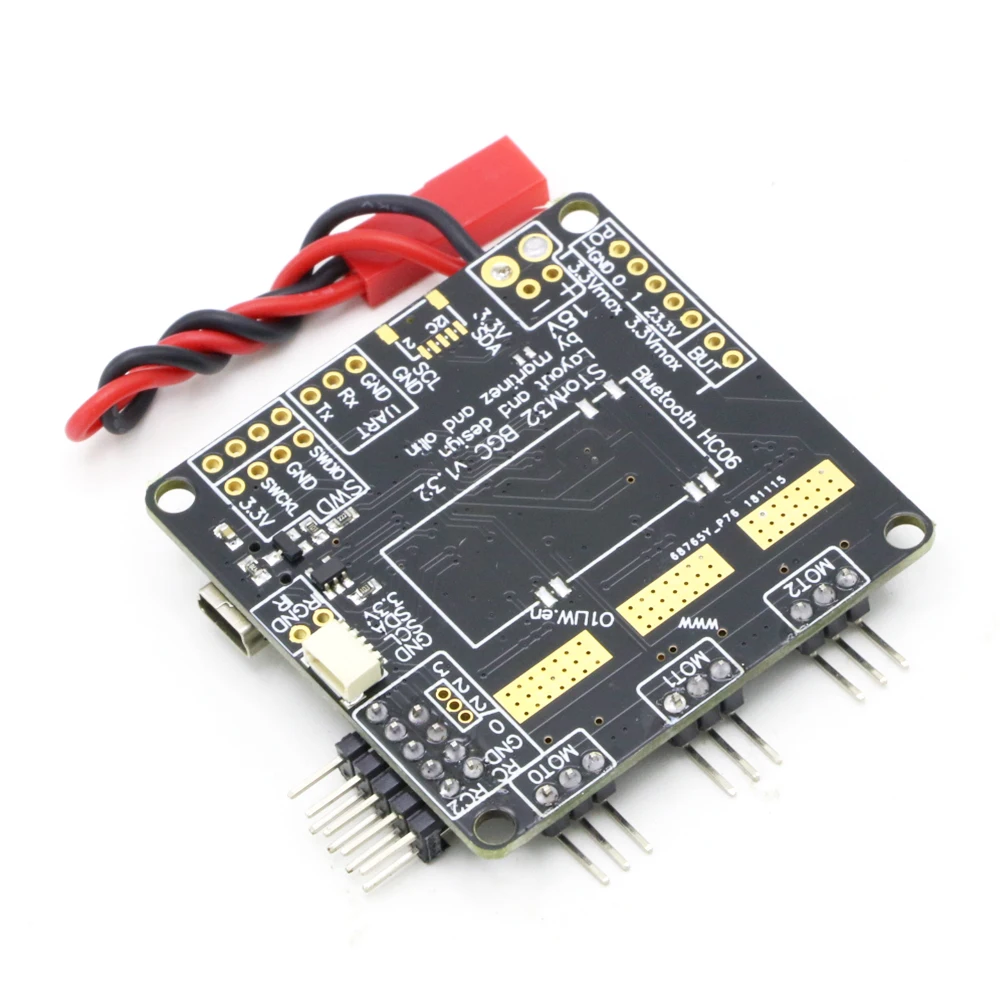

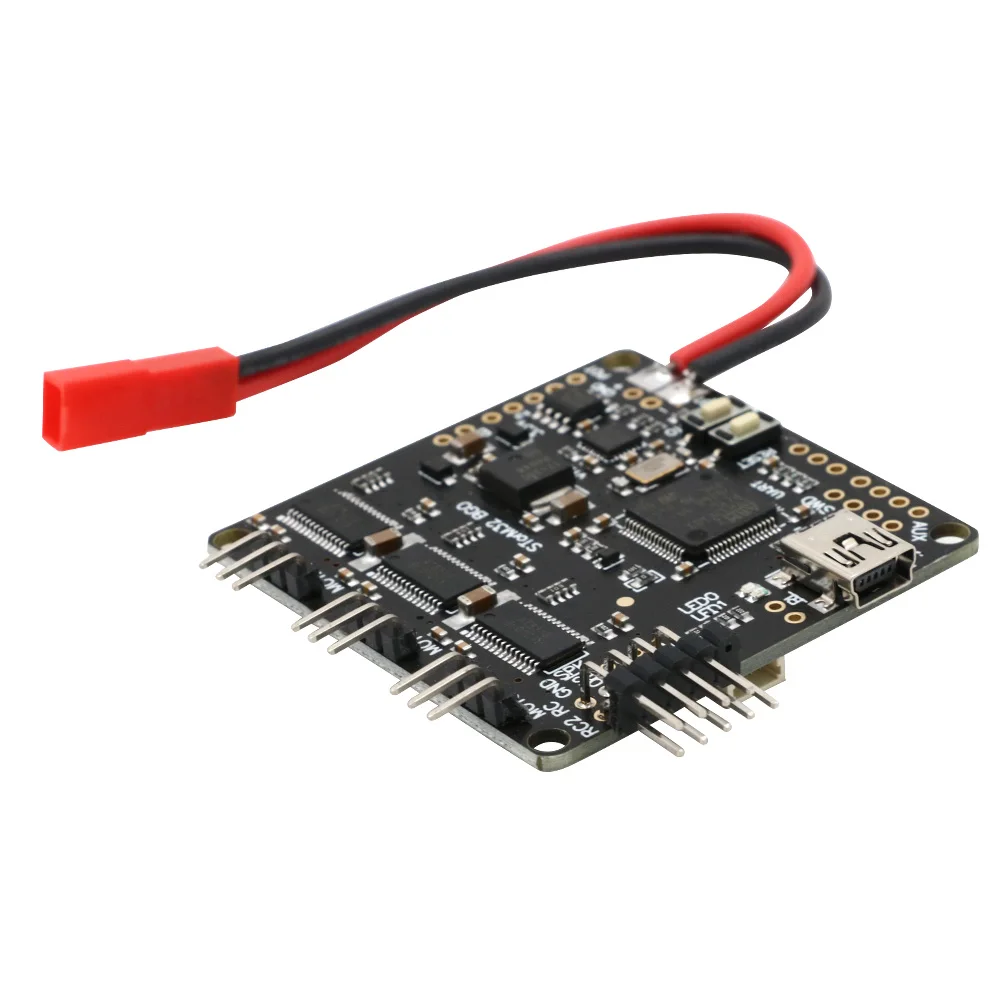

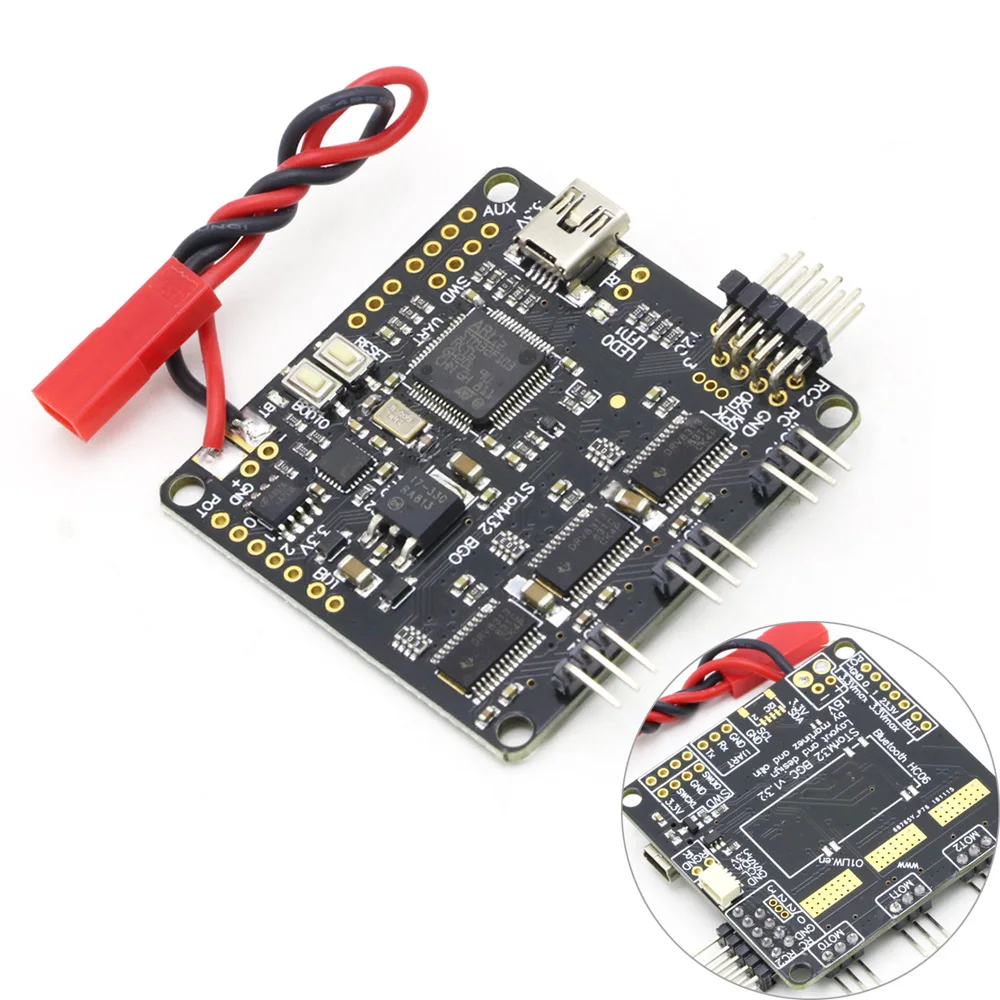

Storm32 BGC 32Bit 3-Axis Brushless Gimbal Controller V1.32 DRV8313 Motor Driver Drop free shipping
Original price was: $229.08.$133.63Current price is: $133.63.
6 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Motors
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Rubber
Model Number: VZDR0154
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Gimbal Controller
Use: Vehicles & Remote Control Toys
Wheelbase: Upper Shell
– Processor: STM32F103RC at 72Mhz
– Motor driver: DRV8313 with short circuit, overheat protection
– Onboard gyro and acceleration sensor MPU6050
– IR LED Interface
– Futaba S-BUS
– Spektrum satellite port
– 7CH PWM/Sum-PPM input/output
– Each axis could connect analog joystick
– With I2C port, could use external 6050 to replace onboard sensor
– 3* AUX port
Specifications:
– Power supply: 9-18V(3-4S)
– Drive current: Max.1.5A
– Dimension: 5-5cm, M3 screw hole, 45mm pitch
– Weight: 10g
package including:
-
100% Brand new.
-
1 x Strom32 3-Axis gimbal controller DRV8313 Driver

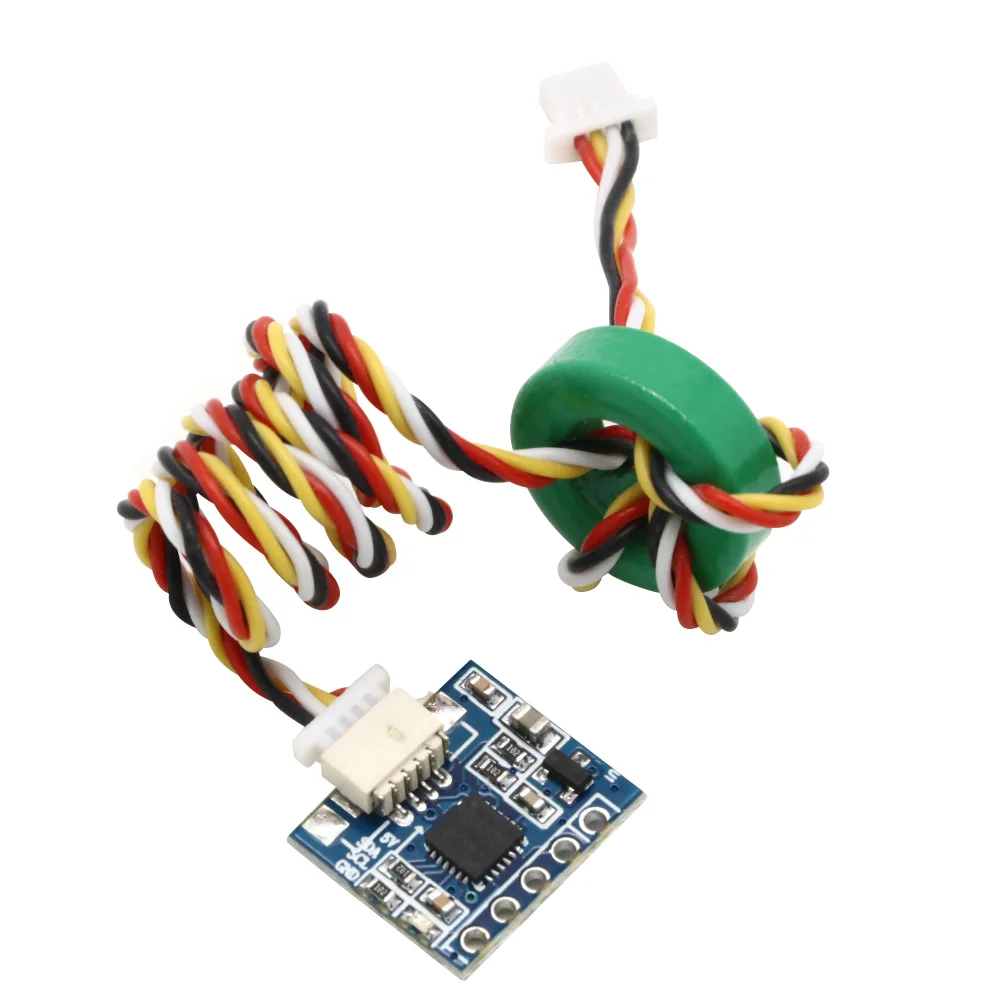

1 x Sensor
| Default Title | Default Title |
|---|
