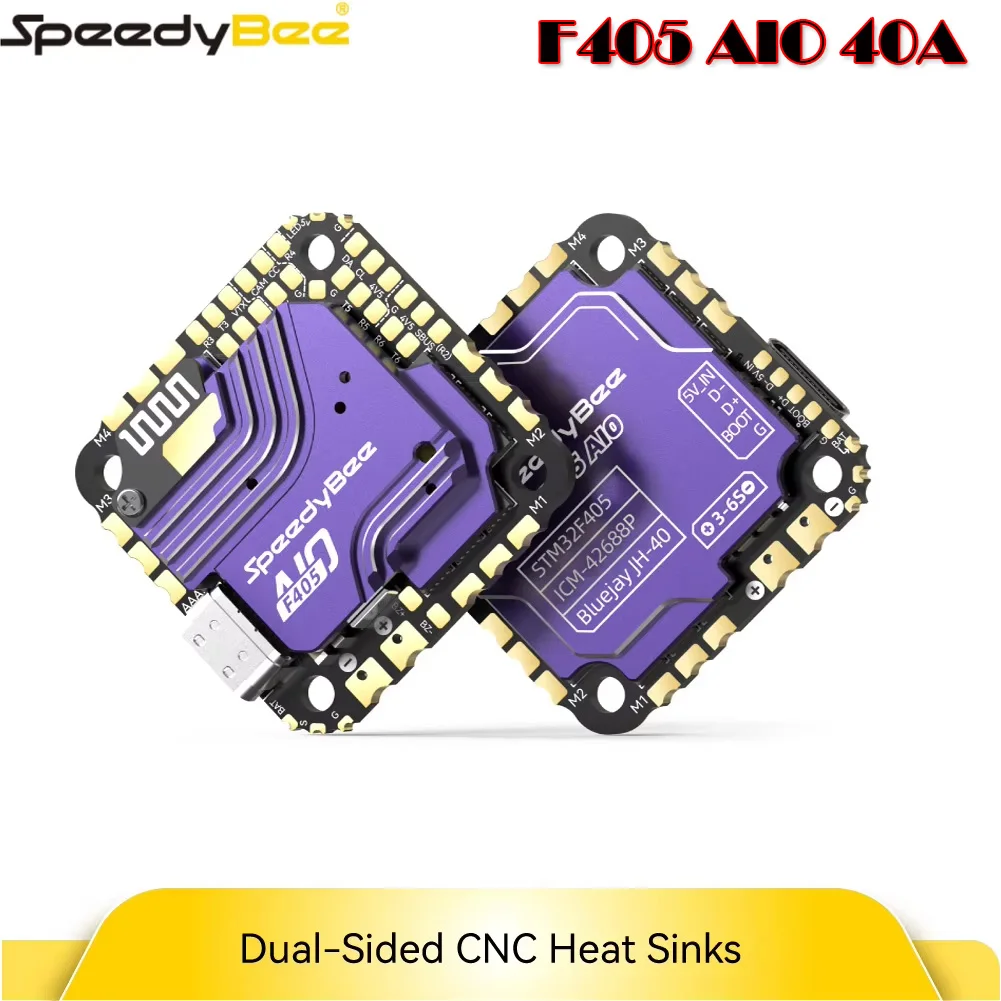

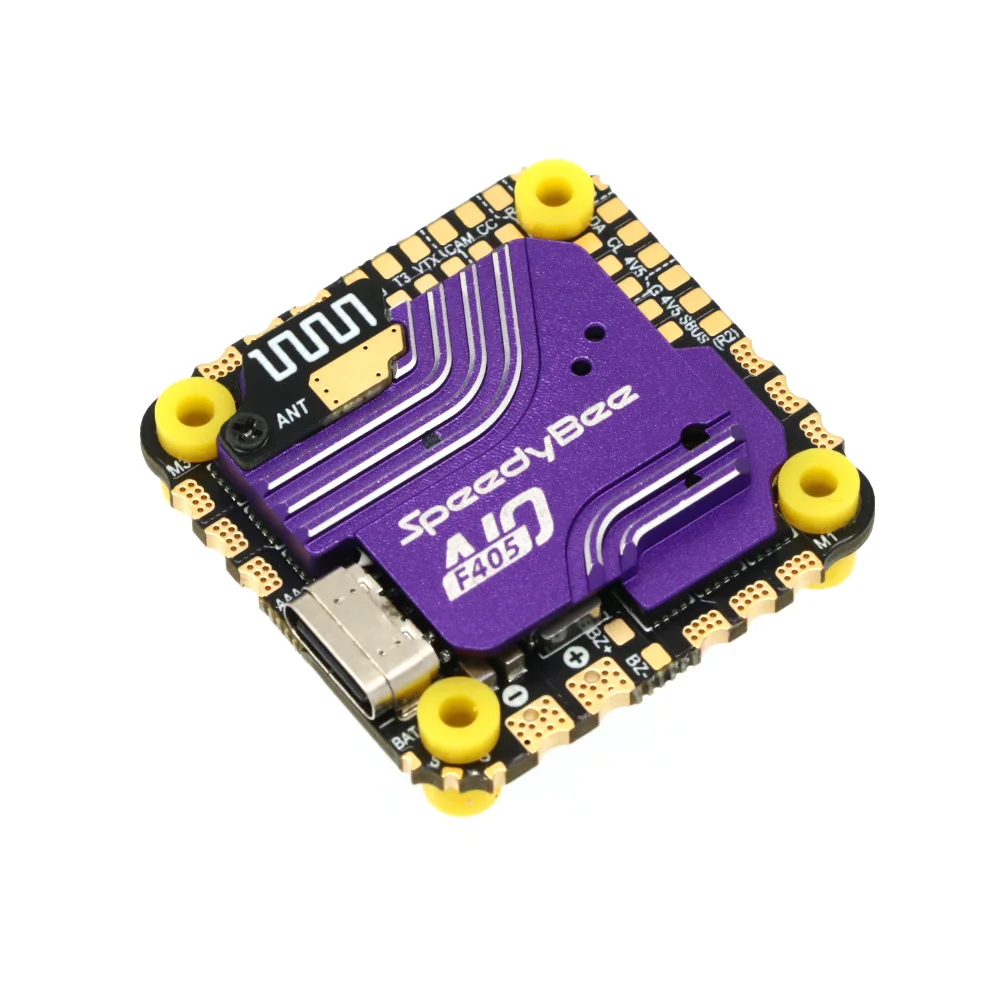

SpeedyBee F405 AIO 40A Bluejay 25.5×25.5 Flight Controller with ICM-42688 Gyro SPA06-003 Barometer for RC FPV Freestyle Drone
Original price was: $437.28.$255.08Current price is: $255.08.
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: f405 v3 Flight Controller
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: F405 AIO Flight Controller
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Gyros
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 33*33mm
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: SpeedyBee F405 AIO
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
|
Product Name |
SpeedyBee F405 AIO |
|
MCU |
STM32F405 |
|
Gyro |
ICM-42688P |
|
USB Port Type |
Type-C |
|
Barometer |
SPA06-003 |
|
OSD |
Supported |
|
Bluetooth BLE |
Supported, Bluetooth speed enhancement – 2.0 |
|
Wireless Flight Controller Firmware Update |
Supported (no need to press physical BOOT button) |
|
Wireless Download & BlackBox Analysis |
Not supported |
|
DJI Air Unit Connection Method |
Supports both 6-pin direct insertion and soldering |
|
6-pin DJI Sky Port Direct Insertion |
Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order |
|
Flash (for BlackBox) |
8MB |
|
Betaflight CC Pads (Camera Parameter Adjustment) |
Supported |
|
Input Voltage |
3S-6S LiPo battery |
|
4V5 Output |
Two 4V5 outputs; total current 1A |
|
5V BEC Output |
Three 5V outputs; total current 2A; shared with 4V5 |
|
9V BEC Output |
None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A |
|
MOTOR |
M1-M4 |
|

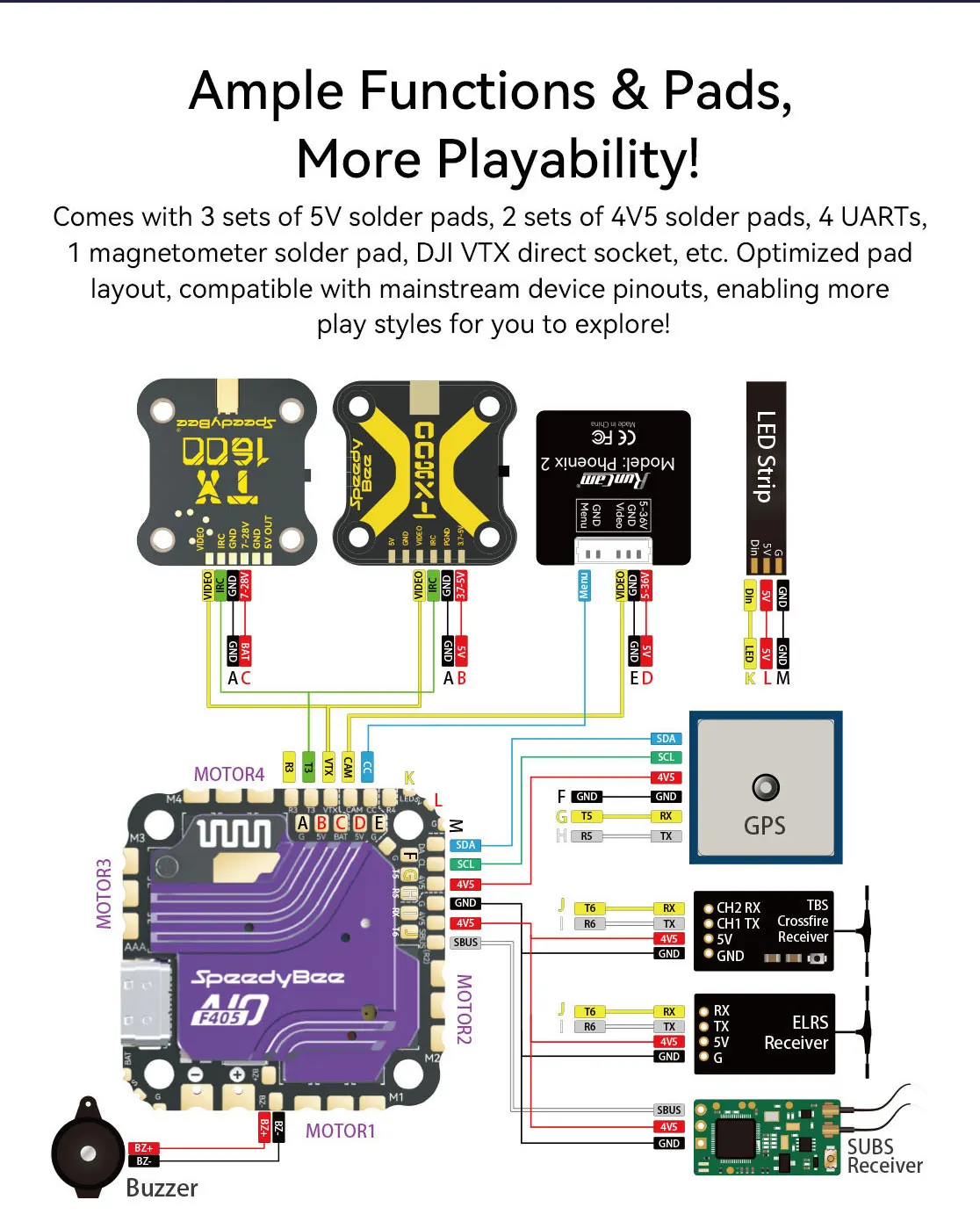

UART |
4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2]) |
|
ESC Telemetry |
None |
|
I2C |
Supported |
|
LED Pads |
Supported, used to control WS2812 LED lights |
|
Buzzer Pads |
Supported, BZ+ and BZ- pads |
|
BOOT Button |
Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery |
|
RSSI Pads |
None |
|
SmartPort |
Not supported |
|
Supported Flight Controller Firmware |
BetaFlight (Default), INAV |
|
Firmware Target Name |
SPEEDYBEE F405AIO |
|
Mounting |
25.5 x 25.5mm, 3mm hole diameter |
|
Dimensions |
33.0mm (length) x 33.0mm (width) x 8mm (height) |
|
Weight |
13.6g (including CNC) |
|
Product Name |
SpeedyBee F405 AIO |
|
Input Voltage |
3-6S LiPo battery |
|

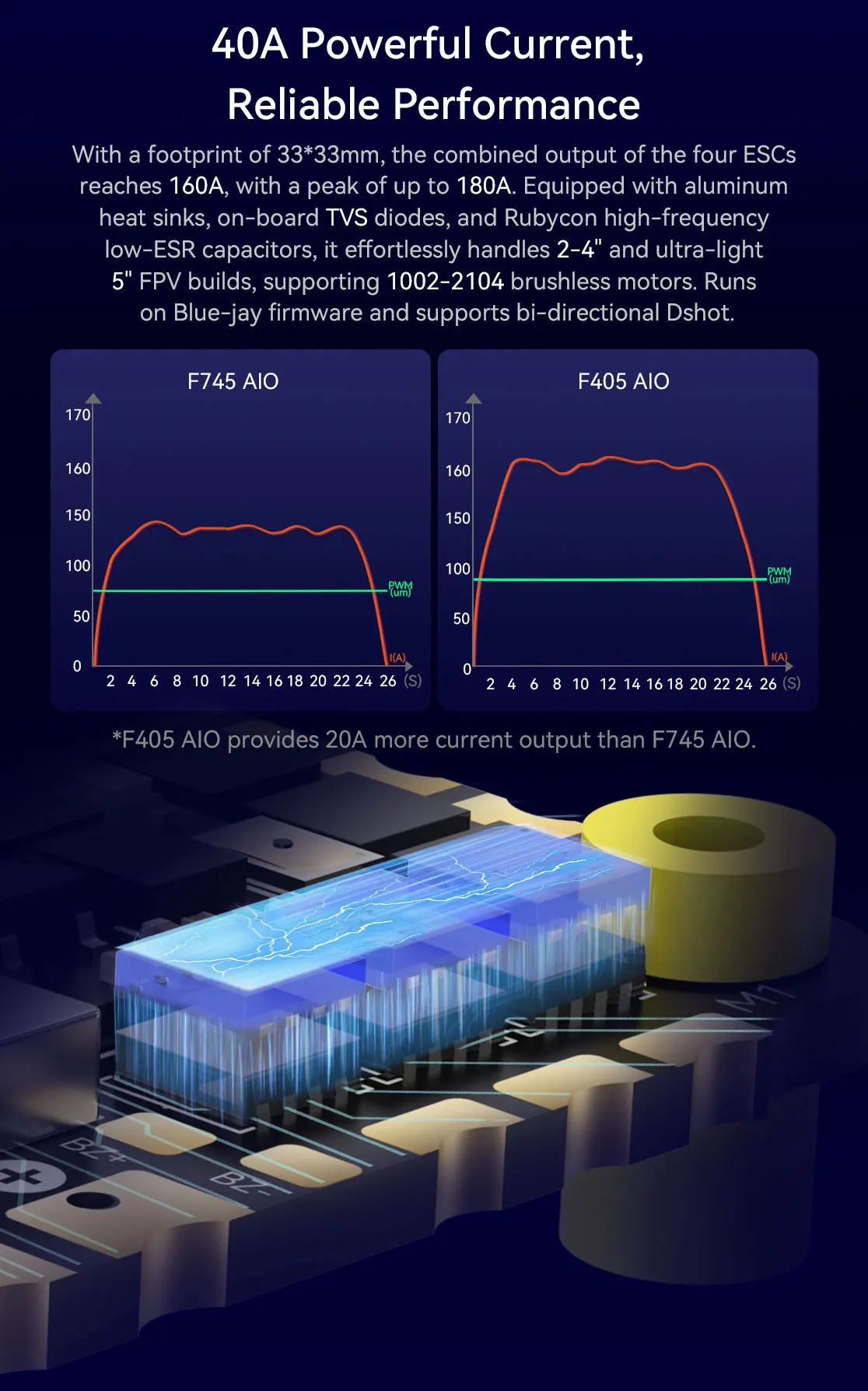

Continuous Current |
40A |
|
Burst Current |
45A (10s) |
|
ESC Protocol |
Supports DSHOT600/300; other protocols may cause severe errors, please use with caution. |
|
Output Voltage |
VBAT battery voltage (used to power the flight controller) |
|
Current Sensor |
Supported (Scale = 254, Offset = 0) |
|
Firmware |
Bluejay JH-40 48kHz |
| Color | F405 AIO |
|---|
