SpeedyBee BT Nano 3 Wireless Flight Controller Configuration tuning Bluetooth module For RC FPV Racing Drone Quadcopter parts

Price range: $65.76 through $101.56

Get A Quote

"*" indicates required fields

Add to wishlist
SKU: d6l56mbmiq7000deccsg Category:
Description

SPECIFICATIONS


Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: BT Nano 3

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: RECEIVERS

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Size: 14*11*0.8mm

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: SpeedyBee BT Nano 3

Use: Vehicles & Remote Control Toys

Wheelbase: Screws


Product Name

SpeedyBee BT Nano 3

Operating Voltage

5V

Working Current

MAX~87mA(5V)

Bluetooth Low Energy

Supports

WiFi

Supports. It will be turned on automatically only when upgrading the firmware of the module itself.

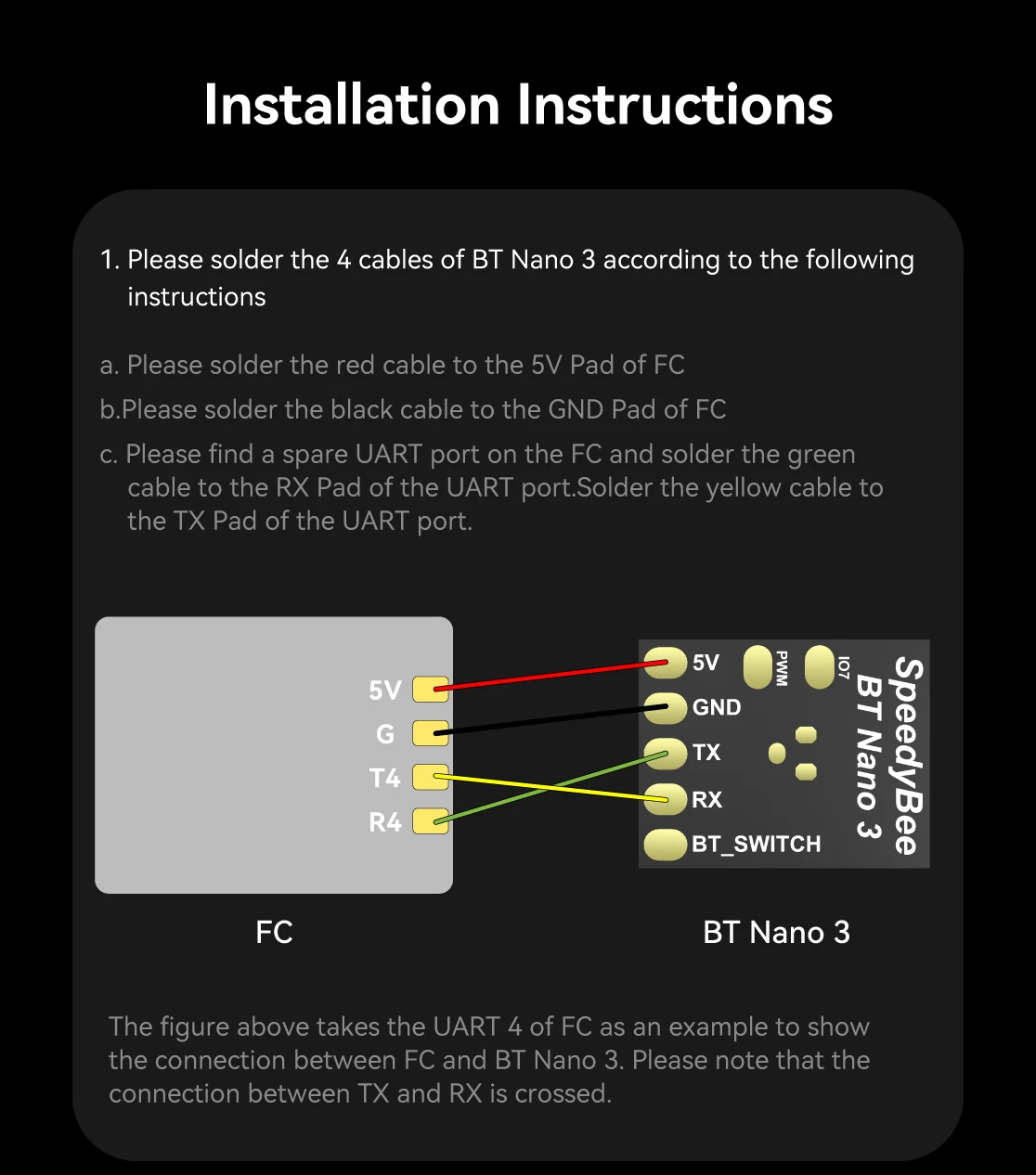

Communication Port

UART

Baudrate

115200

Bluetooth Automatically Turns Off

Enabled by default, the module will automatically detect the armed/ disarmed status of the FC. During the flight of the drone, the Bluetooth function will be disabled to prevent other wireless devices from being interfered by the Bluetooth signal.

BT Switch Pad

The Bluetooth function will be disabled when it receives a Low signal.In the BT Switch section of the manual, you can learn about the detailed instructions

Power Indicator

Solid Red: Indicates that the module is powered.

Working Status Indicator

Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct.

Solid White: Indicates that the communication with FC is normal, you can use the App for wireless parameter adjustment

Flashing green: Indicates that the wireless signal is being connected

Solid Green: Indicates that the connection with the App has been successful

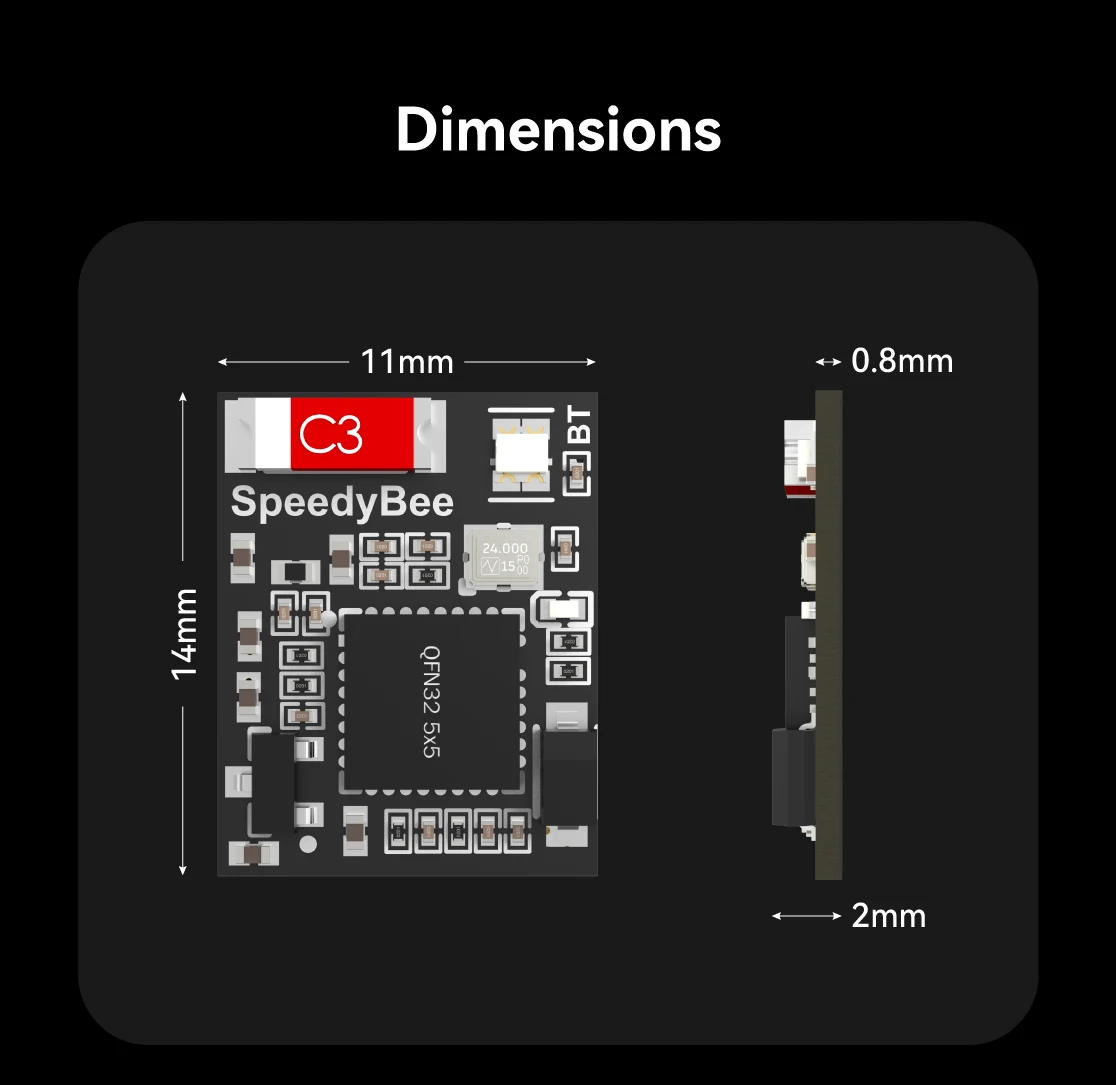

Size

14*11*0.8mm

Weight

5g

Additional information
Color2pcs, 1pcs
