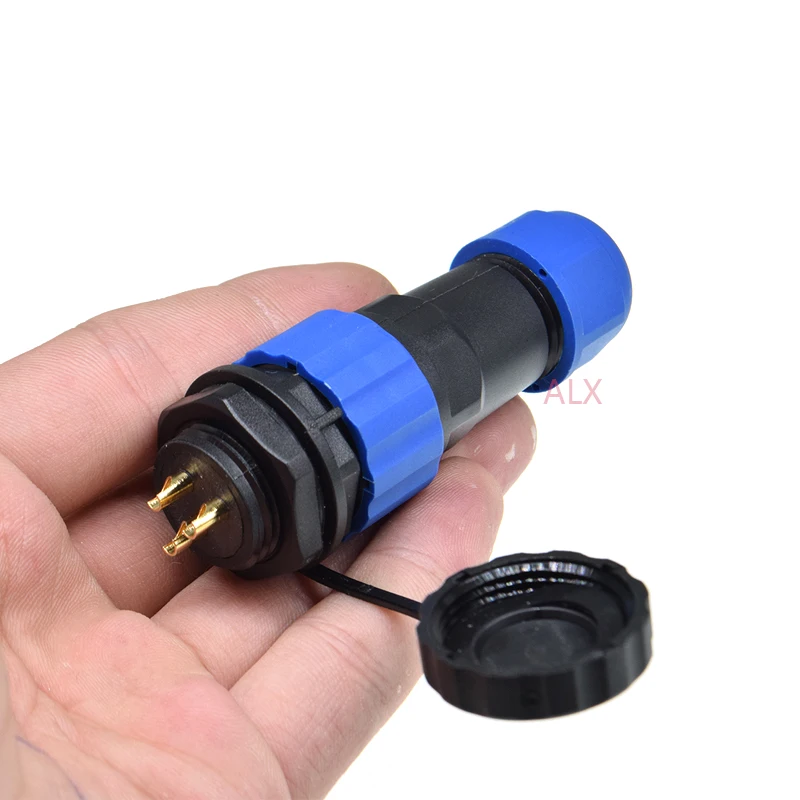

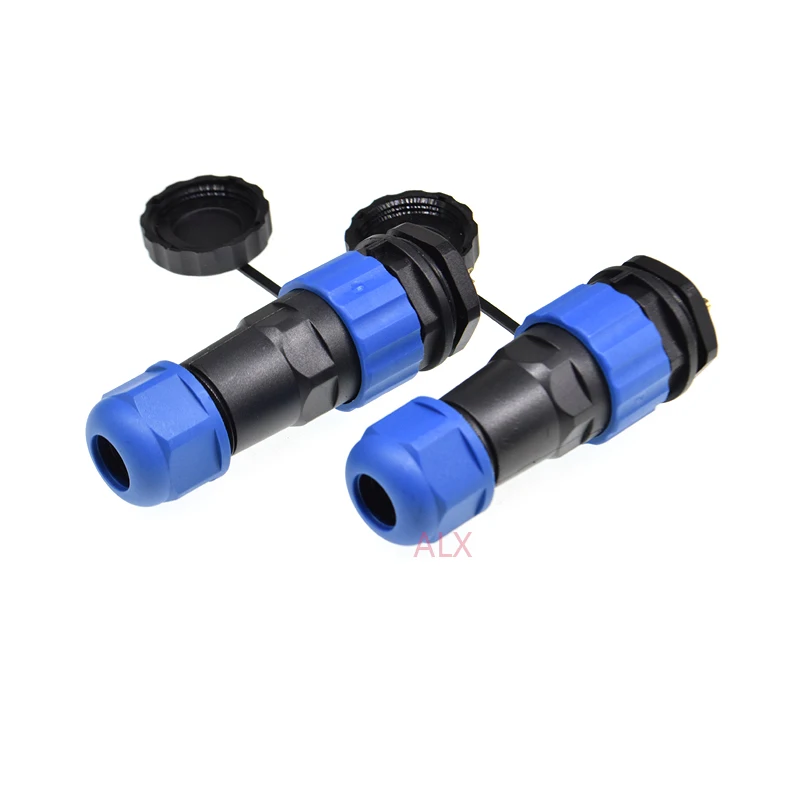

SP20 IP68 waterproof connector male plug & female socket 2/3/4/5/6/7/8/9 pin panel Mount wire cable connector aviation plug 2pin
Price range: $15.40 through $24.88
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
High-concerned chemical: None
Model Number: SP20
Origin: Mainland China
Voltage: 5 V 12 V 20 V 30 V
Package listing:
1PCS X hexagonal back nut sp20 CONNECTOR
Please note before buying:

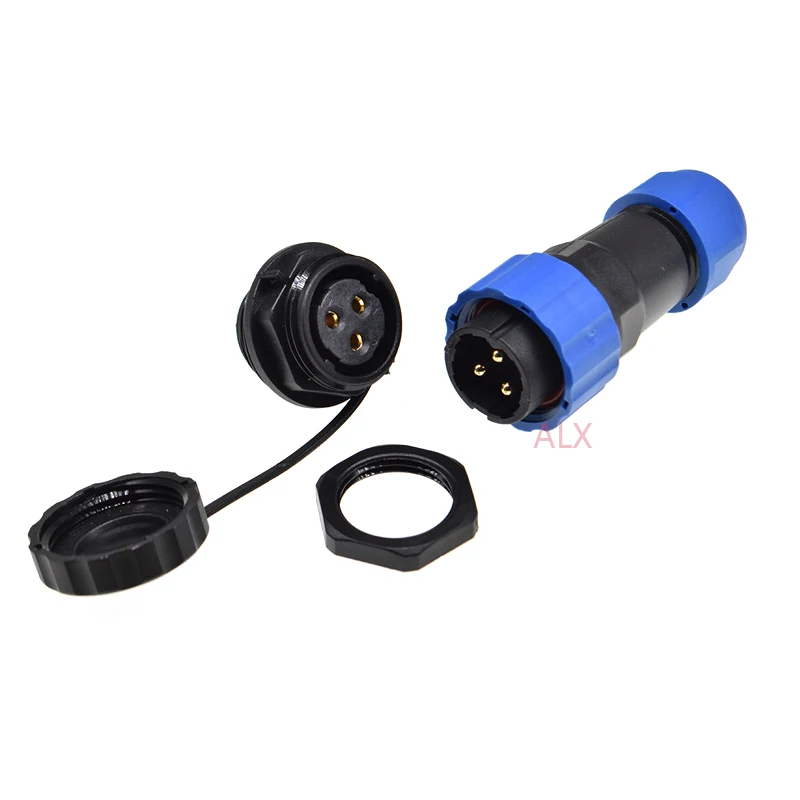

This link is HEXAGONAL back nut types, as shown in figure shown in red circle,
For other types, please contact the shop owner
Specification parameter
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Specification parameter
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Operating temperature: -25 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)
Sealing: in line with IP68
Applicable wire diameter: diameter 8~12mm
Mechanical life: more than 500 times
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Operating temperature: -25 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)
Sealing: in line with IP68
Applicable wire diameter: diameter 8~12mm
Mechanical life: more than 500 times
Additional information
| Pins | SP20 7pin, SP20 9Pin, SP20 2Pin, SP20 5pin, SP20 6pin, SP20 3pin, SP20 4pin |
|---|---|
| Connector Type | back nut type |
