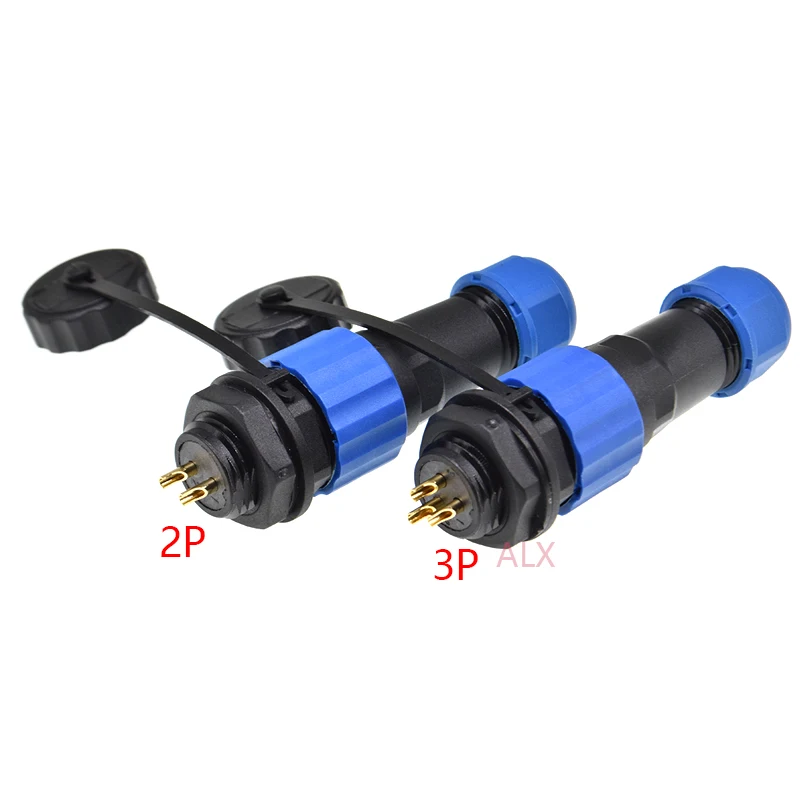

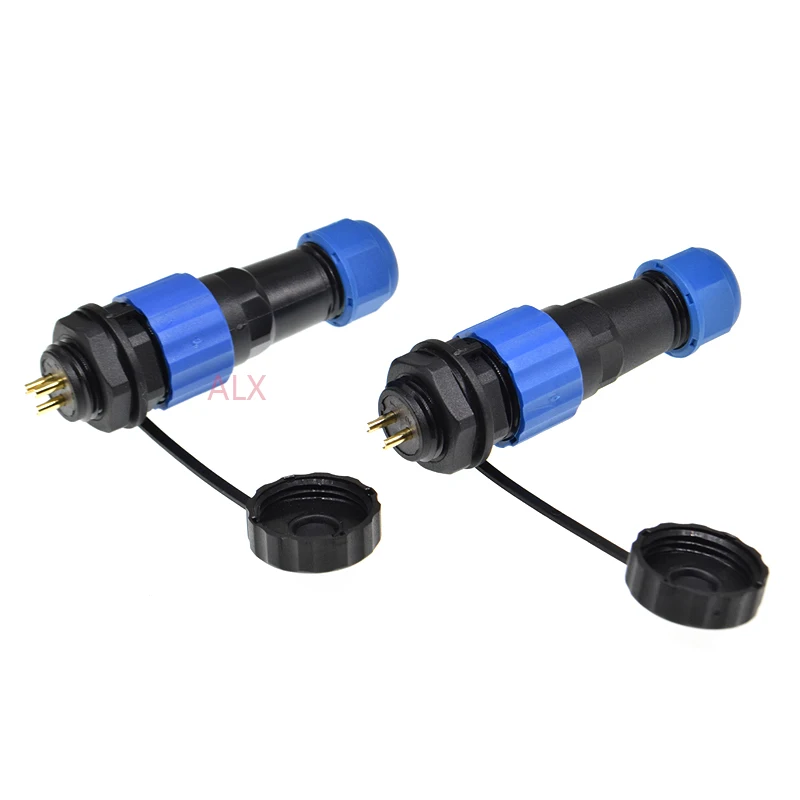

SP16 IP68 waterproof connector male plug & female socket 2/3/4/5/6/7/8/9 pin panel Mount wire cable connector aviation plug
Price range: $9.52 through $12.38
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
Choice: yes
High-concerned chemical: None
Model Number: SP16
Origin: Mainland China
Voltage: None
semi_Choice: yes
Package listing:
1PCS X hexagonal back nut sp16 CONNECTOR
Please note before buying:
This link is HEXAGONAL back nut types, as shown in figure shown in red circle,
For other types, please contact the shop owner
DOCKING TYPE link:
https://www.aliexpress.com/store/product/SP16-IP68-waterproof-connector-male-plug-female-socket-2-3-4-5-6-7-8-9/3516063_32918055622.html?spm=2114.12010615.8148356.5.31ae239fZejhKw
Specification parameter
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Operating temperature: -25 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)
Sealing: in line with IP68
Applicable wire diameter: diameter 8~12mm
Mechanical life: more than 500 times
Additional information
| Pins | 2P, 7p, 9P, 5p, 6p, 3p, 4p |
|---|---|
| Connector Type | back nut type |
