SoloGood F722 Stack ICM42688P F722 Flight Controller BLHELI_S 60A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts
Original price was: $572.52.$333.97Current price is: $333.97.
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: SoloGood F722 Stack
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: BLHELI_S 60A 4in1 ESC
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Gyros
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 30.5*30.5mm
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: F722 Flight Controller
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
-
Support up to 8 motor outputs to easily build X8 drones.
-
Integrated 5V/10V dual BEC ensures stable operation
-
Four LED status indicators display the working status under different states.
-
Although the flight control is small, it has all five internal components. The F722 main control chip, onboard OSD chip, barometer, and onboard black box chip.
-
The use of large pads ensures that the pads are kept away from components to ensure perfect soldering for beginners.
SoloGood F722 Stack
Input voltage: 3-6S Lipo(11v-26v max)
Installing Hole: 30.5*30.5mm, M3
Support Protocols: DShot600/300
Weight: 23g
FC Specifications
Main control: STM32F722RET6
Gyroscope: ICM42688P
Barometer: Support (DPS310)
OSD: Support (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: onboard (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT: SOLOGOODF722
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Installation hole: 30.5×30.5mm (4mm aperture)

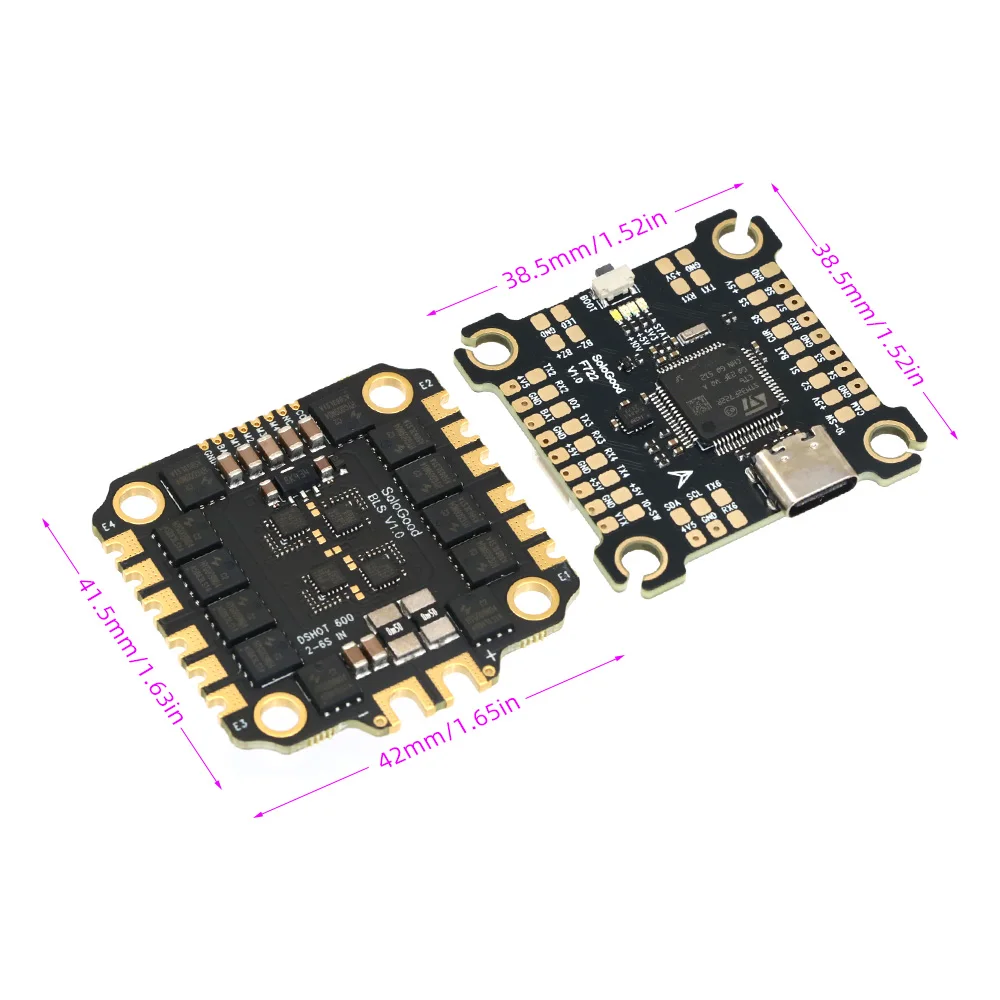

Flight control size: 38.5×38.5mm
Weight: 8.1 grams
LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication
DJI/Vista: Support/6pin
Electric regulation
TVS protective diode: Yes
External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)
ESC/Motor Protocol: DSHOT300/600
Continuous current: 60A
Maximum current :65A
Installation hole: 30.5×30.5mm (4mm aperture)
Sologood BLS60A 4in1 ESC SPEC:
Firmware: BLHELI-S: J-H-30-16.7
Continuous current 55A
Maximum current 60A
Electric dispatch protocol support: DSHOT300/600
Input voltage: 3-6s
Galvanometer: Yes
TVS diode protection: Yes
External capacitor: 1000UF high-frequency electrolytic capacitor
MOS: High performance Toshiba MOS
Installation hole position 30.5×30.5mm (4mm hole)
Size: 41.5mm X42mm
Weight: 15g
| Color | FC and ESC |
|---|
