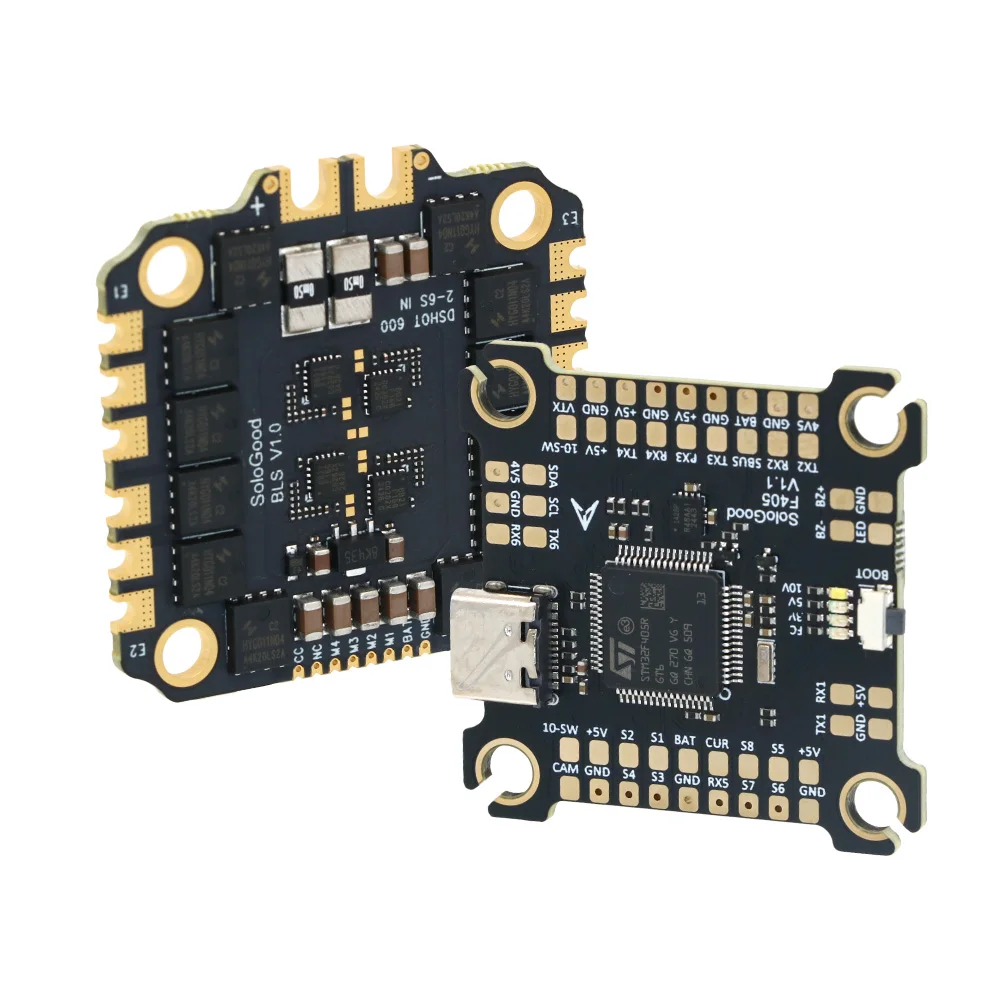

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 1

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 2

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 3

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 4

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 5

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 6

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 8

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 9

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 10

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 11

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 12

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 13

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts - Image 14

SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts

Name: SoloGood F405 55A Stack ICM42688P F405 Flight Controller BLHELI_S 55A 4in1 ESC 30.5X30.5mm 2-6S for FPV Freestyle Drones Parts
SKU: d6lpilvkgkfg00ch6h5g
Availability: InStock

Original price was: $546.84.Current price is: $318.99.

Color

Clear

"*" indicates required fields

Add to wishlist

SKU: d6lpilvkgkfg00ch6h5g Category: Others

Description

SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: BLHELI_S 55A 4in1 ESC

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: F405 55A Stack

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Gyros

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Size: 30.5*30.5mm

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: F405 Flight Controller

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

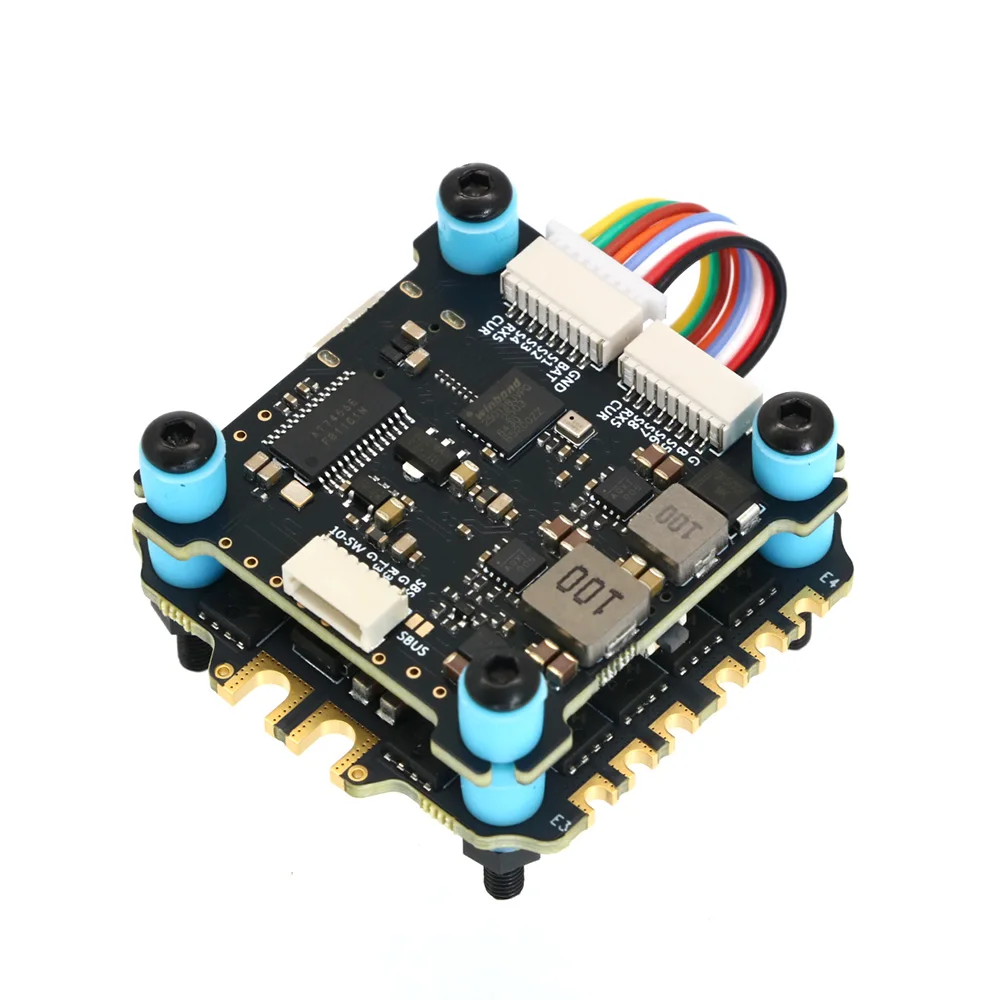

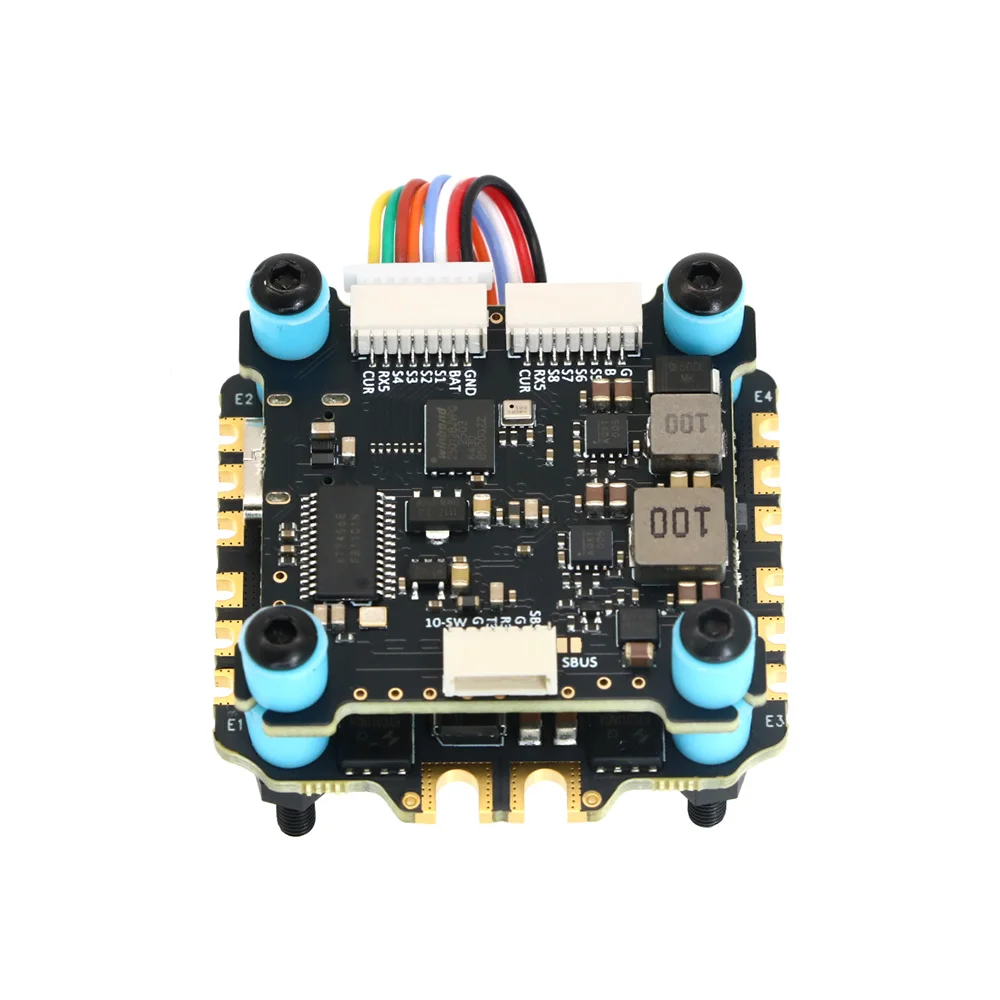

SoloGood F405 Stack

Input voltage: 3-6S Lipo(11v-26v max)

Installing Hole: 30.5*30.5mm, M3

Support Protocols: DShot600/300

Weight: 23g

FC Specifications

Main control: STM32F405

Gyroscope: ICM42688P

Barometer: Support SPL-06

OSD: Support (AT7456E)

BEC: 10V/2A, 5V/2A

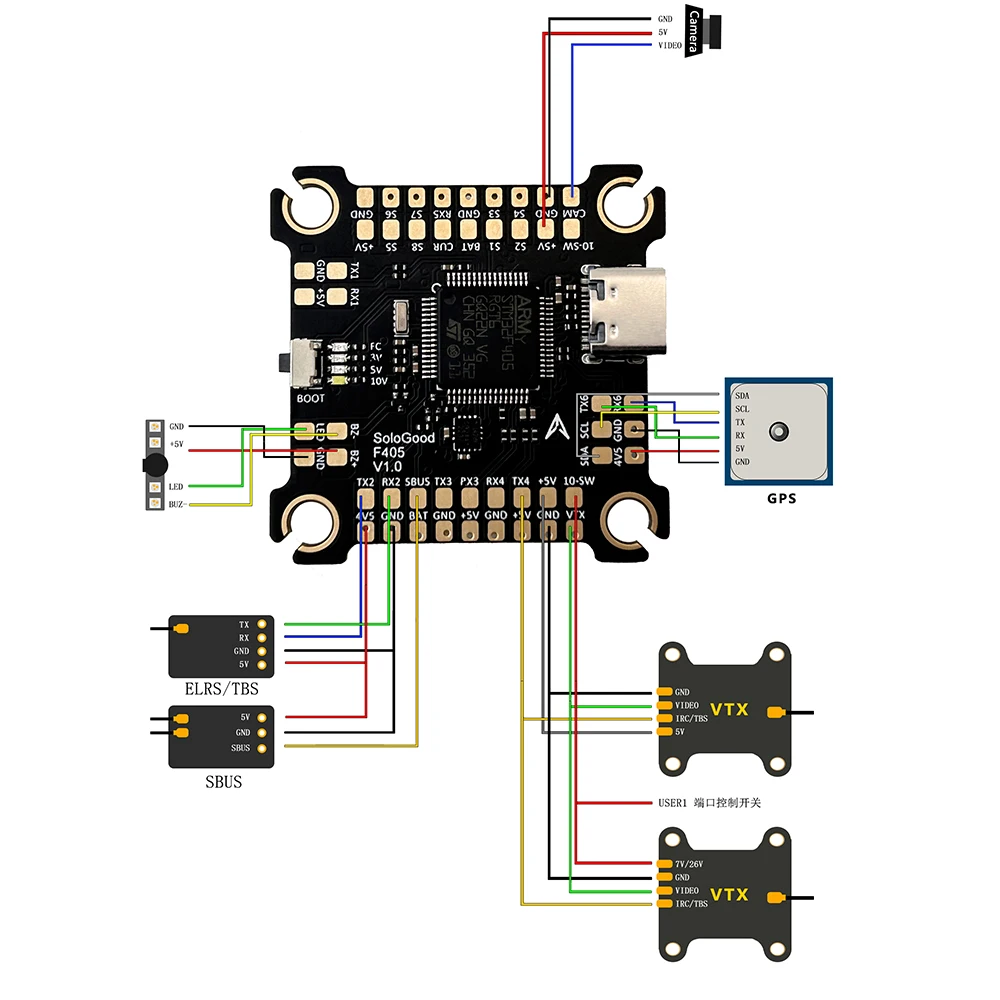

UART port: 6

Black box: onboard (16M flash memory)

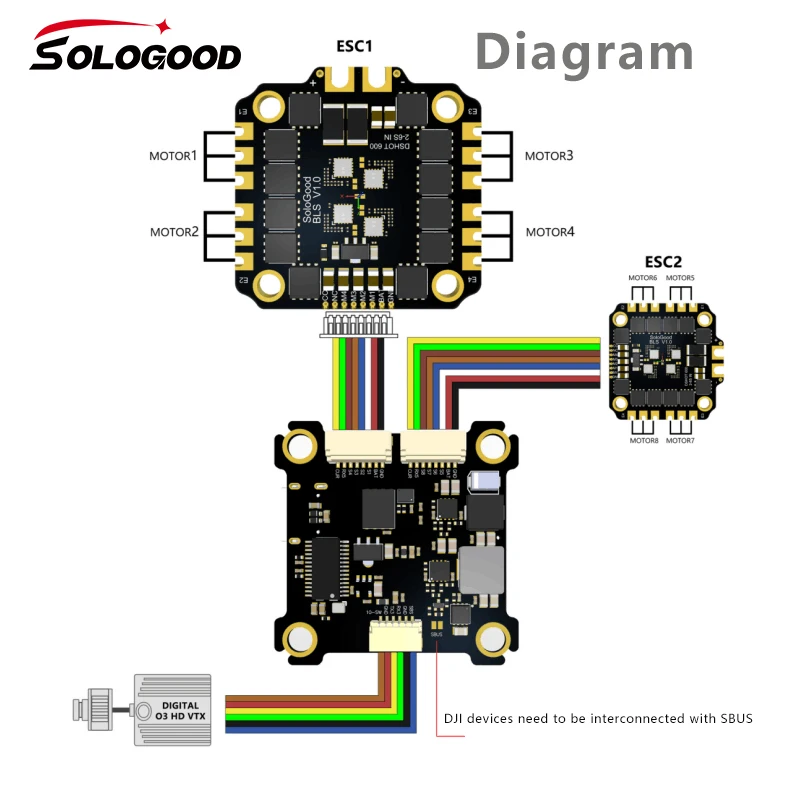

Number of supported motors: M1-M8

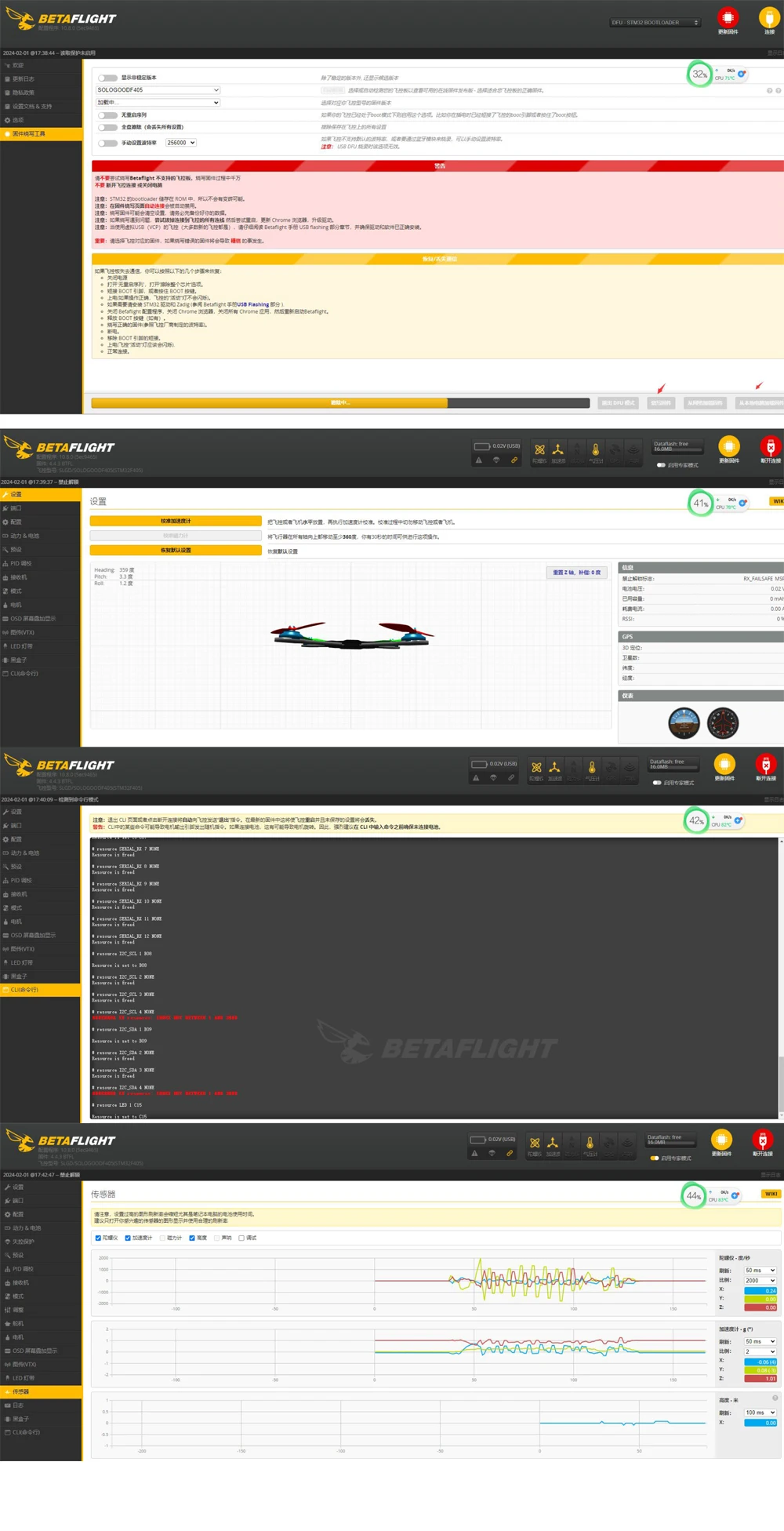

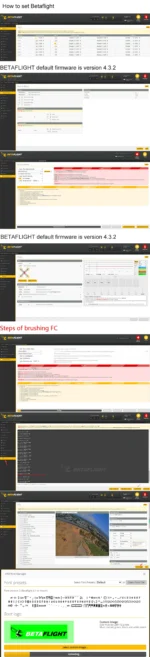

Firmware name: BETAFLIGHT: SOLOGOODF405

Input voltage: 3-6S lithium battery (11-30V MAX)

Output voltage: VBAT

Installation hole: 30.5×30.5mm (4mm aperture)

Flight control size: 38.5×38.5mm

Weight: 8.1 grams

LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication

DJI/Vista: Support/6pin

Electric regulation

TVS protective diode: Yes

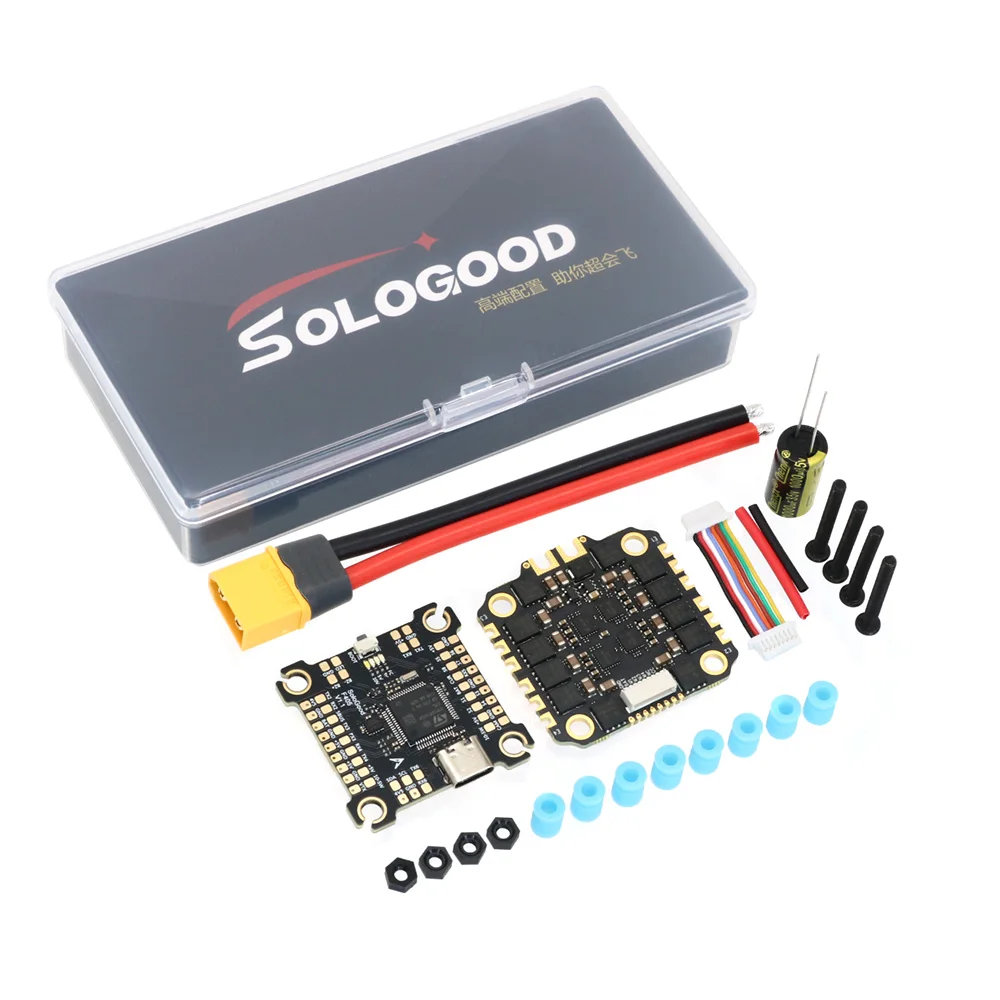

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)

ESC/Motor Protocol: DSHOT300/600

Continuous current: 55A

Maximum current :65A

Installation hole: 30.5×30.5mm (4mm aperture)

Sologood BLS55A 4in1 ESC SPEC:

Firmware: BLHELI-S: J-H-30-16.7

Continuous current 55A

Maximum current 65A

Electric dispatch protocol support: DSHOT300/600

Input voltage: 3-6s

Galvanometer: Yes

TVS diode protection: Yes

External capacitor: 1000UF high-frequency electrolytic capacitor

Installation hole position 30.5×30.5mm (4mm hole)

Size: 41.5mm X42mm

Weight: 15g

Additional information

Color	FC and ESC
