SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: MAX SOLO VTX 2.5W

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: 5.8G 2.5W VTX

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Size: H 40mm*W 24mm* D 10.5mm

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: RUSH TANK MAX SOLO

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

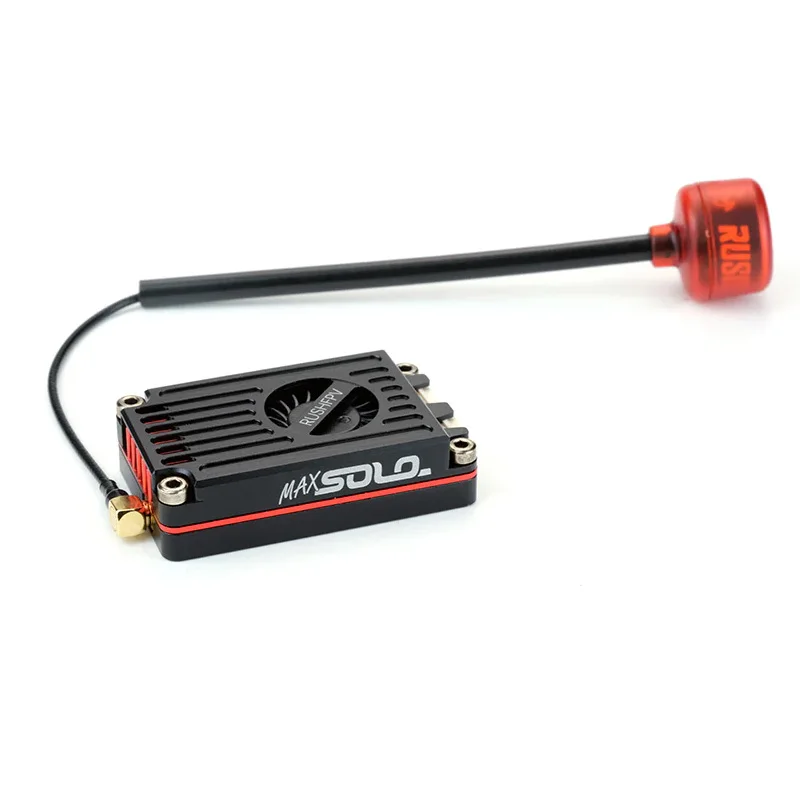

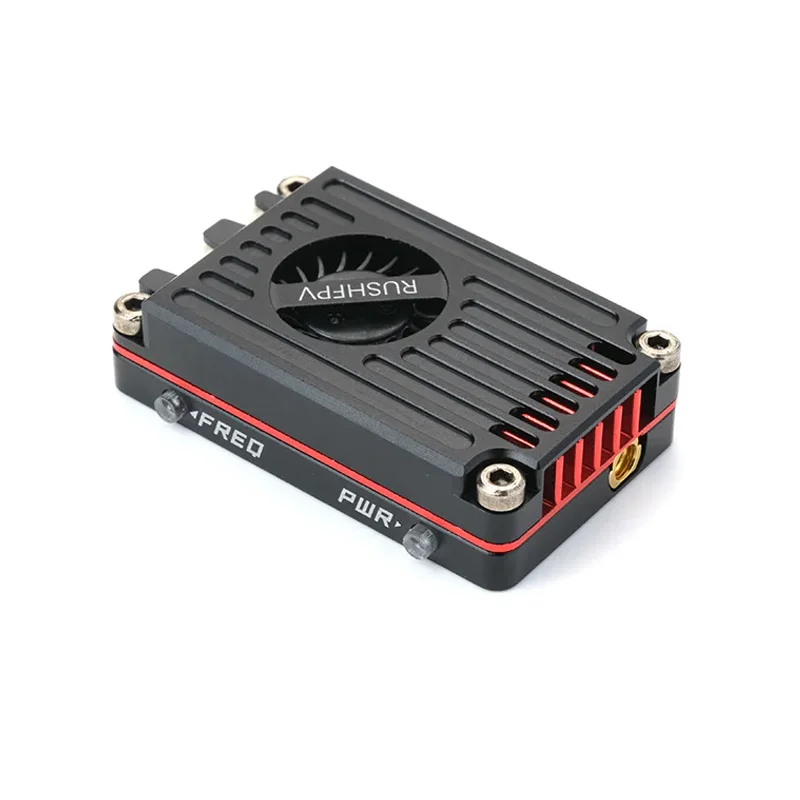

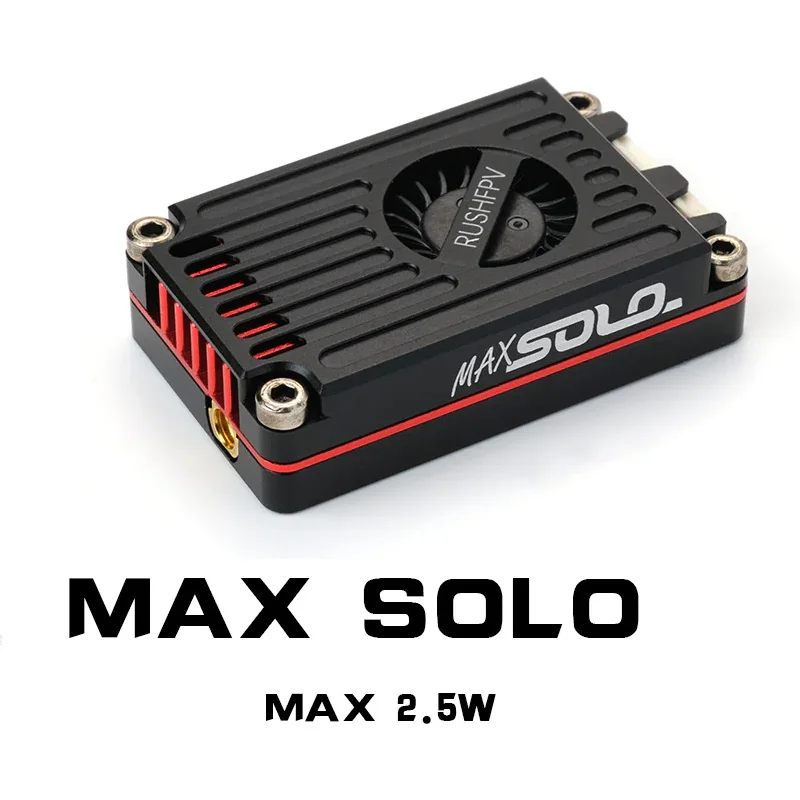

Item:RUSHFPV MAX SOLO 2.5W VTX Video Transmitter
Parameters:
Channel:48CH / 37CH (US)
Power level:PIT-25mW-500mW-100mW-MAX*
Input:DC 7-36V (6S LIPO)
Output:DC 5V (Max 500mA)
Video in:CVBS PAL / NTSC
Audio in:6.5M MONO
Antenna connector:MMCX 50Ω
External control: Smart Audio
Size:H 40mm*W 24mm* D 10.5mm
Weight: 15g (with out cable)

Features:
Developed for extreme long-range pilots,compact and efficient active cooling design unleashes the full performance of the VTX.
LOCK-ON technology with jitter-free transmit channels and no sweep interference for multi-pilot flights.
Factory power consitency calibration for all channels.
Low noise DC-DC power supply drsign oor clean screens.

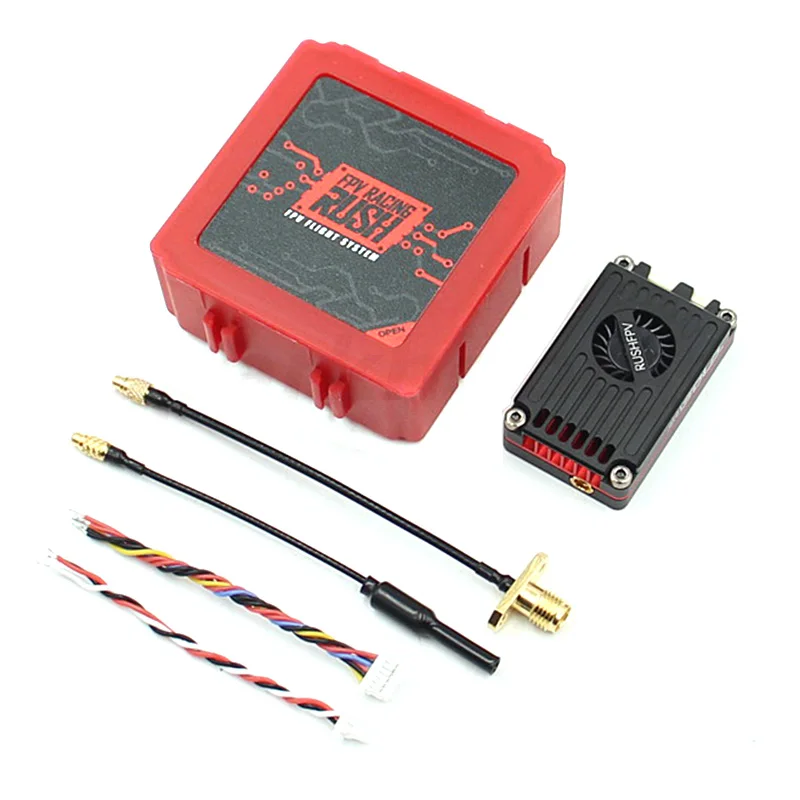

• Package Included:

• RUSH MAX  SOLO Image Transmission x1
  power cable x2
  MMCX to SMA adapter cable x1
  Antenna x1

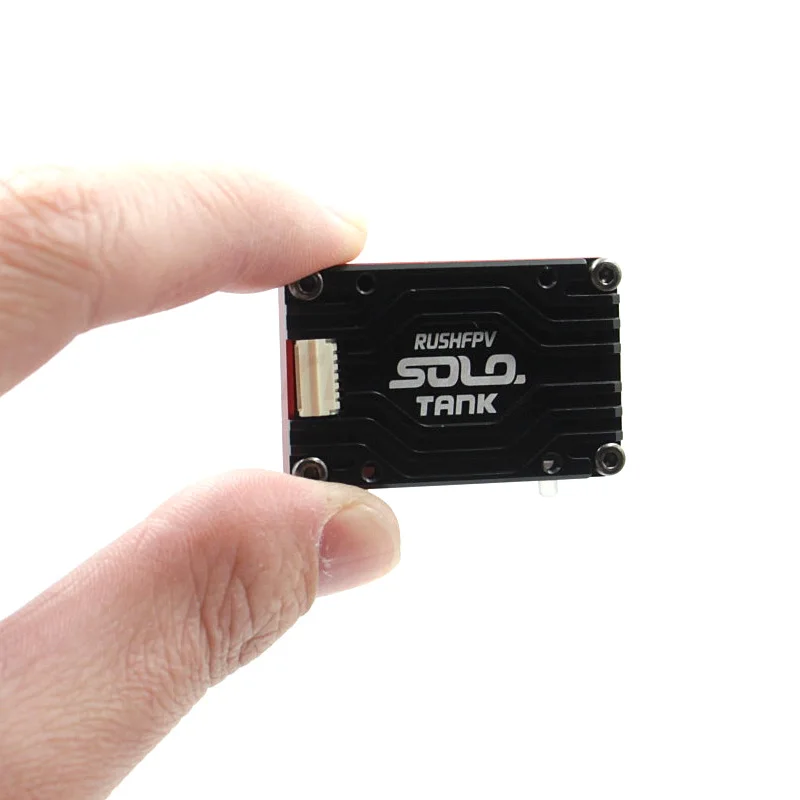

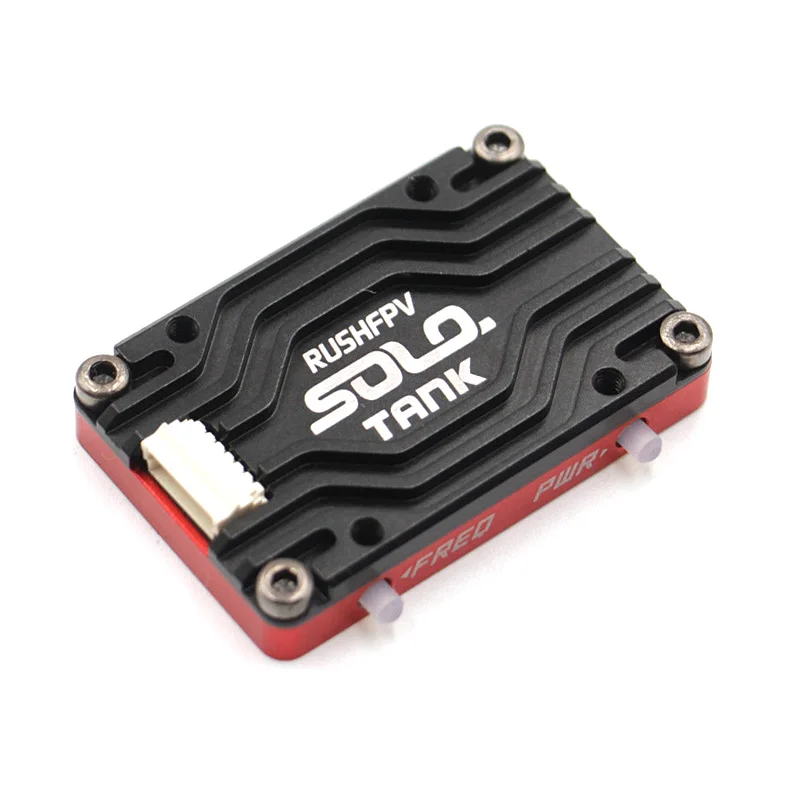

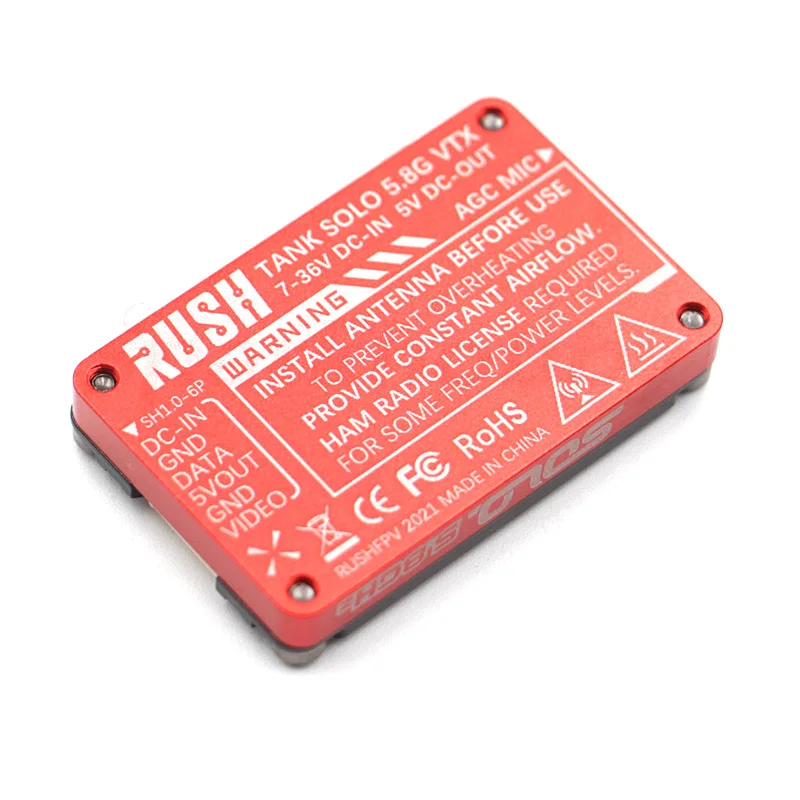

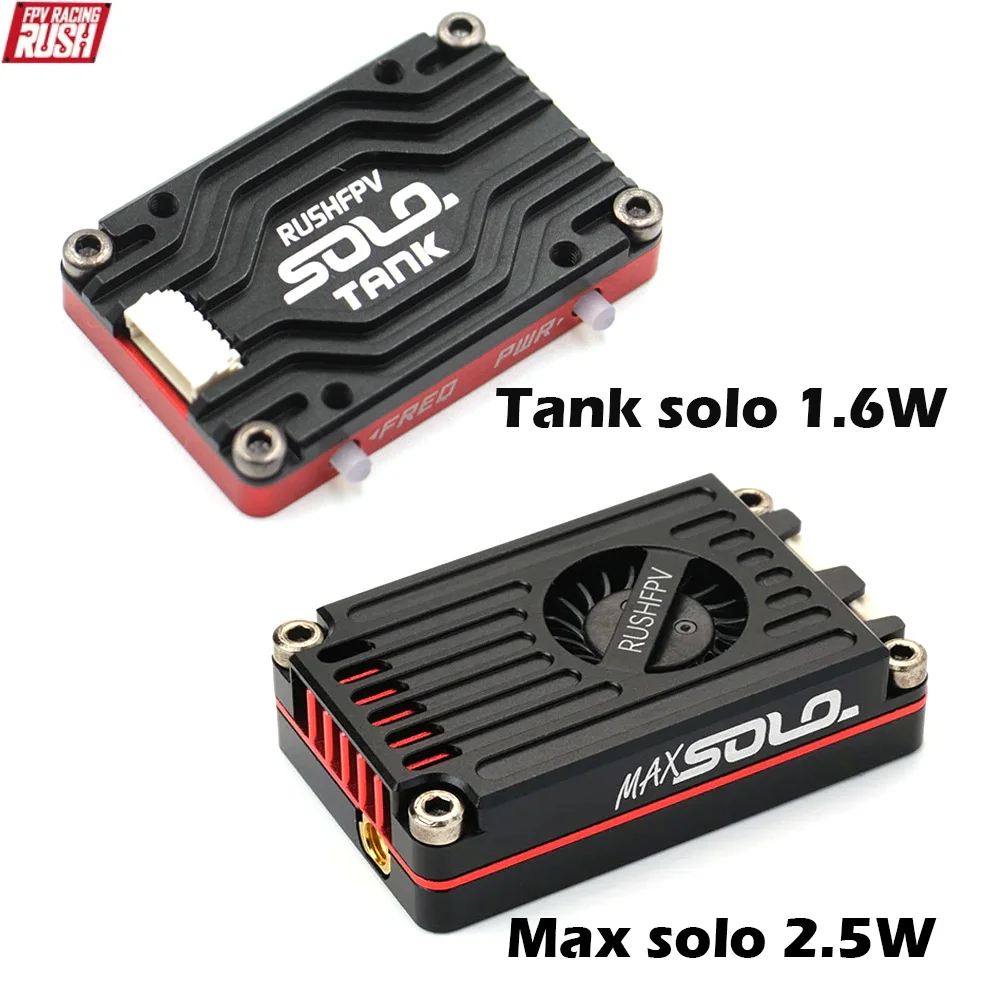

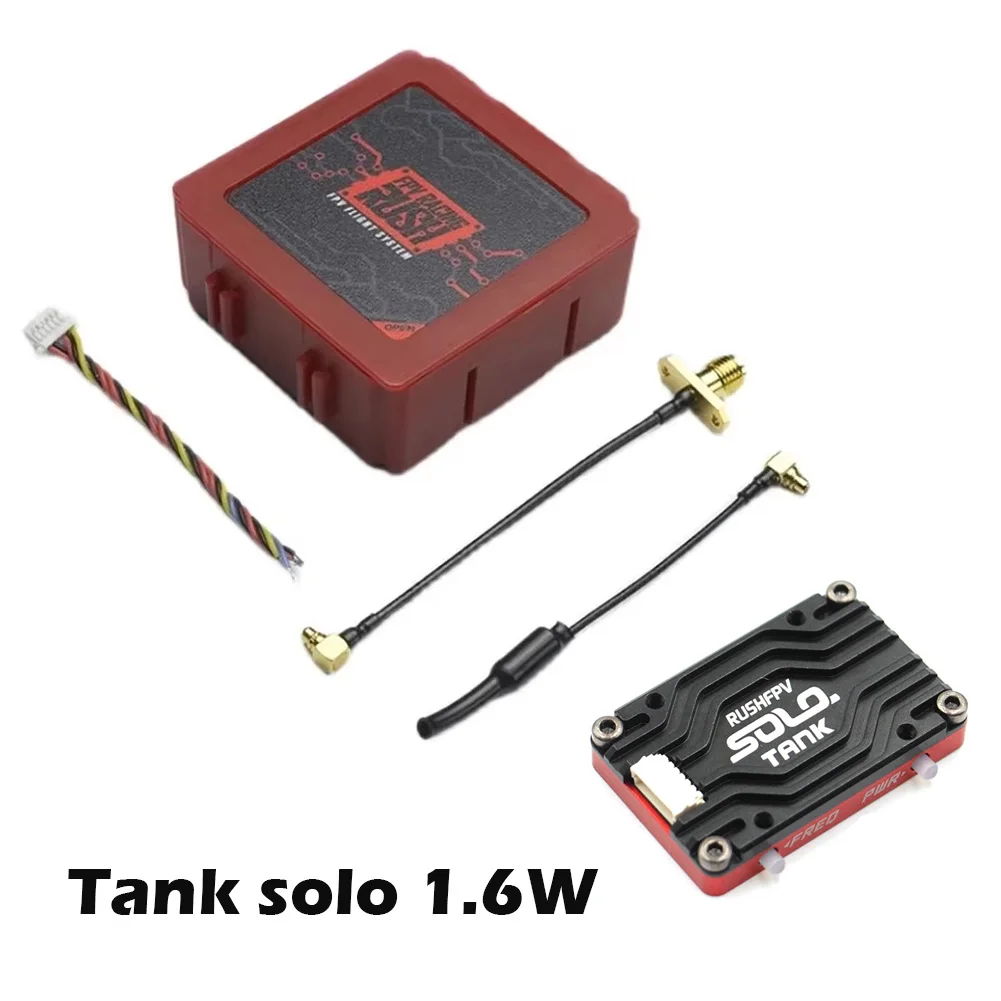

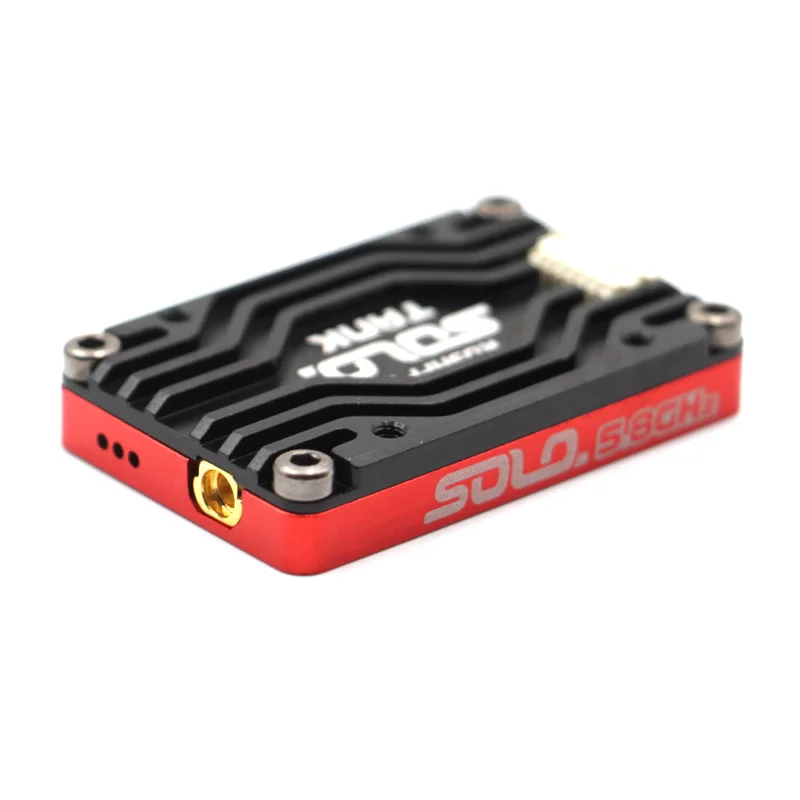

RUSHFPV Tank solo 1.6W:

1. 1.6W super power
2. Unique heat dissipation structure
3. Compact structure design
4. Two-color CNC shell
5. The button indicator lights are combined into one
6. Built-in microphone

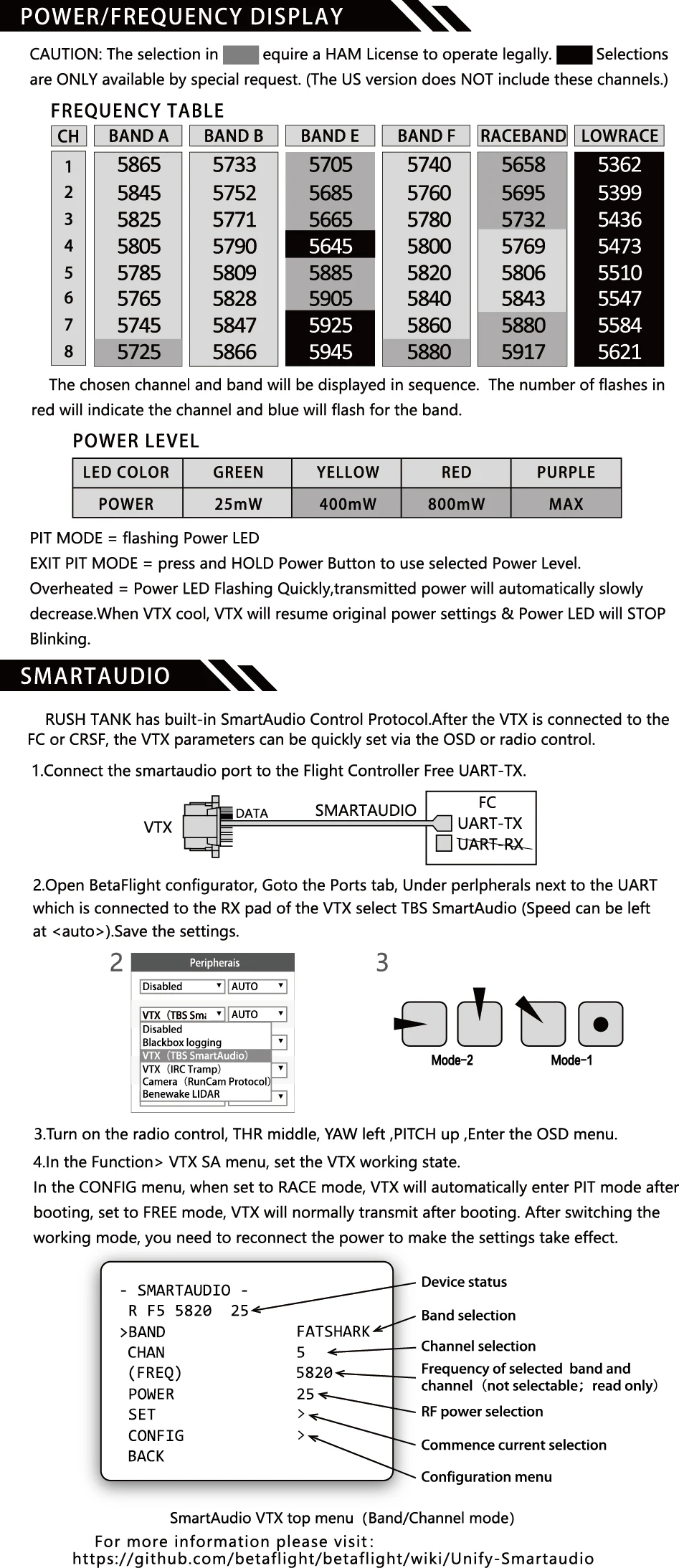

SOLO basic parameters:
POWER LEVEL:PIT-25mW-400mW-800mW-1W-1.6W
CHANNEL:48CH
INPUT VOLTAGE:DC 7-36V (6S LIPO)
OUTPUT VOLTGE: DC 5V (Max 600mA)
VIDEO FORMAT CVBS PAL/NTSC
AUDIO:6.5M MONO WITH AGC MIC
DIMENSIONS:H 37mm*W 24mm* D 6.7mm
WEIGHT:12g(WITHOUT CABLE)
EXTERNAL CONTROL:SMARTAUDIO V2.1
(TBS authorized commercial)
*MAX Power level can provide 1W(30dbm) or more power depending on the environment's ability to dissipate heat.

Packing list:
1x Rush FPV Solo Tank 25-1000mW 5.8GHz VTX w/ Smart Audio – MMCX
1x 90 MMCX Dipole Antenna
1x MMCX to SMA Pigtail
