SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: MAX SOLO VTX 2.5W

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: 5.8G 2.5W VTX

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Size: H 40mm*W 24mm* D 10.5mm

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: RUSH TANK MAX SOLO

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

• Package Included:

• RUSH MAX  SOLO Image Transmission x1
  power cable x2
  MMCX to SMA adapter cable x1
  Antenna x1

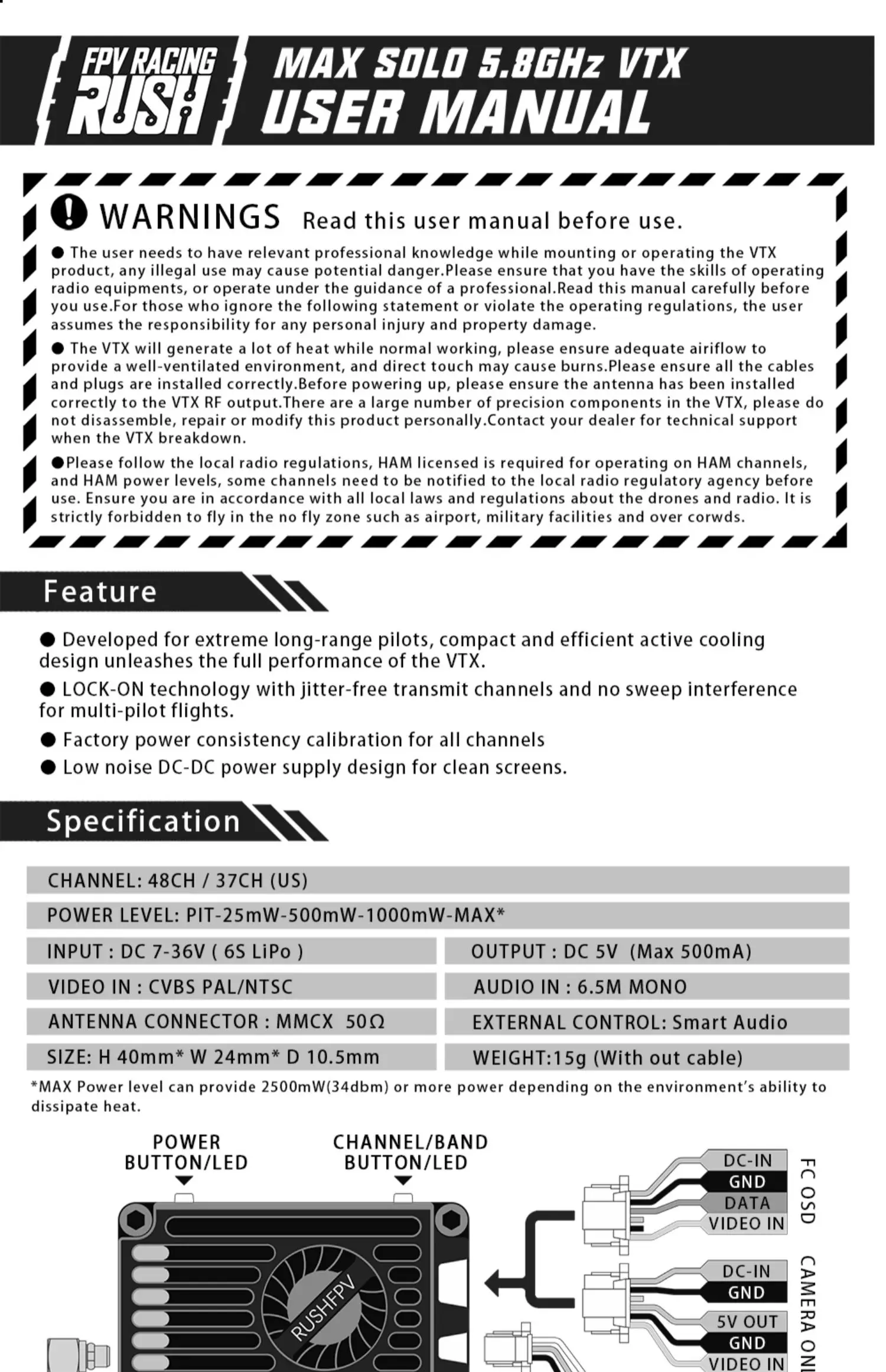

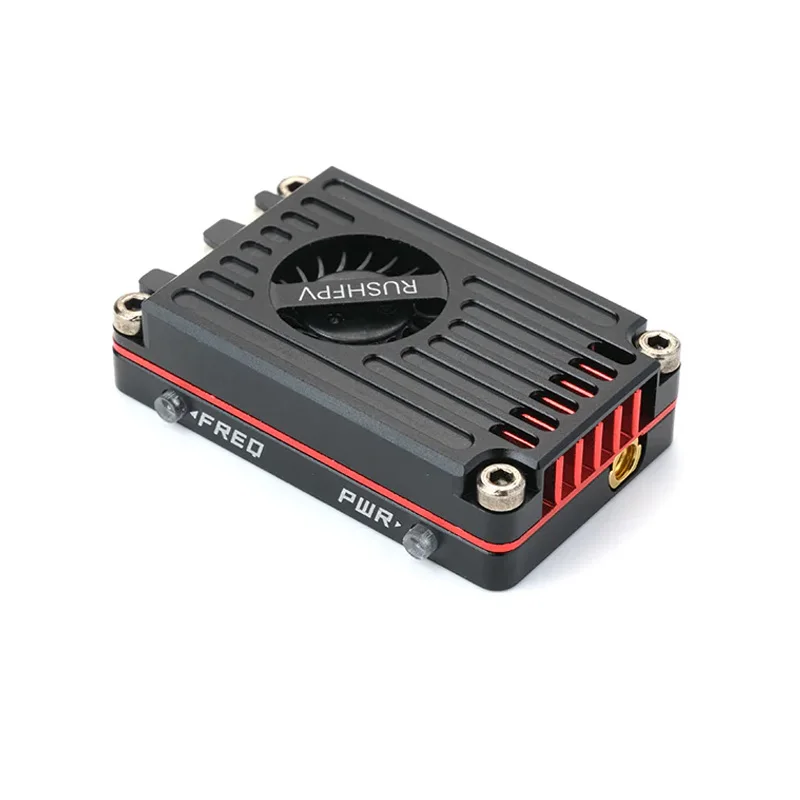

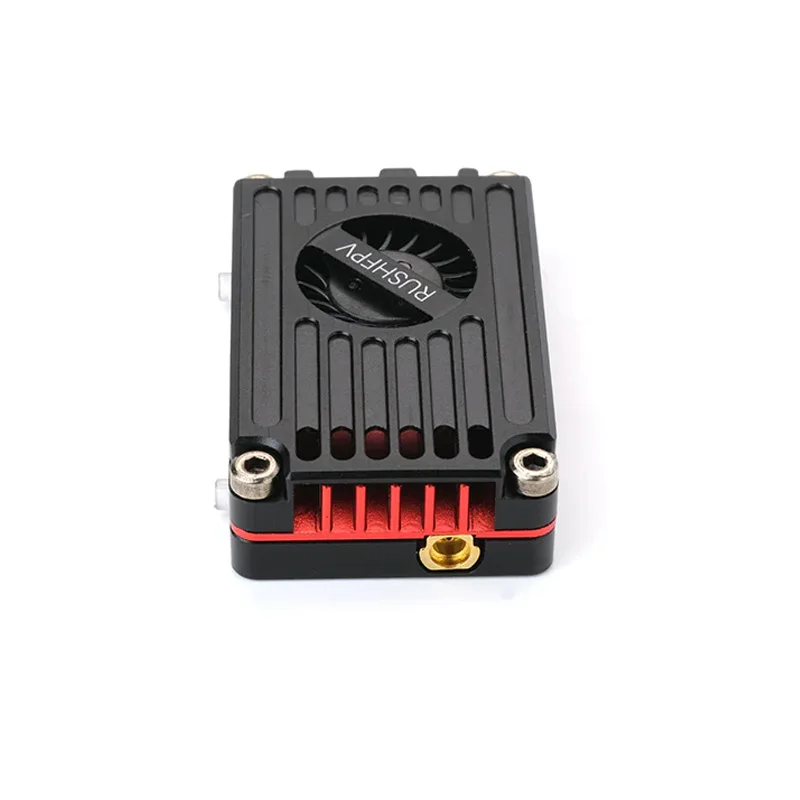

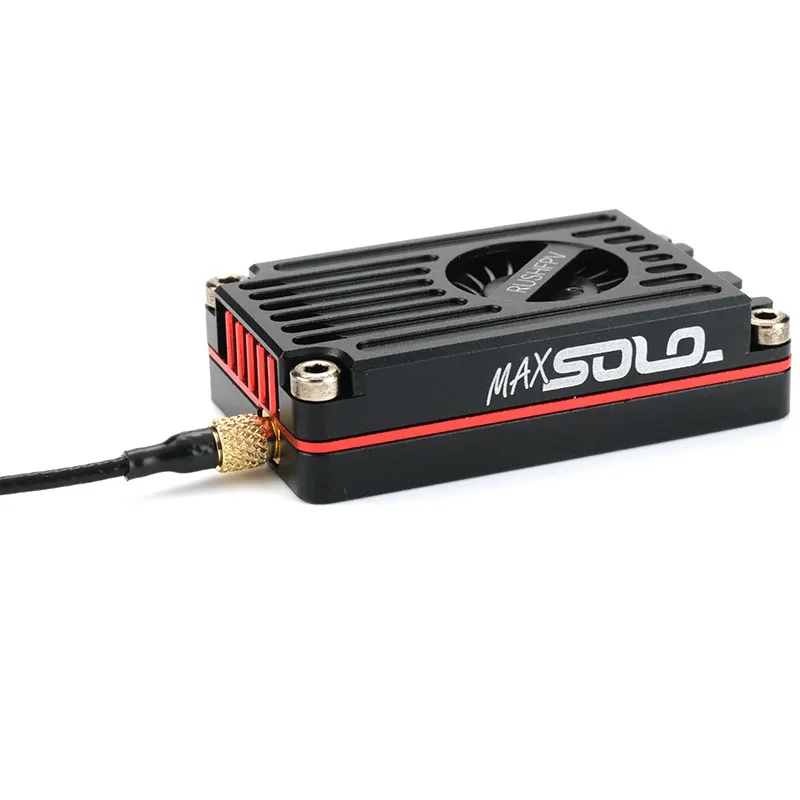

Item:RUSHFPV MAX SOLO 2.5W VTX Video Transmitter
Parameters:
Channel:48CH / 37CH (US)
Power level:PIT-25mW-500mW-100mW-MAX*
Input:DC 7-36V (6S LIPO)
Output:DC 5V (Max 500mA)
Video in:CVBS PAL / NTSC
Audio in:6.5M MONO
Antenna connector:MMCX 50Ω
External control: Smart Audio
Size:H 40mm*W 24mm* D 10.5mm
Weight: 15g (with out cable)

Features:
Developed for extreme long-range pilots,compact and efficient active cooling design unleashes the full performance of the VTX.
LOCK-ON technology with jitter-free transmit channels and no sweep interference for multi-pilot flights.
Factory power consitency calibration for all channels.
Low noise DC-DC power supply drsign oor clean screens.
