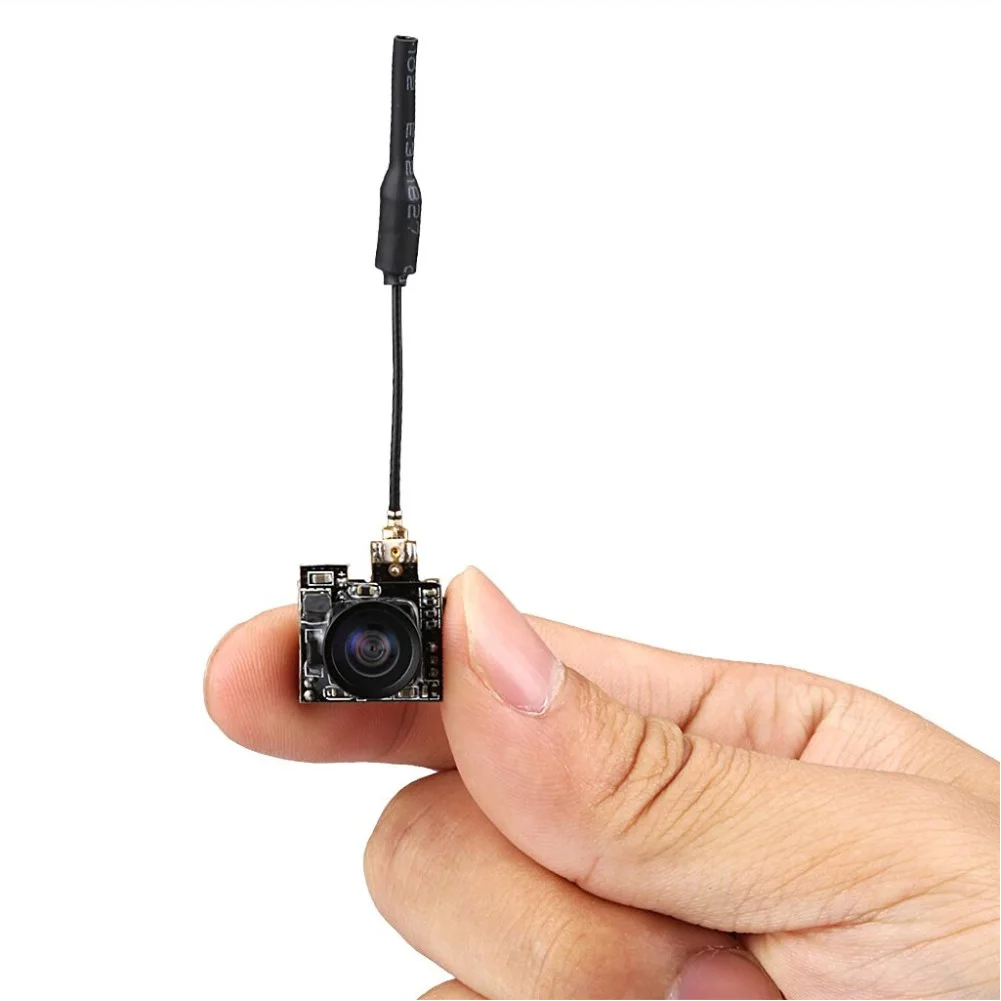

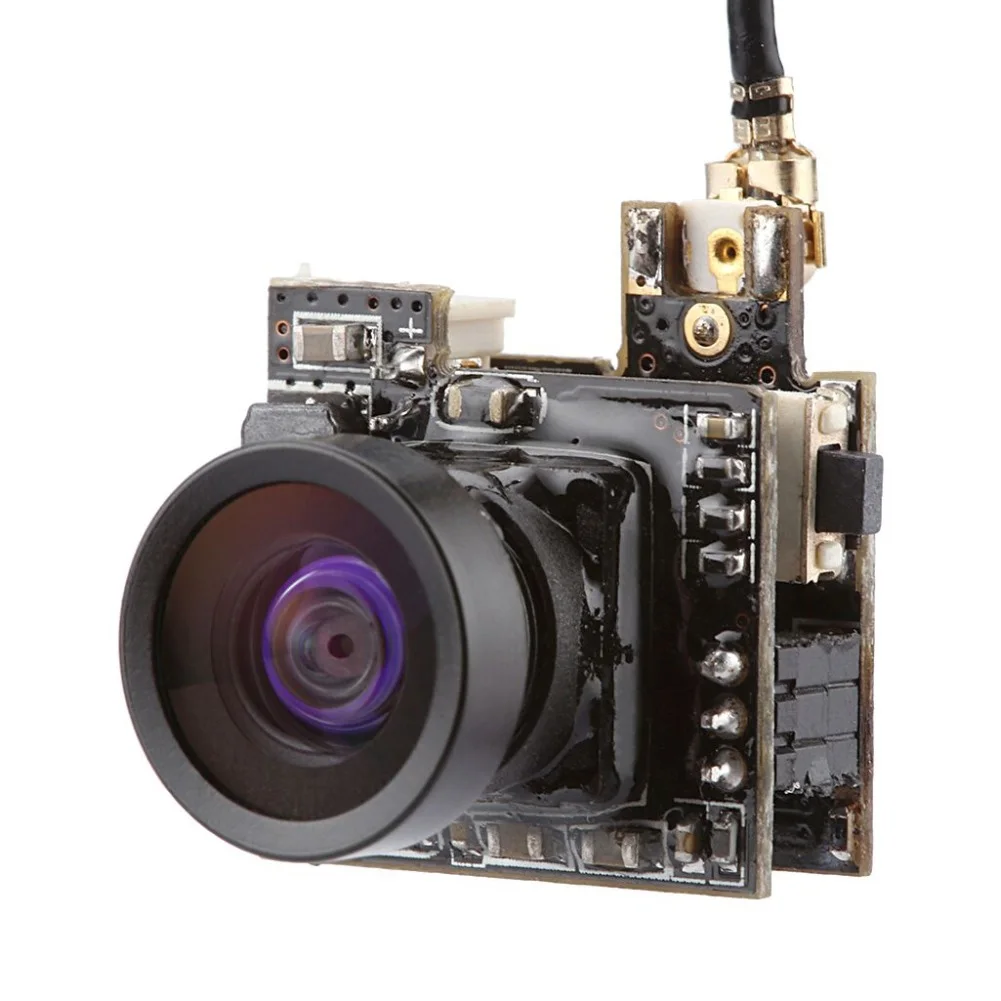

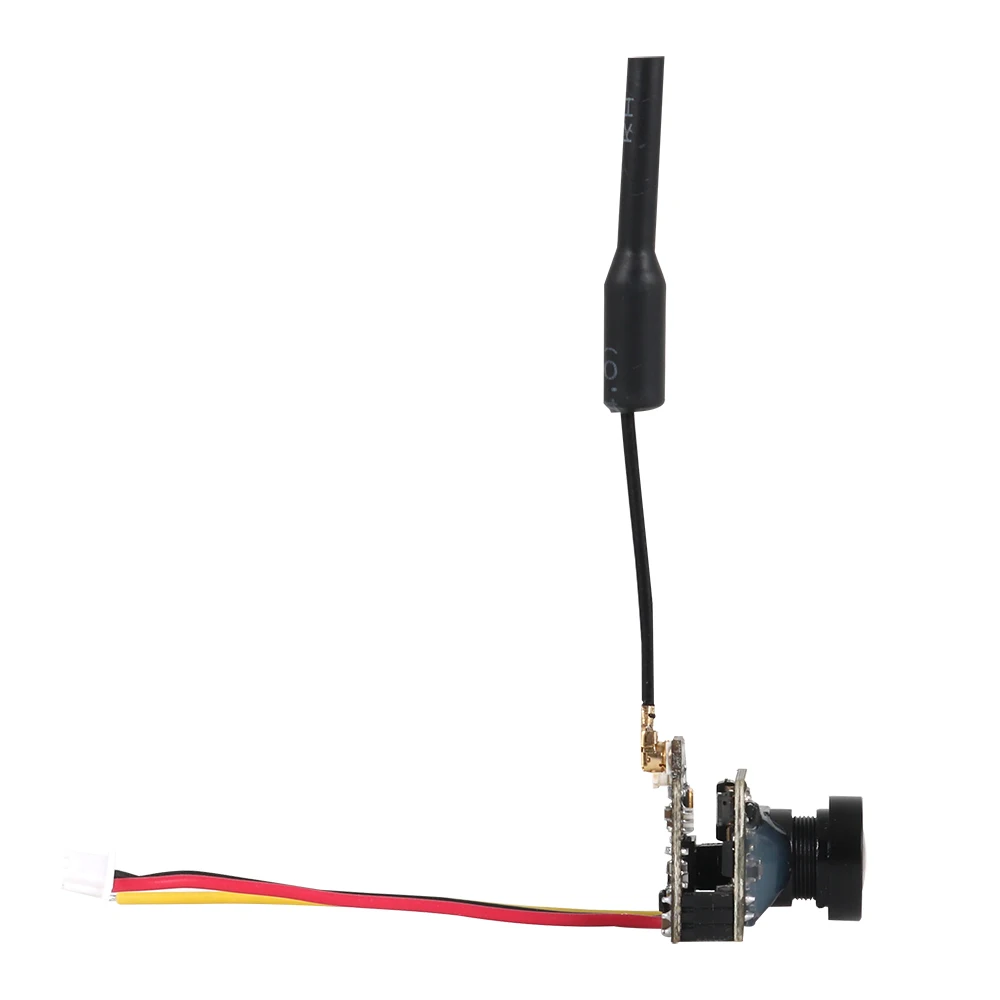

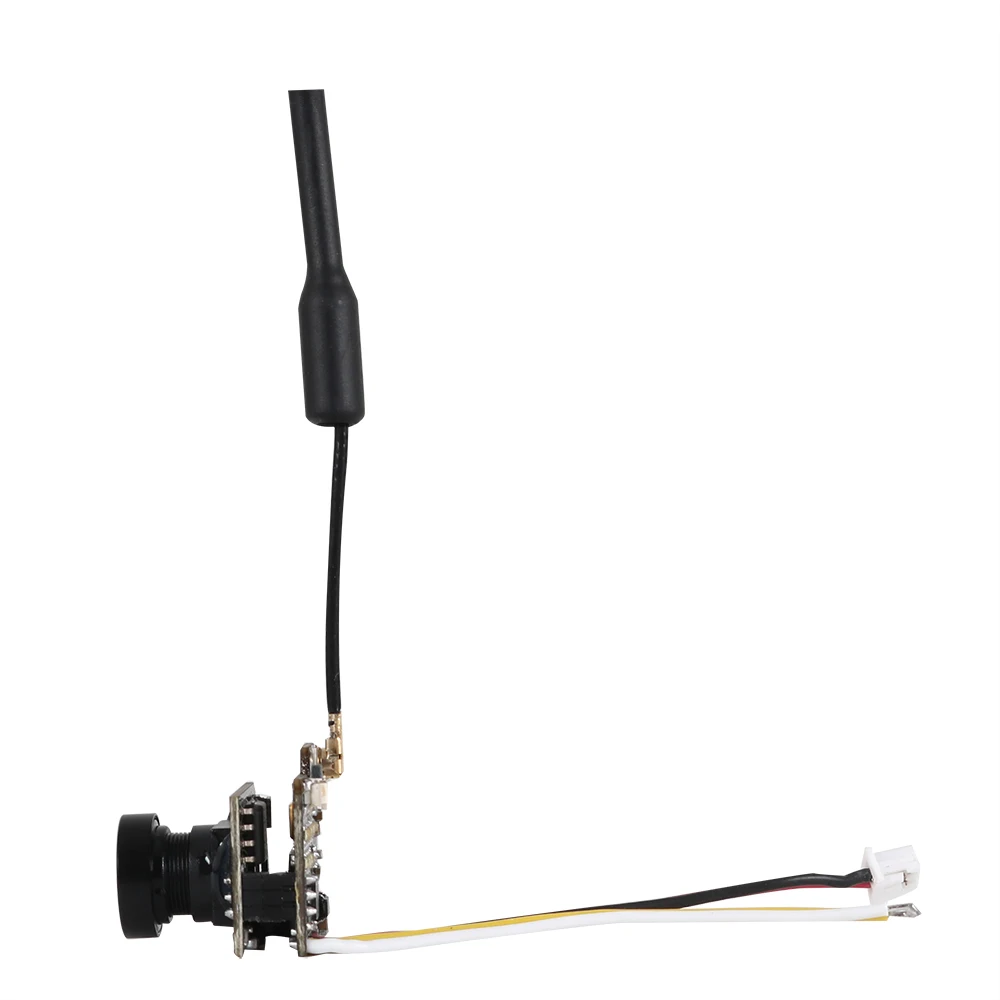

RC Micro Camera FPV AIO 5.8G 25MW 40CH 800TVL Transmitter LST-S2+ FPV Camera With OSD Parts For Racing Drone
Original price was: $176.28.$102.83Current price is: $102.83.
14 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Other
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: JJ8037
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: FPV Camera
Recommend Age: 14+y
Remote Control Peripherals/Devices: FPV Camera
Size: 18x16x16mm (without antenna)
Technical parameters: value 2
Tool Supplies: FPV Camera
Upgrade Parts/Accessories: FPV Camera
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
FPV Camera
Sensor: 1/4 "CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 · 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

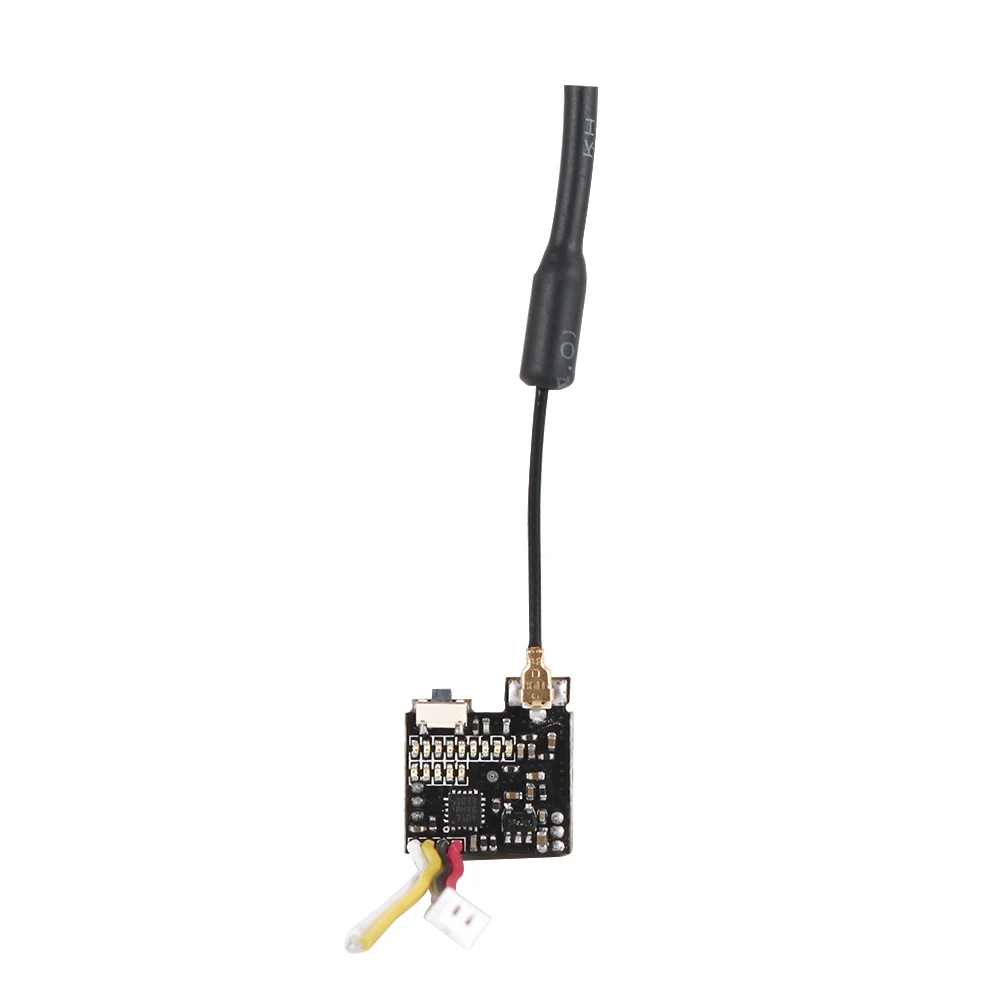

Video Transmitter
Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW

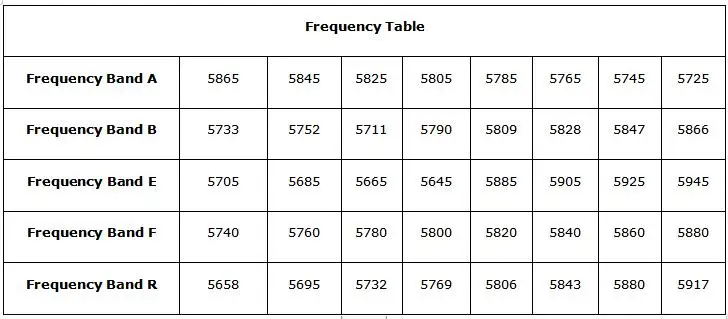

Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz
Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
Body
Weight: 3.6g
Size: 18x16x16mm (without antenna)
Feature:
AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight
150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Five bands 40 channels with Race band

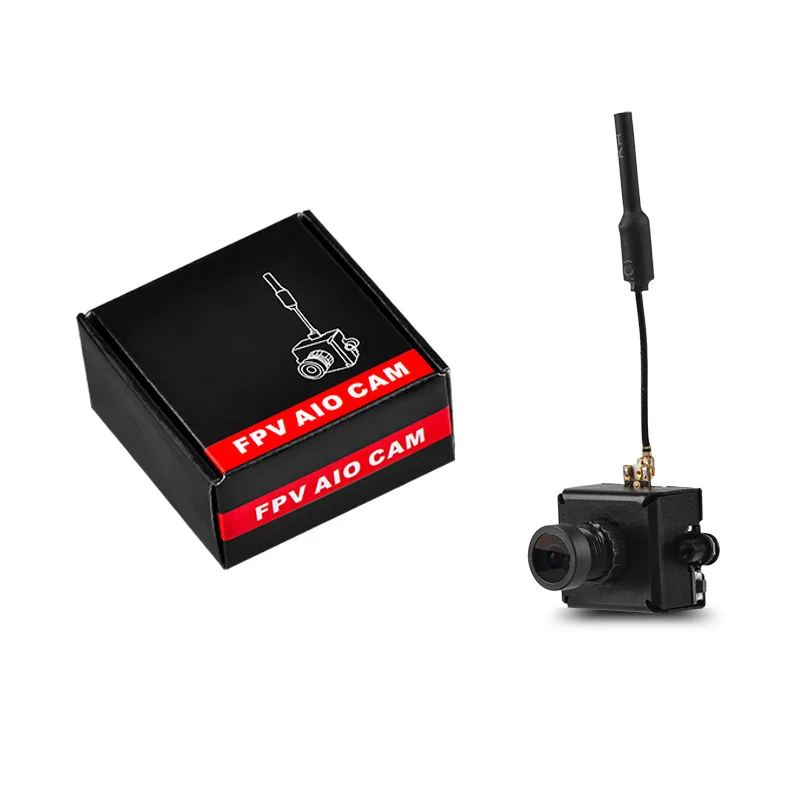

Package Included:
1 X S2 AIO FPV Camera

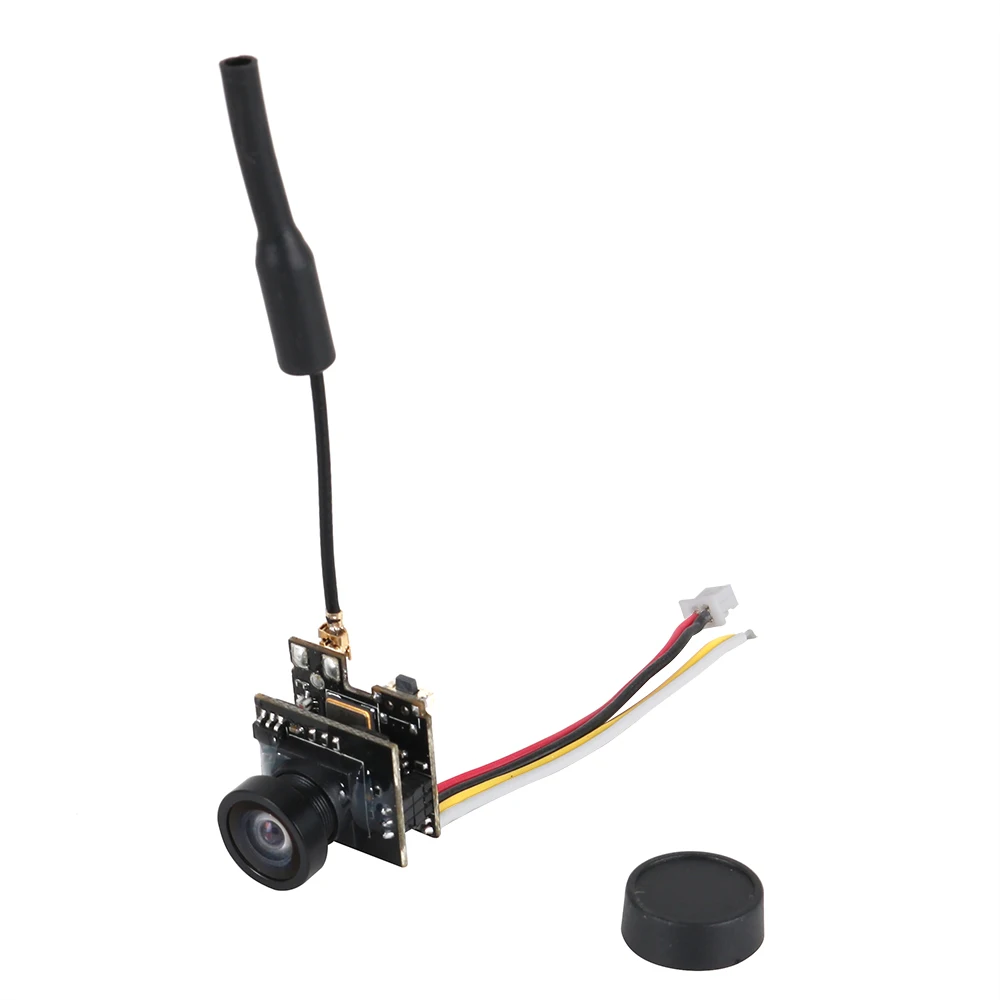

1 X wiring harness
1 X User Manual
