Name: Radiolink Balance Charger CB86 Plus for 8pcs 2-6S Lipo Battery at one time Professional For RC Lipo Battery
SKU: _d6lrejk0r2fg009td7ig
Availability: InStock

Original price was: $917.82.Current price is: $535.40.

4 in stock

"*" indicates required fields

Add to wishlist

SKU: _d6lrejk0r2fg009td7ig Category: Others

Description

SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Battery

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: UL40300

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Batteries – LiPo

Recommend Age: 14+y

Remote Control Peripherals/Devices: Battery Charging Units

Size: 183*103*56 mm

Technical parameters: value 2

Tool Supplies: Battery

Upgrade Parts/Accessories: Other

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

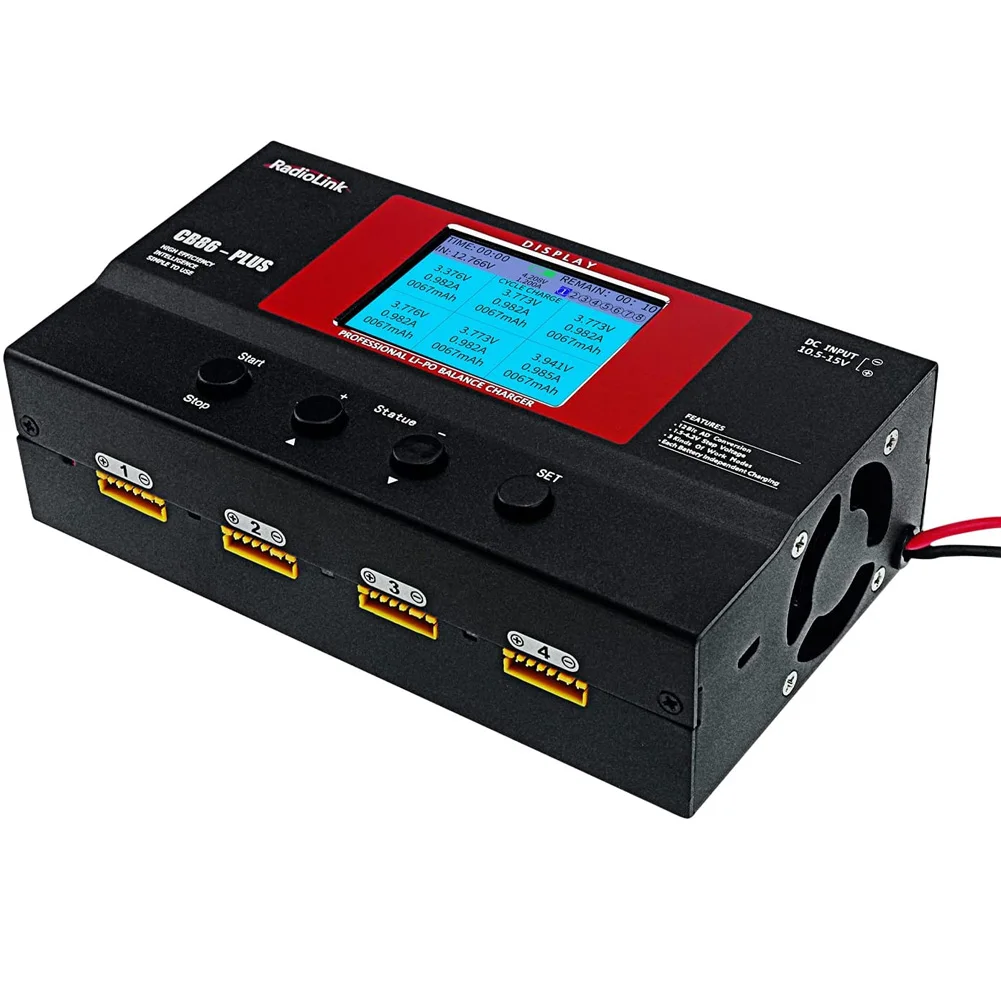

Battery Balance Charger CB86 PLUS specification:

Main:Absolutely balance charger, has six signle power supplies inside, Eight battery packs charging at one time, accurate and safe, independent balance charge for every single battery cells, punctual and fast change, efficient and low carbon, easy to install and use.

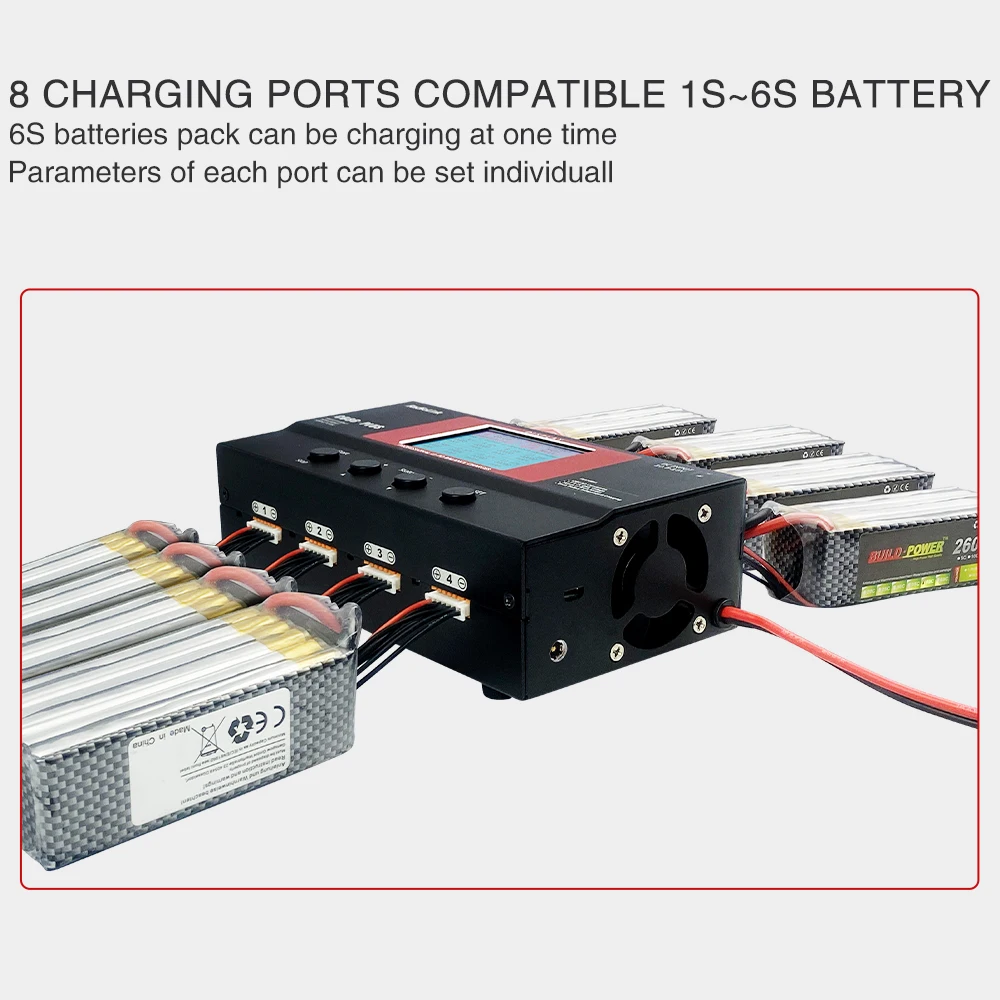

1. Eight battery packs charging at one time, one time setting for maximum eight connected battery packs, the CB86PLUS charger will auto change all the battery packs full.

2. Patent technology charge port, compatible with 1S~6S LiPo/LiFePo battery packs.

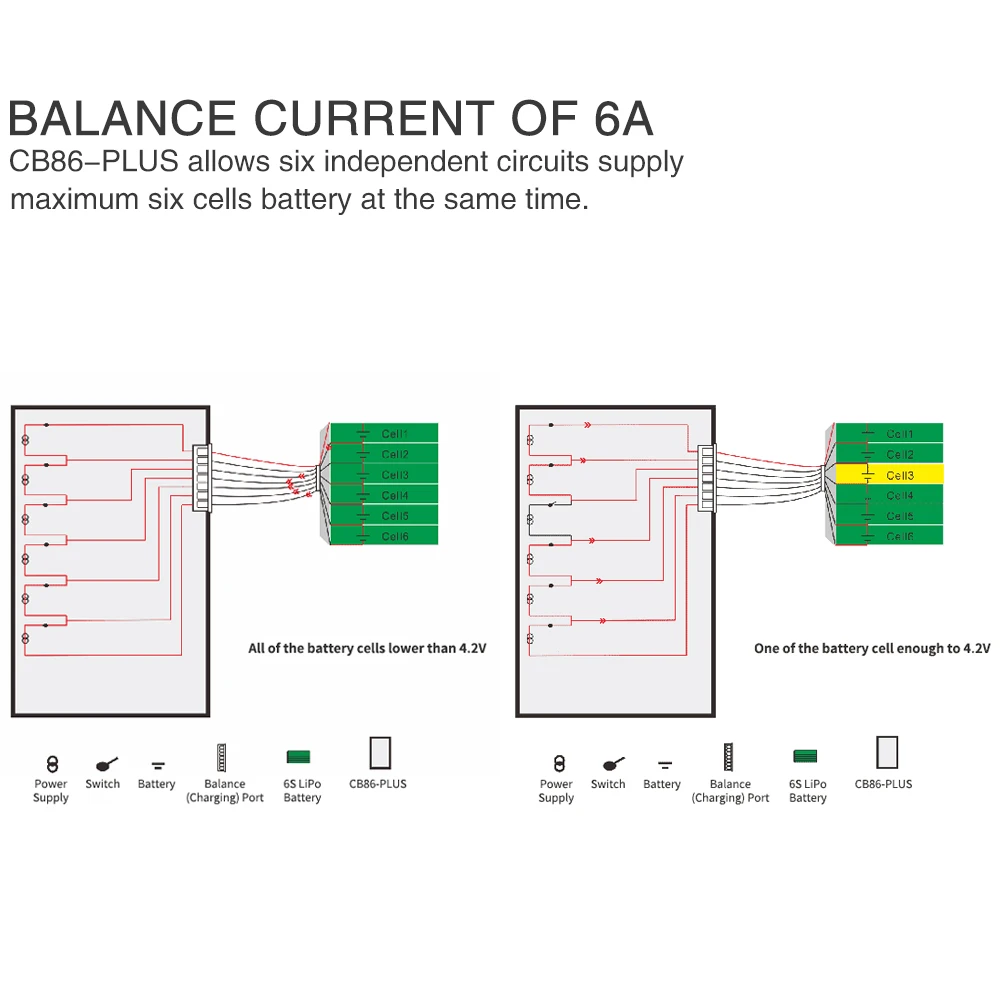

3. Independent balance charge for every single battery cells, single power supply to very battery cell, even the high voltage gap in the pack, the final voltage for every cell will be equal when the charge finished, finished cells will stop charge when it's full and never overcharge.

4. Support maximum 6A charge current for 6 battery cells, finish the charge asps, save time for you.

5. 0.001V precision voltage detection and 0.001A precision current control make sure every battery cell exactly, and never overcharge. keep the battery higher performance and higher cycle-life.

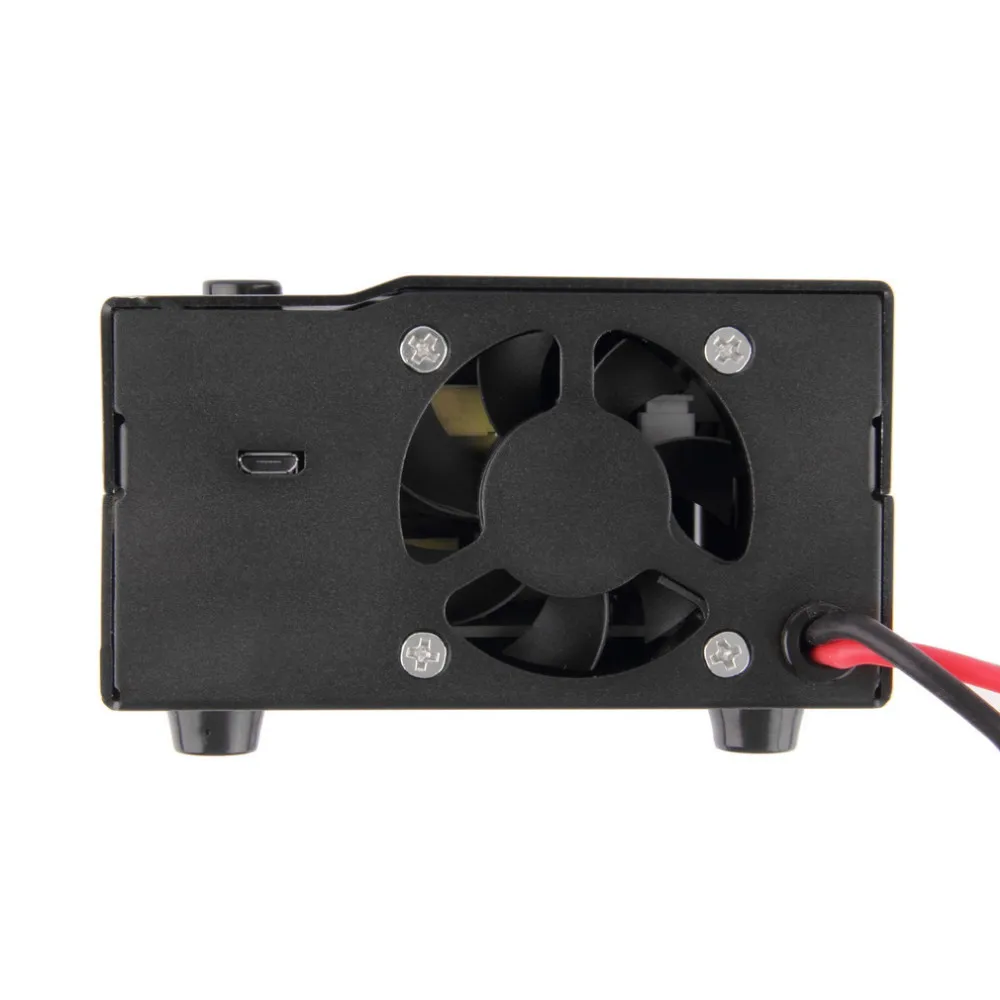

6. Self working current 70mA, only 40% of other bland balance chargers, charging efficiency reaches to 97%. Even use the maximum charge current the charger still keep cool, a great low carbon product!

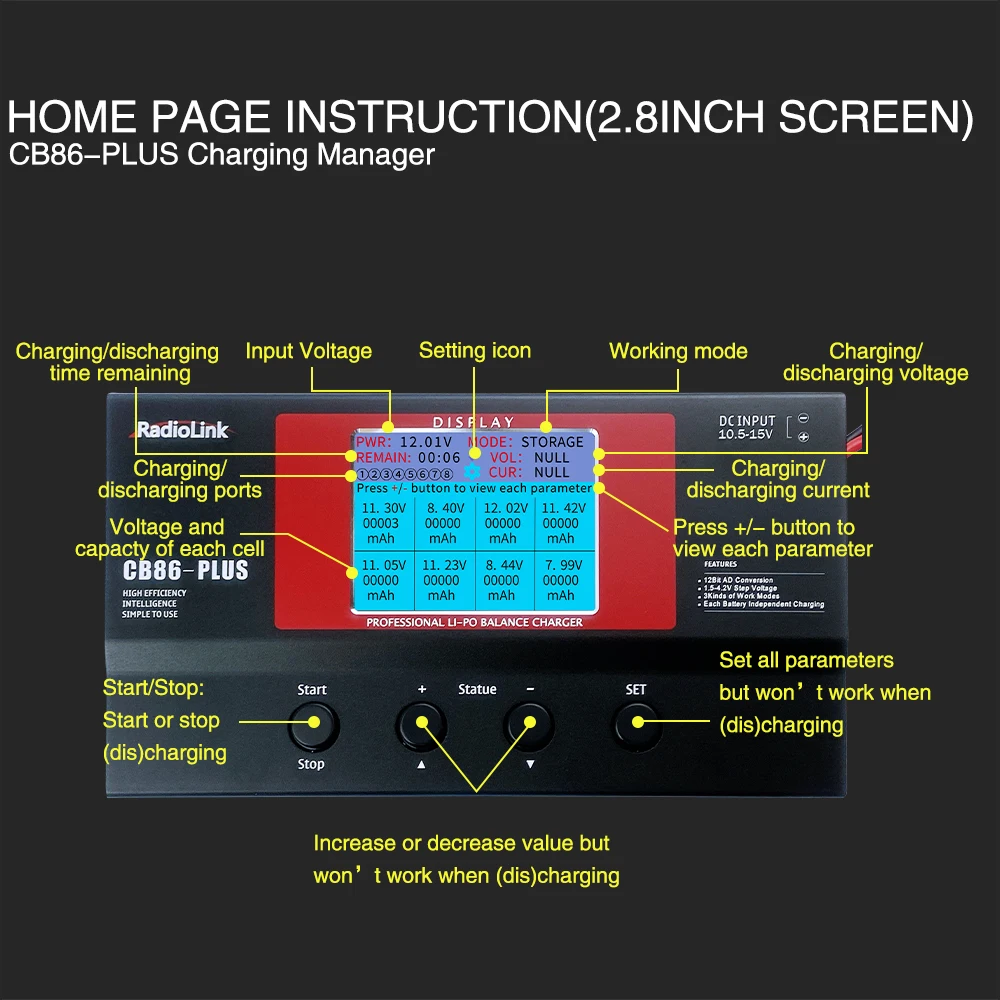

7. Special TFT screen, display every battery cell's charging status, and easy to set it.

8. Self protection, wrong input power polarity the charge will not work, low and over voltage input power warning, wrong output charge polarity will not charge the battery.

Specifications:

Professional Li battery balance charger, eight battery charge simultaneous

Input voltage:10.5~15V DC

Charge capability:LiPo/LiFePo 1S-6S

Charge voltage:0.00V~4.23V

Disharge voltage:2.00V~4.23V

Charge current:0.1-6.0A

Disharge current:1.05V

Charge mode:Cycle charge and parallel charge

TFT Screen Size: 60*45 mm /2.36*1.77 inch

Product Size: 183*103*56 mm

Pakage size: 220*138 *99 mm

Language: English

Product description: eight battery balancer connector, max connecting eight 6S Li battery. safe design. compatible 1S-6S battery.

Radiolink CB86 Plus Balance Charger 1s/2s/3s/4s/5s/6s LiPo Lithium Battery Professional Charger 0.1-6A for RC FPV Drone/Controller/Transmitter Car/Boat Batteries

Online Manual:http://radiolink.com/cb86plus_manual

Firmware Upgrade: http://radiolink.com/cb86plus_firmware

CB86-Plus Features:

First Independent and balance charger (8 ports):

1.Hardware failure-analysis algorithm improve safety.

2.1mV balance precision improve battery life.

3.Convenient setup function of one key to storage charge parameter.

4.8 6S batteries cycle charge automatically.

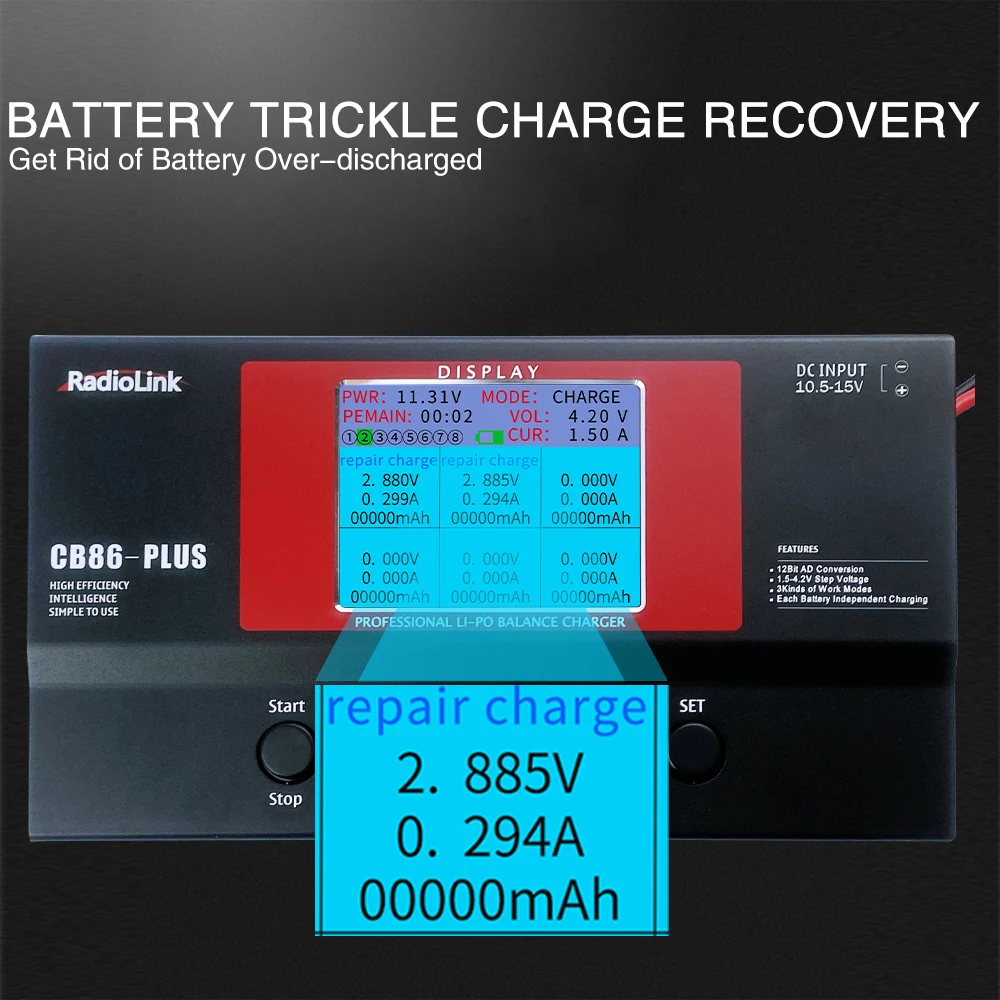

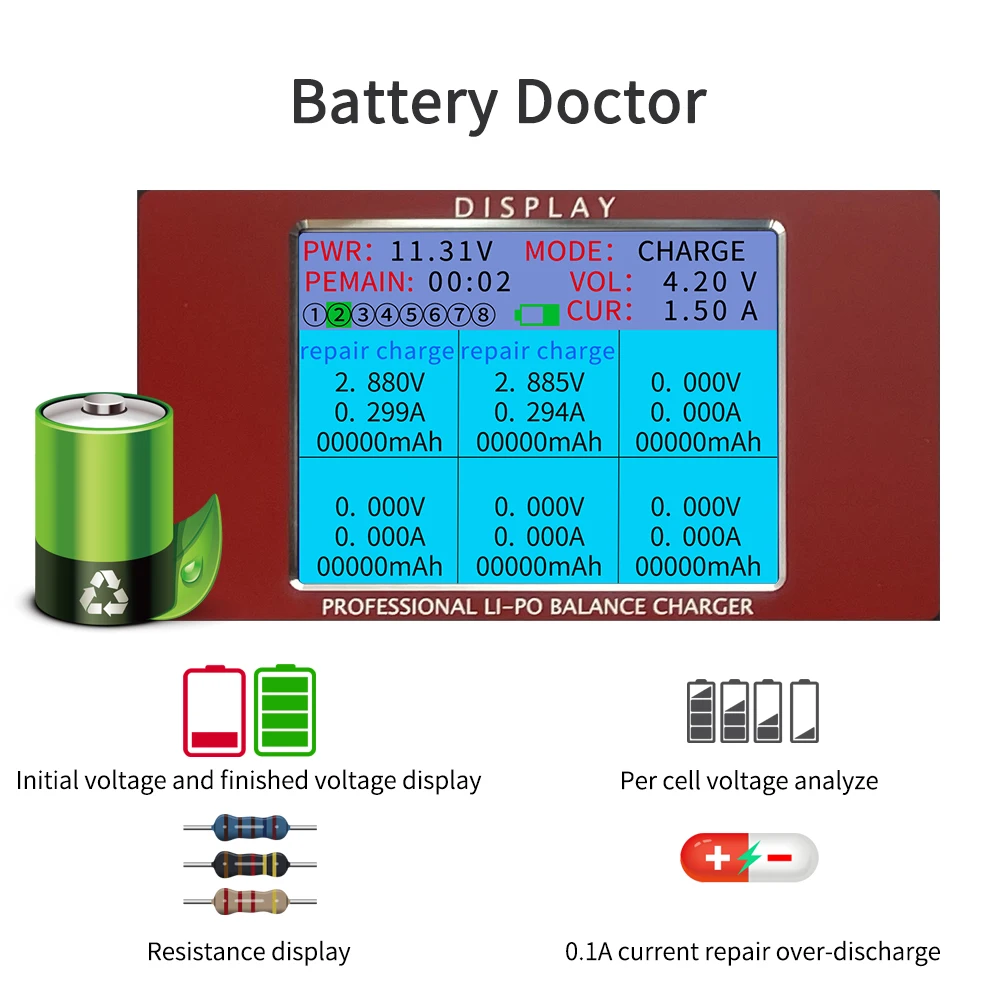

5.Repaire old battery function.

6.Balance current: max 6A, finish the charge asps, save time.

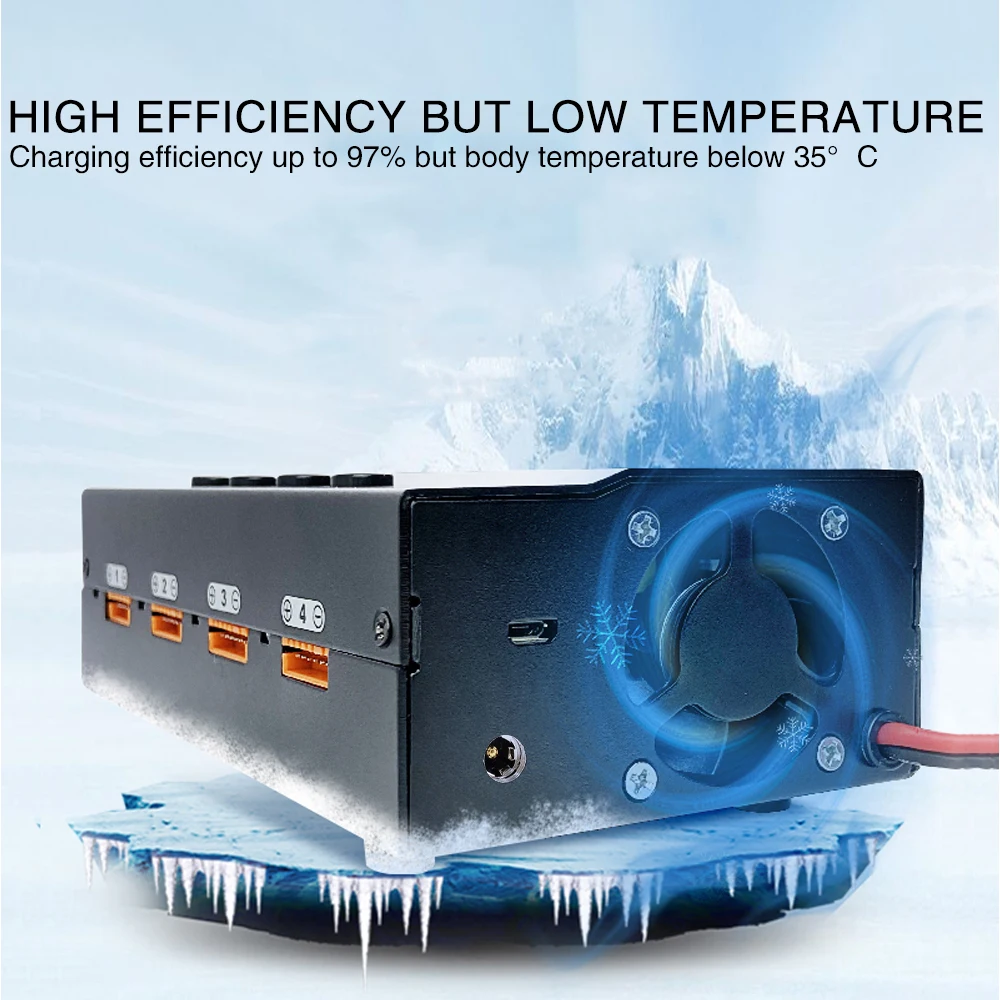

7.Charging efficency: 97%.

8.Charing temperature: less than 35 degree.

9.Patent technology charge port (Patent: 201320212324,2)

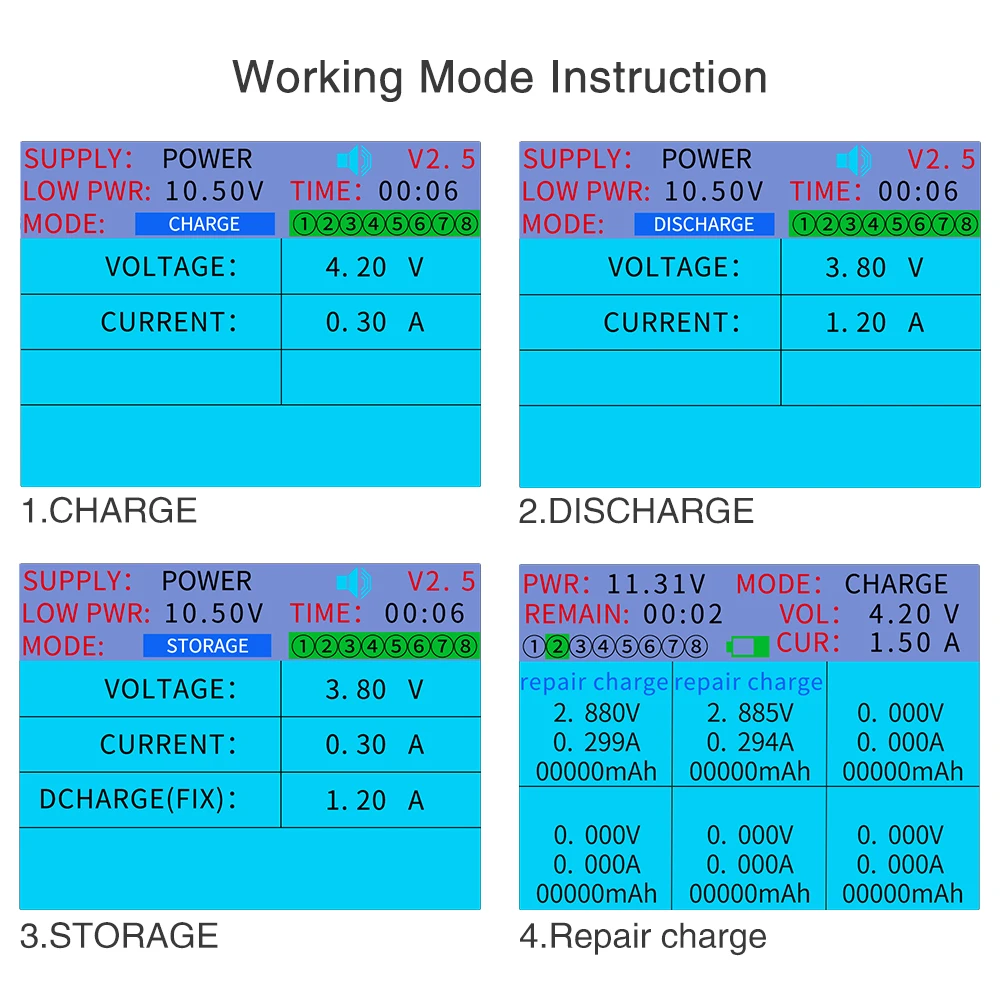

10.4 Working modes: CHARGE/DISCHARGE/STORAGE/Repair charge

11.Software: USB online upgraded

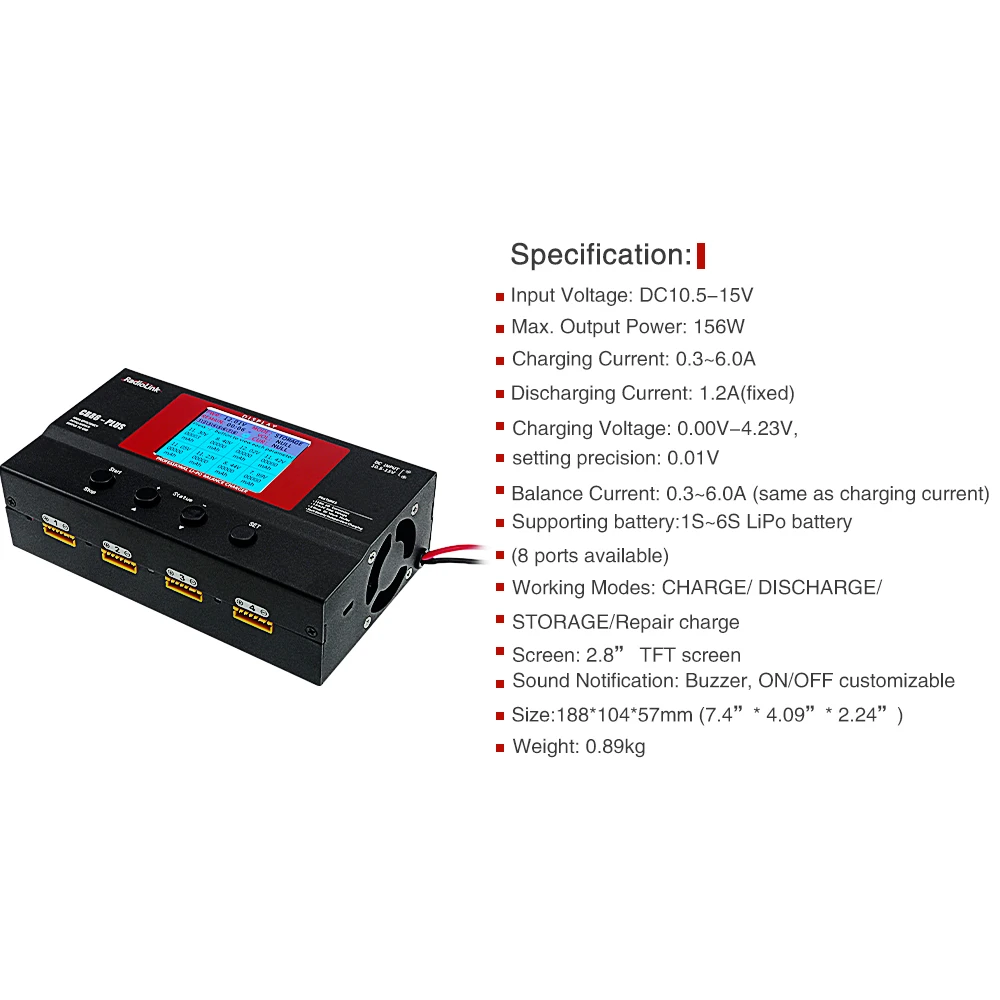

Descriptions:

Item Name: CB86-Plus Balance Charger
Input Voltage: DC10.5-15V
Max. Output Power: 162W
Supporting battery: 1S~6S LiPo battery (4.2V), 1S~6S Li-ion battery (8 ports available), or 1S~6S High voltage lithium battery (4.35V)
Working Modes: Charge/Discharge/Storage/Repair charge
Charging Voltage: 3.5~4.35V can be selected
Charging Current: 0.3~6.0A can be selected
Balance Current: 0.3~6.0A (same as charging current)
Discharging Current: 1.2A(fixed)
Screen: 2.8’’ TFT screen
Sound Notification: Buzzer, ON/OFF customizable
Size: 188*104*57mm (7.4”* 4.09”* 2.24”)
Weight: 0.89kg

Package Includes:

1 x CB86 Plus Balance Charger
