Built-in 3.7V 800mAh Battery

Support a key search frequency

RaceBand 40 channel Auto-Searching

Real-time video return 5.8G FPV Receiver

Can be used as a receiver for "DJI" glasses

Feature:

● Small size and light weight;

● Low power consumption, Working current 360~400mA;

● RaceBand 40 channel, Auto-Searching;

● 3.0 Inch 480*320 dot high brightness LCD screen;

● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;

● Built-in 3.7V/800mAh high-capacity Li-ion polymer Battery;

● Universal USB charging interface;

● Real-time video return, Very low time-delay;

● Bilingual menu in support of Chinese and English;

● Support external video signal input;

● Support AV signal output (Connect external DVR);

●It can be used as a receiver for "DJI" and other video glasses. With interest screen function;

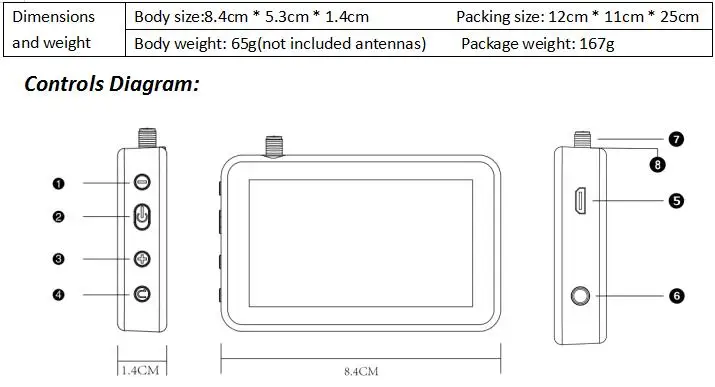

Description:

① Key 1: Short press for Band+ (Change bands A-B-E-F-R circularly).

② Key 2: Short press for MENU mode; Long press (More than 3 sec) for Power ON/OFF.

③ Key 3: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).

④ Key 4: Short press for Auto-Searching (Automatic selection of the strongest channel).

⑤Micro-USB Charging port: Supports DC5V only.

⑥AV Jack: In RFreceiving mode can output AV signal; In AV mode can enter the video signal.

⑦ Antenna port : RP-SMA male.

⑧ Charging indicator: Red light when charging light; full power, the indicator goes off.

Menu Operation Instructions:

 In normal mode, press Key 2 to enter the MENU mode.

In MENU mode:

① Key 2: Select the option bar.

②Key 1: Value -.

③Key 3: Value +

④Key 4:Auto-Searching

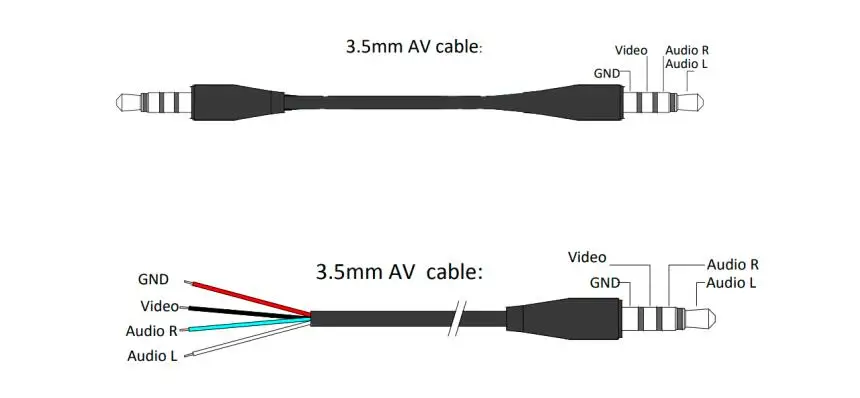

AV port Instructions:

Safety instruction:

1. Read the entire instruction manual to become familiar with the features of the product before operating.

2. Age Recommendation: Over 14 years old.Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.

3. Please avoid wet or humid environments.

4. Please use standard USB charger, charging voltage can only be 5V.

5. AV output and Video input cannot work at the same time,It is forbidden to insert external video in RF receiving mode.

6. Please do not use corrosive cleaning agents to clean the product!
