Specification:
– Video size: PAL(720*576); NTSC(720*480)
– Backlit type: LED dynamic video, MP4, single audio
– Storage: Flash 128MB, Mini SD(TF)card, Max.support 32GB
– Wireless receive: 5.8G 32CH -90dBm receive sensitivity
– Language: 5

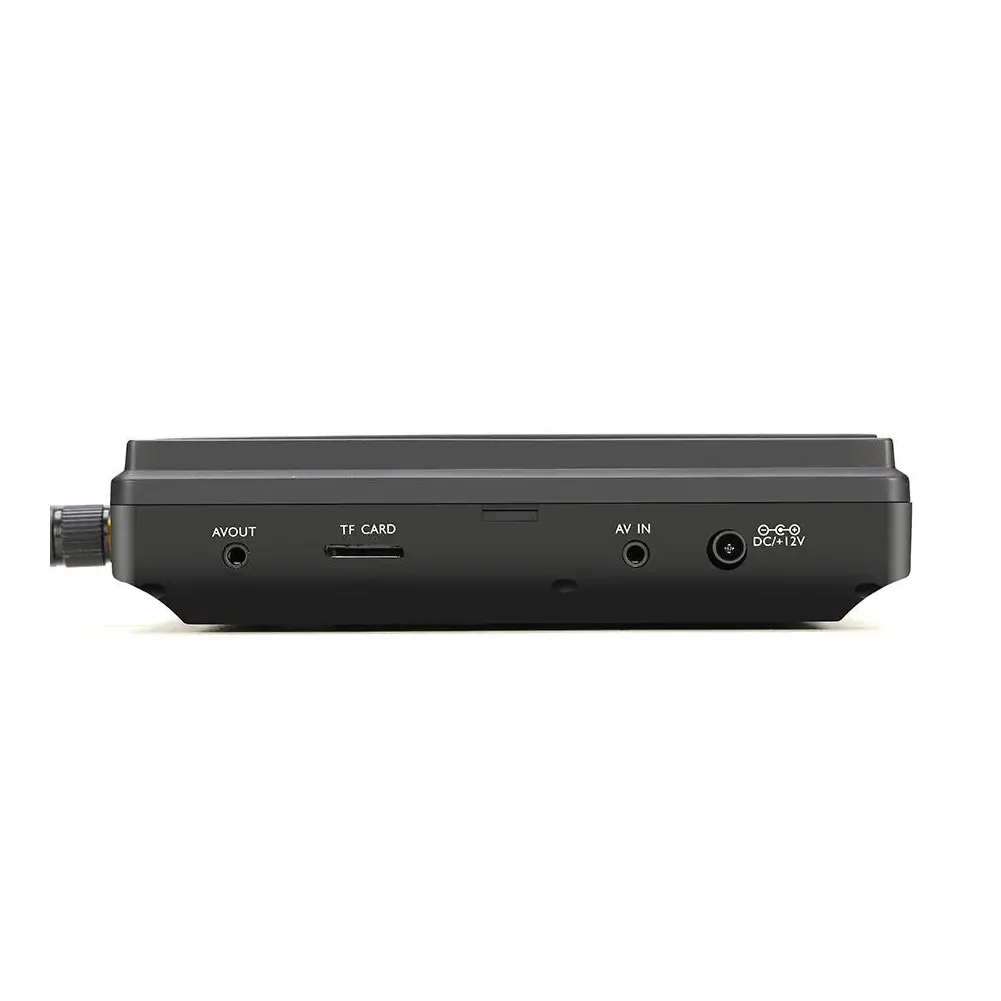

– AV output: single track, video output
– AV input: single track, video input
– DC IN: 7-28V
– AAT interface: 2Pin data interface
– Antenna interface: RP SMA Inner Needle SMA Head
– Data output: 3.5mm
– USB communication: USB2.0

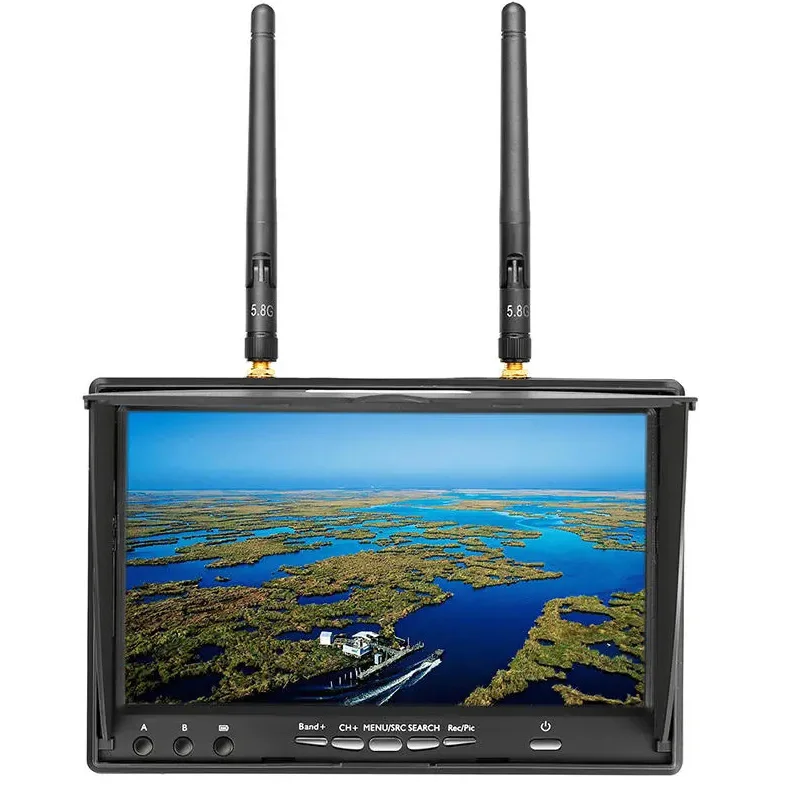

Item Name: LCD5802D Monitor

Built-in 5.8Ghz Dual diversity receiver automatically for best reception

Built-in 2CH 5.8Ghz AV output and 1CH AV input

Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V

Work status OSD display : RSSI indication ; Battery indicator;Channel indication

A key to automatic signal search

Support Chinese and English menu

Format: JPEG, AVI

Screen size:7”

Screen type:TFT LCD Screen/long life, LED backlight

Resolution: 800*480

Brightness: 600cd/m2

View Angle:140/120degree (Horizontal/Vertical)

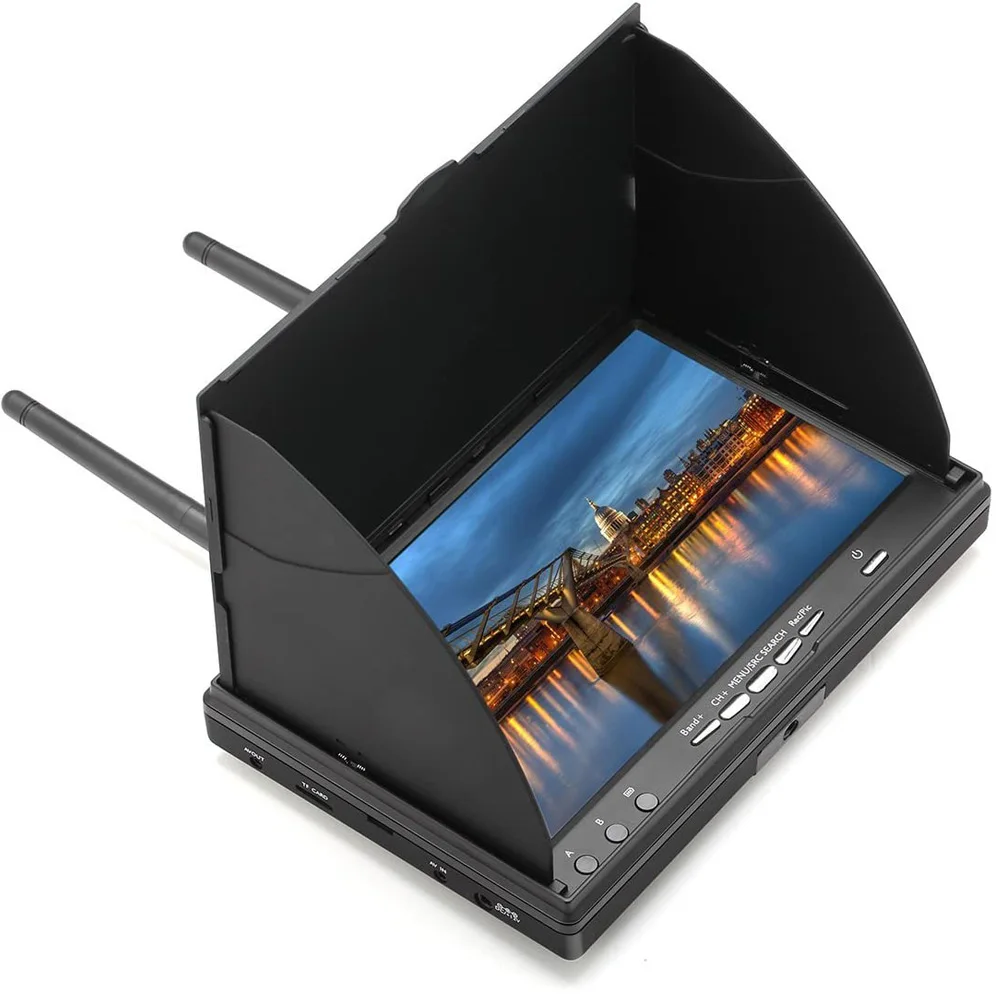

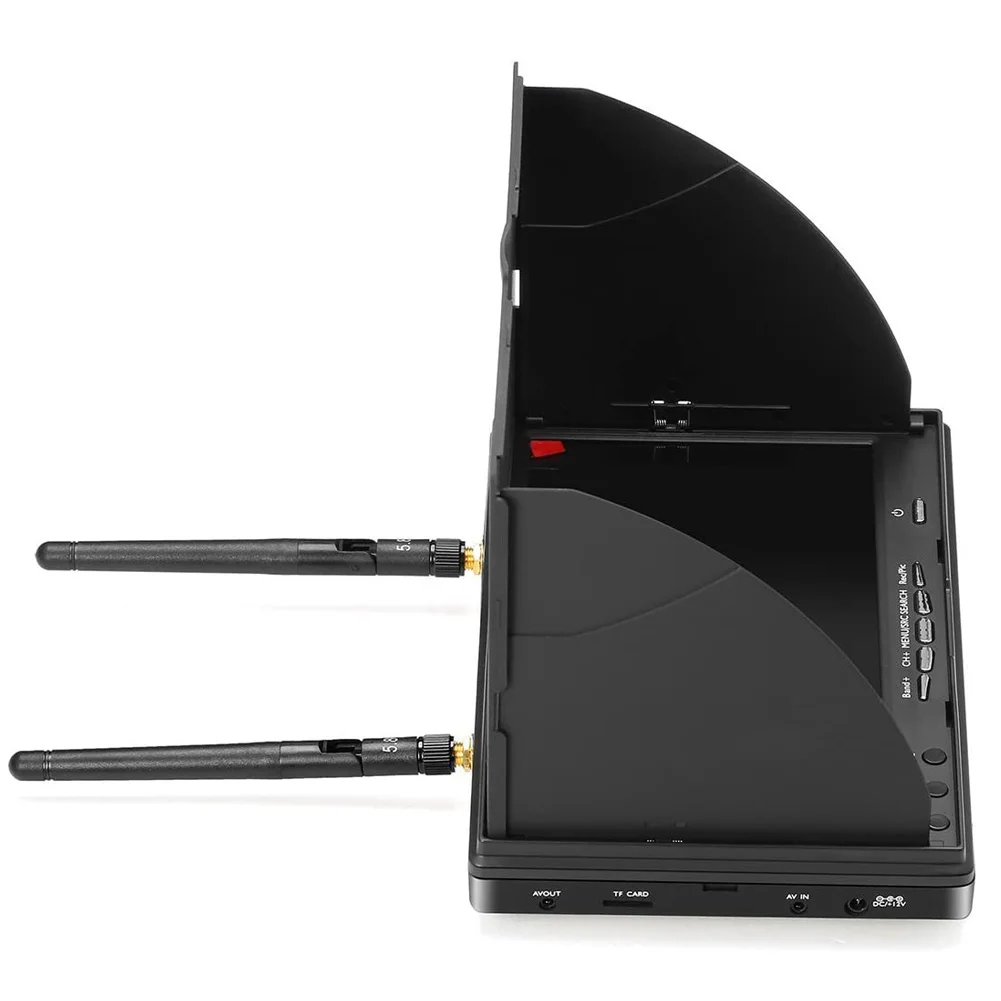

Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)

Working Voltage: DC 7~16V

Power Consumption: max 650 mA @12V

Battery charging current : 850mA @12V ( max )

Working temperature: -10℃~+ 65 ℃

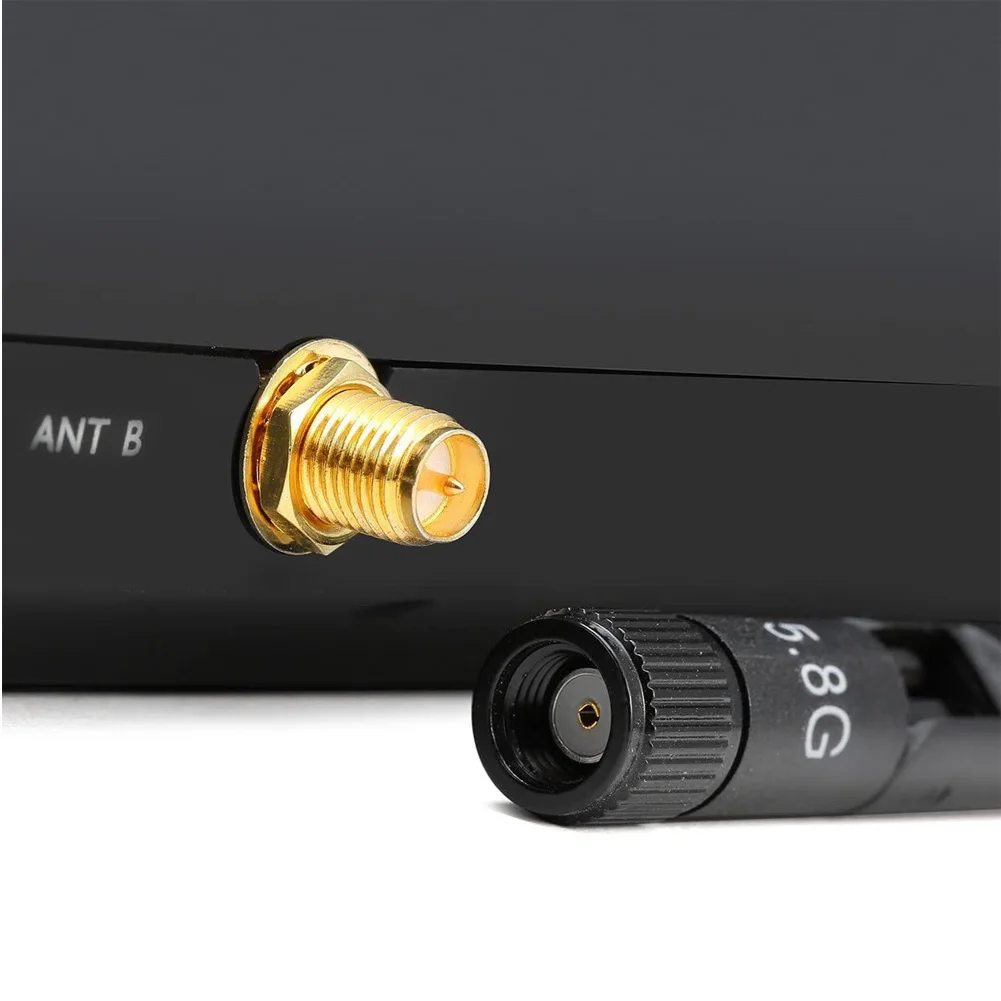

Connectors:RP-SMA female(outer needle)

Antennas Connectors:RP-SMA male (inner hole)

Support up to 32G , C10 SD Card.

Features:

With DVR function

Built-in Dual Receiver for best reception

Dual buffered AV outputs

Not affect by 2.4GHz R/C Radios

AV Receiver with Diversity inputs

Small, light weight, durable

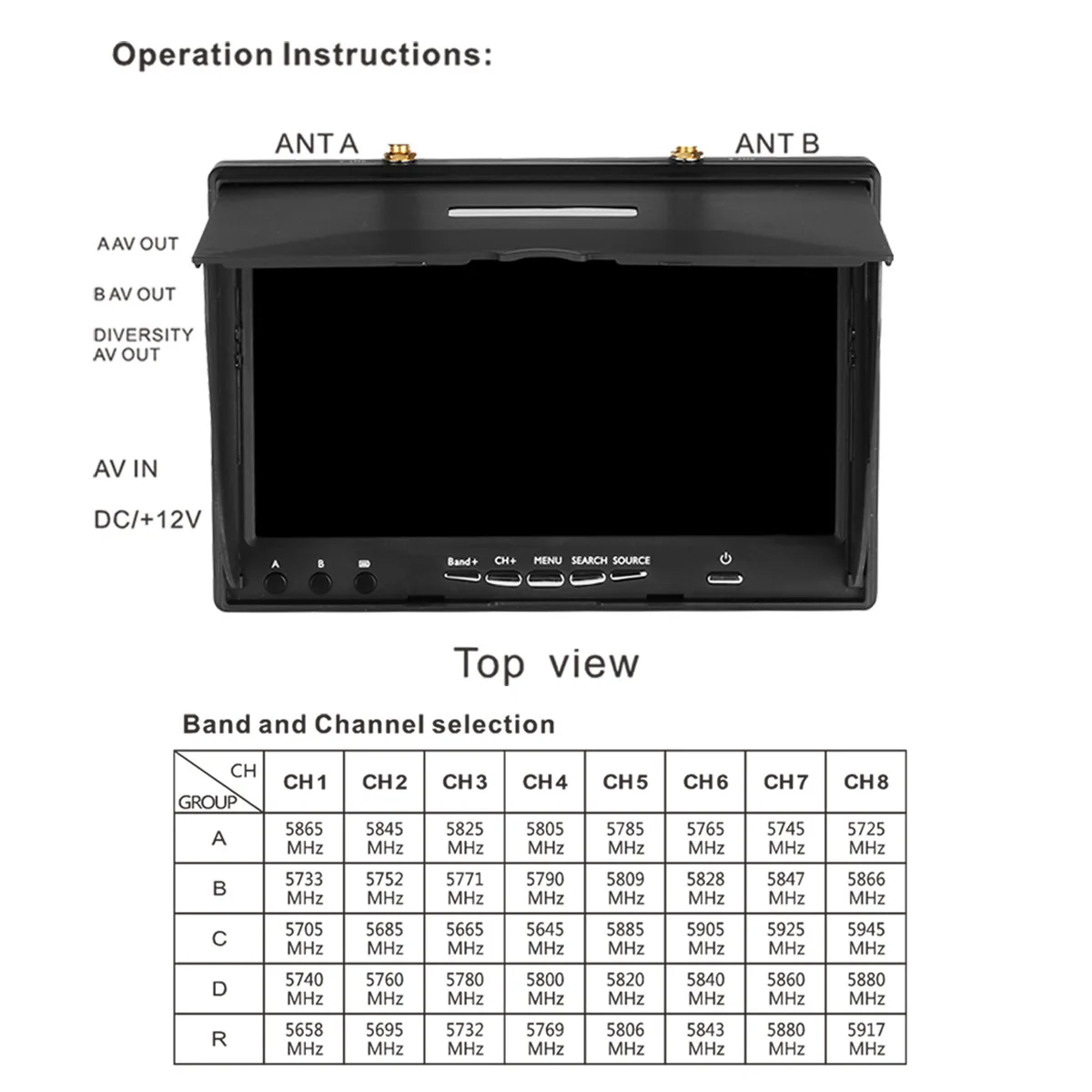

5 Bands and total 40 Channels

Built-in battery , easy to carry and outdoor use

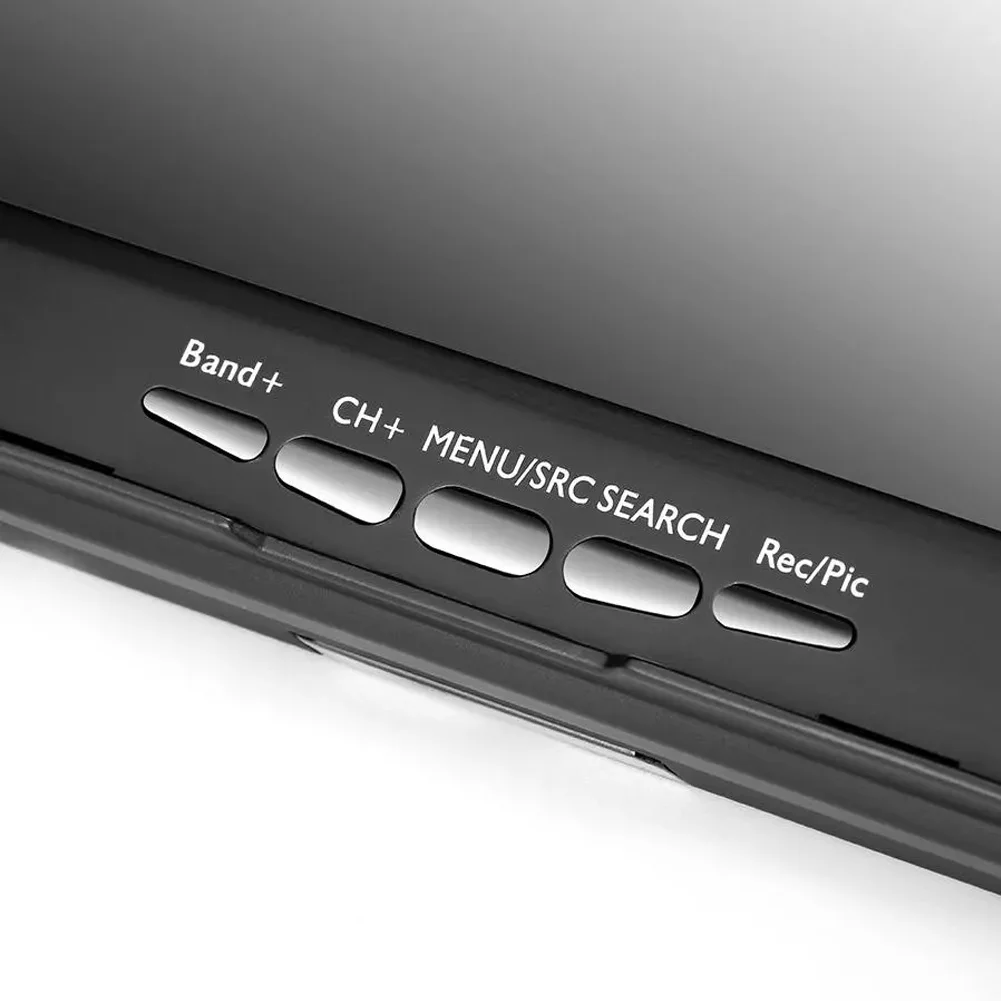

A key to automatic signal search,Simple operation

Work status OSD display:Always be aware of the device working condition.

Notice: It can't receive 2 different channels at the same time
