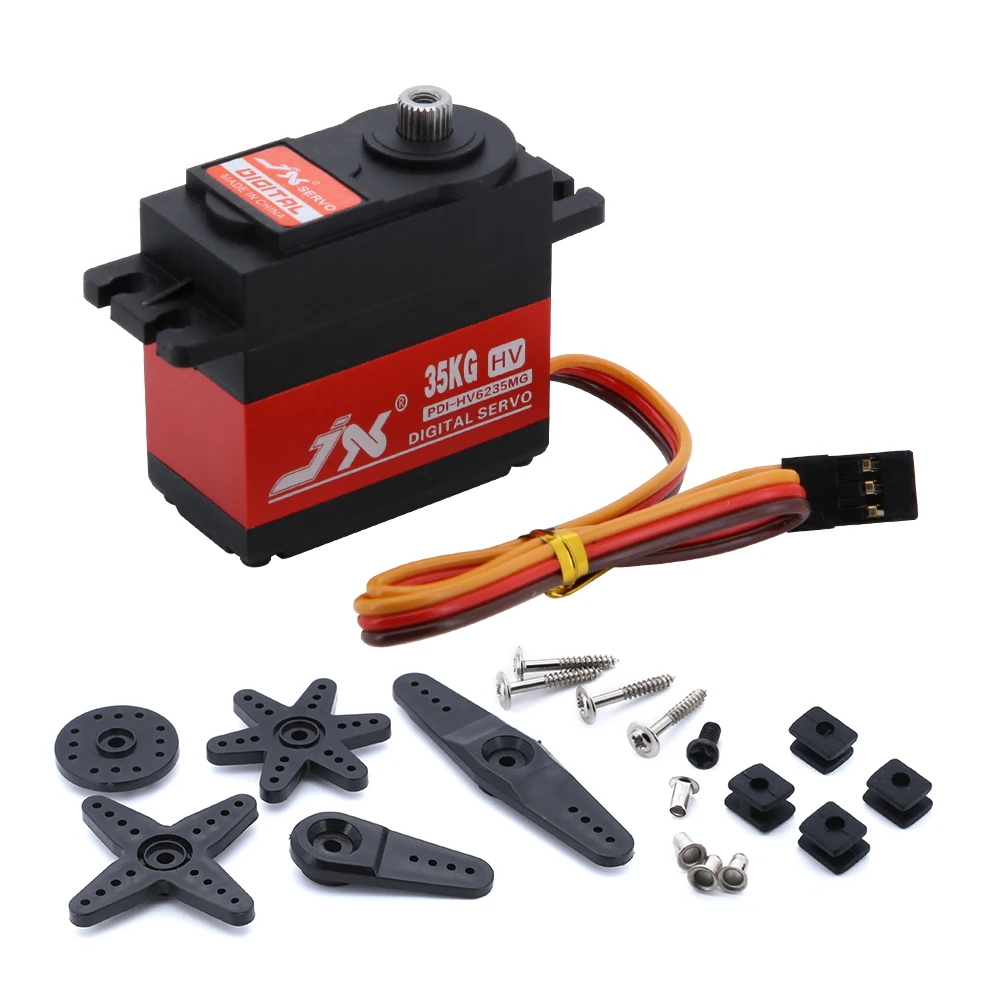

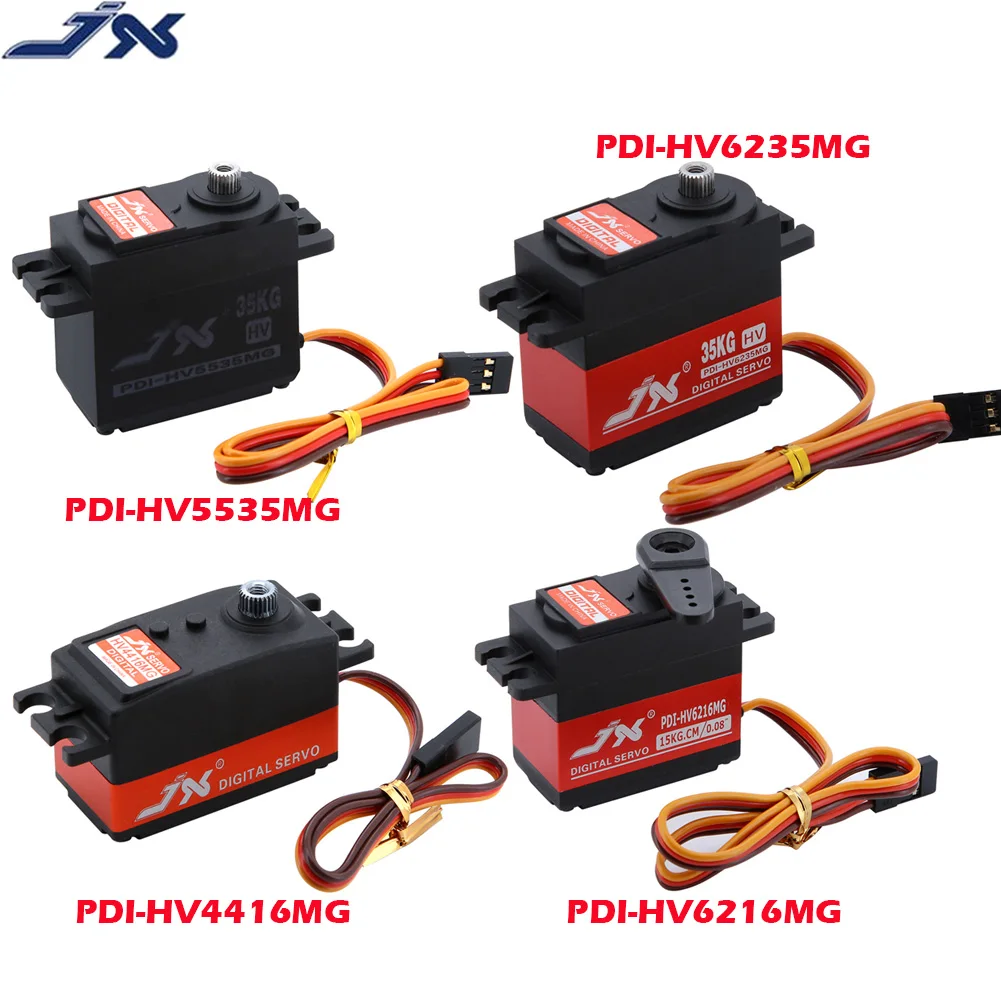

JX RC Servo PDI-HV5535MG PDI-HV6235MG PDI-HV4416MG PDI-HV6216MG Digital Core Servo Brushed Servo Metal Gear for 1/8 1/10 RC Car
Price range: $65.42 through $72.49
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Metal Gear Standard Servo
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: PDI-HV6235MG
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Servos
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Size: RC14425
Technical parameters: value 2
Tool Supplies: 23KG servos
Upgrade Parts/Accessories: JX Servo DI-HV5535MG
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
1. Dual ball bearings.
2. High performance digital standard servo.
3. High-precision gears with hard anodizing.

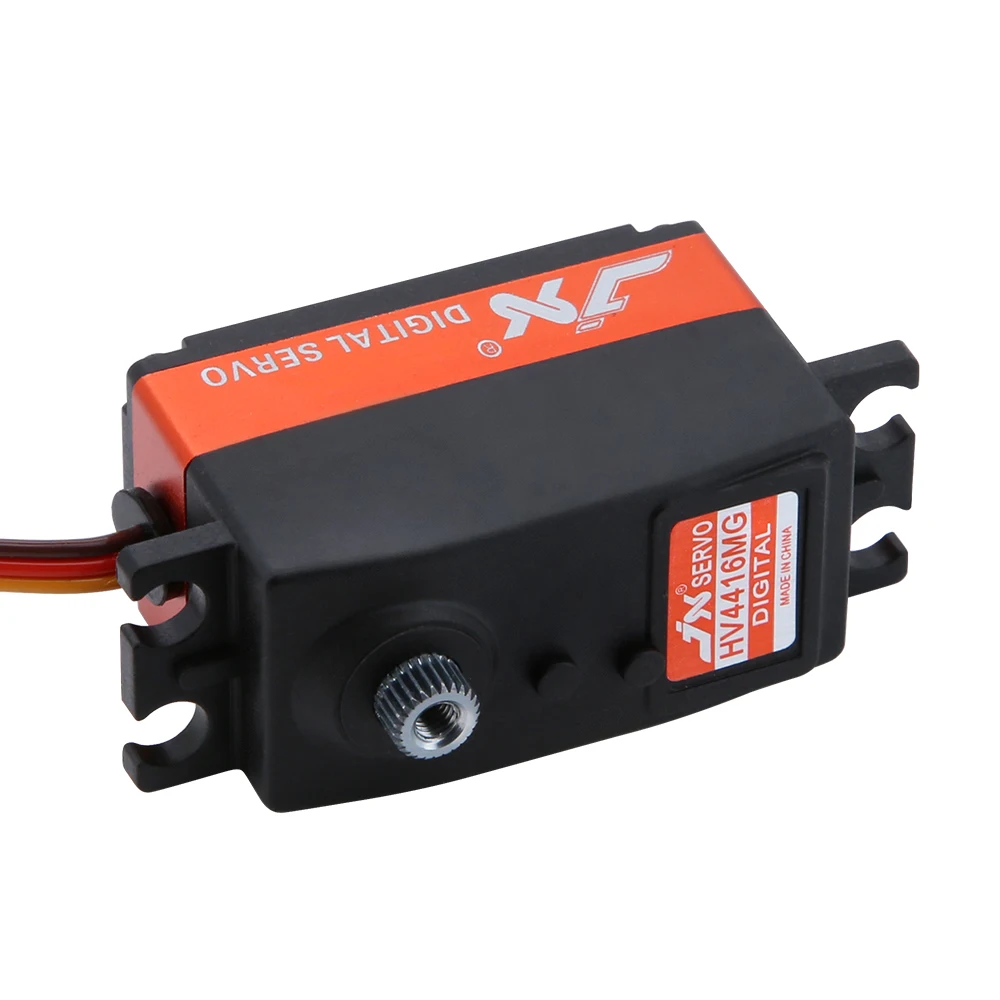

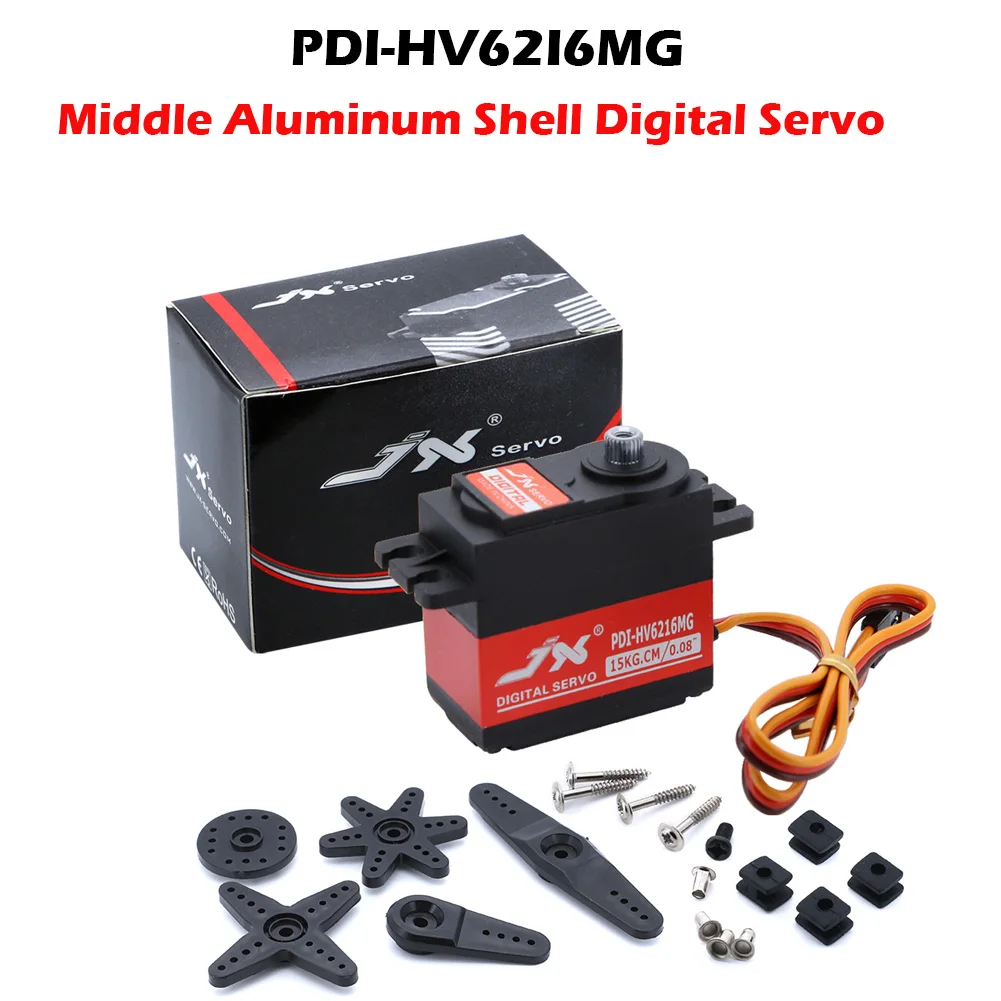

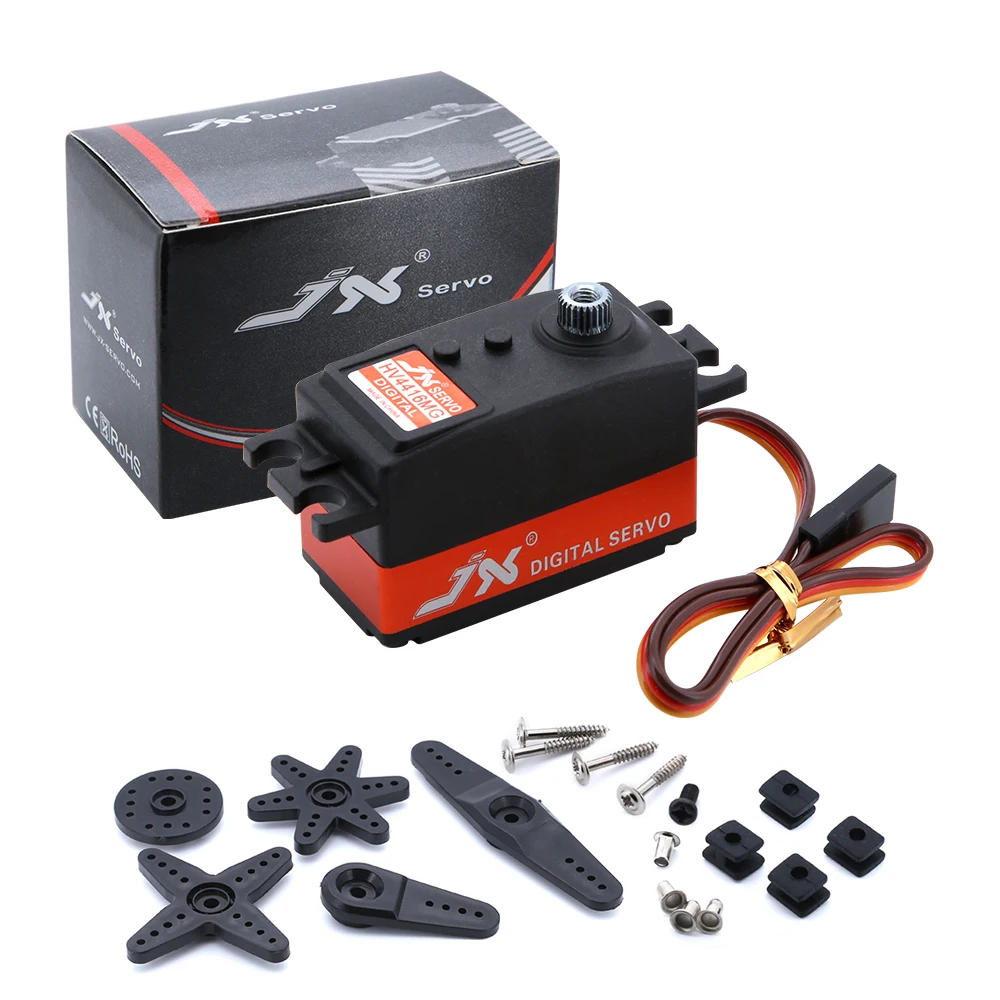

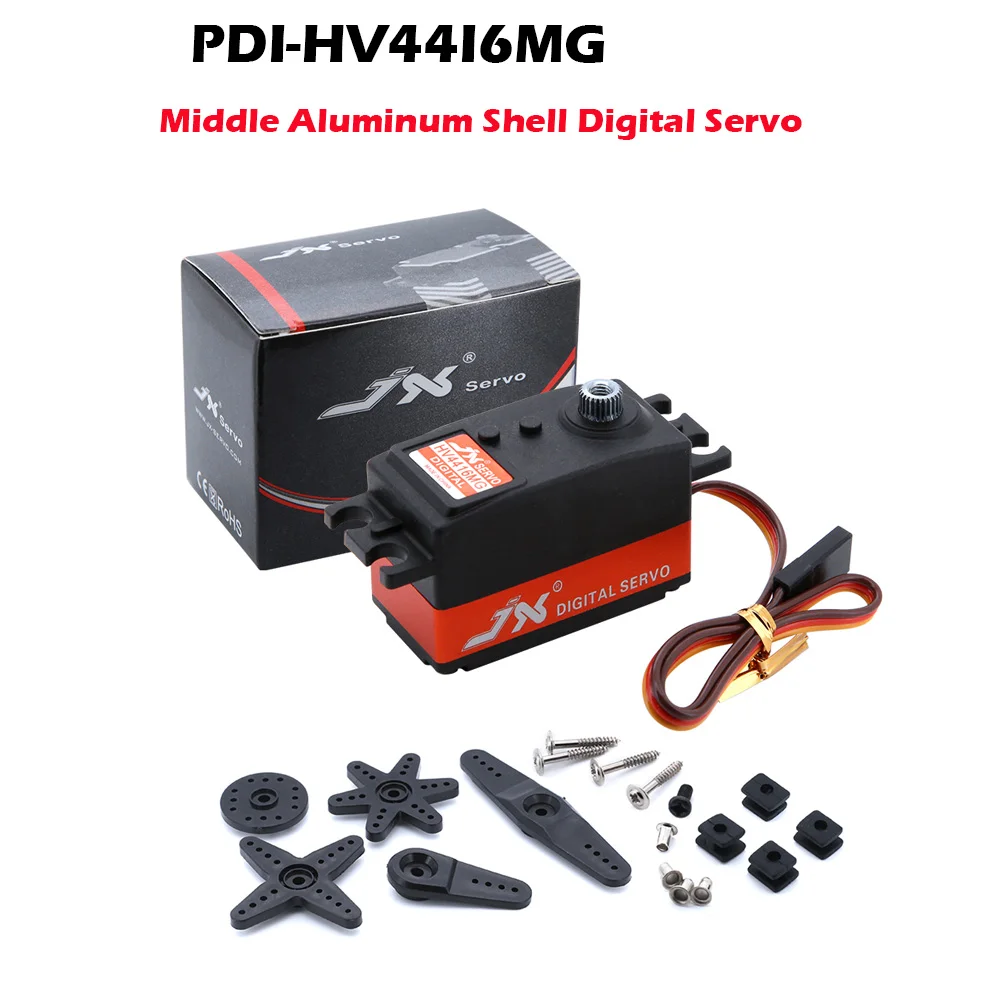

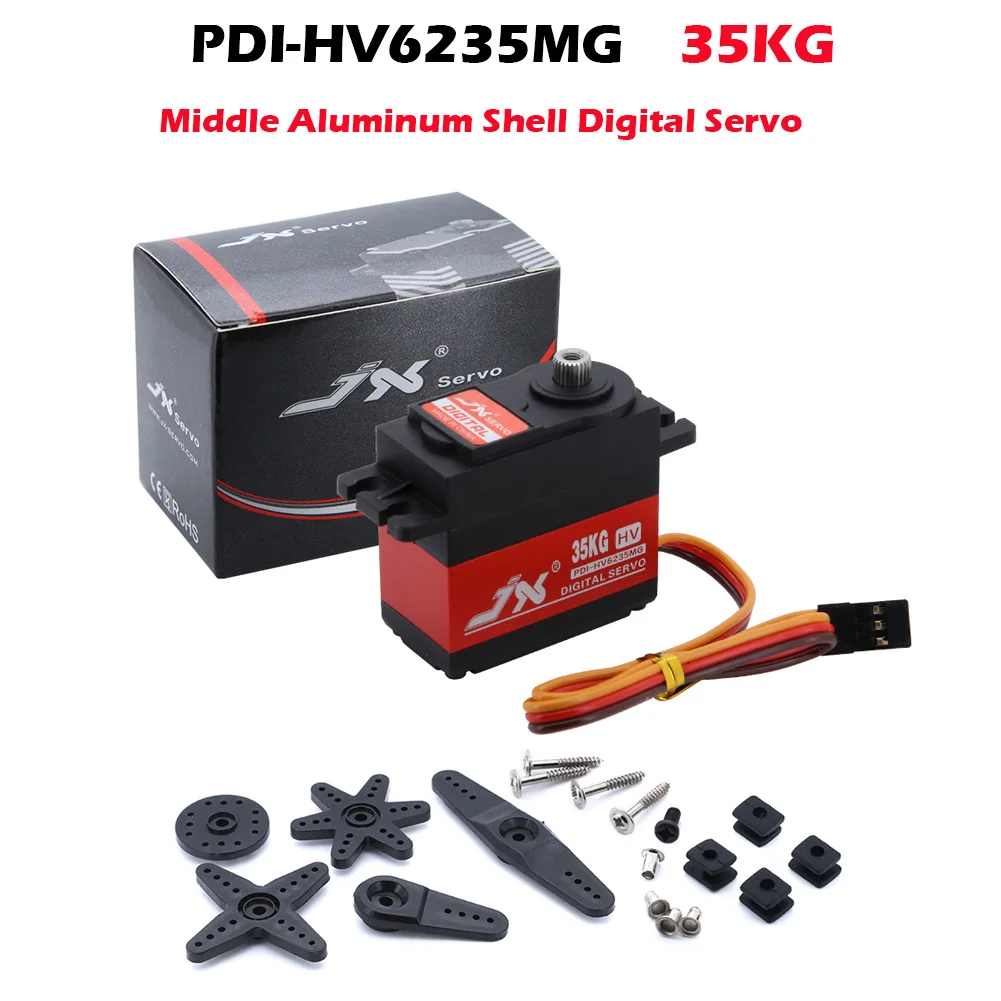

4. 4416 /6216 /6235 is an middle aluminum shell.
5.The 4416 servo is an upgraded version of the 4409 servo, with greater torque

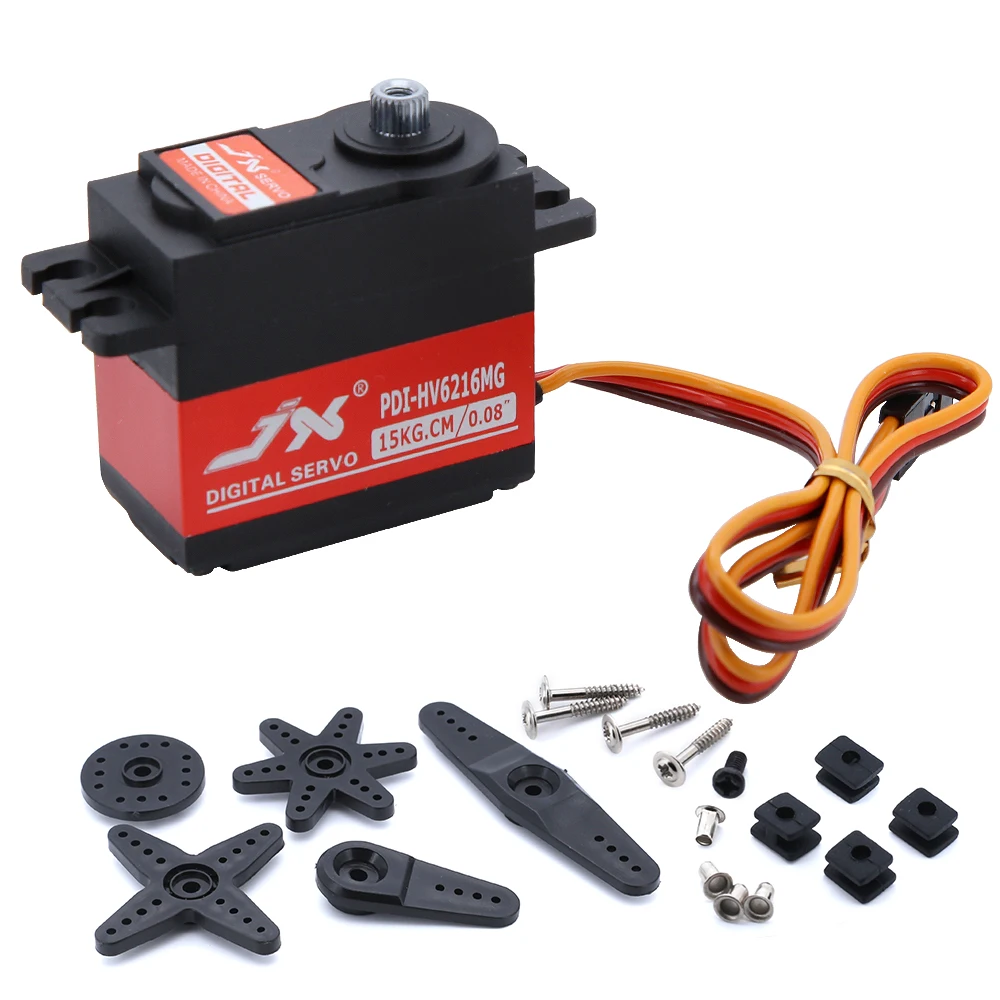

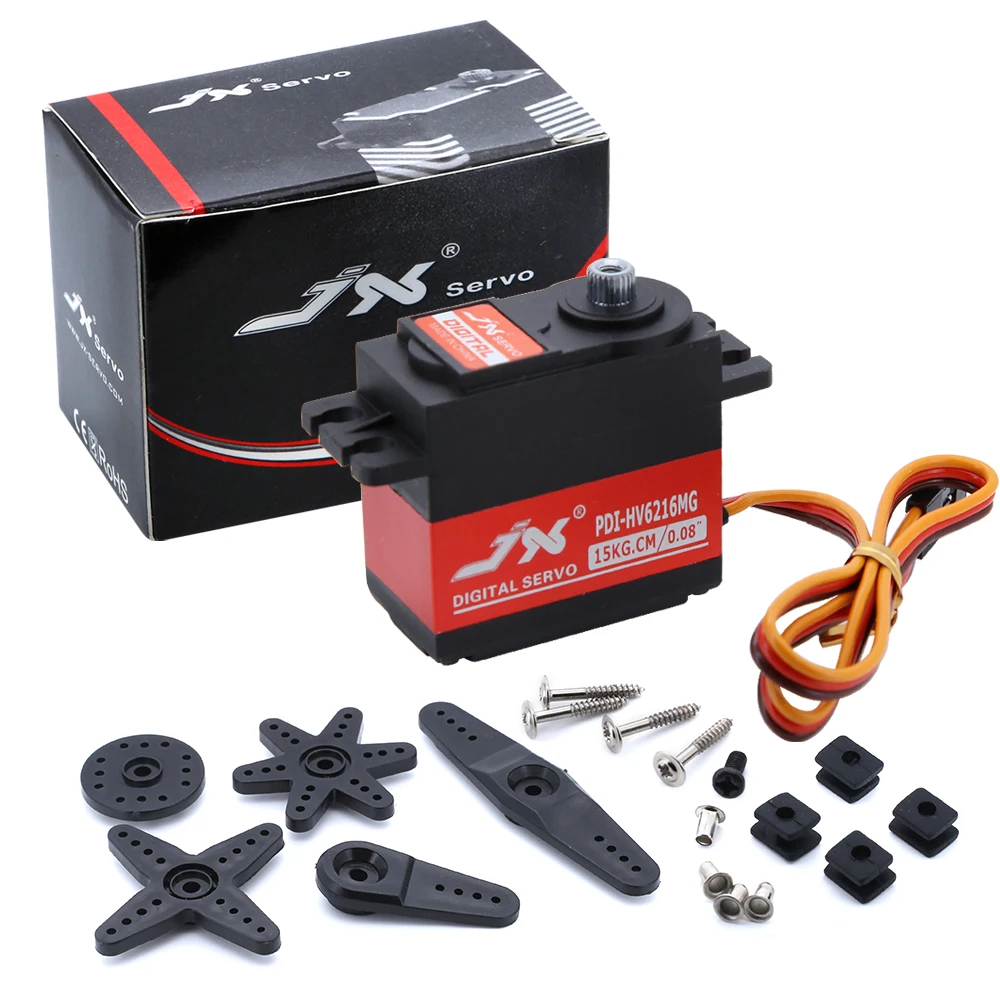

6. 6216 servo is more suitable for flat sports cars and drifting cars that pursue fast speed.
Description:
Dual ball bearings Digital Core Servo, for 1/8 1/10 RC Car Robot Drift Car Buggy Crawler,6216 servo is more suitable for flat sports cars and drifting cars that pursue fast speed.

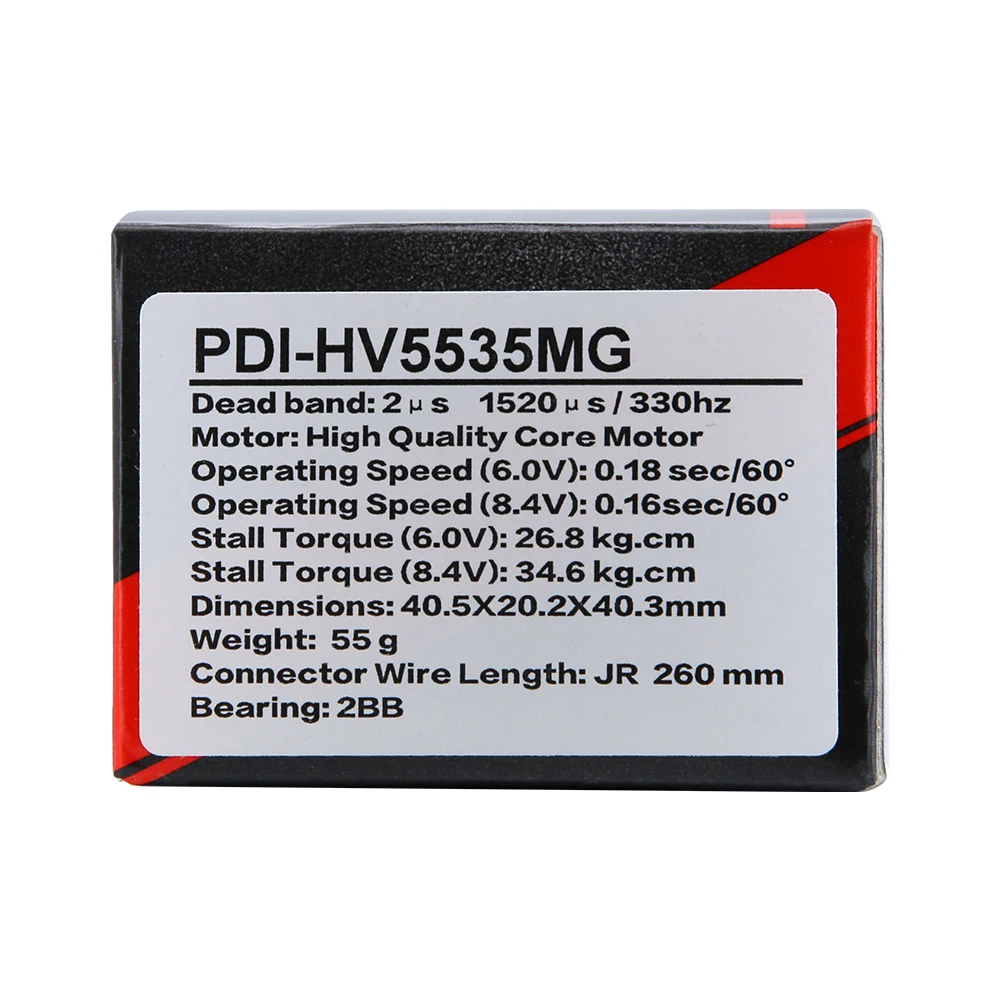

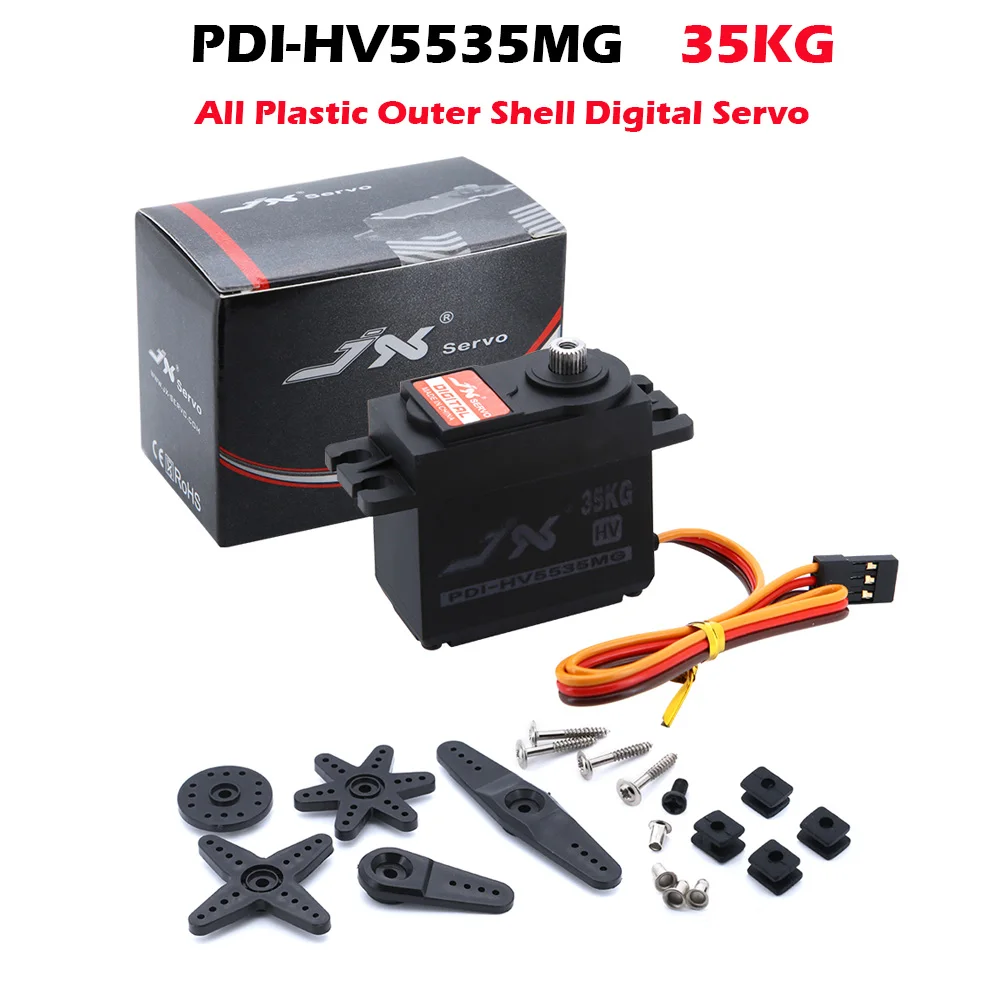

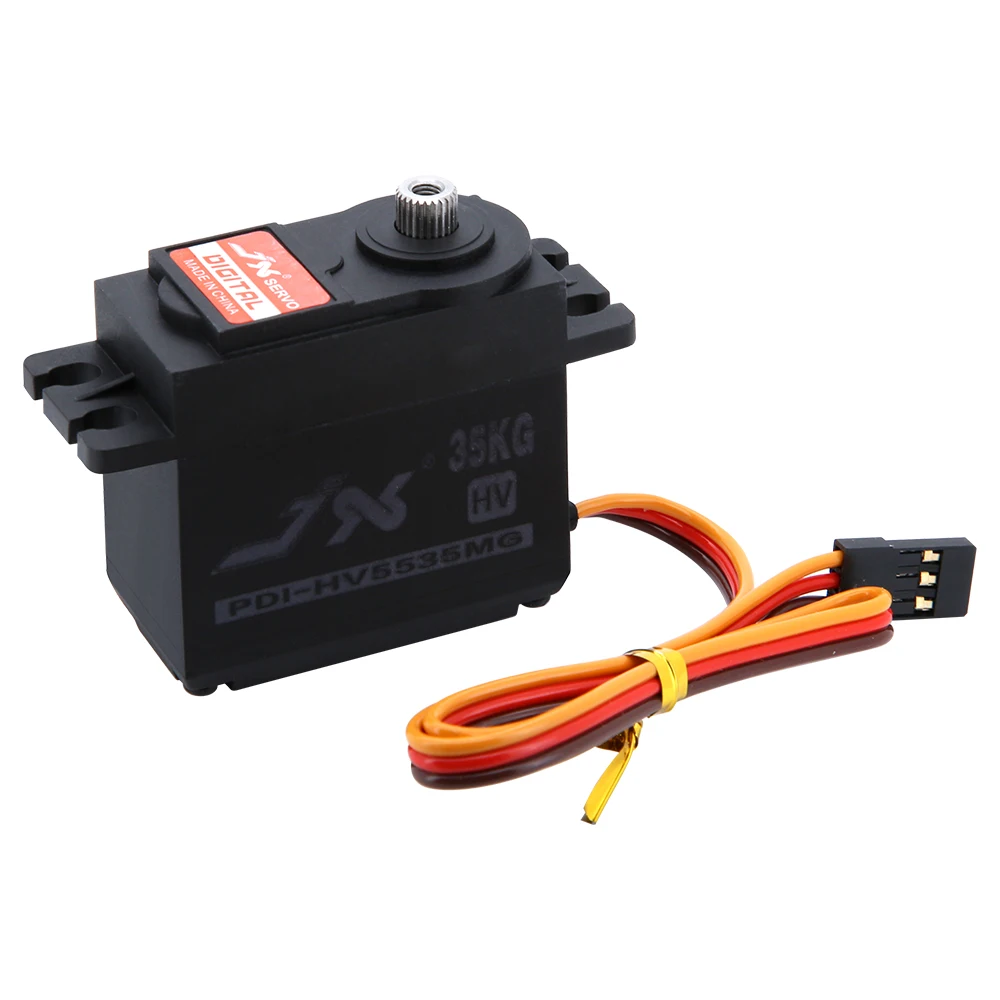

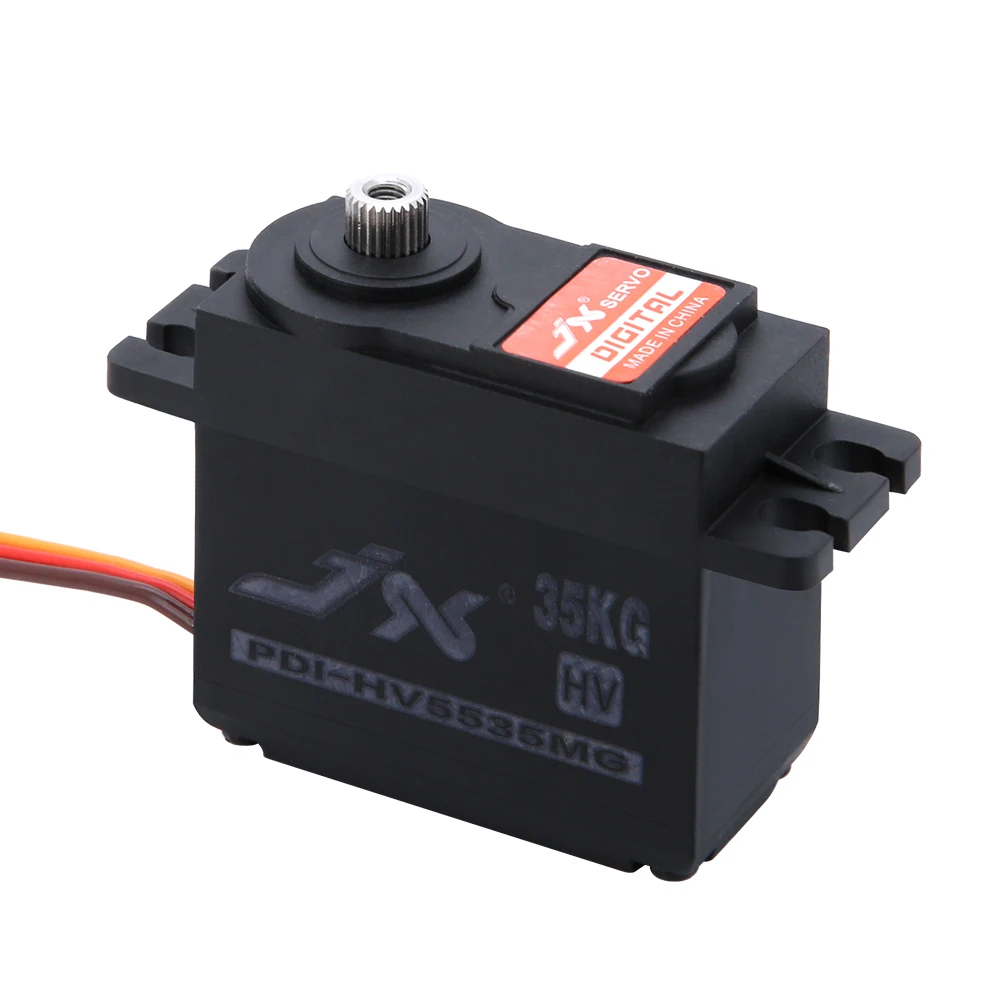

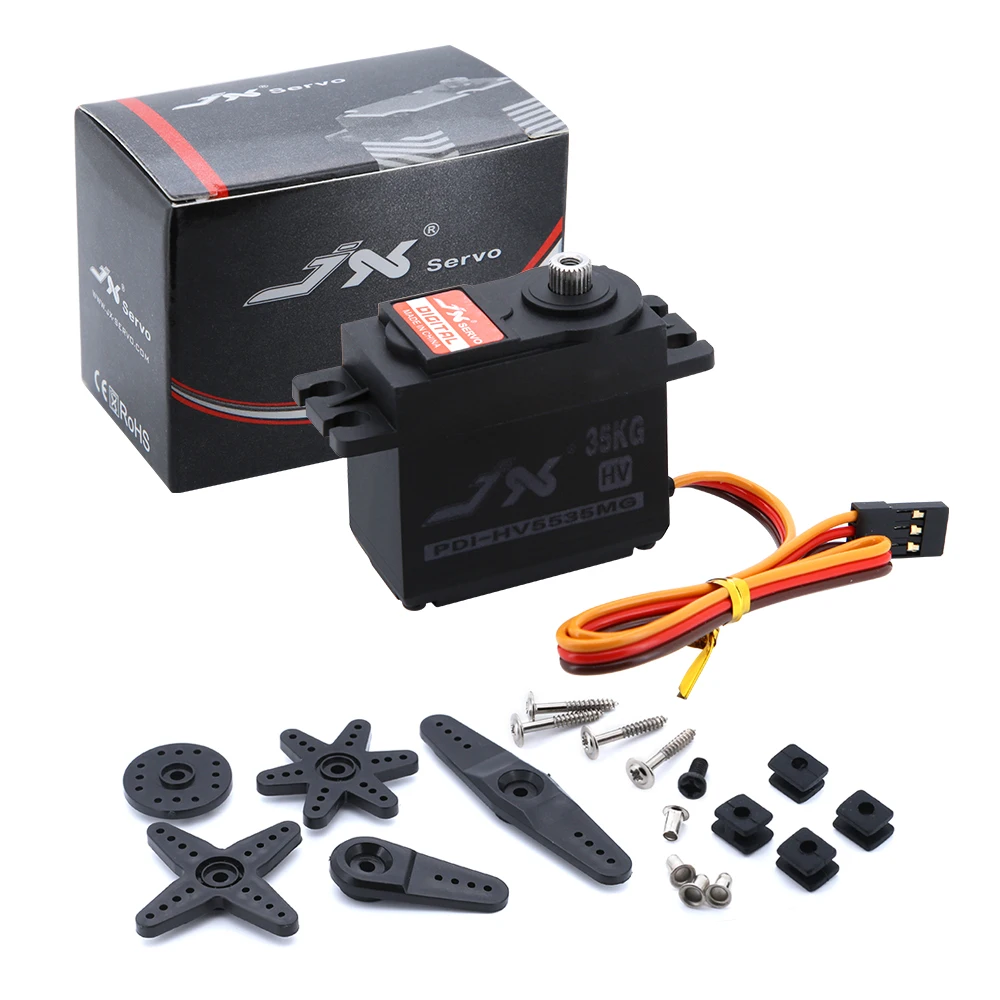

PDI-HV5535MG Specifications:
Dead band: 2μs
Working frequence:1520μs / 330hz
Motor: High Quality Core Motor
Voltage Range:6.0-8.4V
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed (8.4V): 0.16sec/60°
Stall Torque (6.0V): 26.8 kg.cm
Stall Torque (8.4V): 34.6 kg.cm
Dimensions: 40.5X20.2X40.3mm
Weight: 55 g
Connector Wire Length: JR 260 mm
Bearing: 2BB

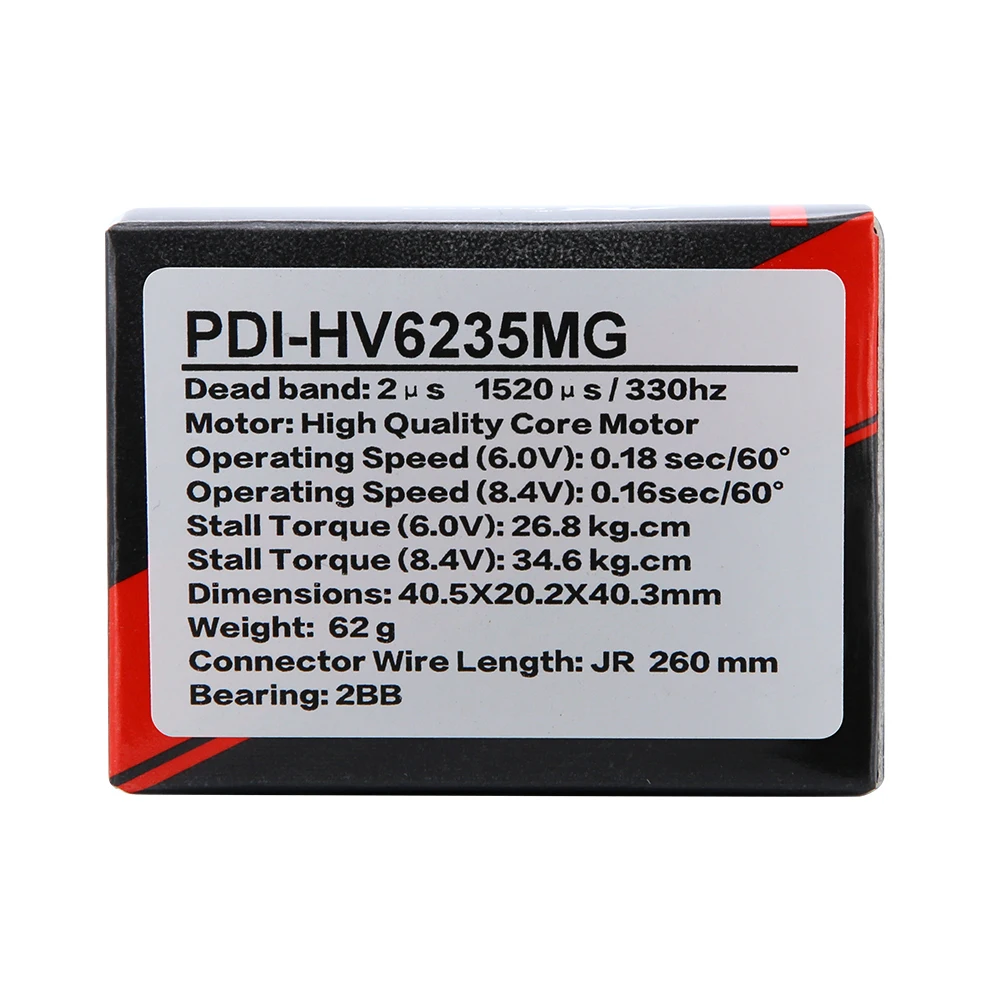

Dead band: 2μs
Working frequence:1520μs / 330hz
Motor: High Quality Core Motor
Voltage Range:6.0-8.4V
Operating Speed (6.0V): 0.18 sec/60°
Operating Speed (8.4V): 0.16sec/60°
Stall Torque (6.0V): 26.8 kg.cm
Stall Torque (8.4V): 34.6 kg.cm
Dimensions: 40.5X20.2X40.3mm
Weight: 62 g
Connector Wire Length: JR 260 mm
Bearing: 2BB

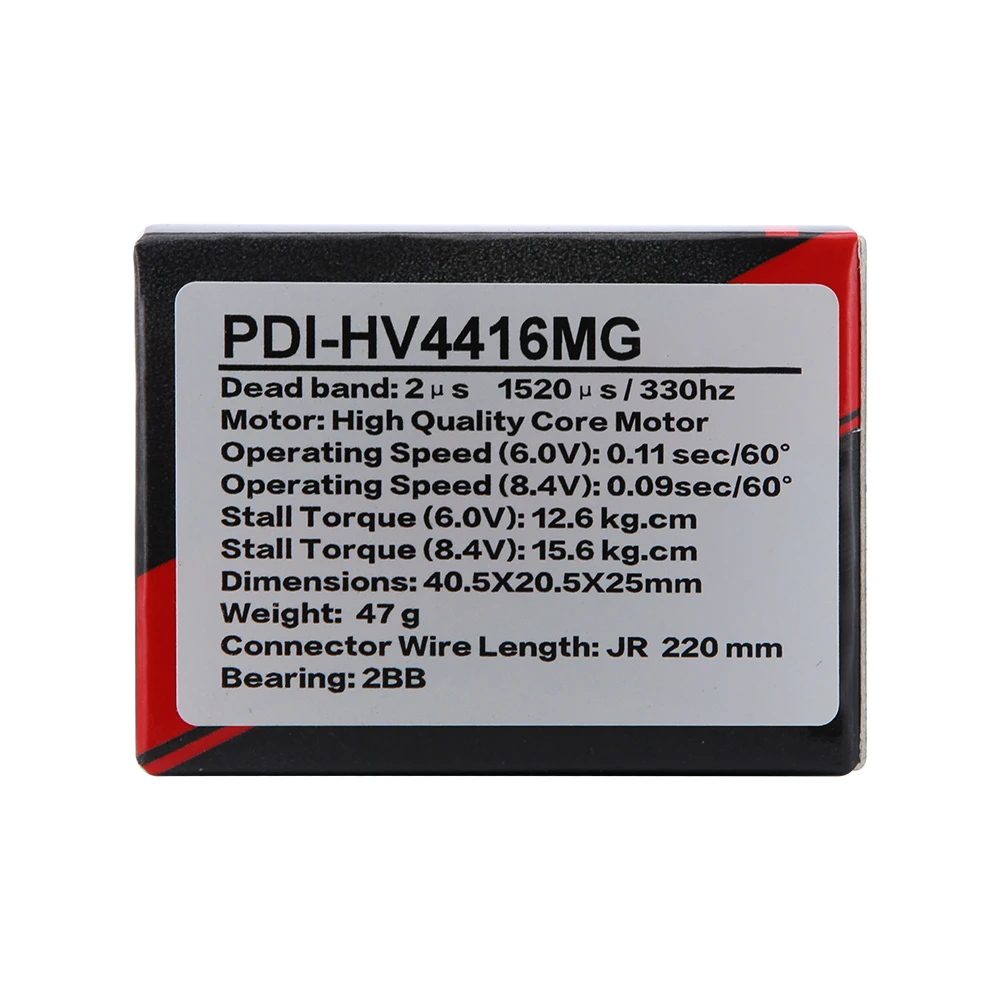

Dead band: 2μs
Working frequence:1520μs / 330hz
Motor: High Quality Core Motor
Voltage Range:6.0-8.4V
Operating Speed (6.0V): 0.11 sec/60°
Operating Speed (8.4V): 0.09sec/60°
Stall Torque (6.0V): 12.6 kg.cm
Stall Torque (8.4V): 15.6 kg.cm
Dimensions: 40.5X20.5X28mm
Weight: 47 g
Connector Wire Length: JR 220 mm
Bearing: 2BB

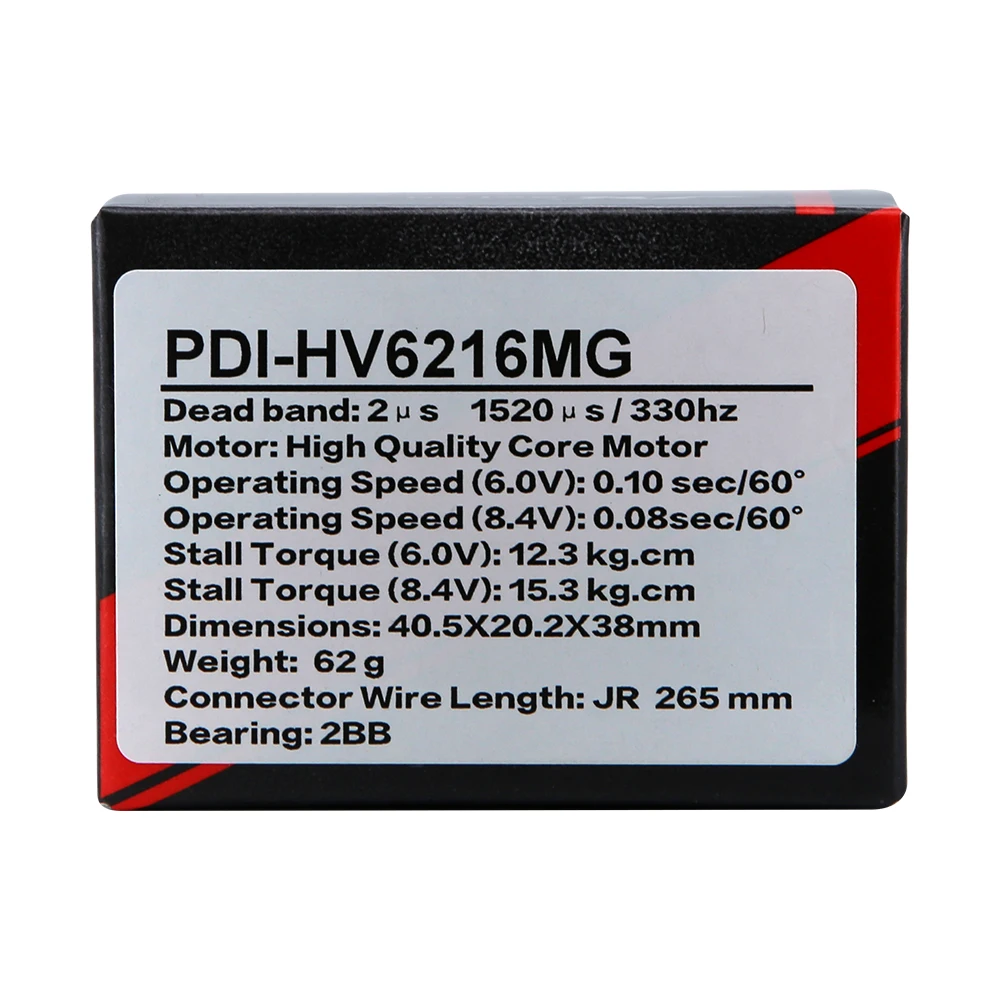

Dead band: 2μs 1520μs / 330hz
Motor: High Quality Core Motor
Operating Speed (6.0V): 0.10 sec/60°
Operating Speed (8.4V): 0.08sec/60°
Stall Torque (6.0V): 12.3 kg.cm
Stall Torque (8.4V): 15.3 kg.cm
Dimensions: 40.5X20.2X38mm
Weight: 62 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
| Color | PDI-HV6216MG, PDI-HV6235MG, PDI-HV4416MG, PDI-HV5535MG |
|---|
