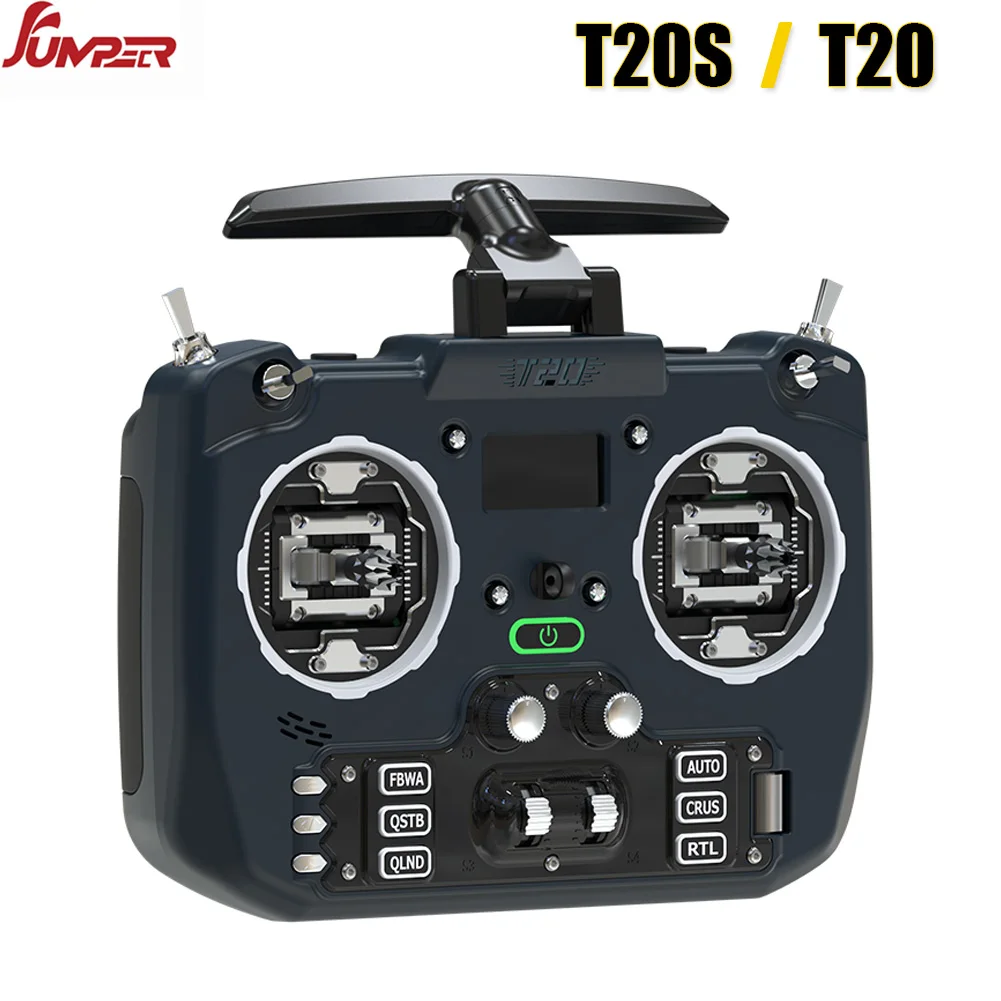

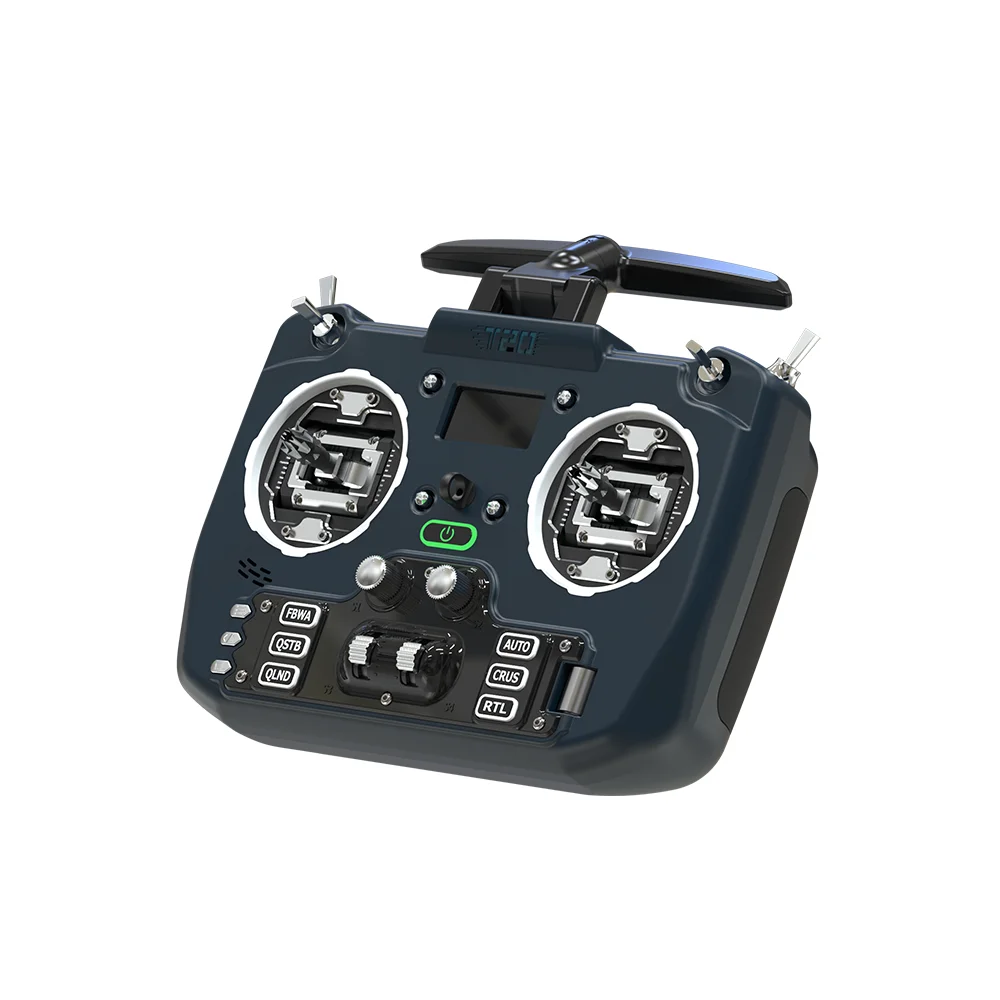

Jumper T20S V2 ExpressLRS ELRS 2.4GHz/915MHz Hall/RDC90 Sensor Gimbal EdgeTX Radio Transmitter for FPV RC Racer Drone Airplane
Price range: $649.74 through $810.32
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Jumper T20S
High-concerned chemical: None
Is Batteries Included: No
Is Electric: Button Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: HLW151-1
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Radio Systems
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Size: 185*138*68mm
Technical parameters: value 2
Tool Supplies: T-pro V2 ExpressLRS
Upgrade Parts/Accessories: jumper t 20S
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Jumper T20S T20 V2 ELRS 2.4G 915MHz 1W RDC90 HALL VS-M Full Size Radio Remote Control Edgetx

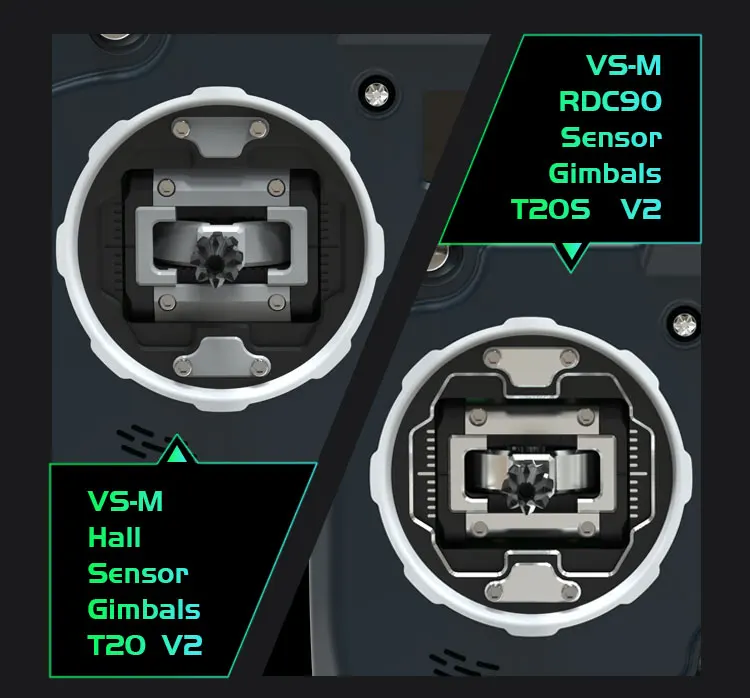

The RDC90 has a larger signal amplitude than the Hall. The RDC is a potentiometer with a lifetime of 10 million cycles. Futaba T18MZ uses RDC.
The new version of Jumper T-20 Hall sensor is upgraded, and the T20 Hall sensor is made of plastic material. Upgrade the antenna to an omnidirectional antenna.
The new version of the Jumper T-20 is a Hall plastic sensor with an omnidirectional antenna.
The Jumper T-20S rocker is an RDC90 metal sensor with an omnidirectional antenna
PRODUCT PARAMETERS:
T20
MCU:STM32F407ZET6
Screen size: 1.3”(resolution 128*64)
Display method: OLED
Rocker Stick Size:Standard
Hall Sensor gimbals: Hall sensor /RDC9O
Built-in RF:ELRS(915MHz/2.4GHz)
Transmission power: max 1000mw
Antenna interface: SMA

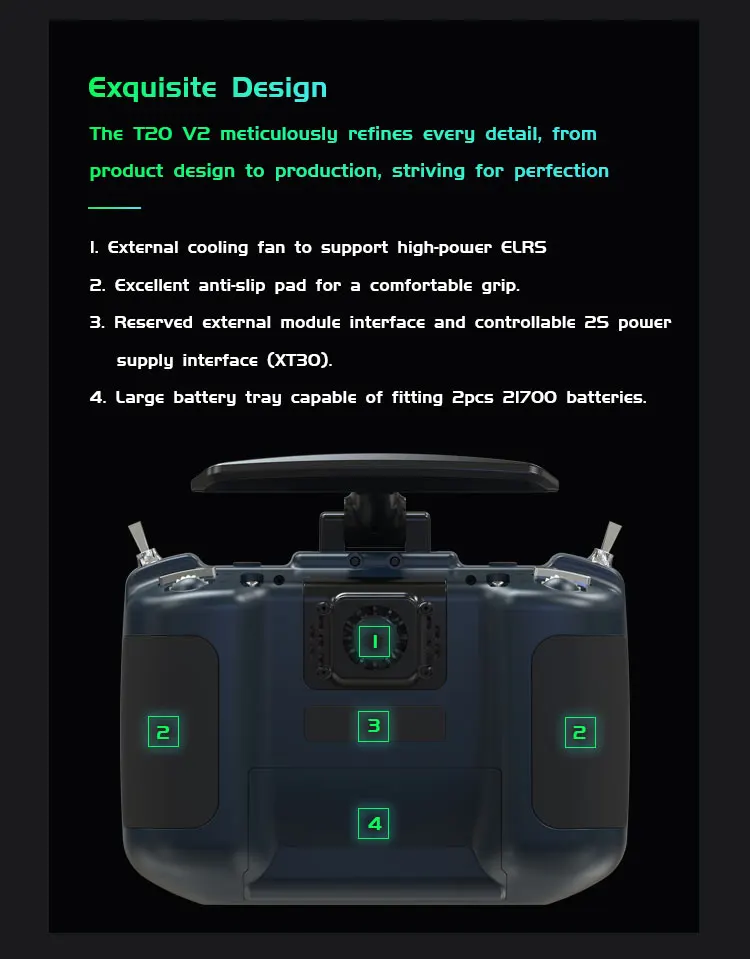

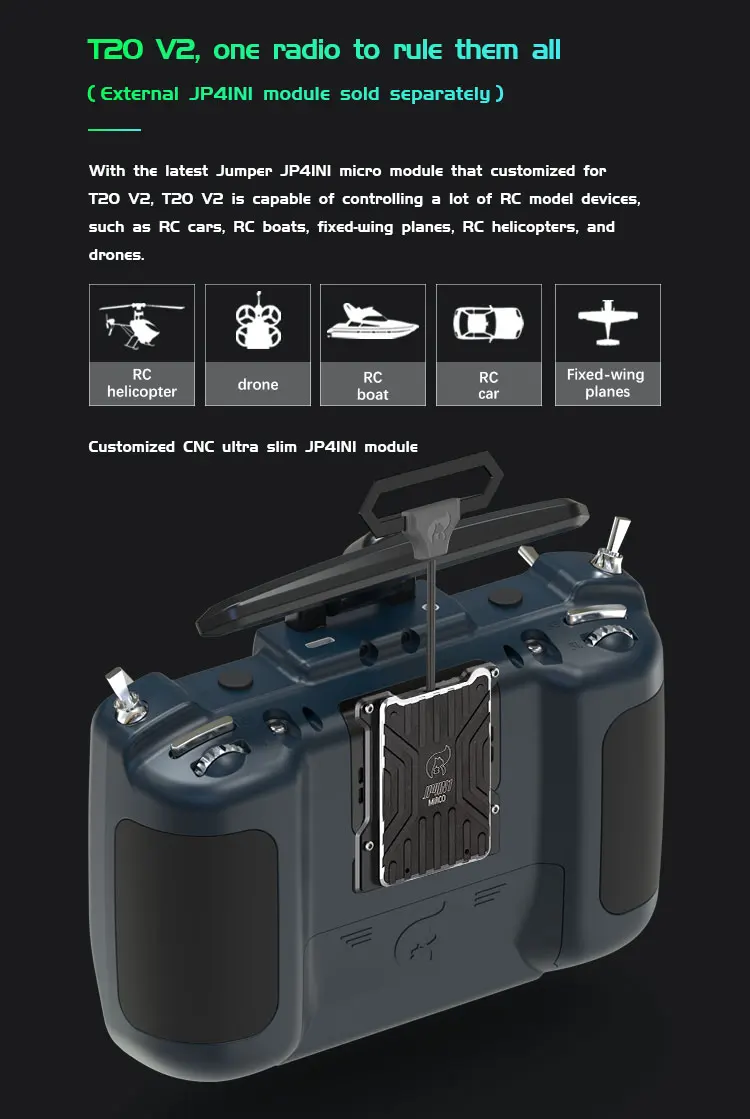

External module interface: reserved (1.25mm-5P)
External module power supply: XT30 (2S2A output)
TF card: built-in chip (officially recommended by EDGETX)
Working voltage:6-8.4v
Battery:21700*2(battery not included)
Size:185*138*68
Weight: 443g (battery not included)

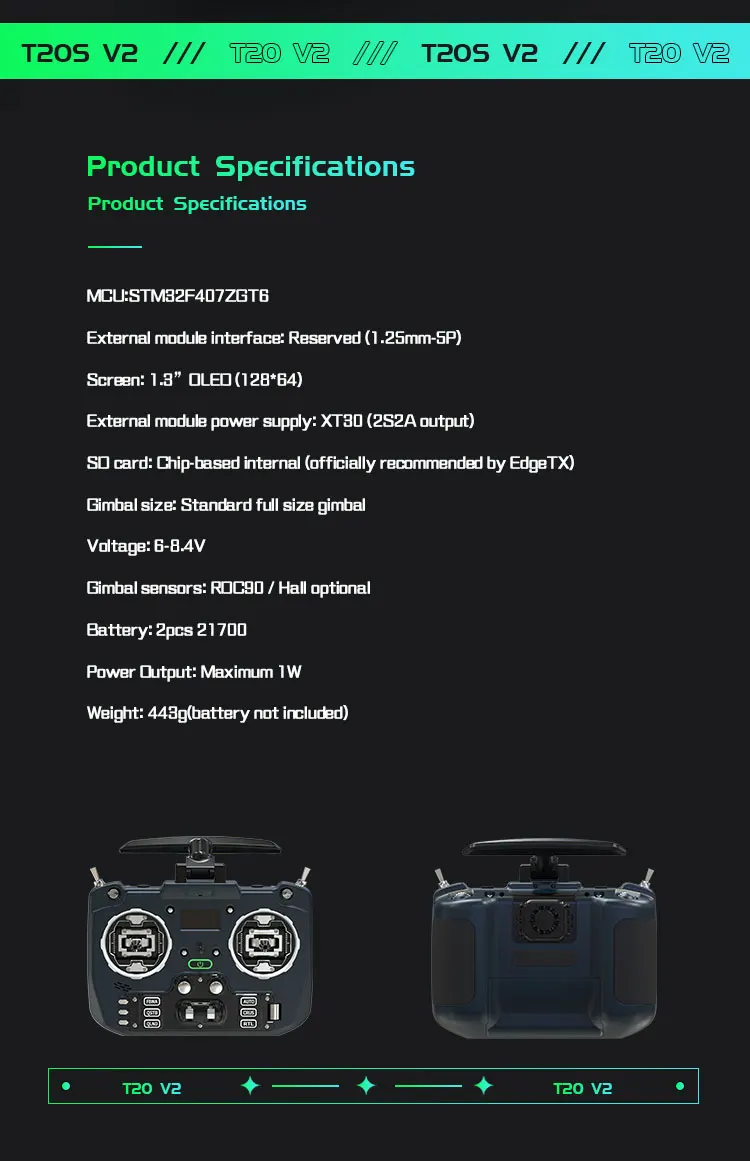

T20S
Product Specifications:
External module interface: Reserved (1.25mm-5P)
Screen: 1.3” OLEO(128*64)
External module power supply: XT30 (2S2A output)
SD card: Chip-based internal (officially recommended by EdgeTX)
Gimbal size: Standard full size gimbal
Voltage:6-8.4V
Gimbal sensors: RDC90 / Hall optional
Battery:2pcs 21700(battery not included)
Power Output:Maximum 1W
Weight: 443g(battery not included)
| Color | T20 V2 2.4G HALL, T20 V2 915 HALL, T20S V2 2.4G RDC, T20S V2 915 RDC |
|---|
