Description

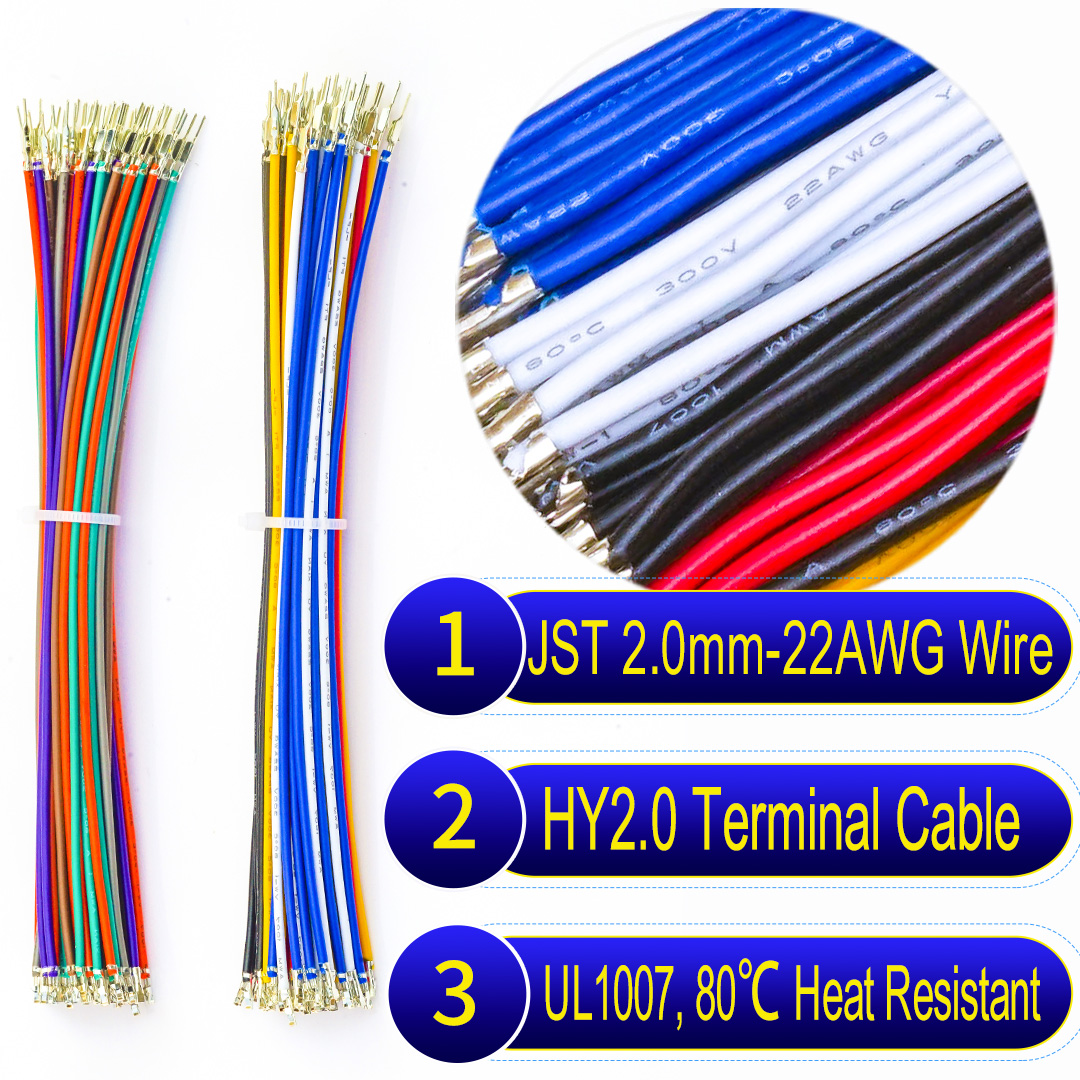

The JST HY 2.0mm male-female extension pre-crimped terminal cable is designed to offer high-quality and secure connections for a wide range of applications. Made from 22AWG UL1007 PVC wire, this cable is ideal for use in PCB wiring, battery systems, LED lighting, automotive connections, and industrial applications. The pre-crimped terminals ensure a quick and stable connection, eliminating the need for additional crimping tools. It is heat-resistant up to 80℃ and rated for 300V, making it suitable for low to medium-power applications.
| Technical Specifications |
| Connector Type: Male-female extension pre-crimped terminal (without connector) |
| Wire Gauge: 22AWG |
| Wire Standard: UL1007 |
| Wire Material: Stranded tinned copper |
| Insulation Material: PVC (Polyvinyl Chloride) |
| Rated Voltage: 300V |
| Temperature Resistance: Up to 80℃ |
| Wire Outer Diameter: Approx. 1.6mm |
| Stranding Construction: 17/0.14mm (17 strands of 0.14mm tinned copper) |
| Length Options: Various lengths available (custom lengths upon request) |
| Color Options: Red, black, yellow, white, blue, green (custom colors available) |
| Compatibility: Suitable for JST HY 2.0mm connectors |
Key Features & Benefits
| High-Quality 22AWG UL1007 Wire |
| The 22AWG UL1007-certified stranded tinned copper wire offers superior conductivity and durability, ensuring a stable and efficient power transmission. The PVC insulation provides flexibility, protection from abrasion, and resistance to harsh environments. |
| Pre-Crimped Male-Female Terminals – Ready for Use |
| Save time and effort with pre-crimped male-female terminals, designed for easy installation without the need for additional crimping tools. The precision crimping ensures a secure and stable connection, minimizing the risk of loose terminals and improving overall system reliability. |
| 80℃ Heat Resistance & 300V Rated Voltage |
| This cable can withstand temperatures up to 80℃, making it suitable for a wide range of industrial and electronic applications. Its 300V rating makes it a versatile option for both low- and medium-voltage connections. |
| Wide Range of Applications |
| PCB Wiring & Circuit Boards: Provides reliable electrical connections for electronic circuits. |
| Battery Packs & Power Systems: Ensures stable and safe power transmission in battery-powered devices. |
| LED Lighting & Smart Devices: Ideal for LED lighting applications, IoT devices, and control systems. |
| Automotive & Industrial Use: Suitable for automotive wiring, sensors, and industrial control systems. |
| DIY Projects & Prototyping: Perfect for hobbyists and engineers creating custom circuits or designs. |
| Why Choose Our JST HY 2.0mm Male-Female Extension Pre-Crimped Terminal Cable? |
| Premium quality UL1007 22AWG wire ensures high conductivity and durability. |
| Pre-crimped male-female terminals for easy and fast installation. |
| Designed for high-temperature resistance (up to 80℃) and 300V voltage rating. |
| Suitable for a wide range of electronic, automotive, and industrial applications. |
| Available in multiple colors and lengths, with customization options to suit your needs. |
| Enhance your wiring setup with the JST HY 2.0mm male-female extension pre-crimped terminal cable, designed to deliver reliable and efficient connections for any project. |
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 15 × 2 cm |
| Color |
Red ,Black ,Yellow ,White ,Blue ,Green ,Orange ,Purple ,Brown ,Grey |
| Sided |
Female Single Sided ,Male Single Sided ,Male-Female Extension |
| Length |
100mm ,150mm ,200mm ,250mm ,300mm ,350mm ,400mm ,500mm ,800mm ,1000mm |
