IFlight M4 AC 30W 2.5A Smart Battery Balance Charger 2-4S Full viewing angle display 100-240V XT30 Output for FPV Racing Drone
Price range: $136.57 through $137.10
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: IFlight M4 AC Charger
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: YFMX176
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Batteries – LiPo
Recommend Age: 14+y
Remote Control Peripherals/Devices: Battery Charging Units
Size: 75mm*54mm*30mm
Technical parameters: value 2
Tool Supplies: Battery
Upgrade Parts/Accessories: IFlight M4 AC Charger
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
100% brand new and high quality
-

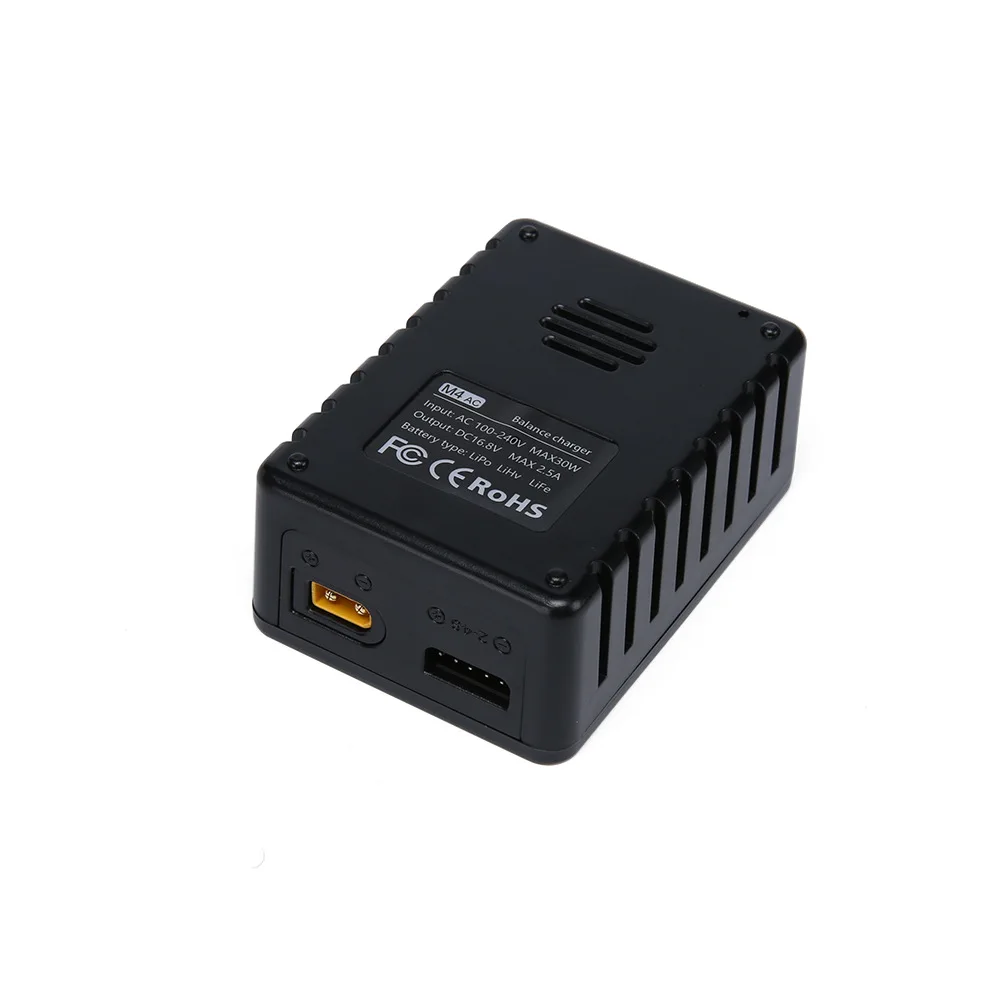

Input: AC100-240V@MAX30W
-
Battery Type: LiPo LiHV LiFe @1-4S
-
Charging Power: 0.5-2.5A@25W
-
Bal Cur. : 200mA @2-4S
-
Charging accuracy: <0.005V
-
Display: LCD IPS 1.54 inch 240*240 resolution
-
Size: 75mm*54mm*30mm
-
Weight: 120g
-

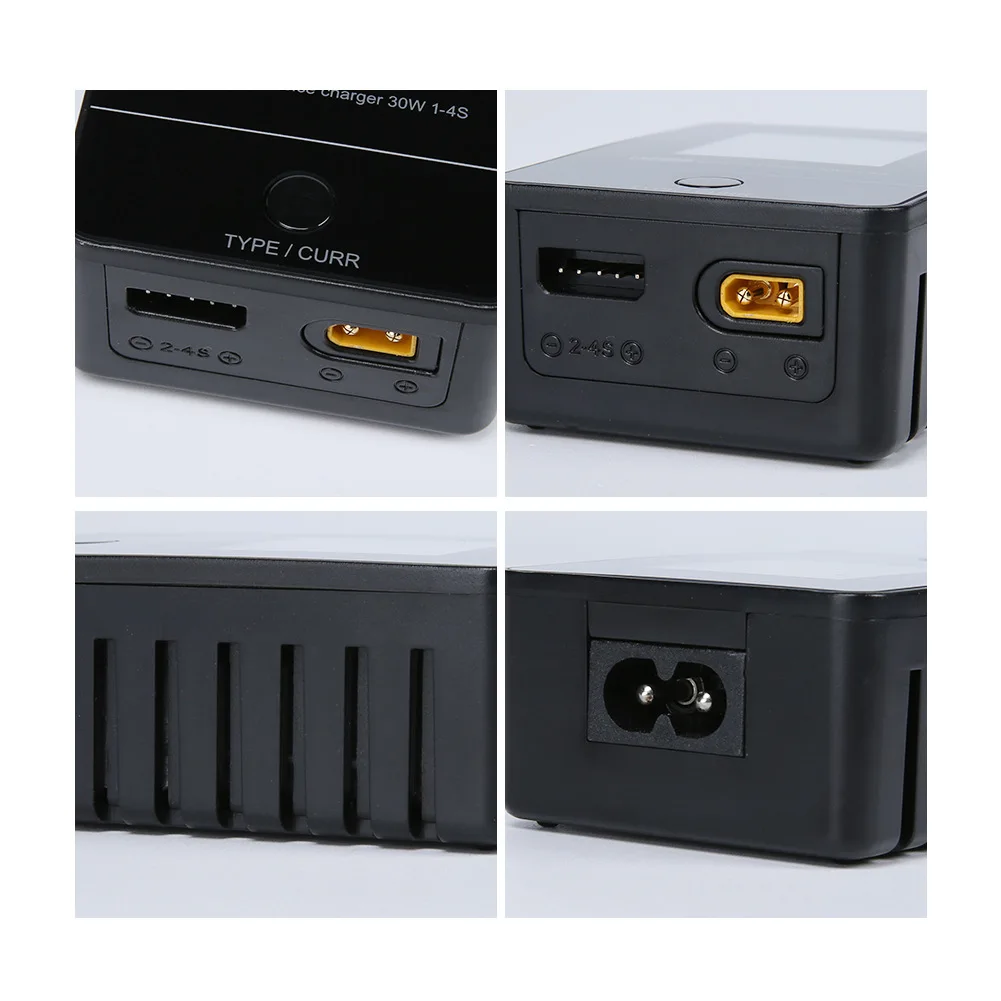

Connector: XT30
-
Suitable for 4S 350mAh~850mAh LiPo Battery. For the bigger battery, please choose the ISDT Q6 NANO

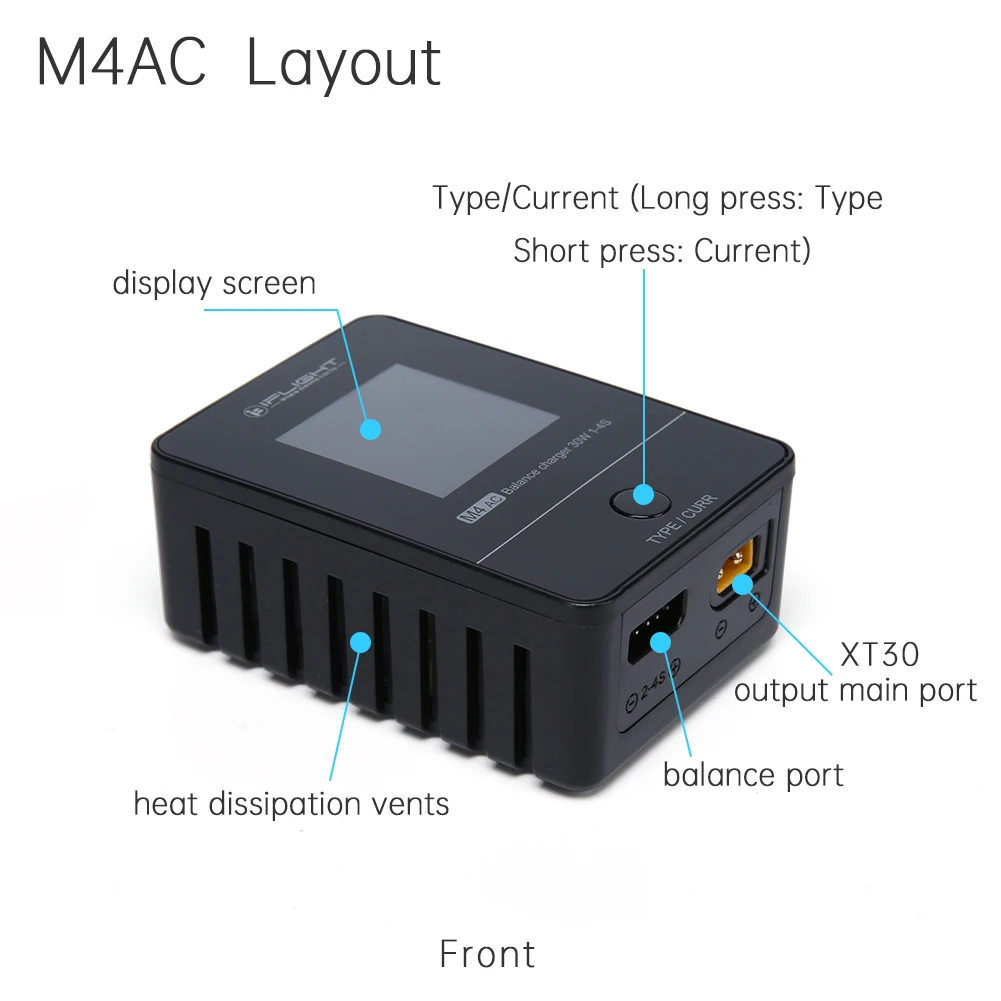

Using Instructions
-
Connect the power cord，and after booting， enter the main interface
-
Press and hold the button for 2 seconds to select the battery cut-off voltage.
-
Press the button once to select the charging current.
-

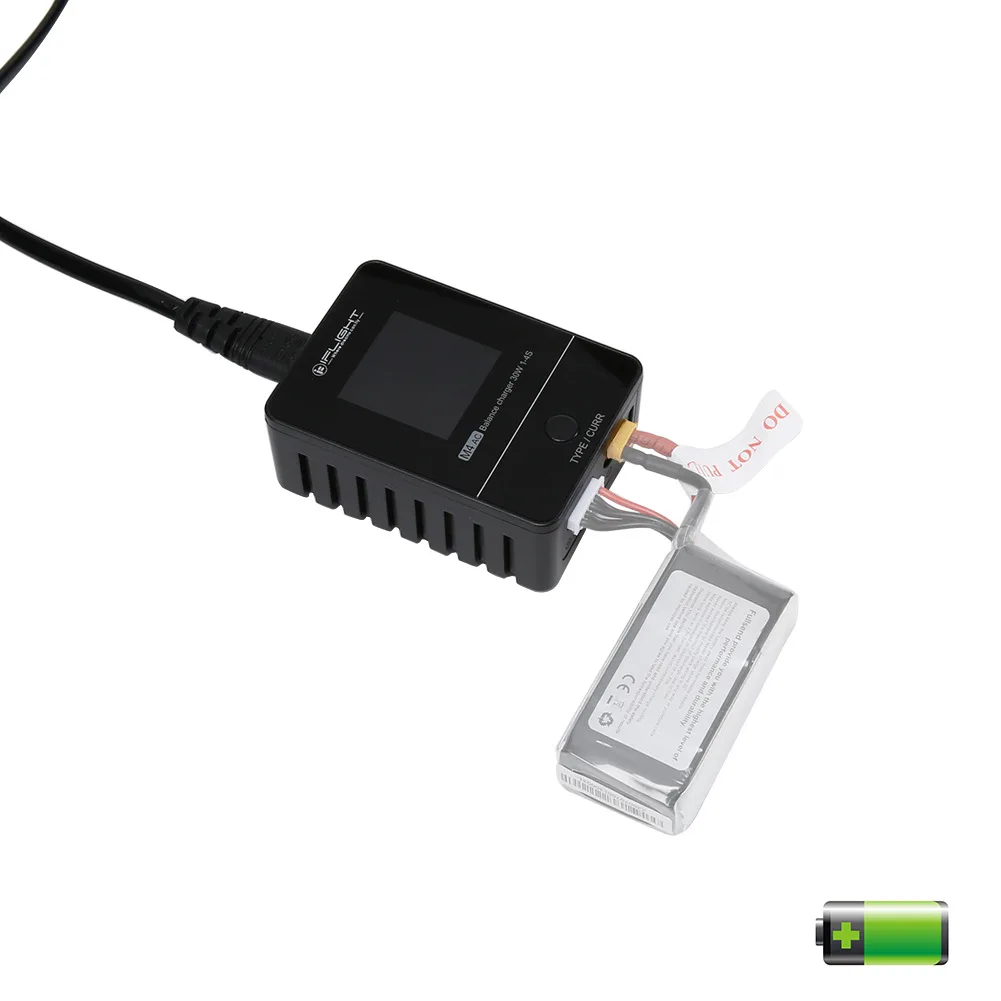

Connected to the battery main port and balance port，the charger will automatically start charging after detecting that the battery voltage is normal.
-
After each power on, you need to press the key once to unlock it before it starts charging automatically.
Safety
-

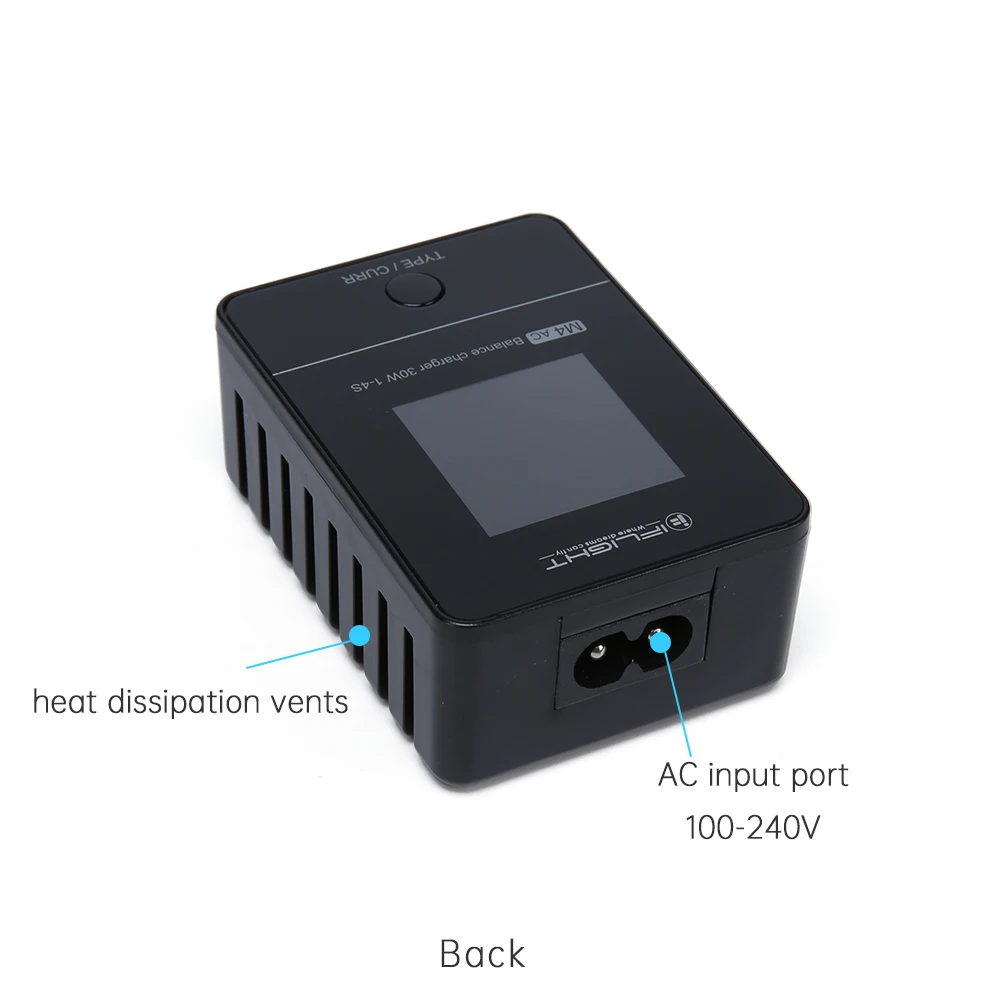

M4AC allows input AC 100-240V， please use normal voltage.
-
Do does not use this product in heat，moisture, flammable or explosive atmospheres.
-
Make sure that the product is running under the attendance of the user.
-
Please unplug the input power when not using this product.

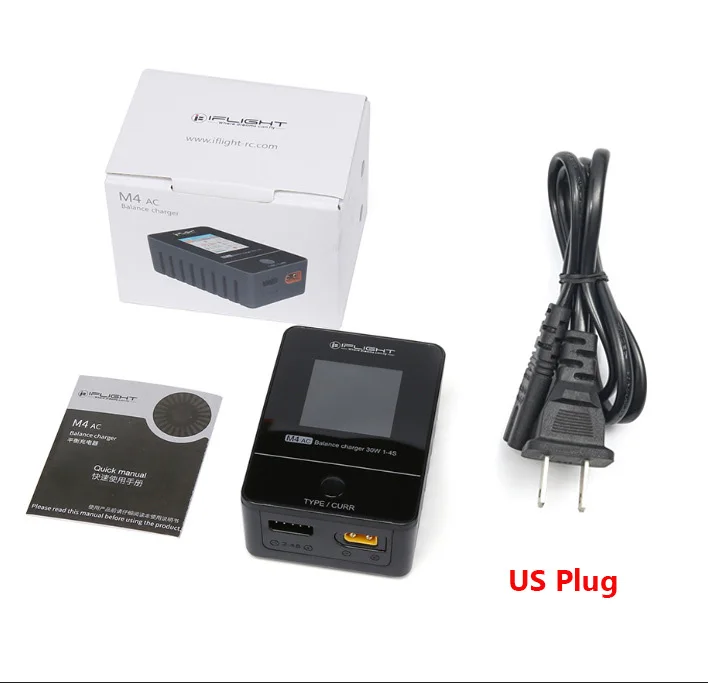

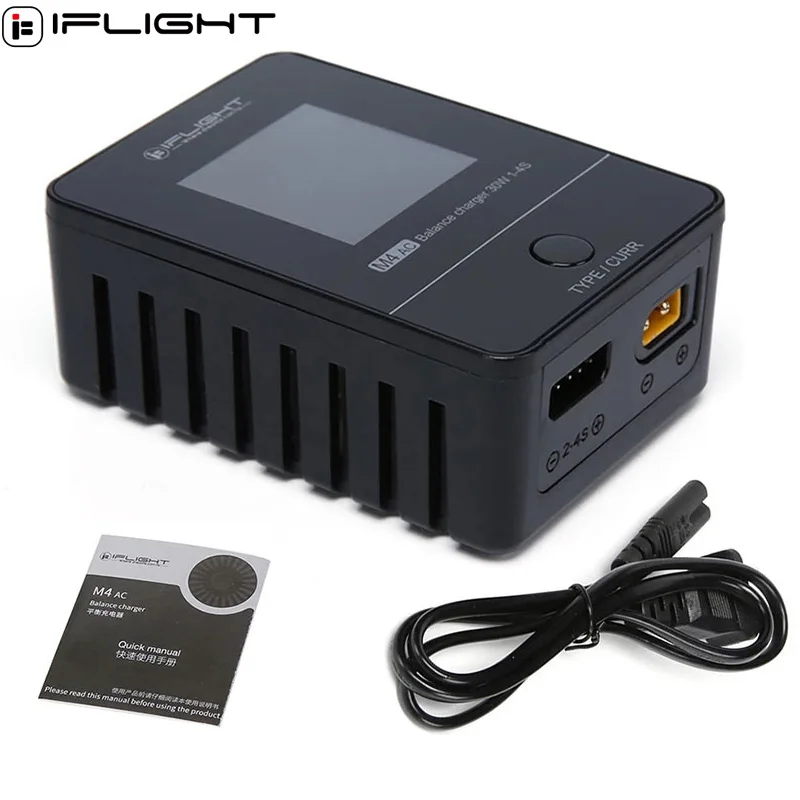

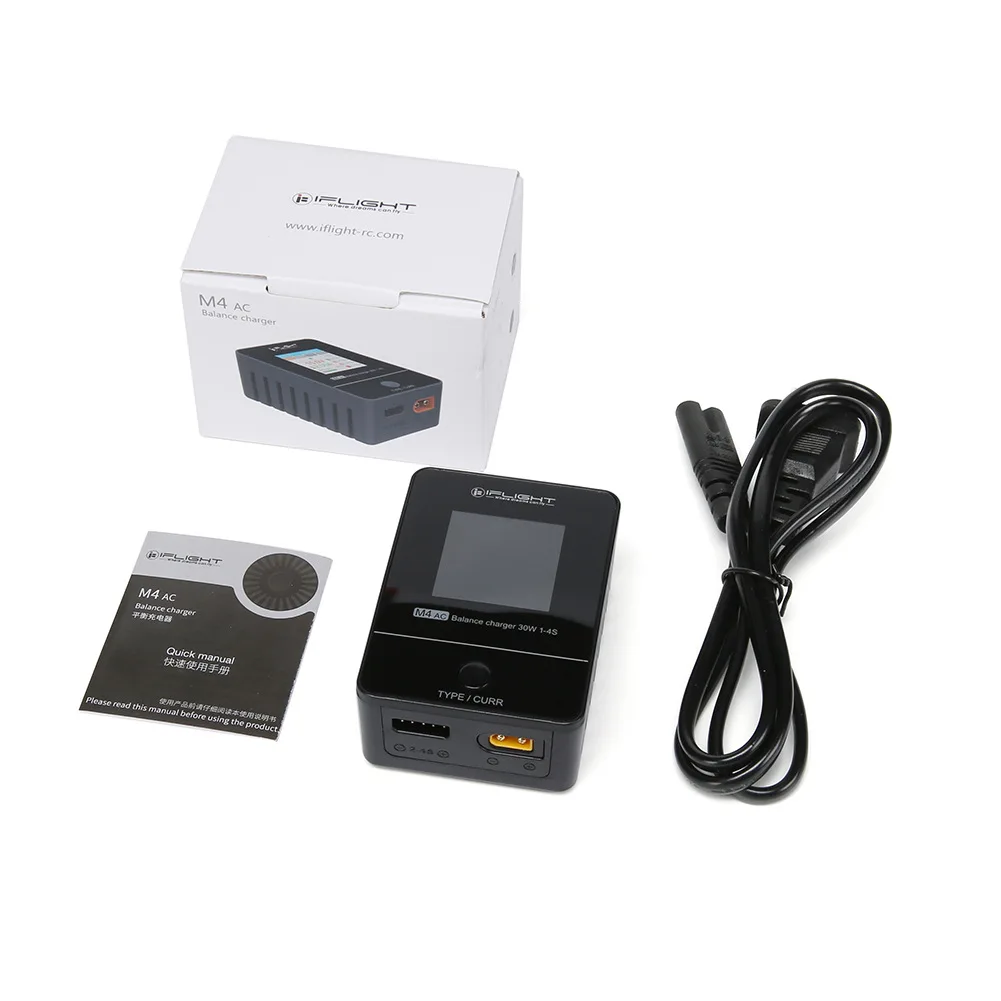

Packaging included:
-
1X iFlight M4AC Charger
-
1x AC cable
-
1x manual

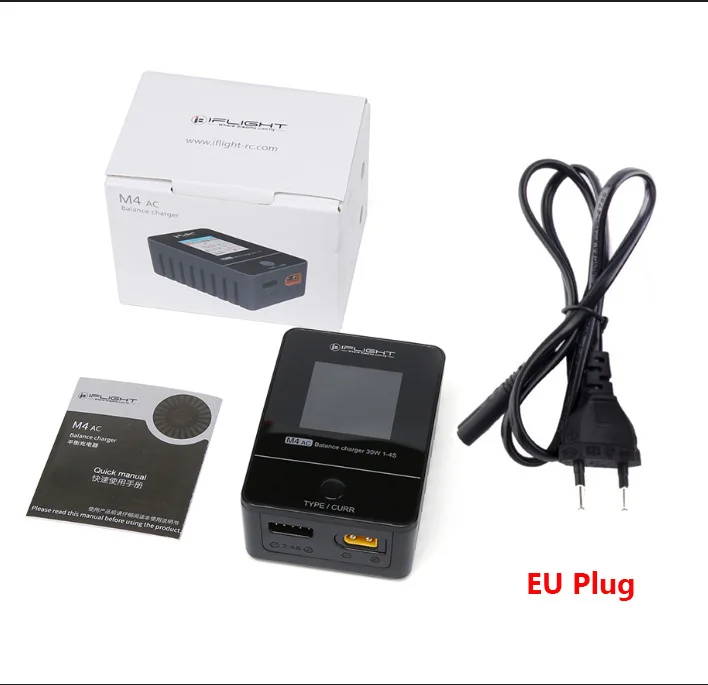

| Plug Type | EU Plug, US Plug |
|---|
