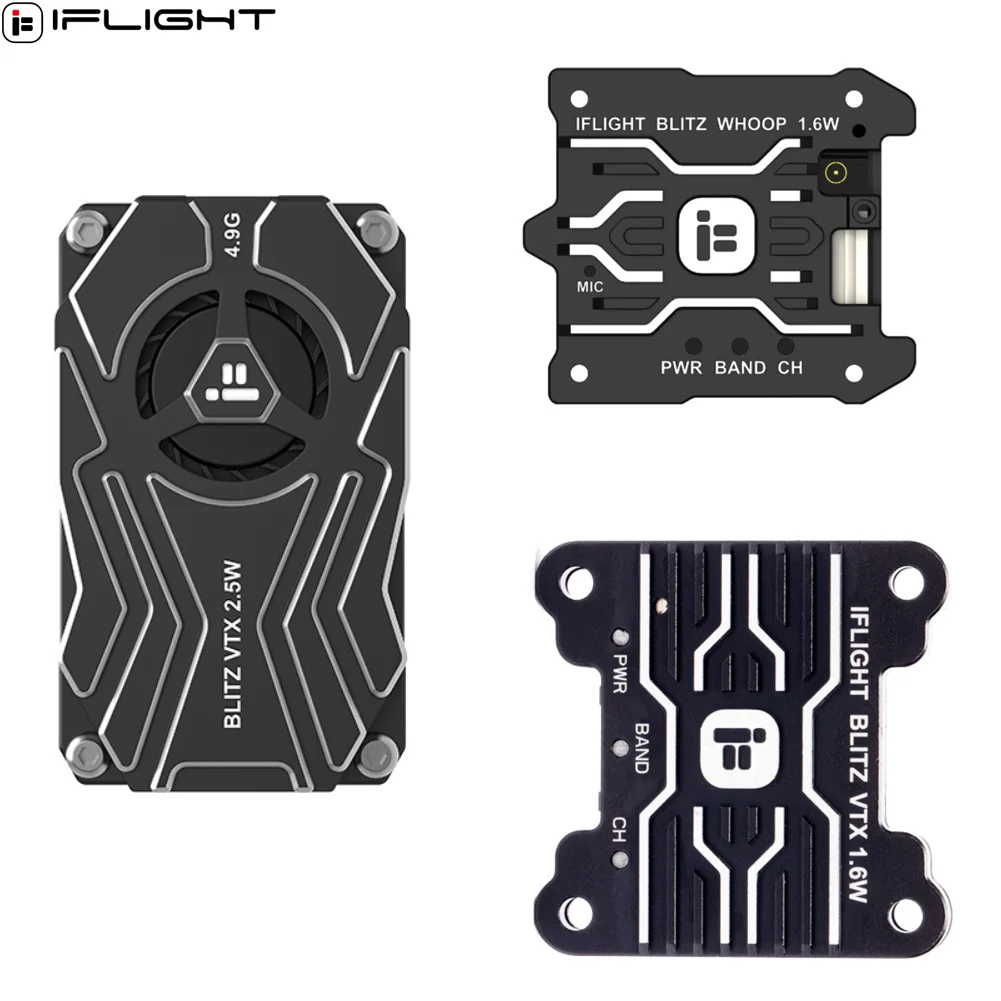

IFlight BLITZ Whoop 5.8G/4.9G 2.5W/1.6W VTX 40CH Raceband Built-in Microphone CNC Shell Cooling Fan 2-8S 25.5X25.5mm for RC FPV
Price range: $255.08 through $332.36
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: BLITZ Whoop 4.9GHz 2.5W VTX
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: BLITZ Whoop 5.8GHz 2.5W VTX
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Size: 30.5*30.5
Technical parameters: value 2
Tool Supplies: BLITZ Whoop 1.6W VTX
Upgrade Parts/Accessories: BLITZ 1.6W VTX
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

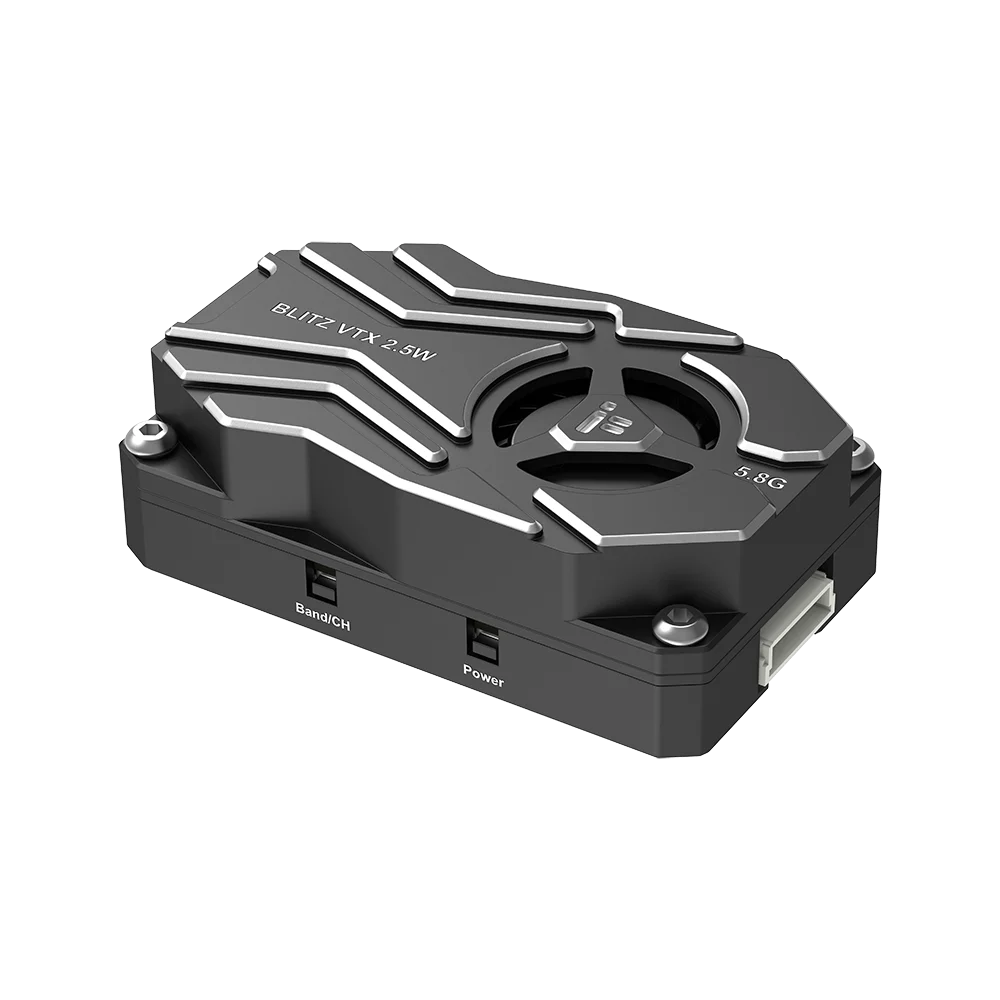

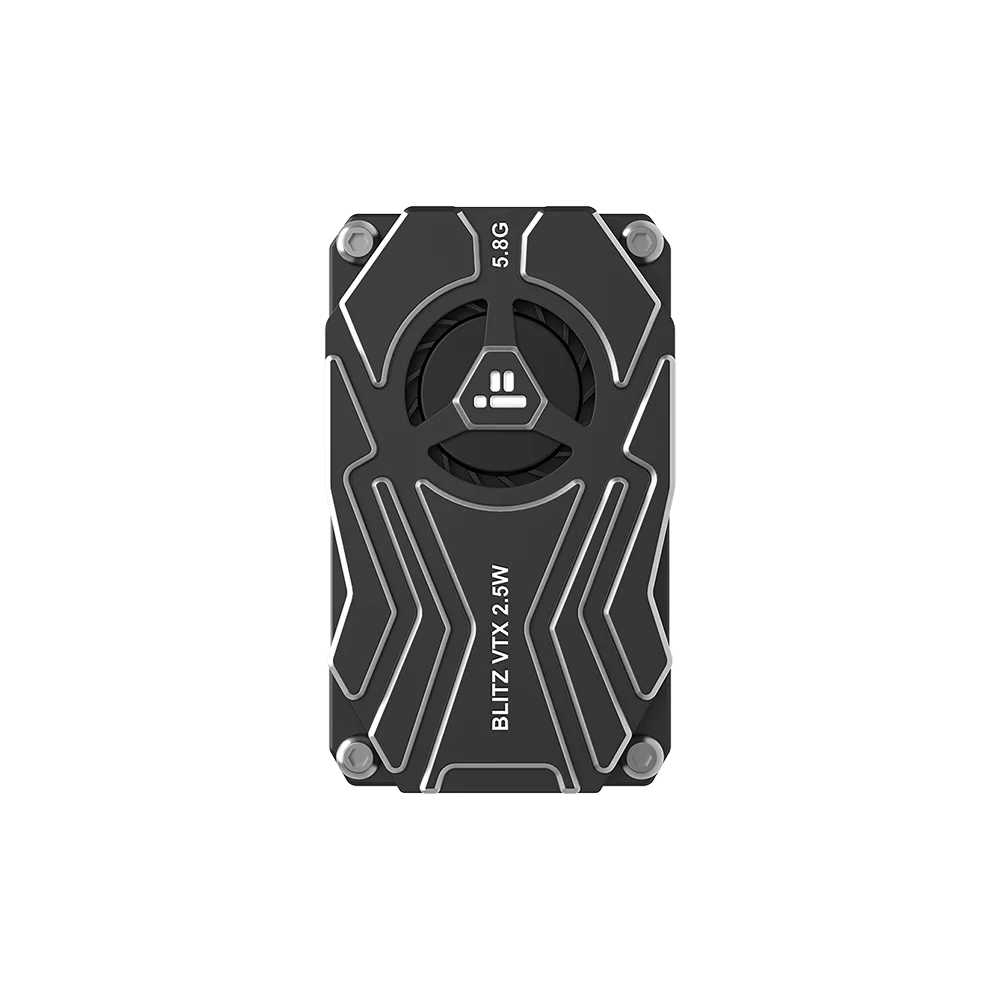

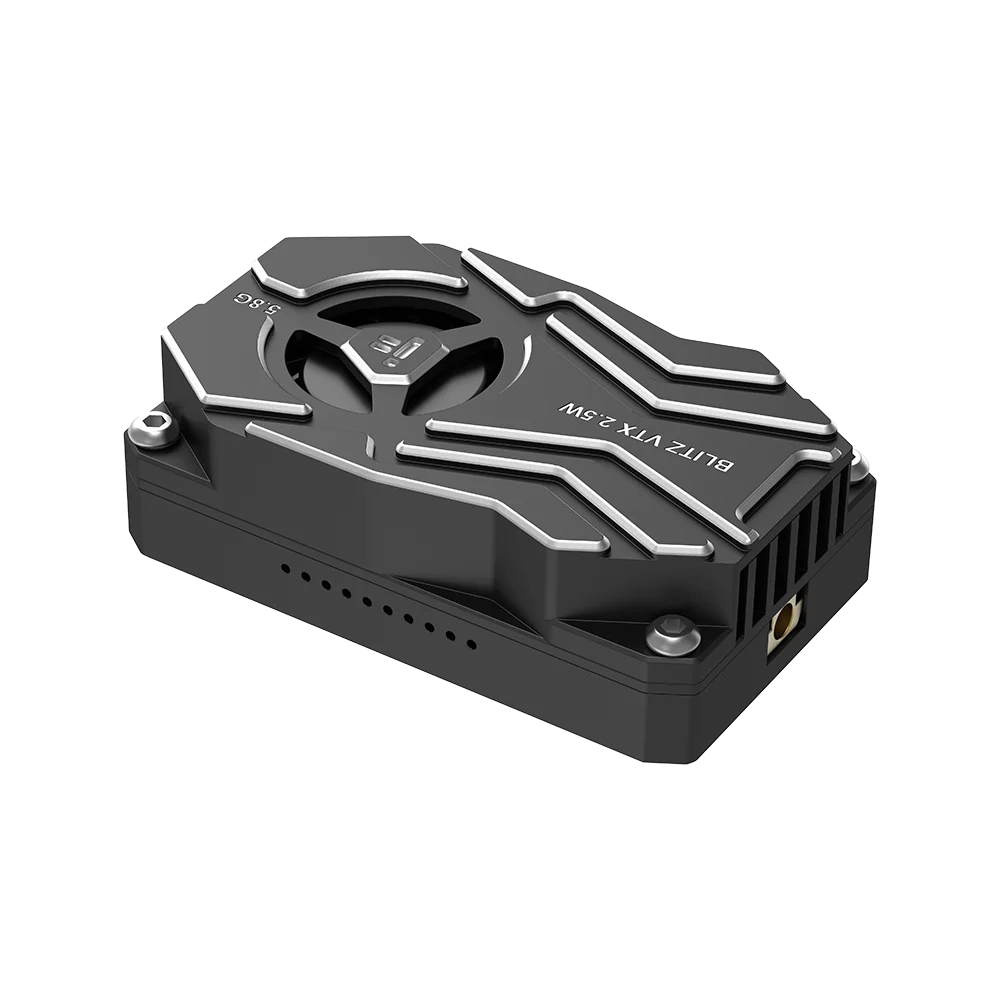

BLITZ Whoop 5.8GHz 2.5W VTX
Features
Built-in microphone
4 Power levels up to 2500mW;
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
The CNC cooling casing, along with an integrated cooling fan, offers a dual heat dissipation effect.
Tips
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specifications
Input voltage: 7V～34V
Interface: MMCX
Power levels: PIT/25mW/400mW/1000mW/2500mW
Channels: 40 (including Raceband)
Mounting pattern: 25.5×25.5mm/Φ1.6
Lightweight: 32g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/1000mW/2500mW

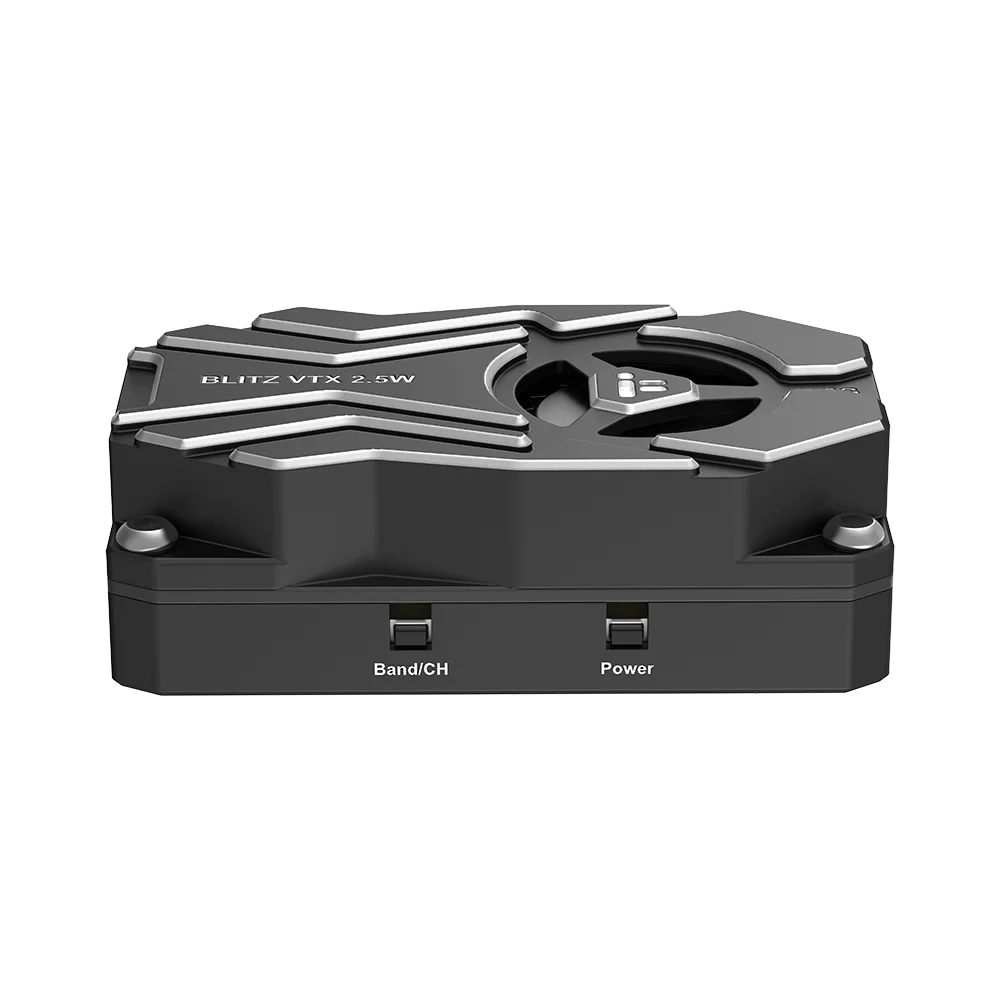

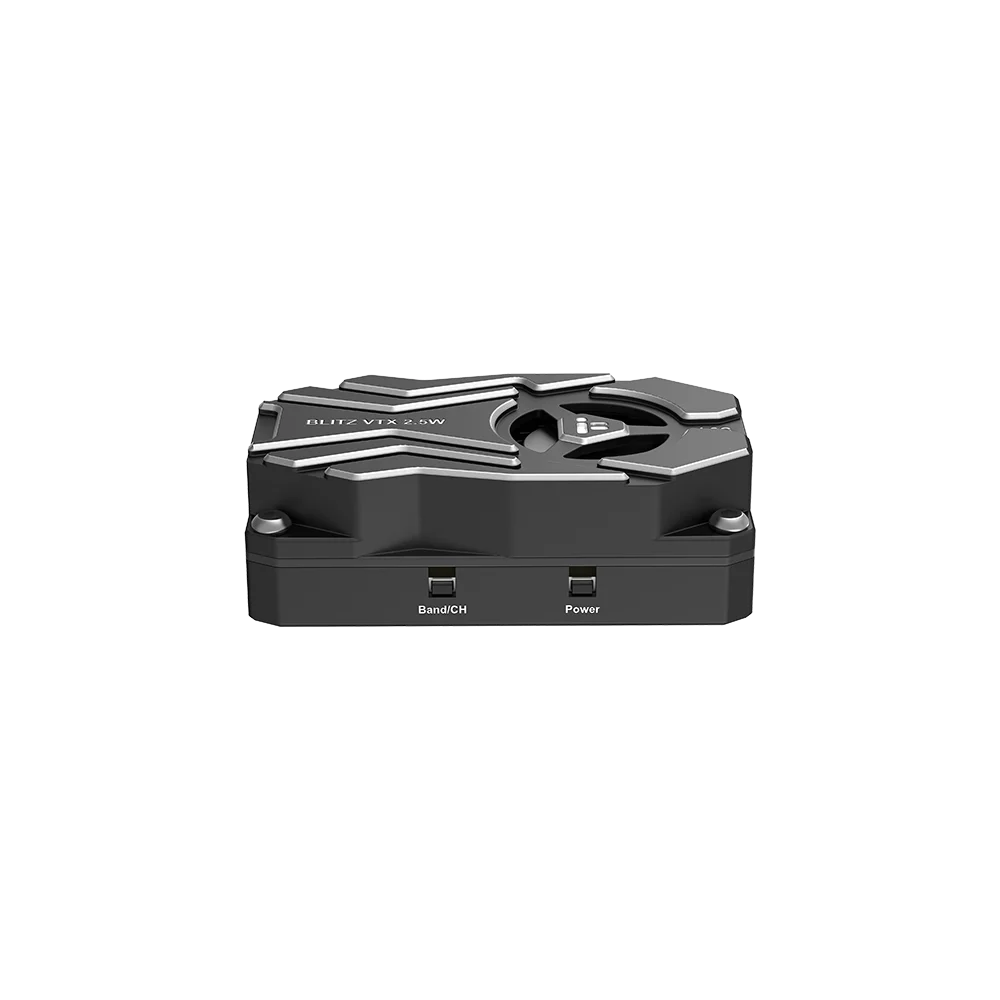

LED Indicator and Function Button
Power Button:
Press and hole for 2s: Enter or exit PIT mode, solid green light indicates entering PIT mode
Short press: Green light (output power): The number of LED flashing indicates the VTX output power. 1 flash=25mW, 2 flashes=400mW,3 flashes=1000mW, 4 flashes=2500mW. Short press to change output power.
Band and Channel Button
Press and hole for 2s: Red(BAND): The number of LED flashing indicates the BAND A-R. Press and hold for 2s to switch Band.
Short press: Blue(CH): The number of LED flashing indicate the channel 1 to 8. Short press to switch the Channel.

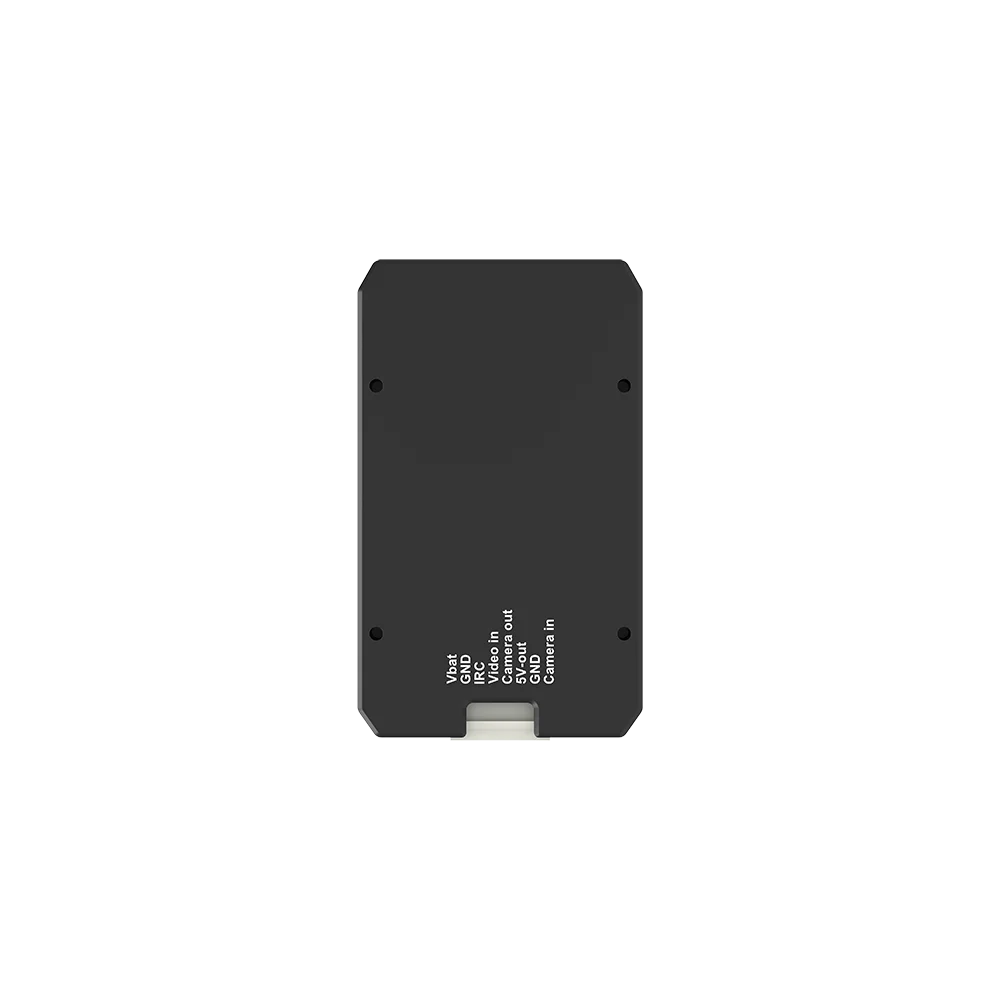

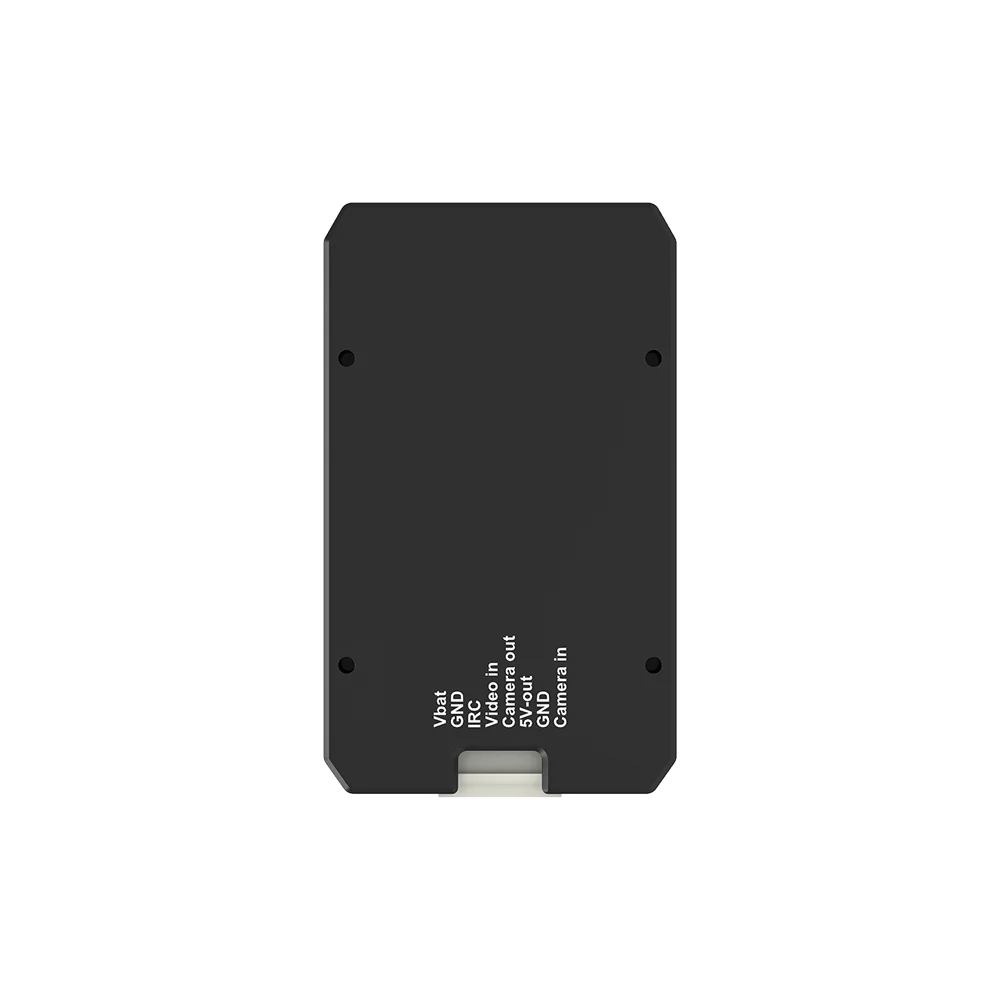

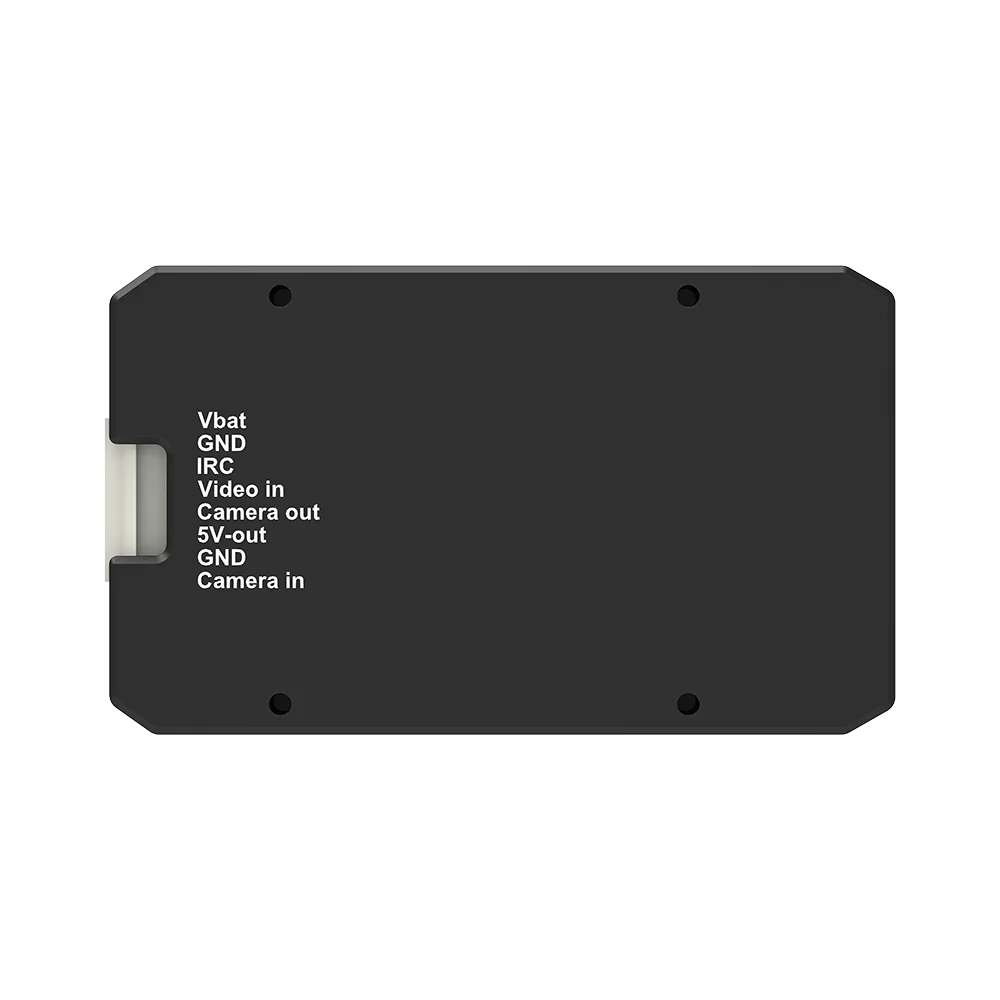

Ports
VBAT: 2-8S，7-34V DC Positive Input
GND: Negative
5v out: 5v Voltage Output
IRC: IRC Tramp Signal Input
GND: Negative
Video in: Video Signal Input
Camera in: Camera video Input
Camera out:Camera video output

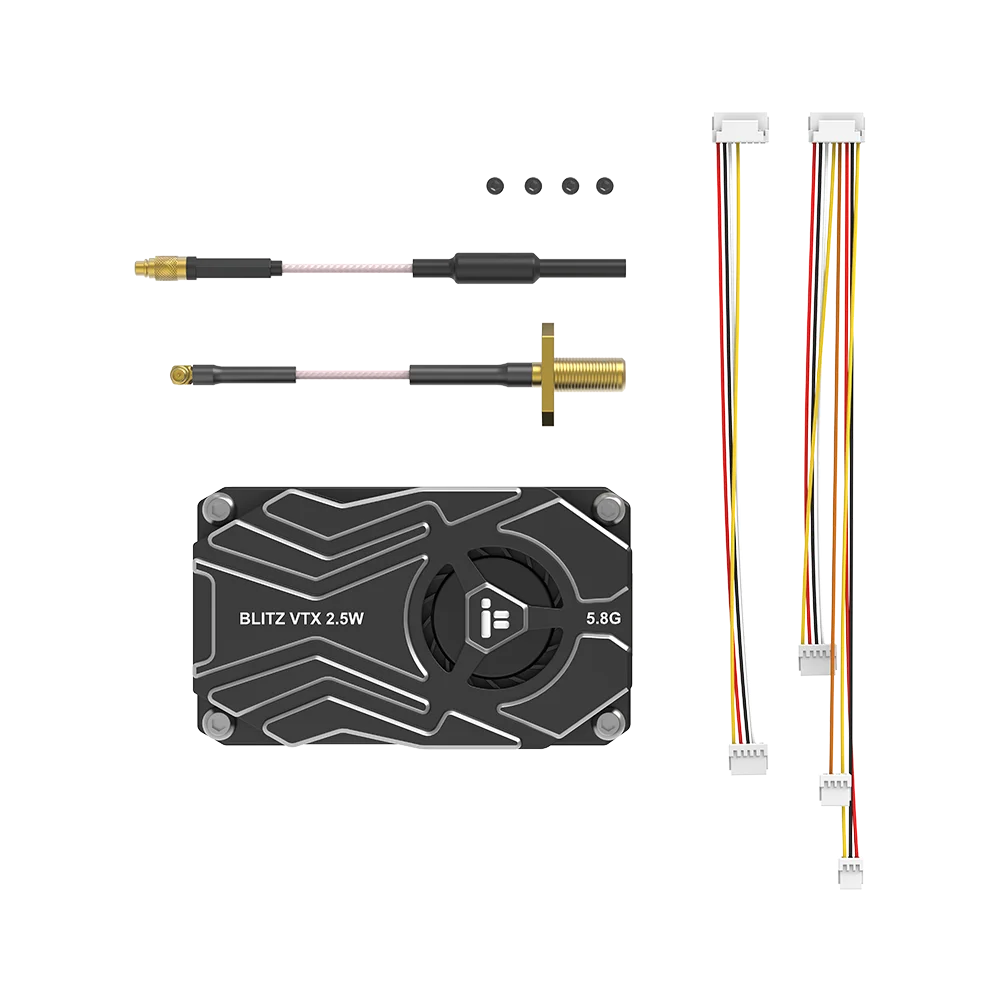

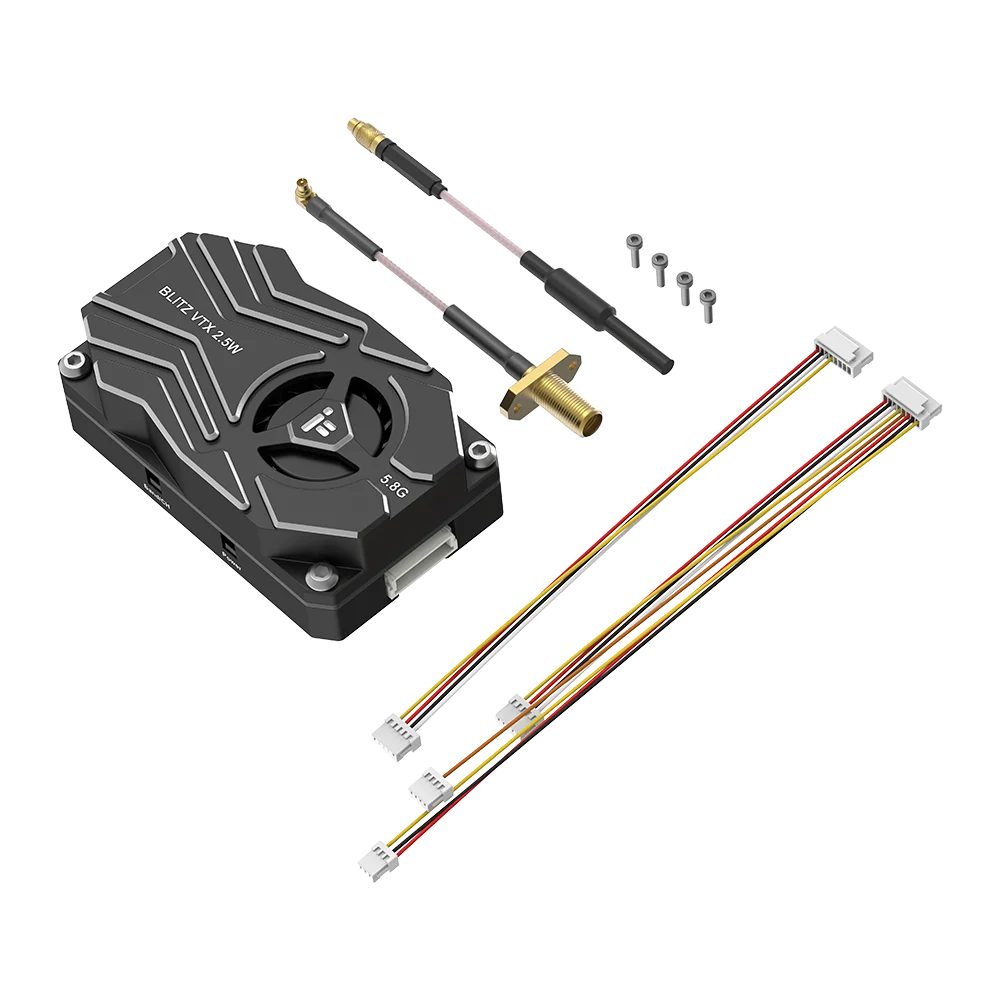

Packing List
1 x BLITZ Whoop 5.8G 2.5W VTX
Attention
Please read the instructions for proper wiring before use.
It is recommended that before switching on the power, make sure that the antenna has been installed, it can extend the life of the module.
It is recommended to ensure the correct voltage range and the correct positive and negative polarity before switching on the power to avoid burning the components.
Please keep enough space when you install the VTX to ensure air convection around the module for heat dissipation. Otherwise, the module will enable overheat protection and the power transmission will be reduced or even switched off

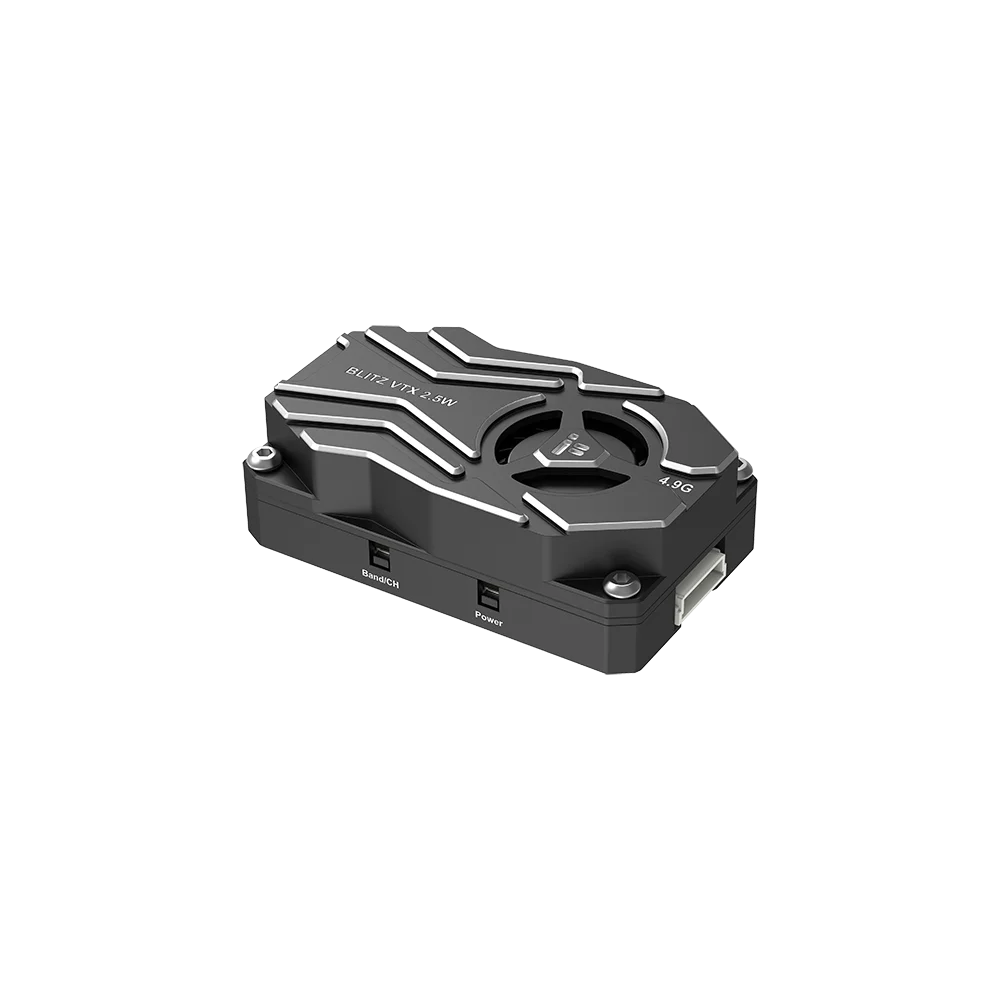

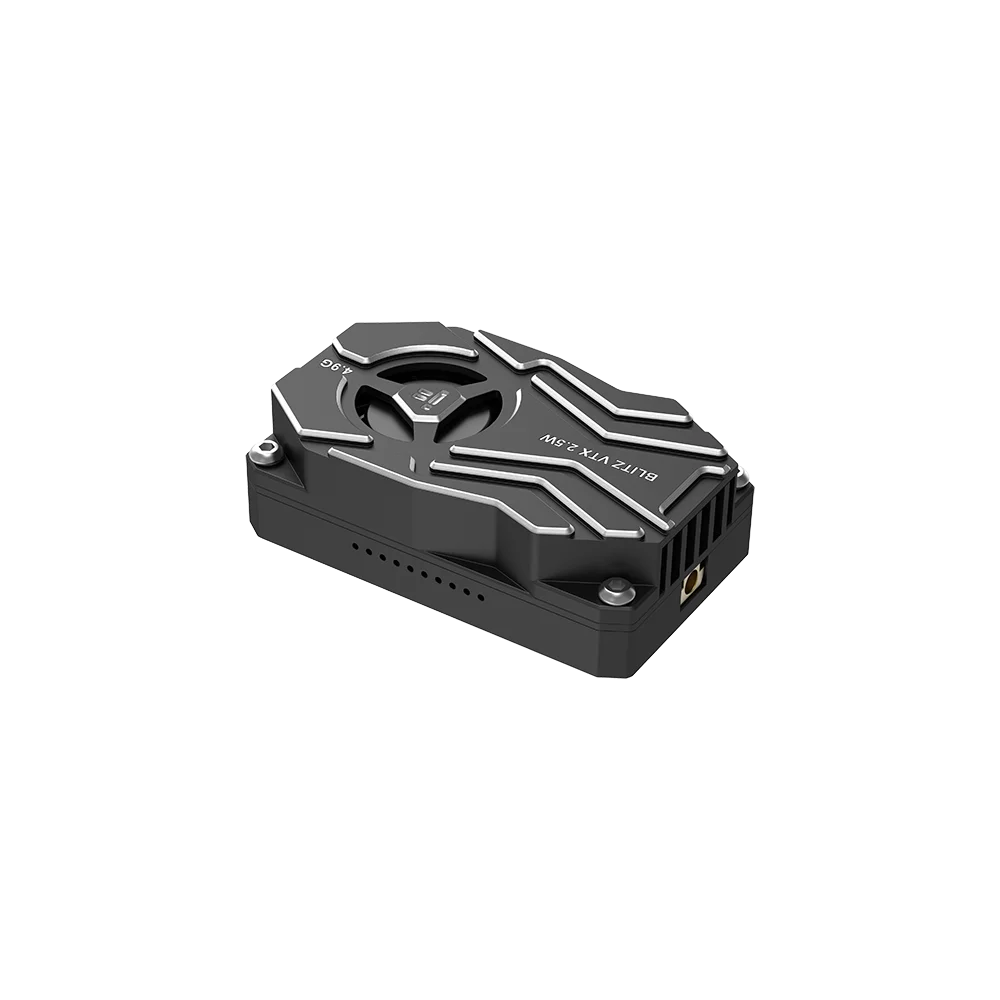

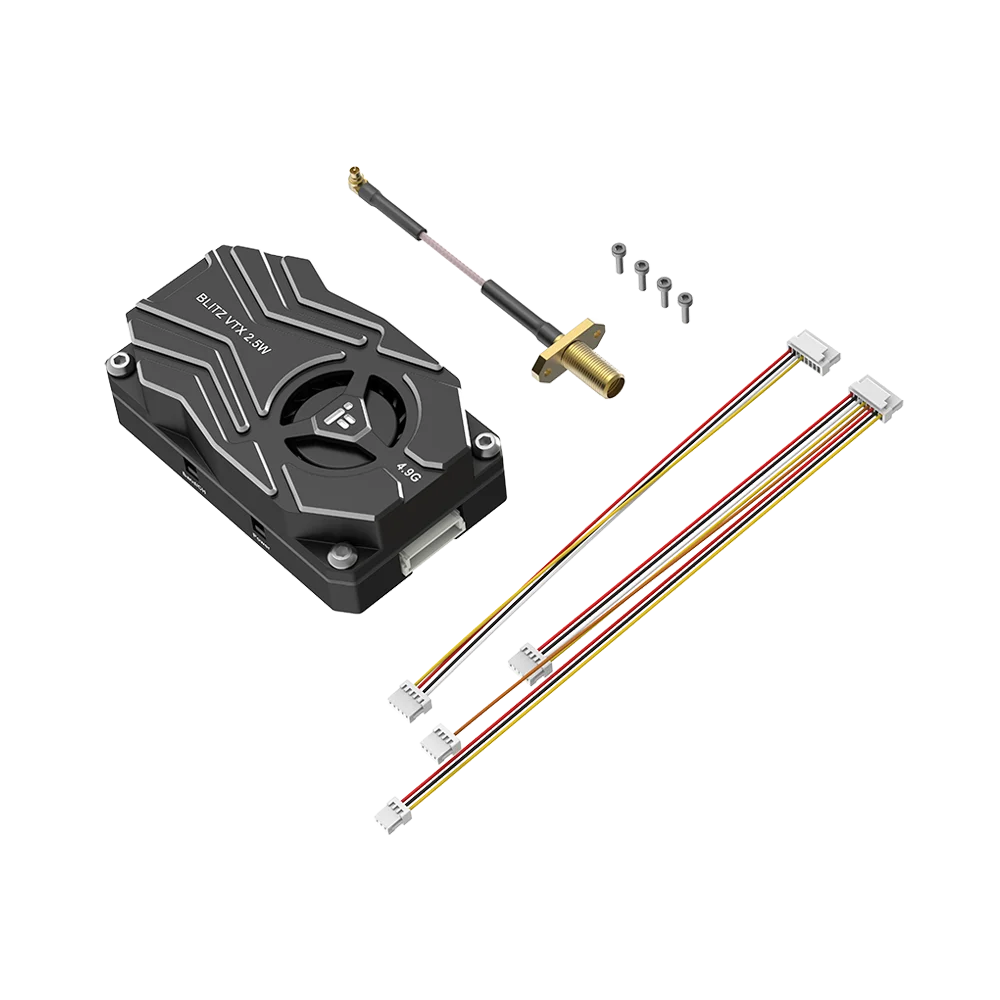

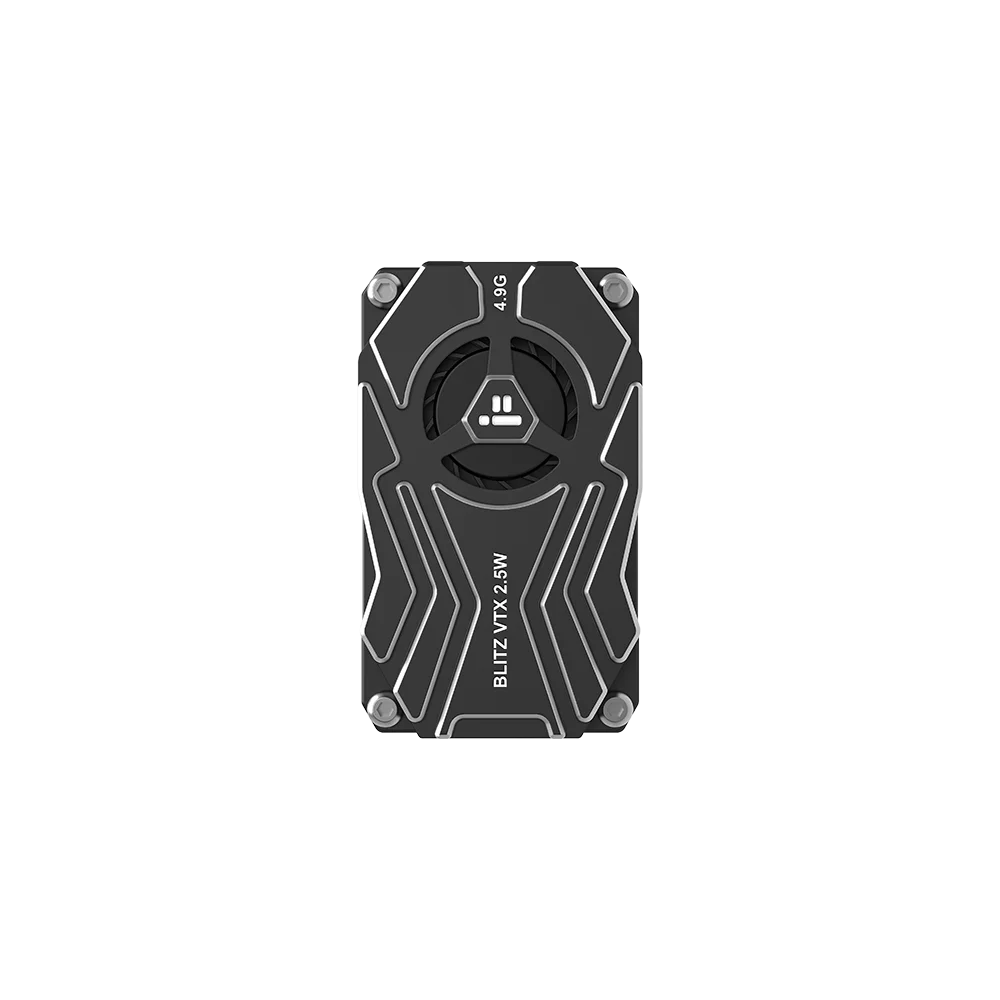

BLITZ Whoop 4.9GHz 2.5W VTX
Features
Built-in microphone
4 Power levels up to 2500mW
The CNC cooling casing, along with an integrated cooling fan, offers a dual heat dissipation effect
Tips
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specifications
Input voltage: 7V～34V
Interface: MMCX
Power levels: PIT/25mW/400mW/1000mW/2500mW
Channels: 8
Mounting pattern: 25.5×25.5mm/Φ1.6
Dimensions: 50*30*16 mm
Lightweight: 32g
VTX telemetry: IRC Tramp
LED Indicator and Function Button
Power Button:
Press and hole for 2s: Enter or exit PIT mode, solid green light indicates entering PIT mode
Short press: Green light (output power): The number of LED flashing indicates the VTX output power. Short press to change output power.1 flash=25mW, 2 flashes=400mW,3 flashes=1000mW, 4 flashes=2500mW.
Band and Channel Button
Short press: Blue(CH): The number of LED flashing indicate the channel 1 to 8. Short press to switch the Channel.
Ports
VBAT: 2-8S，7-34V DC Positive Input
GND: Negative
IRC: IRC Tramp Signal Input
Video in: Video Signal Input
Camera out: Camera video output
5v out: 5v Voltage Output
GND: Negative
Camera in: Camera video Input
Packing List
1 x BLITZ Whoop 4.9G 2.5W VTX
Attention
Please read the instructions for proper wiring before use.
It is recommended that before switching on the power, make sure that the antenna has been installed, it can extend the life of the module.
It is recommended to ensure the correct voltage range and the correct positive and negative polarity before switching on the power to avoid burning the components.
Please keep enough space when you install the VTX to ensure air convection around the module for heat dissipation. Otherwise, the module will enable overheat protection and the power transmission will be reduced or even switched off.

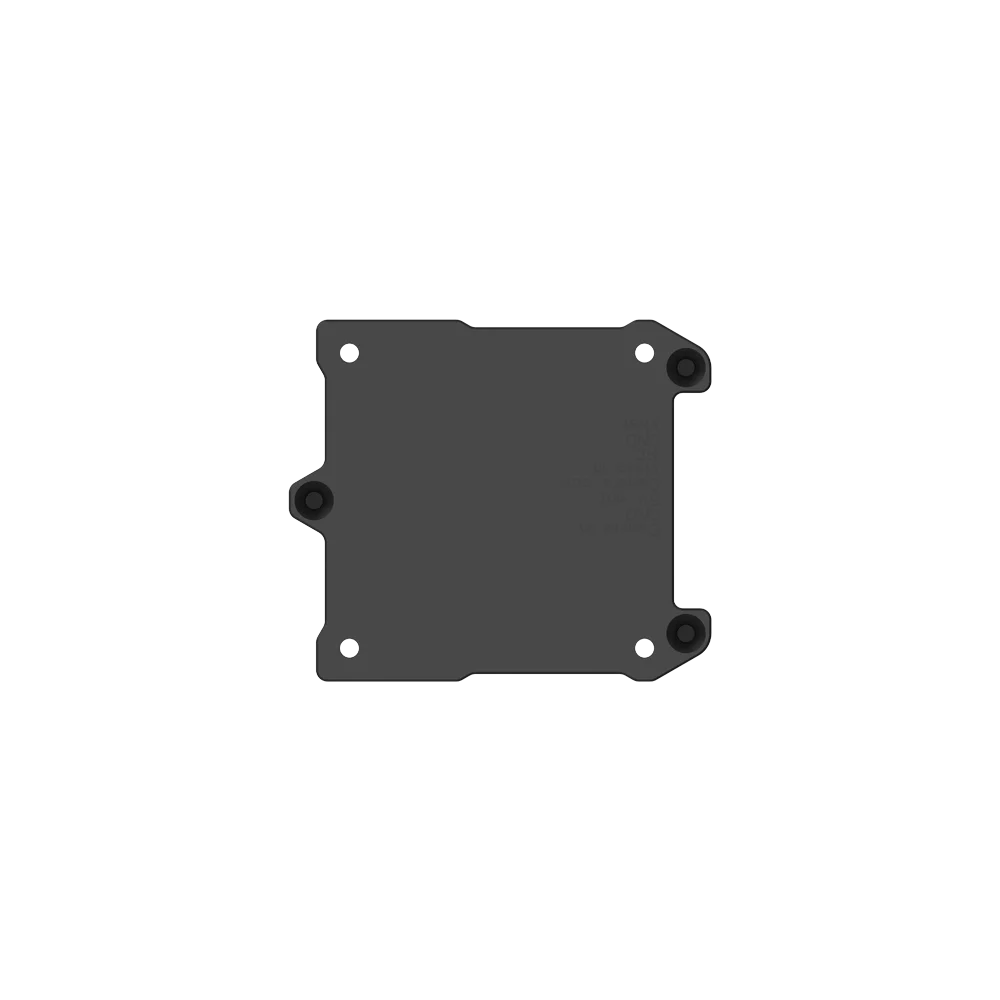

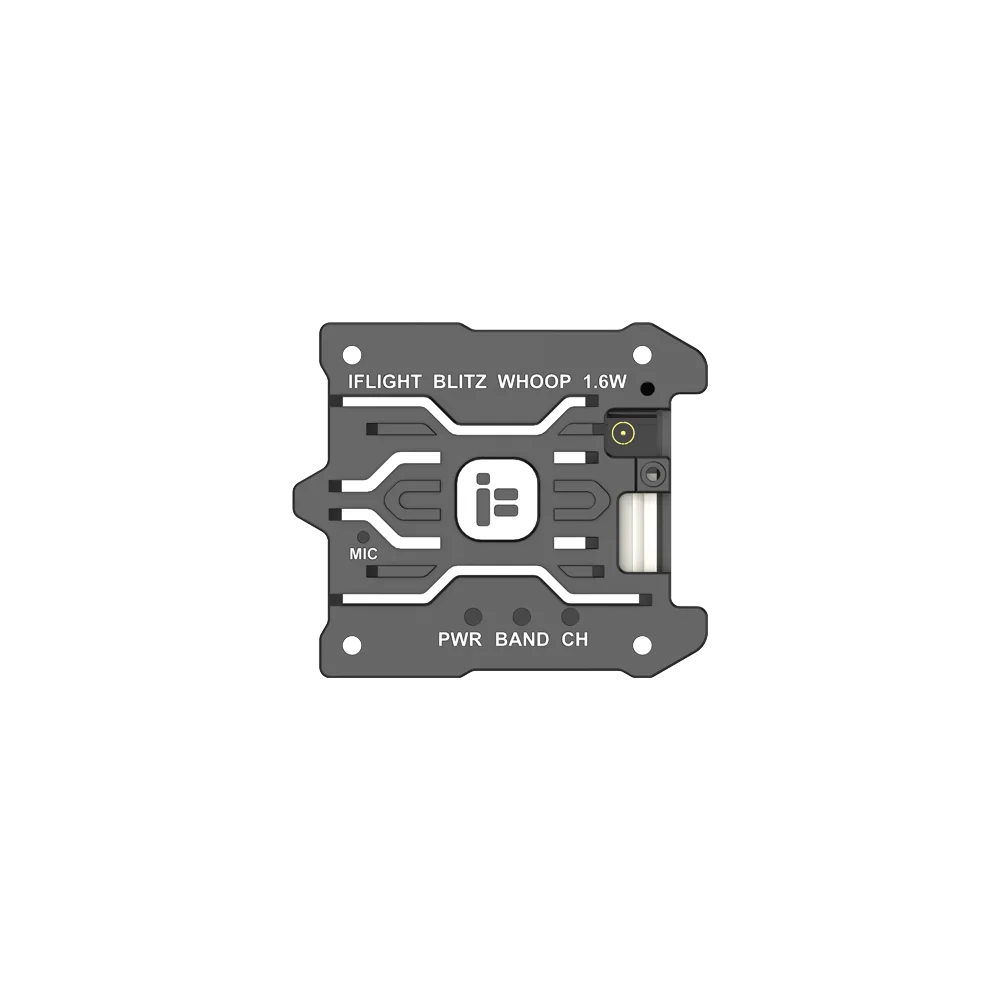

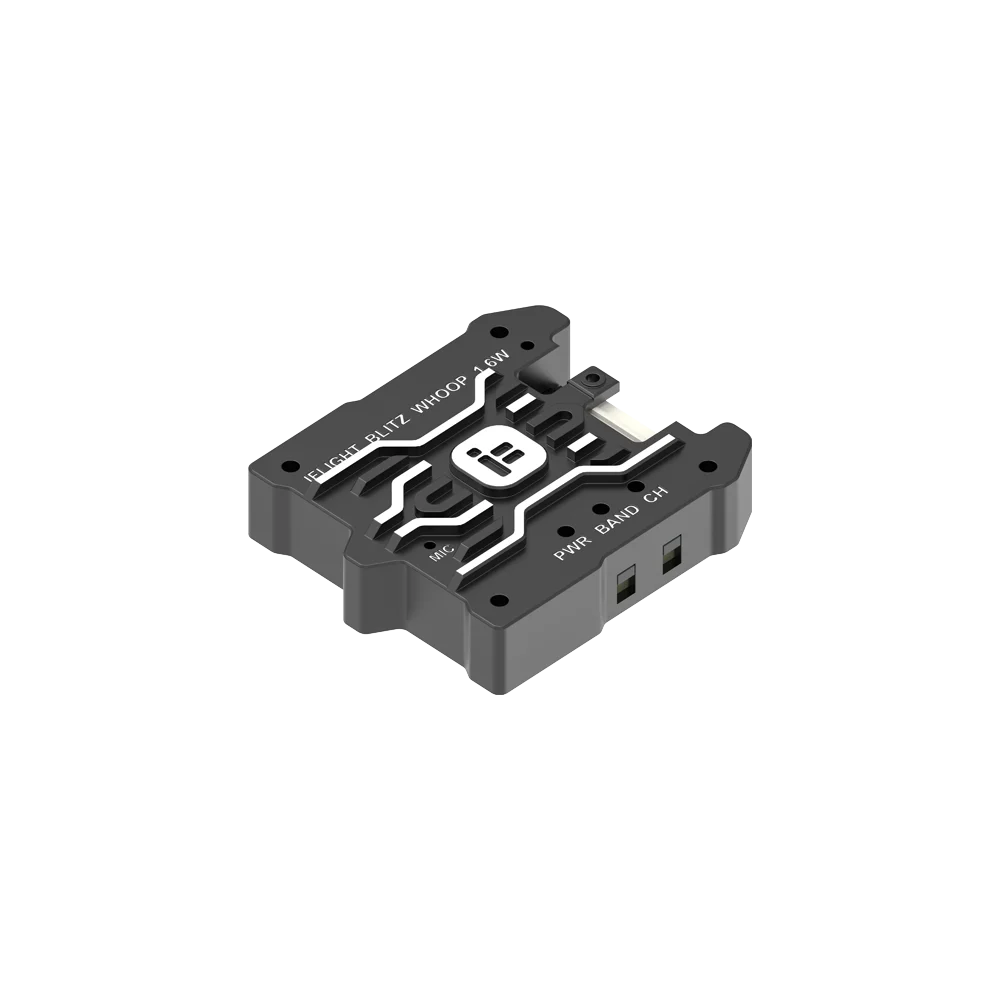

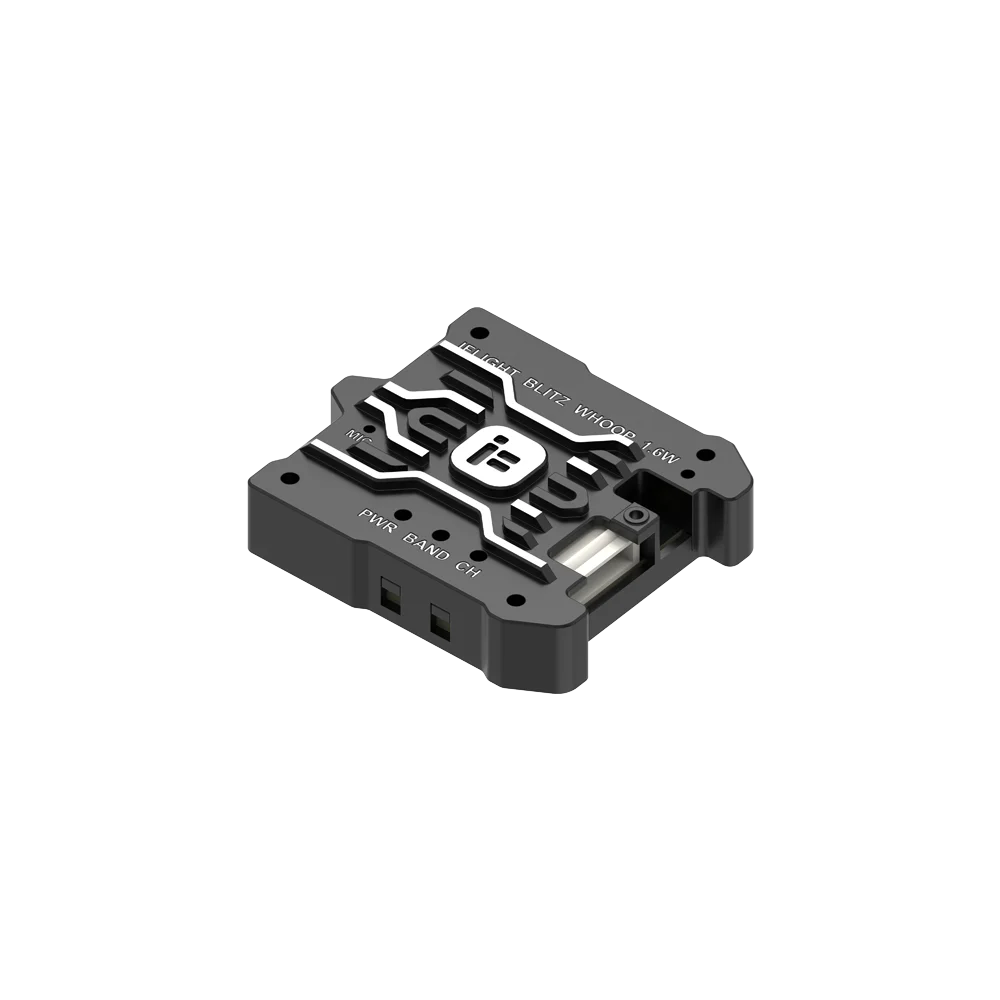

BLITZ Whoop 1.6W VTX
Features
Stable output power
4 Power levels up to 1600mW;
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
VTX telemetry with IRC Tramp protocol
Tips
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specifications
Input voltage: 7V～34V
Interface: IPEX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 25.5×25.5mm/Φ1.6
Lightweight: 16.5g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW
Packing List
1 x BLITZ Whoop 1.6W VTX

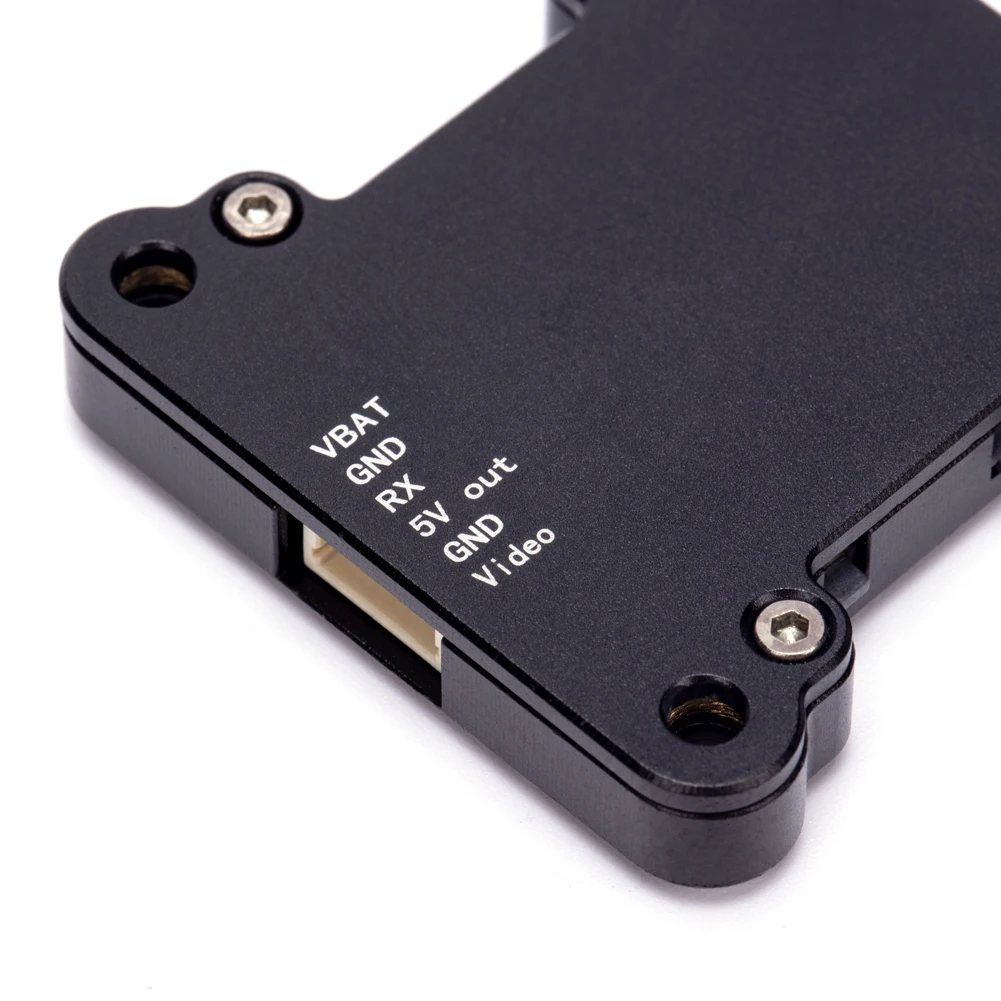

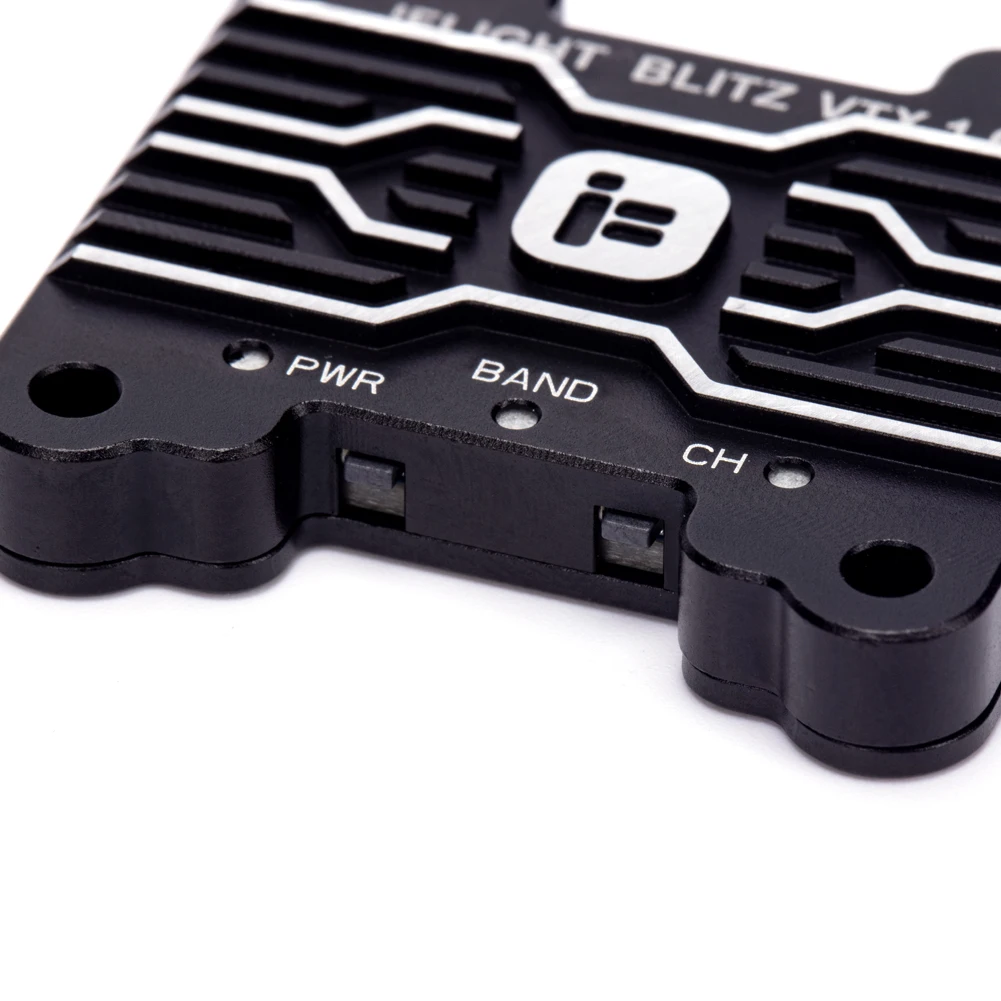

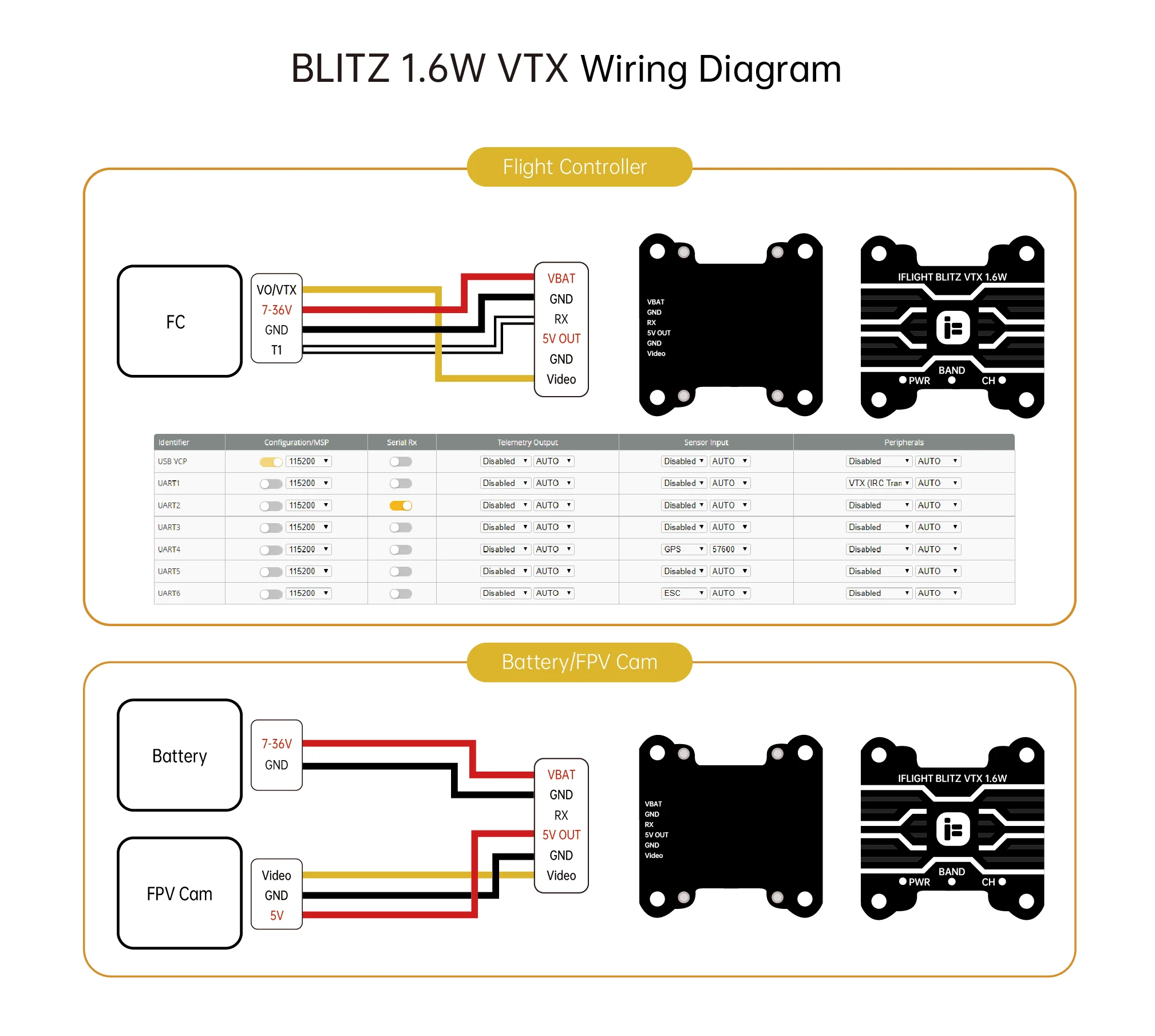

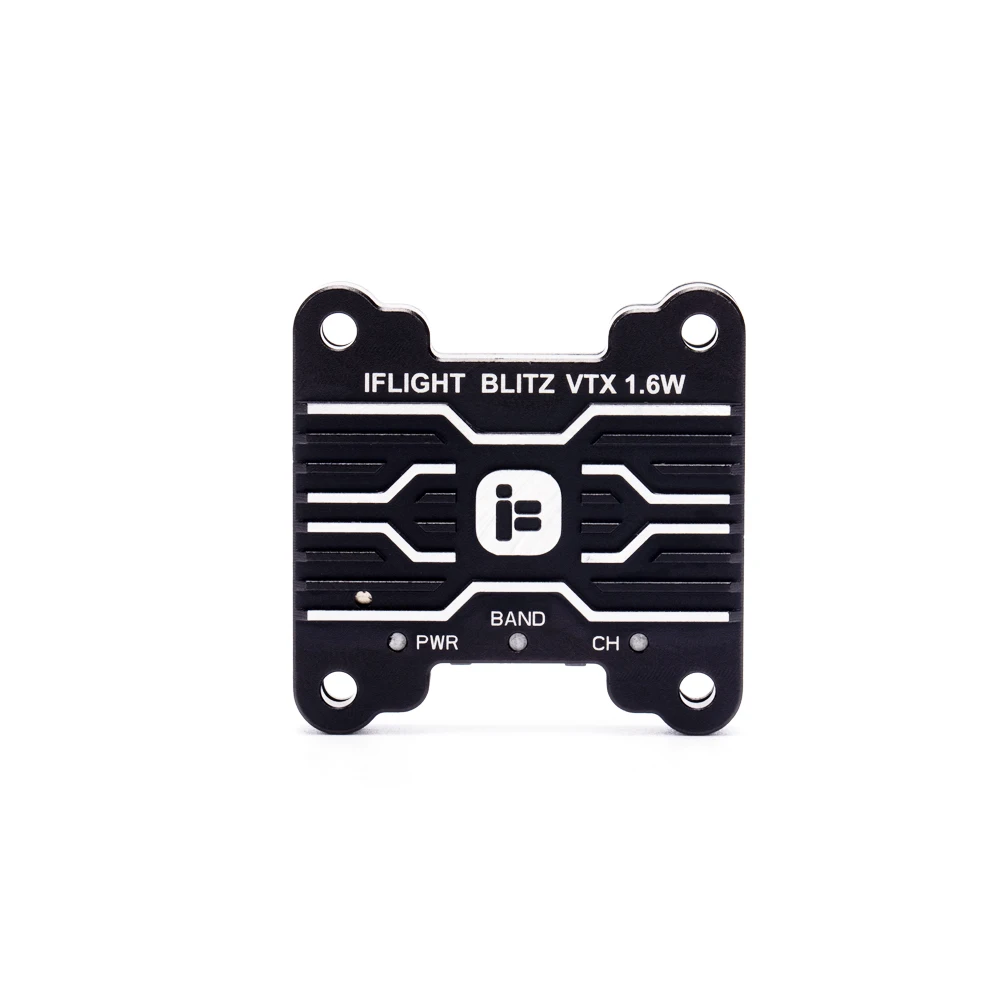

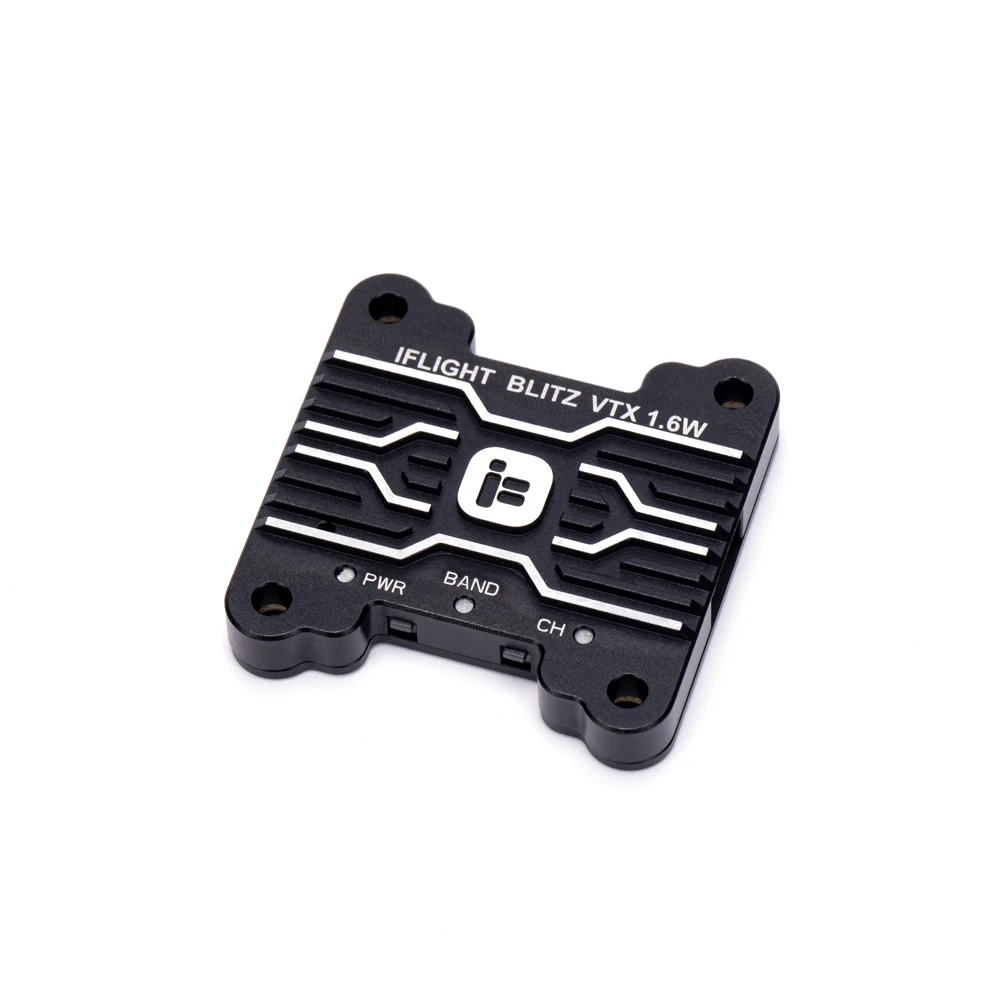

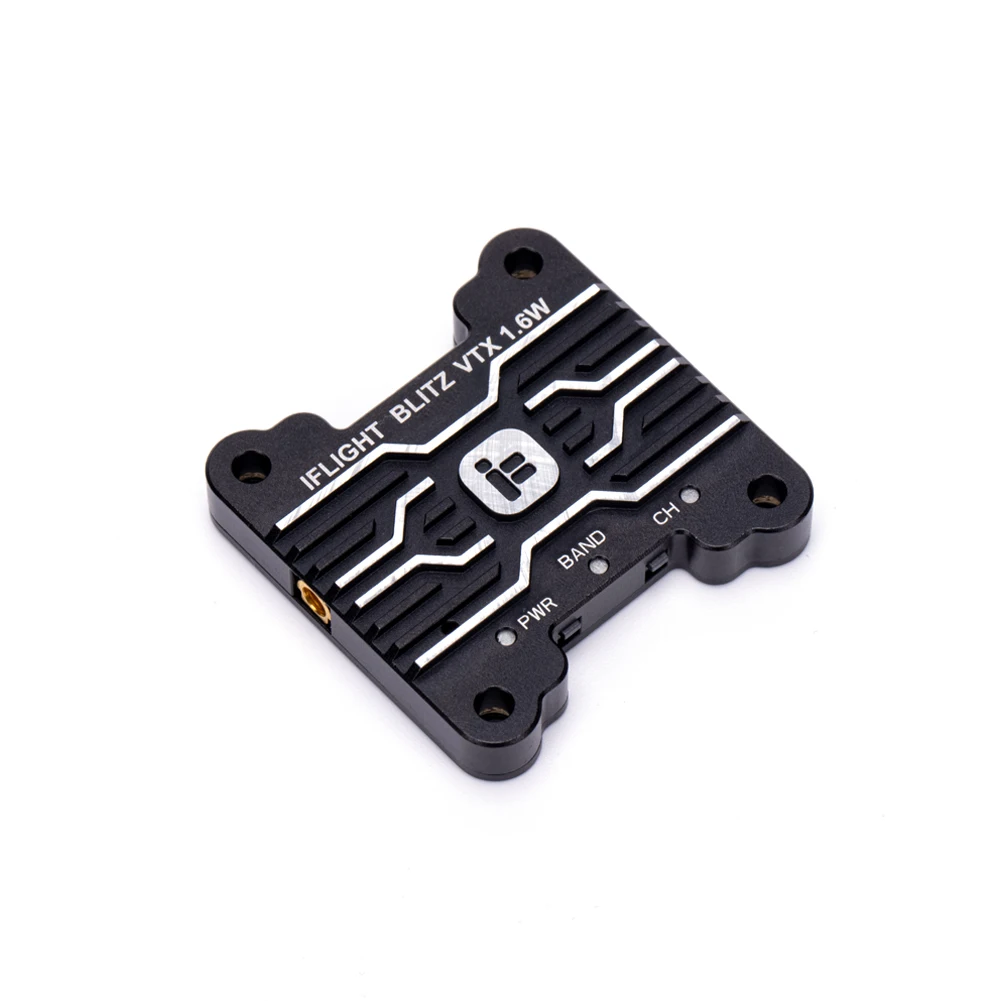

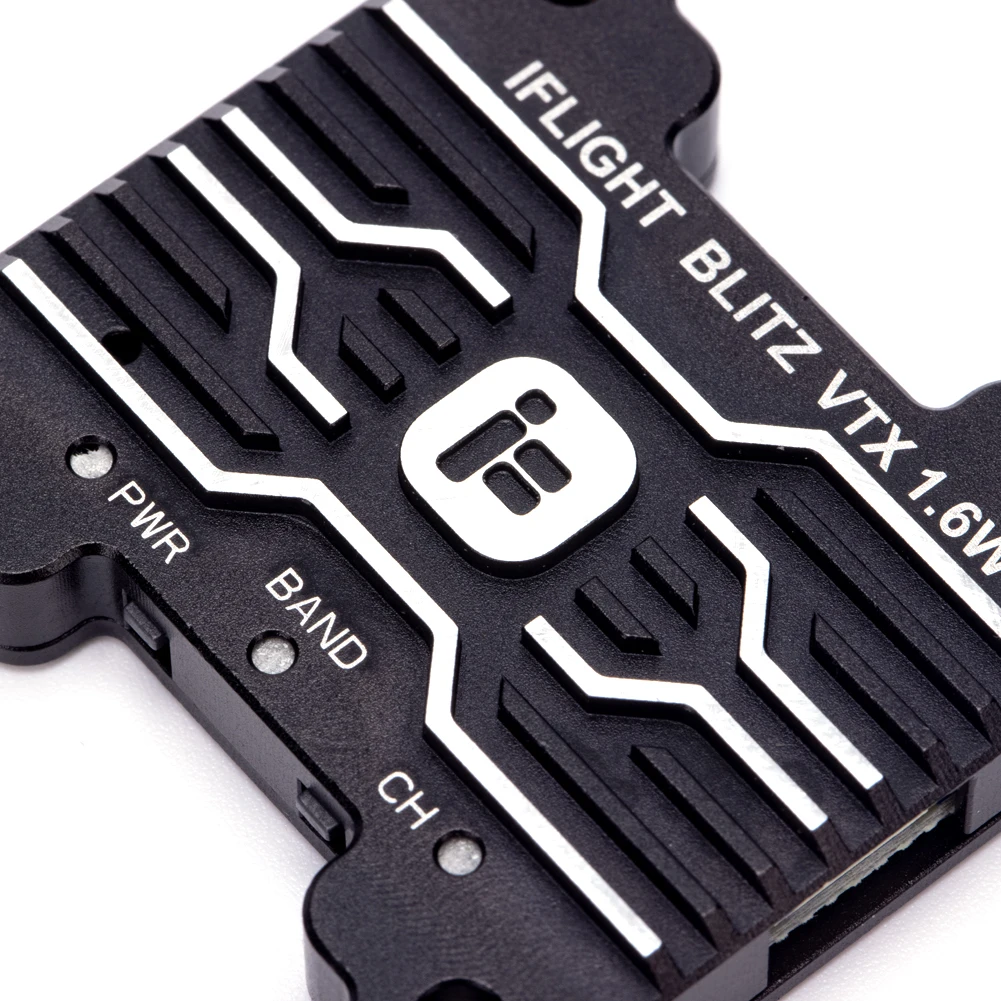

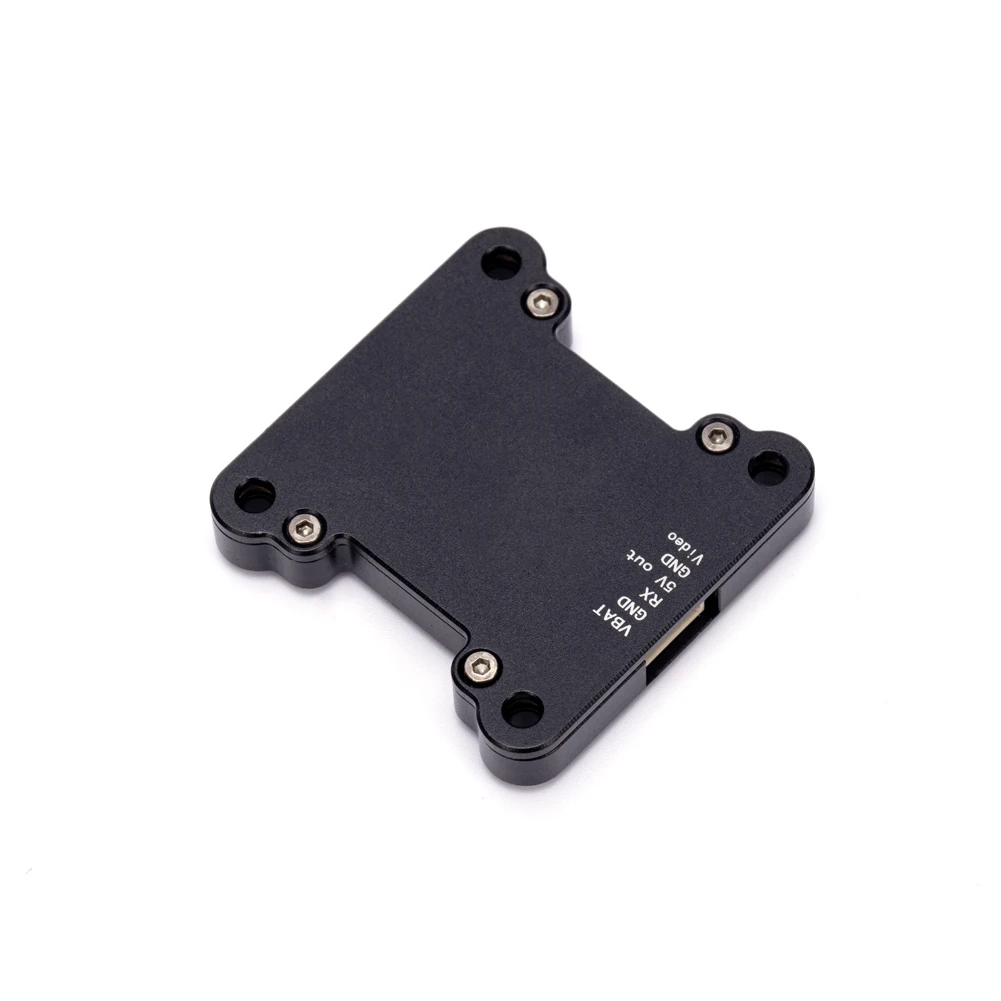

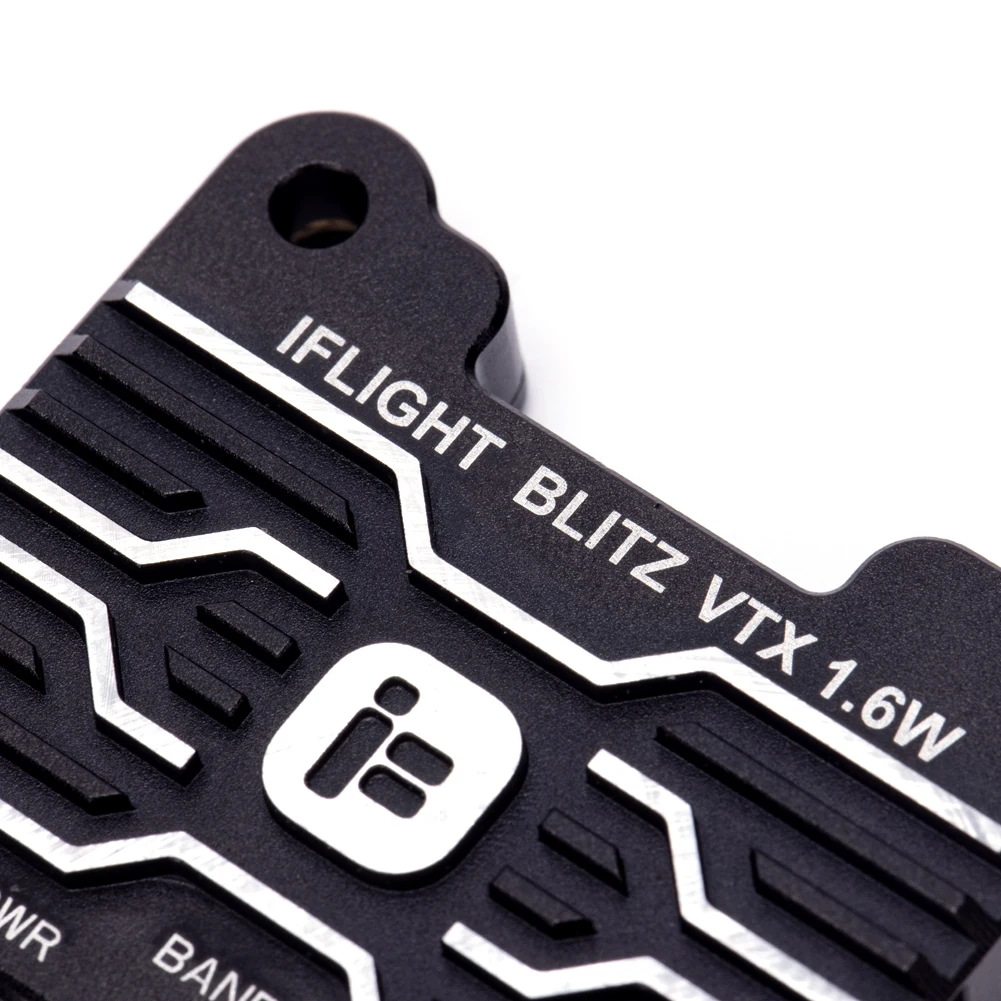

BLITZ 1.6W VTX
Features
Stable output power
4 Power levels up to 1600mW;
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
VTX telemetry with IRC Tramp protocol
Tips
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specifications
Input voltage: 7V～34V

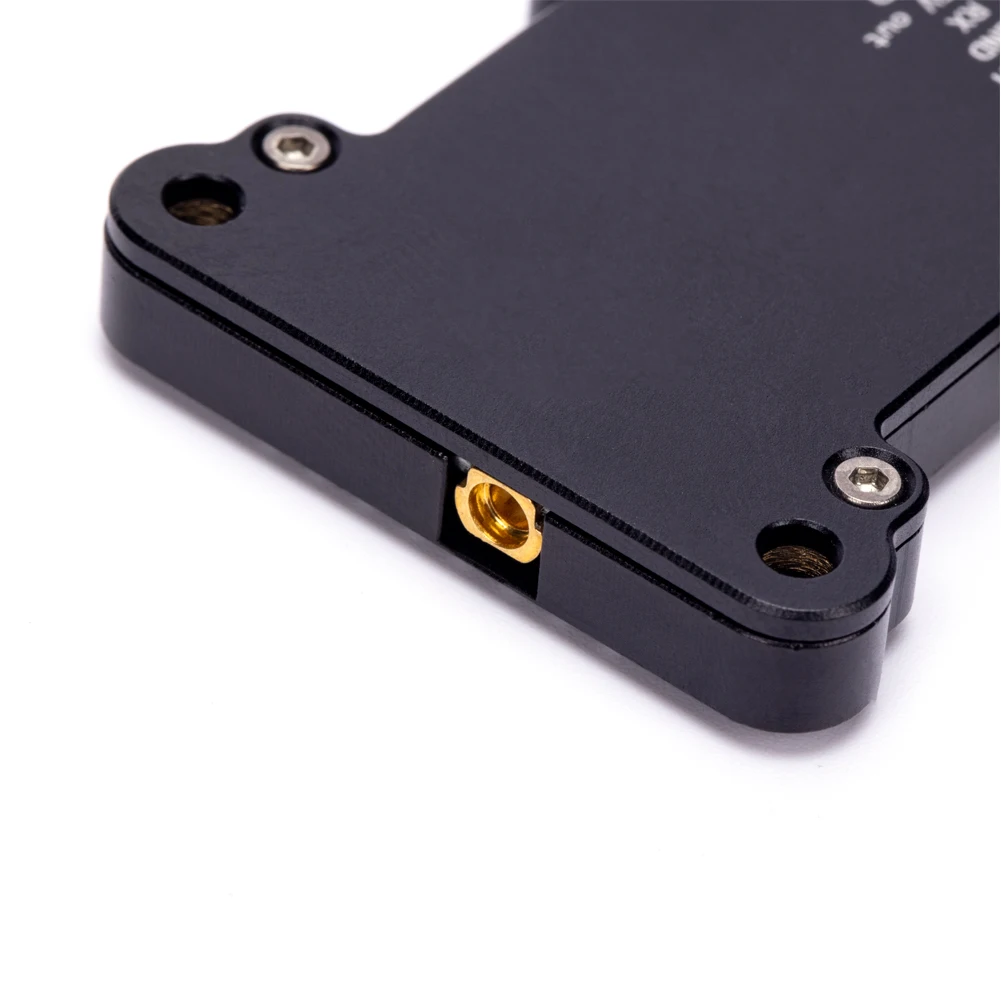

Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5×30.5mm/Φ3

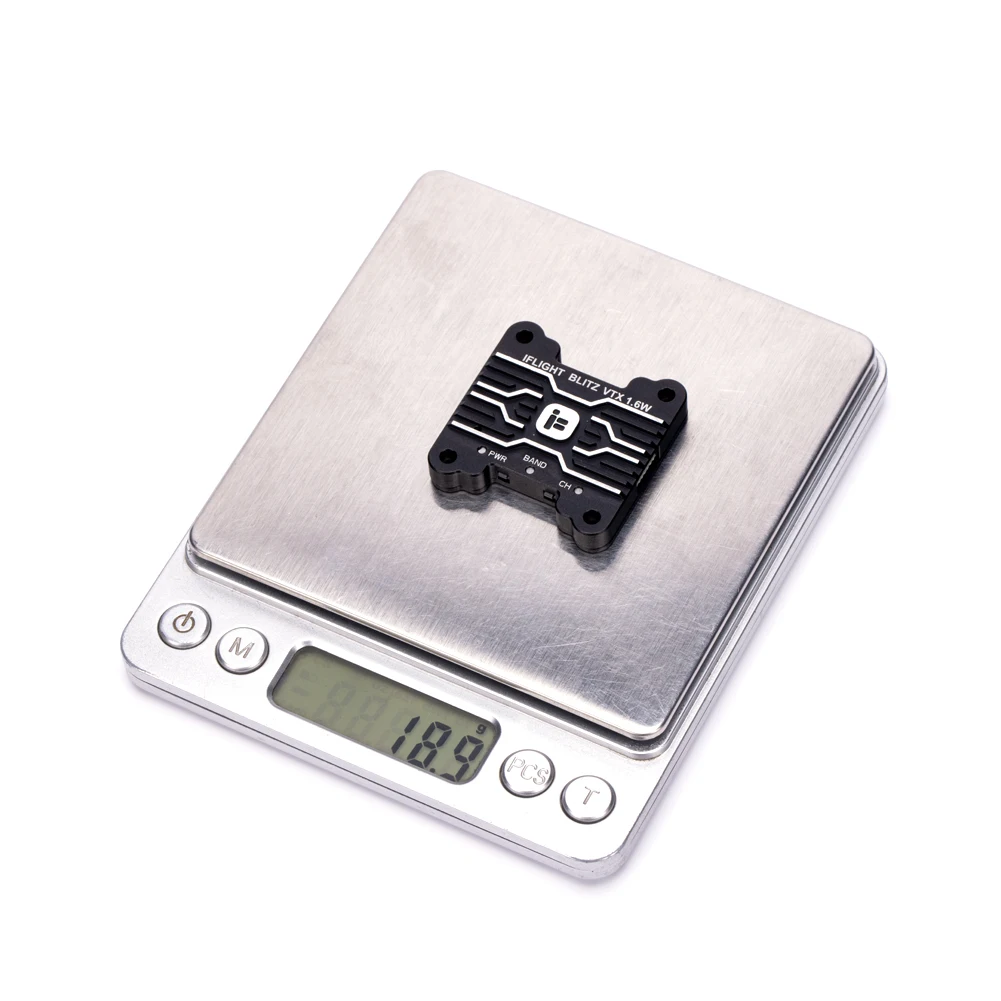

Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW
Packing List
1 x BLITZ 1.6W VTX
Additional information
| Color | Whoop 4.9GHz 2.5W, BLITZ 1.6W VTX, Whoop 1.6W VTX, Whoop 5.8GHz 2.5W |
|---|
