SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Motors

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: BLITZ E55S 4-IN-1 ESC

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motors

Recommend Age: 14+y

Remote Control Peripherals/Devices: Motor

Size: 30.5*30.5mm

Technical parameters: value 2

Tool Supplies: BLITZ ATF435 Flight Controller

Upgrade Parts/Accessories: iFlight BLITZ ATF435 55A Stack

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

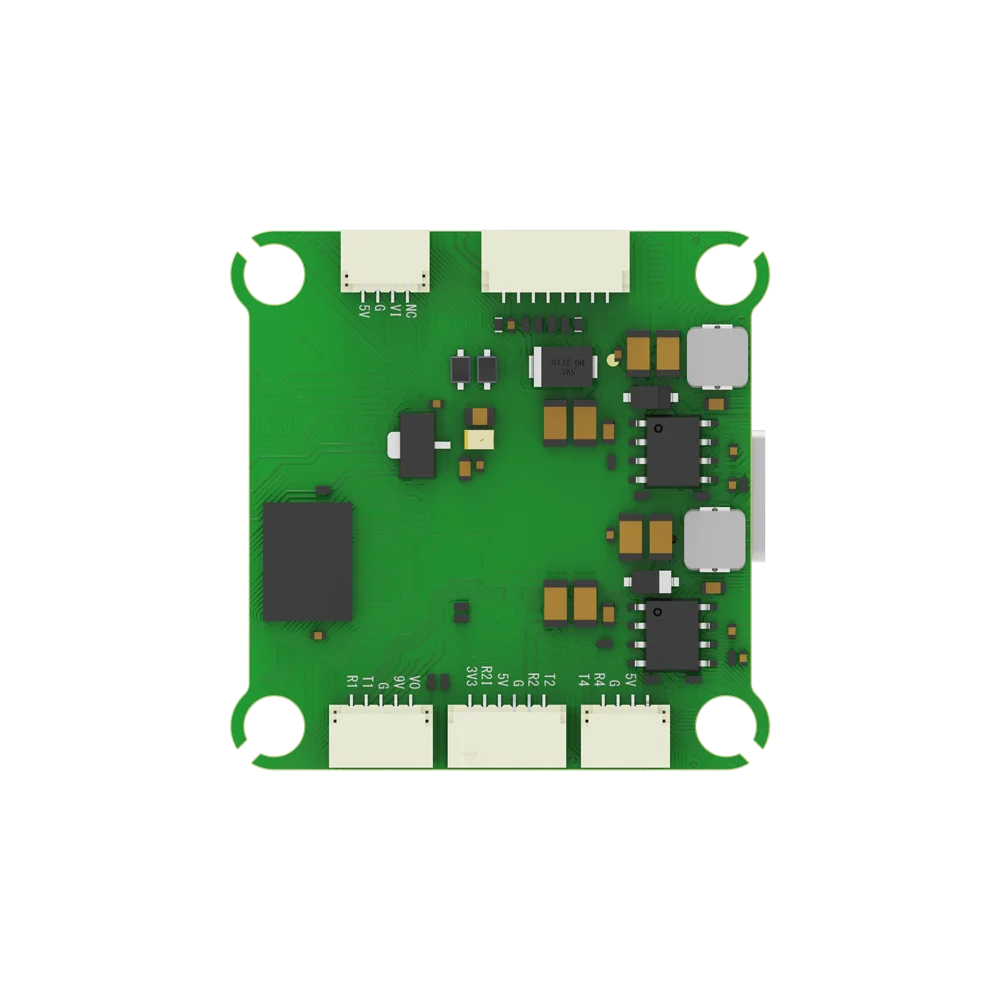

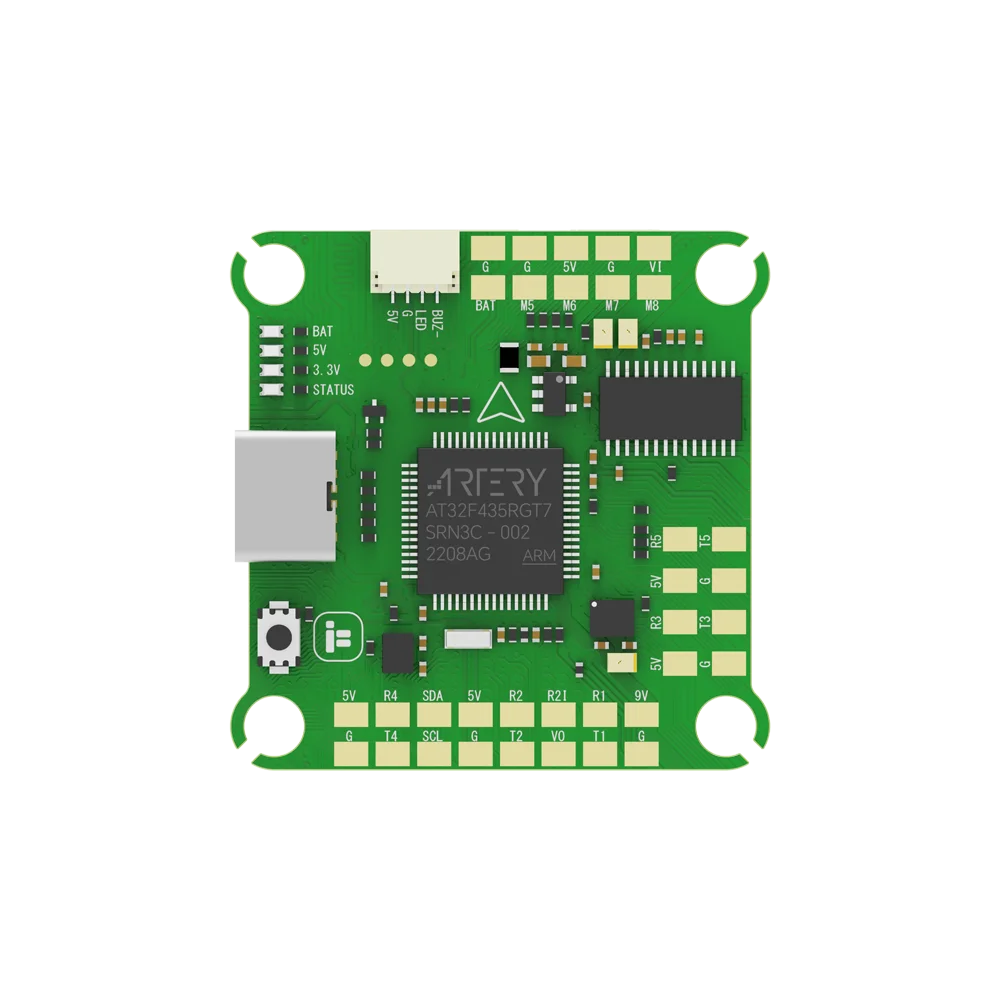

FC Specifications

MCU: AT32F435CGU7

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456E

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFLIGHT_BLITZ_ATF435

Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

Dimensions: 36.5*35 mm

Weight: 7.8g

BEC: 5V 2.5A / 9V 2A



Changelog

November 6, 2023: The flight control Gyro was changed from BMI270 to ICM42688.

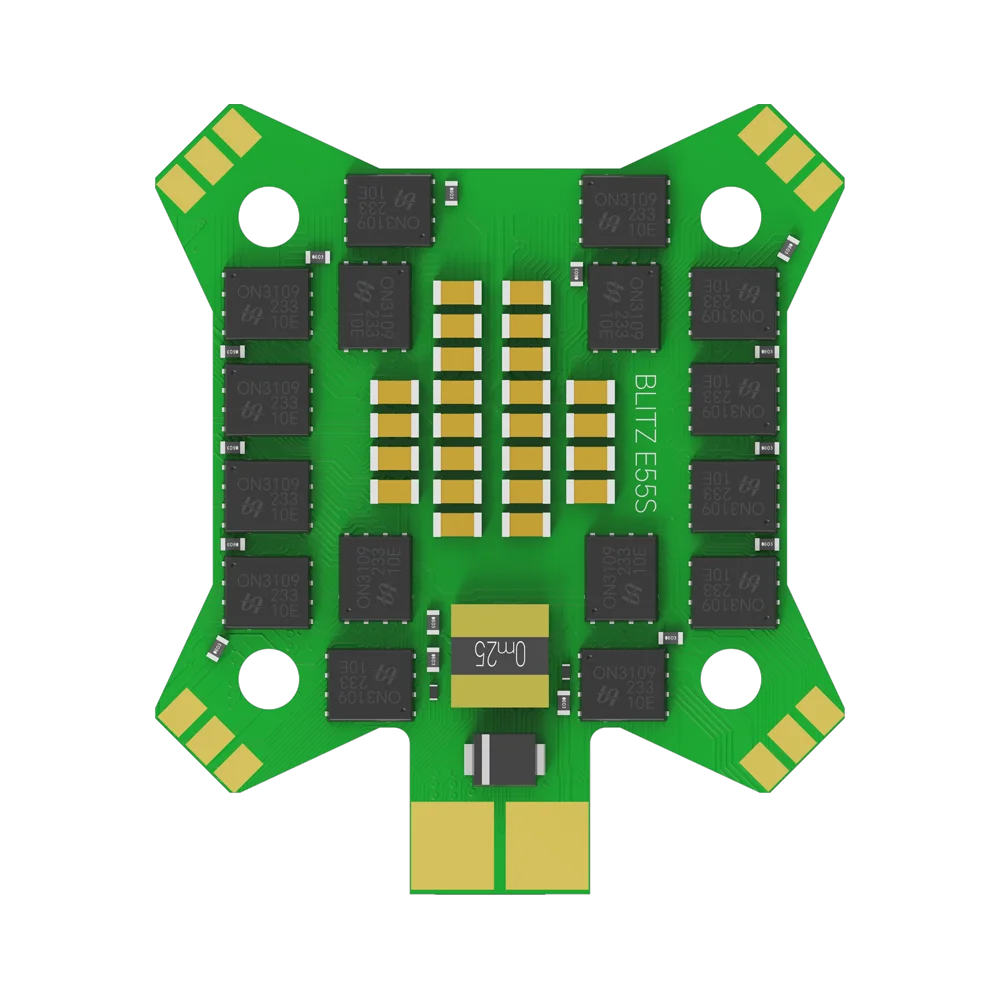

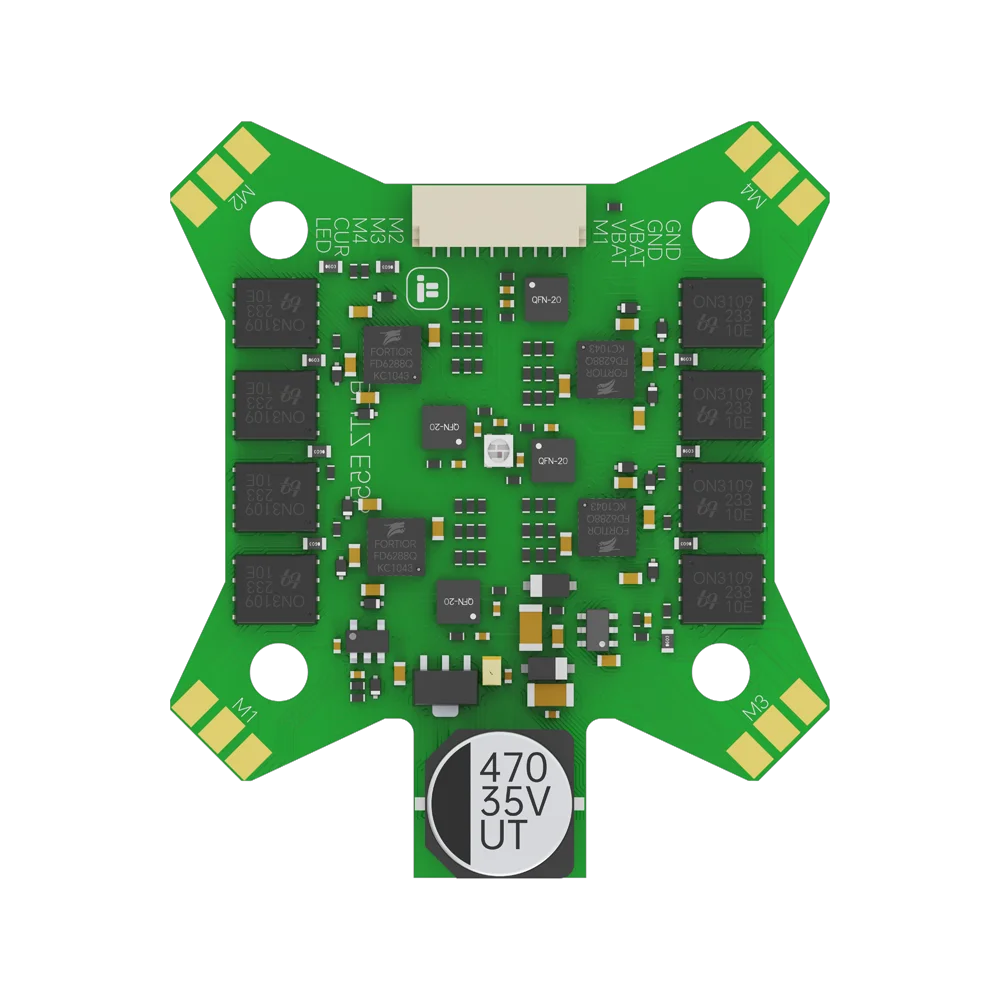

ESC Specifications

Mounting Holes: 30.5*30.5mm/Φ4mm

Weight: 14.7g

Supports 2-6S lipo input

MCU: BB21

Constant: 55 Amps

Burst: 65 Amps

Current sensor: Yes

BEC: No

Current rate: 200

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)



Packing List

1 x BLITZ ATF435 Flight Controller

1 x BLITZ E55S 4-IN-1 2-6S ESC
