iFlight Anti Spark Filter for FPV Nazgul XL5 / DC5 / BOB57 / Nazgul Evoque F4 / F5 V2 / F6 V2 / Chimera7 Pro V2 / XL10 V6
Price range: $73.08 through $75.15
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: Lithium battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: YFMX257
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Motor Components
Recommend Age: 14+y
Remote Control Peripherals/Devices: IFlight Nazgul DC5
Size: 18*16mm
Technical parameters: value 2
Tool Supplies: Nazgul XL5
Upgrade Parts/Accessories: Anti Spark Filter
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

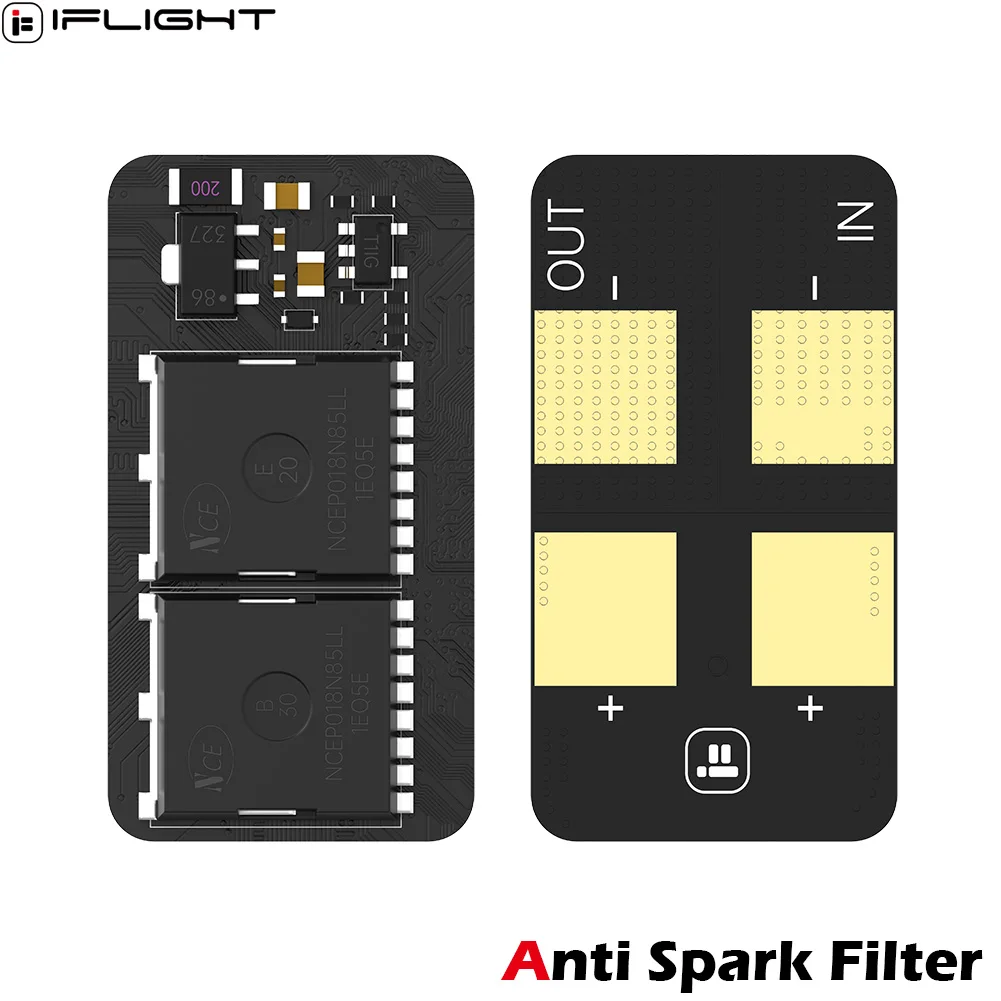

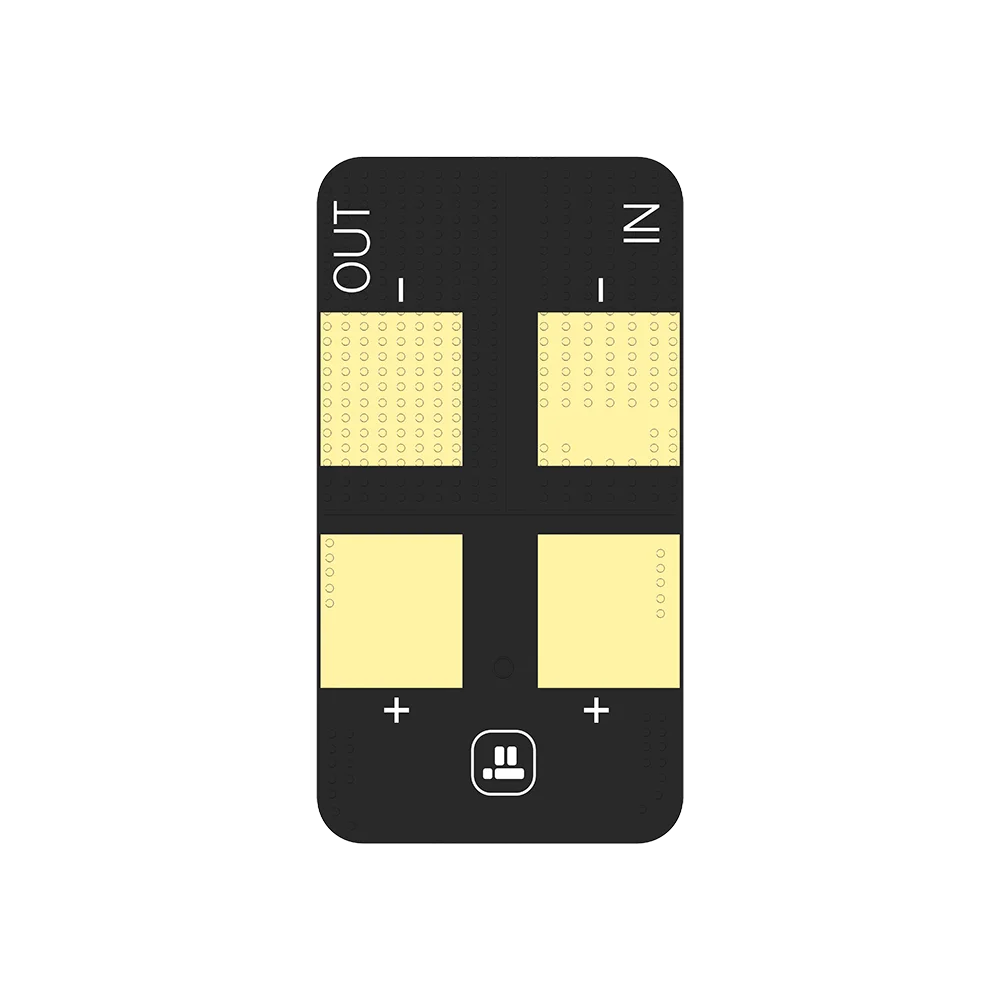

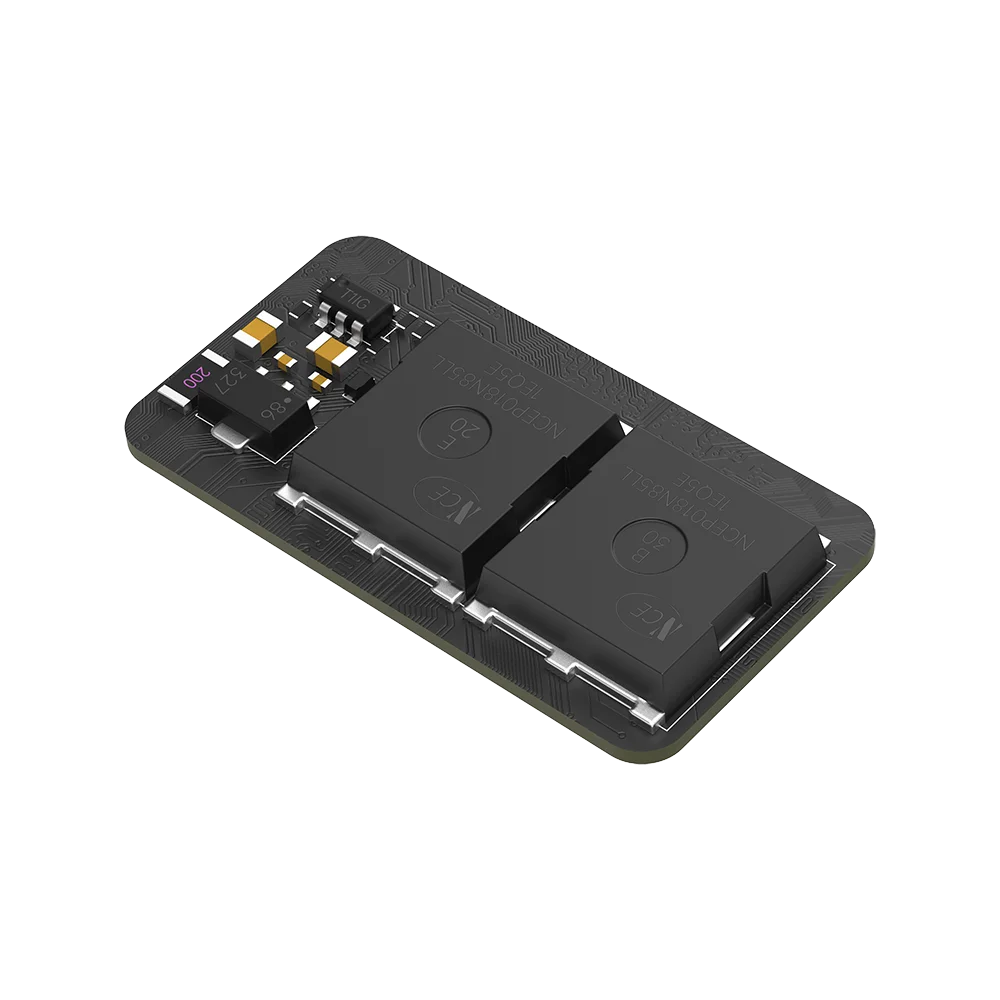

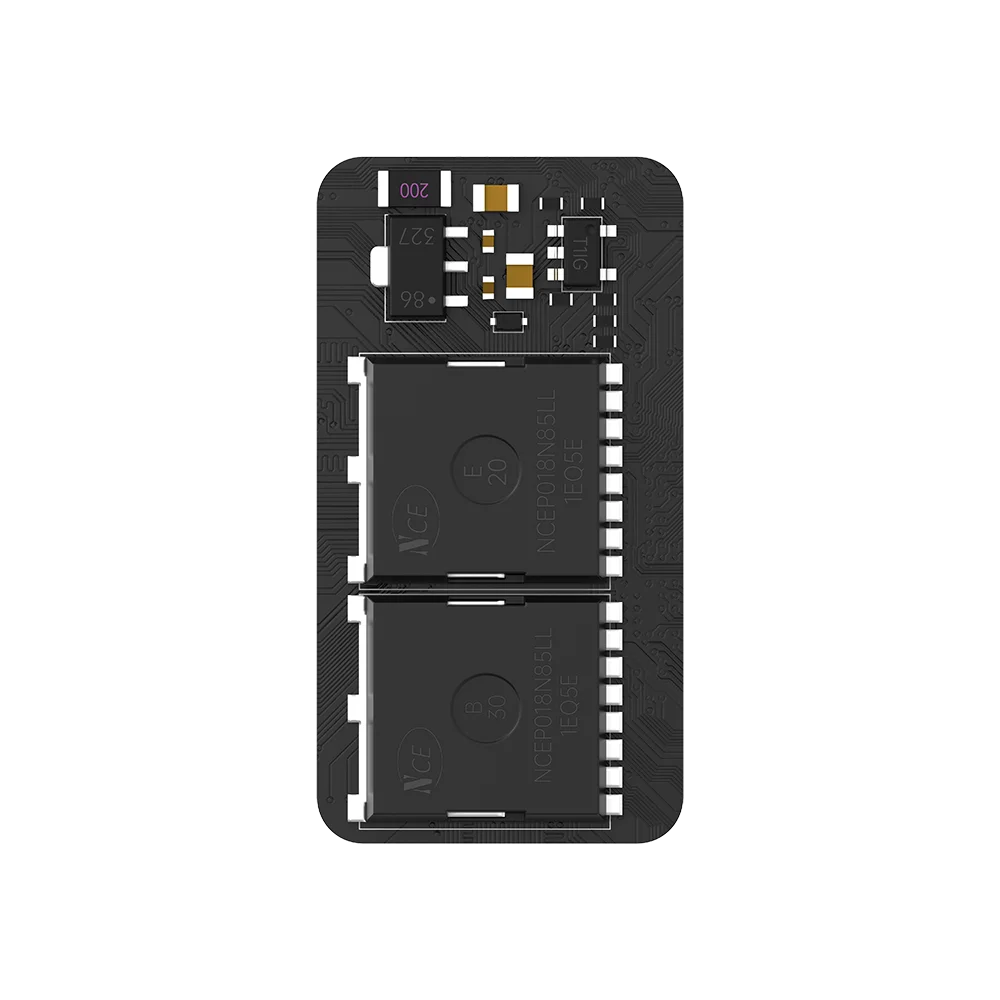

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Version 1
Size: 18*16mm
Compatible:
Nazgul XL5 V3 Frame Kit
Nazgul DC5
BOB57 Frame Kit
Version 2
Size: 25*18mm
Compatible:
Nazgul Evoque F4 Frame kit
Nazgul Evoque F5 V2 Frame Kit
Nazgul Evoque F6 V2 Frame Kit
SH CineFlow 5 Frame Kit
Version 3
Size: 30*16mm
Compatible: 7/9/10 Inch Frame Kit
Chimera7 Pro V2 / Chimera7 ECO Frame Kit
Chimera9 ECO Frame Kit
XL10 V6 /CX10 ECO Frame Kit
SH CineLR 7 Frame Kit
Specifications
Size: 16*18mm / 25*18 mm
Input voltage: 3-6S (9-26V)
Continuous current: 30A
Peak current: 35A for 10s
Weight: 2.4g/ 2.6g
Size: 30*16mm
Input voltage: 4-6S (14-26V)
Output voltage: 4-6S (14-26V)
Continuous current: 150A
Peak current: 160A
Size: 30*16mm
Weight: 4.5g
Packing List
1 x Anti Spark Filter
1 x Cable Set
1 x XT60E-M Plug (18*16mm/25*18mm optional)
1 x XT60EW-M Plug(30*16mm optional)
| Color | 30×16 mm, 18×16 mm, 25×18 mm |
|---|
