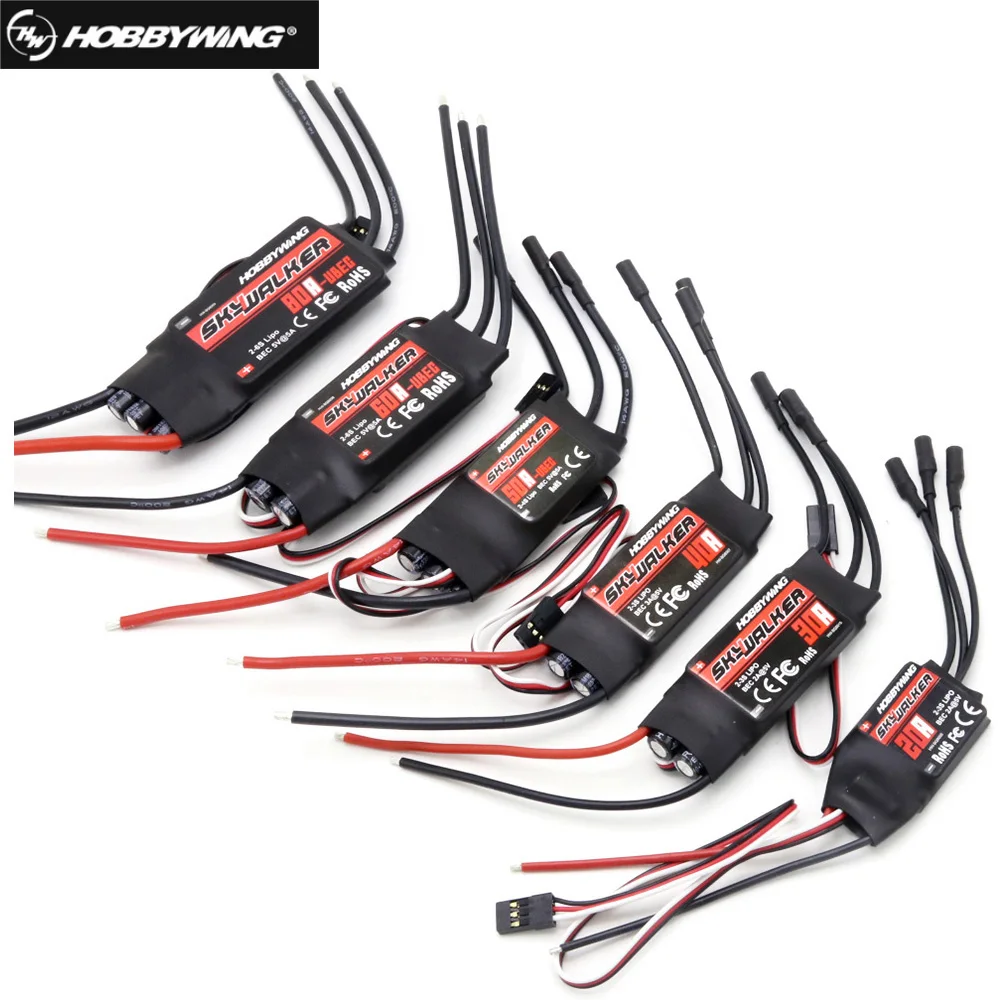

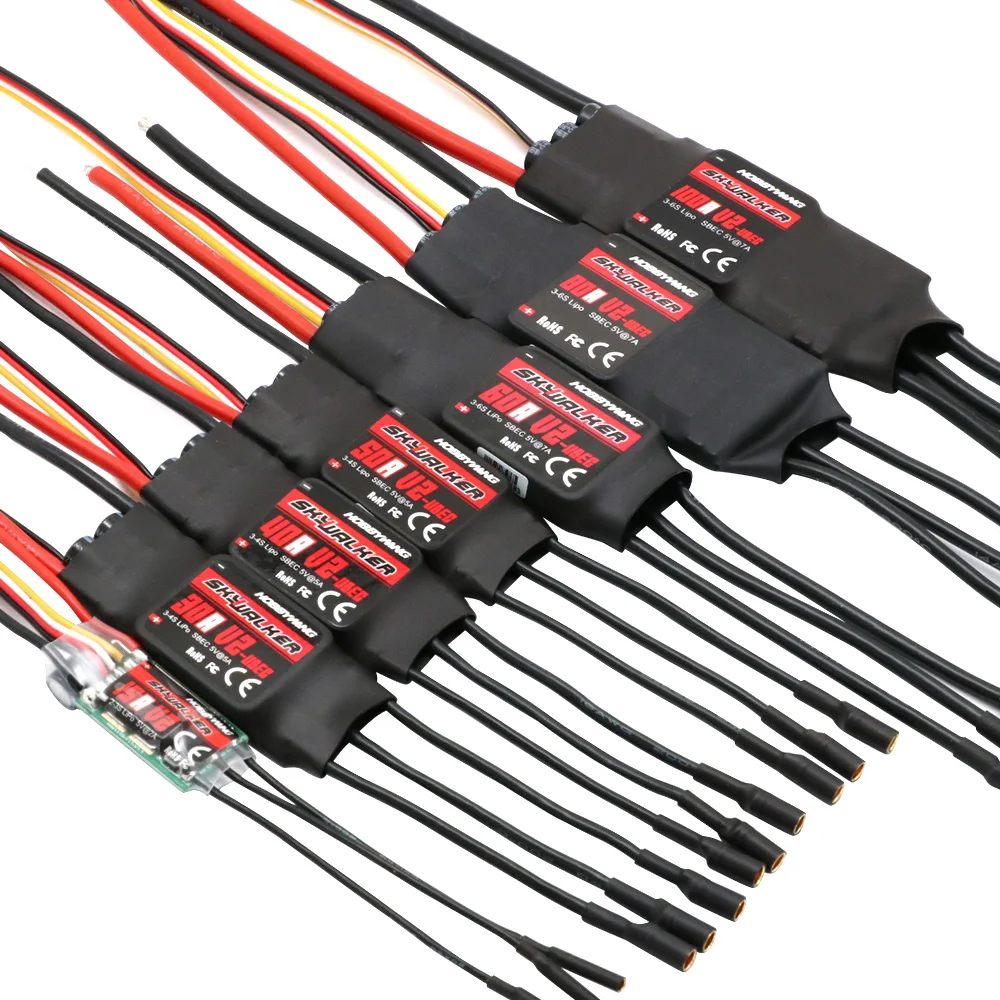

Hobbywing Skywalker 40A 50A 60A 80A 15A 20A 30A 100A 120A V2 130A160A ESC Speed Controller With UBEC For RC Airplanes Helicopter
Price range: $46.73 through $550.83
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: skywalker 80a esc
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: VZJW5776
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Size: 30216200
Technical parameters: value 2
Tool Supplies: skywalker 30a esc
Upgrade Parts/Accessories: Hobbywing Skywalker 40A
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

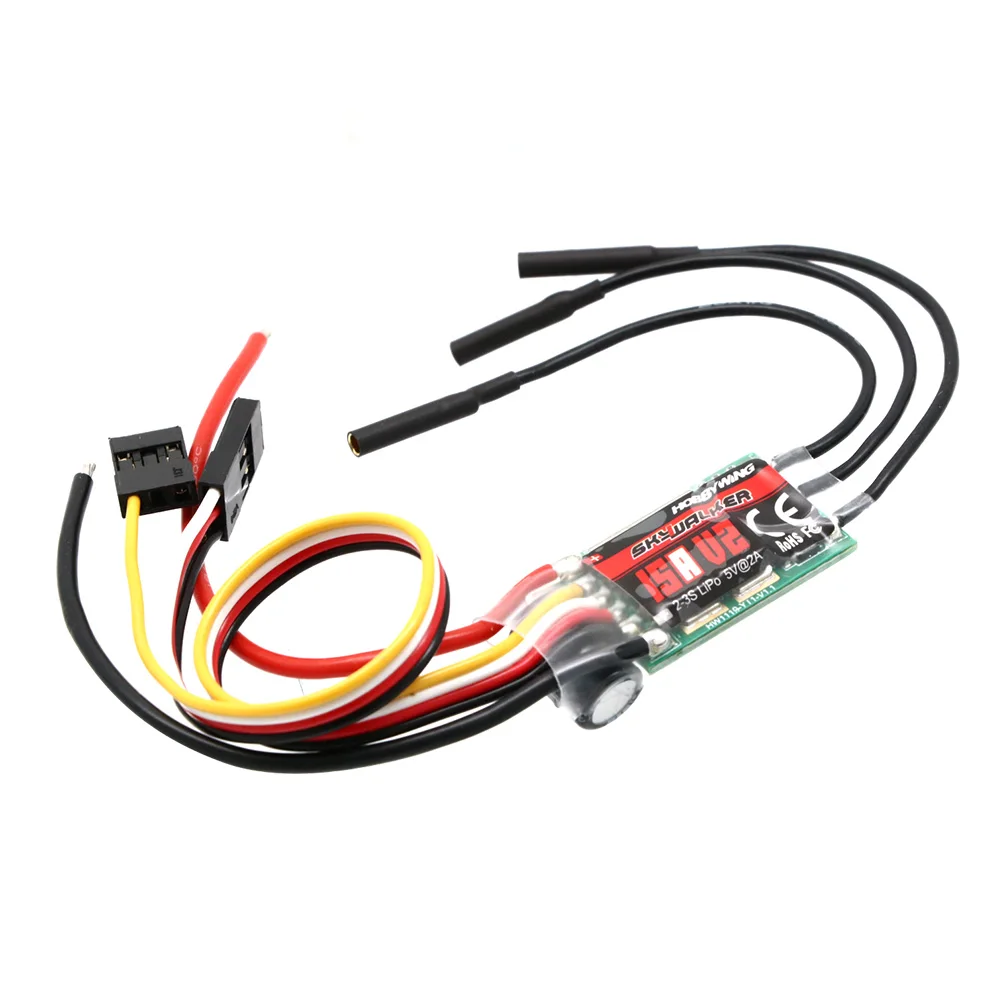

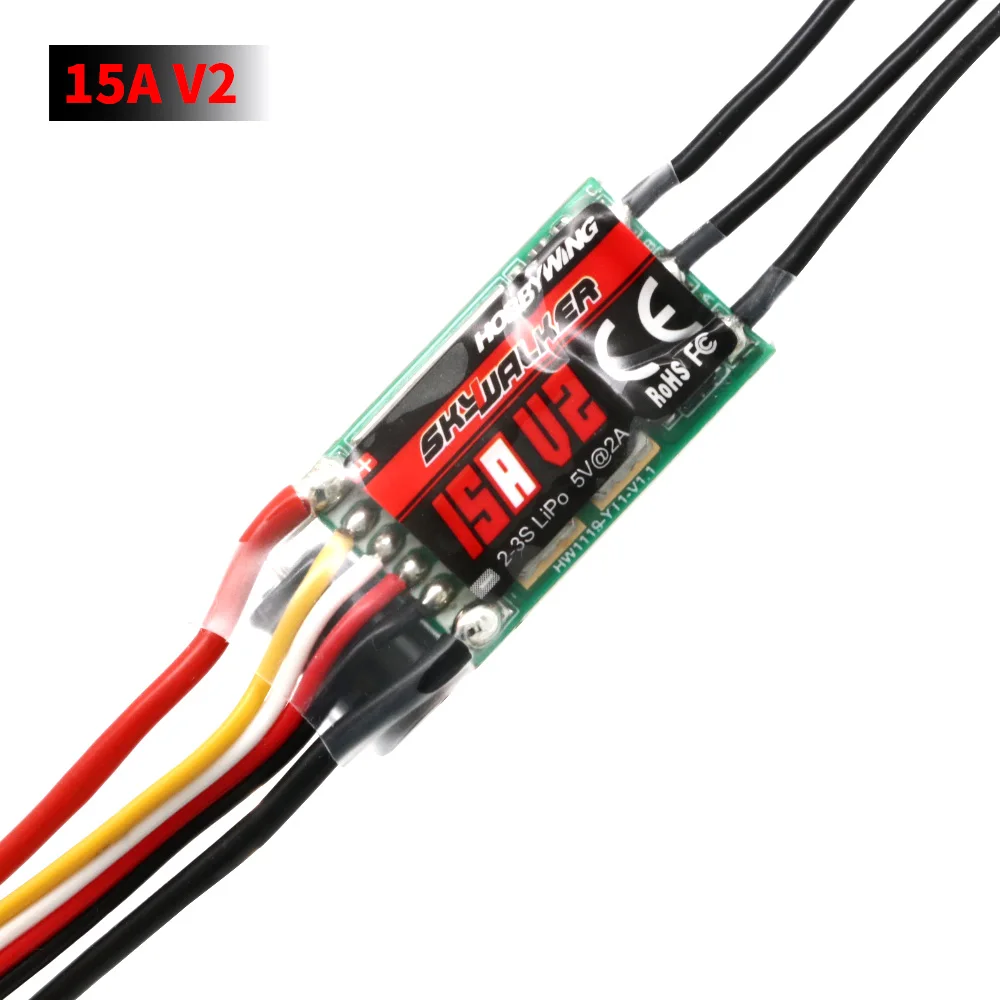

15A:
Specifications:
Constant current: 15A
Peak current (10s): 20A
BEC: 5V 2A
Lipo: 2-3S
Net Weight: 14g

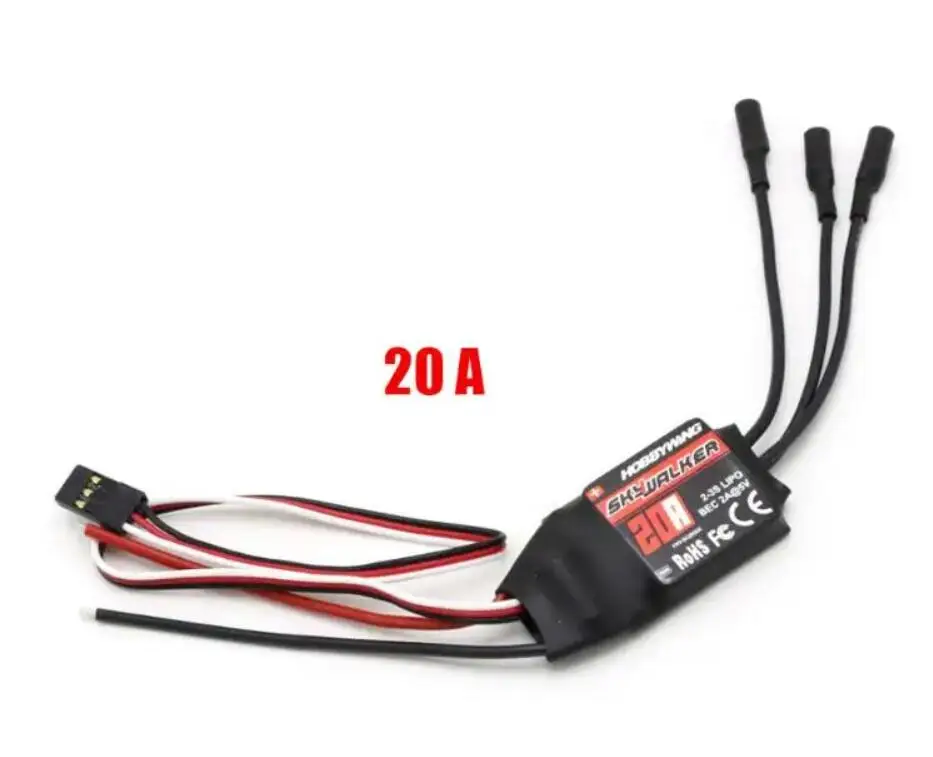

20A:
Model: Skywalker-20A
Continuous Current: 20A
Burst Current (>10s): 25A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Net Weight: 19g
Dimension (L x W x H): 42 x 25 x 8mm
Cable length: 25cm
Package size: 12.5 * 11 * 2.5cm

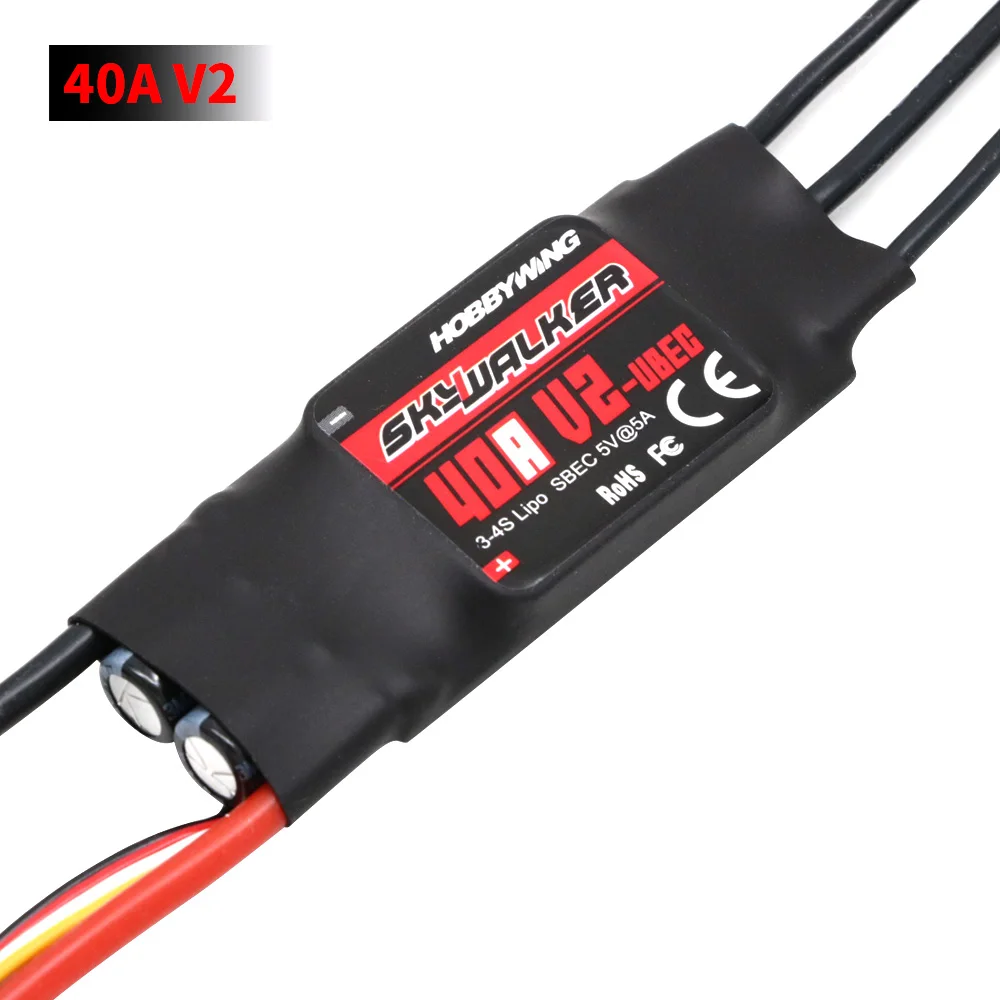

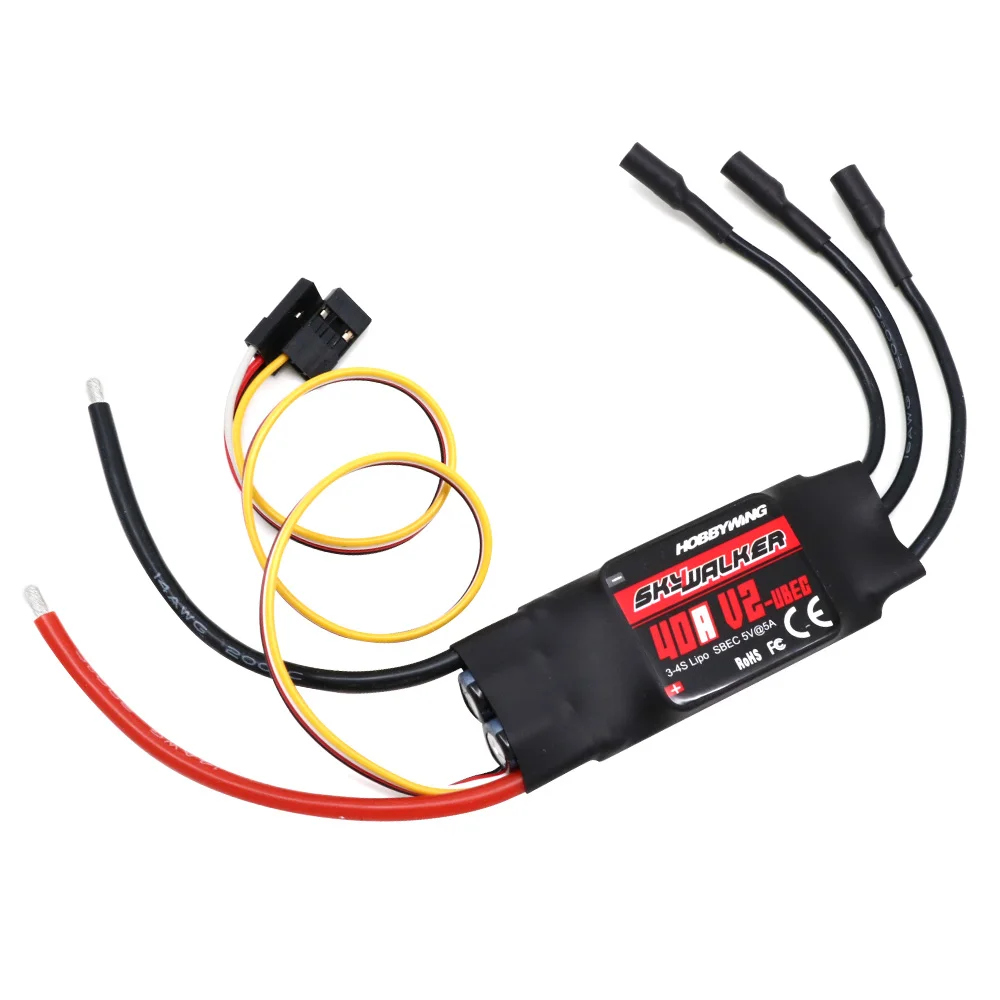

40A V2:
Continuous Current: 40A/60A
Power input: 3-4S Lipo
BEC Mode: Linear
BEC Output: 5V@5A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Net Weight: 36g
Size:60*25*8mm

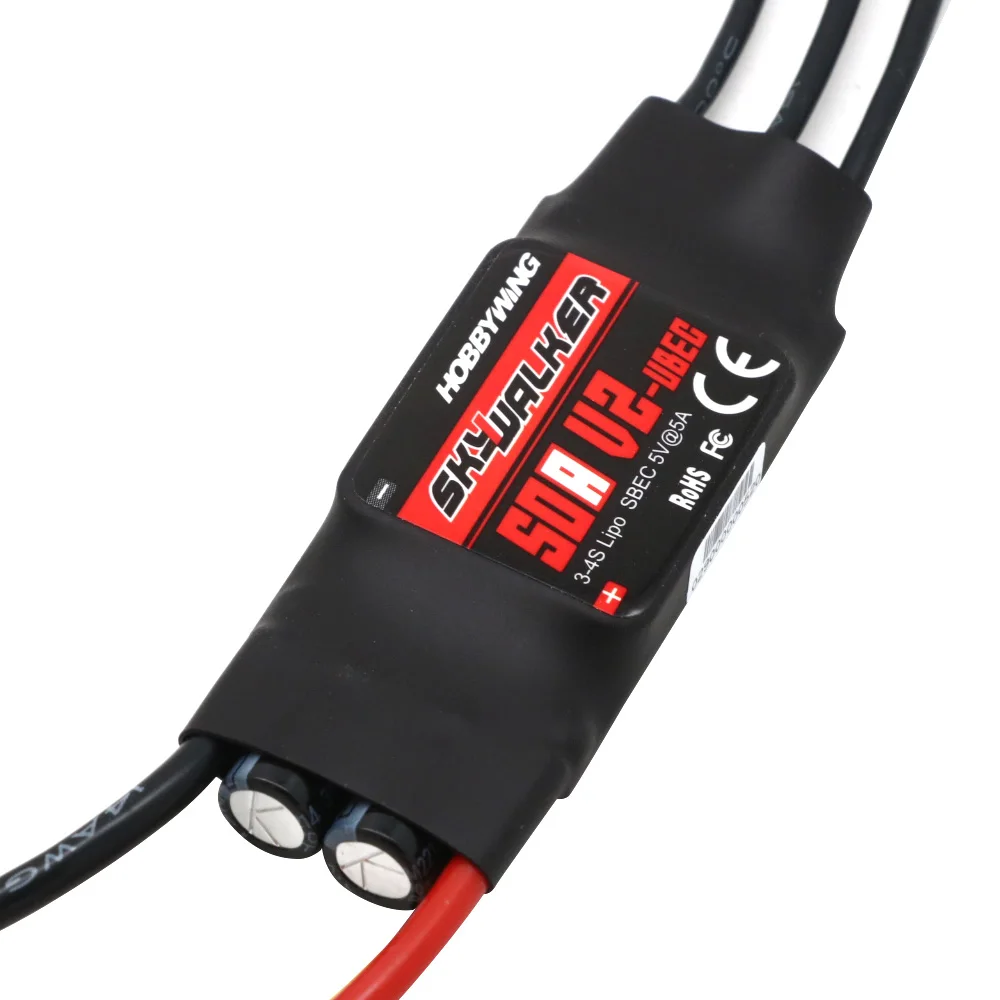

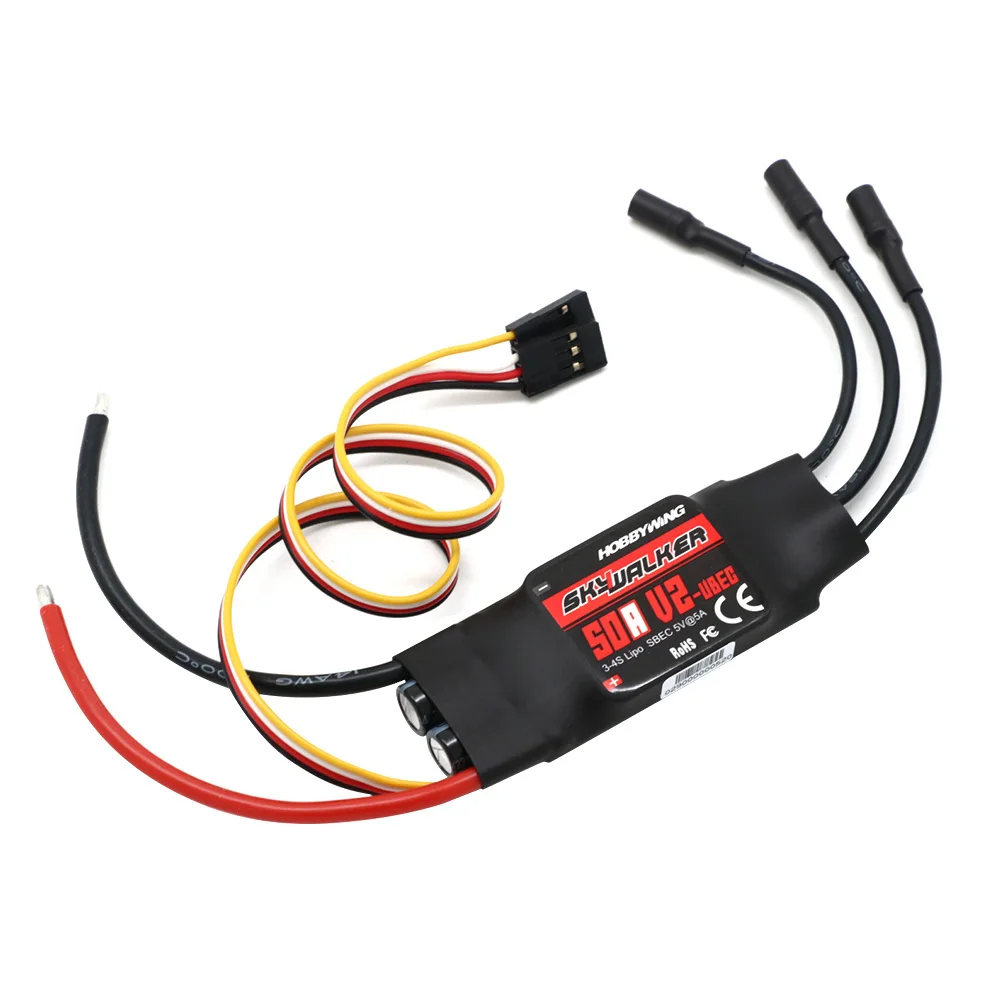

50A V2:
Continuous output: 50A/70A
Power input: 3-4S Lixx/5-12S Nixx
BEC Output: Switch Mode 5V@5A
Refresh rate: 50Hz-432Hz
Weight: 36g
Size:60*25*8mm

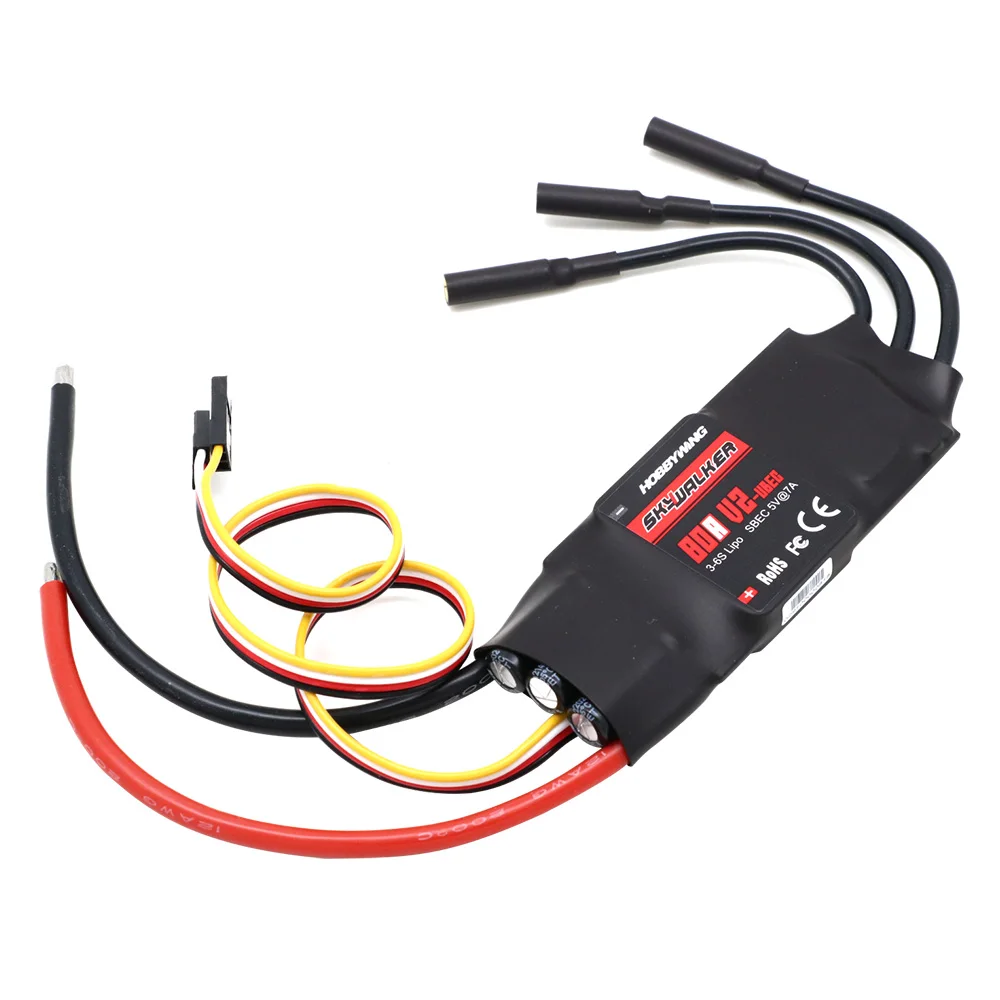

80A V2:
Cont./Peak Current: 80A/100A
Input: 3-6S LiPo
BEC Output: Switch Mode 5V@7A
Input Connectors: NO
Output Connectors: NO
Weight: 79g
Size:85*36*9mm

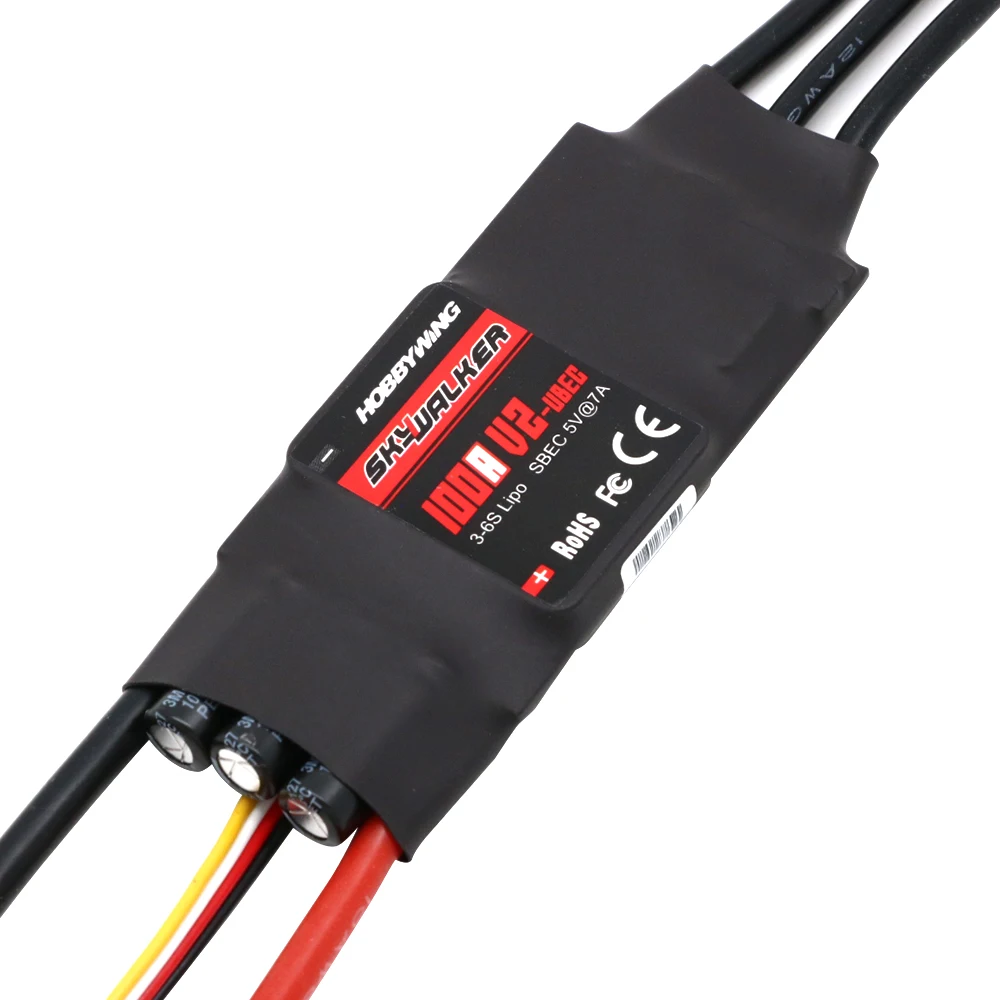

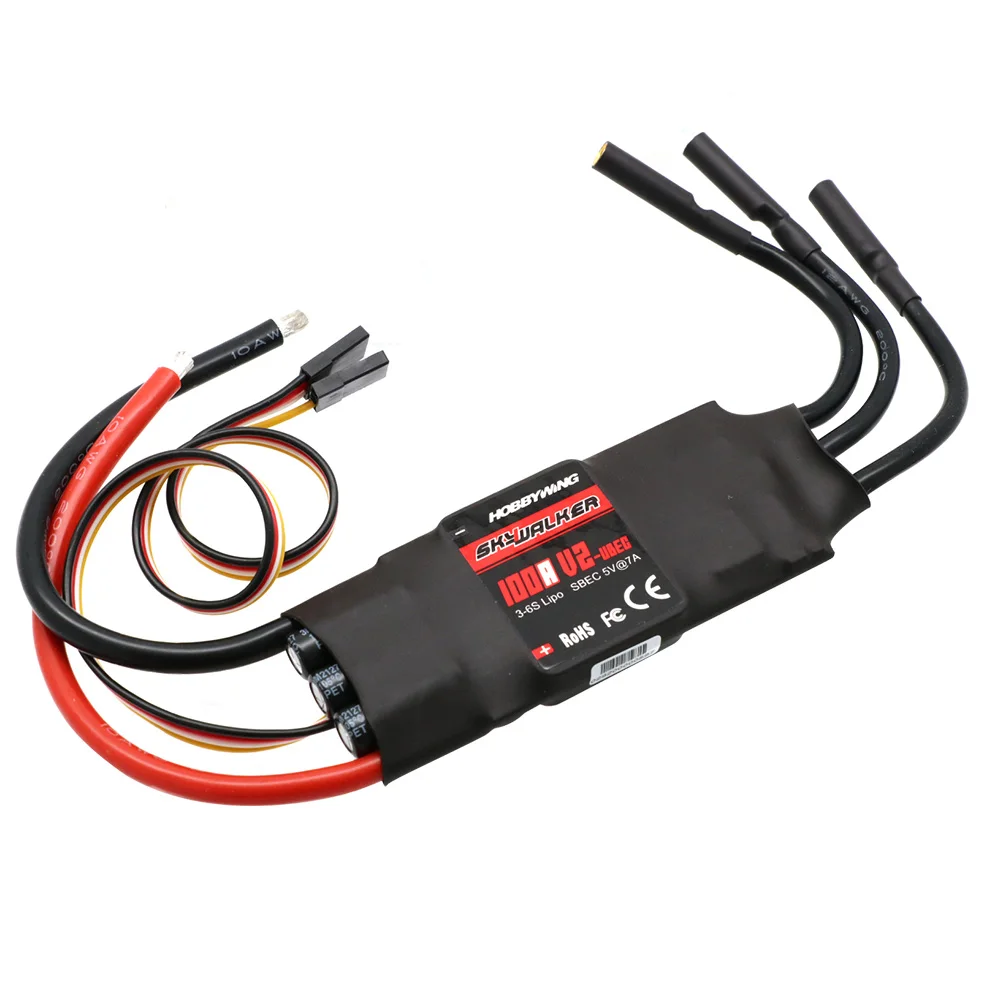

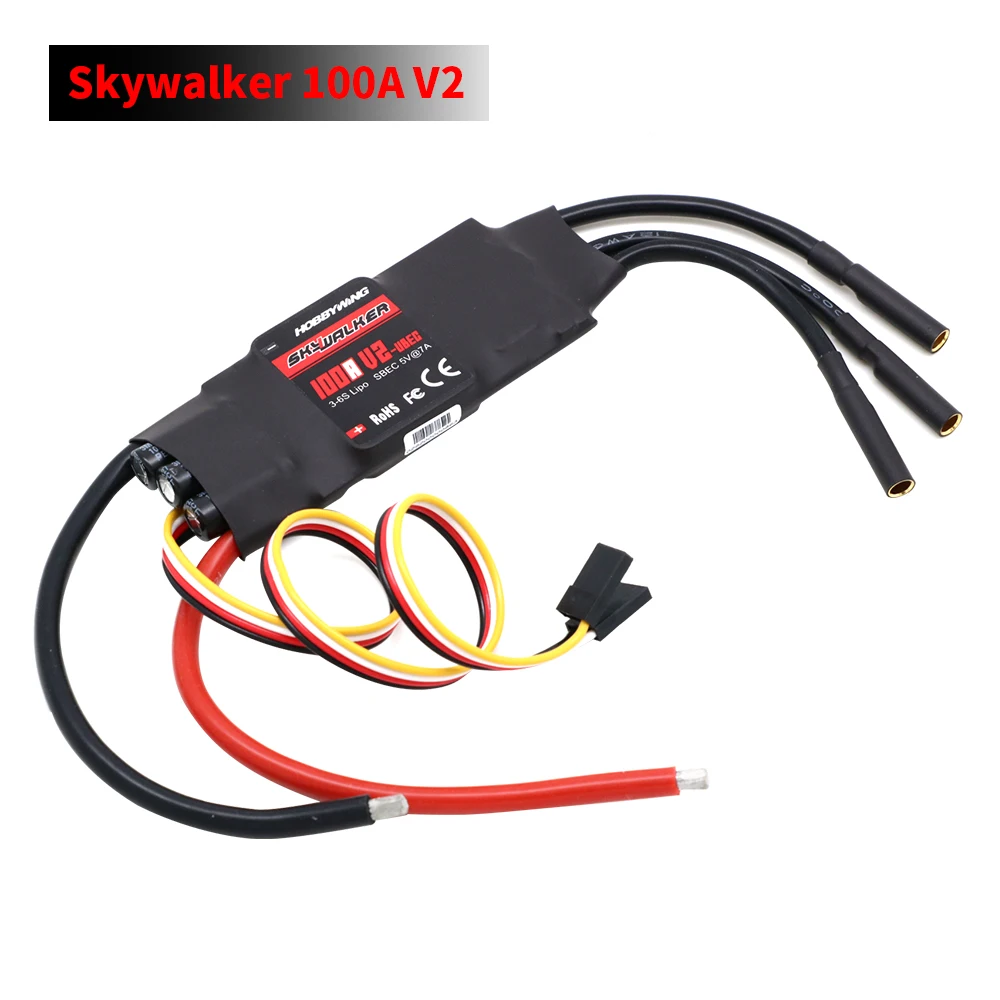

100A V2:
Cont./Peak Current: 100A/120A
Input: 3-6S LiPo
BEC Output: Switch Mode 5V@7A
Input Connectors: NO
Output Connectors: NO
Weight: 92g
Size:85*36*9mm

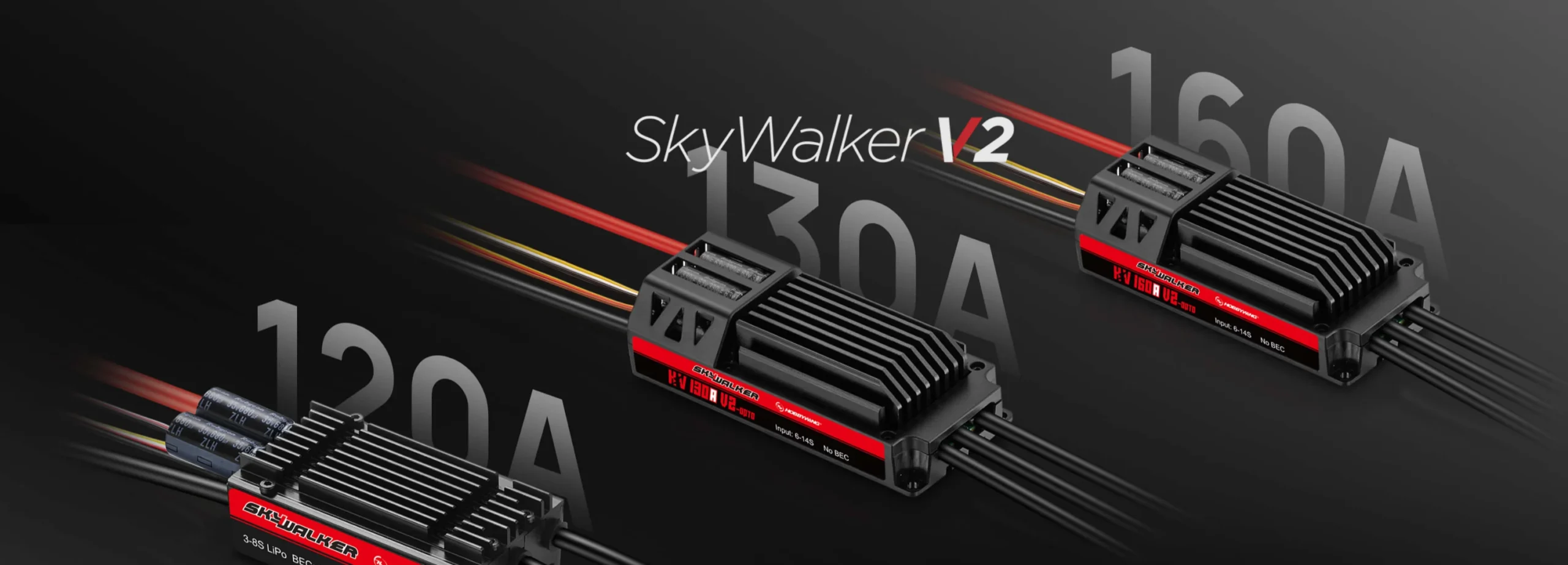

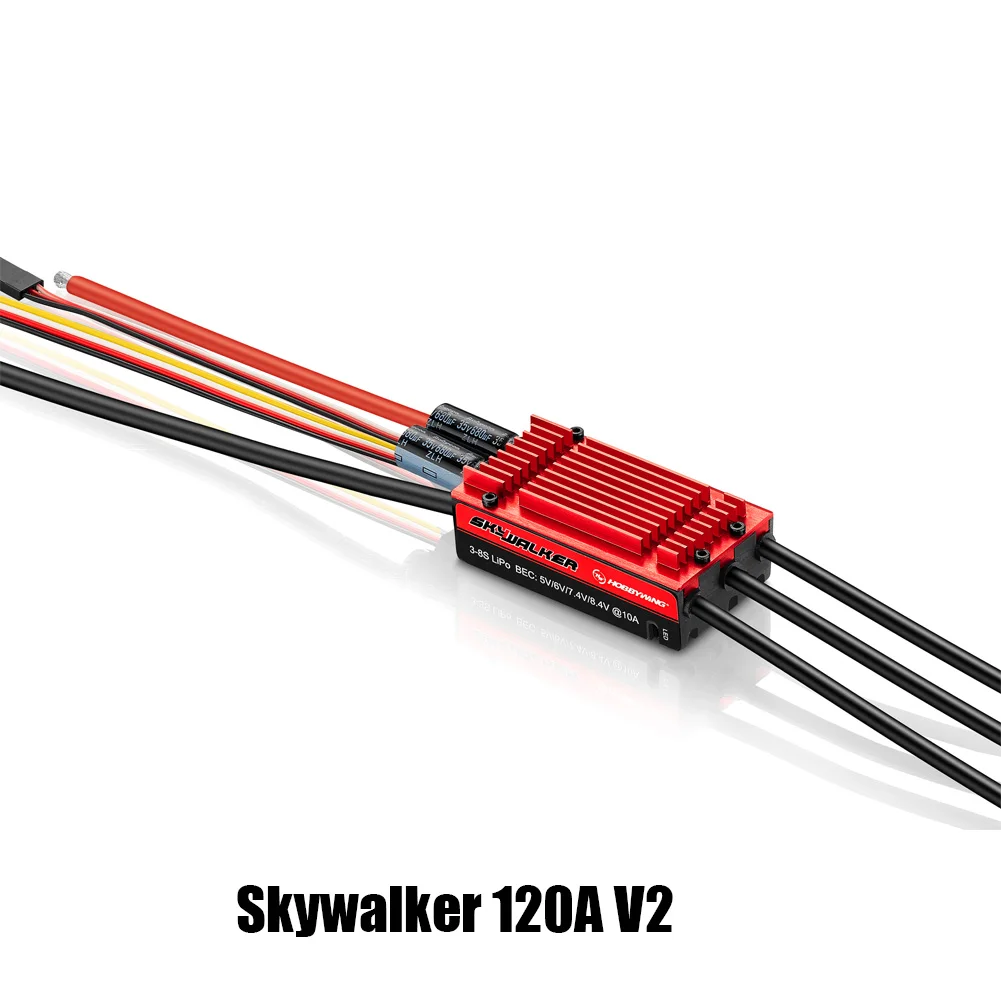

Product: Skywalker 120A V2
Type ： Brushless General
Basic Parameters : Continuous / Peak Current 120A/150A
Battery cells 3-8S LiPo
BEC output Switching mode; 5V/6V/7.4V/8.4V adjustable, 10A/30A
Size: 83x35x22mm
Weight: 117g
Features:
High Quality & Reliability
Good quality comoponents guarantees the high quality and reliability of
SkyWalker series of aircraft ESC.

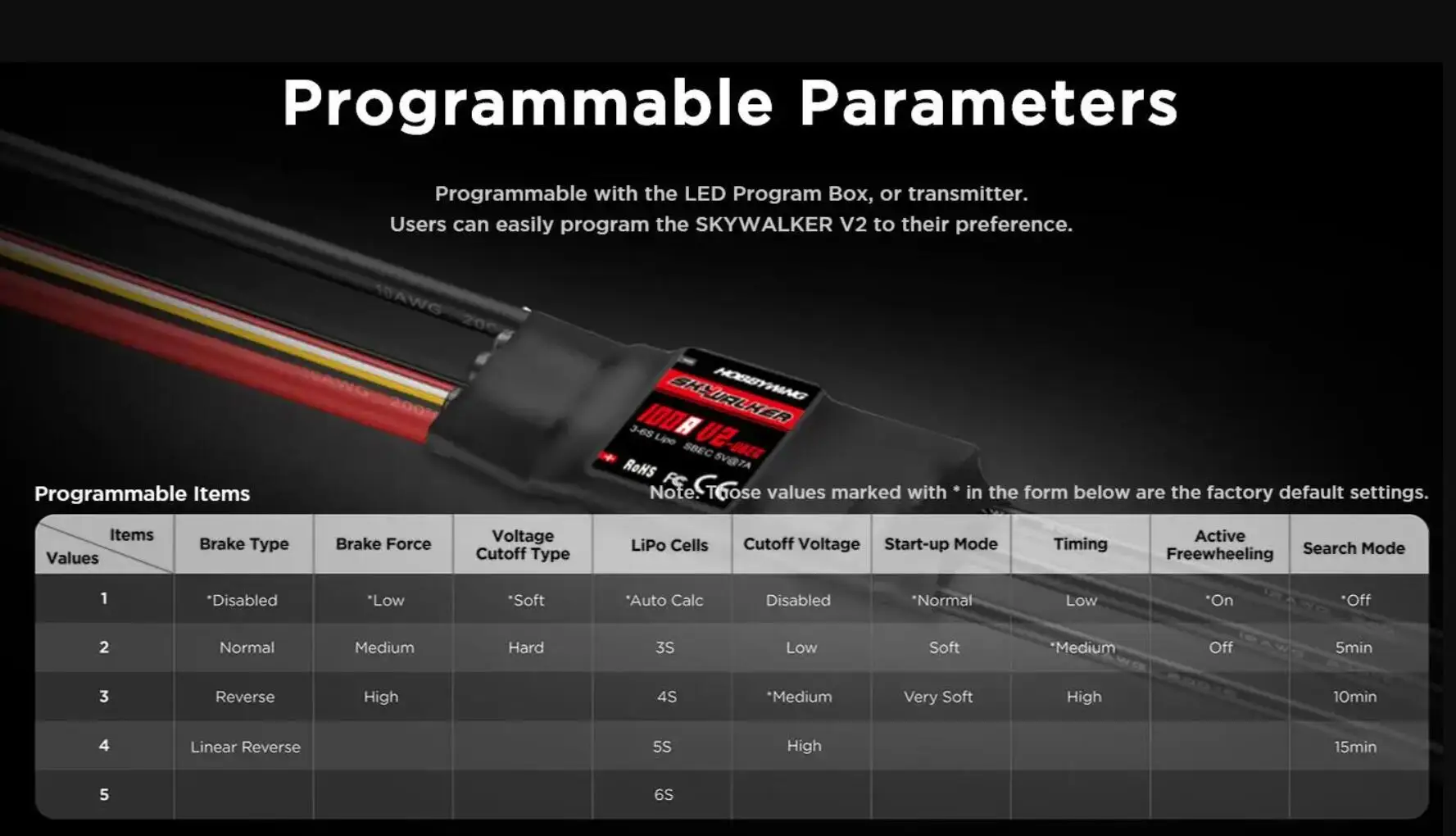

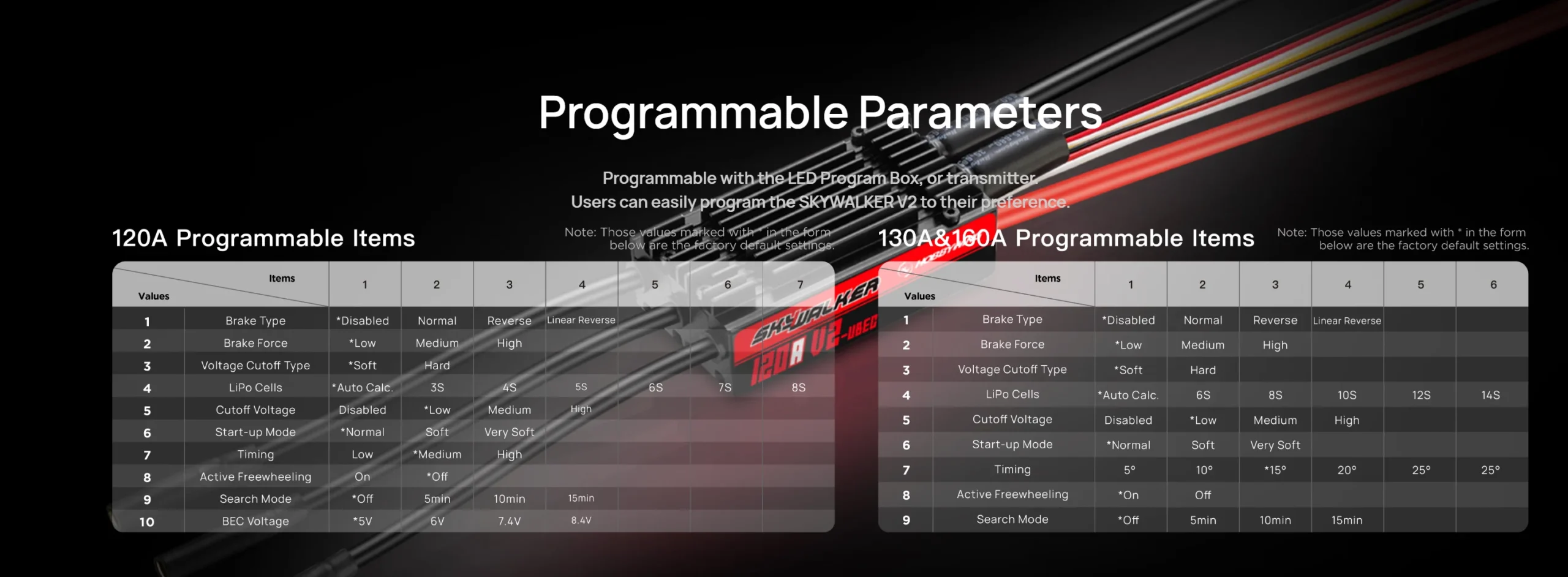

Programmable Parameters

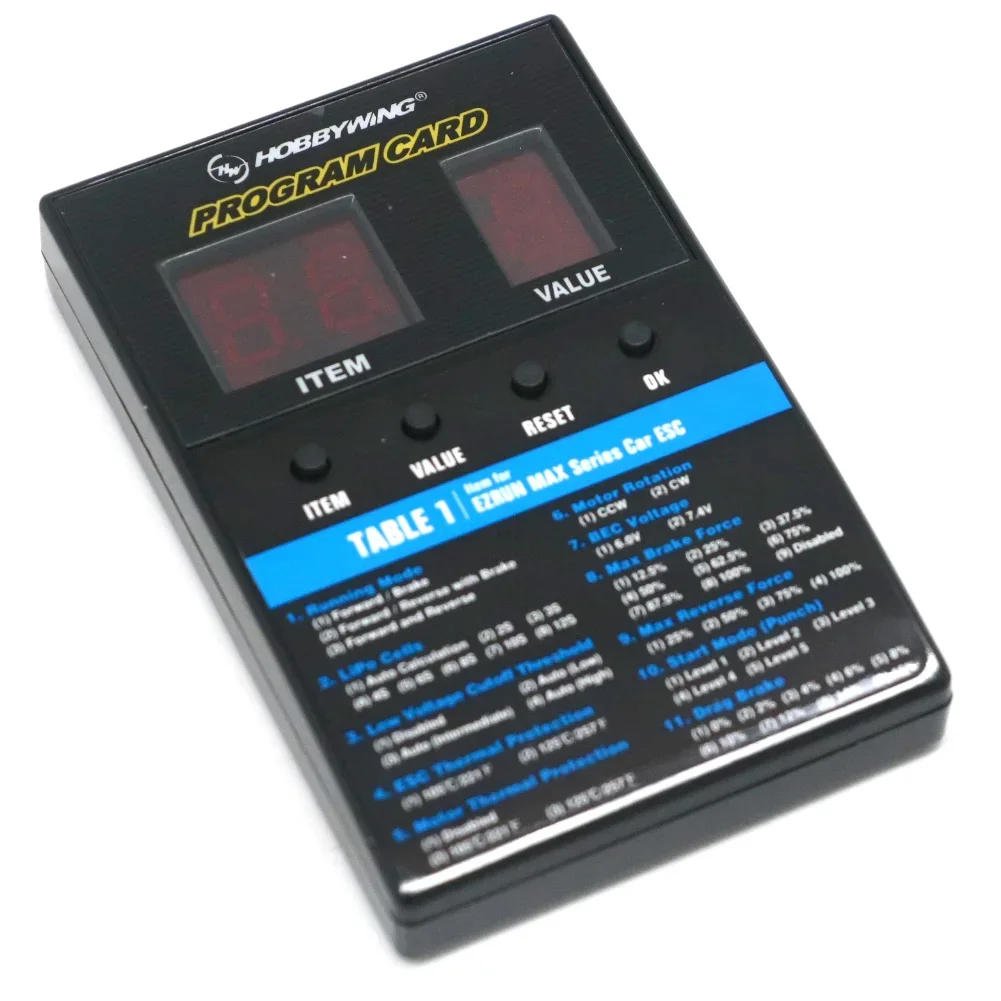

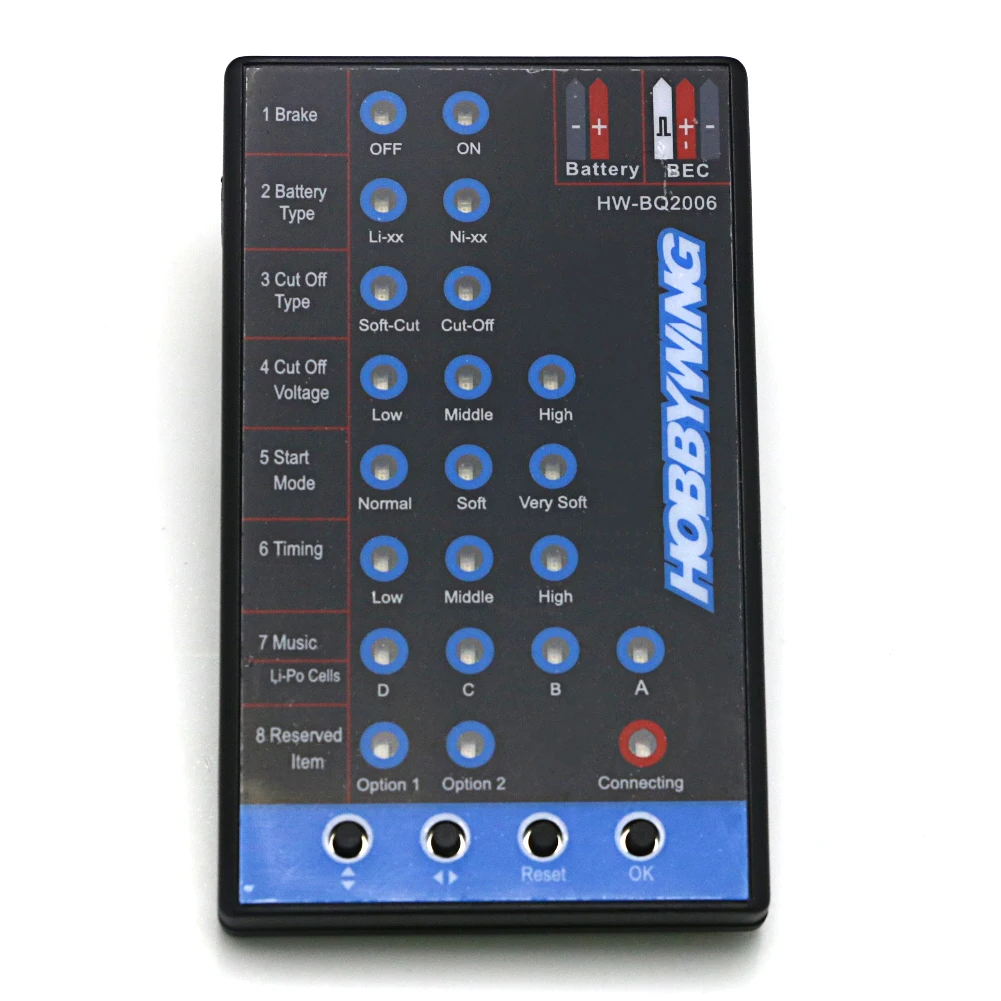

With a LED program card, then you can program relevant
parameters on your Skywalker to your personal preference.
Multiple Protections
Multiple protection features include abnomal input voltage,
ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively
prolongs the service life of the ESC.

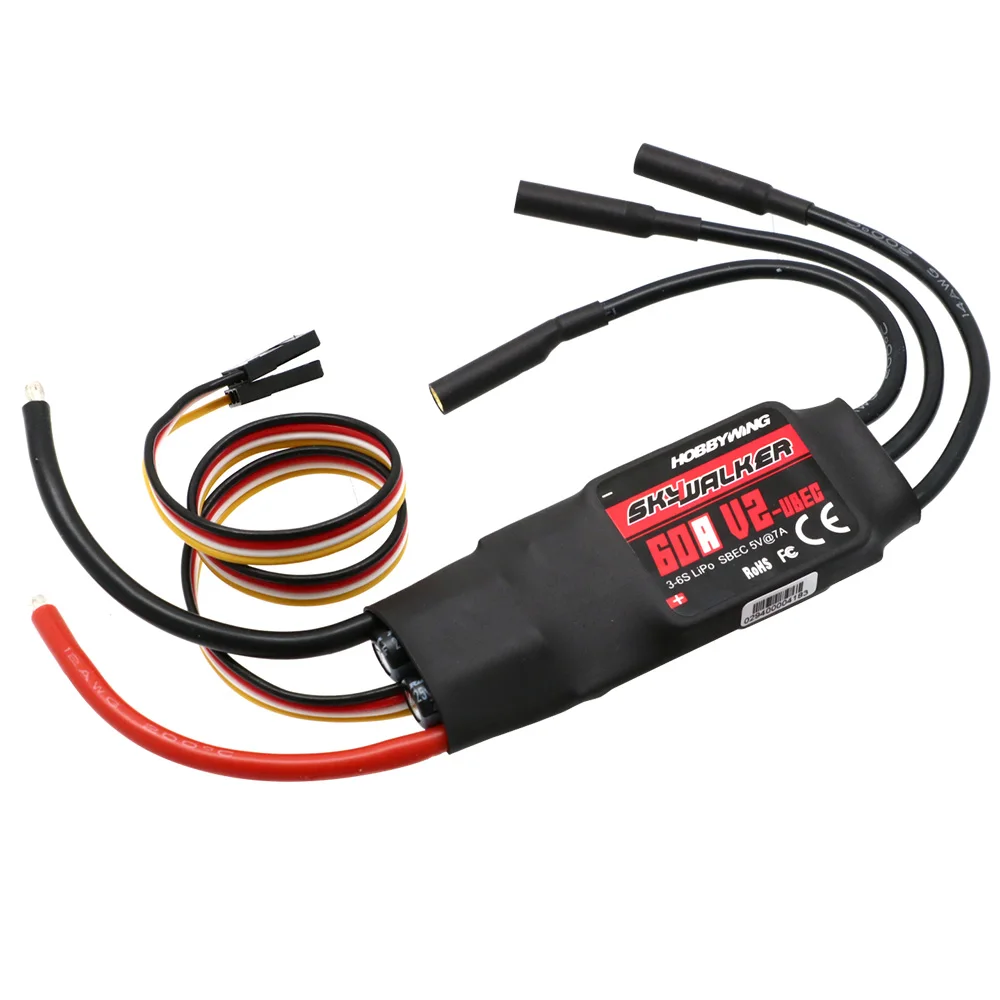

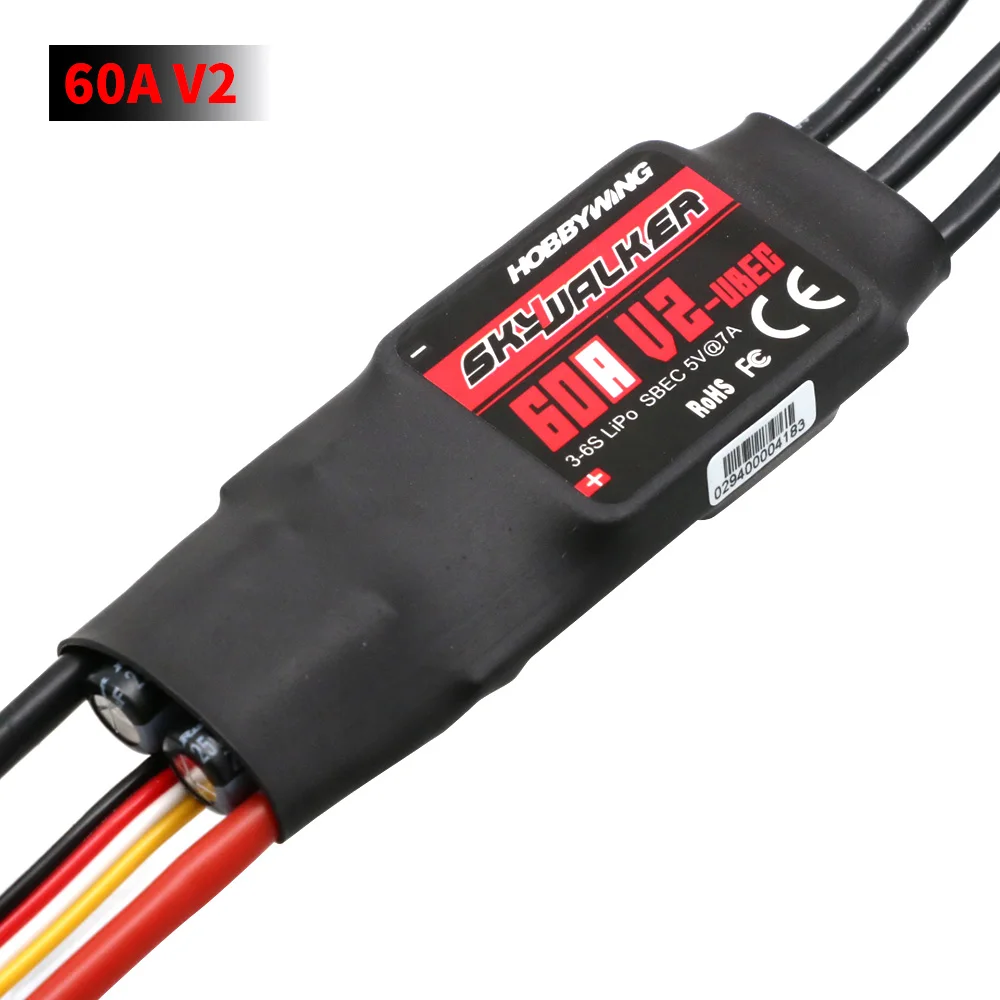

60A:
Item Name: Hobbywing SkyWalker 60A UBEC ESC
Constant Current: 60A
Burst Current (>10s): 80A
BEC Mode: switch mode
BEC Output: 5V at 3A
Battery Cell: 2-6 cells Lipo,or 5-18 cells NiHH
Refresh Rate: 50Hz-432Hz
Dimension: 77 x 35 x 14 mm
Weight: 63g
Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor)

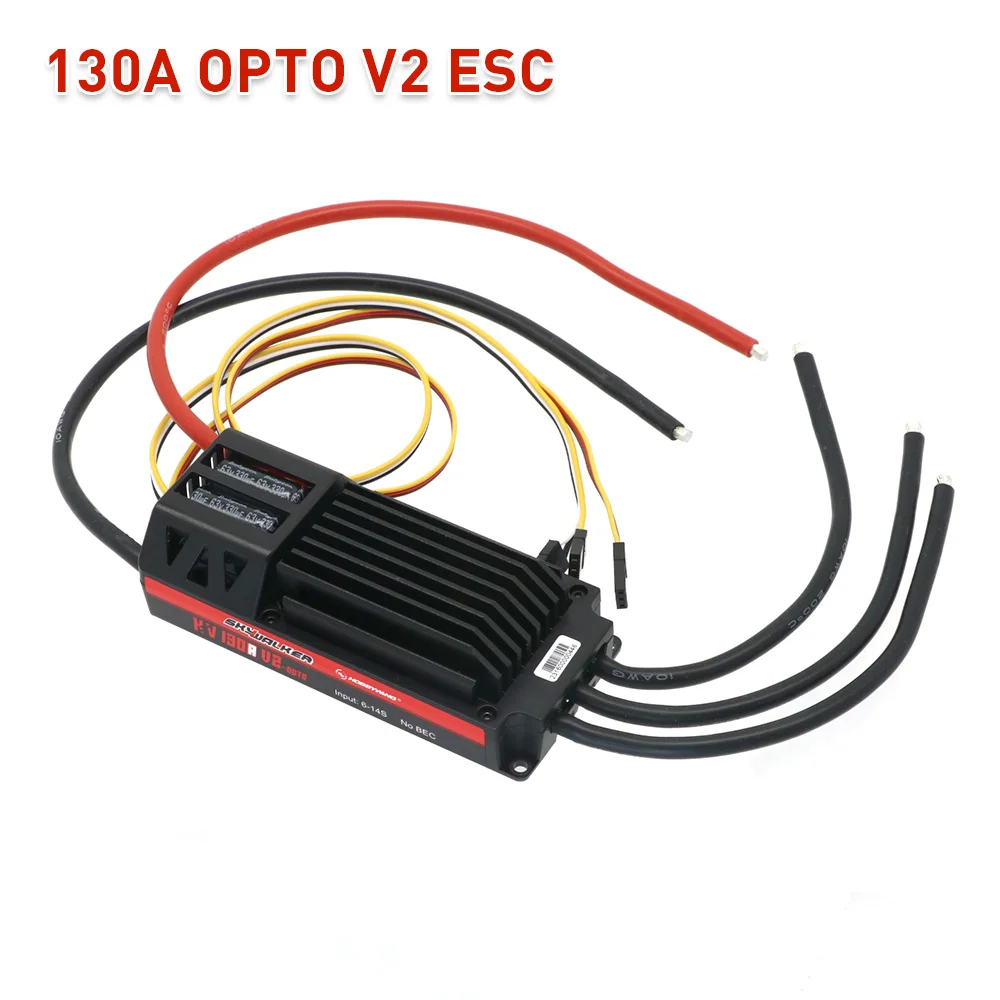

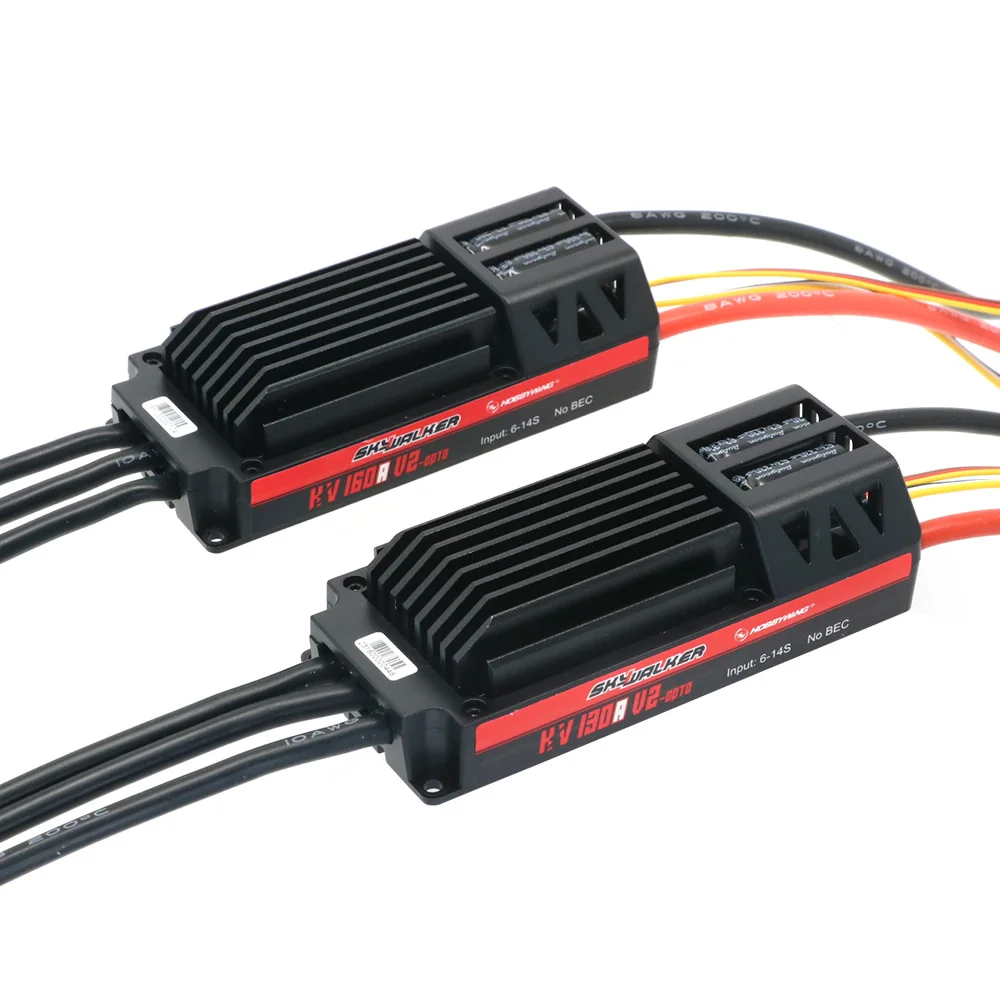

Skywalker HV 130A OPTO V2：
Brushed/Brushless: Brushless;
High Voltage/Regular: High Voltage;
Cont./Peak Current: 130A/160A;
Input: 6-14S LiPo
BEC Output: No BEC;
Input Wires: Red-10AWG-300mm*1/Black-10AWG-300mm*1;
Output Wires: Black-10AWG-150mm*3;
Input Connectors: No;
Output Connecotors: No;
ESC Programing via: Transmitter/LED Program Box/Program Port (Program Wire);
Firmware Upgrade: Not Supported;
Size: 104x48x29mm;
Weight: 253.2g;

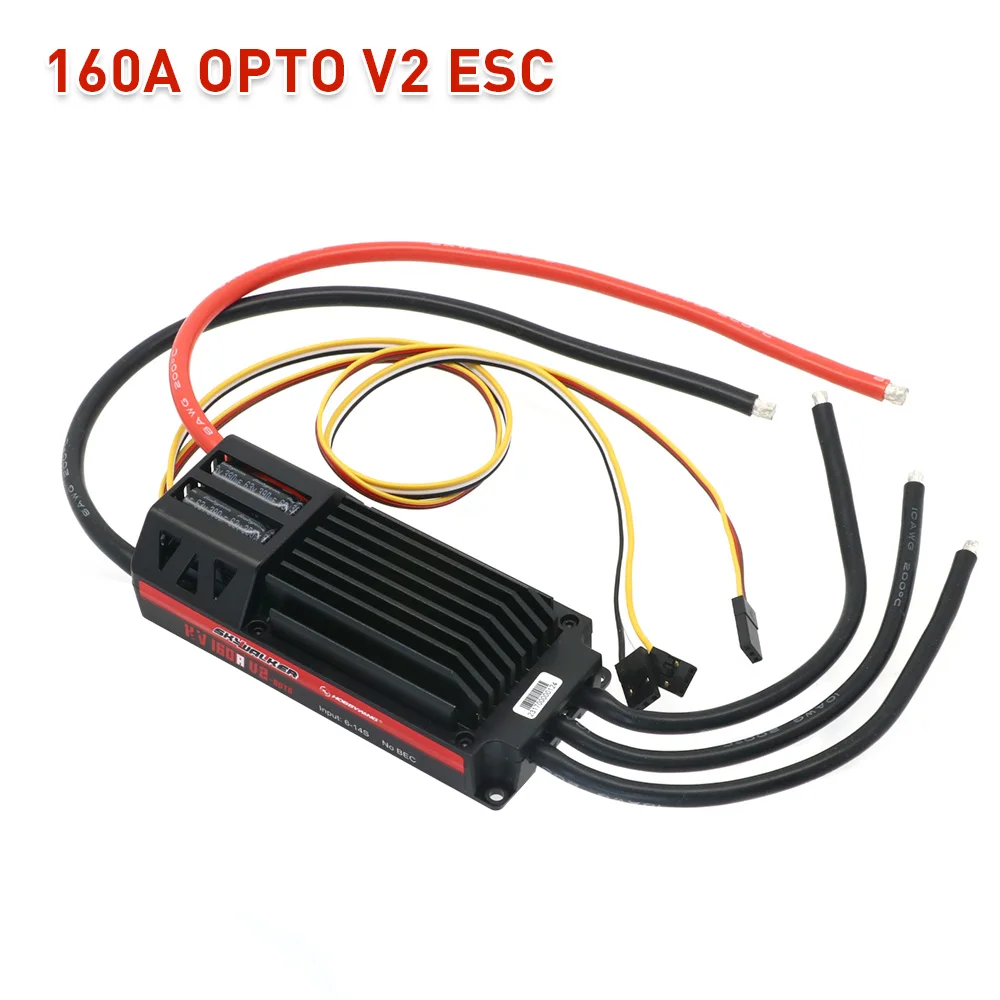

Skywalker HV 160A OPTO V2：
Brushed/Brushless: Brushless;
High Voltage/Regular: High Voltage;
Cont./Peak Current: 160A/200A;
Input: 6-14S LiPo
BEC Output: No BEC;
Input Wires: Red-8AWG-300mm*1/Black-8AWG-300mm*1;
Output Wires: Black-10AWG-150mm*3;
Input Connectors: No;
Output Connecotors: No;
ESC Programing via: Transmitter/LED Program Box/Program Port (Program Wire);
Firmware Upgrade: Not Supported;
Size: 104x48x29mm;
Weight: 262.8g;
| Color | Skywalker 120A V2, Skywalker 130A OPTO, Skywalker 80A V2, Skywalker 160A OPTO, Skywalker 100A V2, Skywalker 30A V2, Skywalker 20A V2, Programe Card, Skywalker 60A V2, Skywalker 50A V2, Programe CardA, Skywalker 40A V2, Skywalker 15A V2 |
|---|
