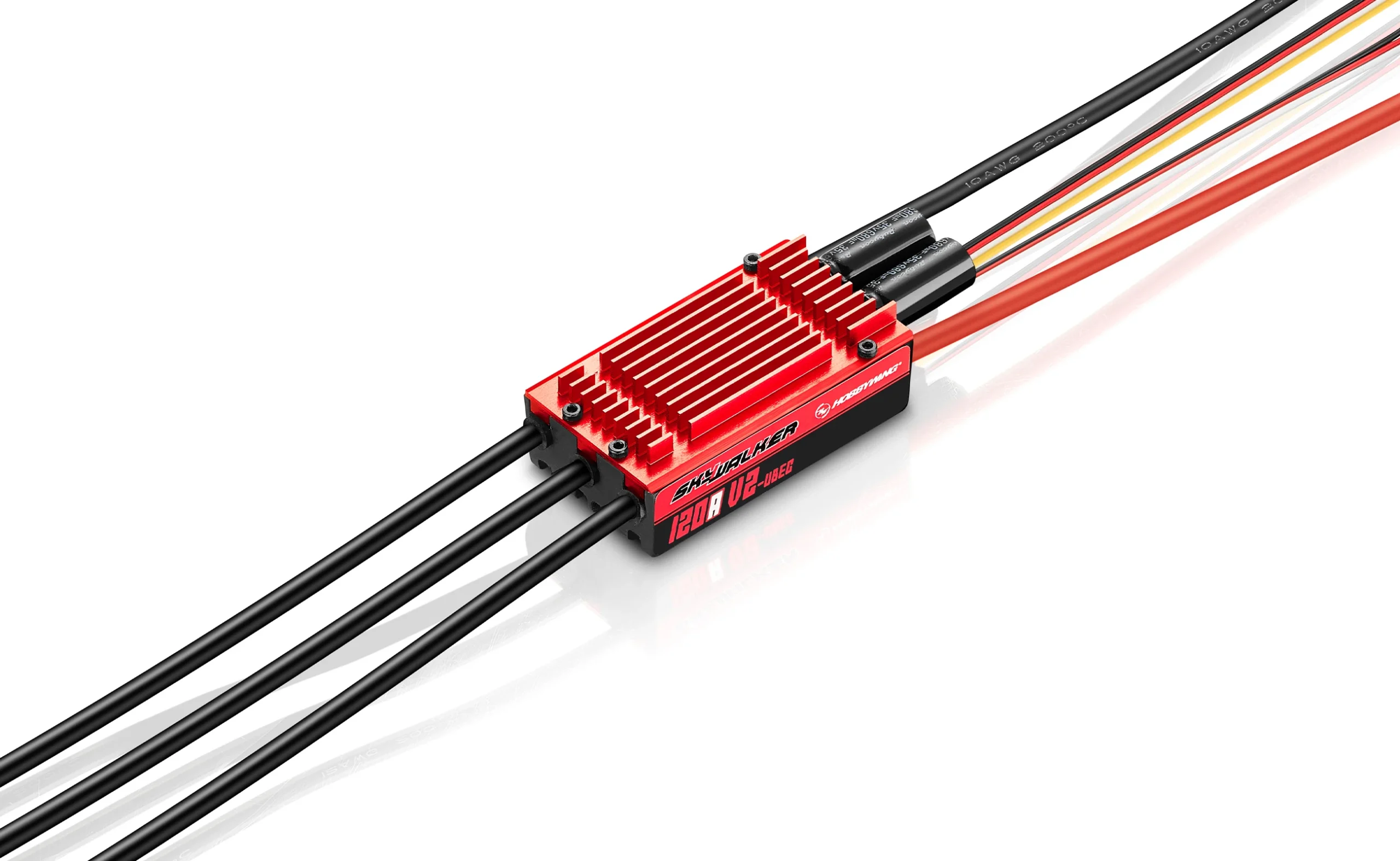

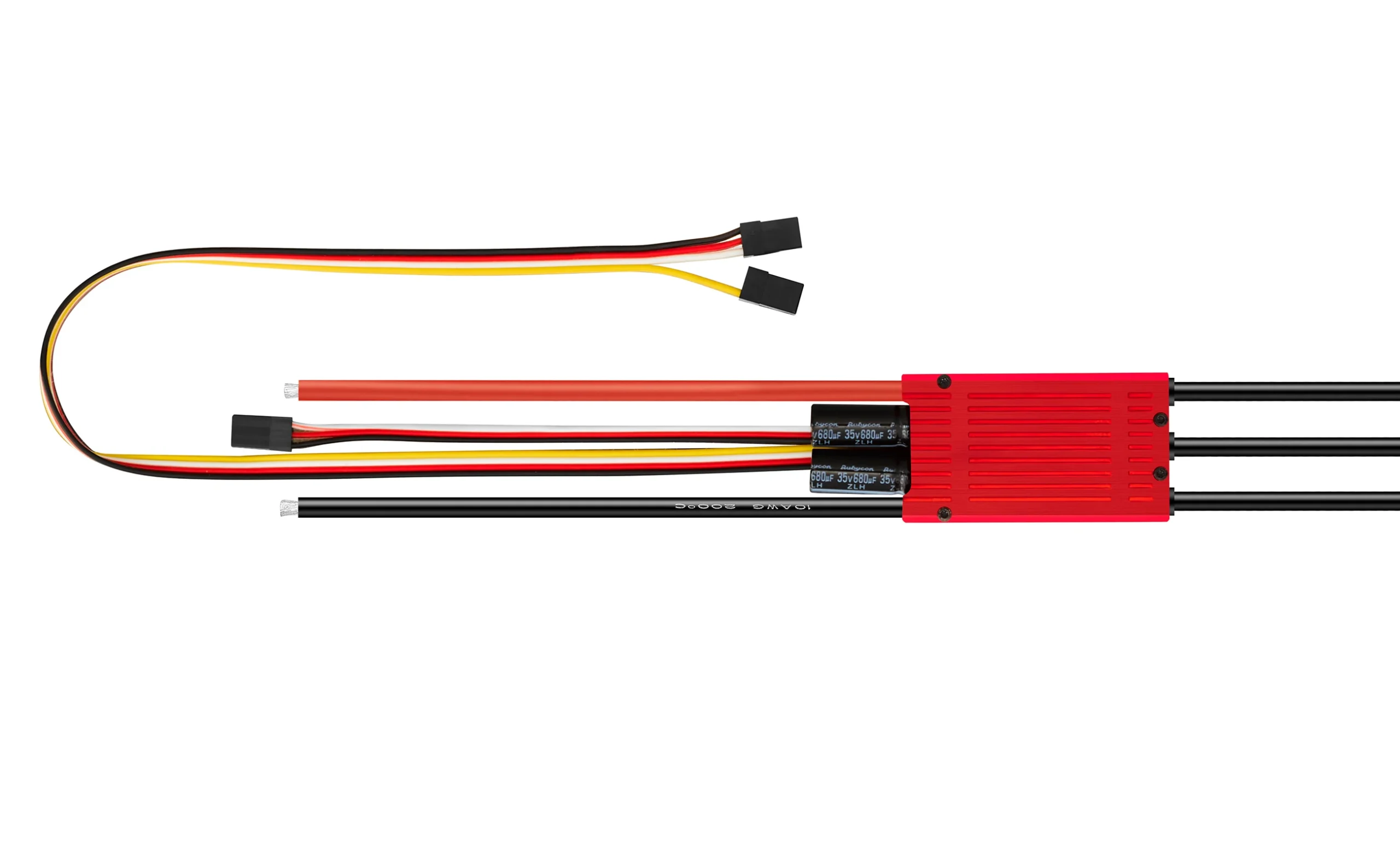

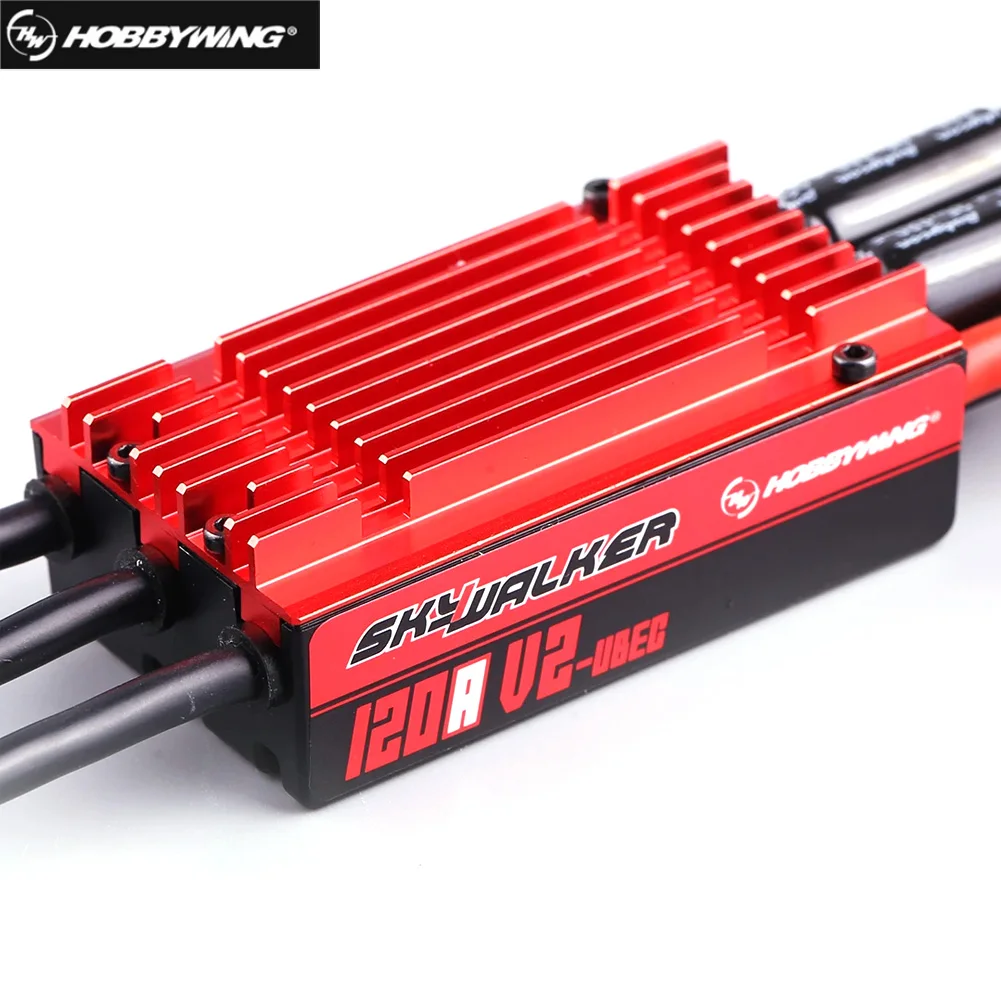

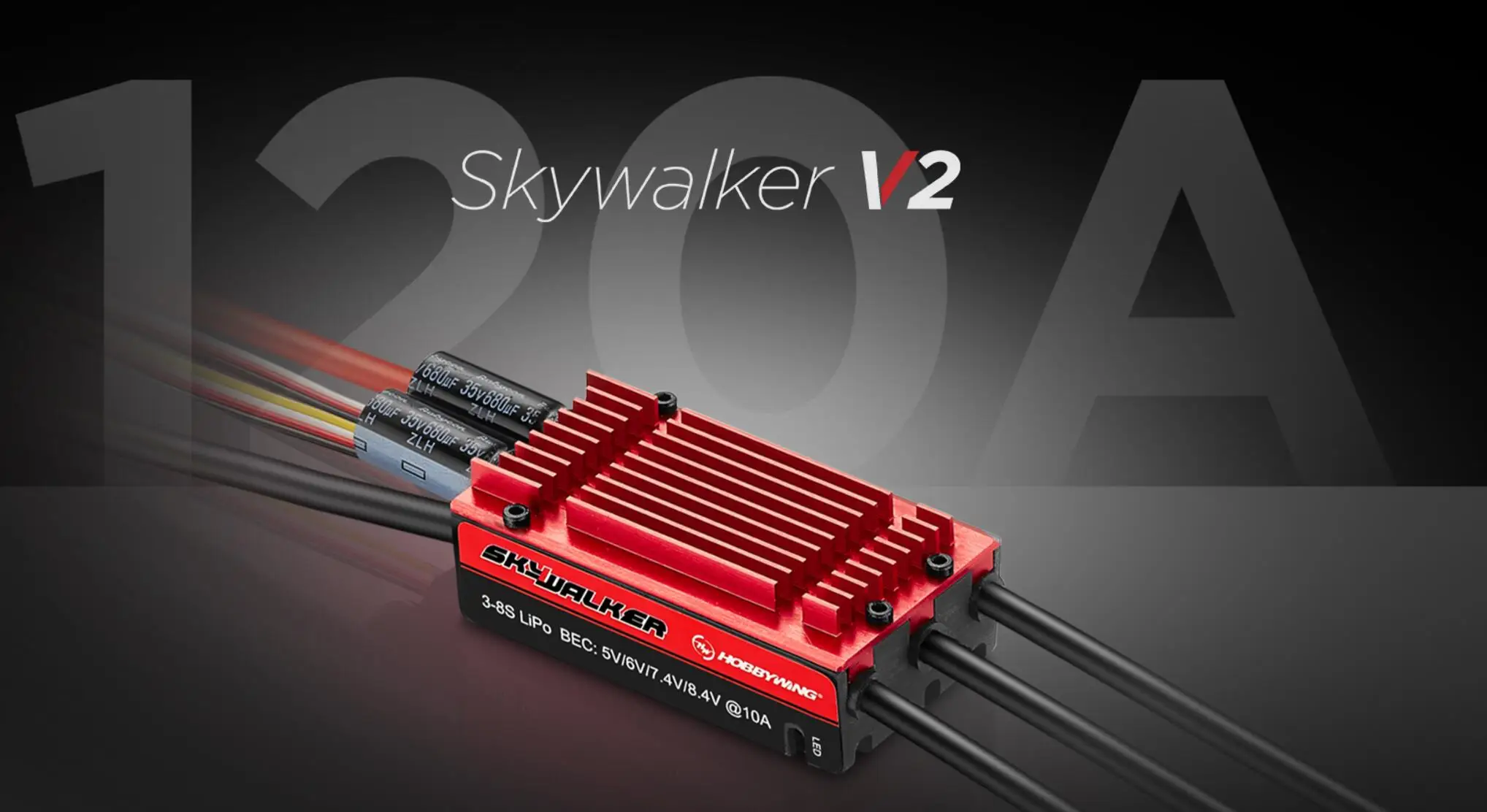

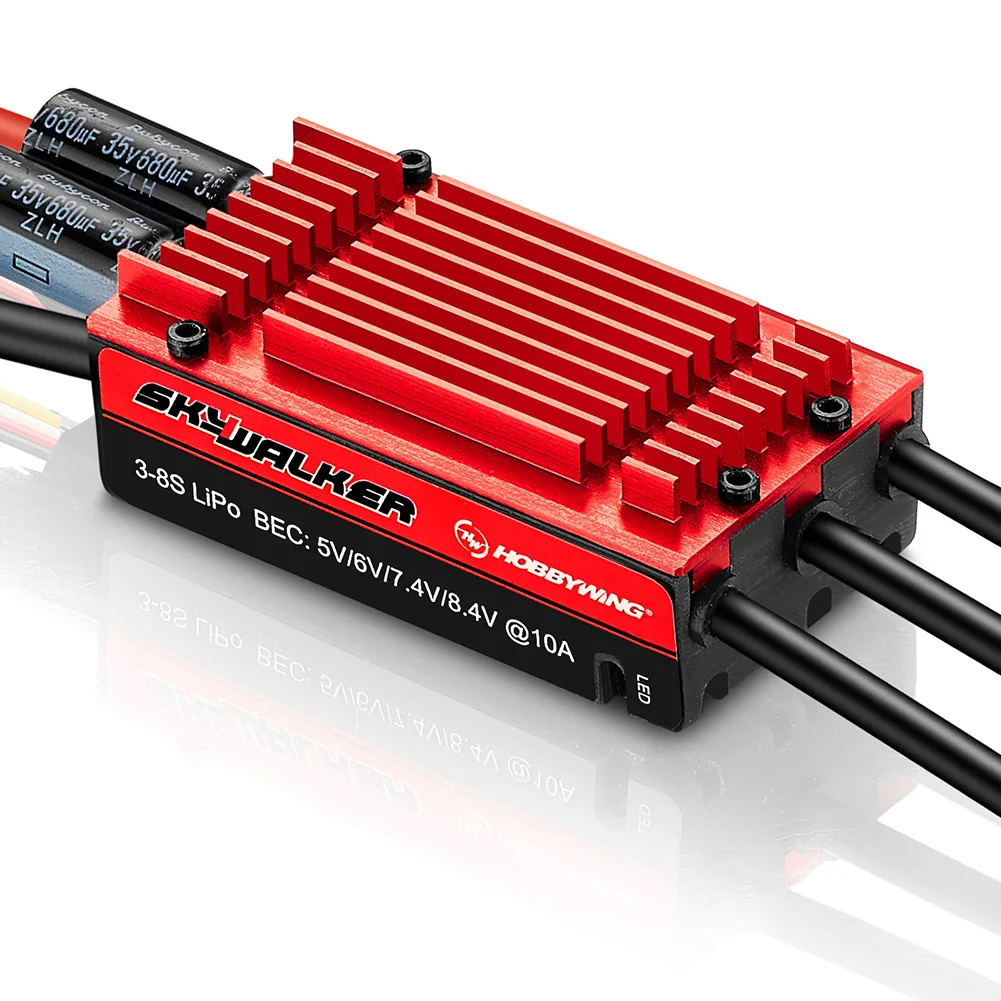

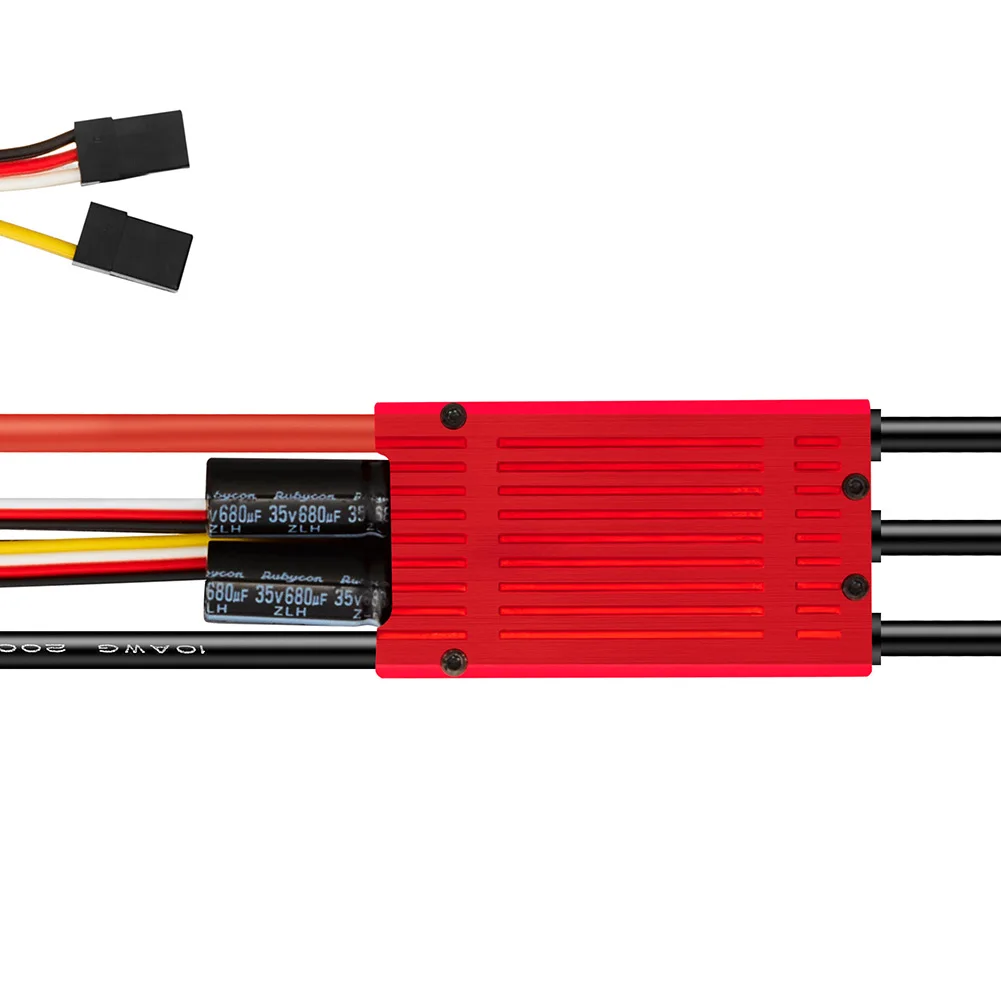

Product: Skywalker 120A V2

Type ： Brushless General

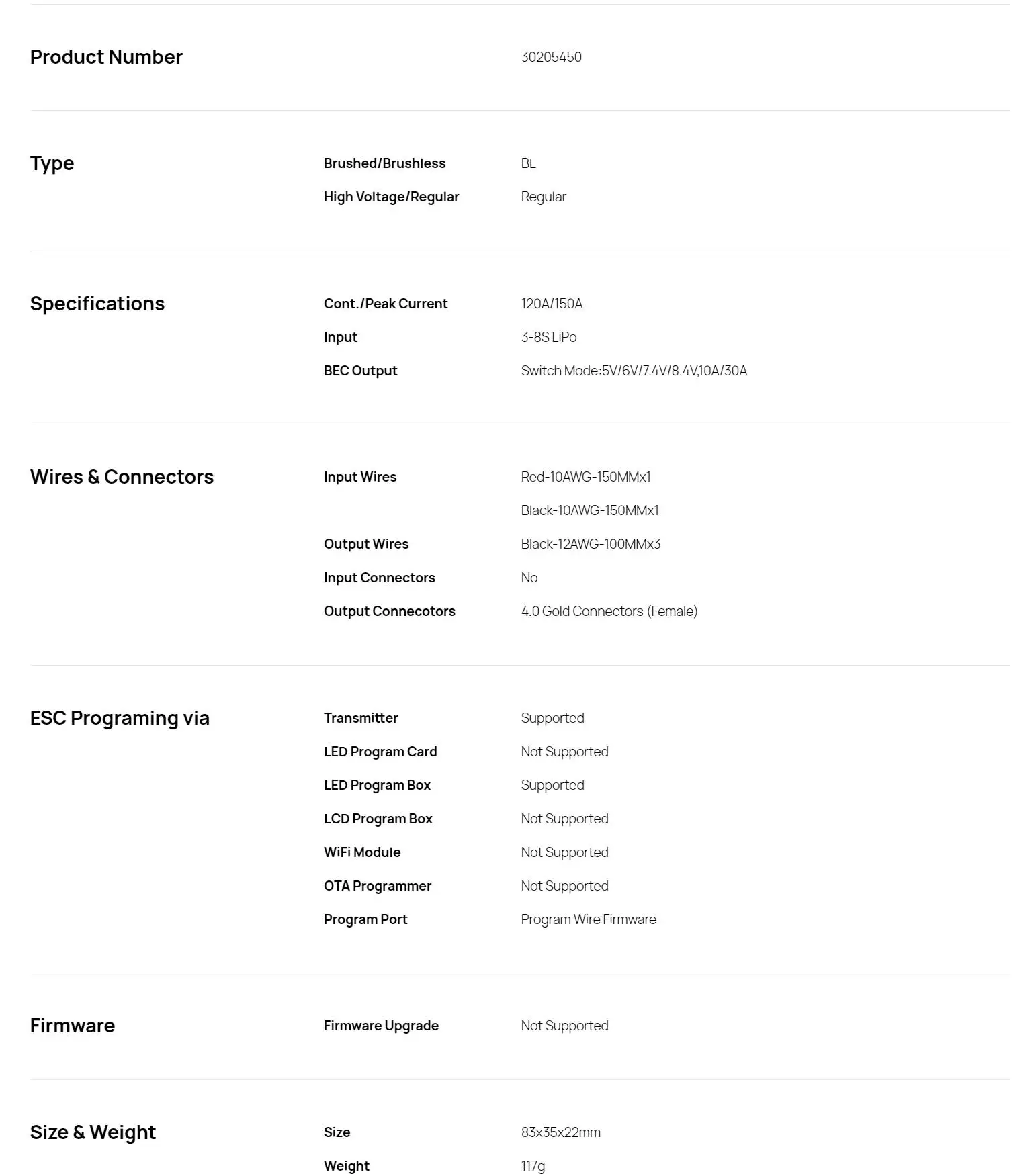

Basic Parameters : Continuous / Peak Current 120A/150A

Battery cells 3-8S LiPo

BEC output Switching mode; 5V/6V/7.4V/8.4V adjustable, 10A/30A

Size: 83x35x22mm

Weight: 117g

1. Excellent quality and stable performance

High performance 32-bit ARM M4 main control chip,

Operating frequency up to 120MHz,

The maximum supported speed can reach 300000 rpm (2-pole motor).

For 60-67 inch 3D fixed wing motors, it has excellent compatibility,

Powerful and responsive!

2. New synchronous rectification technology

More linear throttle

Lower temperature

Longer flight time

Optimization Technology for Efficiency of Synchronous Rectification Drive in Electric Dispatching

(DEO — Driving Efficiency Optimization)

Bringing faster and more linear throttle response

Flight stability and flexibility are simultaneously enhanced

Lower electrical temperature rise, making electrical regulation work more reliable;

Higher driving efficiency and extended battery life

3. Reverse thrust function, new gameplay for fixed wing aircraft

Equipped with reverse thrust braking and linear reverse thrust braking functions, enabling effective reduction of aircraft taxiing distance during landing,

Simulate the ultra short distance landing method of a real aircraft.

In addition, there is also a regular braking mode,

The braking force is adjustable in normal braking mode.

The reverse function has already applied for patented technology, please do not imitate it.

4.Seeking mode

It has a search mode, and when the aircraft falls into a complex environment and is difficult to find, it can be found by using the specific prompt sound emitted by the electrically adjustable drive motor. This mode can also be used to prompt users to disconnect batteries that have been connected to the power regulator for a long time but are not working, in order to prevent damage caused by battery depletion.

5. Multiple protection and double safety

Equipped with multiple protection functions, effectively extending the service life of the electric regulator.

input voltage

Abnormal protection

Low voltage protection for batteries

Overheat protection

Throttle signal

Loss protection
