Hobbywing Skywalker 120A V2 / HV 130A 160A 6-14S 32-bit OPTO V2 Brushless Speed Controller ESC for Rc Plane Fixed Wing
Price range: $263.76 through $531.65
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Motors
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: C388
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Motors
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 25*25*10
Technical parameters: value 2
Tool Supplies: Skywalker V2 130A
Upgrade Parts/Accessories: Skywalker V2 120A
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

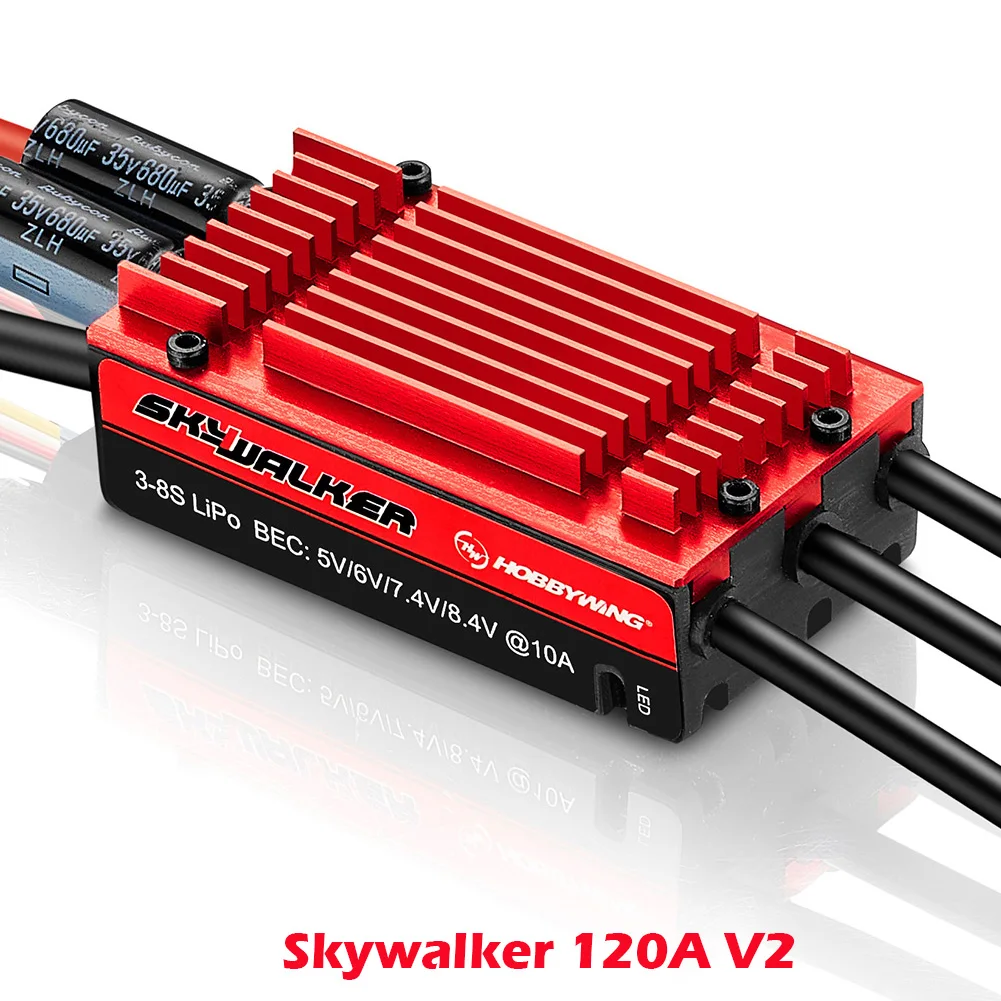

Product: Skywalker 120A V2
Type ： Brushless General
Basic Parameters : Continuous / Peak Current 120A/150A
Battery cells 3-8S LiPo
BEC output Switching mode; 5V/6V/7.4V/8.4V adjustable, 10A/30A
Size: 83x35x22mm
Weight: 117g
1. Excellent quality and stable performance
High performance 32-bit ARM M4 main control chip,
Operating frequency up to 120MHz,
The maximum supported speed can reach 300000 rpm (2-pole motor).
For 60-67 inch 3D fixed wing motors, it has excellent compatibility,
Powerful and responsive!
2. New synchronous rectification technology
More linear throttle
Lower temperature
Longer flight time
Optimization Technology for Efficiency of Synchronous Rectification Drive in Electric Dispatching
(DEO — Driving Efficiency Optimization)
Bringing faster and more linear throttle response
Flight stability and flexibility are simultaneously enhanced
Lower electrical temperature rise, making electrical regulation work more reliable;
Higher driving efficiency and extended battery life
3. Reverse thrust function, new gameplay for fixed wing aircraft
Equipped with reverse thrust braking and linear reverse thrust braking functions, enabling effective reduction of aircraft taxiing distance during landing,
Simulate the ultra short distance landing method of a real aircraft.
In addition, there is also a regular braking mode,
The braking force is adjustable in normal braking mode.
The reverse function has already applied for patented technology, please do not imitate it.
4.Seeking mode
It has a search mode, and when the aircraft falls into a complex environment and is difficult to find, it can be found by using the specific prompt sound emitted by the electrically adjustable drive motor. This mode can also be used to prompt users to disconnect batteries that have been connected to the power regulator for a long time but are not working, in order to prevent damage caused by battery depletion.
5. Multiple protection and double safety
Equipped with multiple protection functions, effectively extending the service life of the electric regulator.
input voltage
Abnormal protection
Low voltage protection for batteries
Overheat protection
Throttle signal
Loss protection
Brushed/Brushless: Brushless;
High Voltage/Regular: High Voltage;
Cont./Peak Current: 130A/160A;
Input: 6-14S LiPo
BEC Output: No BEC;
Input Wires: Red-10AWG-300mm*1/Black-10AWG-300mm*1;
Output Wires: Black-10AWG-150mm*3;
Input Connectors: No;
Output Connecotors: No;

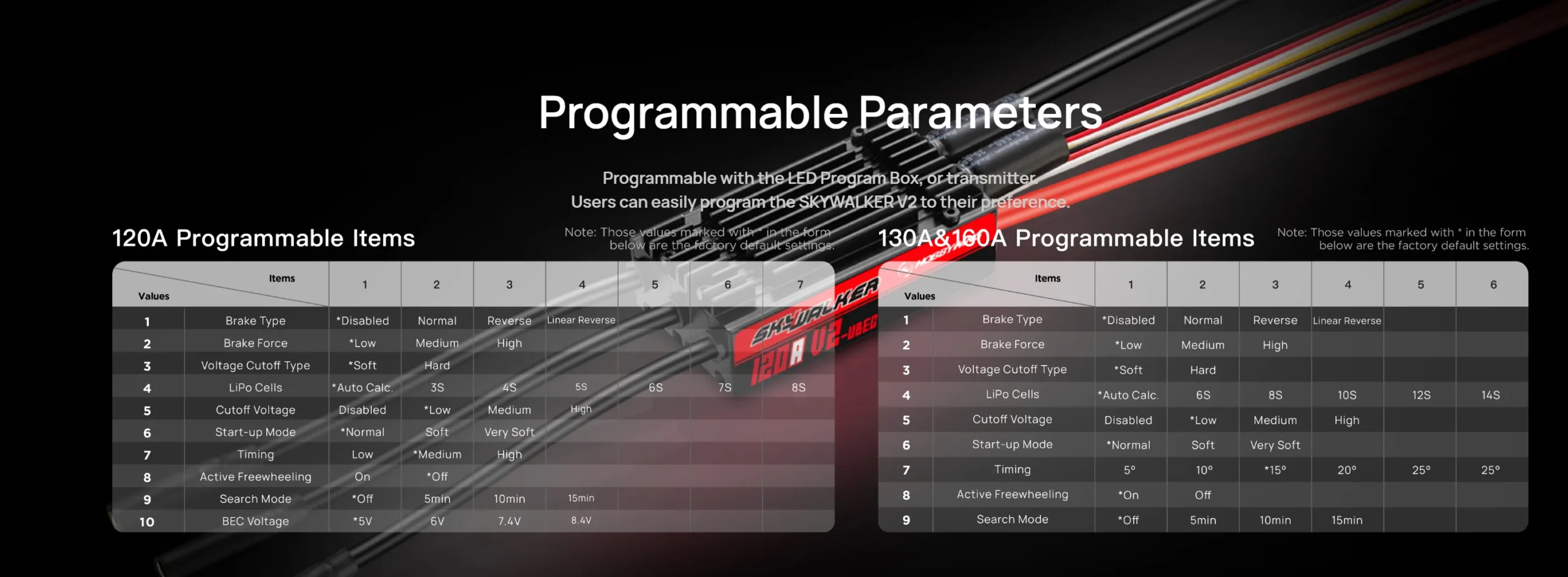

ESC Programing via: Transmitter/LED Program Box/Program Port (Program Wire);
Firmware Upgrade: Not Supported;
Size: 104x48x29mm;
Weight: 253.2g;

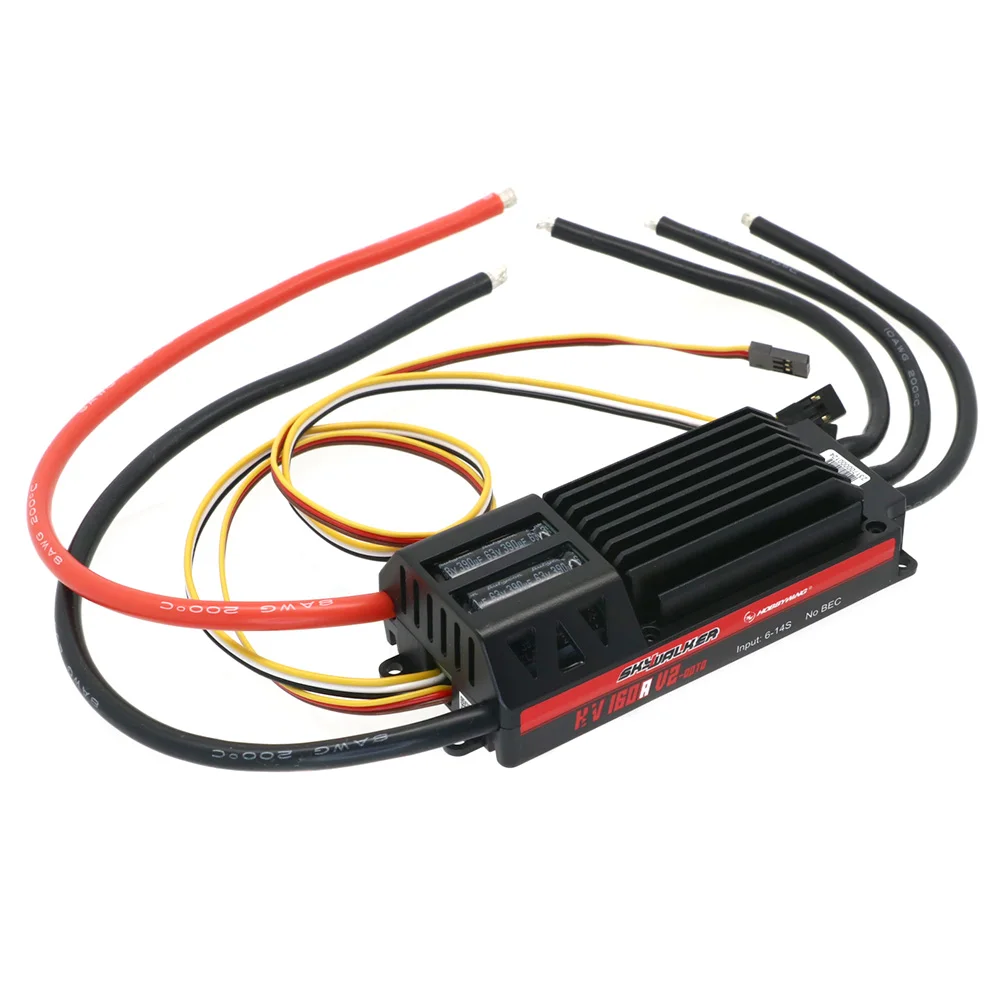

Skywalker HV 160A OPTO V2：
Brushed/Brushless: Brushless;
High Voltage/Regular: High Voltage;
Cont./Peak Current: 160A/200A;
Input: 6-14S LiPo
BEC Output: No BEC;
Input Wires: Red-8AWG-300mm*1/Black-8AWG-300mm*1;
Output Wires: Black-10AWG-150mm*3;
Input Connectors: No;
Output Connecotors: No;
ESC Programing via: Transmitter/LED Program Box/Program Port (Program Wire);
Firmware Upgrade: Not Supported;
Size: 104x48x29mm;
Weight: 262.8g;
| Color | 120A with BEC, 130A No BEC, 160A No BEC |
|---|
