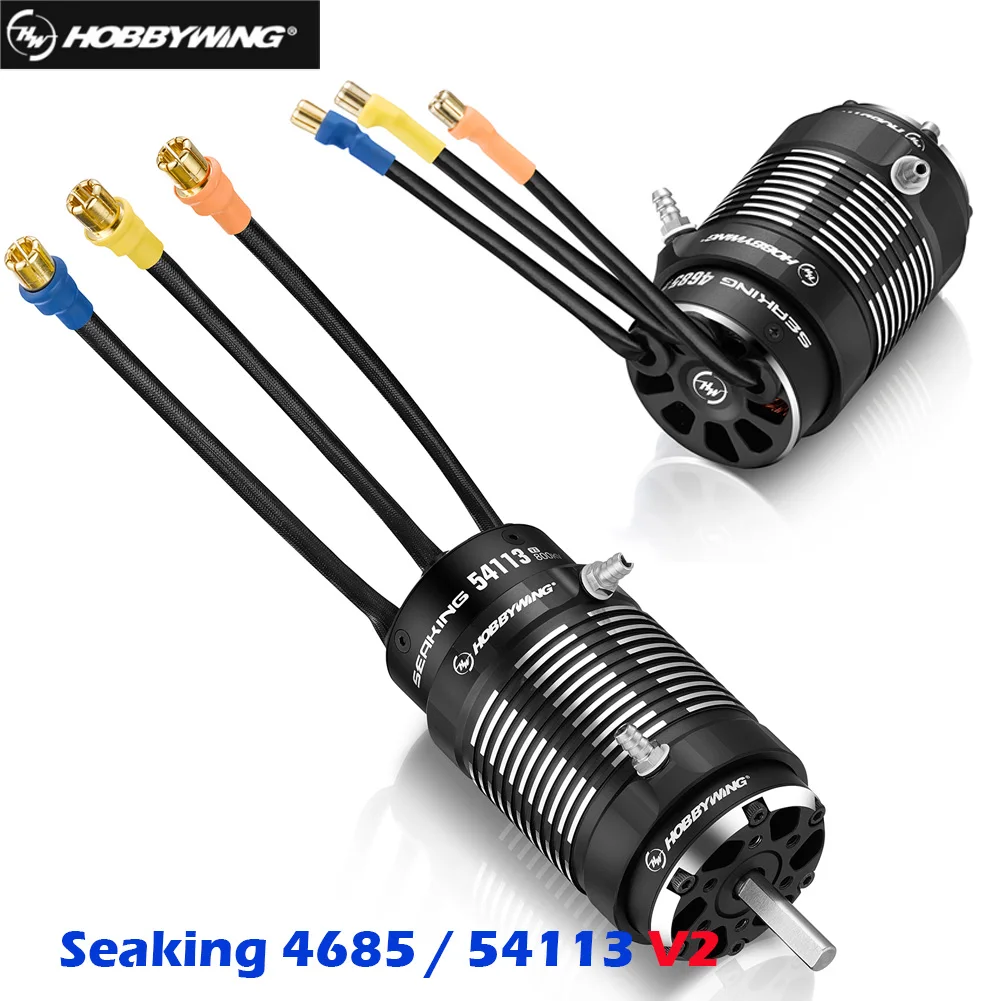

Hobbywing Seaking 4685SL 900KV 6-14S / 1500KV 6-8S V2 54113SL 800KV V2 8-12S Brushless Sensorless Motor For RC Boat Ship
Price range: $648.27 through $1,265.53
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: boAts
Four-wheel Drive Attributes: Hobbywing 2 in 1 Motor
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N

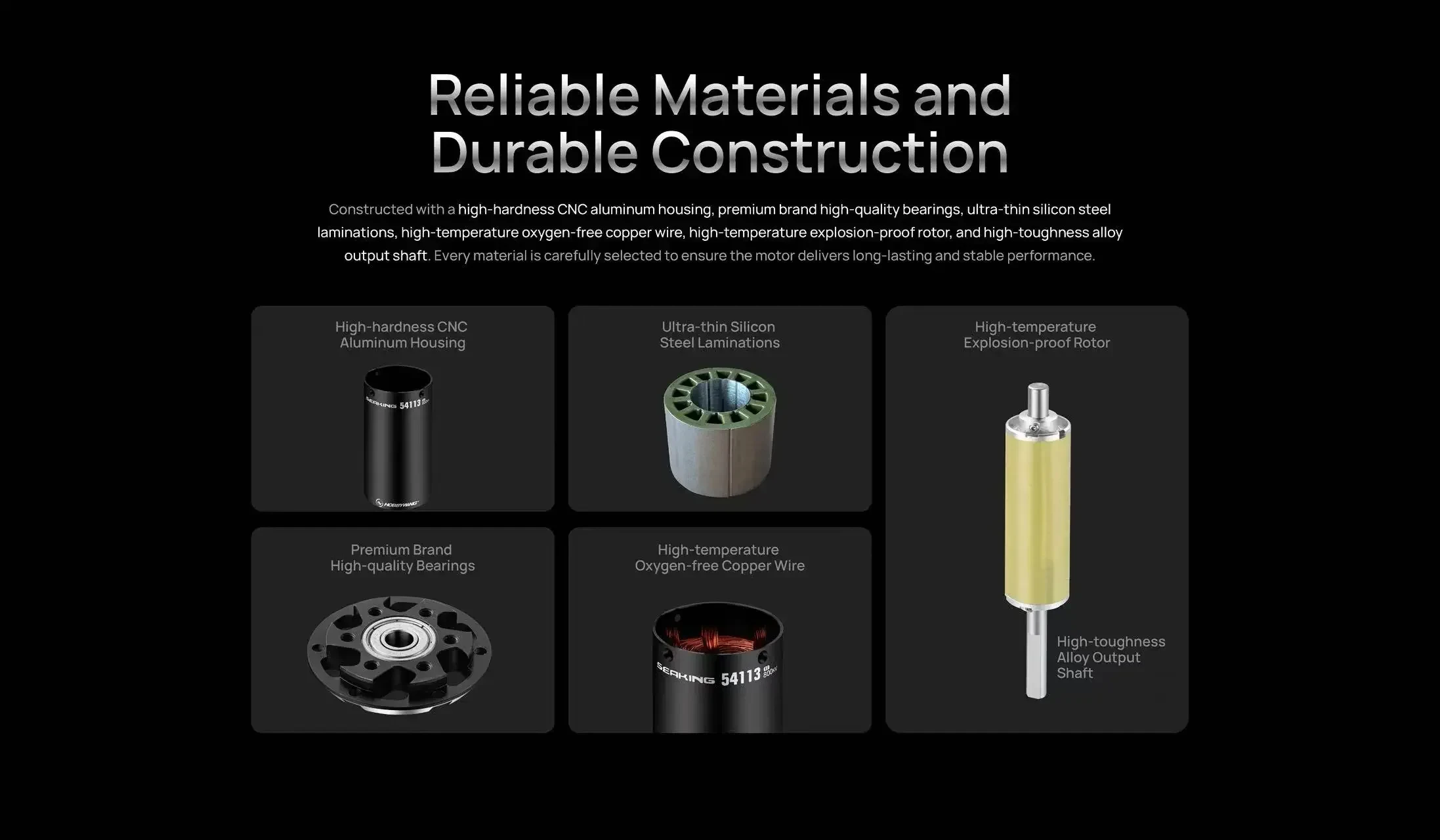

Material: Metal
Model Number: Hobbywing Seaking 54113SL 800KV
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Motors
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Size: 85MM
Technical parameters: value 2
Tool Supplies: Hobbywing Seaking 4685SL 1500KV
Upgrade Parts/Accessories: Hobbywing Seaking 4685SL 900KV
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

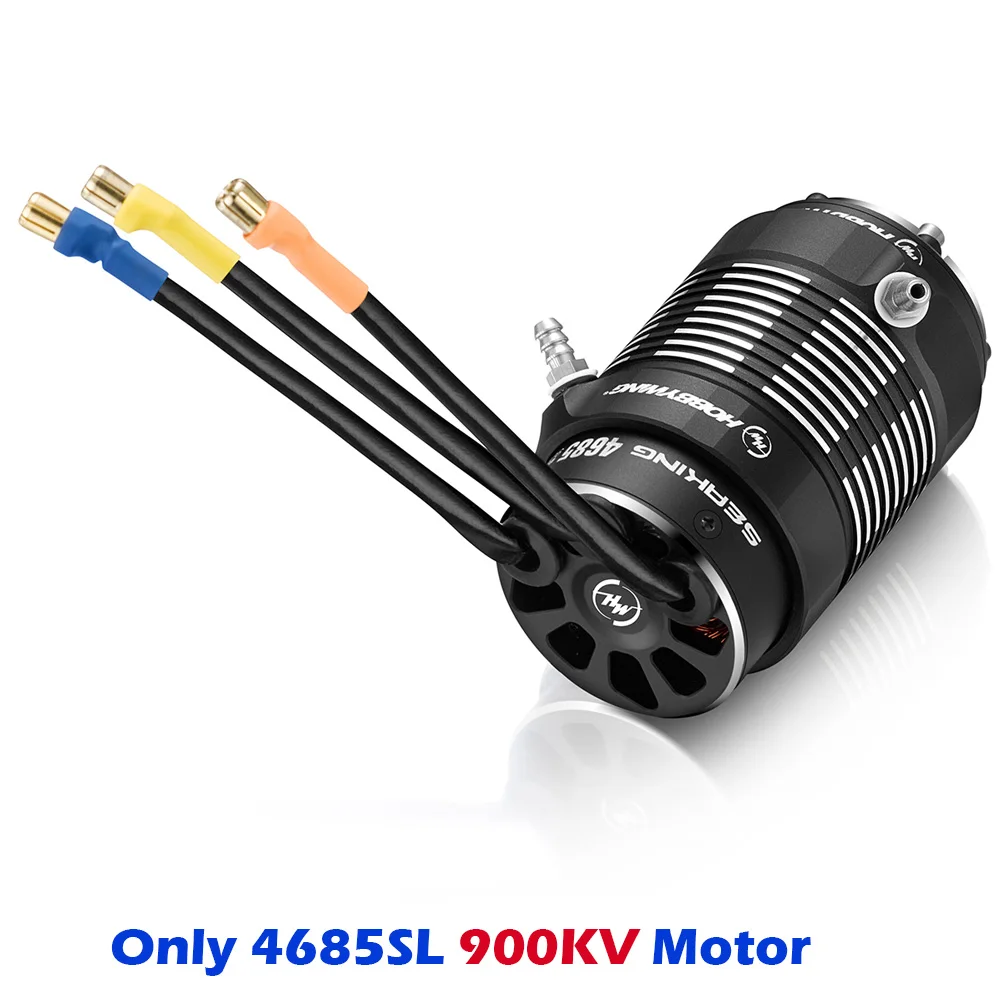

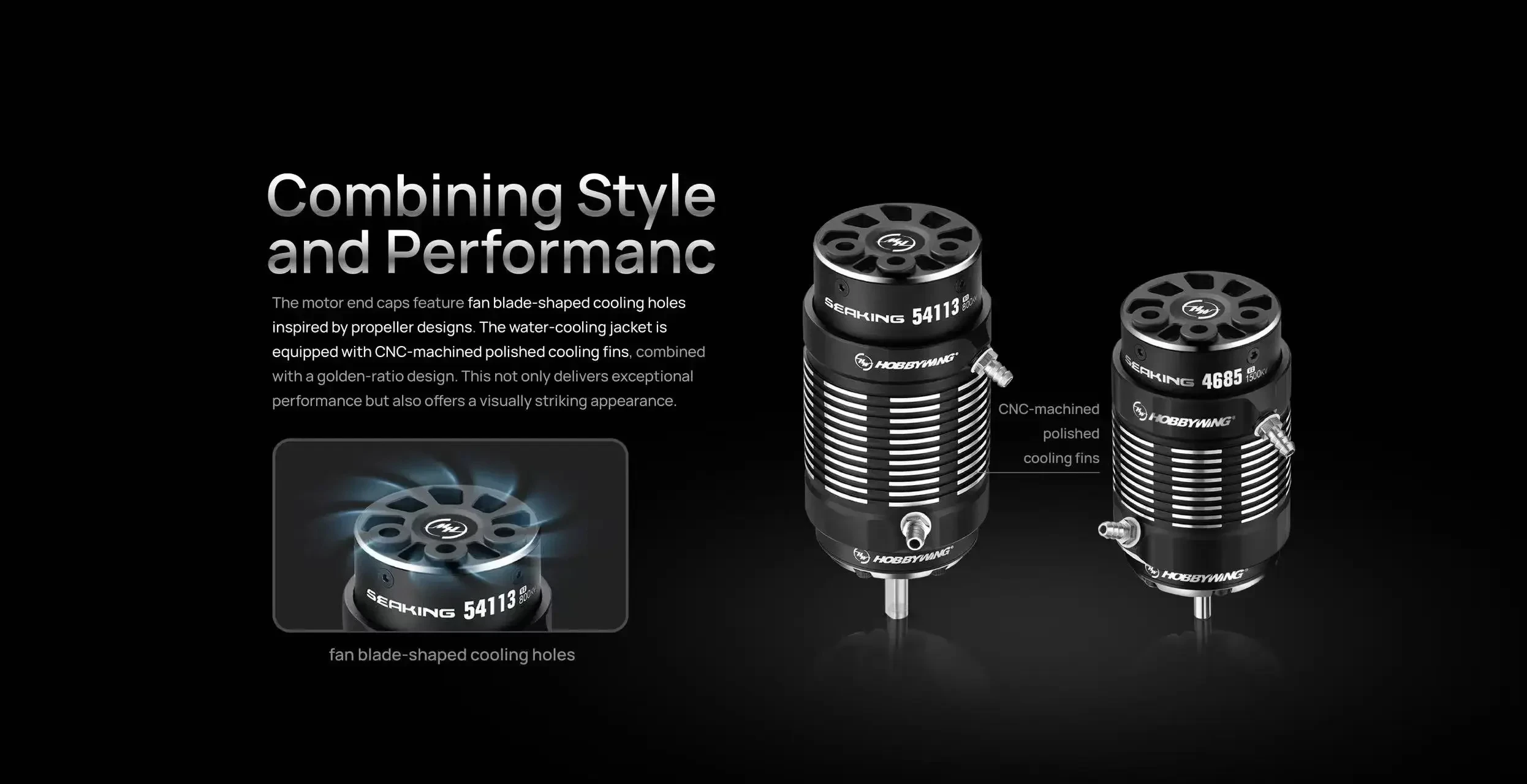

Seaking 4685SL 900KV V2
Brushed/Brushless:Brushless
Sensored/Sensorless:Sensorless
Pole:4
KV Rating:900KV
LiPo Cells:6-14S
No-load Current(A):2.7A
O.D.(mm):46
Length (mm):85
Shaft Diameter (mm):5
Weight (g):610g
Front Bearing:D19*D6*T6
Rear Bearing:D15*D6*T5
ESC：Seaking 200A HV V4 （Not Include)
Boat Applicable：Boat Length ≤140cm

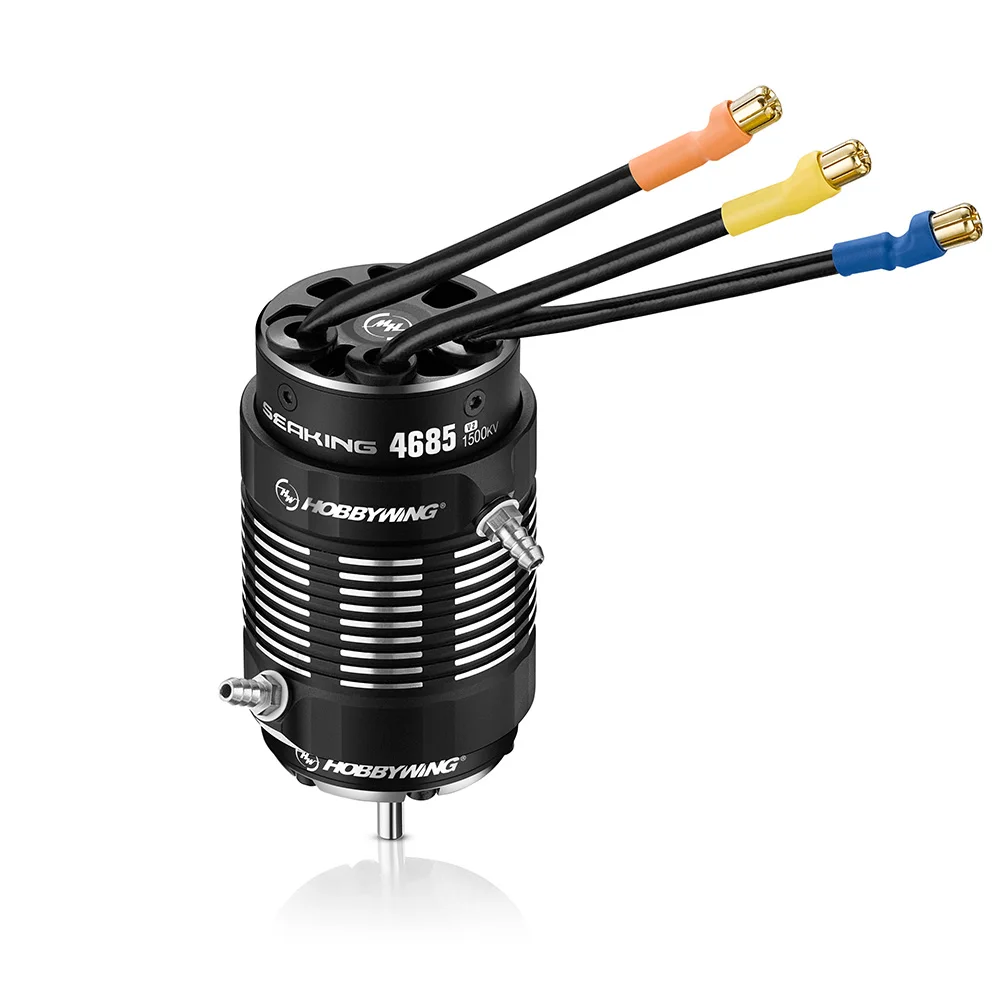

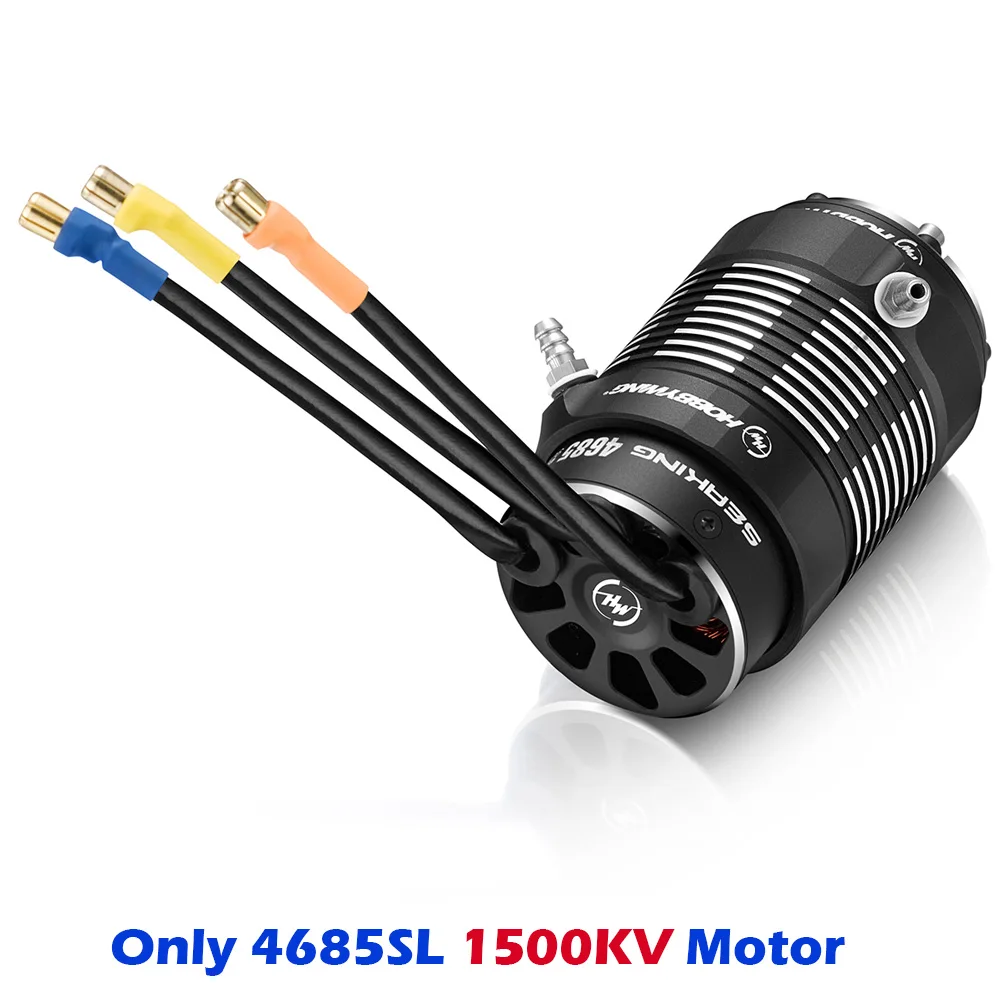

Seaking 4685SL 1500KV V2
Brushed/Brushless:Brushless
Sensored/Sensorless:Sensorless
Pole:4
KV Rating:1500KV
LiPo Cells:6-8S
No-load Current(A):4.7A
O.D.(mm):46
Length (mm):85
Shaft Diameter (mm):5
Weight (g):642g
Front Bearing:D19*D6*T6
Rear Bearing:D15*D6*T5
ESC：Seaking 200A HV V4 （Not Include)
Boat Applicable：Boat Length ≤140cm

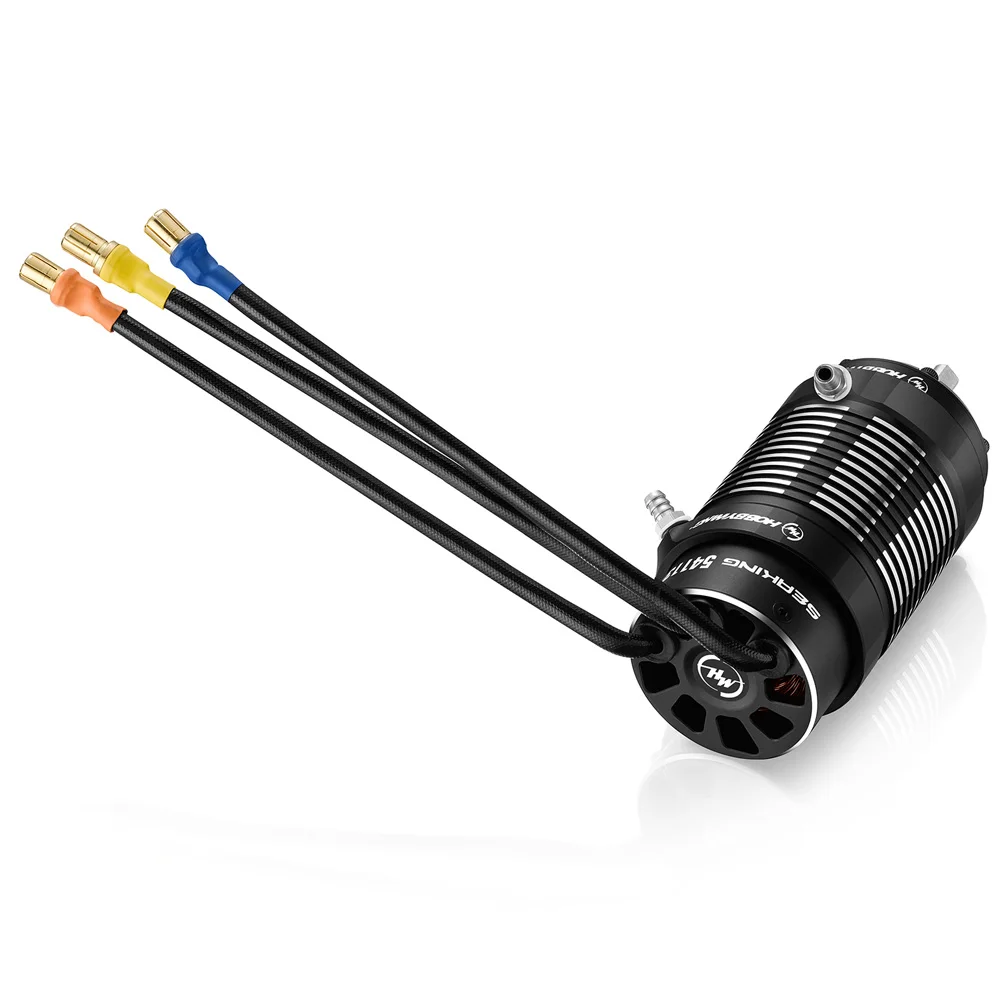

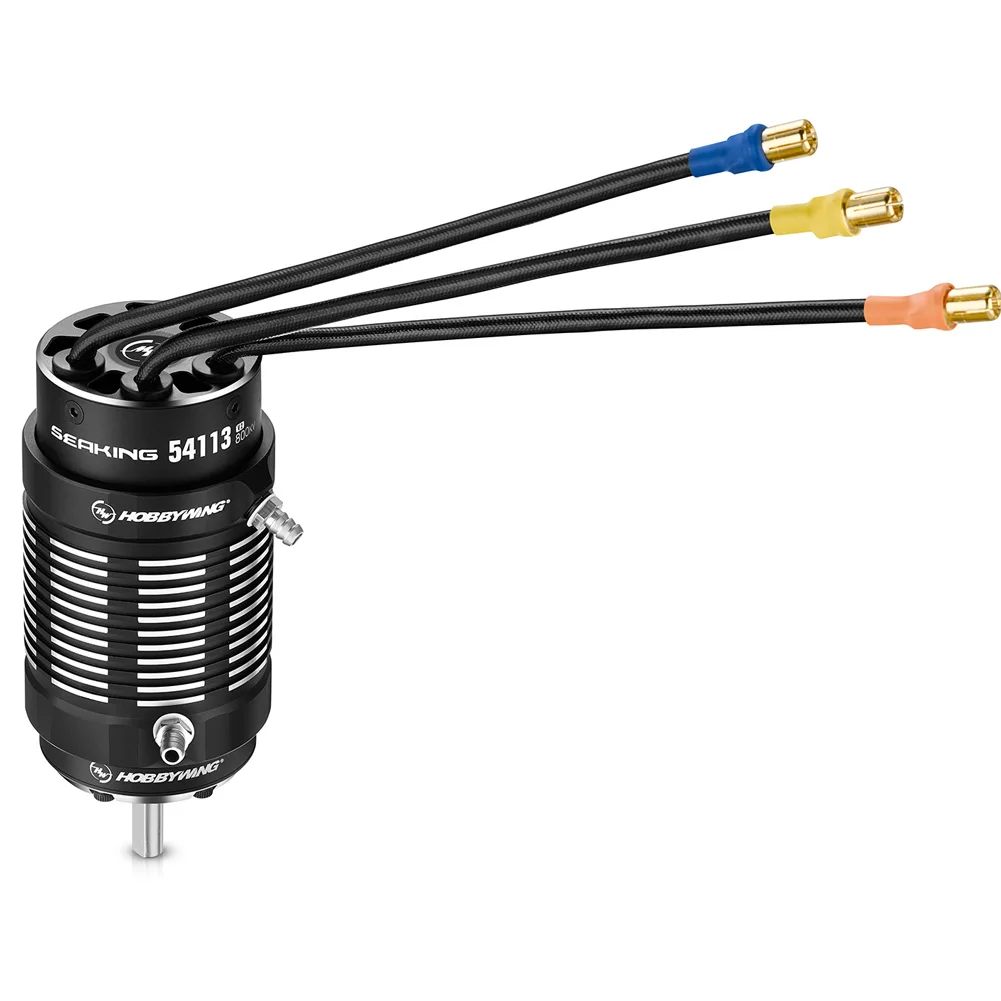

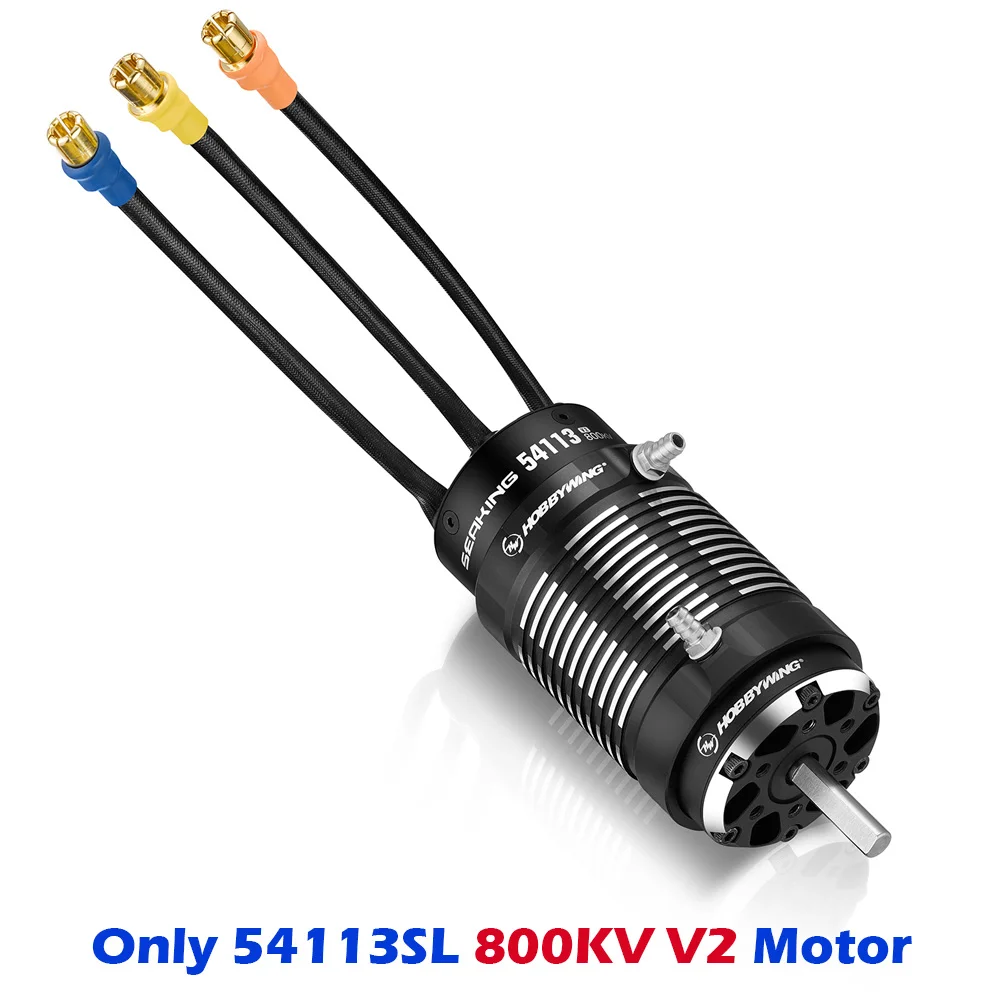

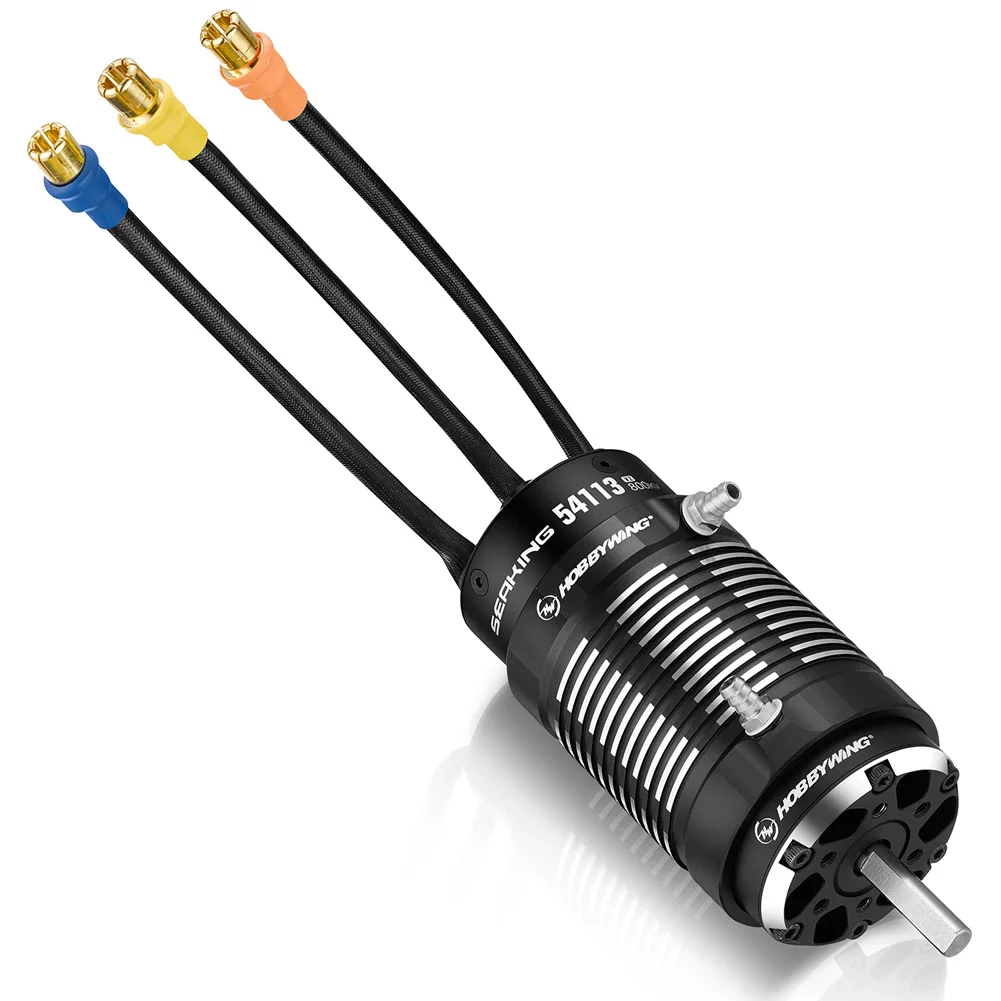

Seaking 54113SL 800KV V2
Brushed/Brushless:Brushless
Sensored/Sensorless:Sensorless
Pole:4
KV Rating:800KV
LiPo Cells:8-12S
No-load Current(A):6.8A
O.D.(mm):54
Length (mm):113
Shaft Diameter (mm):8
Weight (g):1260g
Front Bearing:D22*D8*T7
Rear Bearing:D22*D8*T7
ESC：Seaking 300A HV V4 （Not Include)
Boat Applicable：Boat Length ≤180cm

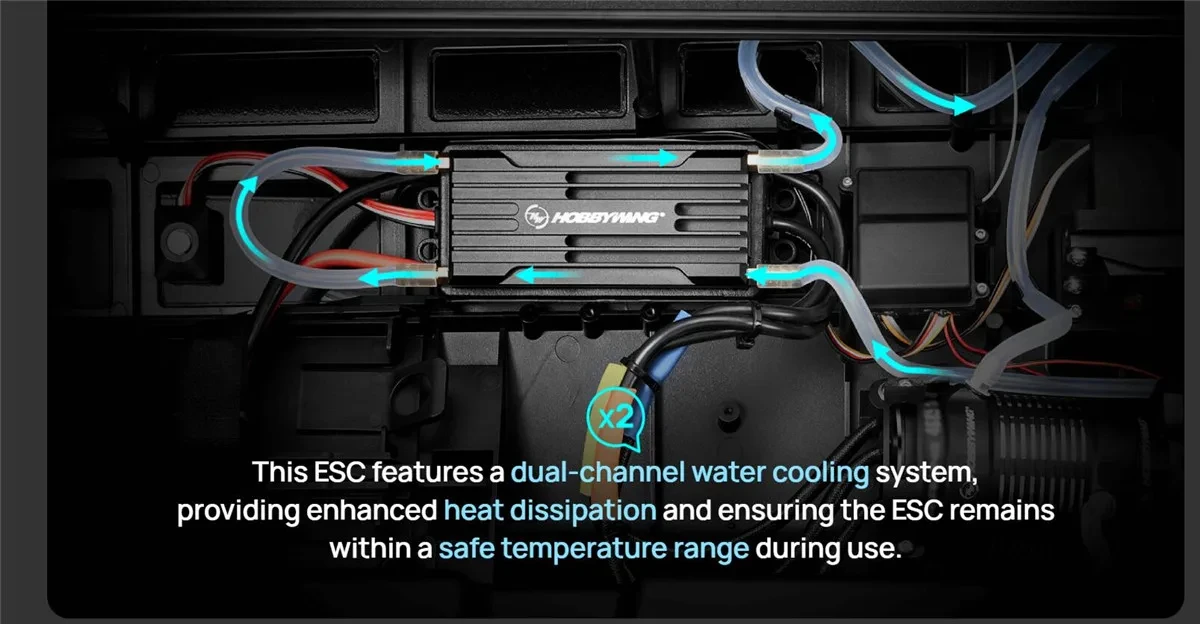

SEAKING 200A HV V4
Brushed/Brushless: Brushless
Sensored/Sensorless:Sensorless

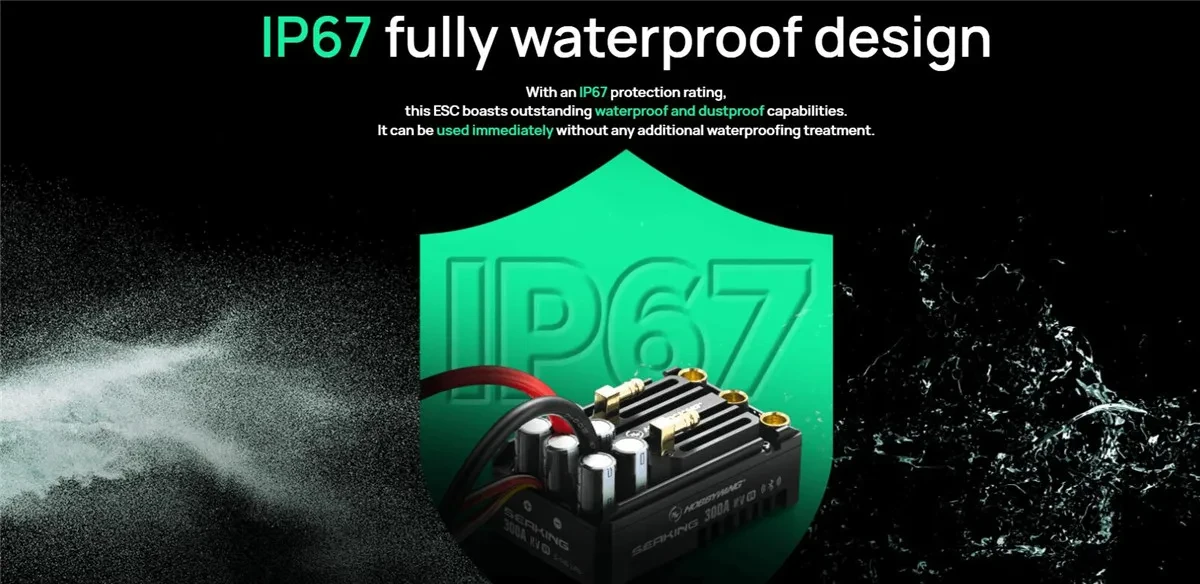

Waterproof:Waterproof
Specifications
Cont./Peak Current : 200A/1000A
Input Voltage : 5-14S Lipo
BEC BEC Output : Switch Mode 6V/7.4V/8.4V @8A
Wires & Connectors
Input Wires : Black-8AWG-200mm*1 Red-8AWG-200mm*1
Output Wires : Black-10AWG-150mm*3
Input Connectors:No
Output Connectors : 6.5mm Female
ESC Programing via
LED Program Box : Not Supported
LCD G2 Program Box : Not Supported
LCD PRO : Not Supported
OTA Programmer : Not Supported
HW LINK APP : Supported(Built-in Bluetooth)

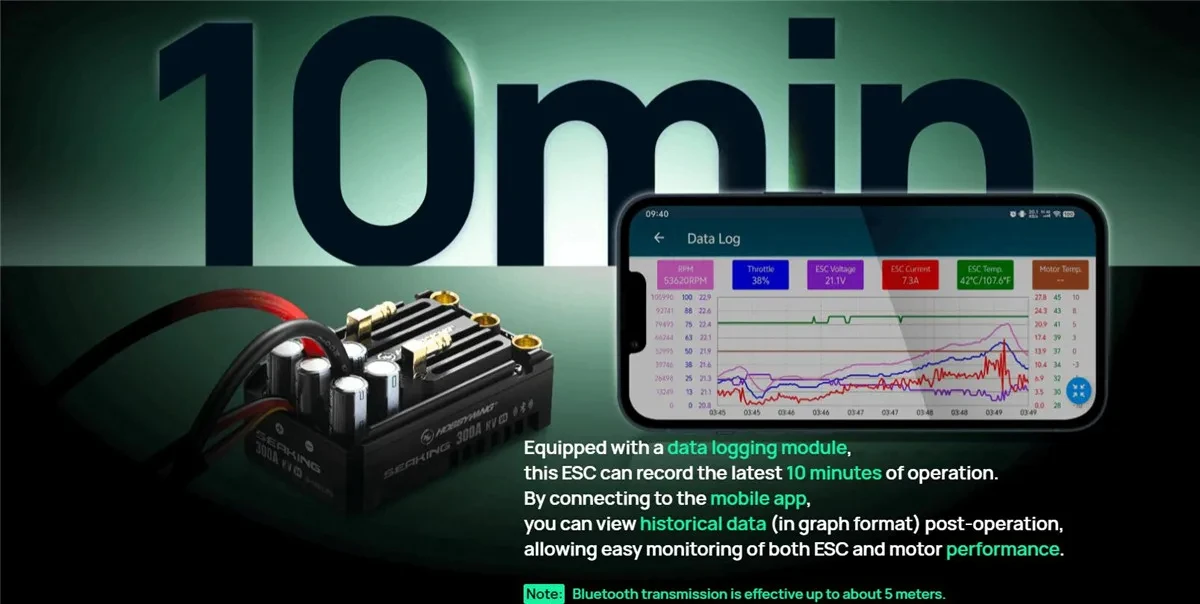

Data Recording
Extreme value : Supported
Real-time Data : Supported
Historical data (Graph) : Supported
Firmware
Firmware Upgrade : Supported
Size & Weight
Size : 106*51*31mm
Weight : 386g (w / wires & output connectors)
Applications
Boat Applicable : ≤140CM

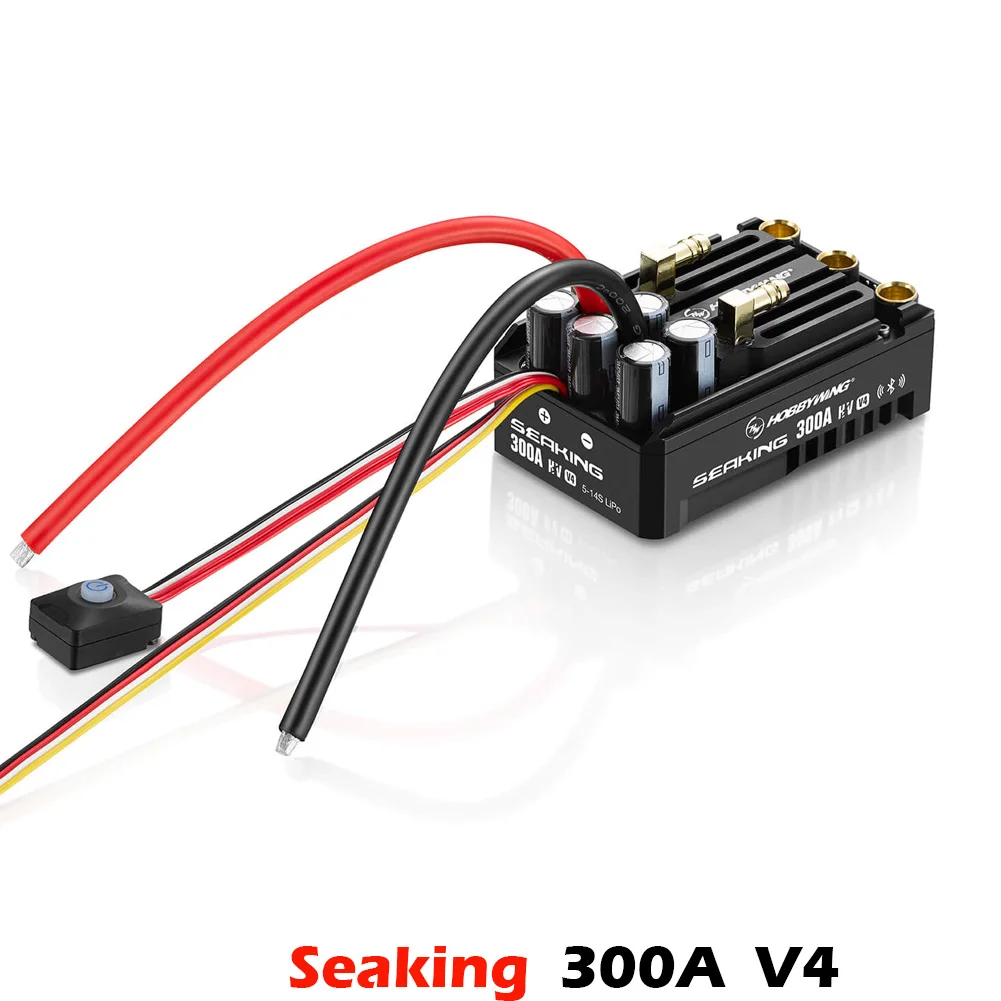

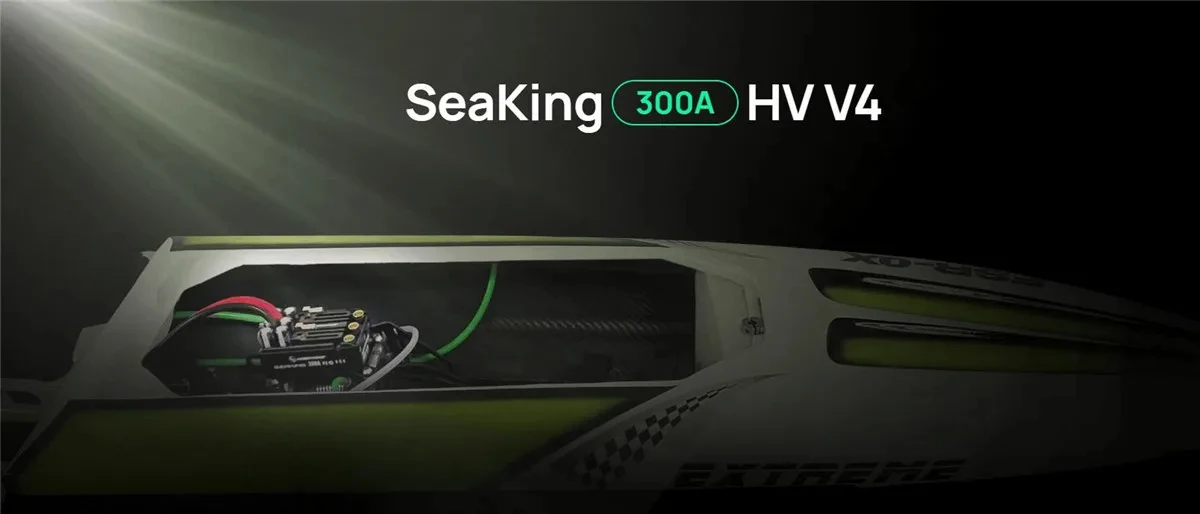

SEAKING 300A HV V4
Brushed/Brushless: Brushless
Sensored/Sensorless:Sensorless

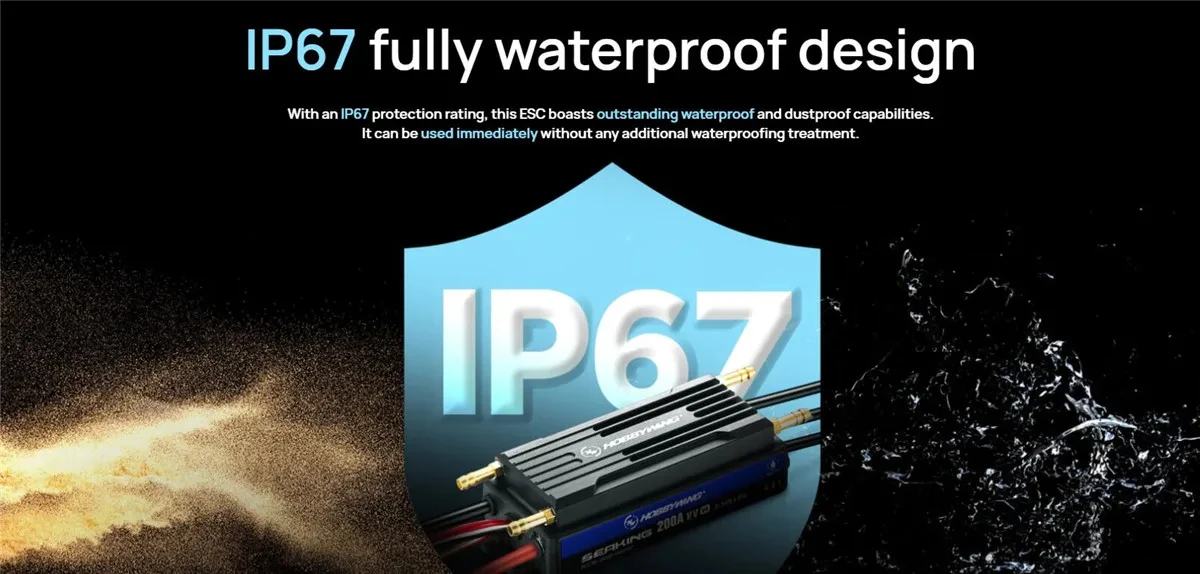

Waterproof:Waterproof
Specifications
Cont./Peak Current : 300A/1600A
Input Voltage : 5-14S Lipo
BEC BEC Output : Switch Mode 6V/7.4V/8.4V @8A
Wires & Connectors
Input Wires : Black-8AWG-200mm*1 Red-8AWG-200mm*1
Output Wires :NO
Input Connectors:No
Output Connectors : 8.0mm Female
ESC Programing via
LED Program Box : Not Supported
LCD G2 Program Box : Not Supported
LCD PRO : Not Supported
OTA Programmer : Not Supported
HW LINK APP : Supported(Built-in Bluetooth)
Data Recording
Extreme value : Supported
Real-time Data : Supported
Historical data (Graph) : Supported
Firmware
Firmware Upgrade : Supported
Size & Weight
Size : 94*58.8*43mm
Weight : 443g (w / wires & output connectors)
Applications
Boat Applicable : ≤180CM
