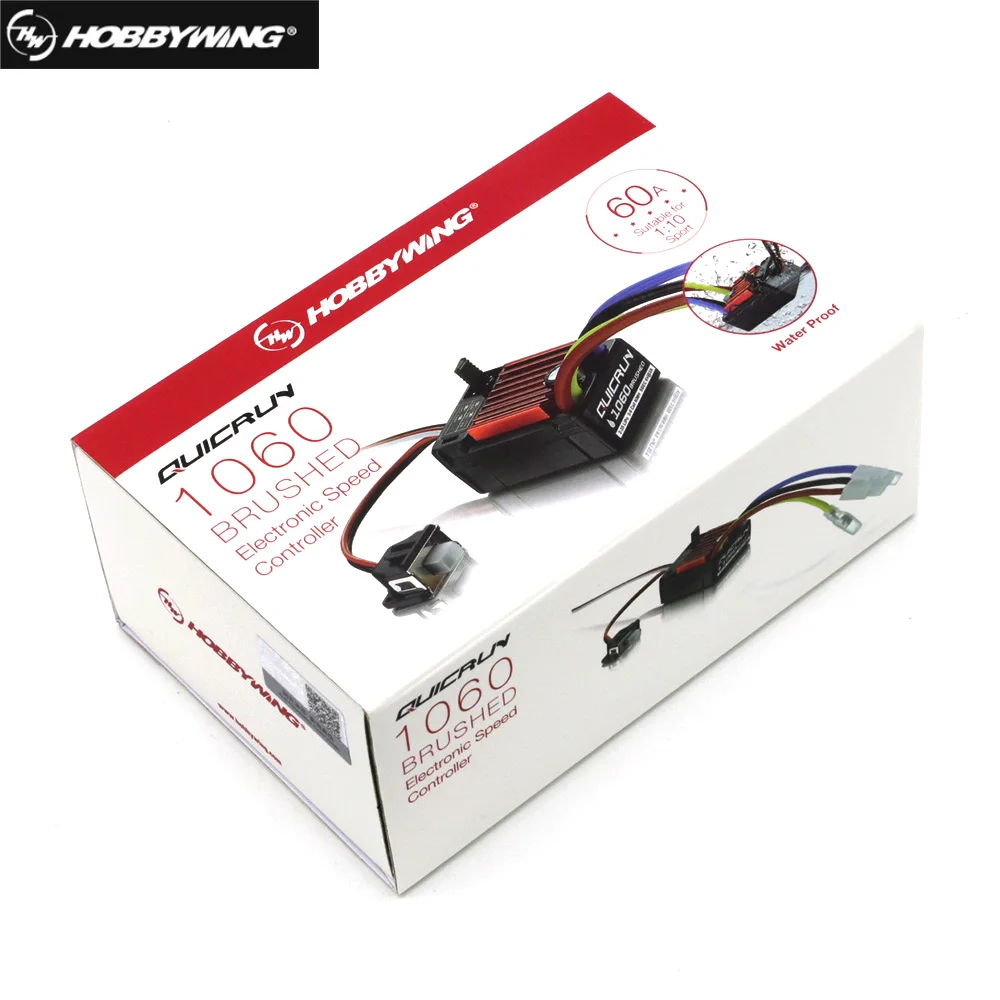

HobbyWing QuicRun 1060 60A Brushed Electronic Speed Controller ESC For 1:10 RC Car Waterproof For RC Car
Original price was: $192.30.$112.18Current price is: $112.18.
17 in stock
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: 1060 hobbywing
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: HB004
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Motors
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 36.5*32*18mm
Technical parameters: value 2
Tool Supplies: hobbywing 60a esc
Upgrade Parts/Accessories: QuicRun 1060 60A ESC
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Pay attention: BEC output is 6V/3A, not 5V/2A.

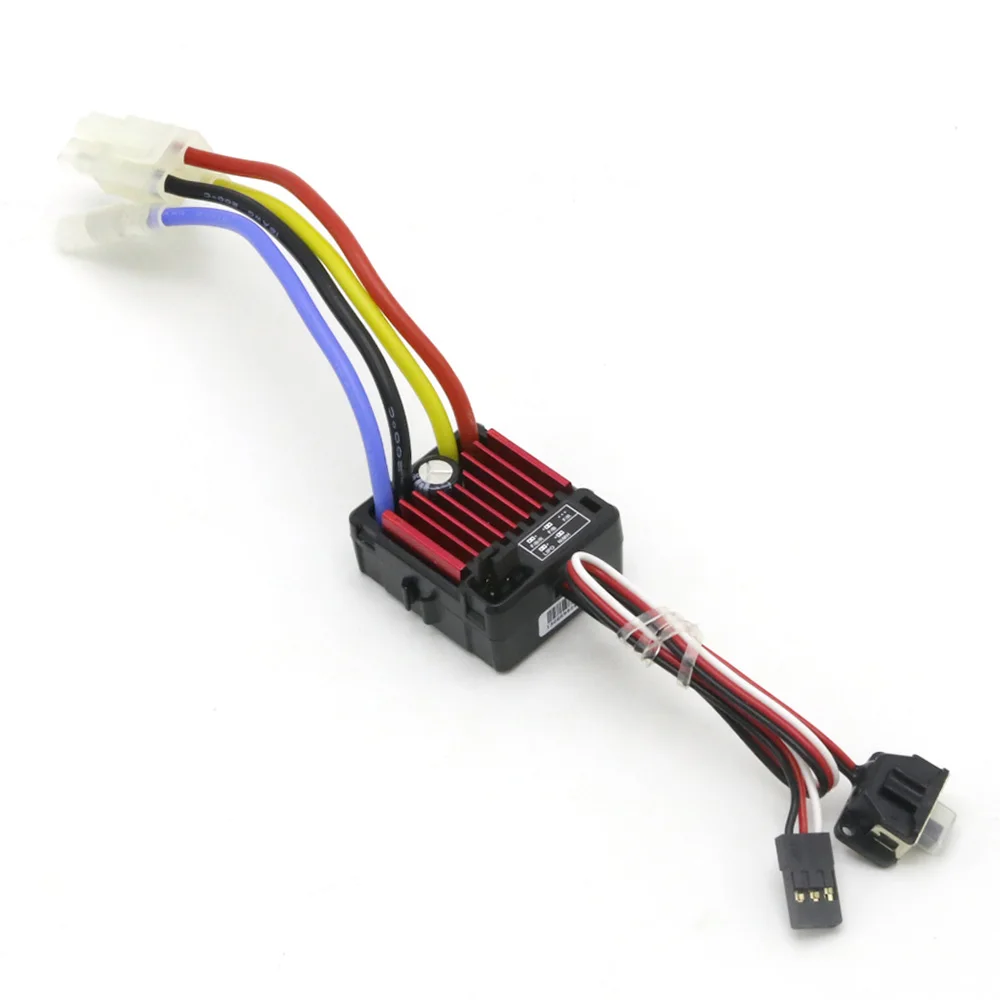

Waterproof Brushed 60A Electronic Speed Controller ESC 1060 for RC 1/10 Car
Features
100% brand new and high quality
Water-proof and dust-proof, suitable for all-weather condition races.
Compact size, suitable for various car chassis.
Small size with built-in capacitor module.
Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
Great current endurance capability.
Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.

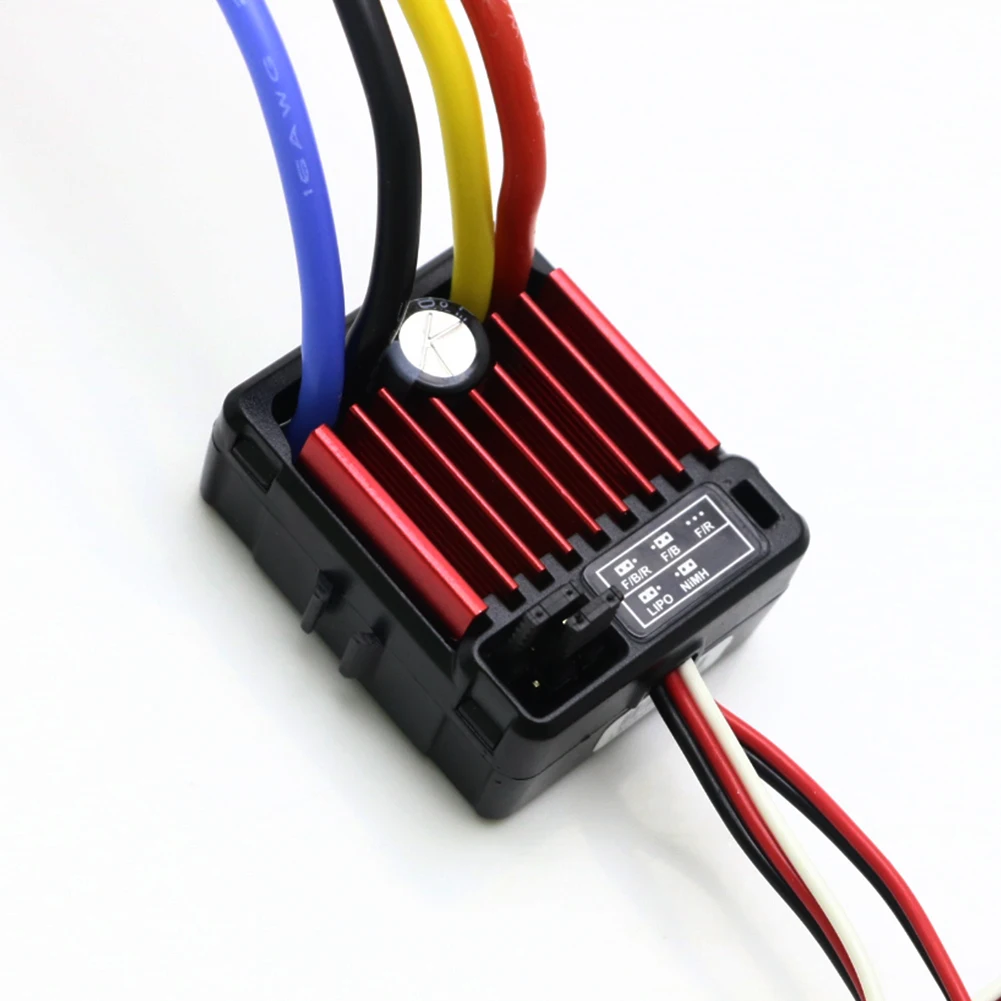

Easy to set the ESC parameters with jumpers.
Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.
Excellent operating feelings and plentiful adjustment options, suitable for most kinds of competitions.
Specifications:
Model: 1060-BRUSHED
Fwd. Cont. / Peak Current: 60A /360A
Rev. Cont. / Peak Current: 30A /180A
Voltage Range: 2-3S Lipo or 5-9 NiMH
Cars Applicable: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
Motor Limit:
2S Lipo or 6 NiMH
540 or 550 Size Motor: ≥12T Or RPM<30000 7.2V
3S Lipo or 9 NiMH
540 or 550 Size Motor: ≥18T Or RPM< 20000 7.2V
4S Lipo or 12 NiMH
Not Available
Resistance: Fwd 0.001Ω, Rev 0.002Ω
BEC Output: 2A/5V (Linear Mode)
PWM Frequency: 1KHz
Dimension / Weight: 36.5*32*18 / 39g
Cooling Fan: Without cooling fan
Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
Net Weight: 122g
