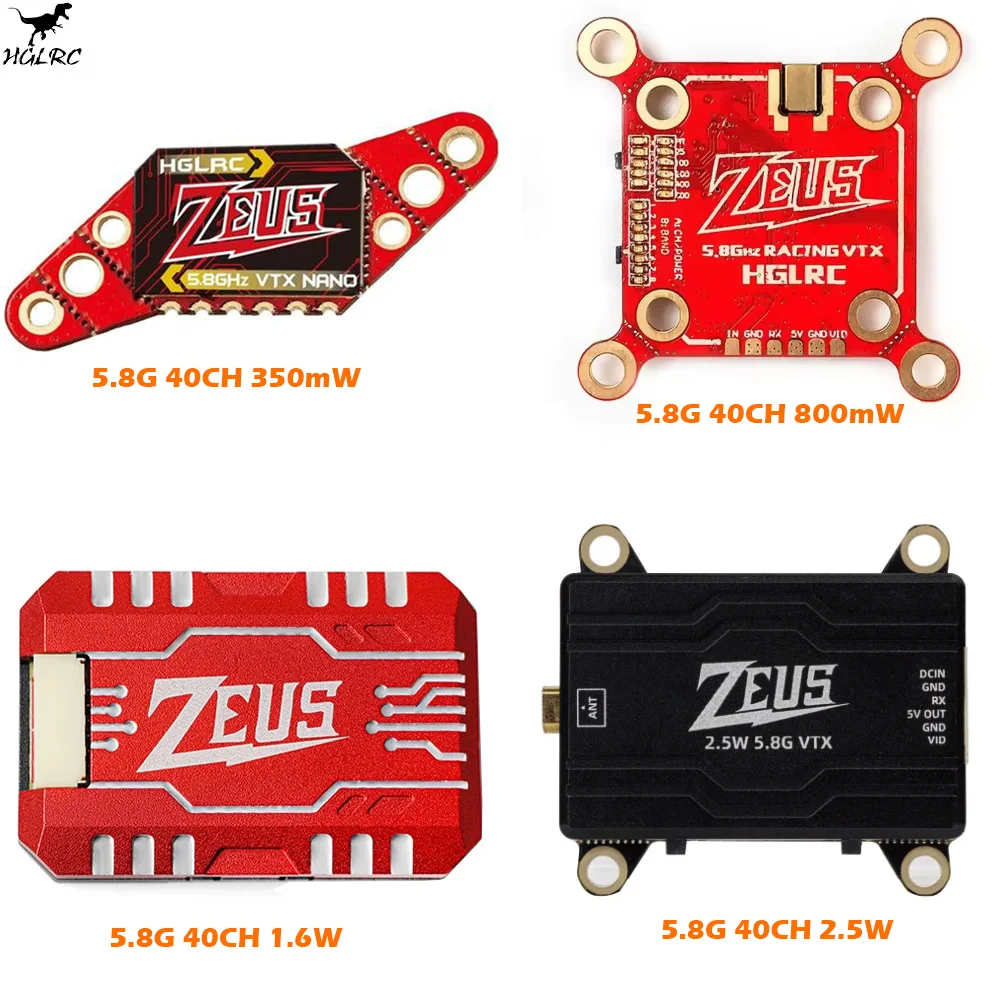

HGLRC Zeus VTX 350mW / 800mW / 1.6W / 2.5W FPV 5.8G 2.4G 40CH Built-in Microphone Transmitter For RC FPV Racing Freestyle Drone
Price range: $142.14 through $327.46
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: HGLRC Zeus 2.5W VTX
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Radio Systems
Recommend Age: 14+y
Remote Control Peripherals/Devices: HGLRC Zeus 350mW VTX
Size: 40x35x11.8mm
Technical parameters: value 2
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: HGLRC Zeus 800mW VTX
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

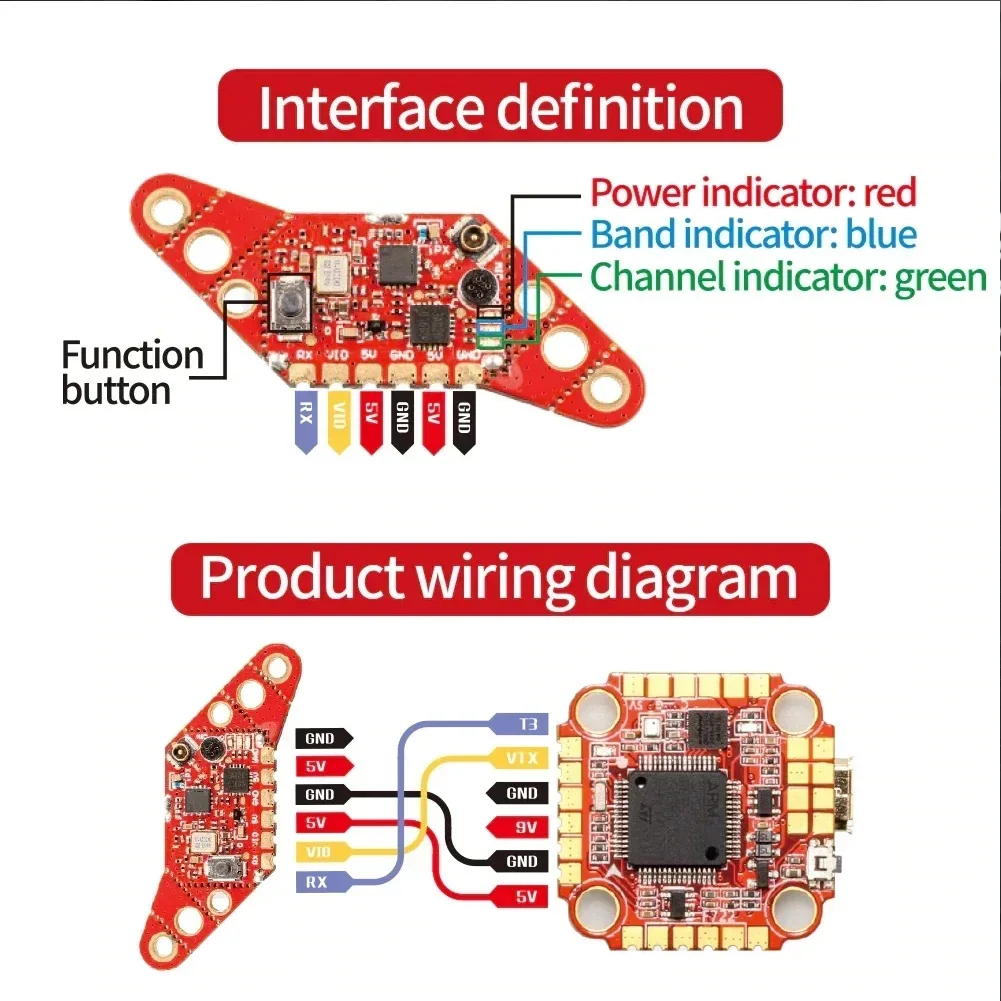

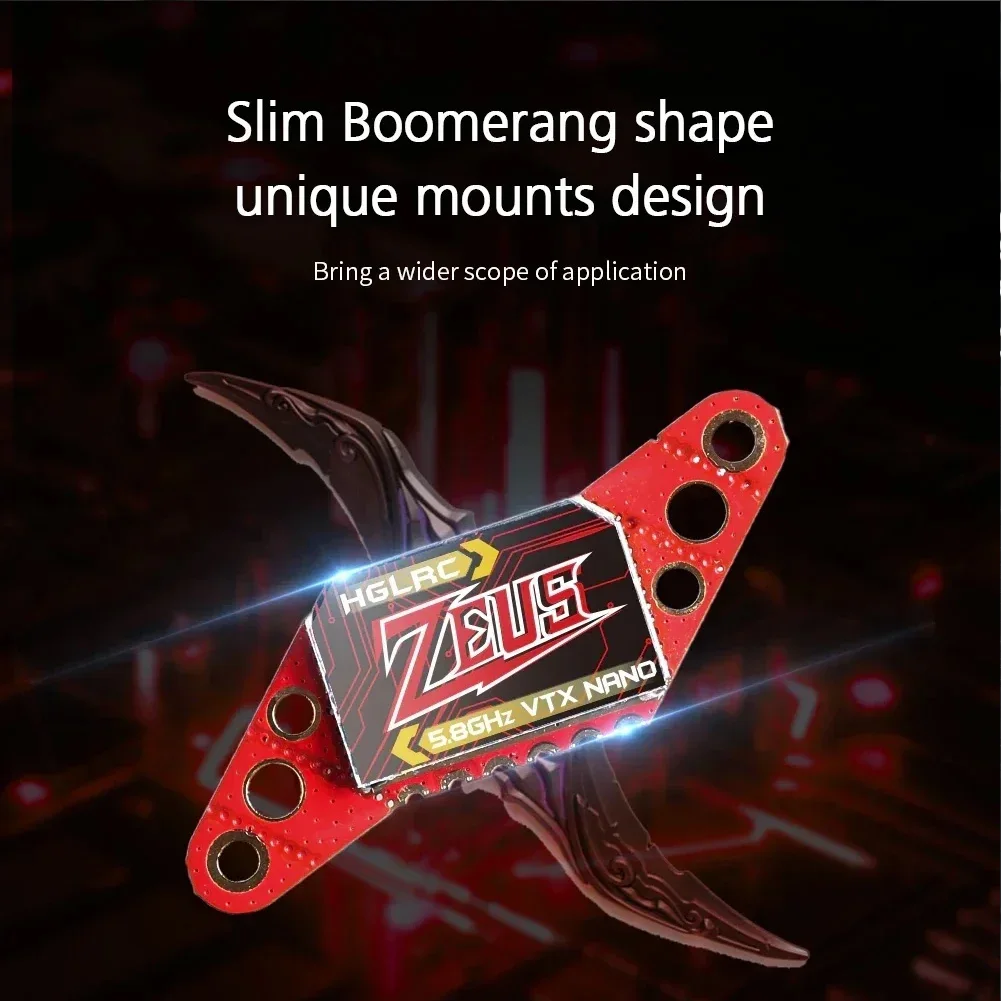

Product name: Zeus nano VTX

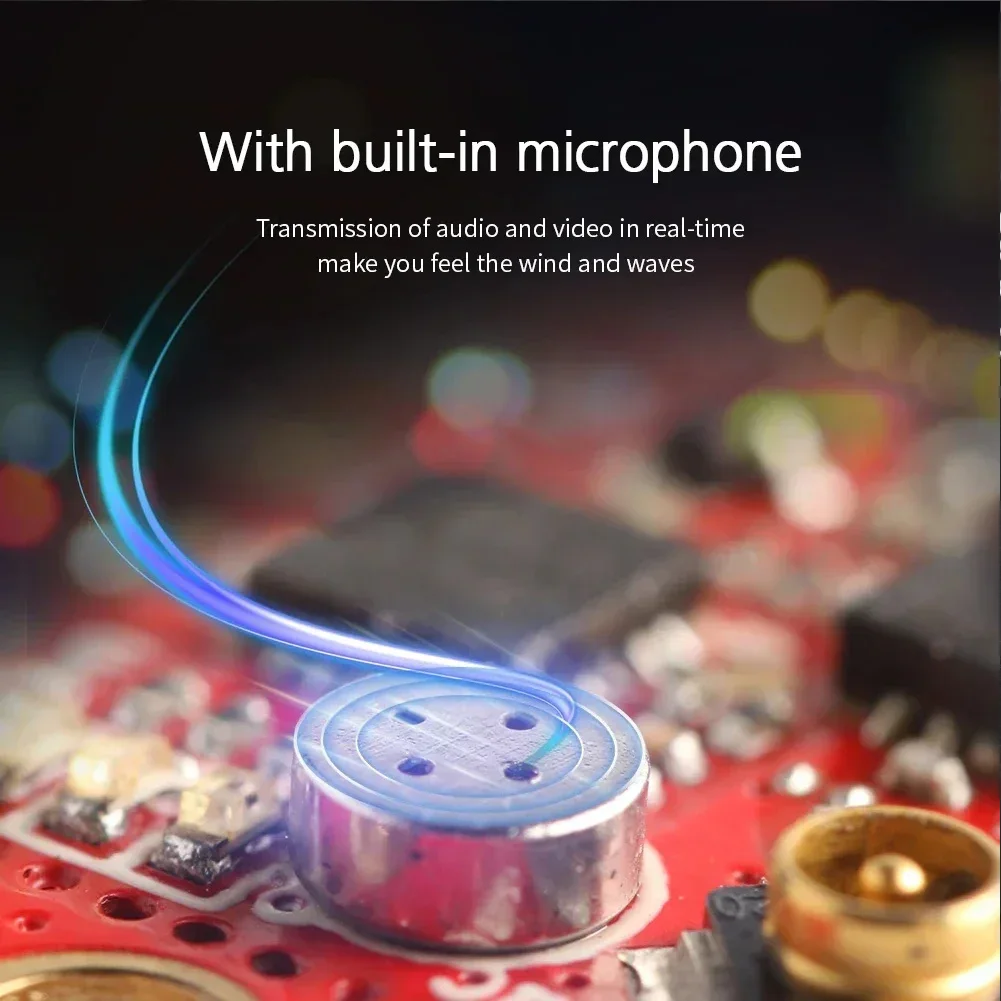

Built-in microphone
Support voltage: DC 5V
PIT@75mA
25mW@180mA/16dBm
100mW@280mA/21.5dBm
200mW@330mA/24.5dBm
350mW@400mA/27.5dBm
Antenna interface: ipex
Output power: PIT/25/100/200/350mW

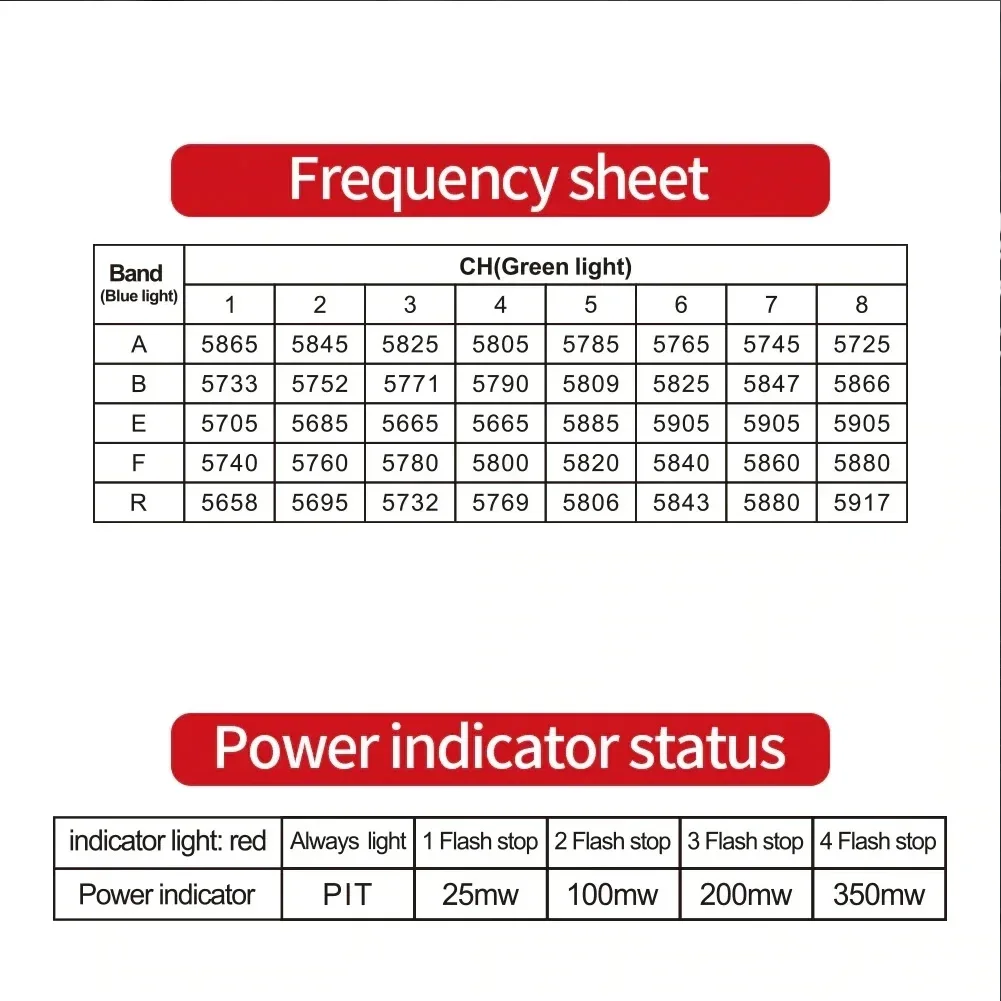

Standard 40 channels. A/B/E/F/R frequency group
Mounting hole: 16X16 / 25.5X25.5mm.M2 / 20X20mm.M3
Size: 18.6mm x 13.6mm x 6mm
Weight: 2.4g
Product List:
1 x Zeus nano VTX
1 x ipex interface copper tube antenna
1 x ipex to SMA adapter
6 x video transmission cable

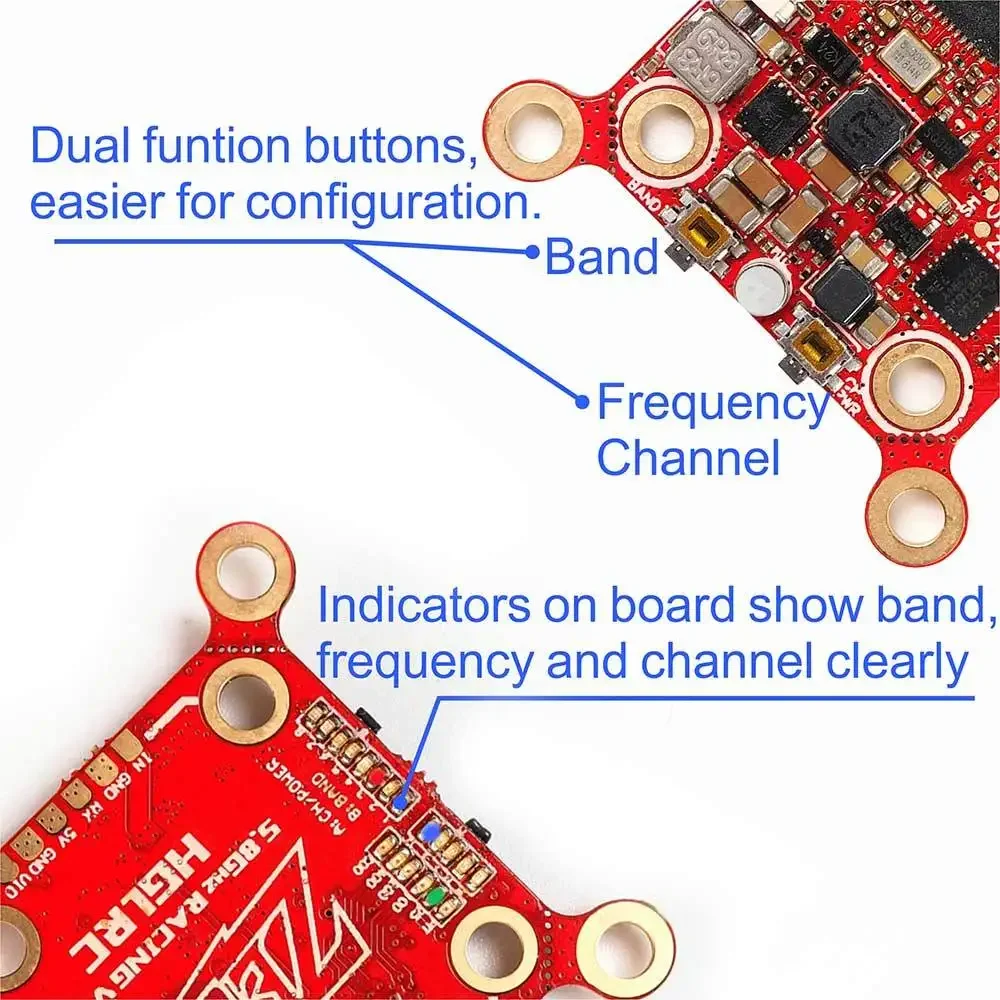

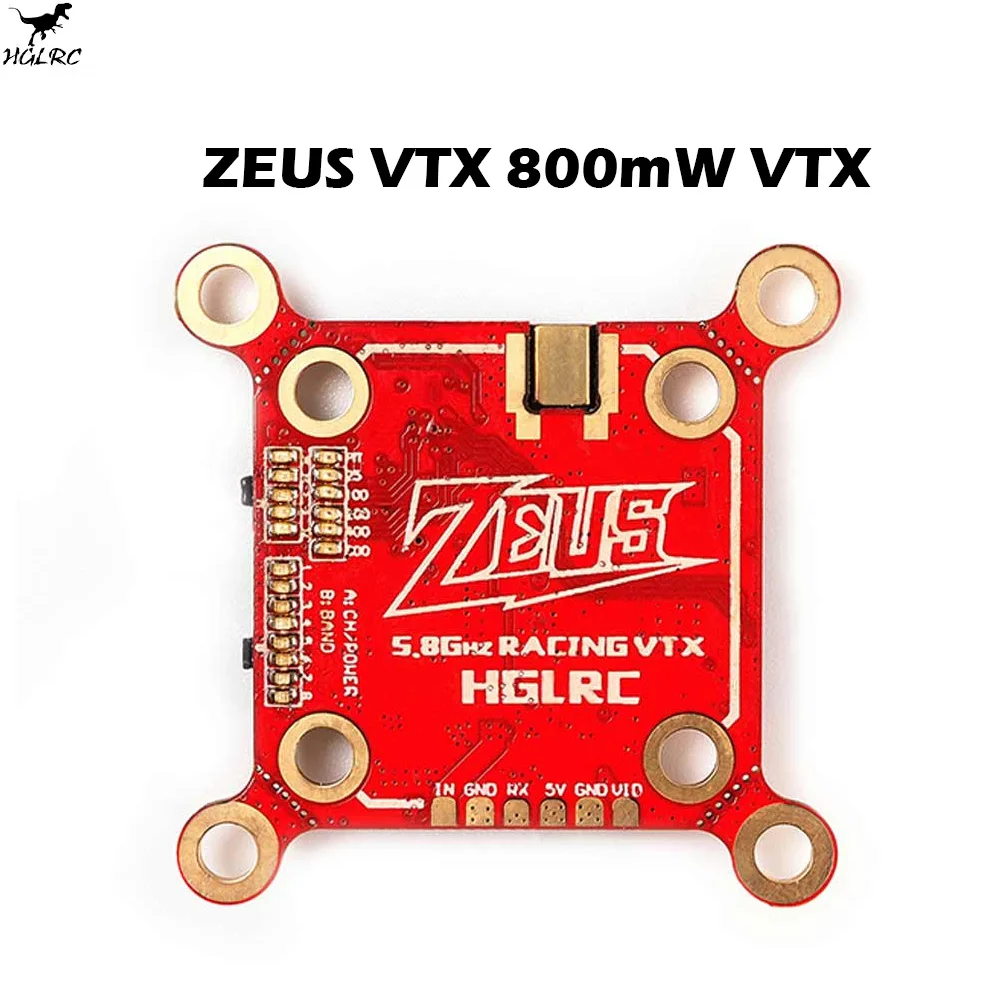

Model:Zeus VTX 800mW
Built-in Microphone
Input voltage:DC 6-26V
Output voltage:5V/2A
PIT@94mA
25mW@169mA/14dBm
100mW@199mA/20dBm
200mW@216mA/23dBm
400mW@279mA/26dBm
800mW@387mA/29dBm
Antenna interface:MMCX
Output power:PIT/25/100/200/400/800mW

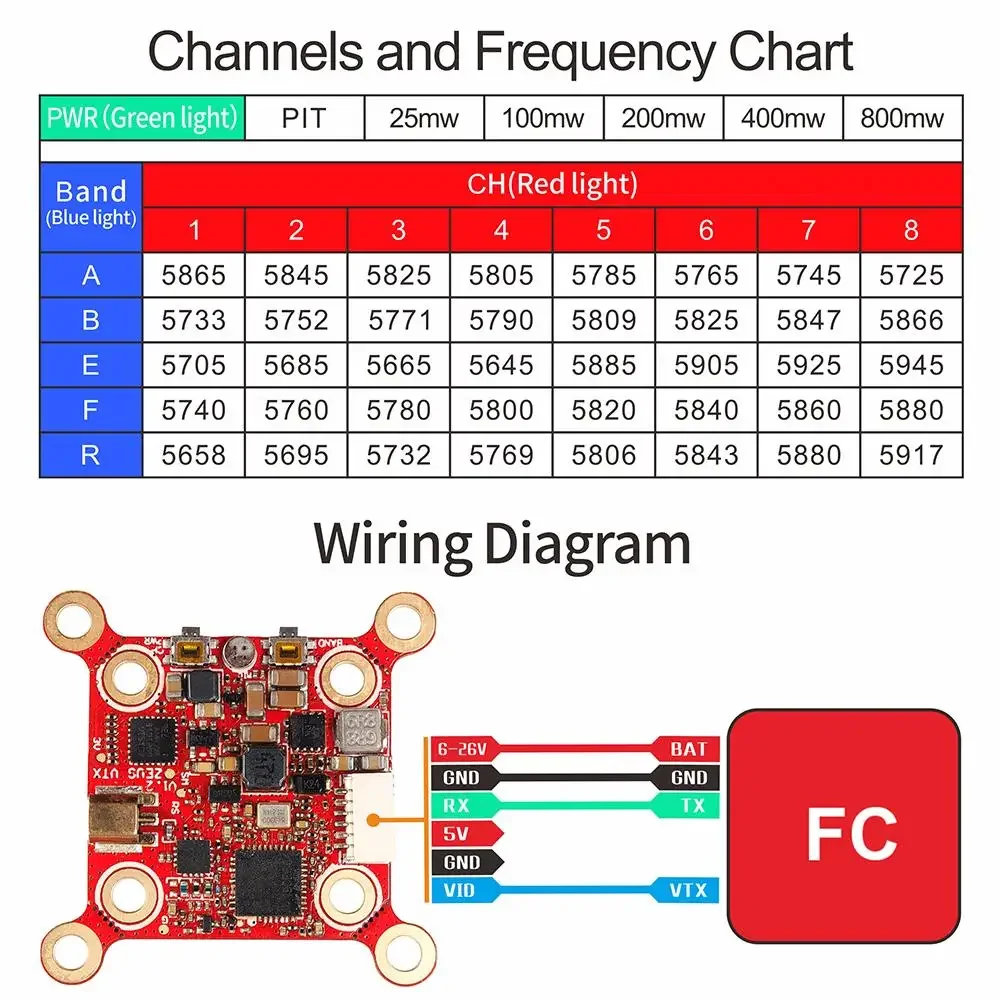

Frequency:5.8GHz 5 bands, 40 channels

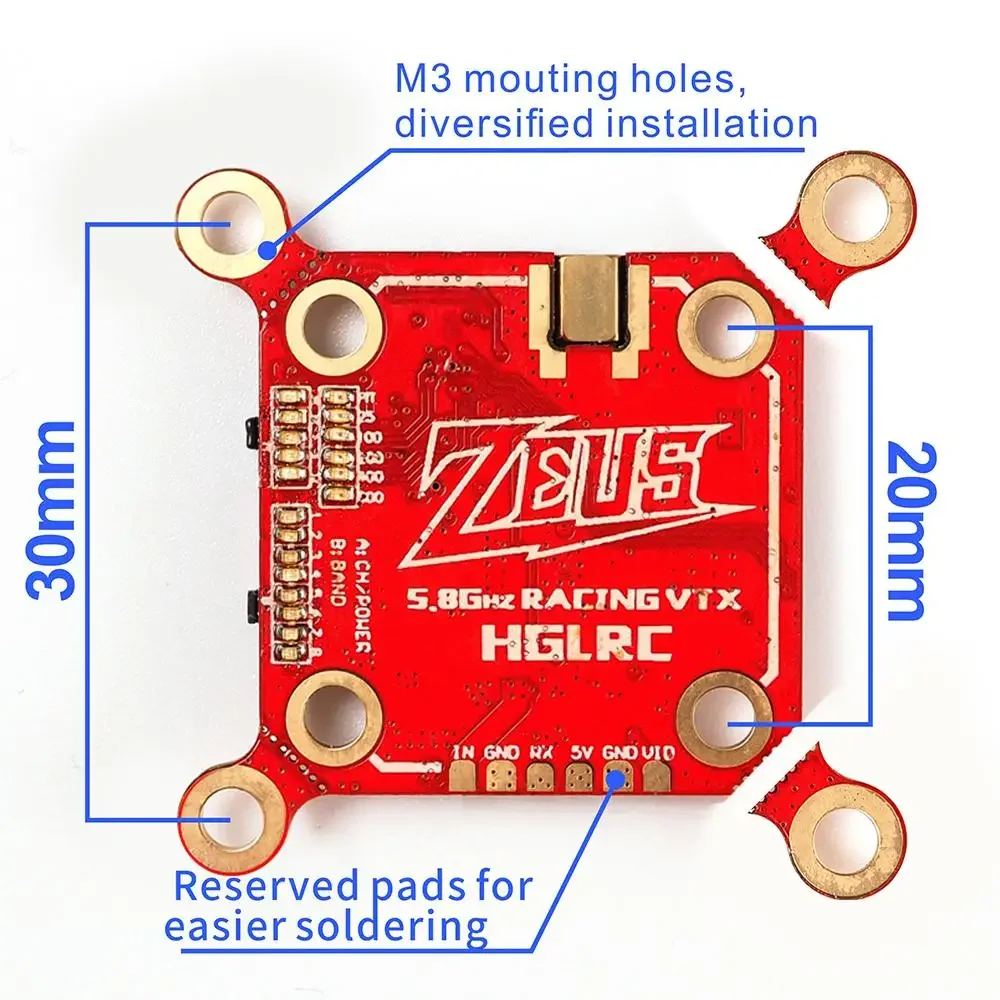

Installing Hole:20X20/30X30mm.M3
Size:37mm x 37mm x 5mm
Weight:4.8g
Package Included:
1 x Zeus VTX 800mW
1 x 80mm 5.8G MMCXLinear Brass Antenna
1 x SH1.0 6Pin 100mm Cable
1 x MMCX to SMA-KY Adapter Cable

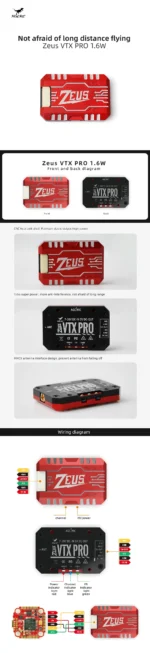

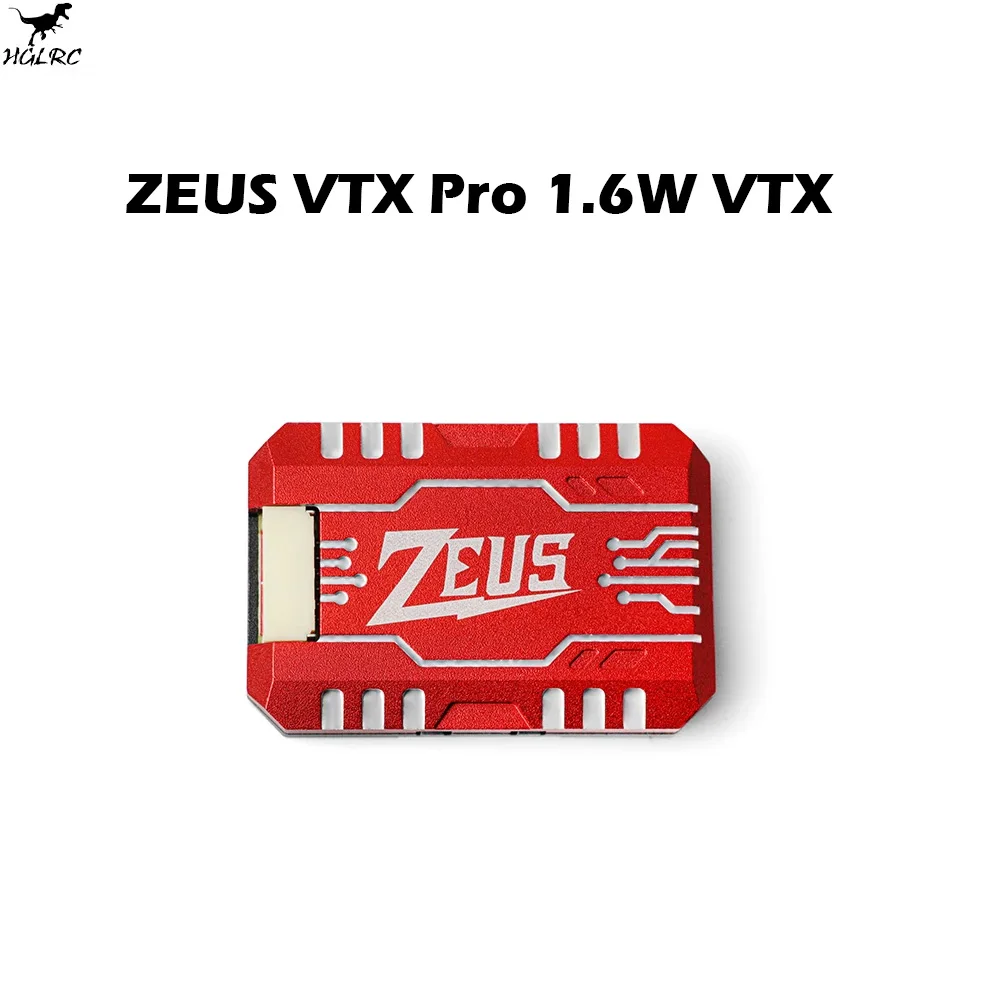

Item: HGLRC Zeus VTX PRO 1.6W 5.8G
Parameters:
Model:Zeus VTX PRO 1.6W
Built-in Microphone
Input voltage:DC 7-36V
Output voltage:5V/500mA
PIT
25mW/13.95dBm
400mW/26.02dBm
800mW/29.03dBm
1.6W/32.04dBm
Antenna interface:MMCX
Output power:PIT/25/400/800/1.6W
Standard 40 channels. A/B/E/F/R frequency group
Installing Hole:20X20.M2
Size:25mm x 37mm x 6.5mm
Weight:13g
Package Included:
1 x Zeus VTX PRO 1.6W
1 x 80mm 5.8G MMCX Linear Brass Antenna
1 x MMCX to SMA 100mm Adapter Cable
1 x GH1.25 6Pin 100mm Cable

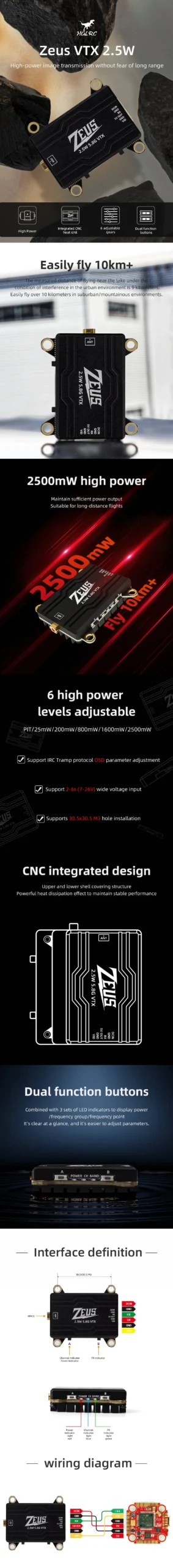

Product name: Zeus VTX 2.5W
Support voltage: DC 7-26V (2-6S)
BEC: 5V/800mA
Antenna interface: MMCX
Cable interface: GH1.25 6P
Video format: PAL/NTSC
Standard 40 channels: A/B/E/F/R frequency group
Protocol: IRC Tramp
Output power: PIT/25/200/800/1600mW/2500mW
PitMode/0dbm
25mW/13.95dBm
200mW/23.01dBm
800mW/29.03dBm
1.6W/32.04dBm
2.5W/33.98dBm
Installation hole position: 30.5*30.5*M3
Dimensions (L*W*H): 40mm x 35mm x 11.8mm
Weight: 19.6g

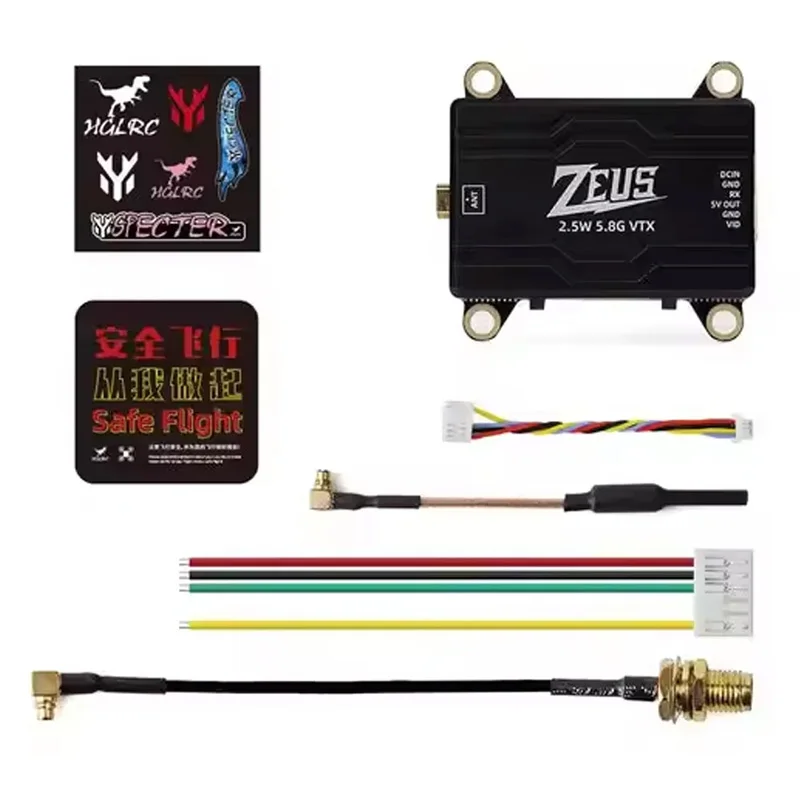

Product List:
1x Zeus VTX 2.5W
1 x MMCX 80mm copper tube antenna
1 x MMCX to SMA 100mm adapter
1 x GH1.25 6Pin 100mm single-ended cable
1 x SH1.0 4Pin-GH1.25 6Pin 60mm double-ended cable
| Color | 2.5w VTX, 1.6w VTX, 800mw VTX, 300mw VTX |
|---|
