NOTE:After receiving the goods, please do not weld first, connect it to BF first, and ensure that all functions of the sensor are normally welded. If you have any questions, please contact customer service at the first time. Please read the above carefully to avoid unnecessary disputes.

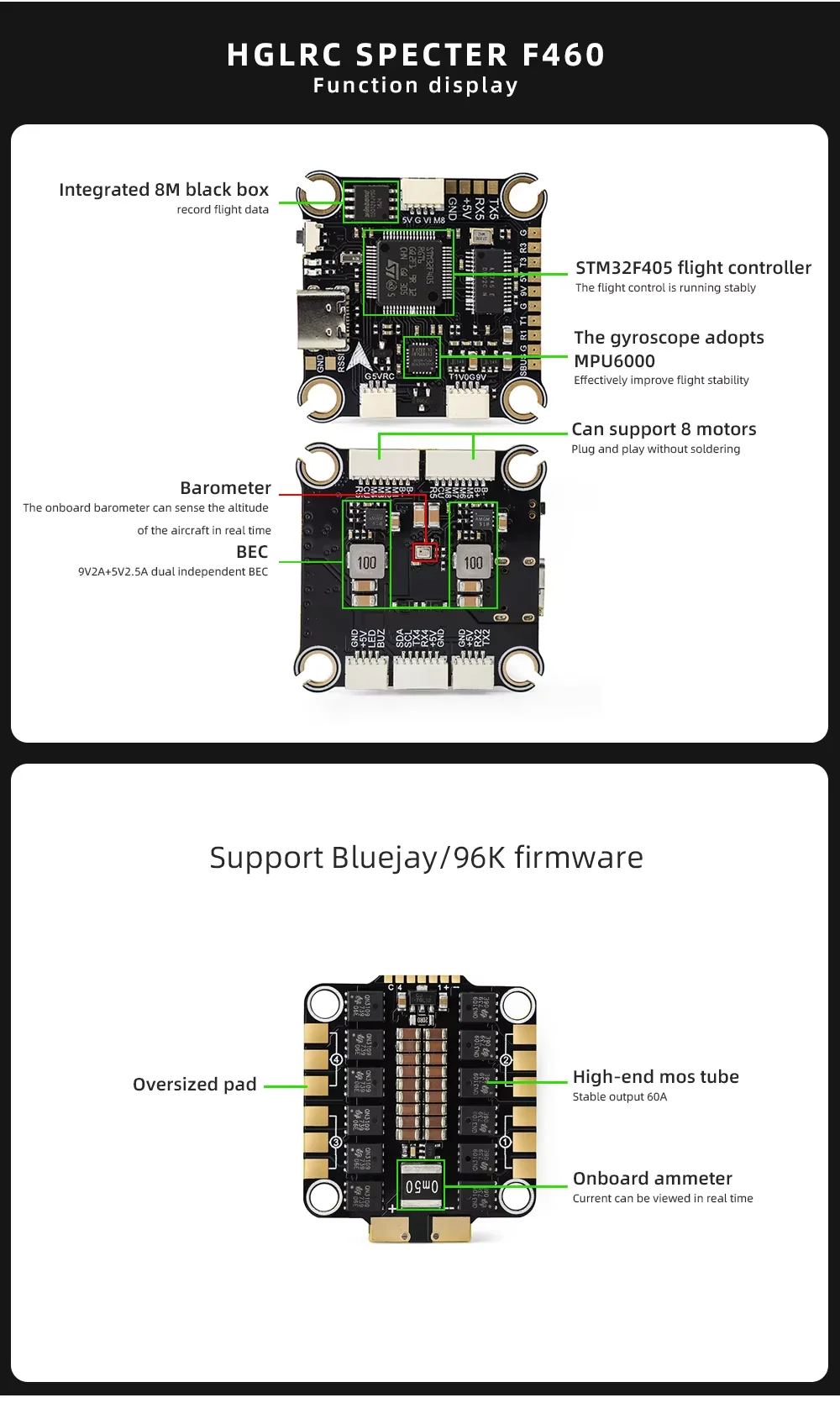

Features:

The flight control adopts the extremely stable MPU6000 gyroscope;

The flight control main control chip adopts F405 chip, and the serial port supports up to 4 groups, with fast operation speed and smoother control;

The main chip of the ESC selects a new imported FD6288 processor, which is matched with ON3109 high-performance MOS, and can continuously withstand current and stabilize output;

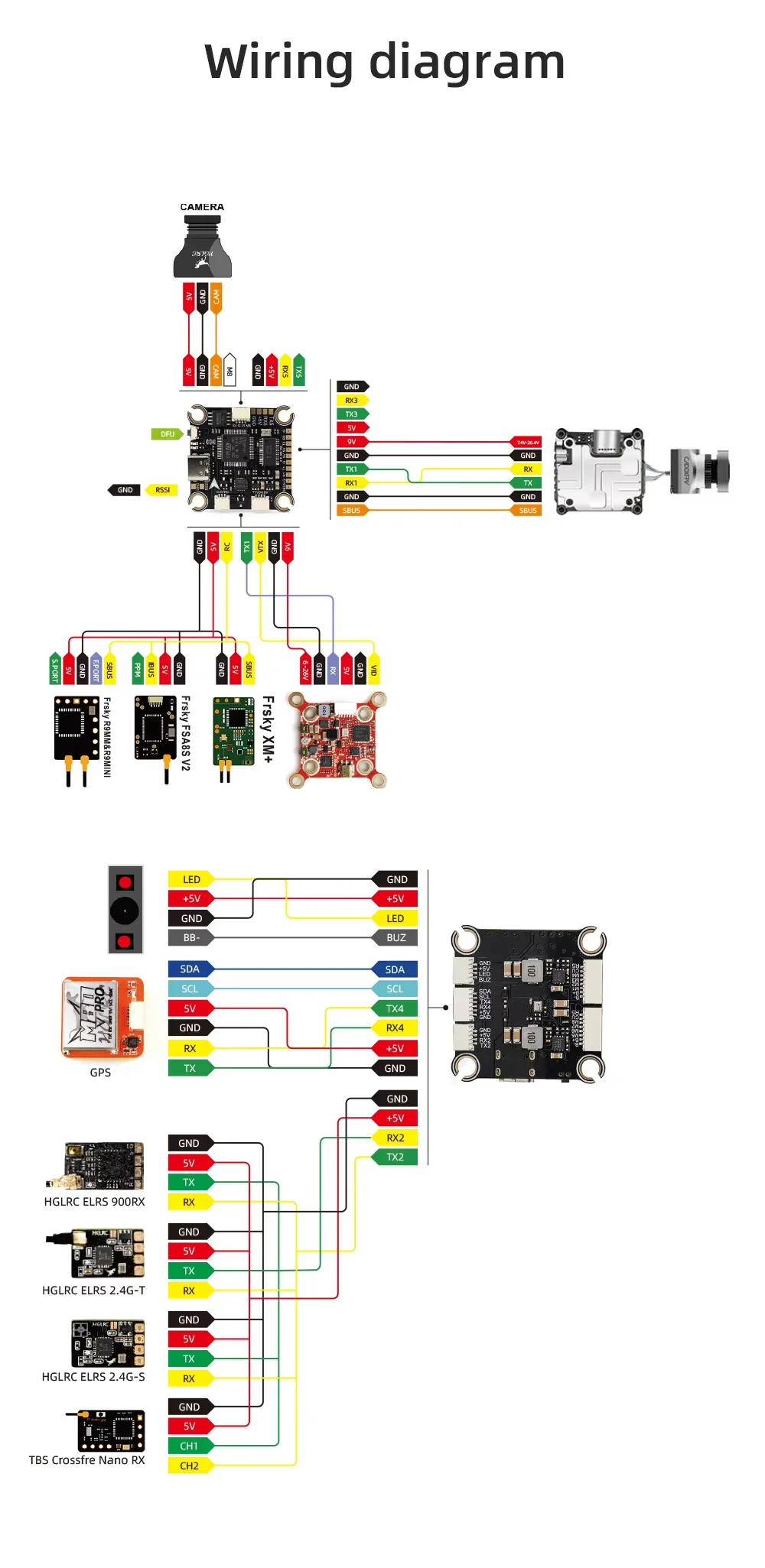

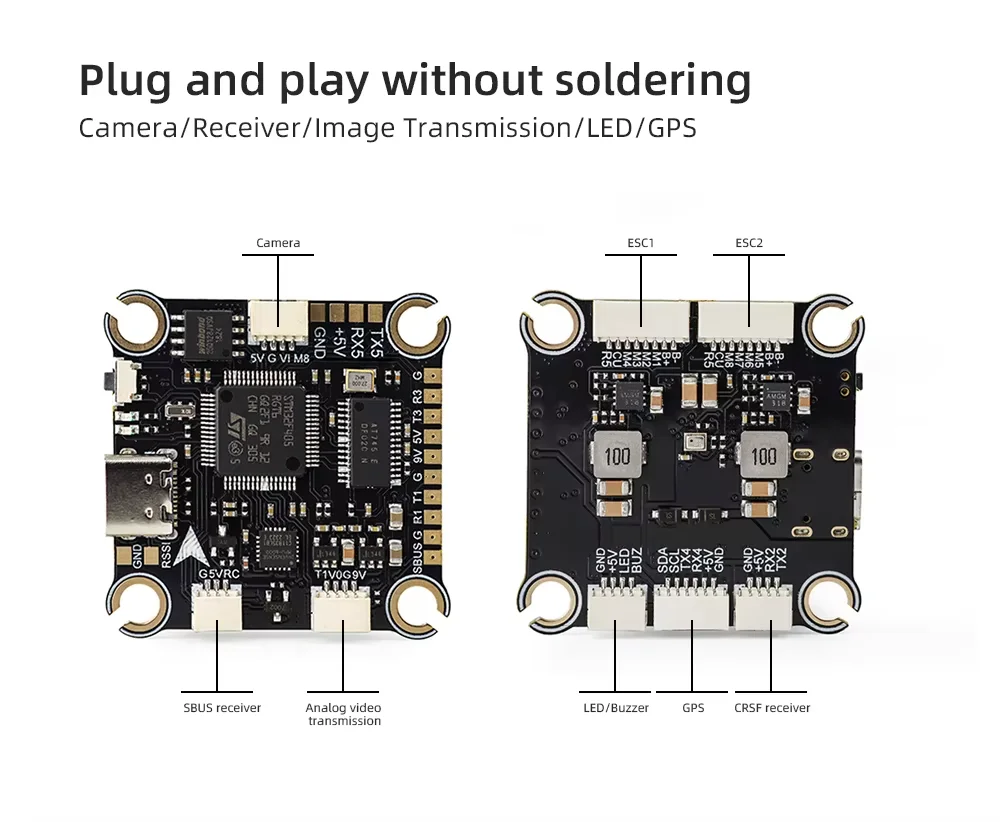

It can be quickly connected to the camera/receiver/image transmission/LED/GPS through the socket, no welding required;

Maximum support for BEC 9V2A/BEC 5V2.5A, which can provide stable voltage and current output to external devices;

Immersion gold high-tech design is temperature-resistant and current-resistant, the ESC has a large pad, and the flight controller is directly plugged in, so there is no trouble in welding;

Integrated 16M black box, can record flight data;

Onboard galvanometer module, real-time viewing of data such as current feedback through the flight control;

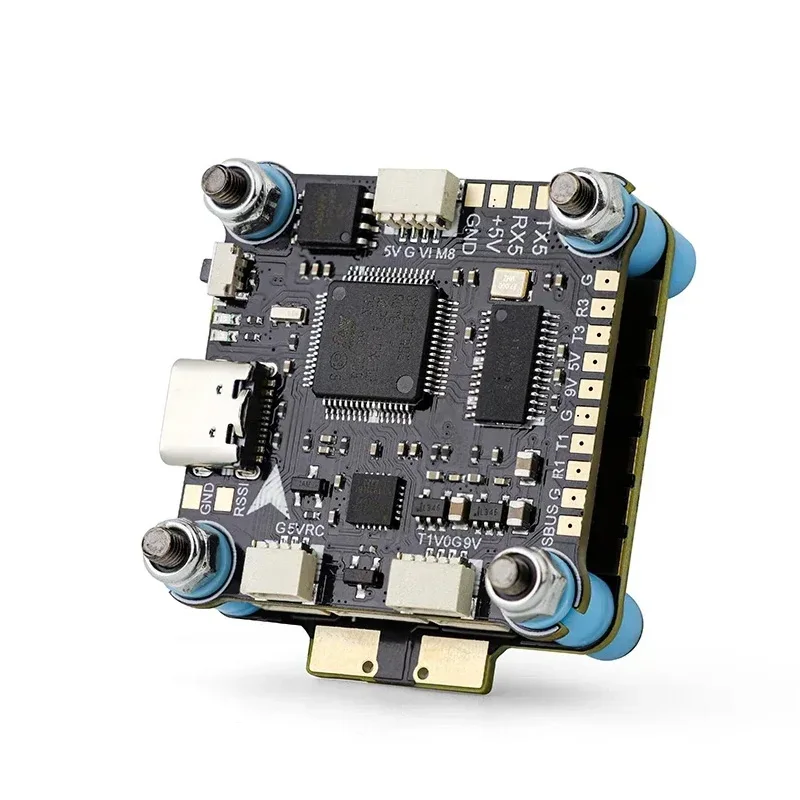

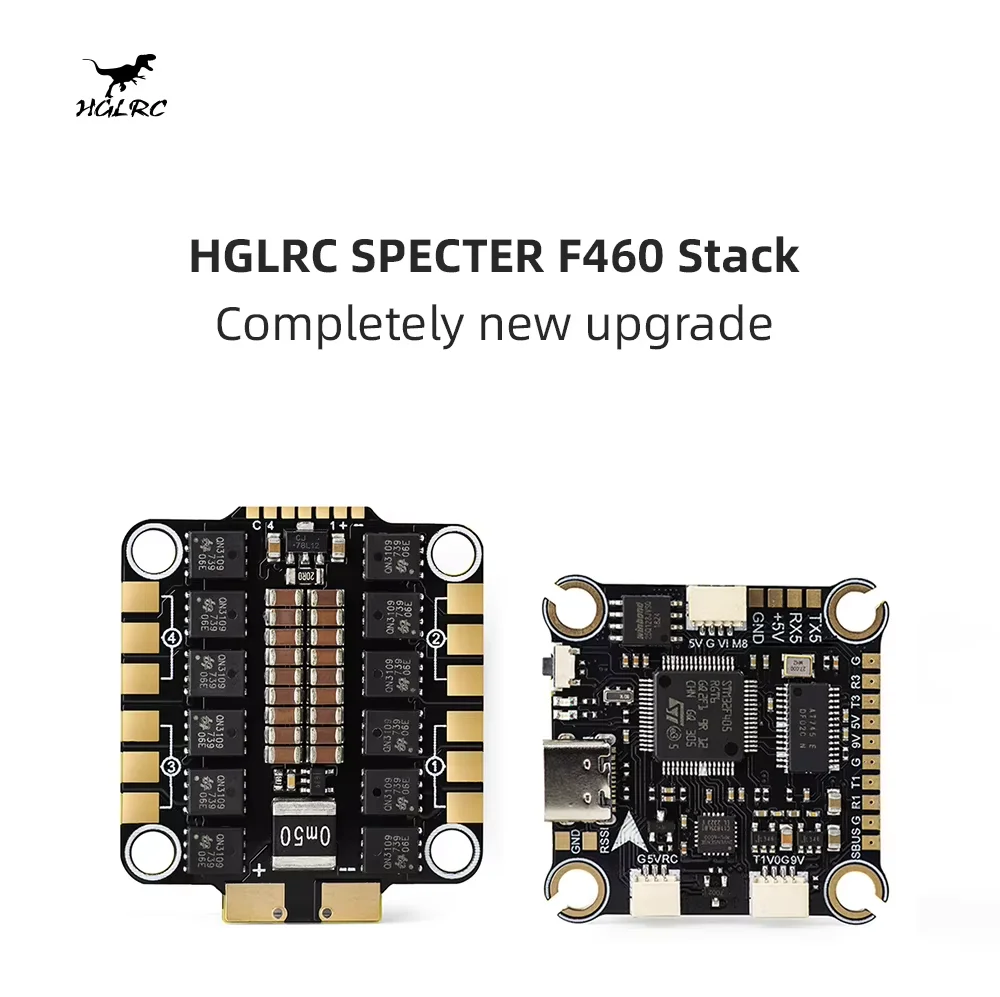

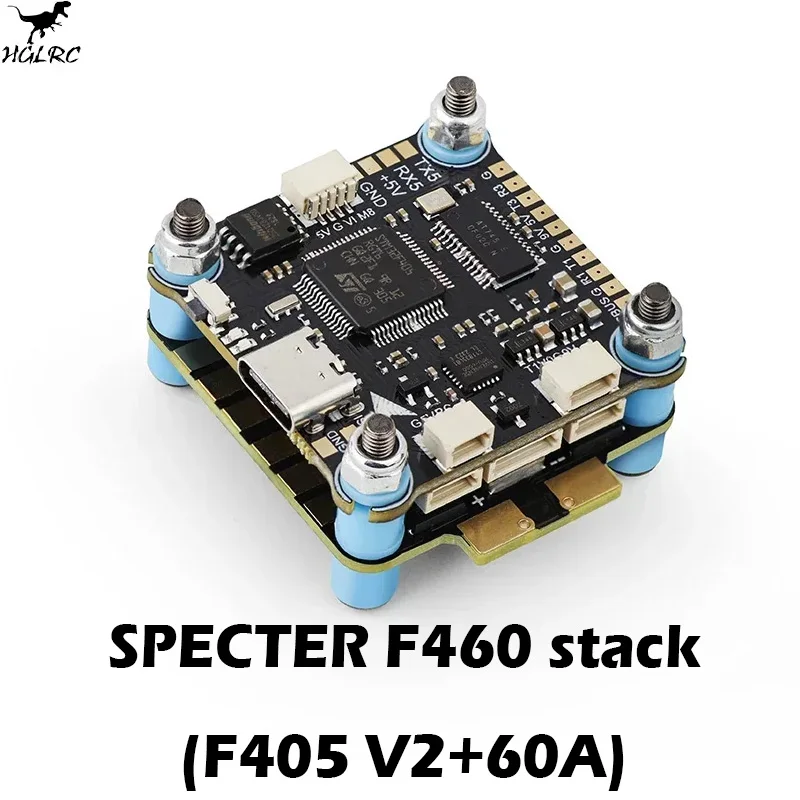

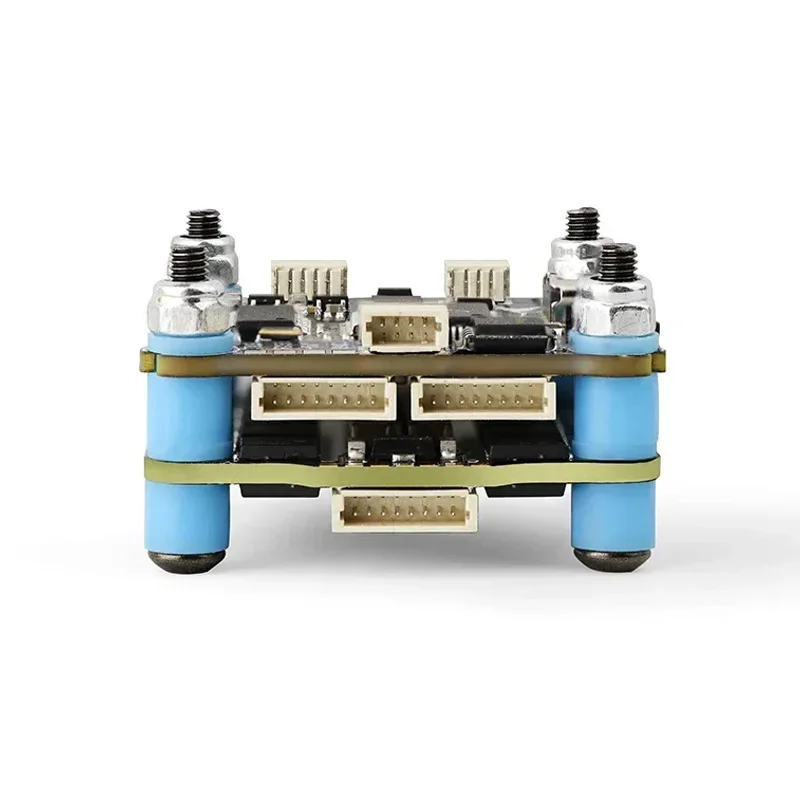

Item Name:HGLRC SPECTER F460 STACK

Input Voltage:2-6S Lipo (7.4V-22.8V)

Installing Hole:30.5×30.5mm, M3

Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot

Weight:29g

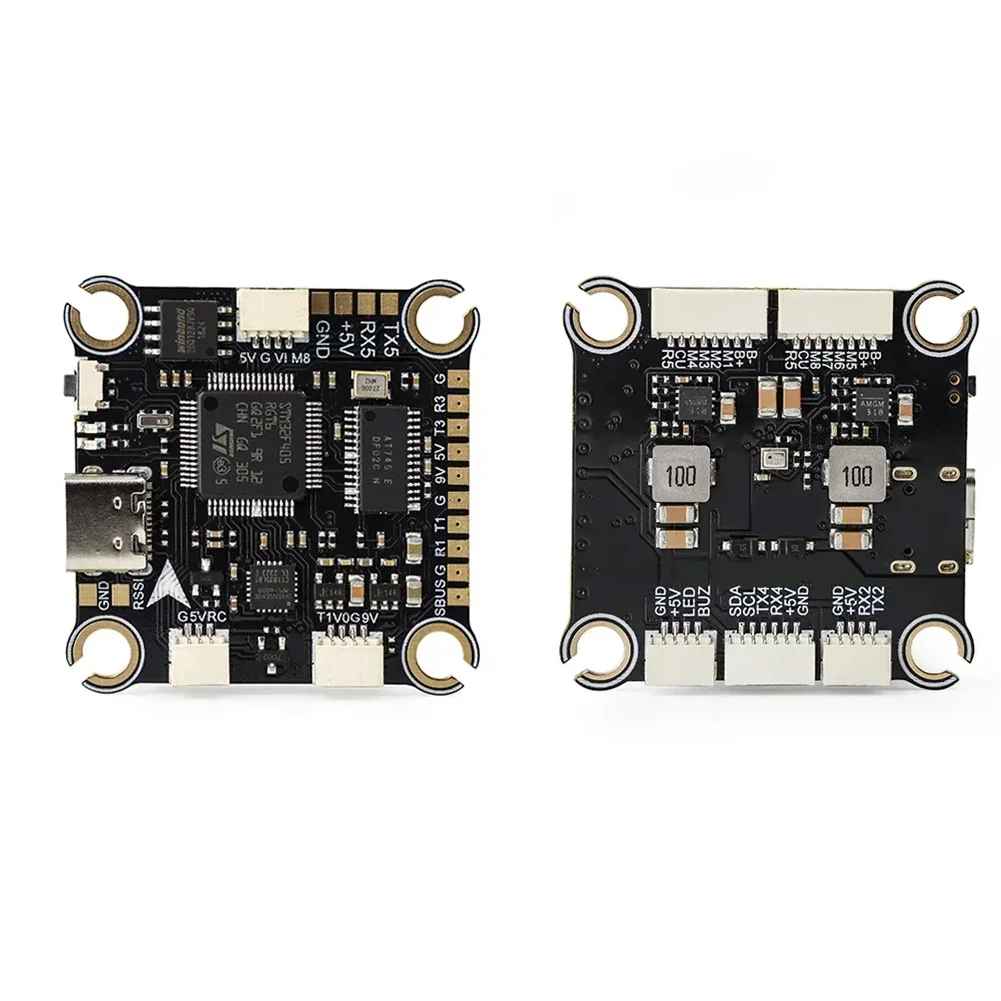

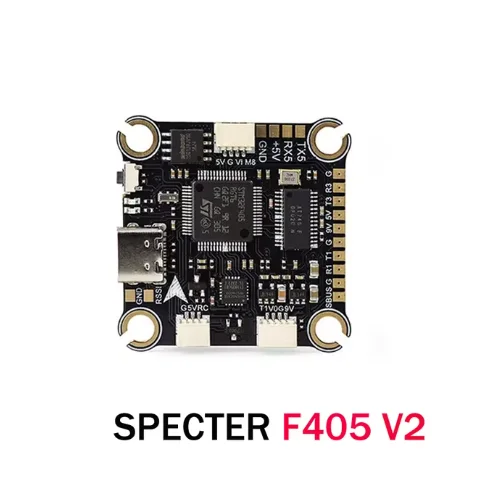

SPECTER F405 FC

MCU:STM32F405

GYRO:MPU6000

OSD:AT7456E

Blackbox:16MB

UART:4

BEC:9V2A/5V2.5A

FC Firmware:HGLRCF405V2

Size:38mm*38mm

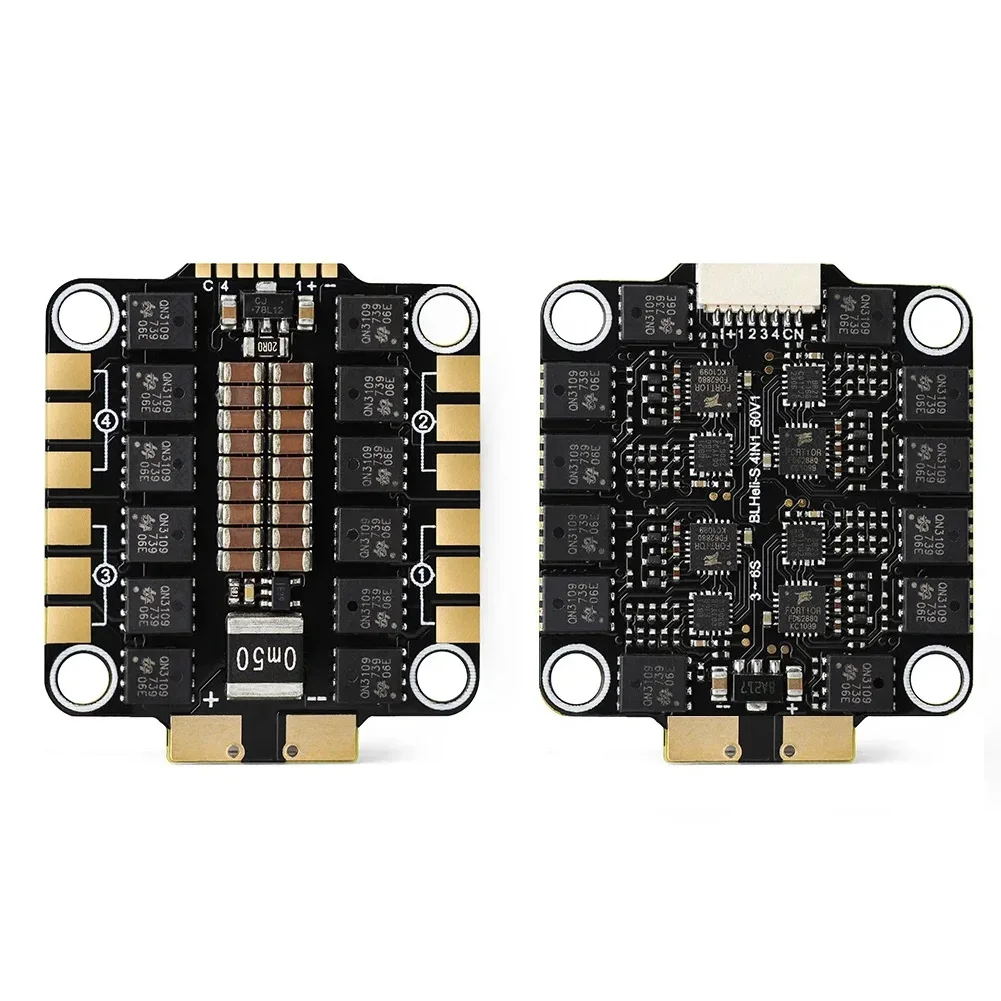

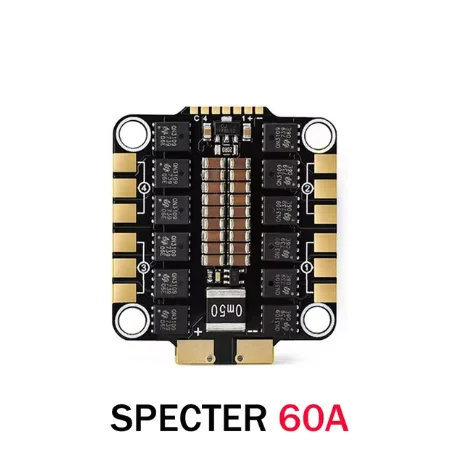

SPECTER 60A ESC

Constant Current:60A

Peak Current:70A(10s)

ESC Firmware:BL_S (J-H-30)

Size:37×42.7mm

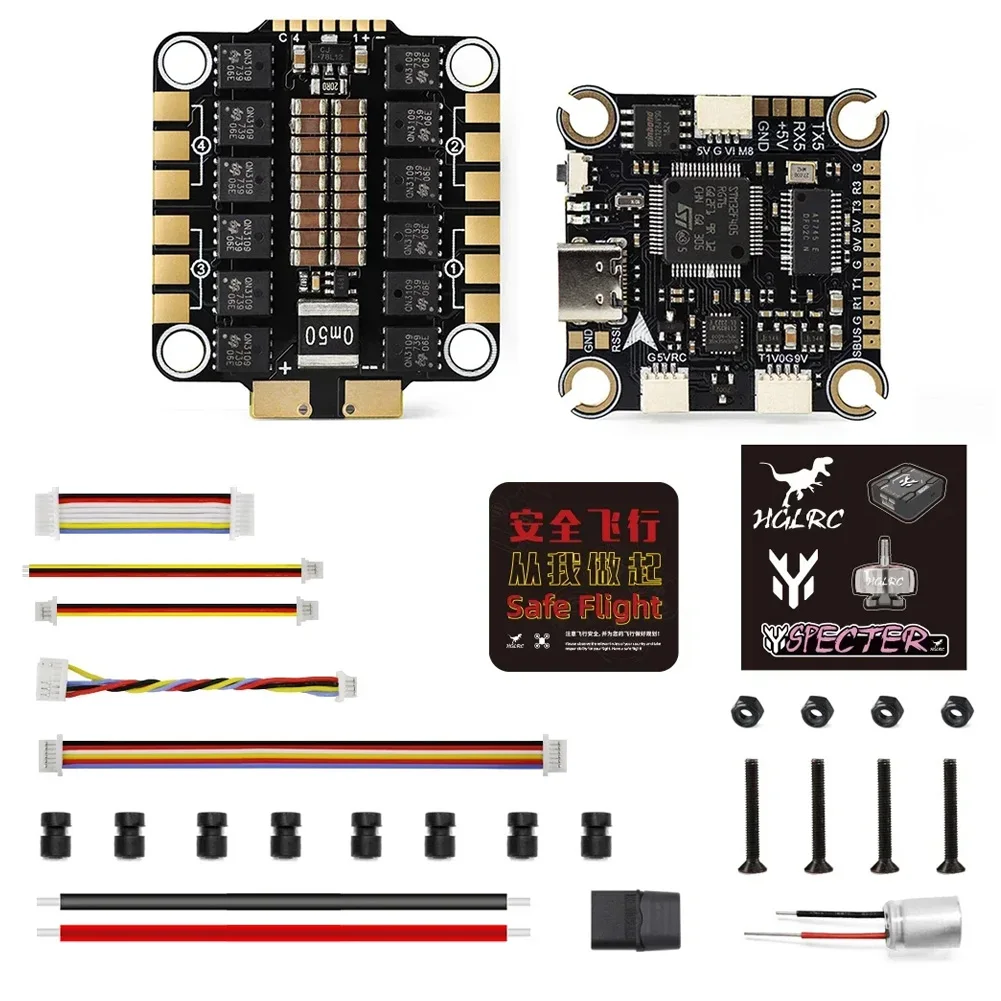

Package Includes:Ships according to the set you choose

1x HGLRC SPECTER 60A ESC

1x HGLRC SPECTRE F405 V2 FC

1x Accessory Bag
