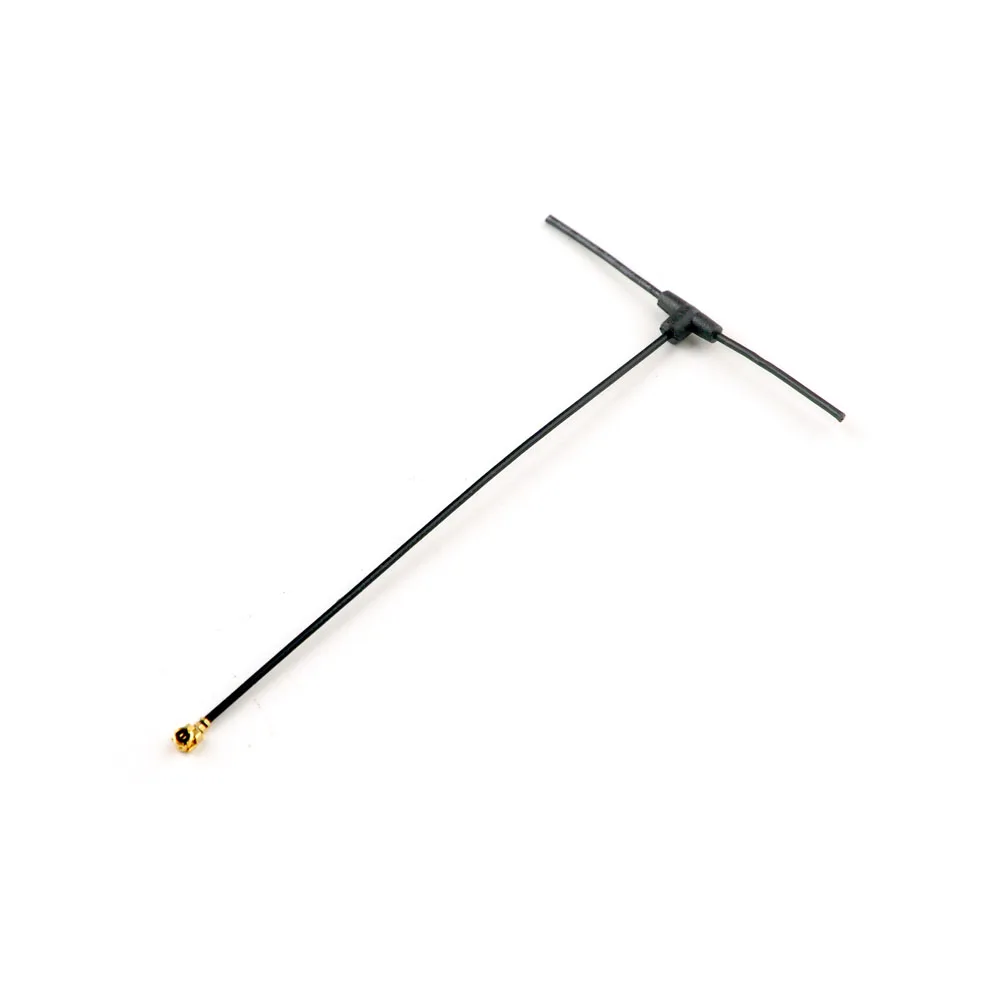

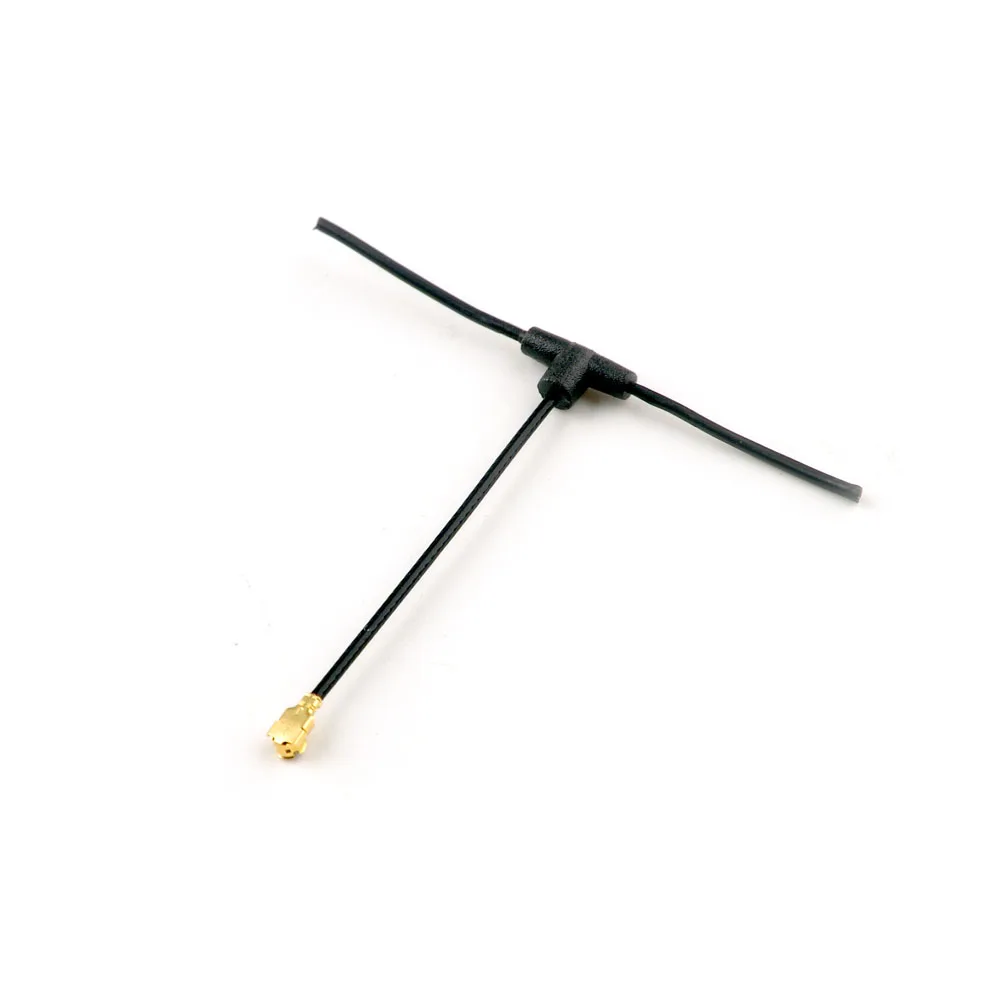

Happymodel 2.4G T Omnidirectional FPV Antenna 40MM/90MM IPX/U.FL For RC FPV ELRS EP1 EP2 Receiver RX TBS Tracer
Price range: $12.76 through $13.00
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: RX TBS Tracer
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: 2.4G T Omnidirectional
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Radio Systems
Recommend Age: 14+y
Remote Control Peripherals/Devices: Other
Size: 21.5mm x 16mm
Technical parameters: value 2
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: HappyModel FPV Antenna
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

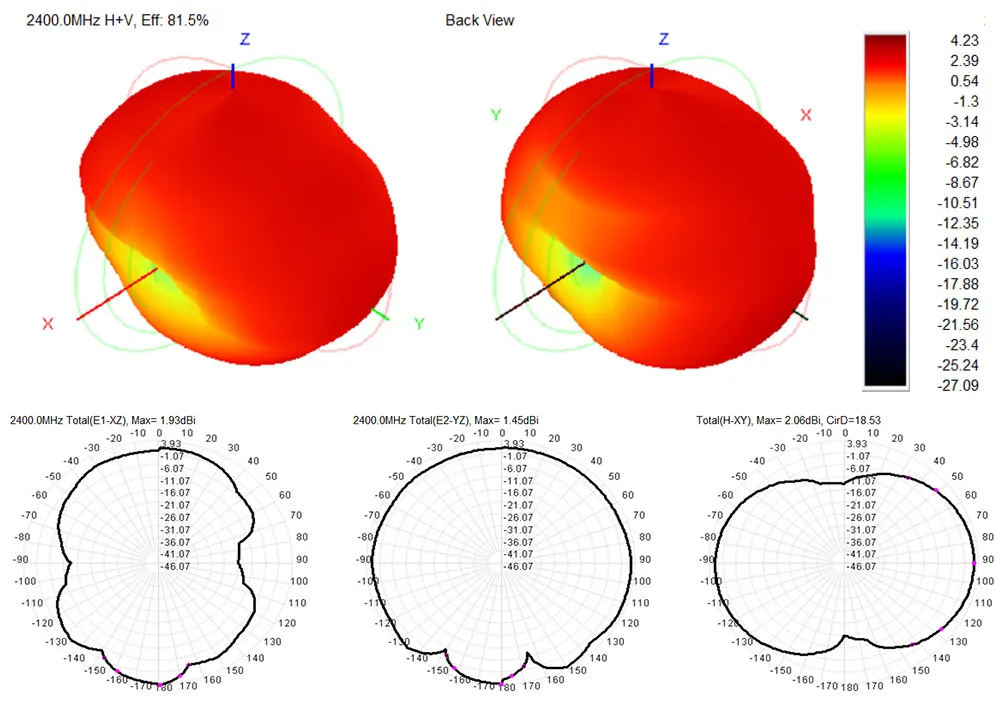

Frequency (MHz) 2400.0
Efficiency (dBi) -0.89
Gain (dBi) 2.23
Efficiency (%) 81.46
Directivity (dB) 5.12
Peak Gain Position (Theta) 180.00
Peak Gain Position (Phi) 330.00
Efficiency ThetaPol (%) 20.90
Efficiency PhiPol (%) 60.56
Upper Hem. Efficiency (%) 39.93
Lower Hem. Efficiency (%) 41.54
Connector IPX/U.FL
Antenna width 52mm

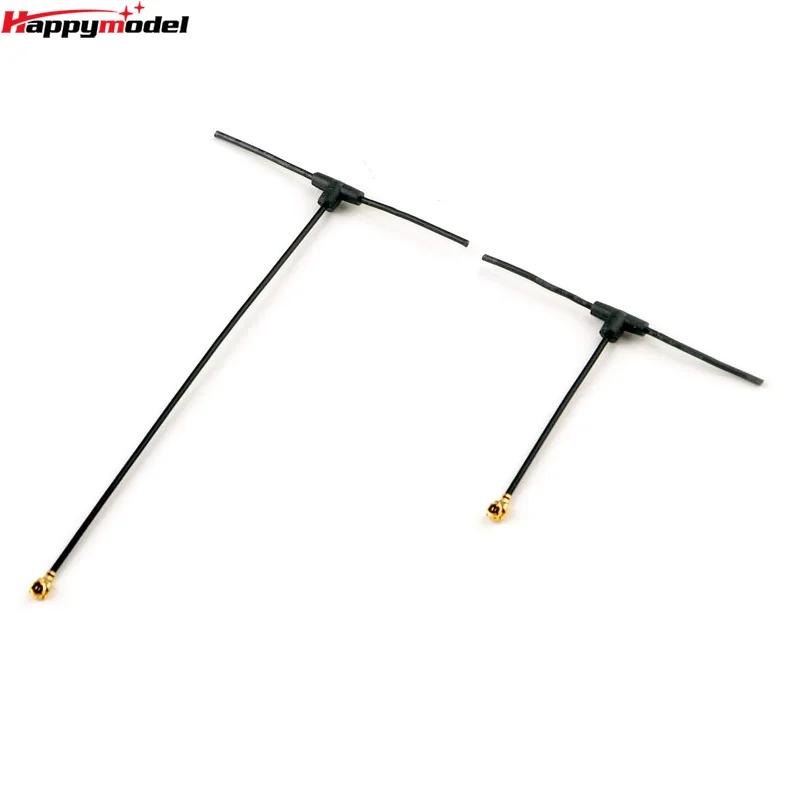

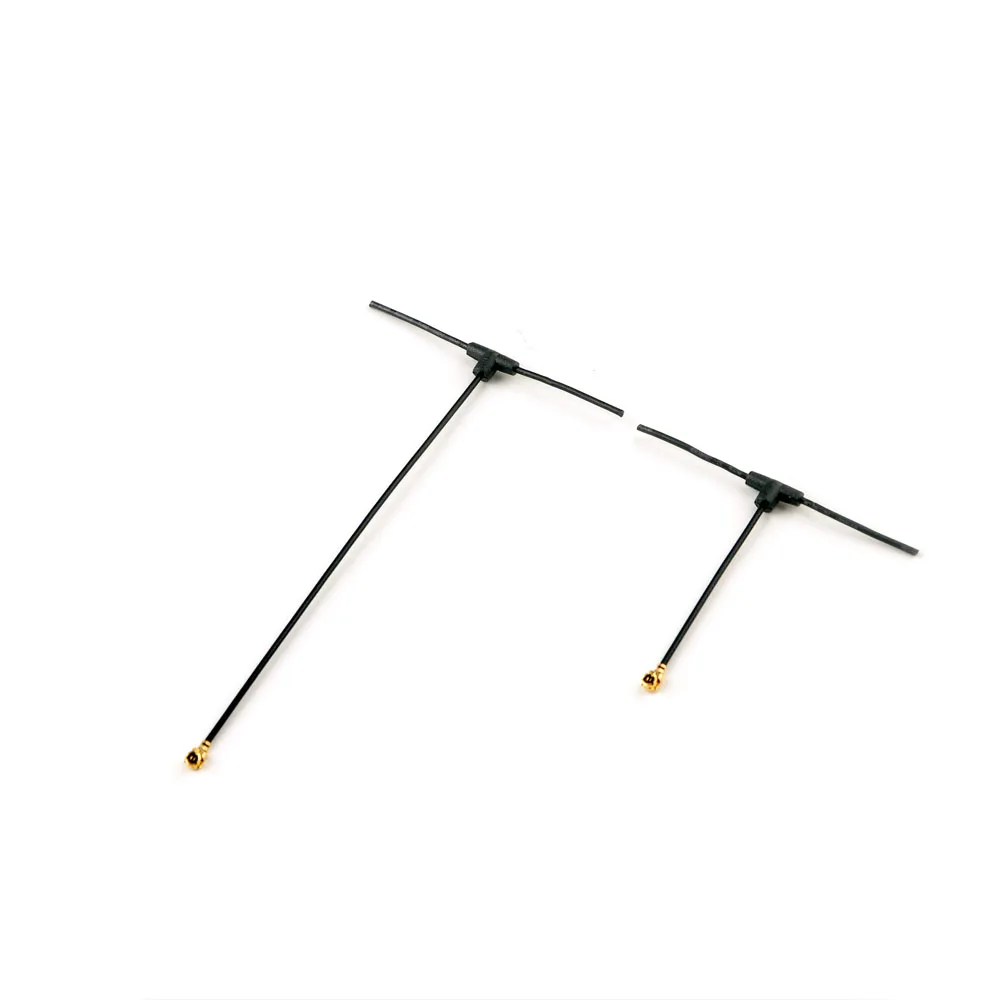

Antenna length 40mm/90mm(optional)
| Color | 40MM, 90MM |
|---|
