FPV 1.2G 5000mW 5W FPV Video Sender 1200Mhz Audio Video Wireless Transmitter and Receiver Long Distance for Rc FPV Drone

Original price was: $664.80.Current price is: $387.80.

"*" indicates required fields

SKU: d6lqdi40r2fg009td6r0 Category:
Description

SPECIFICATIONS


Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: AV Transmitter

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: 5W Wireless Transmitter

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Antennas

Recommend Age: 14+y

Remote Control Peripherals/Devices: AV Transmitter

Technical parameters: value 2

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: 1.2G AV Transmitter

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

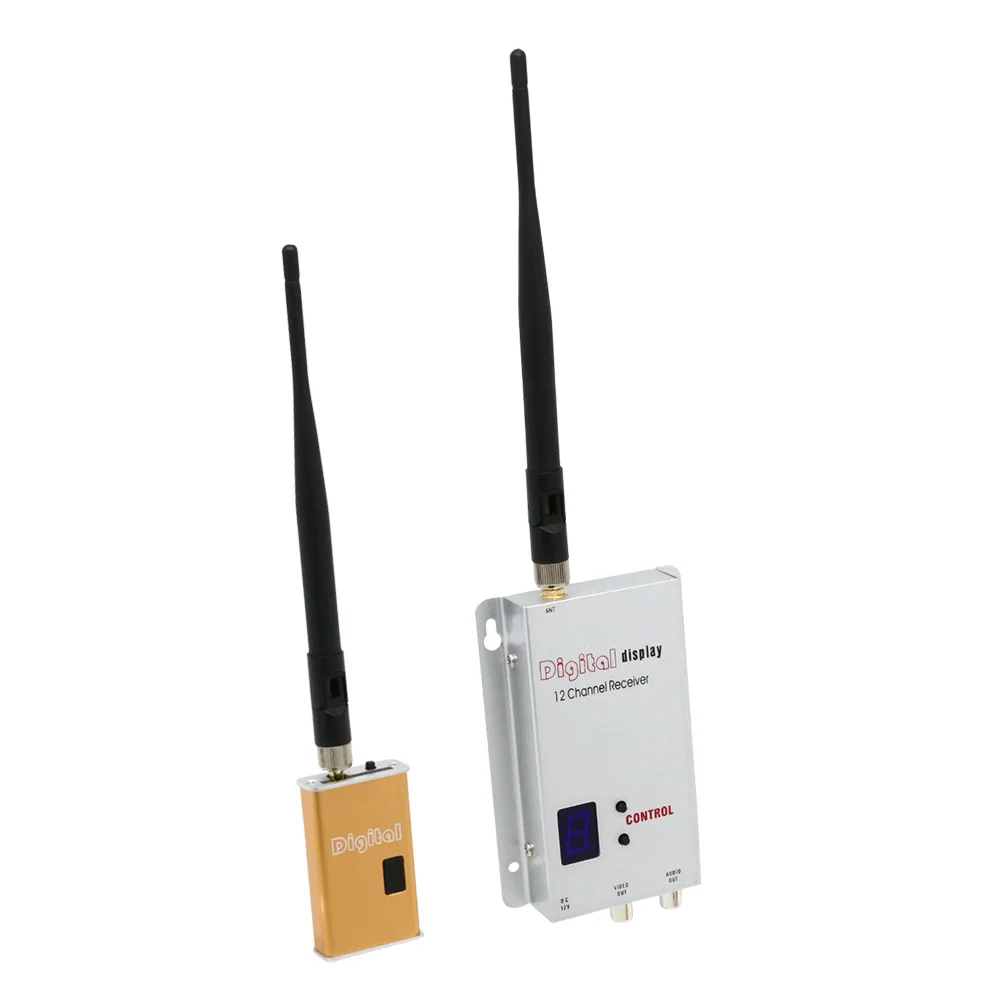

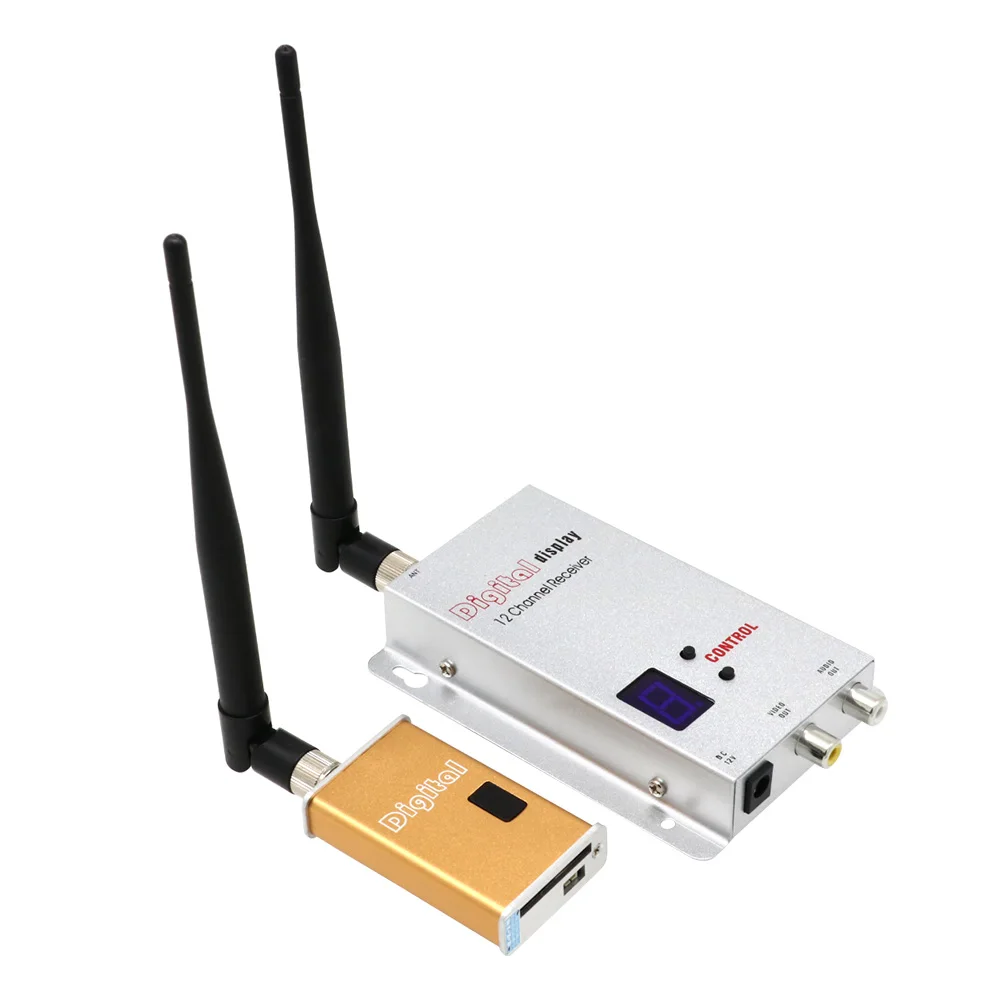

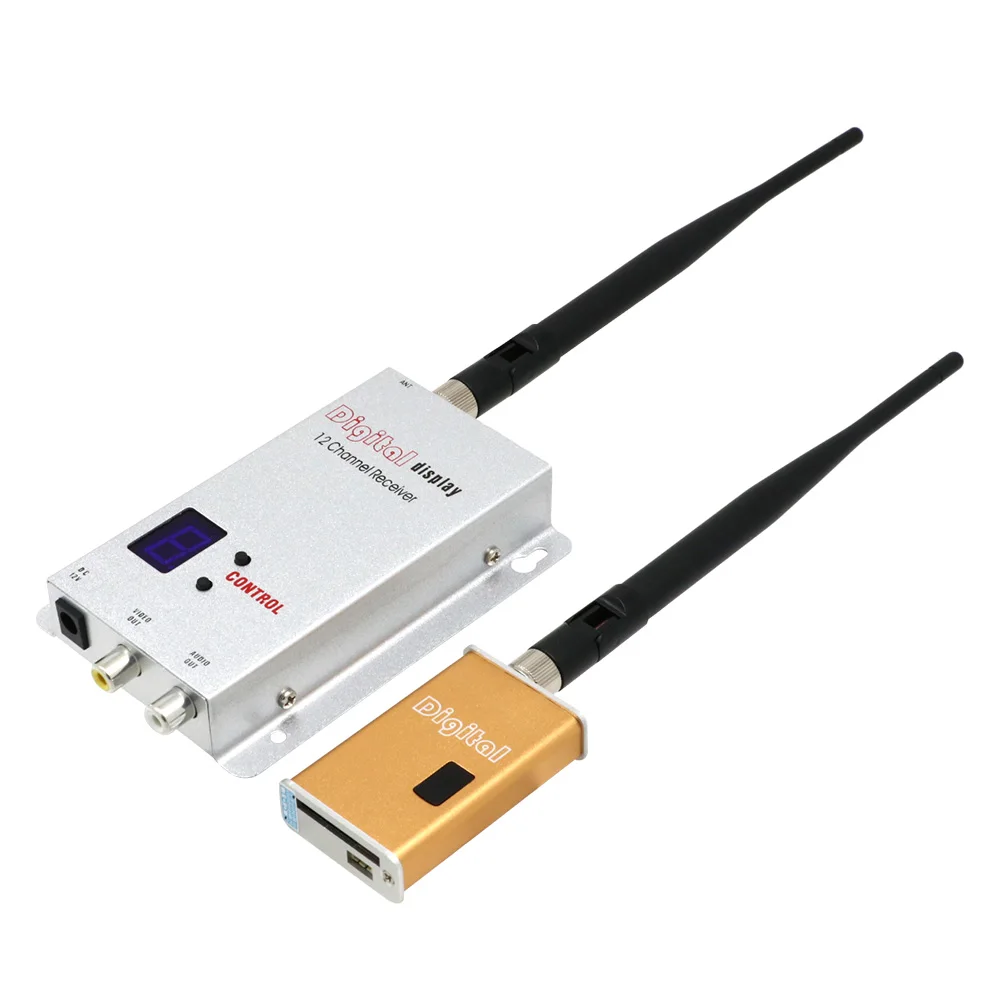

5000mW 5W Miniature FPV Video Sender 1.2G 1200Mhz Audio Video Wireless Transmitter and Receiver LOS Long Distance

Description:
wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna,And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

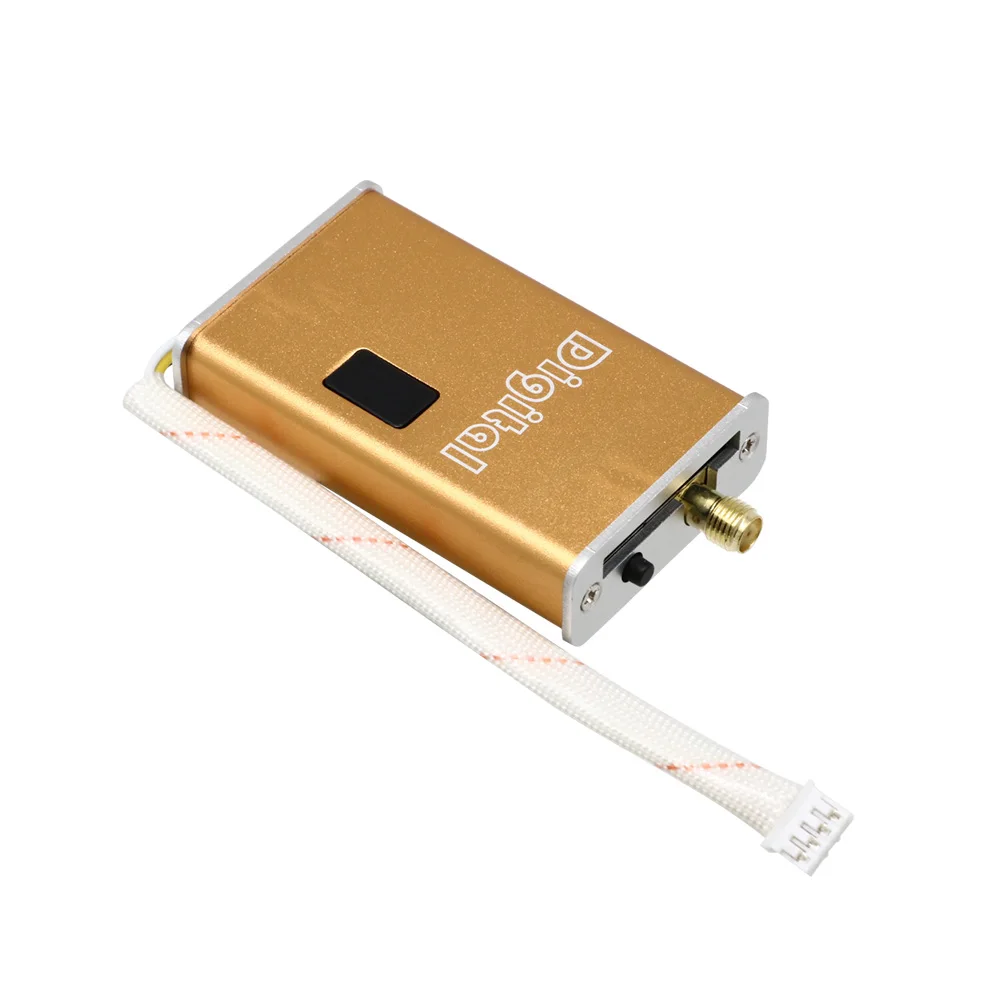

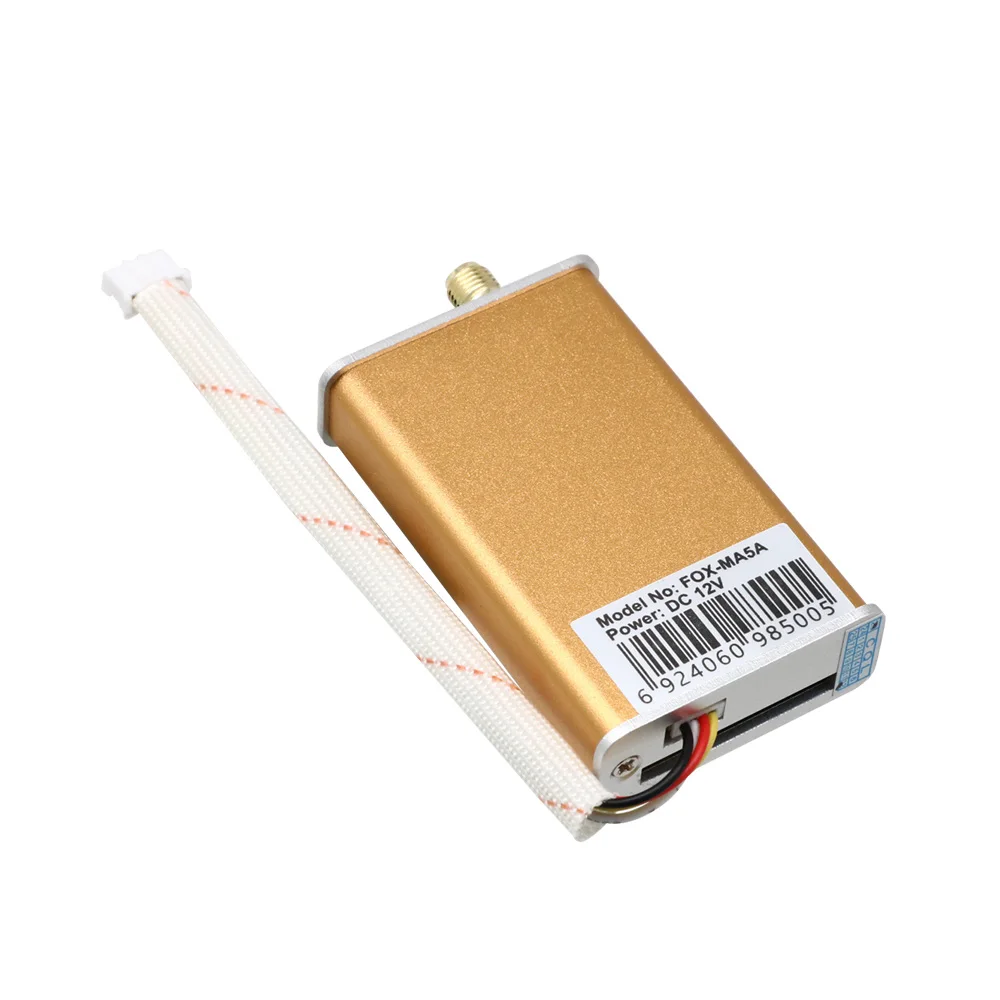

5w Transmitter parameter:
Output: 5000mw
Current Consumption: 1.5A
Frequency: 1080,1120,1160,1200,1240,1280
Channel: 6CH
Output impedance:50 Ohm
Audio input impedance:1k Ohm
Audio input amplitude:1.2Vp-p
Video input impedance:75 Ohm
Video input amplitude:1.2Vp-p
Voltage: DC 12V(at 36dbm)
Working current:700mA
The lowest Voltage: DC 5V(at 31dbm)
Weight:100g

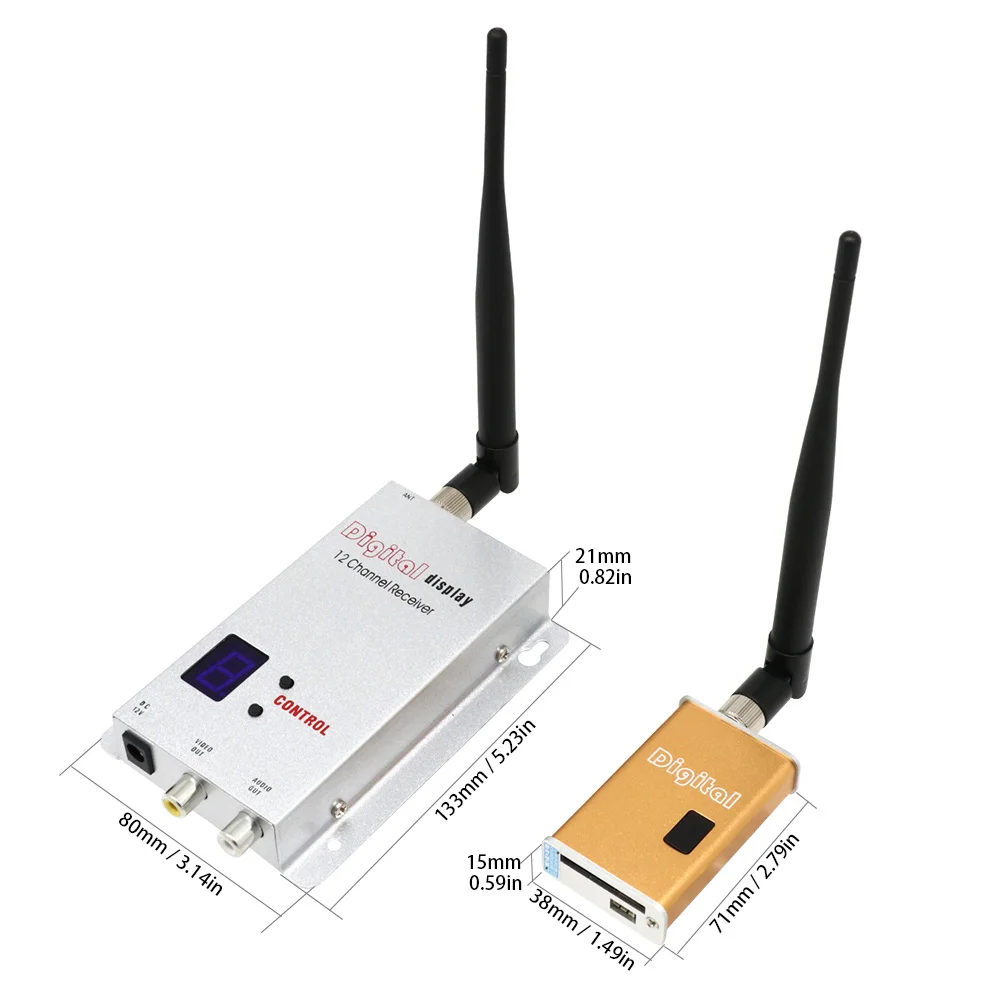

Size:74*56*36mm

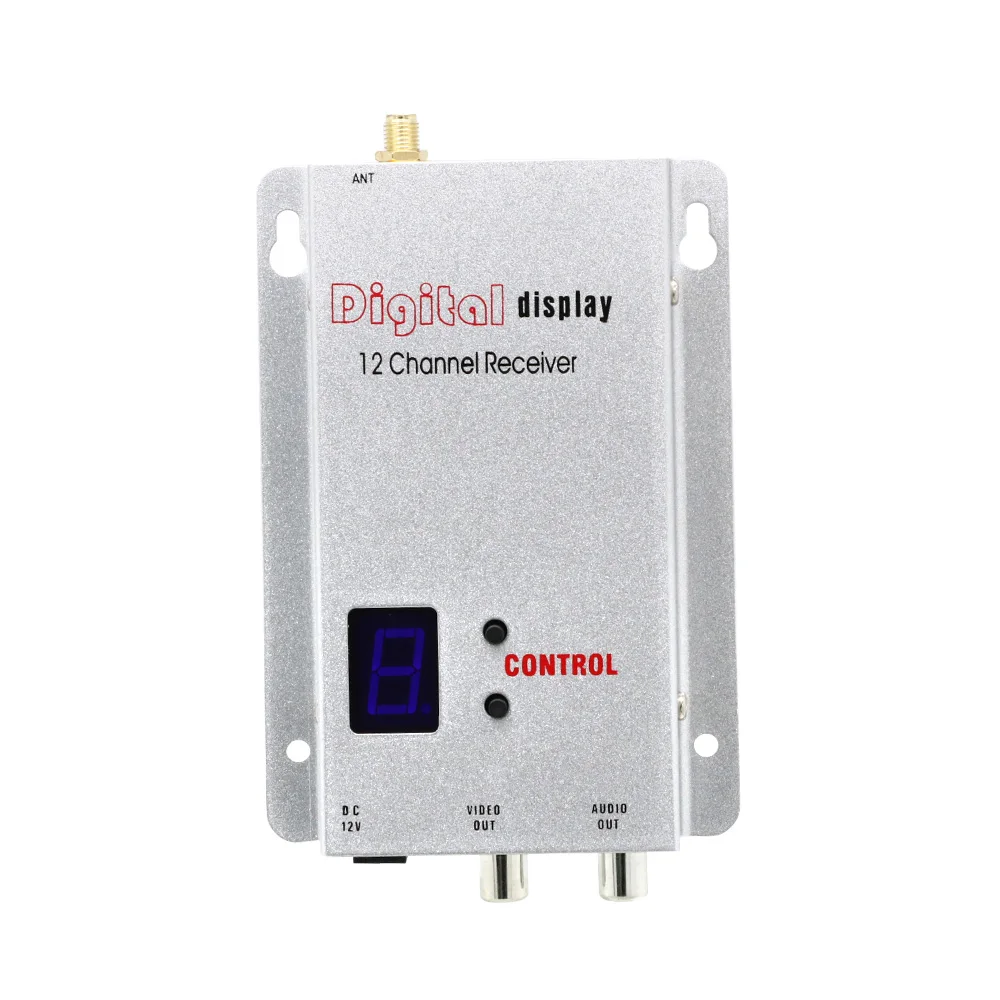

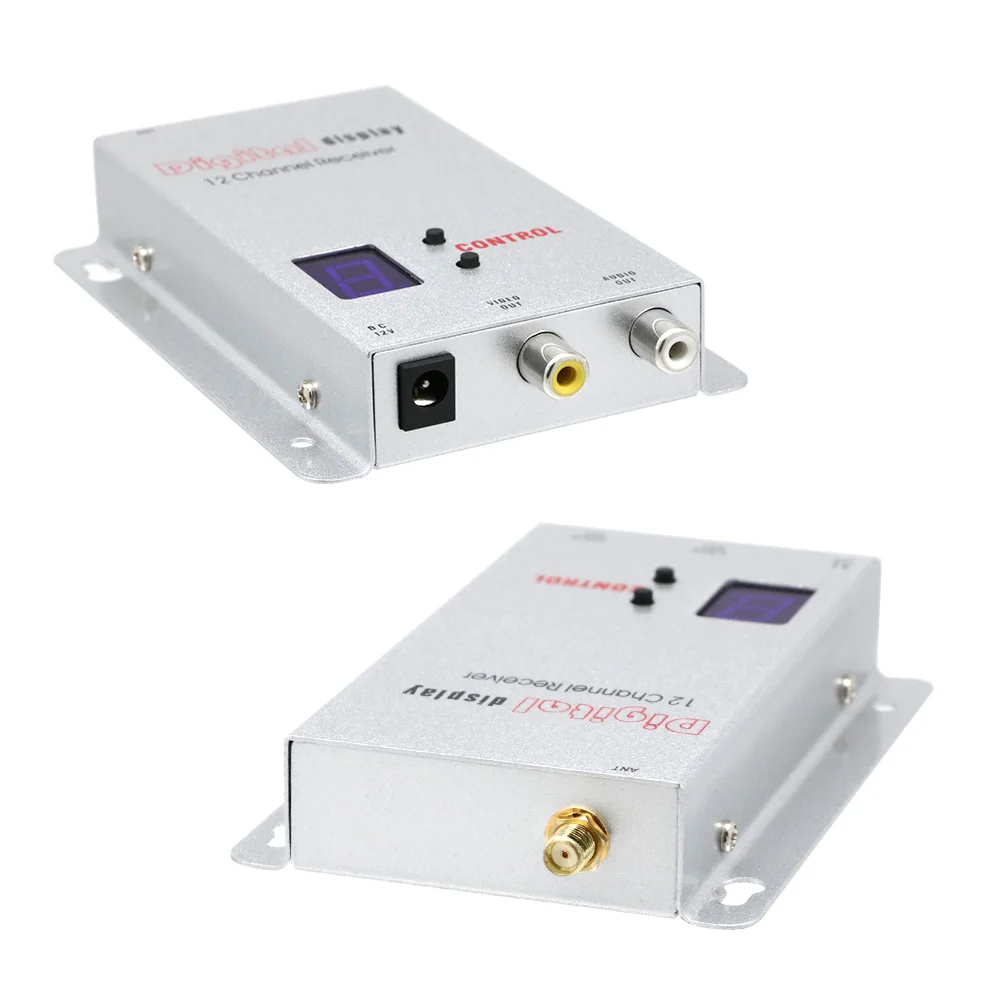

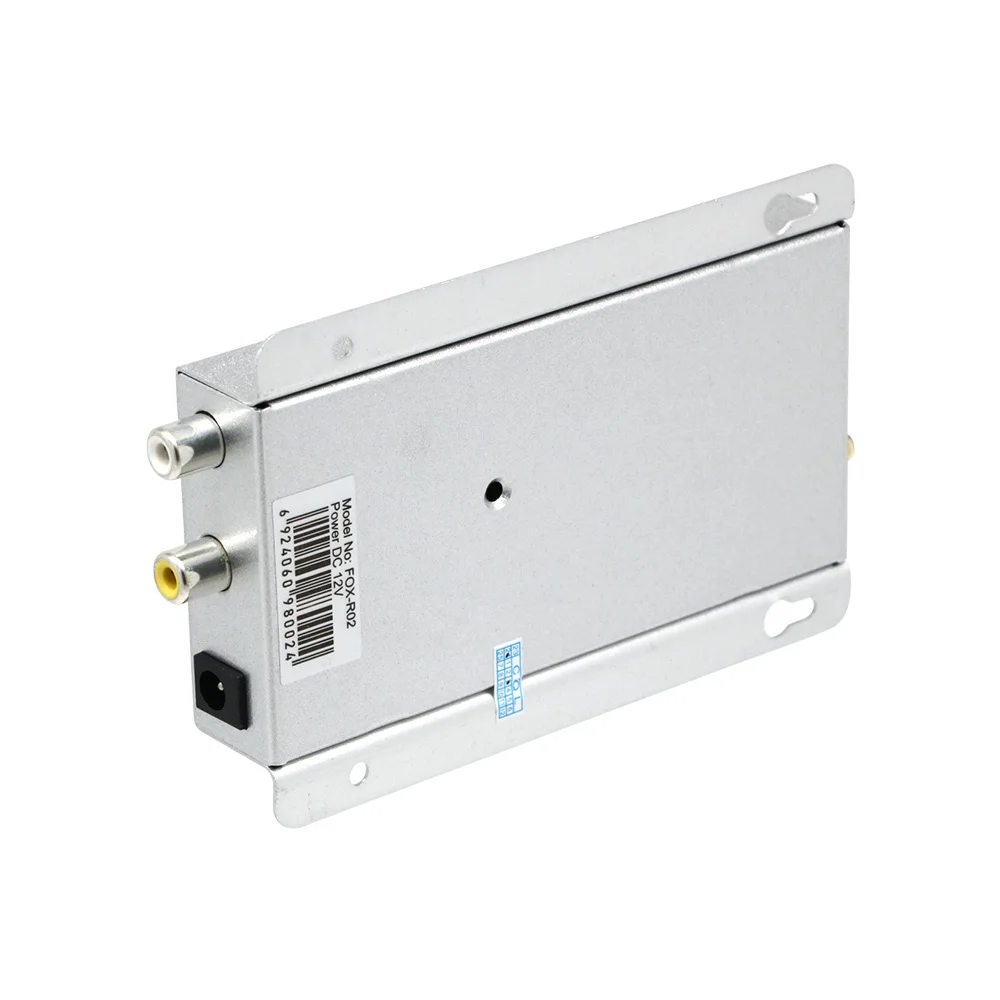

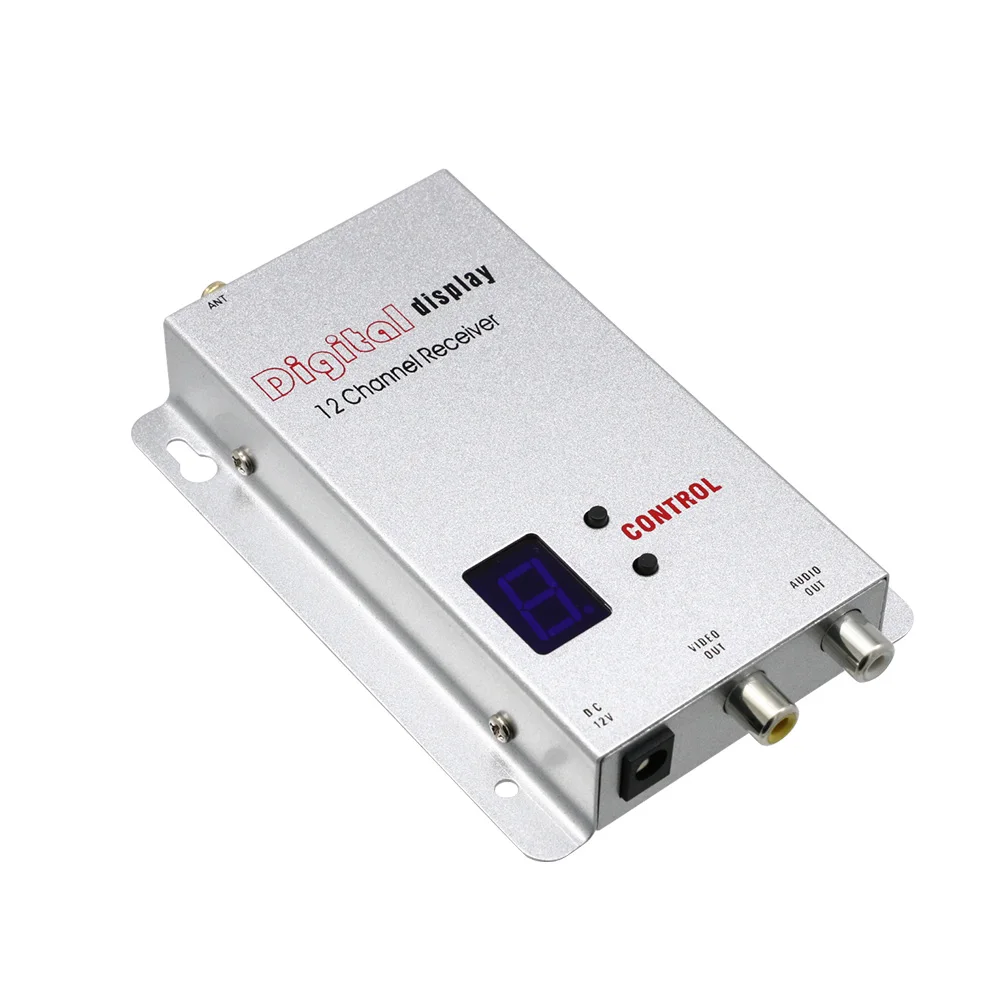

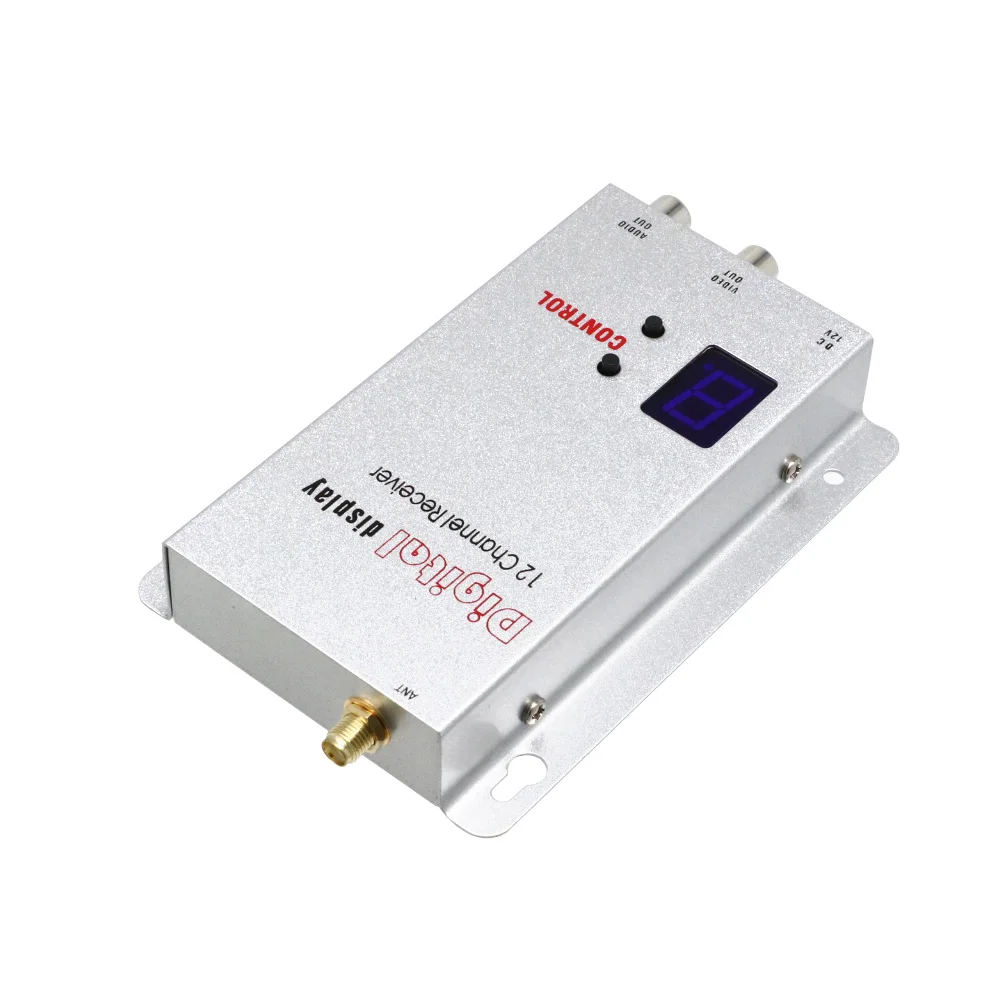

Receiver Parameter:
Weight:115g
Dimension:115*80*21mm
Working Voltage:DC12V
Working Current:≤260mA
Working Frequency:1.2G
Working Channels:12CH
Connector:receiver module side RP-SMA jack, antenna SMA plug
Receiving frequency: 1.2GHz – HC1:910 HC2:980 HC3:1010 HC4:1040 HC5:1080 HC6:1120 HC7:1160 HC8:1200 HC9:1240 HC10:1280 HC11:1320 HC12:1360(MHz)

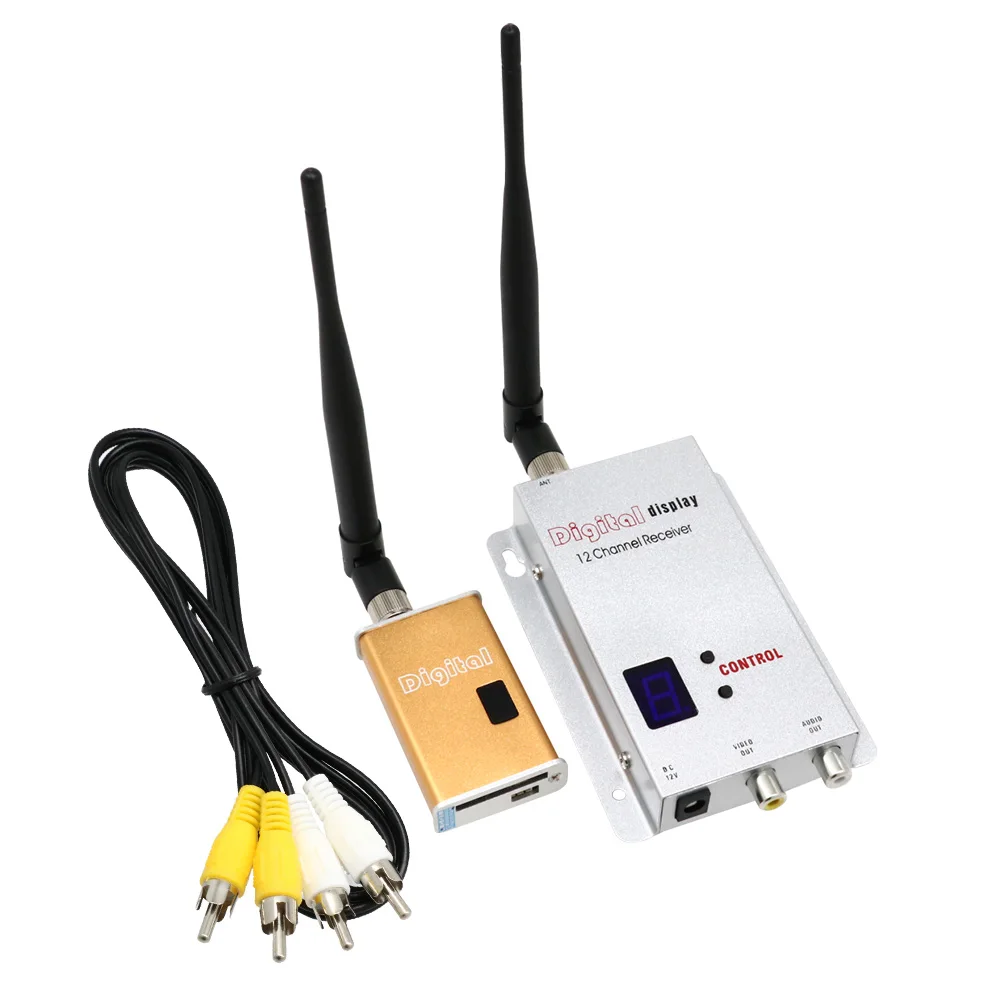

Receiver Accessories:Receiver,antenna,AV cable.(We don't offer adatper for receiver,please use DC 12V 1A adapter.)
