Price range: $136.85 through $326.90

Get A Quote

"*" indicates required fields

Add to wishlist
SKU: d6lrejofkvj000dobj6g Category:
Description

SPECIFICATIONS


Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: BLHELI_S 60A 4 in 1 ESC

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: F4 V3S FC Flight Controller Board

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Speed Controllers

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Size: 30.5*30.5mm

Technical parameters: value 2

Tool Supplies: BLHELI_S 45A 4 in 1 ESC

Upgrade Parts/Accessories: BLHELI_S 30A 4 in 1 ESC

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

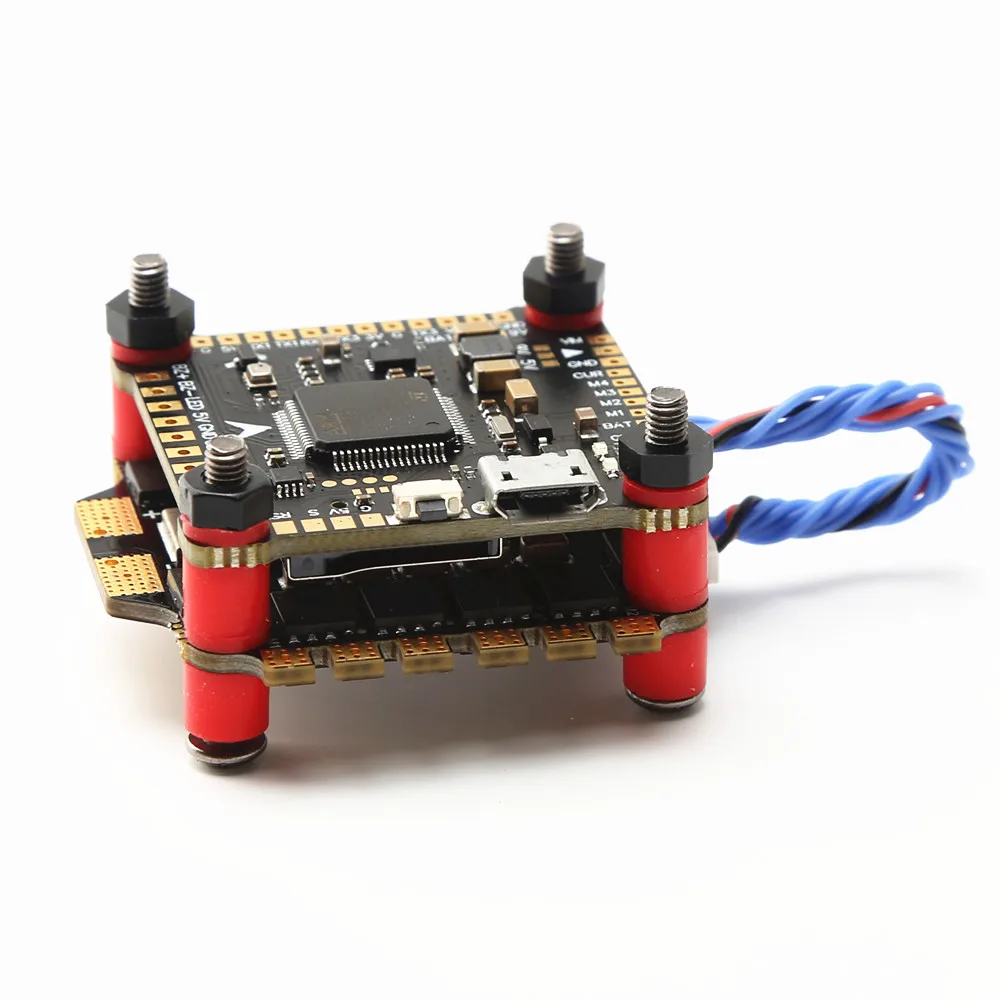

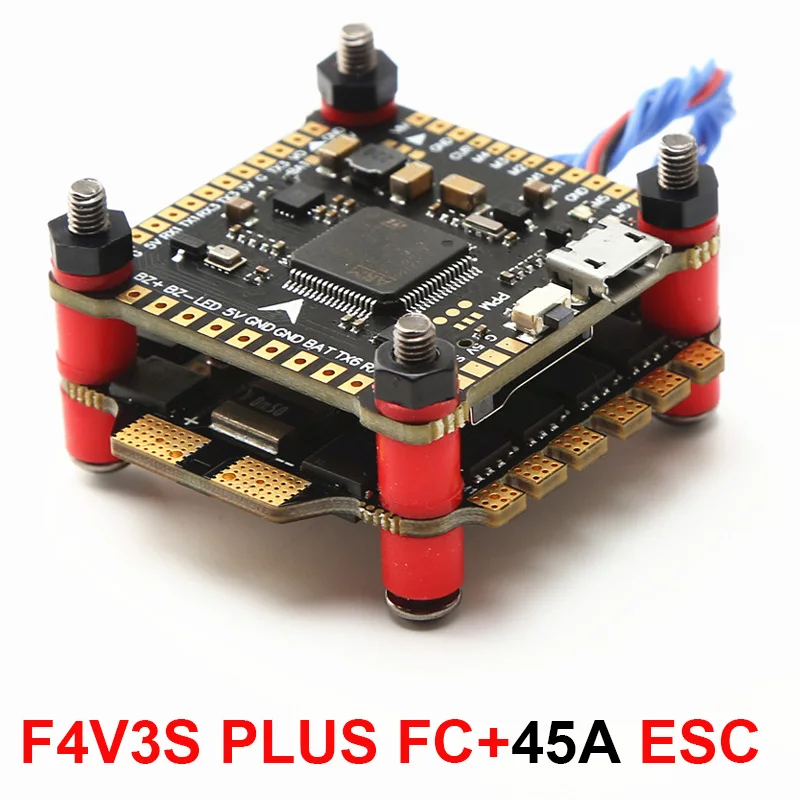

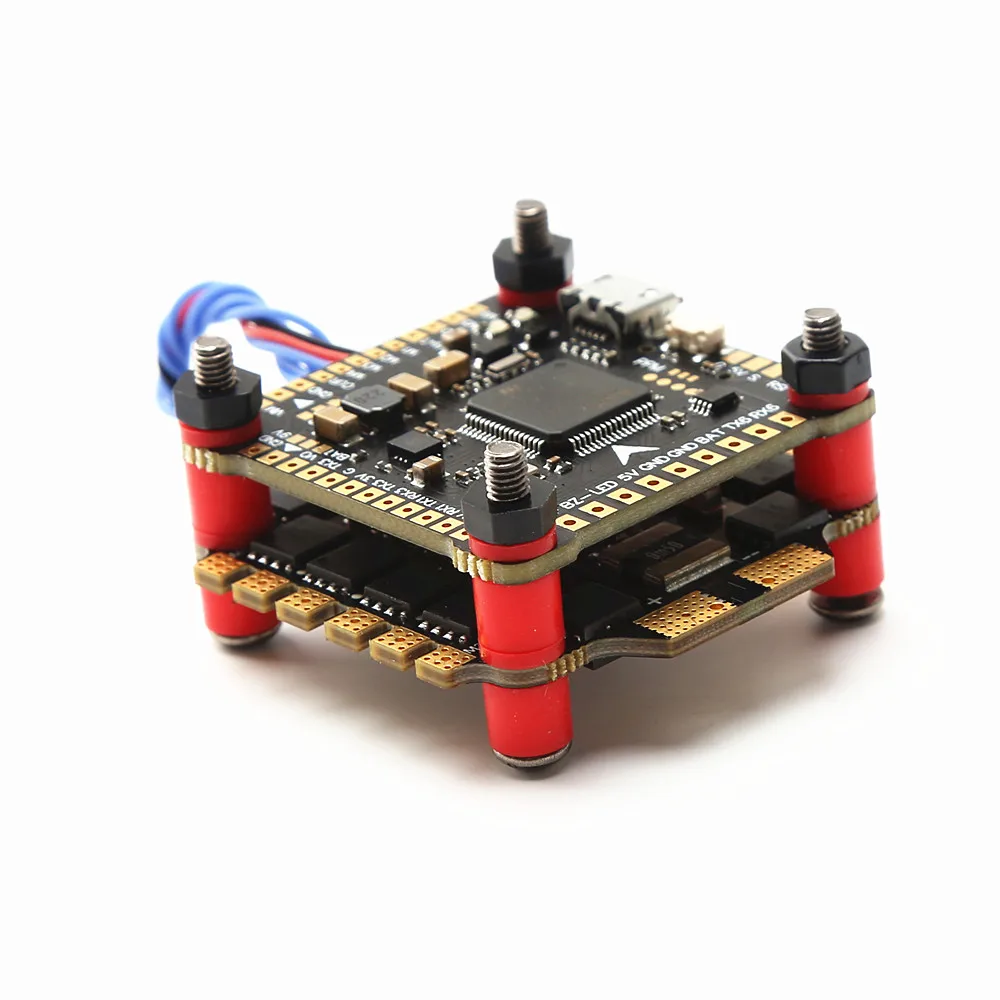

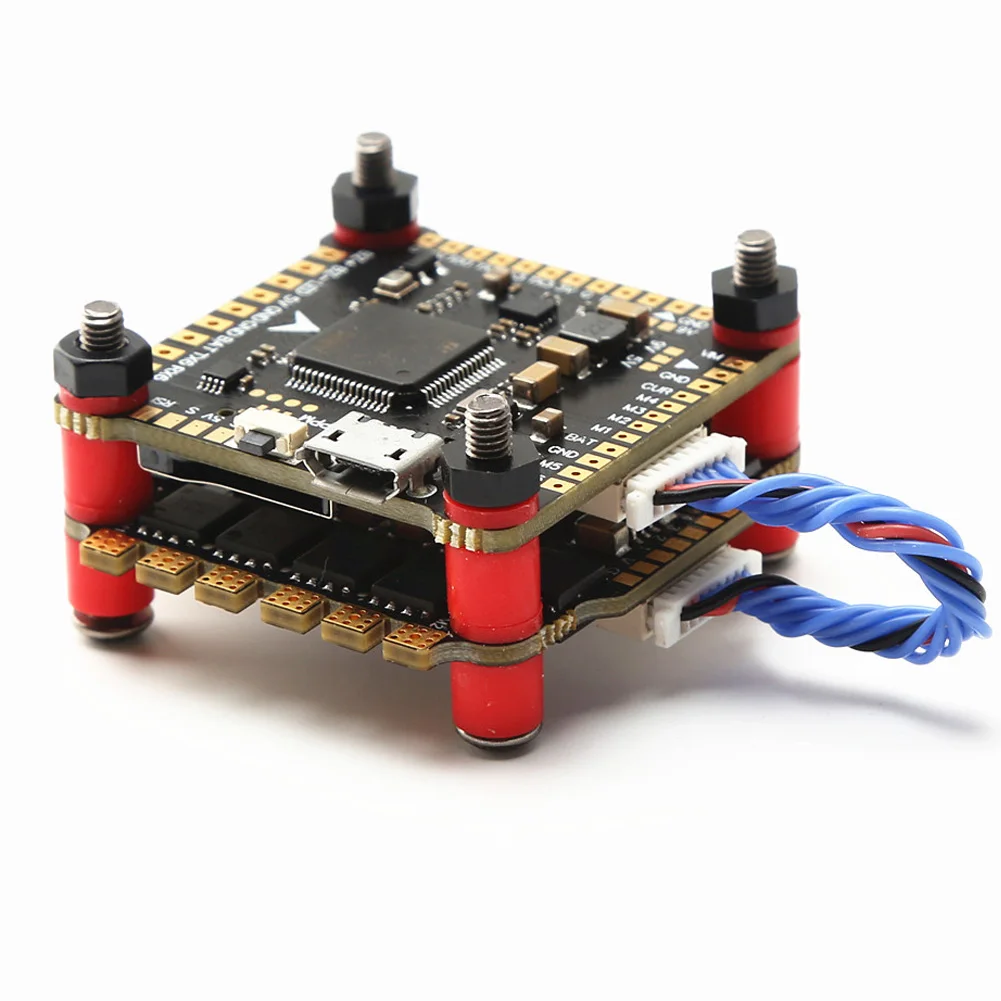

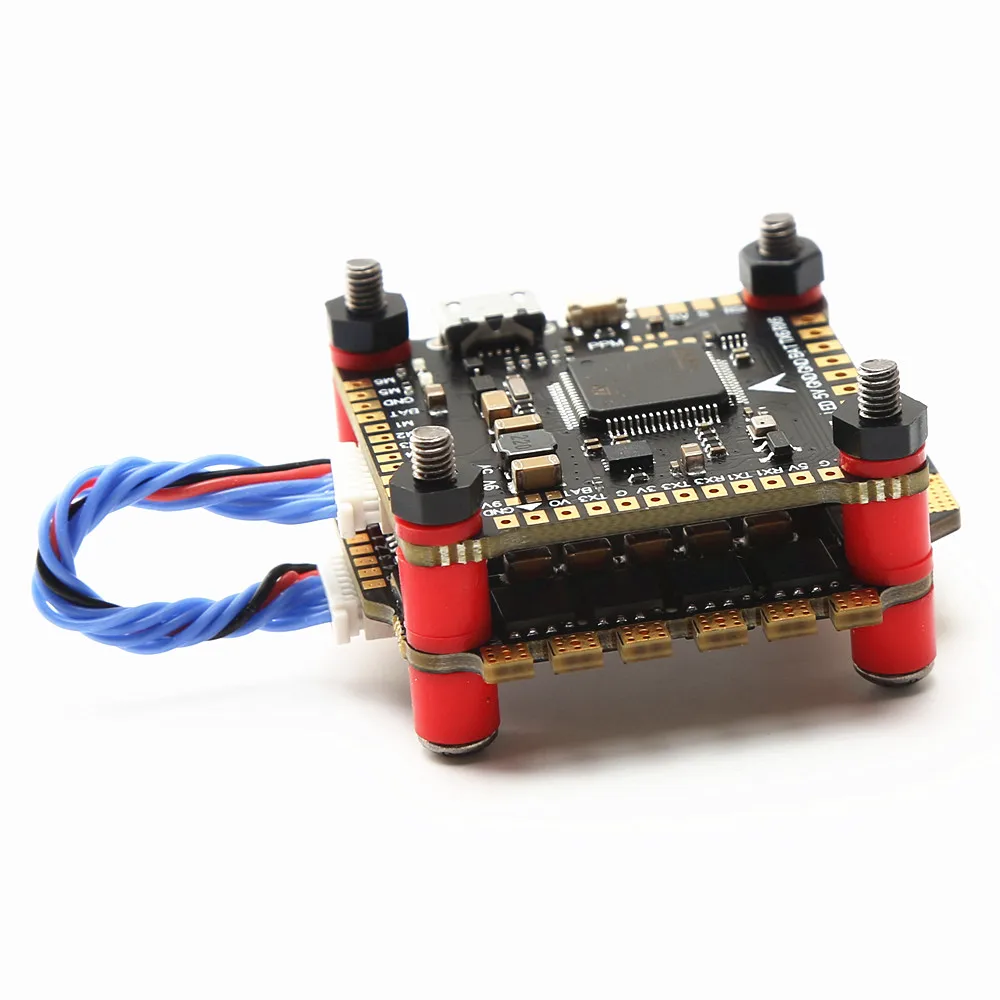

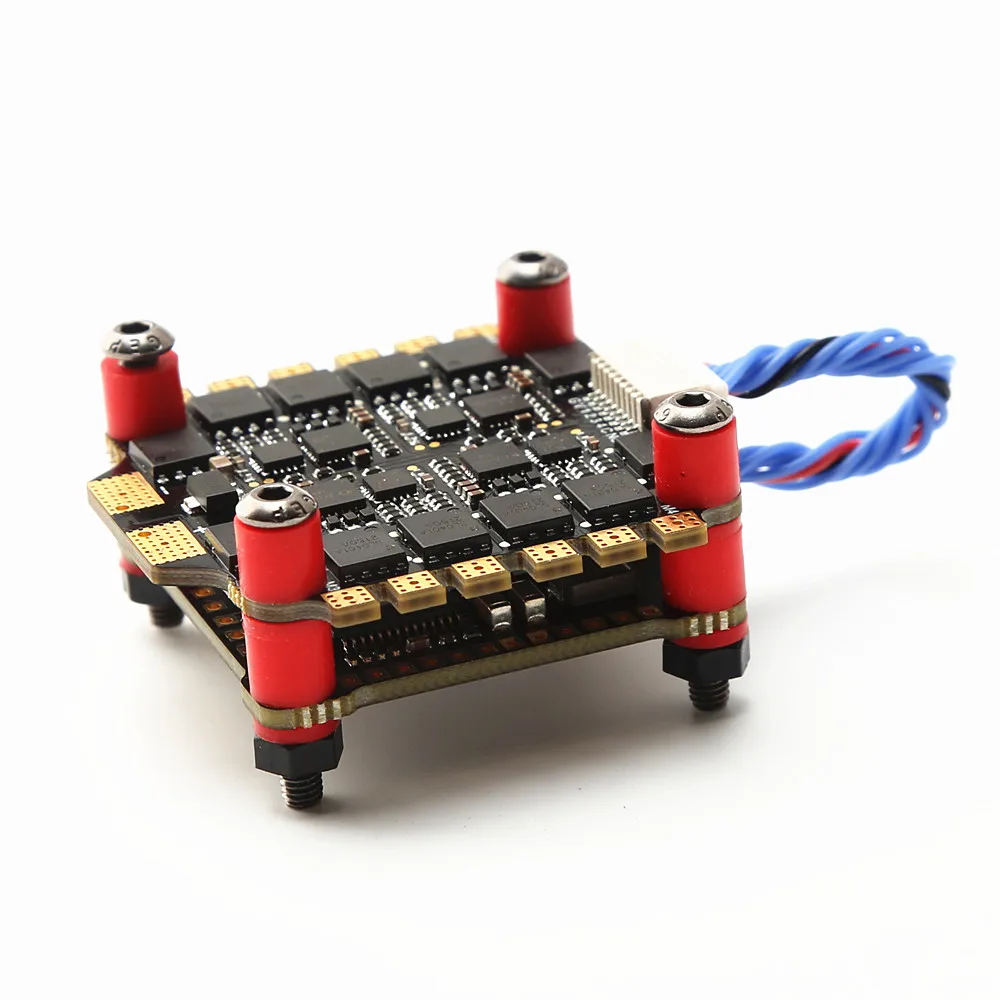

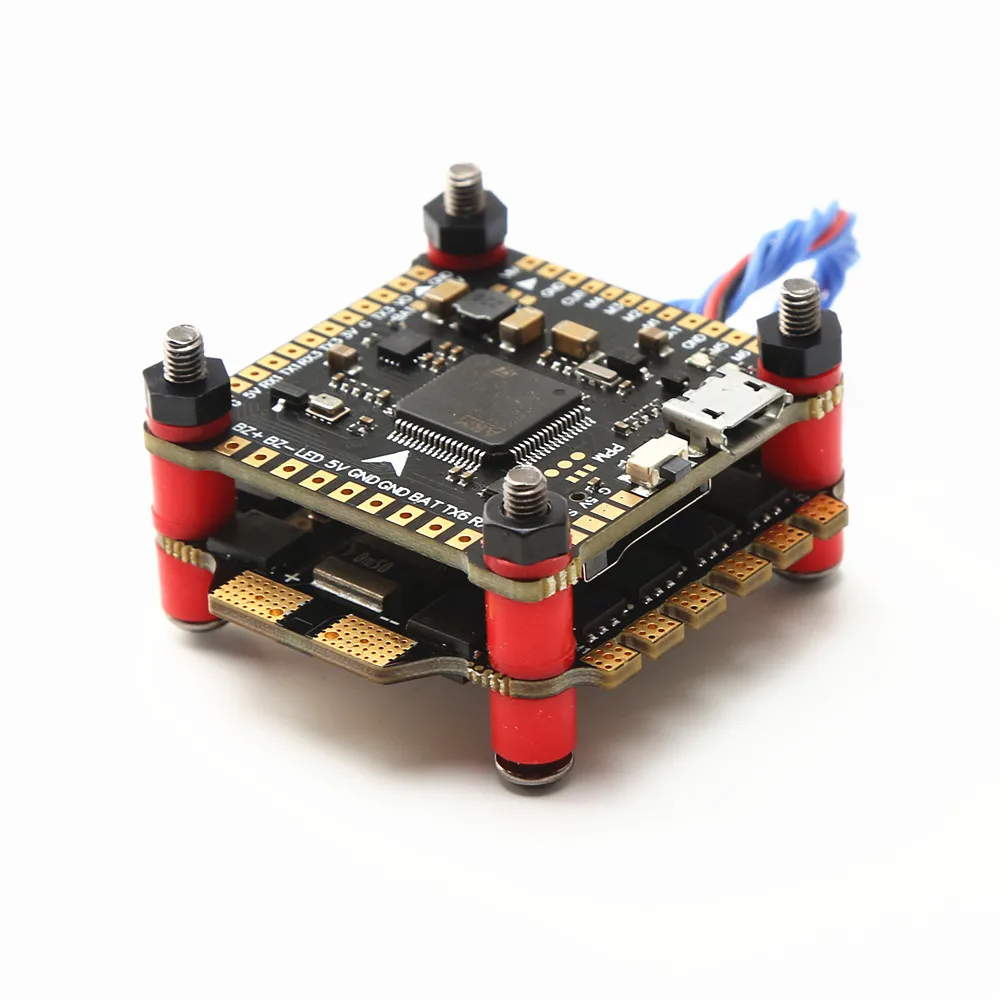

F4 V3S FC Flight Controller Board with 30A 45A 60A 4in1 Brushless ESC for RC QAV/ZMR 210 230 250MM Drone FPV Racing

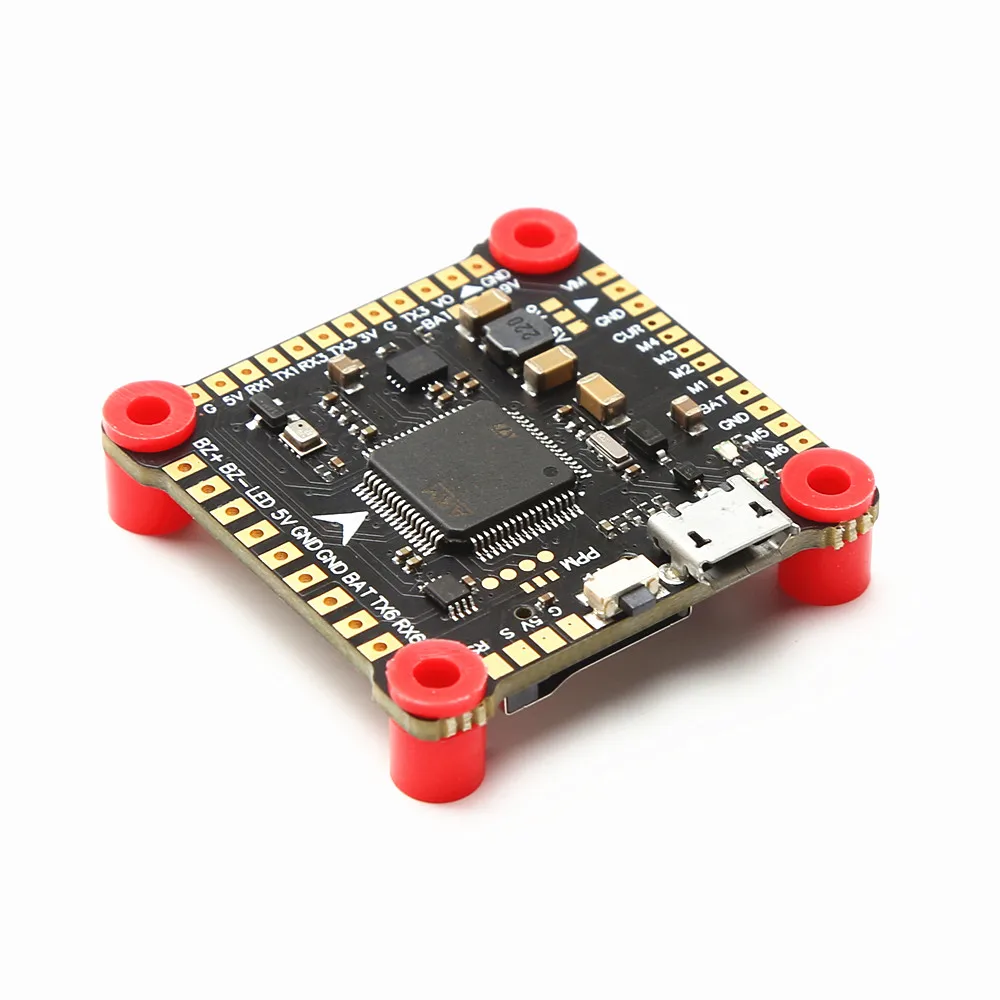

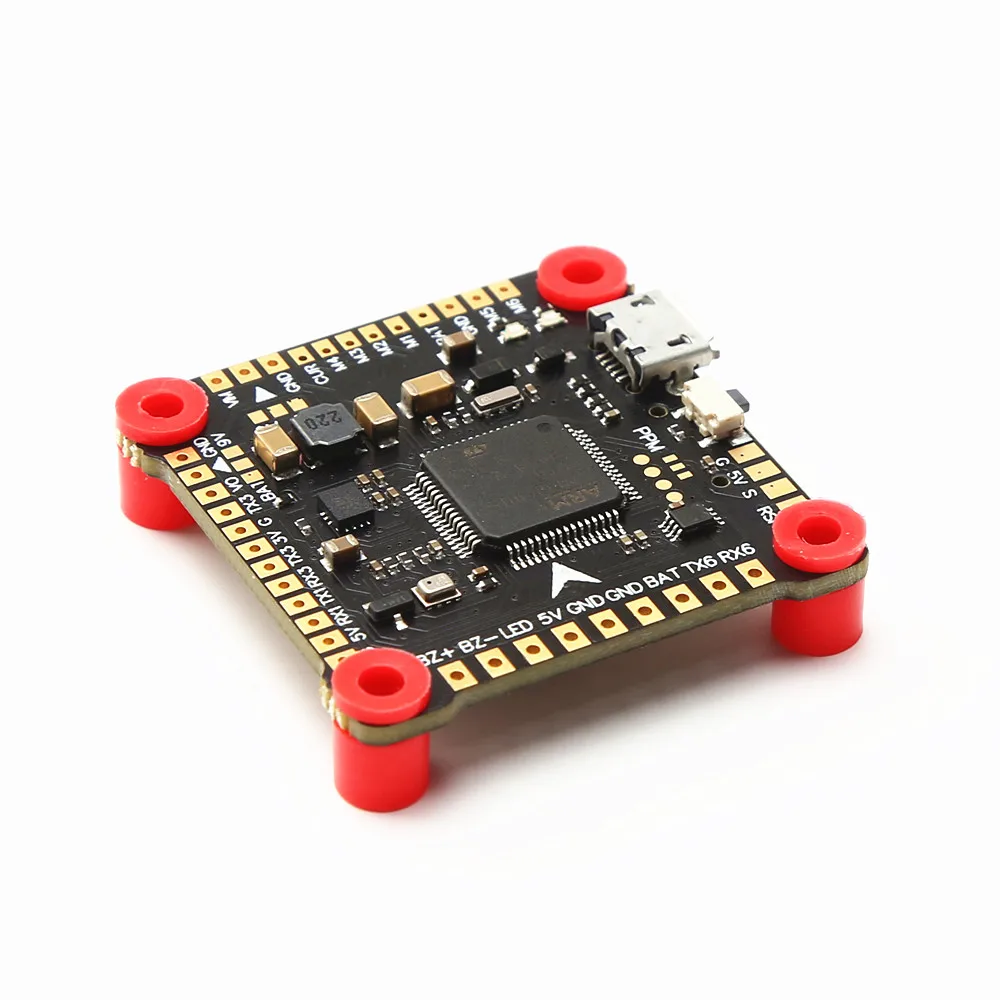

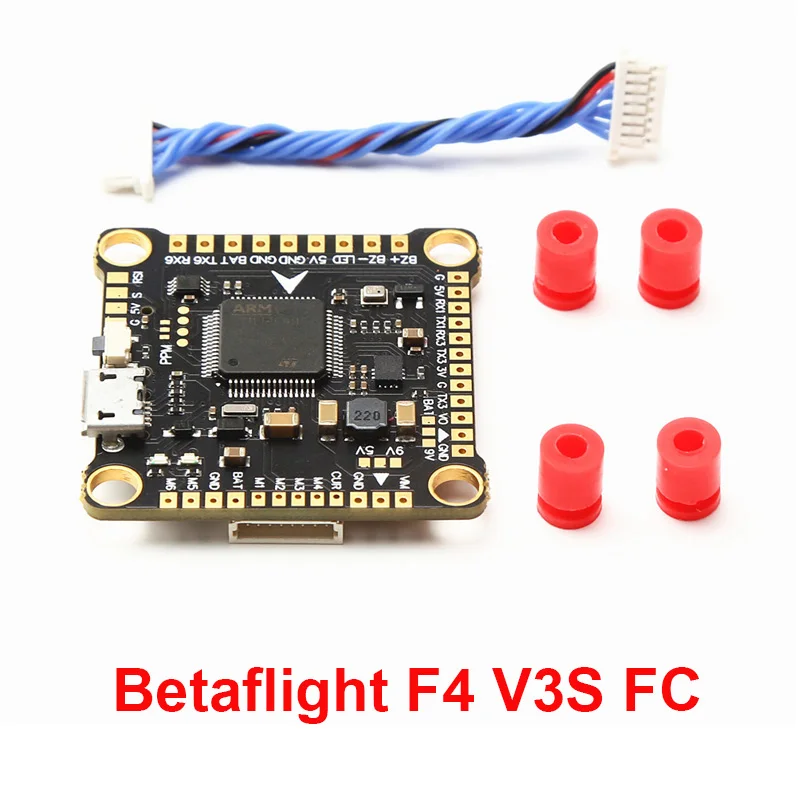

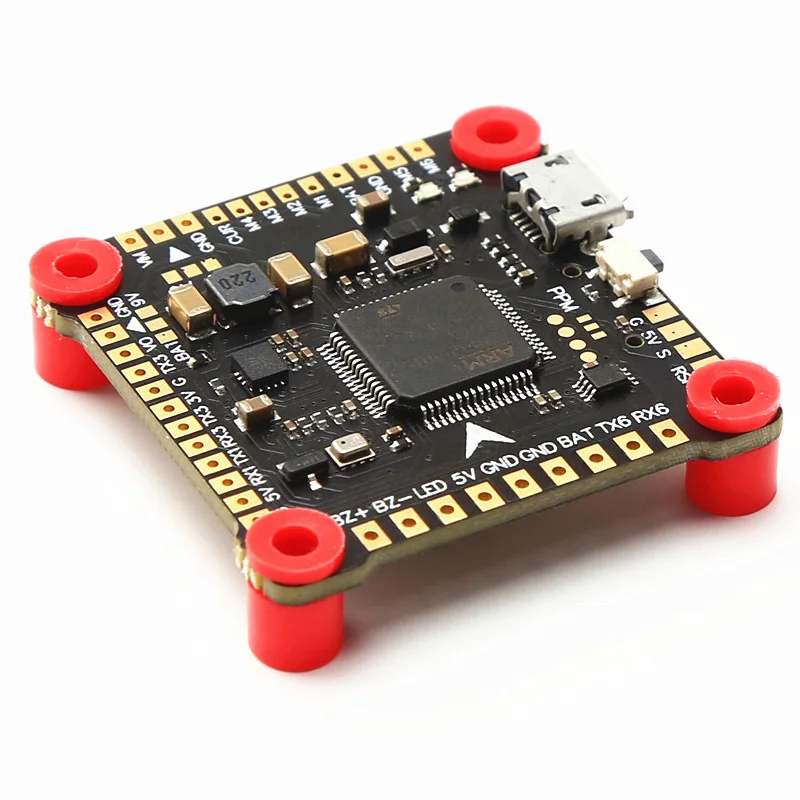

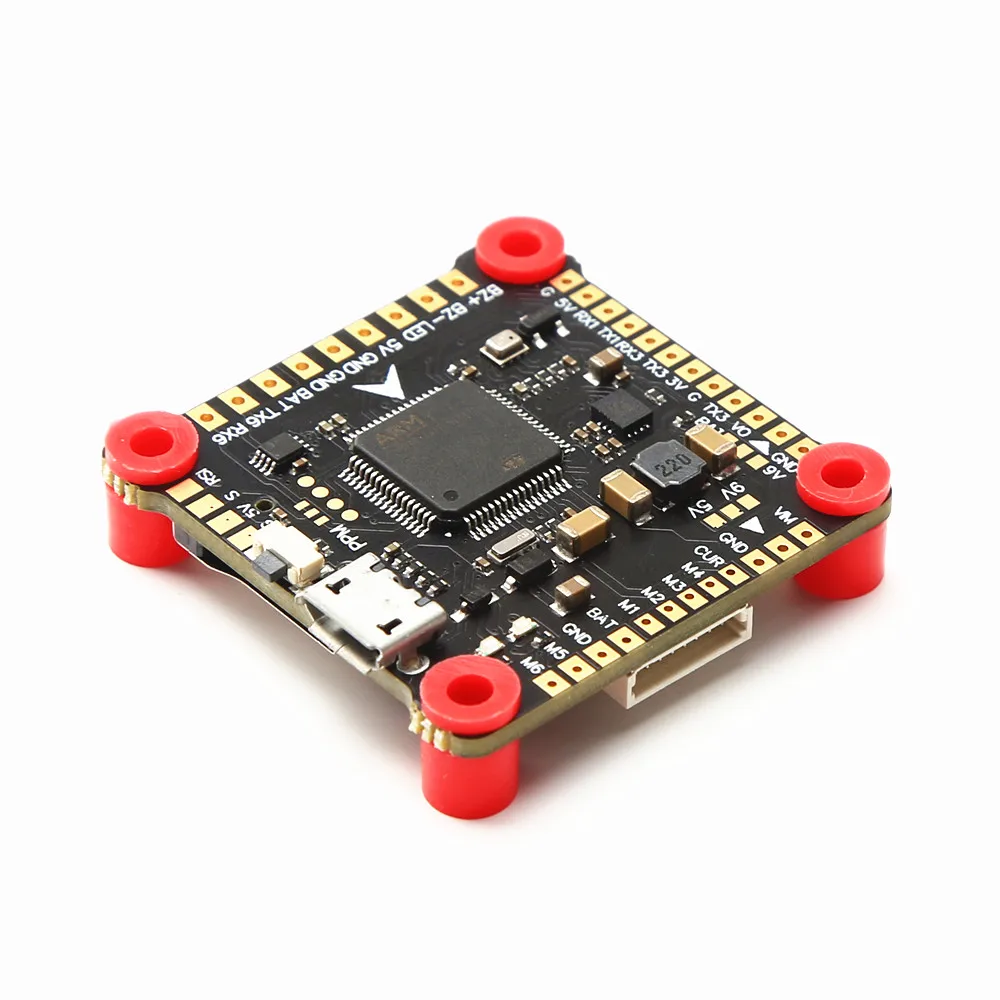

F4 V3S PLUS FC

Specification:

Item name: F4 V3 PLUS Flight Controller
Size: 36x36mm
Mounting holes: 30.5×30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro:BMI270
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
BEC:5v3a 9V3A
On-board video filters (only 5V to VTX and camera)

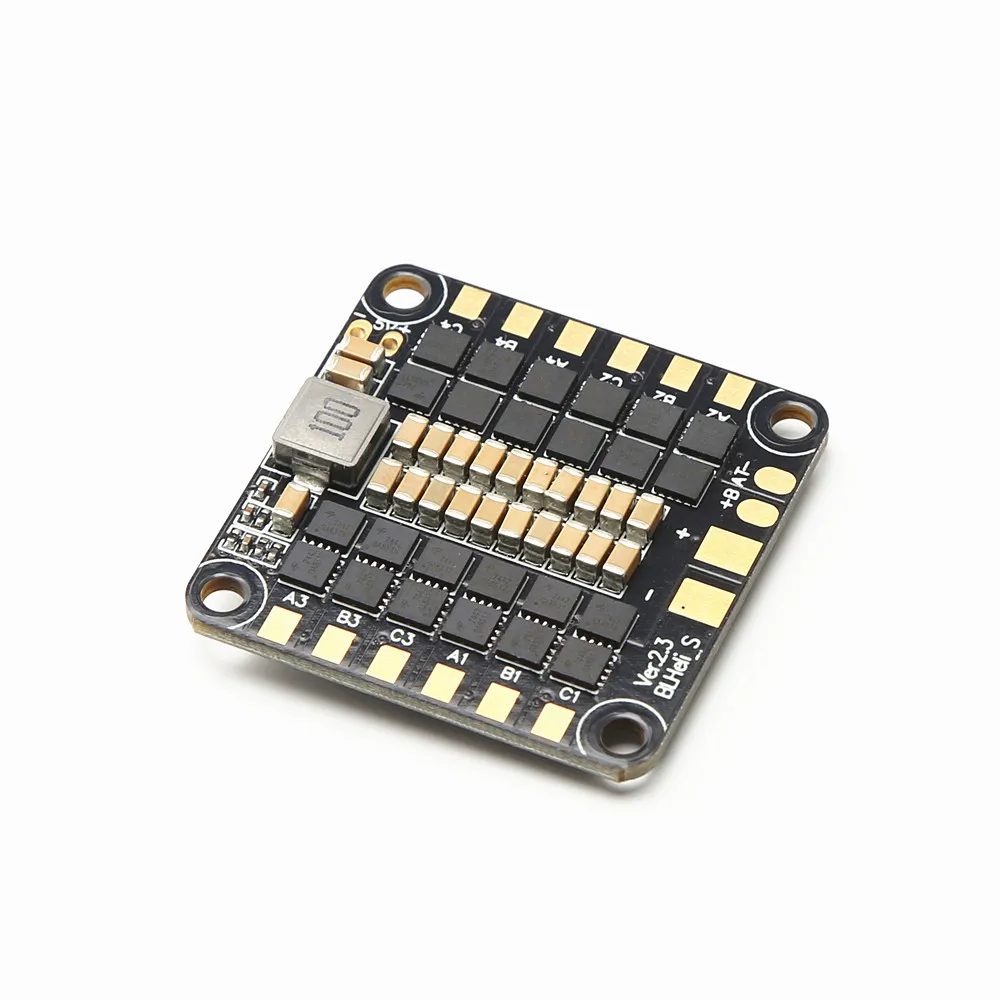

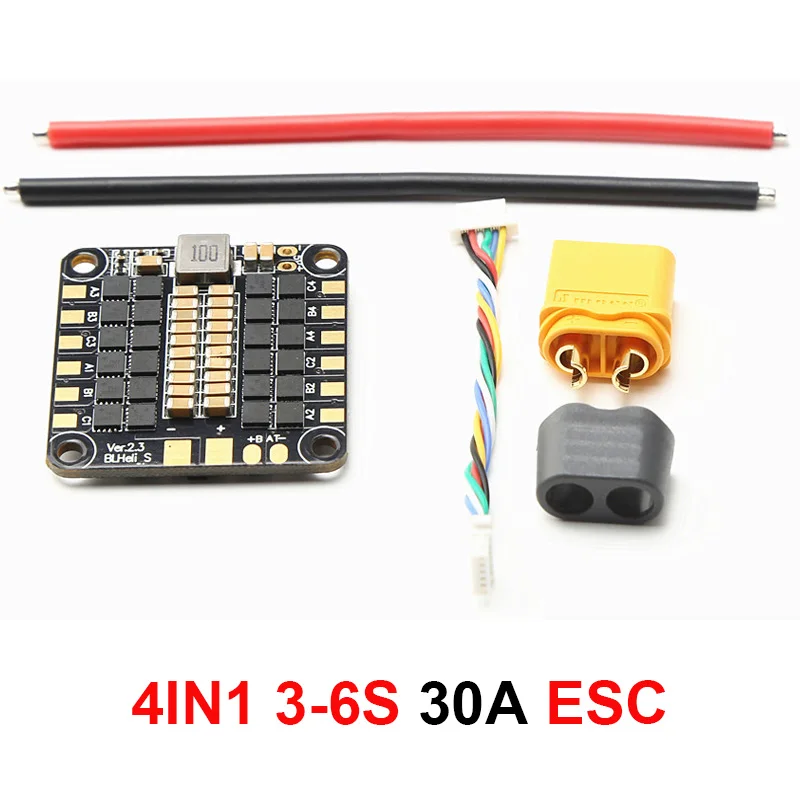

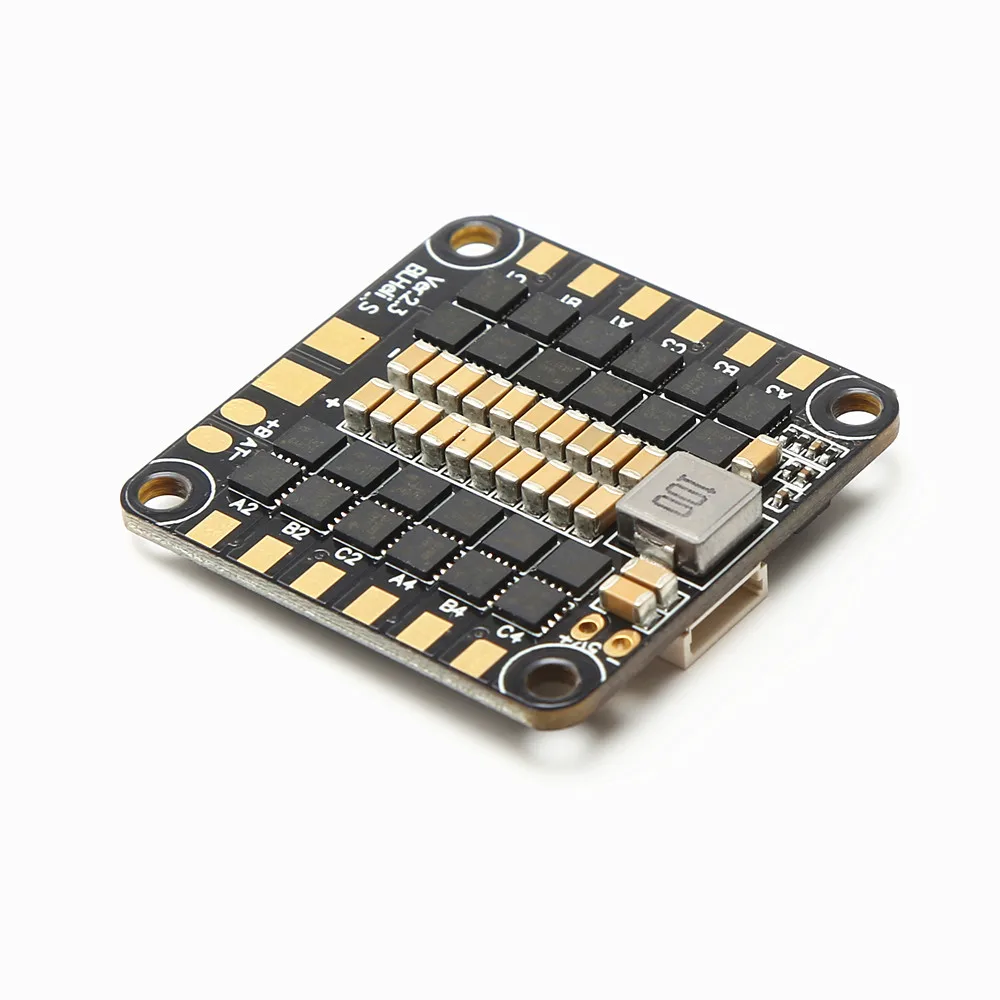

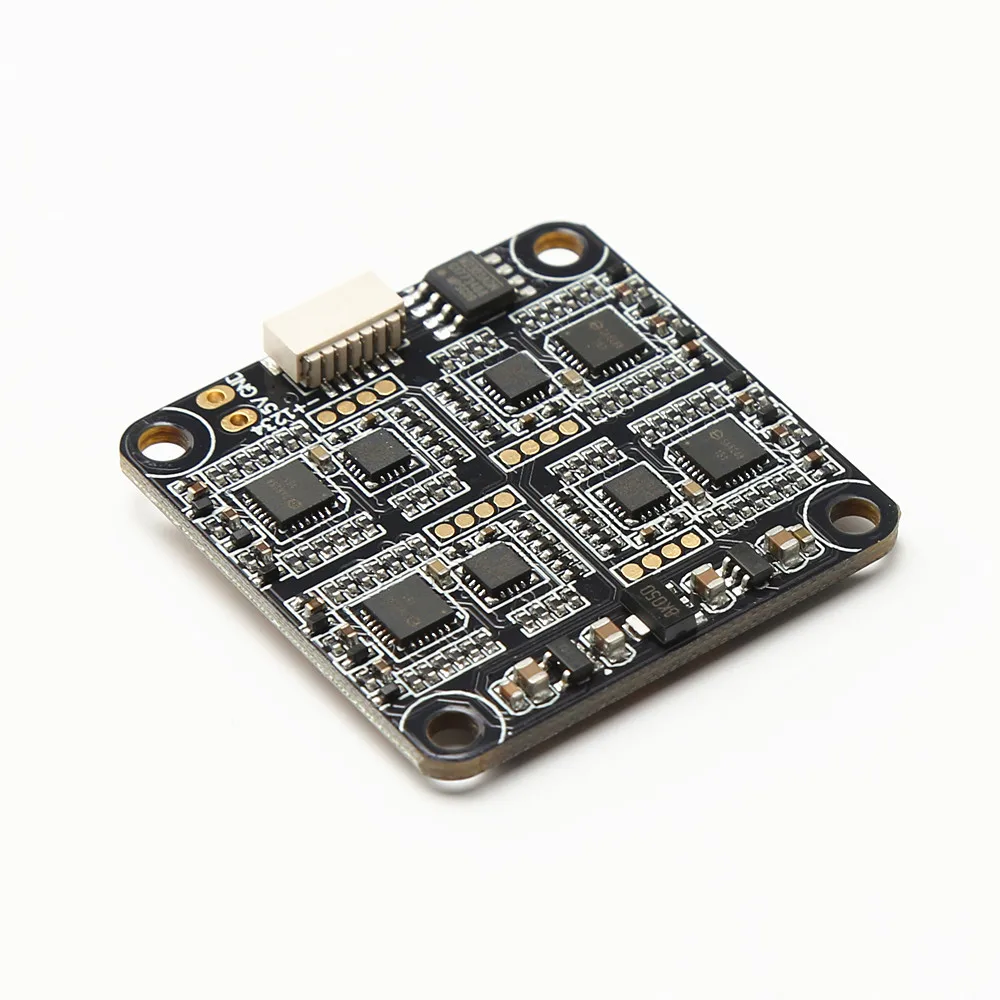

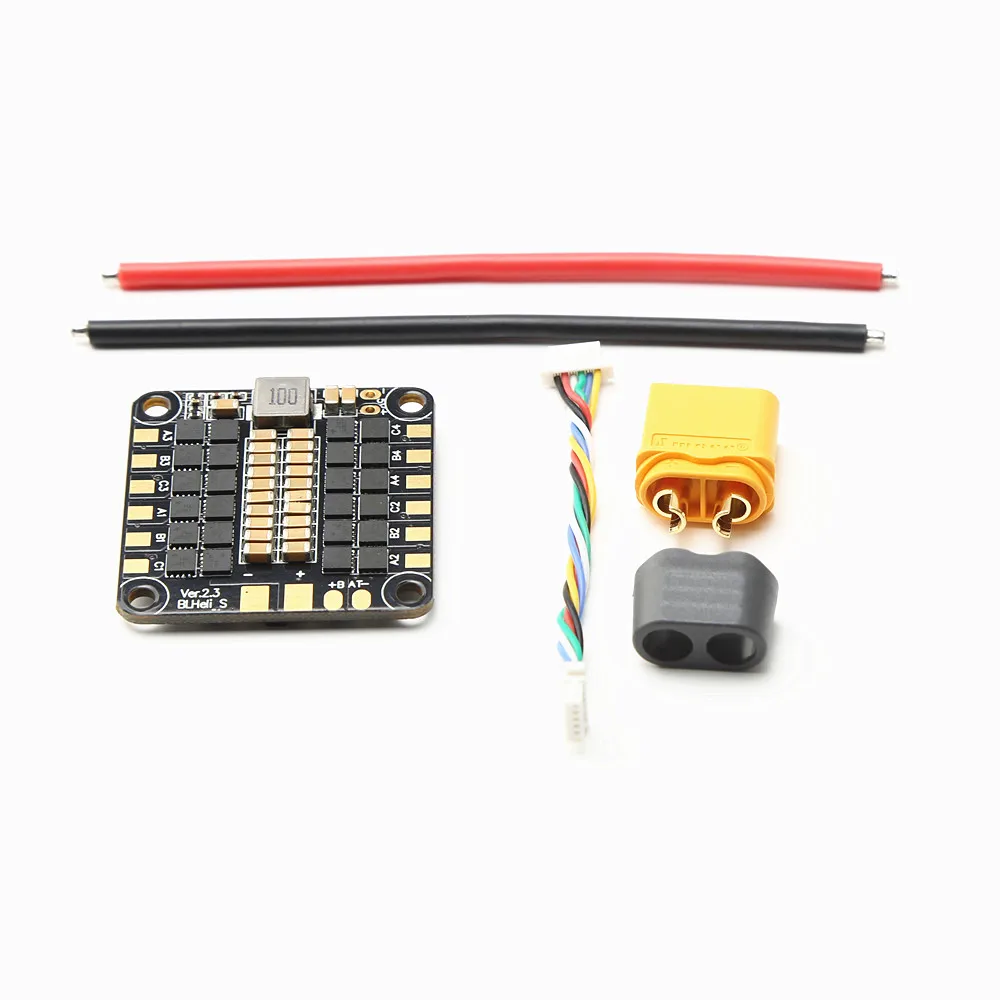

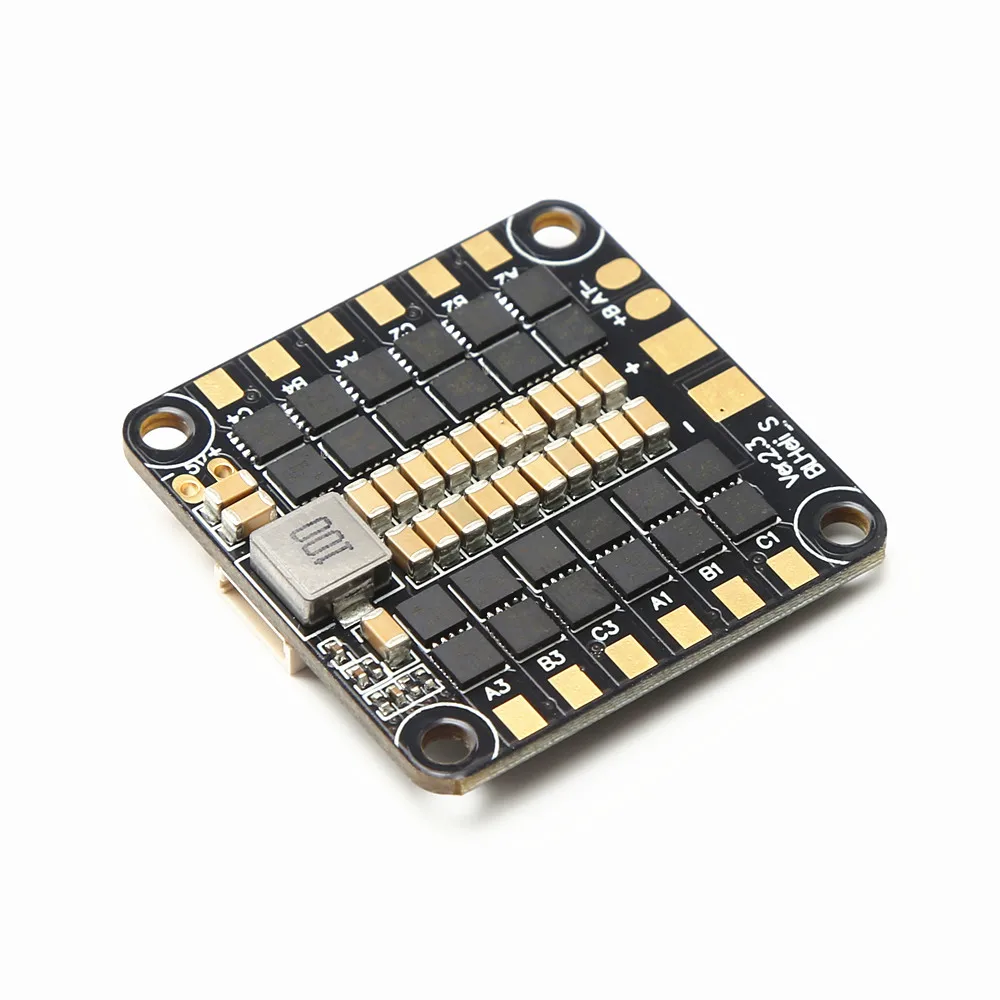

30A ESC:

Special Edition Wizard X220S FPV Racer RC Spare Part Drone 4 in 1 30A ESC BLHeli_S 2-6S Dshot600 RC Racing Drones Quadcopter Accessories

Description:
Item name: 4 in 1 30A BLHeli_S ESC
Con. current: 30A
Peak current (10s): 35A
Input voltage: 2-6 S
BEC: 5V output
Programming: YES
Firmware: blheli_s
Weight: 9g
Size: 36 * 36 MM

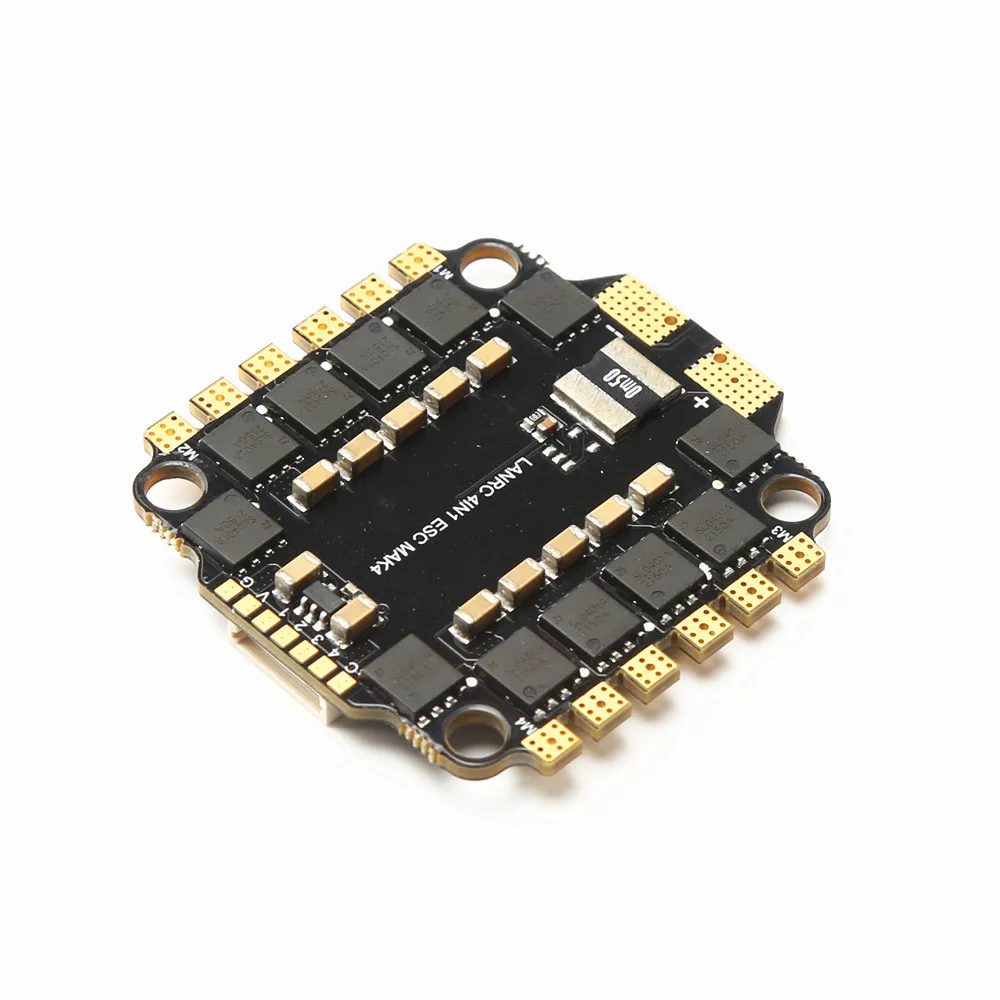

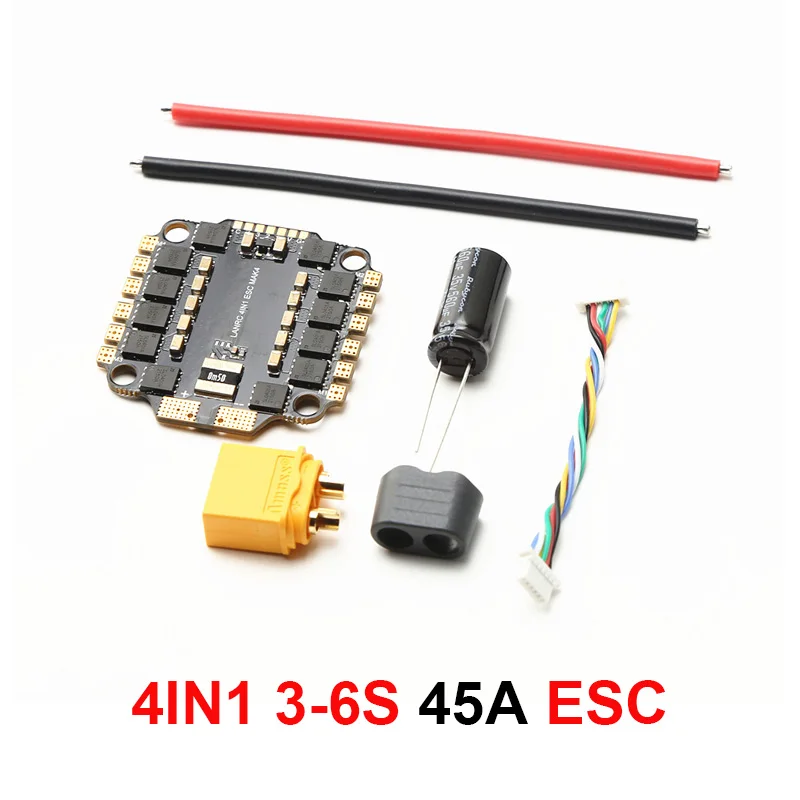

45A ESC

BLHELI_S 45A 4IN1 3-6S Brushless ESC Support DShot300-600/Multishot/Oneshot/PMW 30.5*30.5mm For RC FPV Racing Drone
45A 4-in-1 ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm (3mm hole diameter after installing the shock-absorbing ball)
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PMW
Current sensor: Support

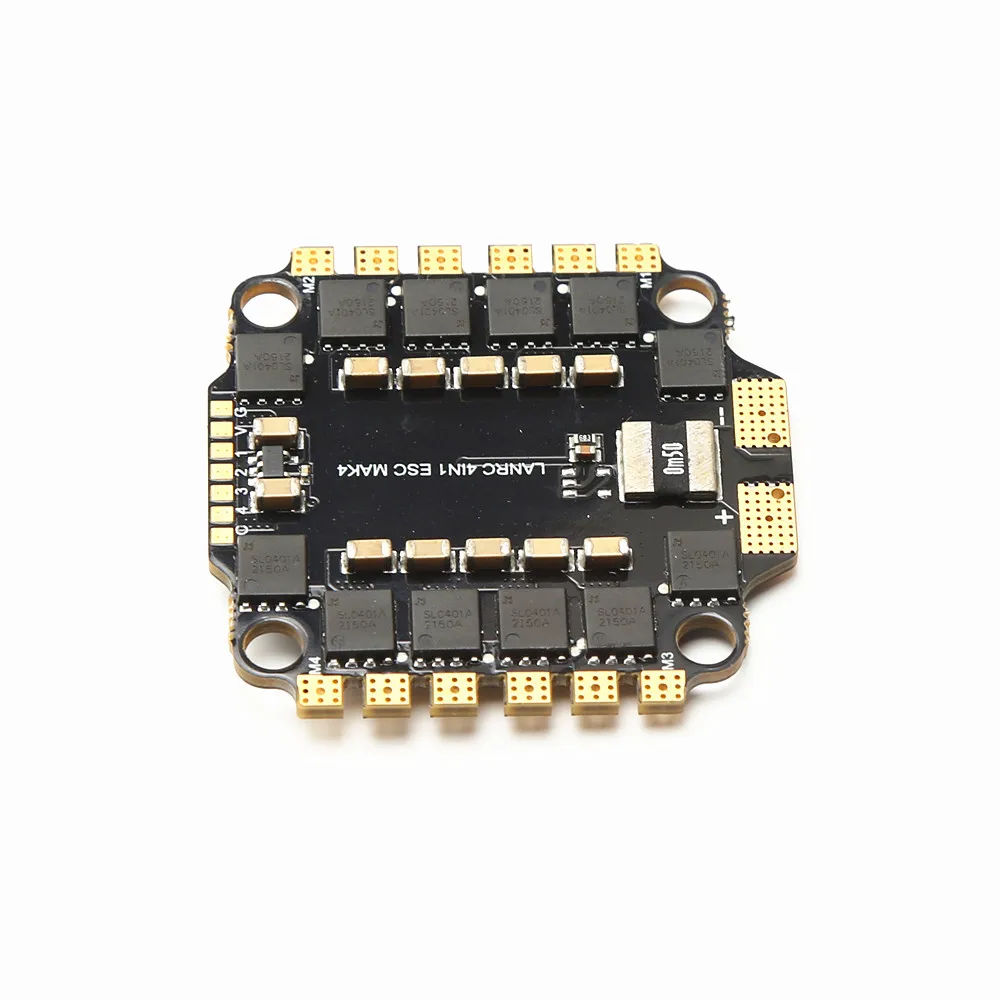

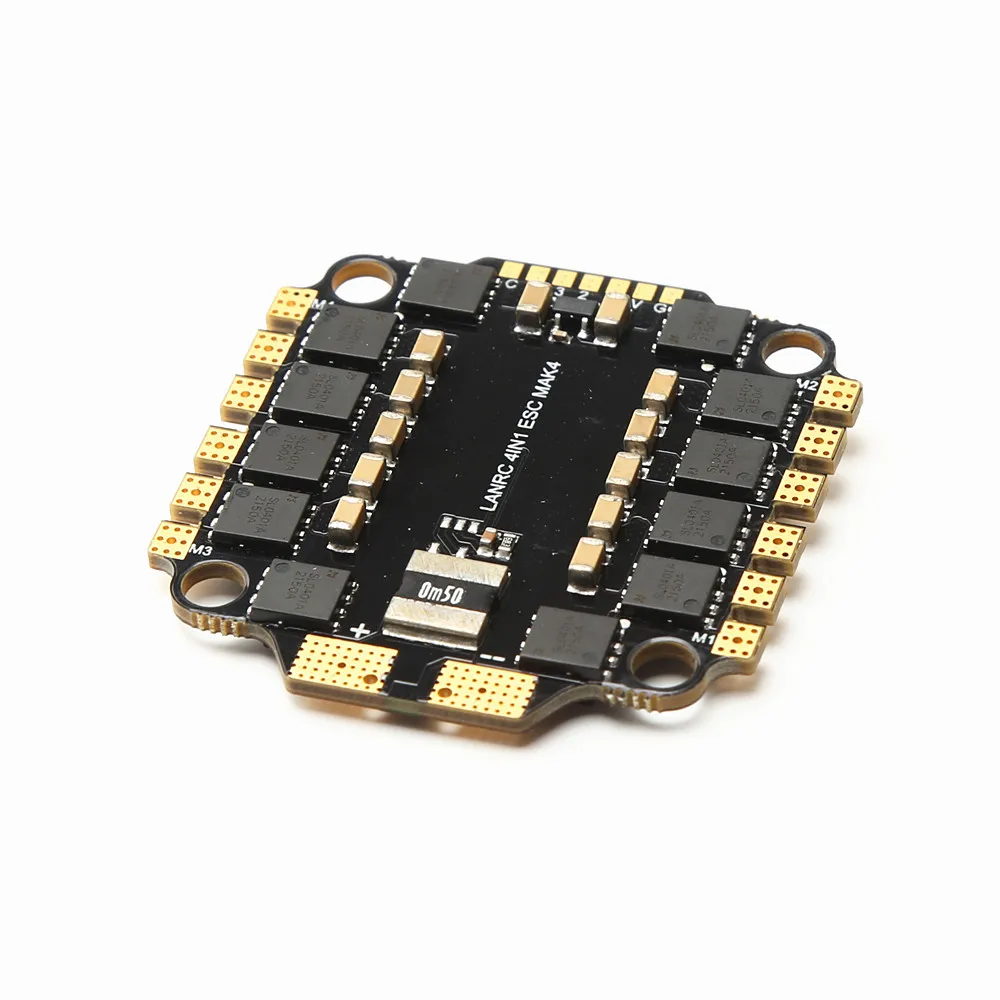

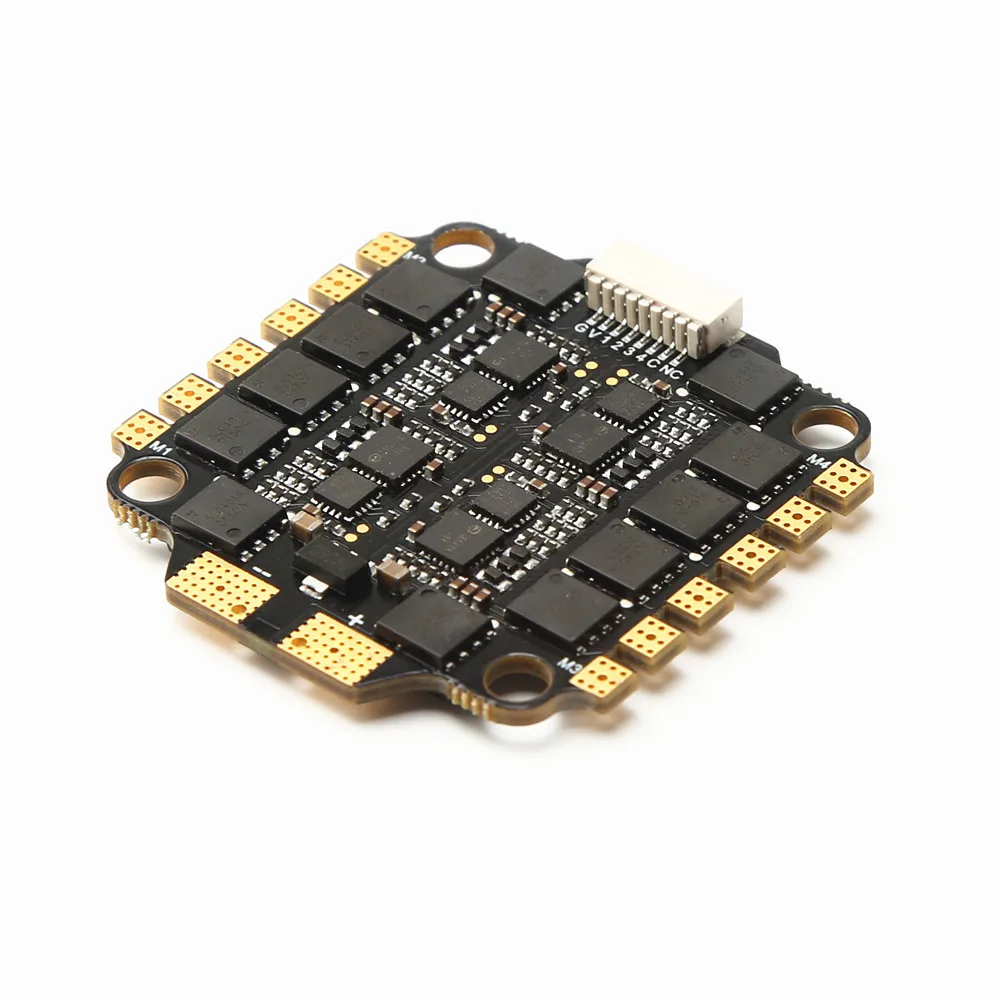

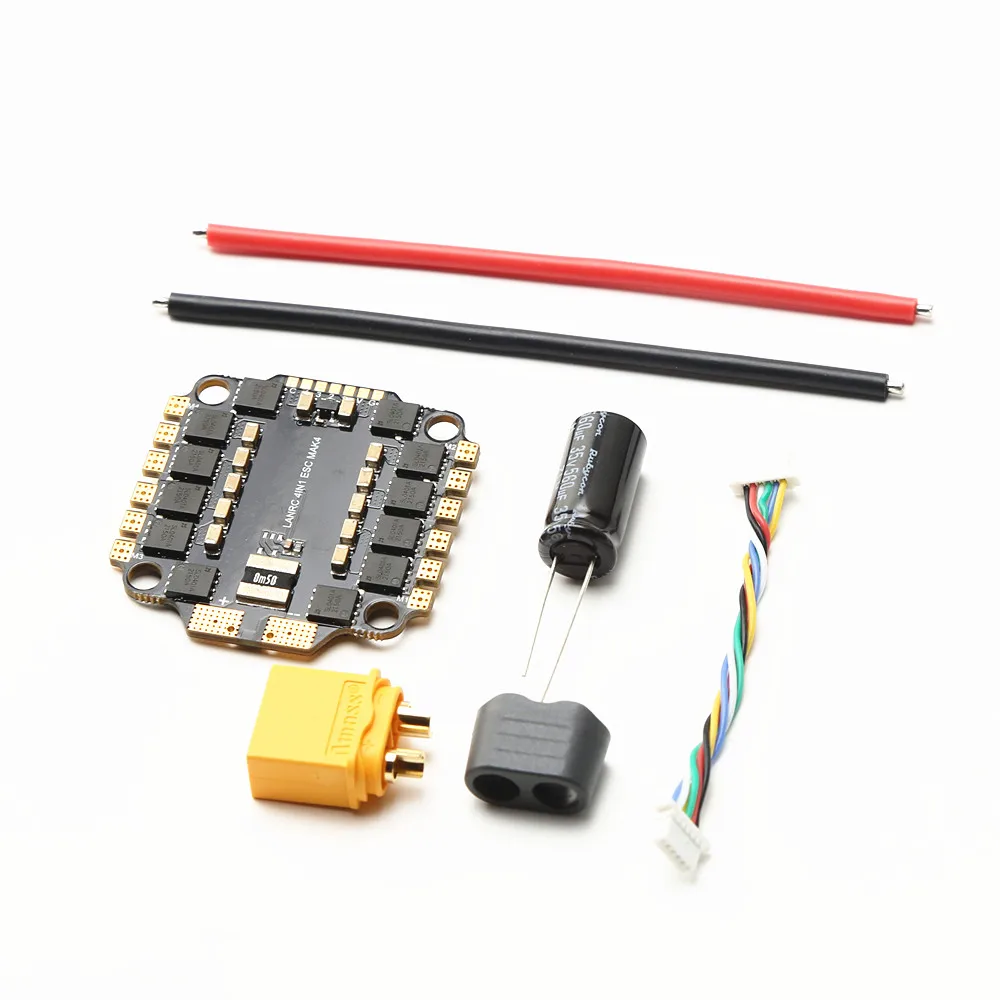

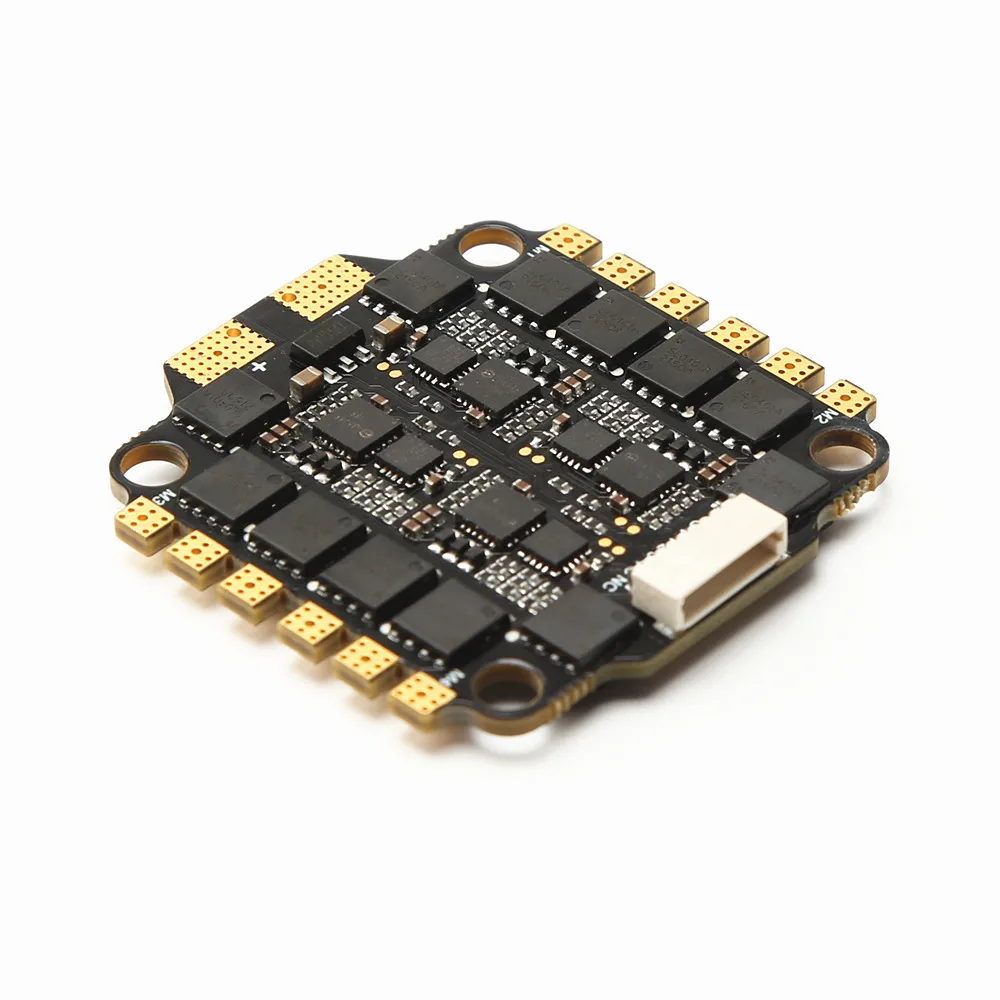

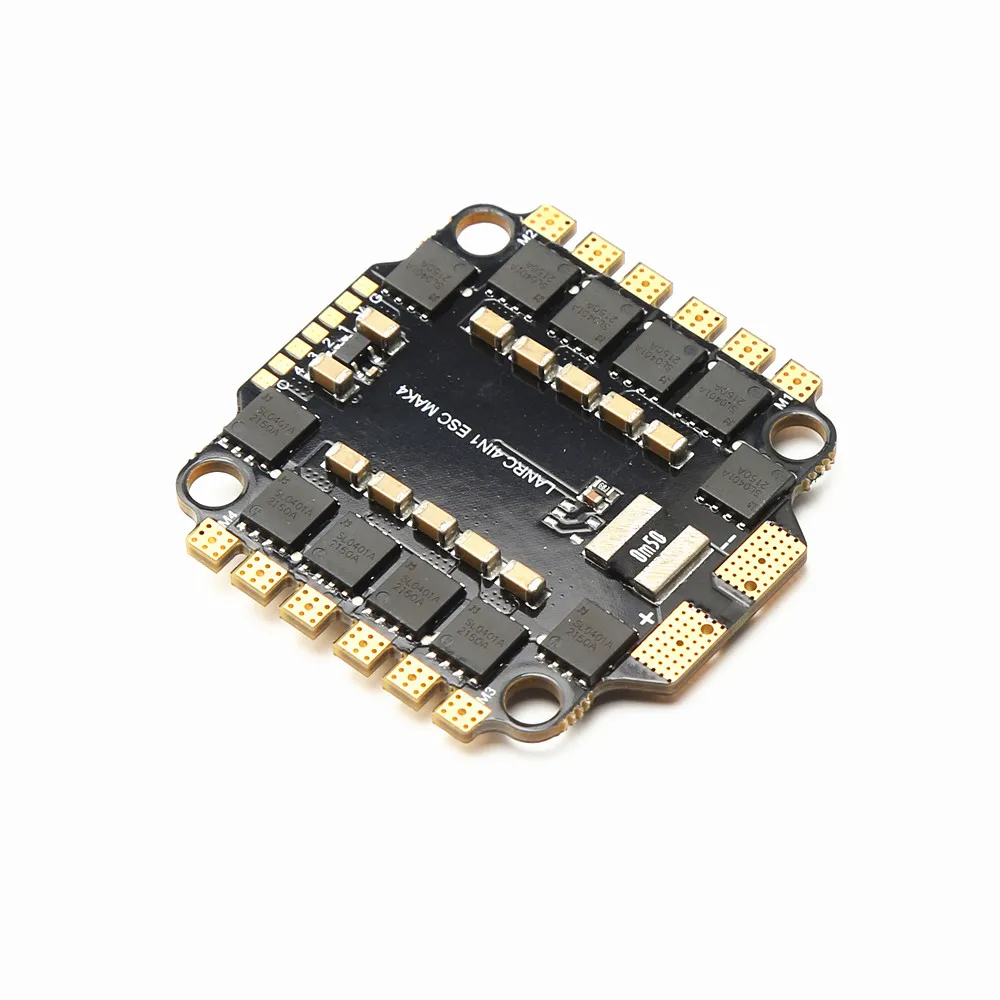

60A ESC

Description
60A 4-in-1 ESC
The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation
ESC onboard current sensor.
Continuous current: 60A
Instantaneous current [5 seconds]: 70A
Firmware: BLS J_H_30_REV16_7
The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize
the battery voltage, and protect the precision components of the flight control ESC


Additional information
ColorF4 V3S 60A ESC, F4 V3S 45A ESC, 30A ESC, 60A ESC, 45A ESC, F4 V3S 30A ESC, F4 FC
