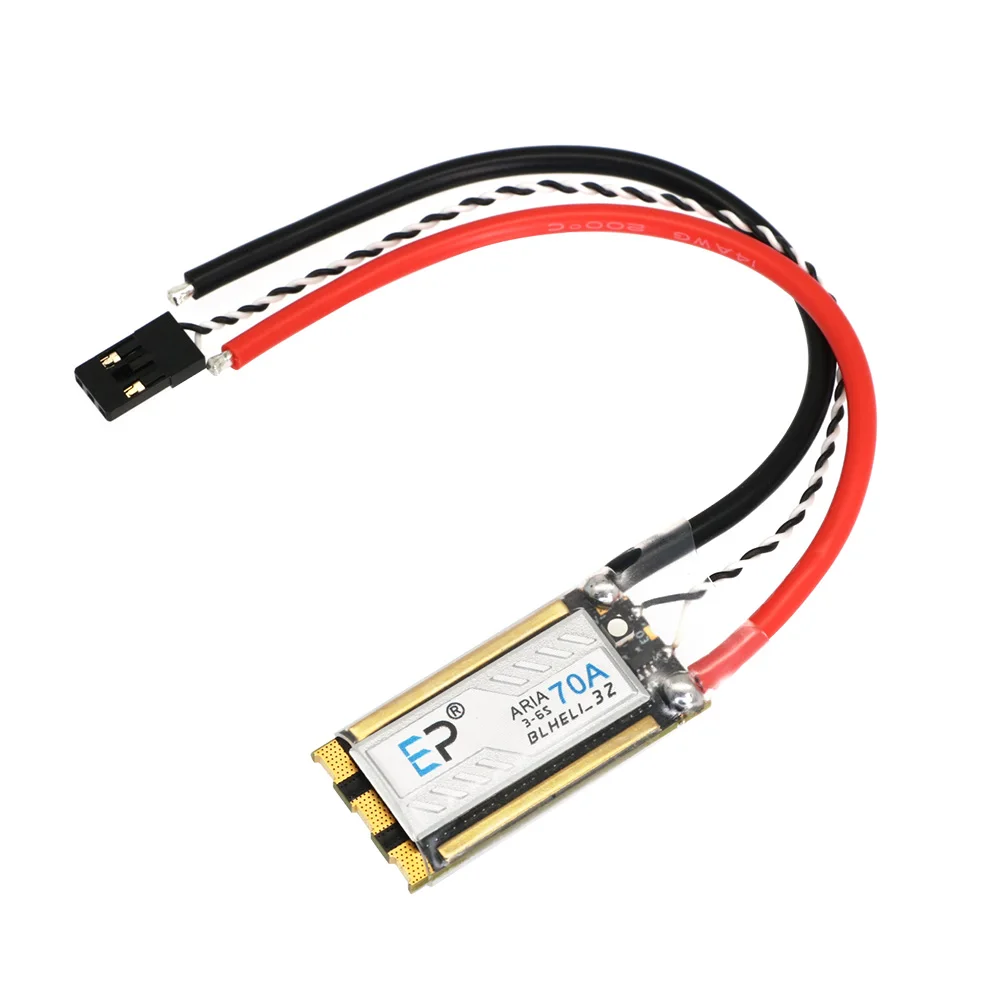

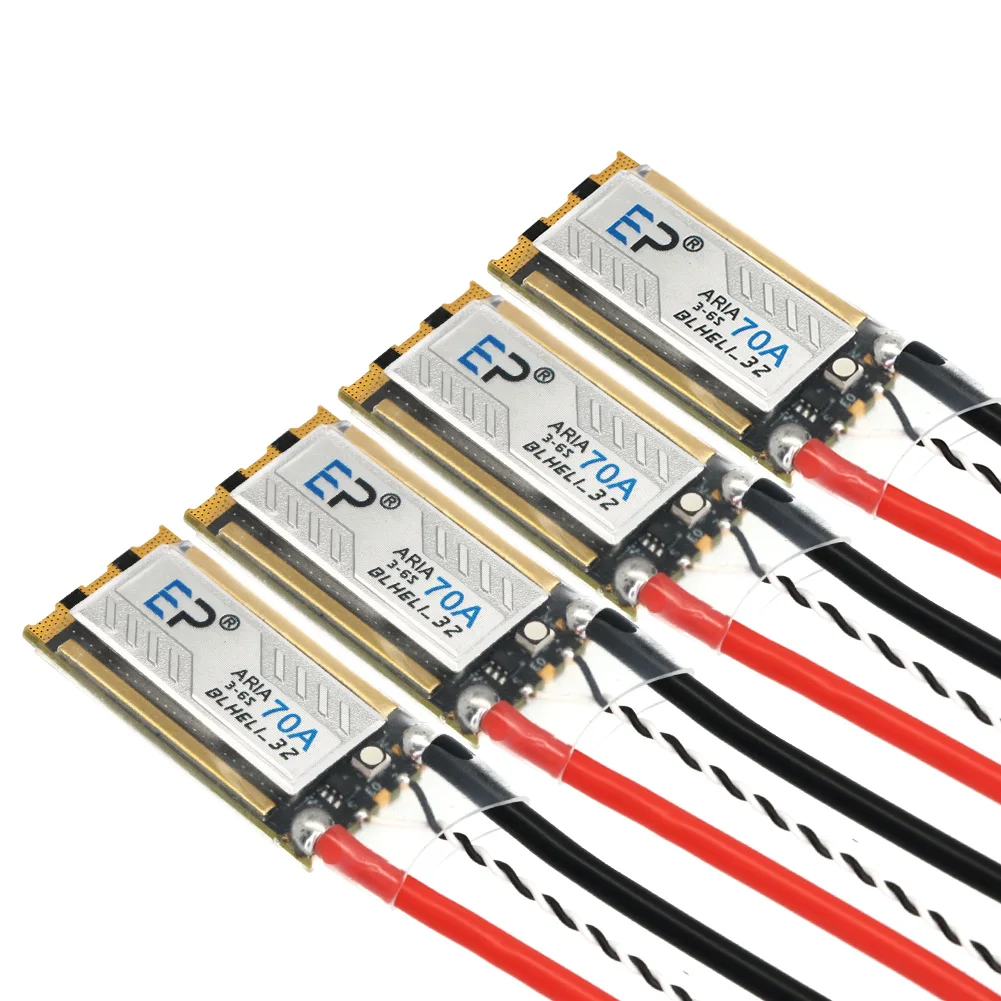

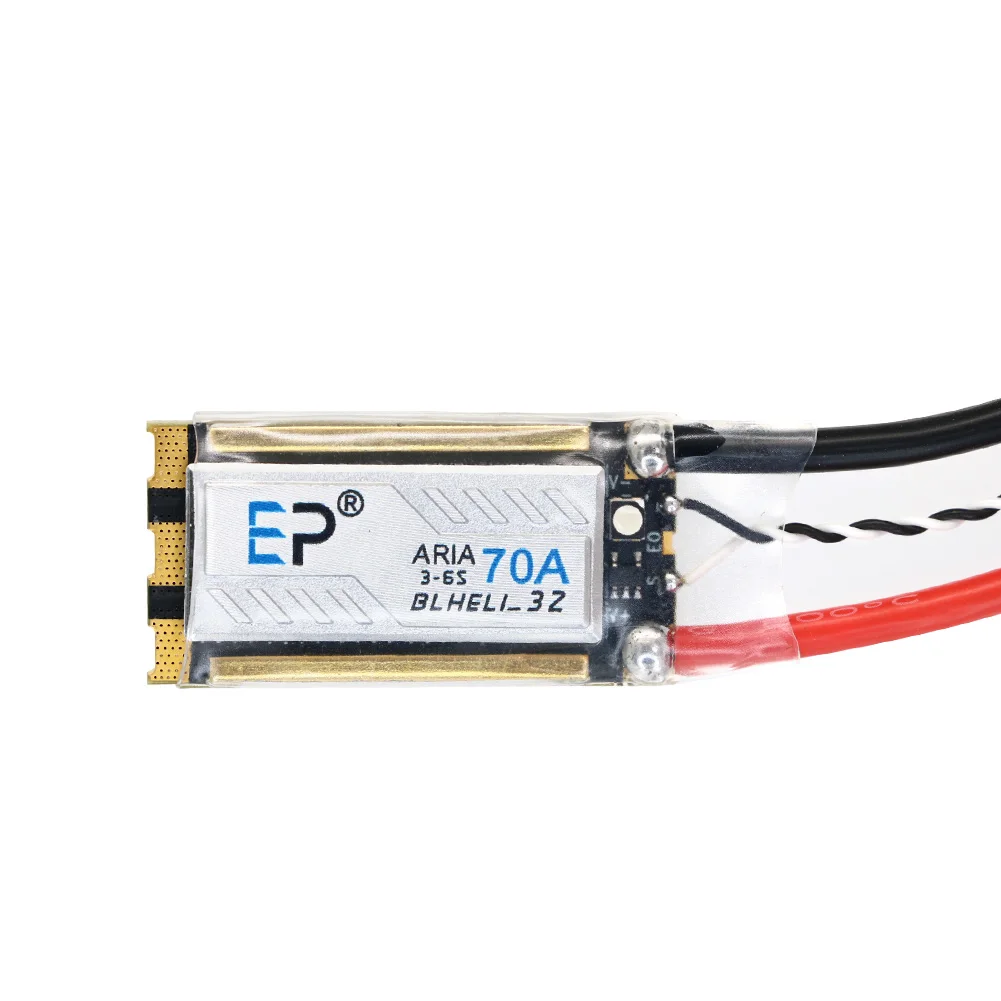

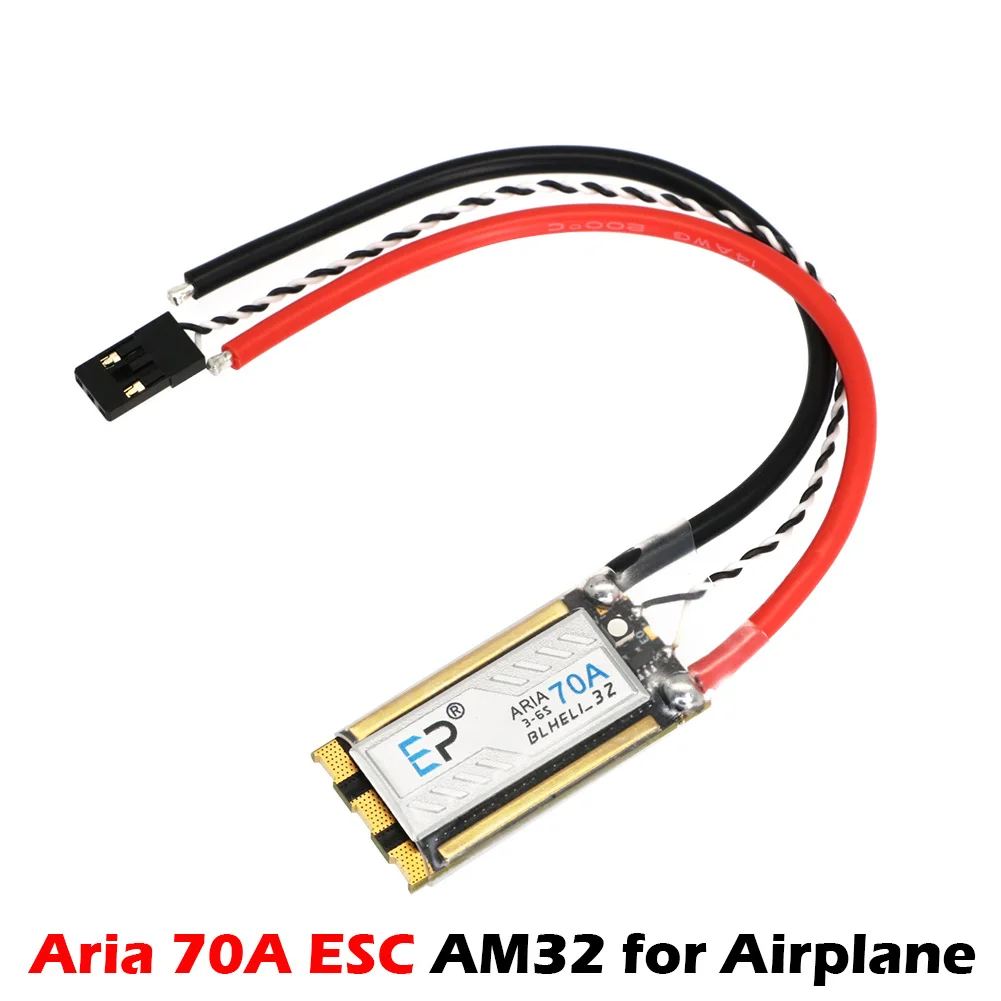

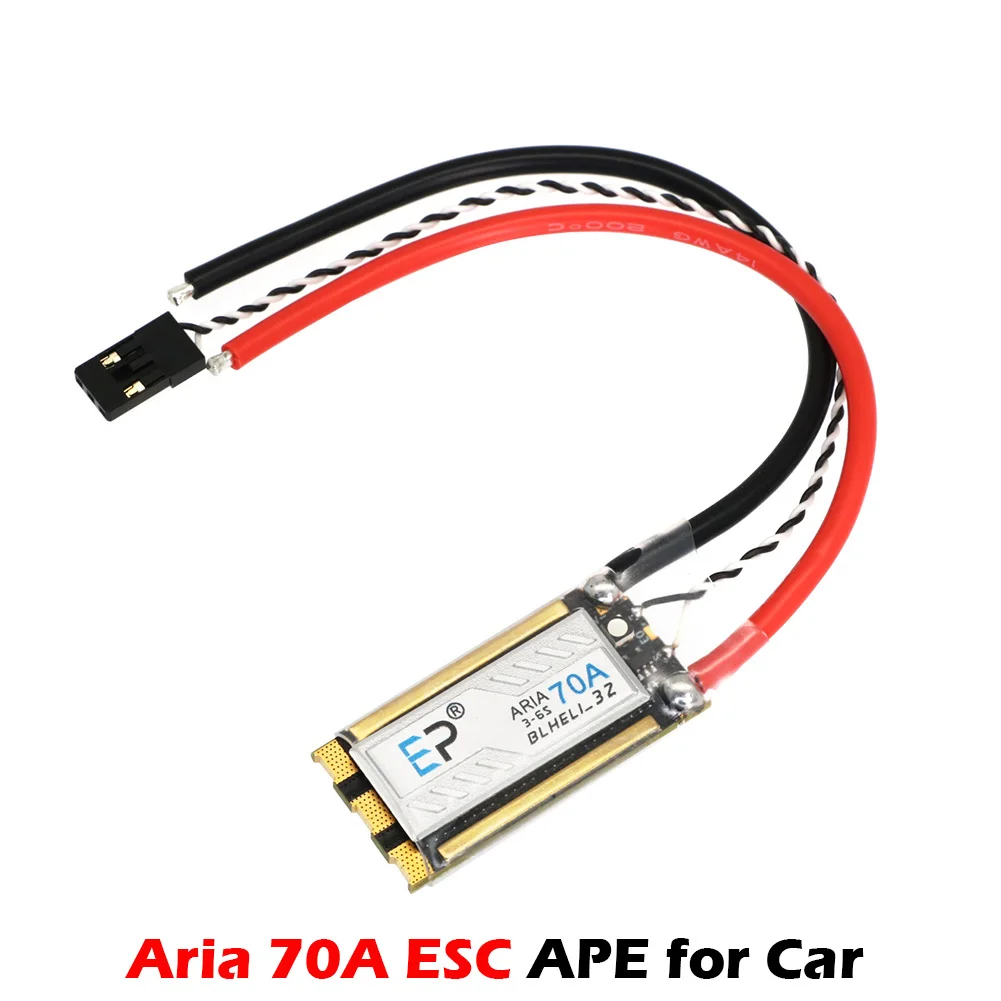

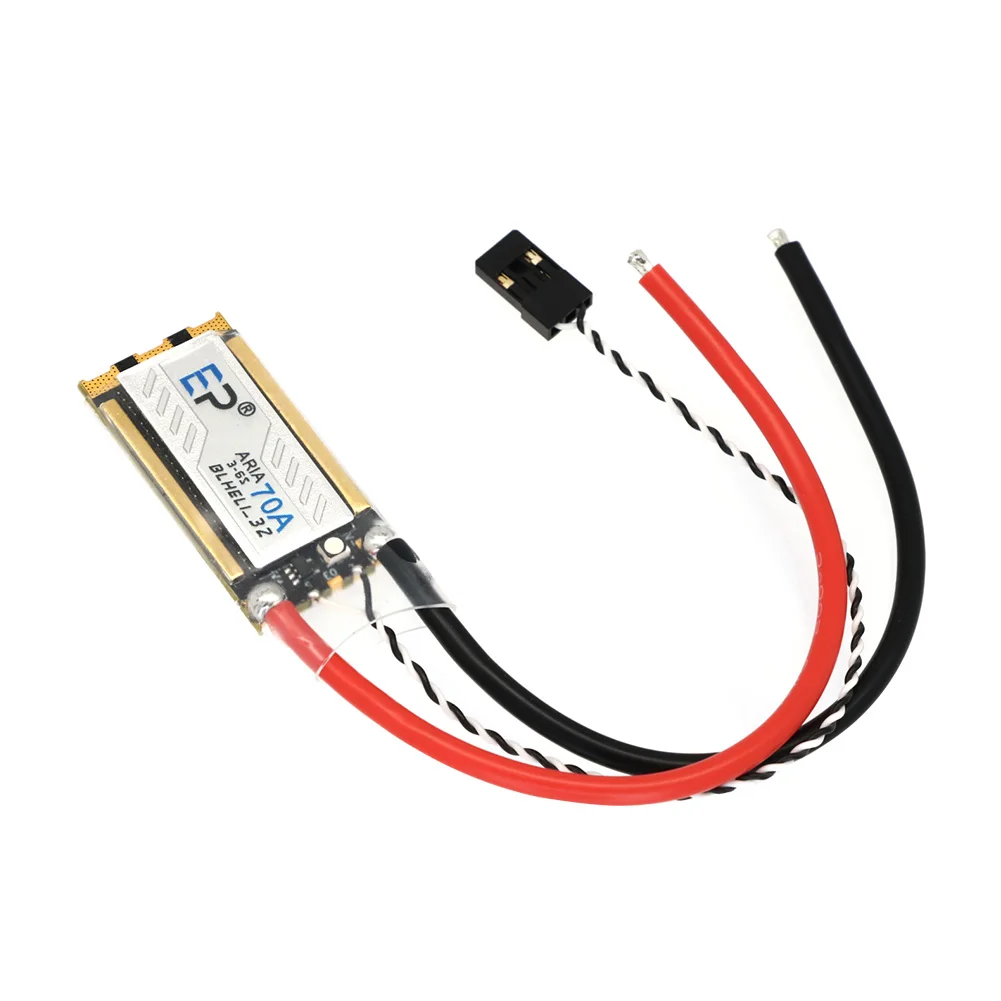

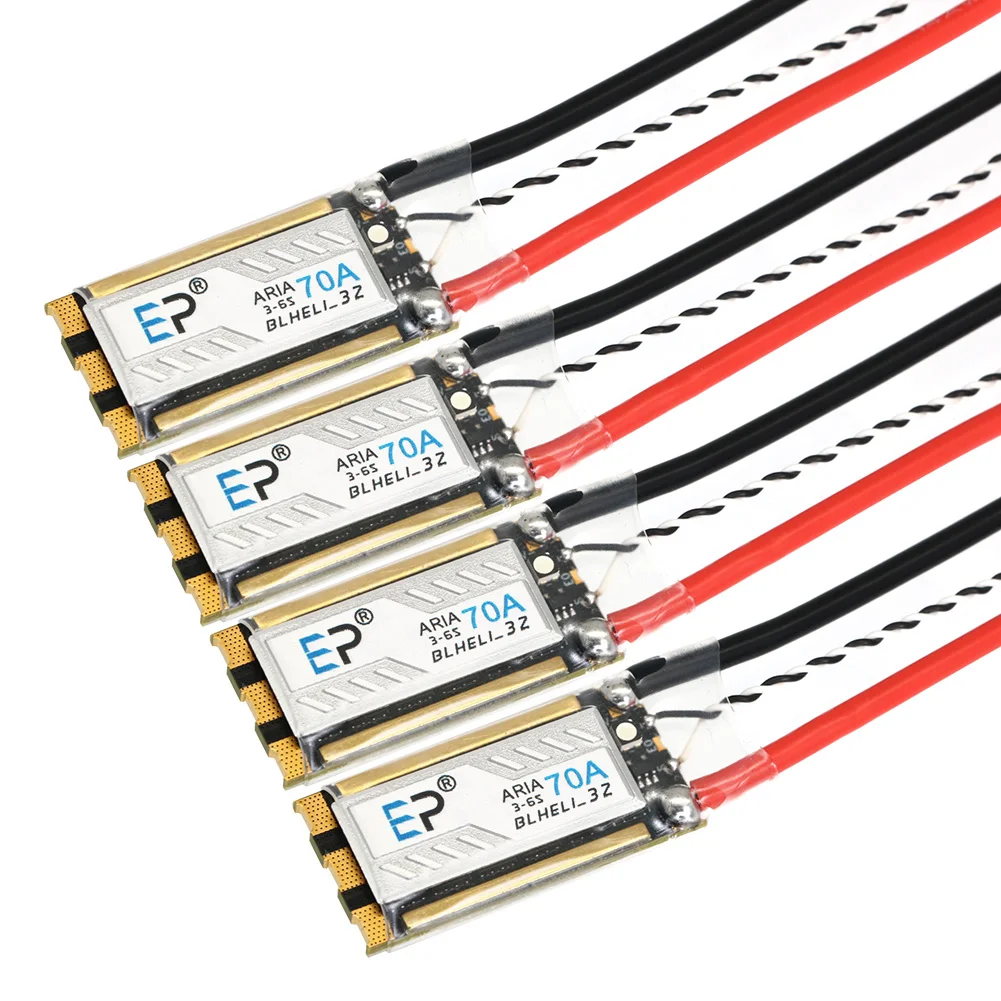

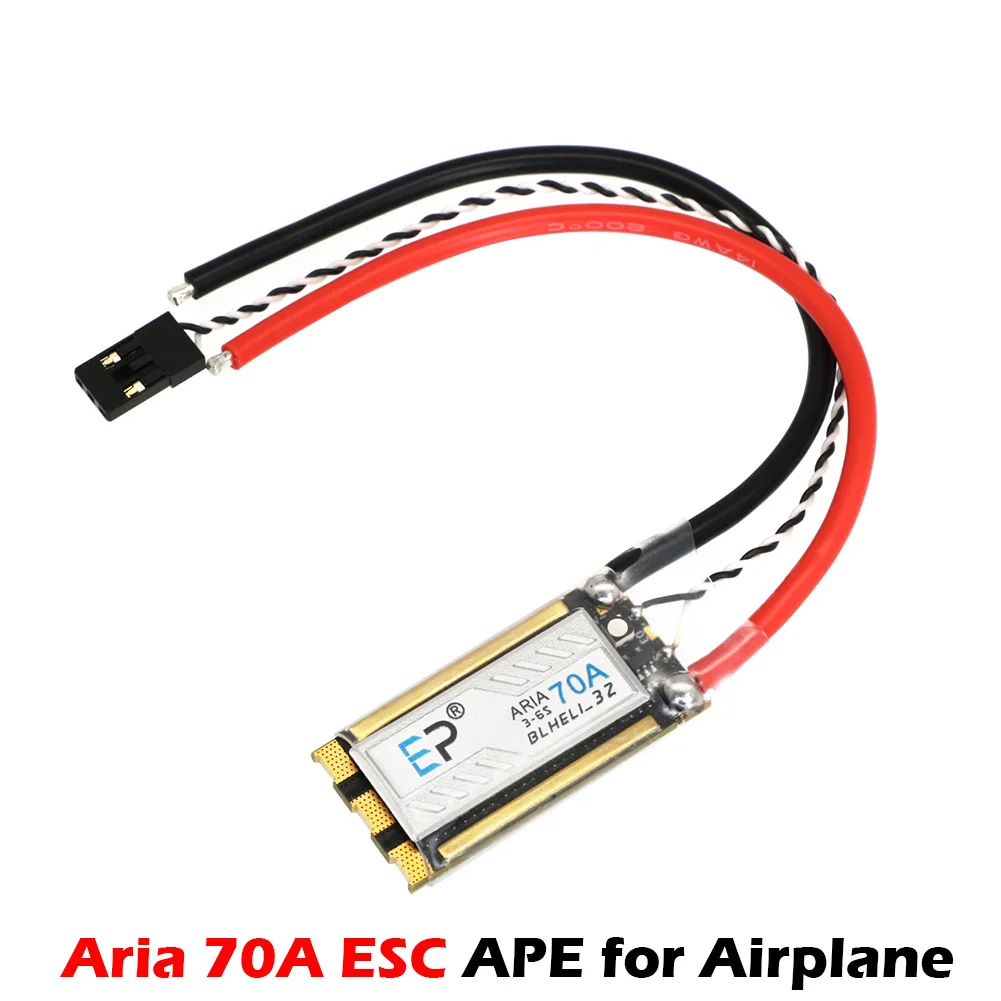

Item name: Aria BLHeli_32bit 70A ESC

Con. current: 70A

Burst current(A)>10s: 80A

Input voltage: 3-6S Lipo

BEC: NO

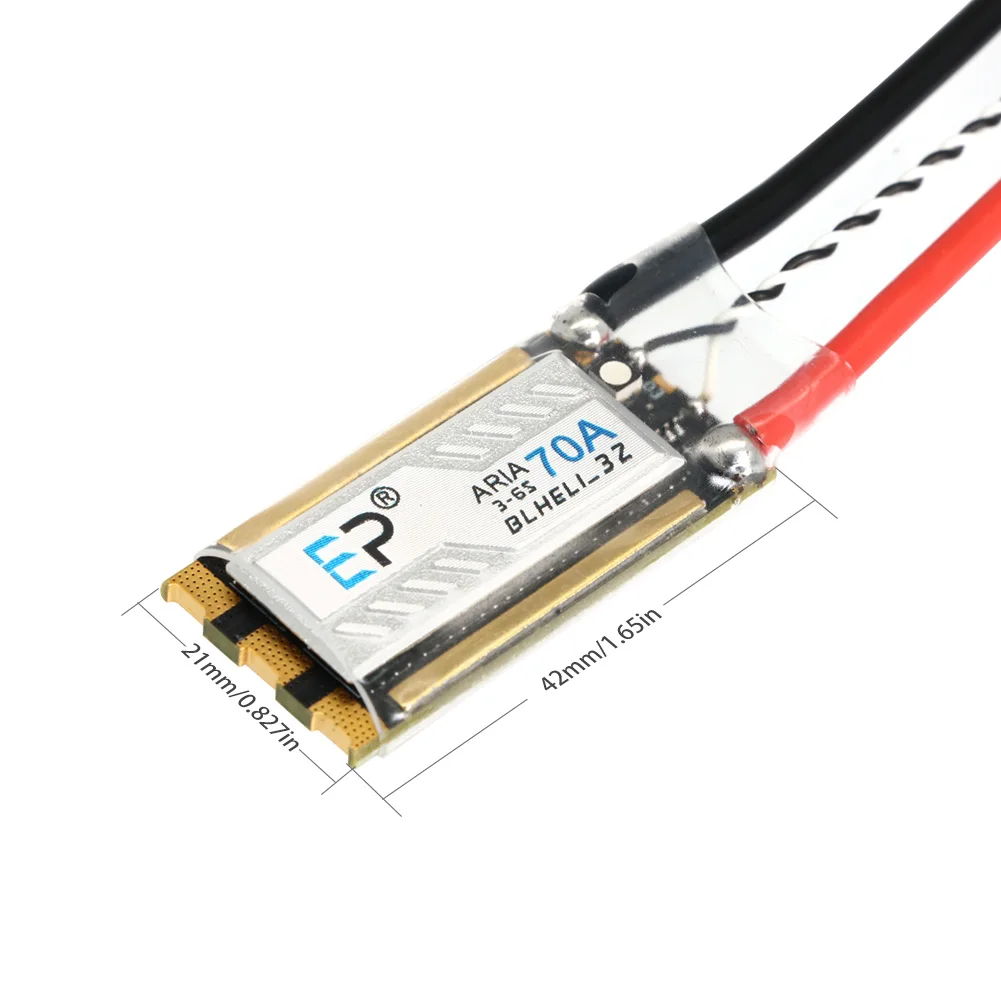

Size(mm)L*W*H: 21*28.16*6mm

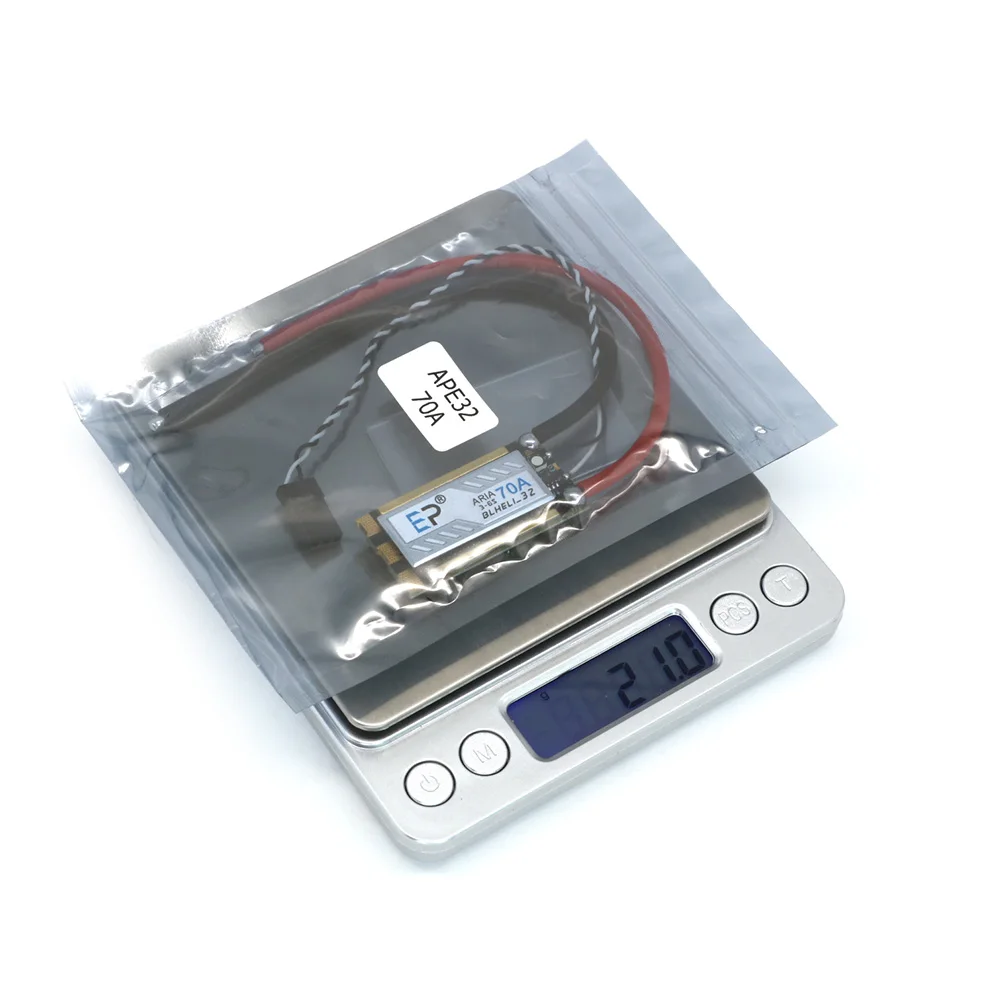

Weight: about 9.50g

Features:

◆ With 32bit ARM Cortex MCU STM32F051 48MHZ micro processor, throttle 2048 resolution ratio,strong anti-interference capacity.

◆ Built-in temperature sensor will pass the telemetry port to transfer and overlay to the OSD of FC,It can be programmed setting for temperature protection.

◆Support Blheli_32 firmware,can use the signal wire to upgrade the firmware or change the configuration on line.

◆ Current Meter to help show current indication of OSD;

◆ With USB linker can be programmable throttle setting like support positive and negative,two-way mode,FPV 3D mode,motor speed,braking , PWM frequency,

inlet angle speed setting, onboard RGB LED for customize color, Beep etc.

◆ It use the self-adaption control system,can go automatic with the all kind of the motor in the market,at the mean time it support up to 500HZ PWM,oneshot 125,

oneshot 42,Multishot and Dshot 150/300/600/1200.

◆ With special optimize in multi-axis,the motor can launch smoother in a good throttle curve, fast response,great power, and highly support the multi-axis,fixed-wing

and helicopter.

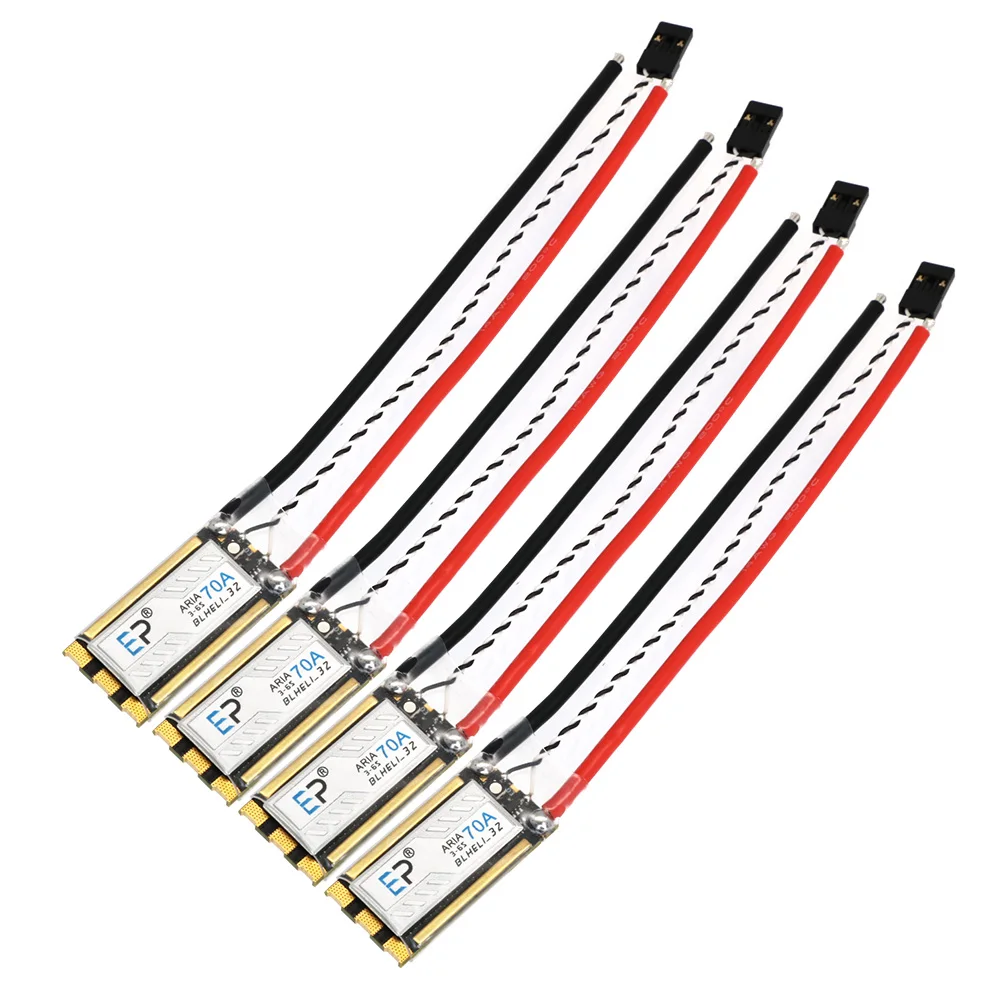

◆ The twisted- pair signal wire can lower the crosstalk inside cooper wire when it transfer,which will make the flight more stable.

◆ MCU hardware,Driver circuit ,Mosfet will come with double voltage protection.

◆ To adopt the new process MOSFET of low internal resistance, will help increase resistance to flow.Also,the professional MOS driver chip makes the best efficiency.

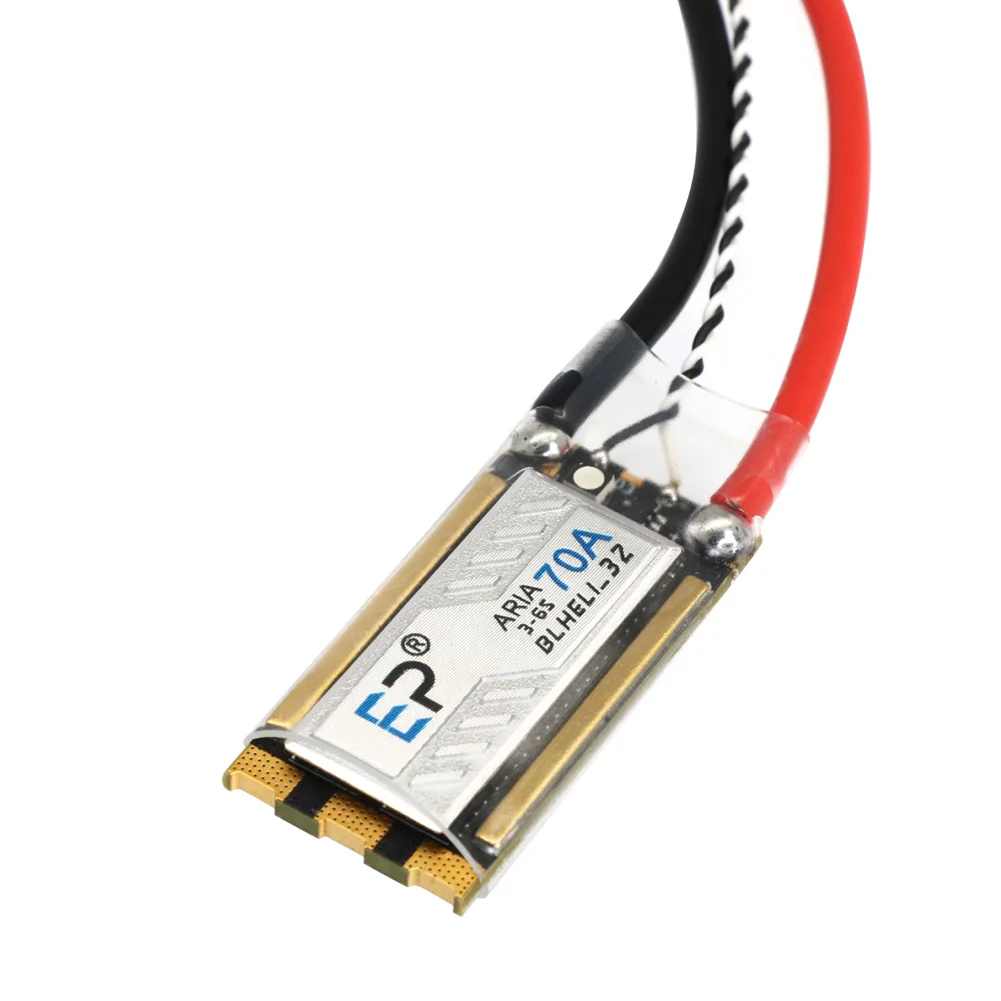

◆ Mosfet is covered with aluminum sheet for cooling,which can bring more efficiency and stability.

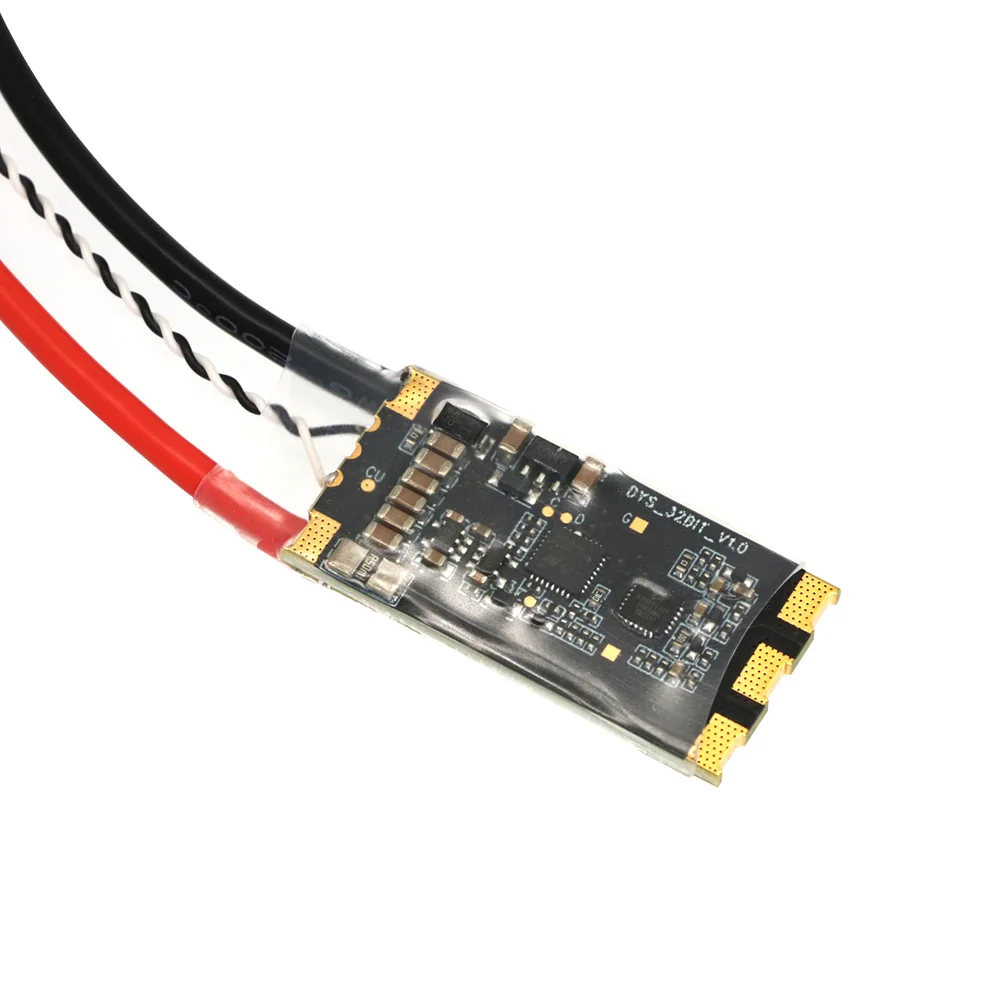

◆ With special process of 8 layer thicken PCB will lower resistance, small calorific value and bigger impact resistance current.Nice optimize layout of the components

and parts makes a smaller size,lighter weight and easy to build.
