EMAX BLHeli 80A 60A 50A 40A 30A 20A 12A ESC for RC Multirotor Airplane Fixed-Wing FPV Racing Drone QAV250 QAV210 DIY Parts
Price range: $23.66 through $96.99
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: BLHeli 60A ESC
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: VZHW2726
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Speed Controllers
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 86*38*12mm
Technical parameters: value 2
Tool Supplies: BLHeli 80A ESC
Upgrade Parts/Accessories: EMAX BLHeli ESC
Use: Vehicles & Remote Control Toys
Wheelbase: Screws

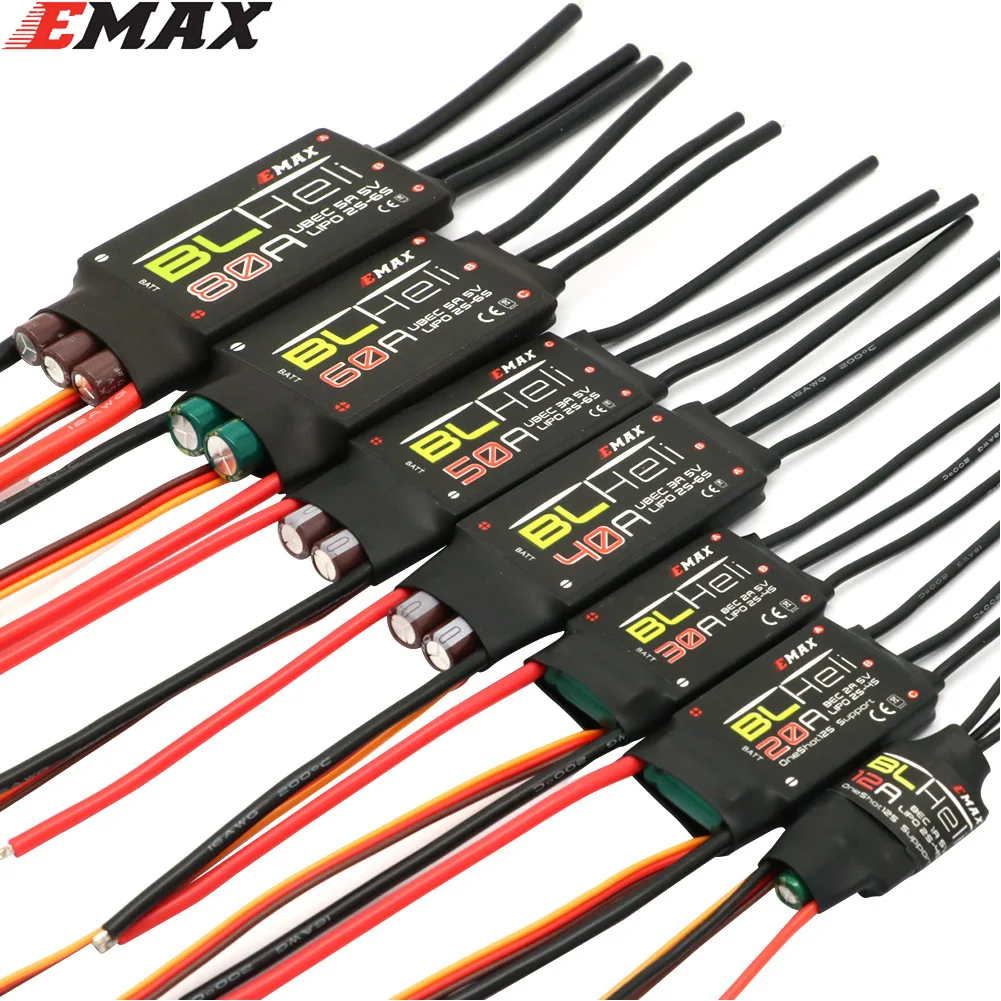

BLHeli 20A 30A 40A 50A 60A 80A Brushless ESC with UBEC for Quadcopter Aircraft Model Fixed Wing Multi-axis DIY FPV RC Drone
Features:
1. The original components are used to ensure the high quality of the ESC, especially the excellent current resistance.
2. Based on BLHeli program and optimized, the throttle linearity is excellent.
3. It is optimized for multi-axis and supports fixed wing and helicopters well.
4. Direction selection is added to the programming item, supporting special two-way mode.
5. Multiple parameters of the speed governor can be set through (programming card) or remote control, and the default parameters can be restored through the remote control or programming card.
6. With low-voltage protection, over-temperature protection, multiple protection functions for signal loss.
7. With a warning function, the throttle is kept at the lowest throttle for a certain period of time, and the ESC will beep to retrieve the lost flight equipment.
8. The throttle range can be set to be compatible with different receivers, with a smooth and delicate speed control feel.

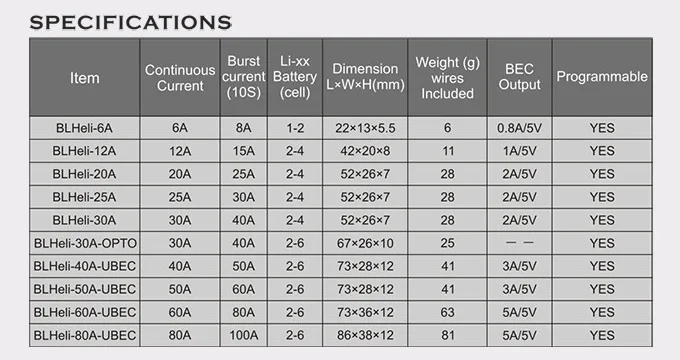

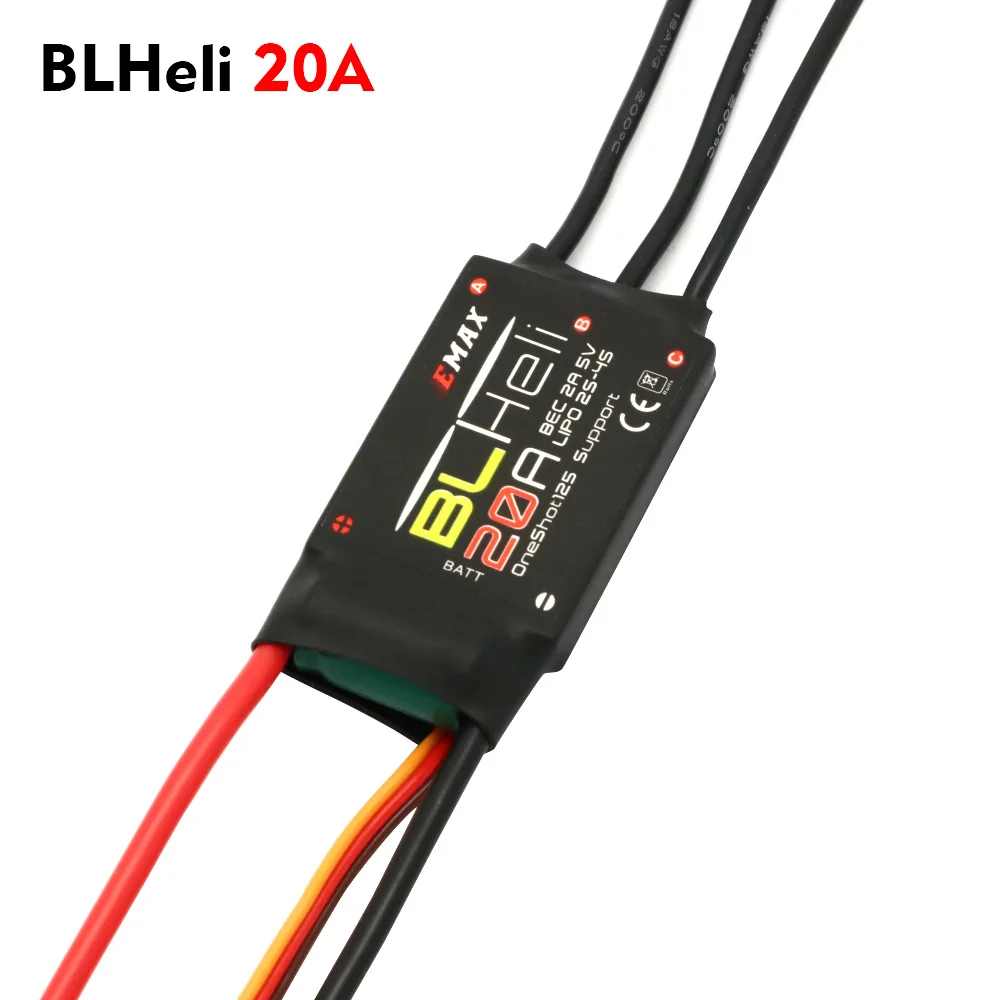

BLHeli-20A Brushless ESC:
Continuous Current: 20A;
Burst Current (10S): 25A;
Lipo Battery (Cell): 2S-4S;
Dimension L*W*H(mm): 52*26*7mm;
Weight (g) Wire Included: 28;
BEC Output: 2A/5V;
Programable: YES;

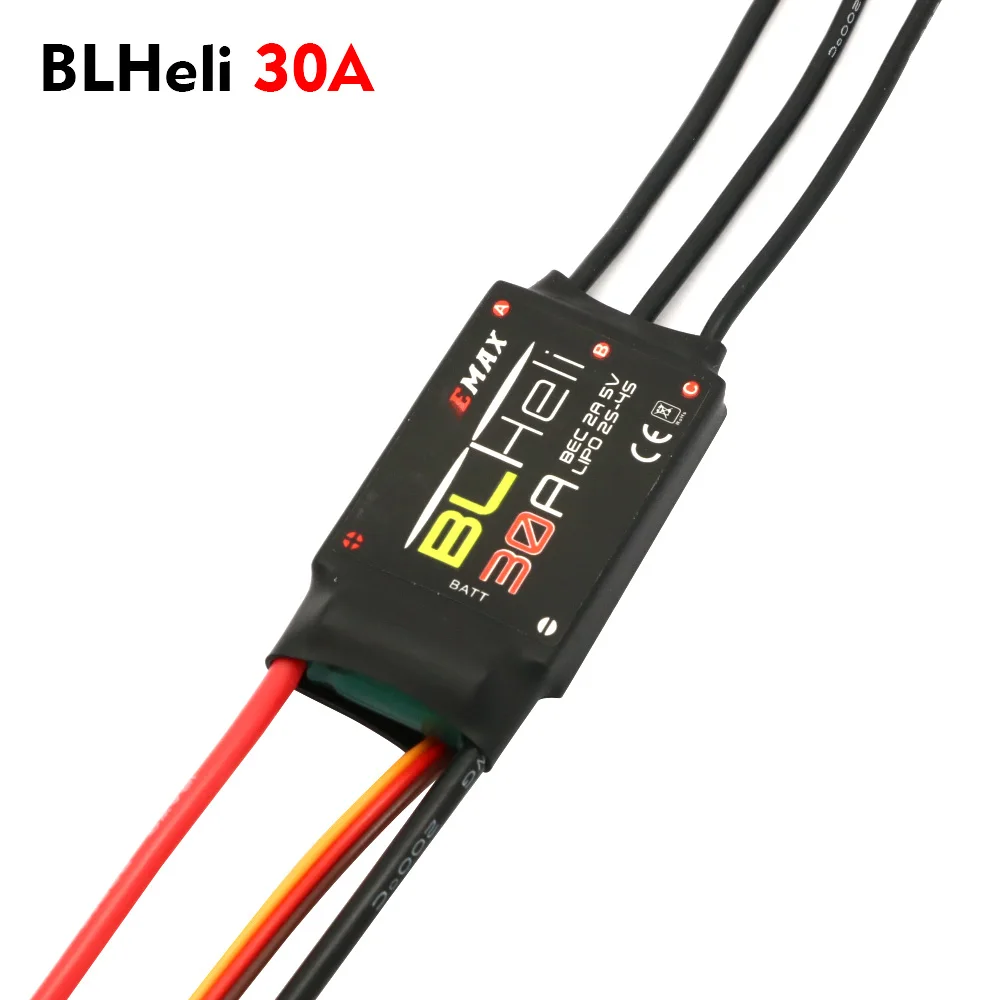

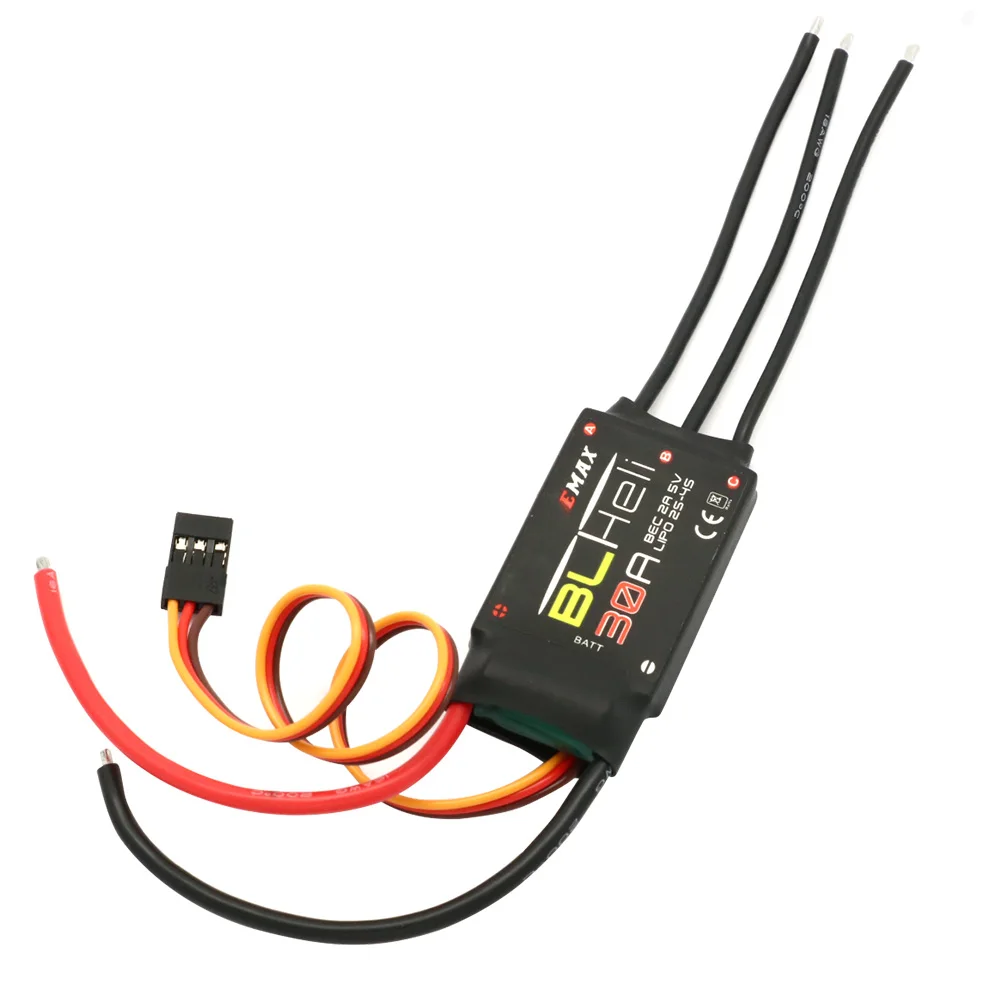

BLHeli-30A Brushless ESC:
Continuous Current: 30A;
Burst Current (10S): 40A;
Lipo Battery (Cell): 2S-4S;
Dimension L*W*H(mm): 52*26*7mm;
Weight (g) Wire Included: 28;
BEC Output: 2A/5V;
Programable: YES;

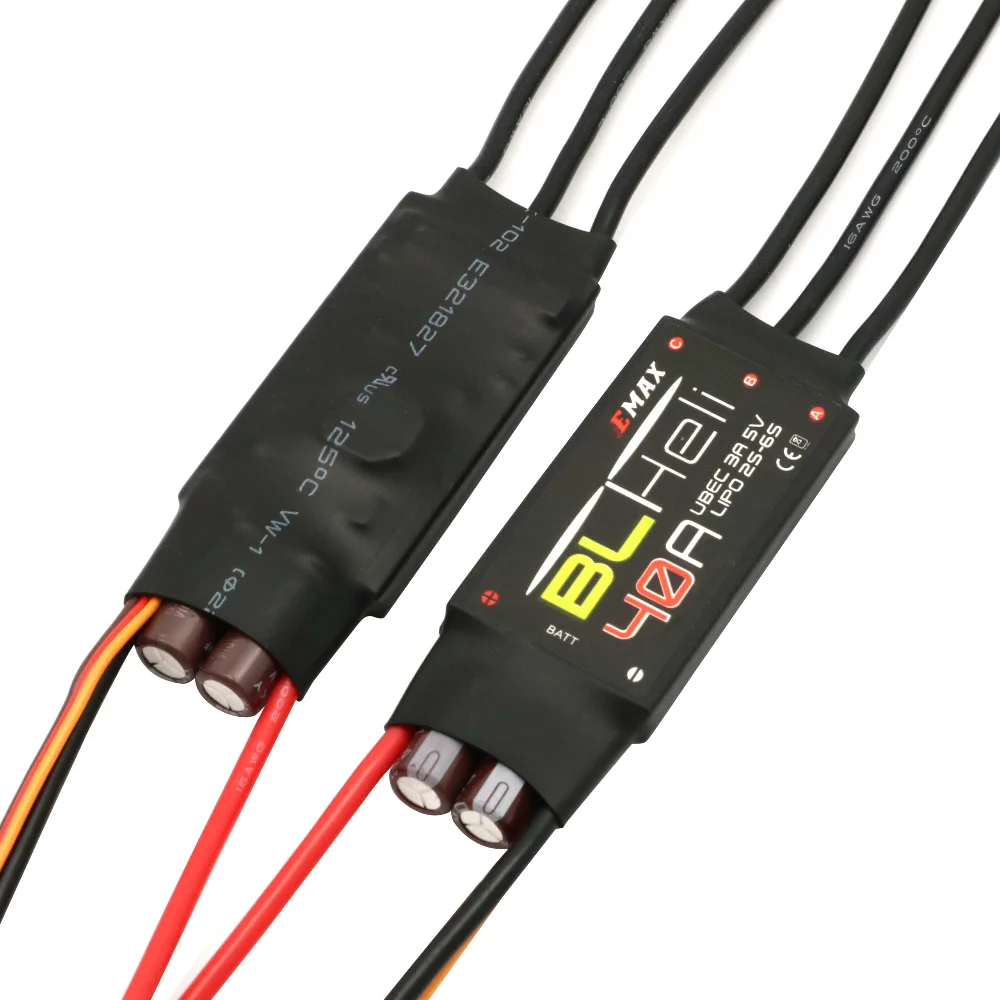

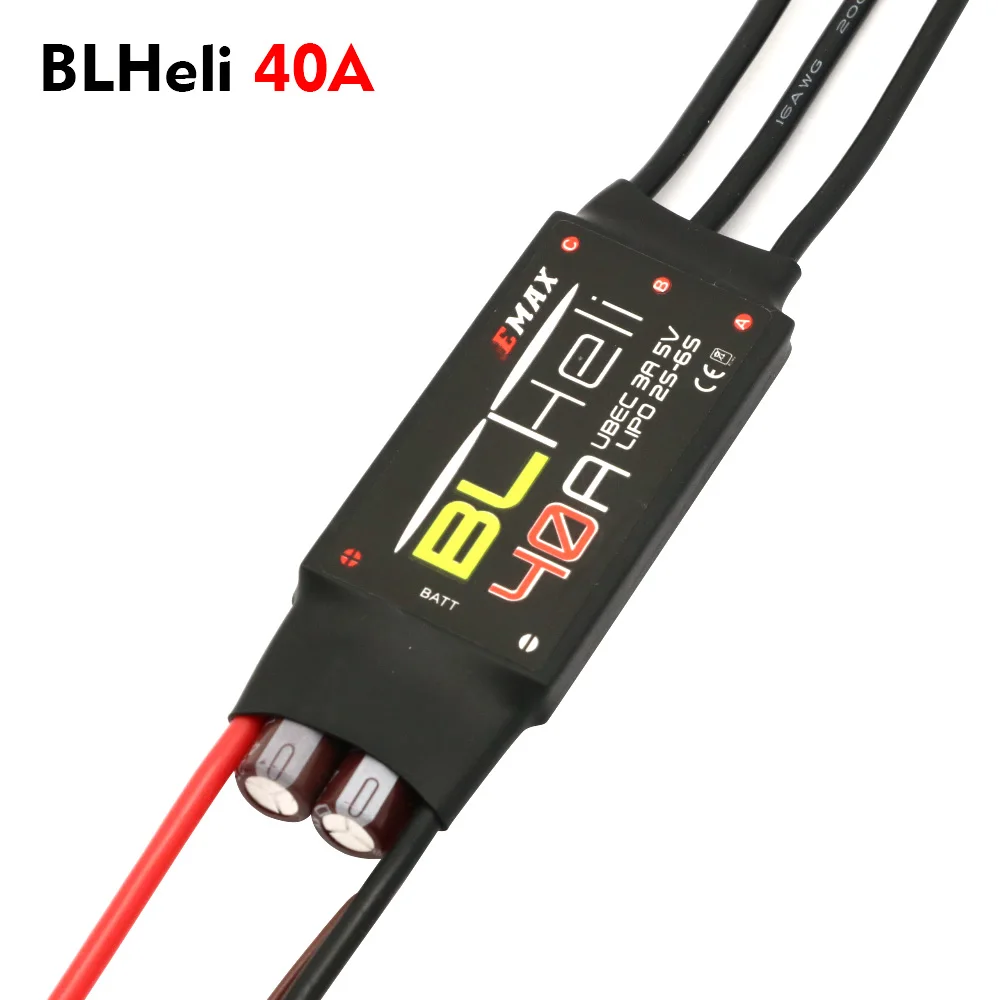

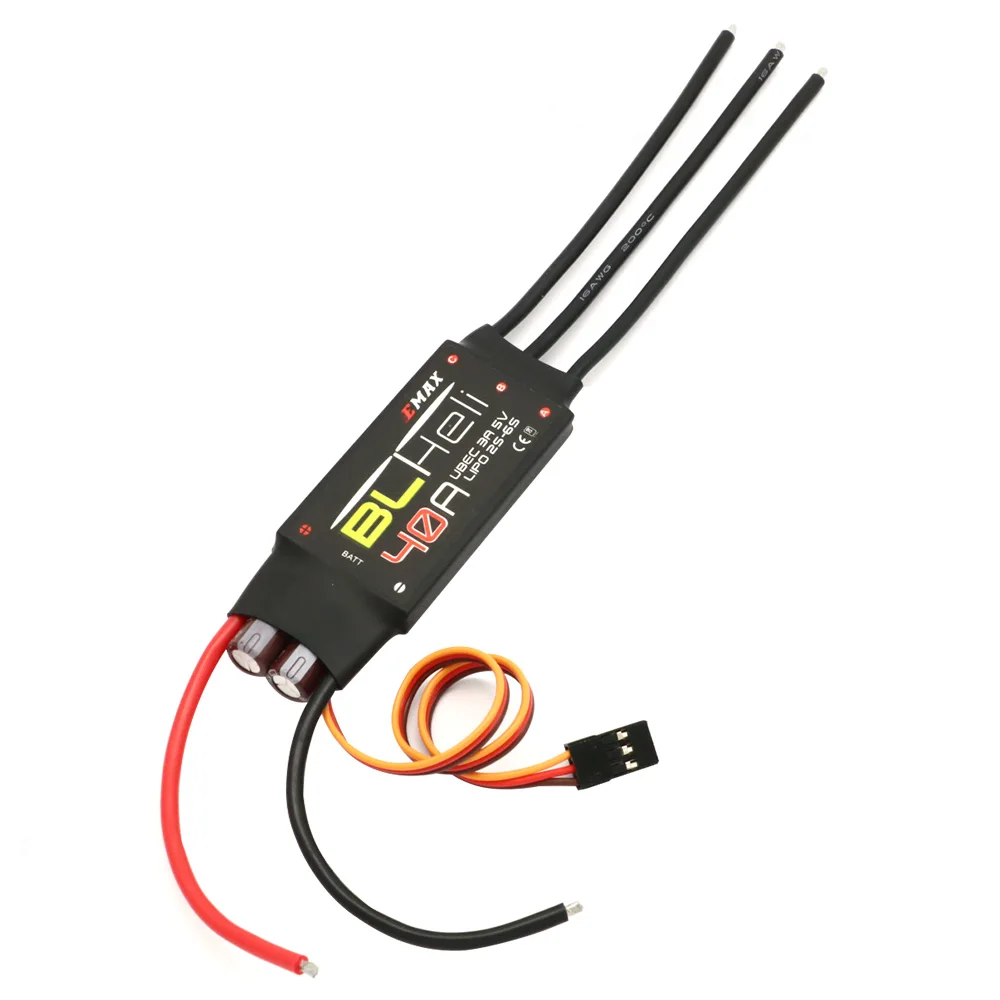

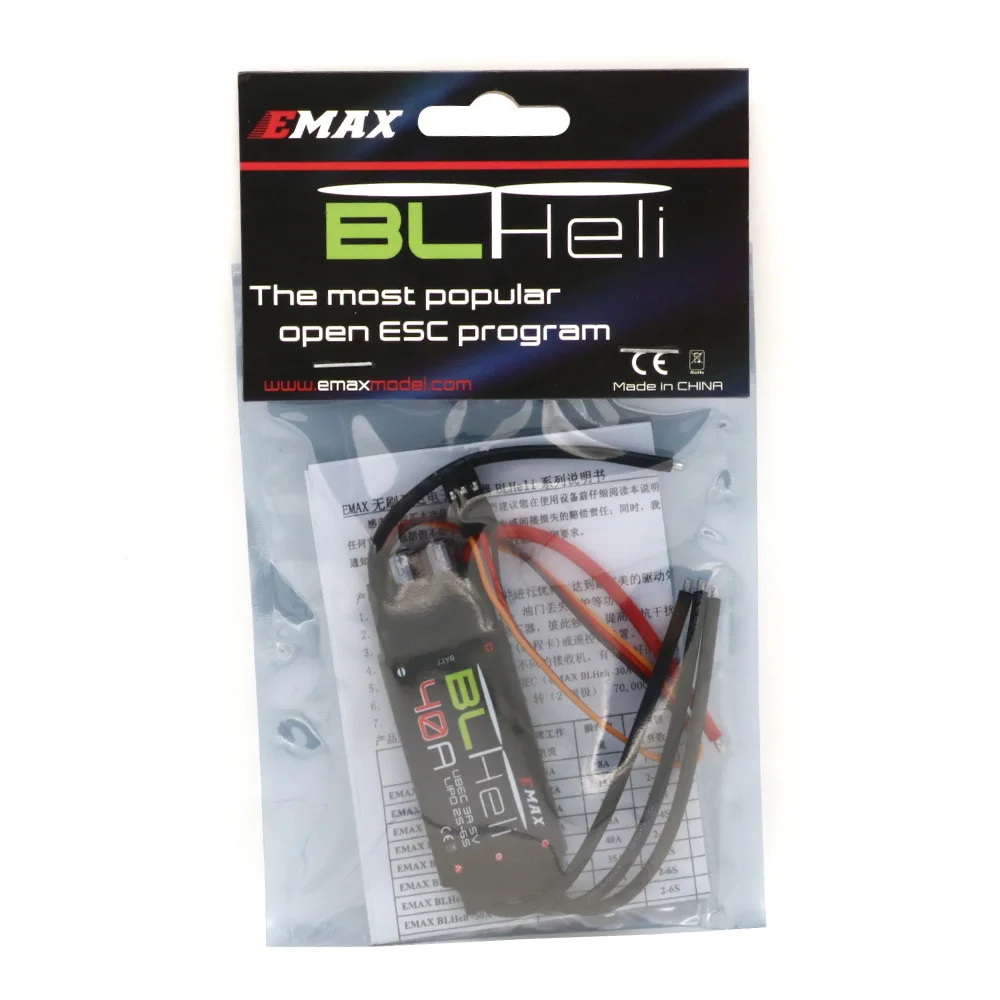

BLHeli-40A UBEC Brushless ESC:
Continuous Current: 40A;
Burst Current (10S): 50A;
Lipo Battery (Cell): 2S-6S;
Dimension L*W*H(mm): 73*28*12mm;
Weight (g) Wire Included: 41;
BEC Output: 3A/5V;
Programable: YES;

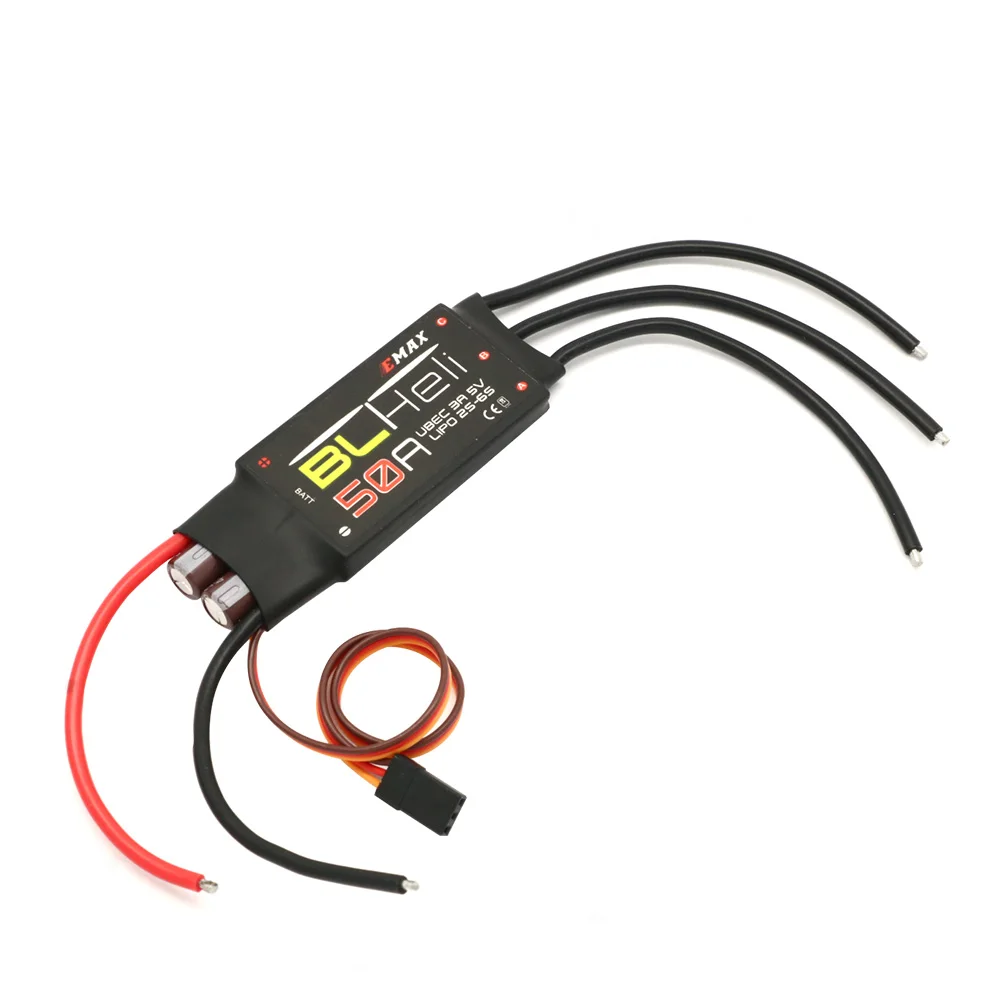

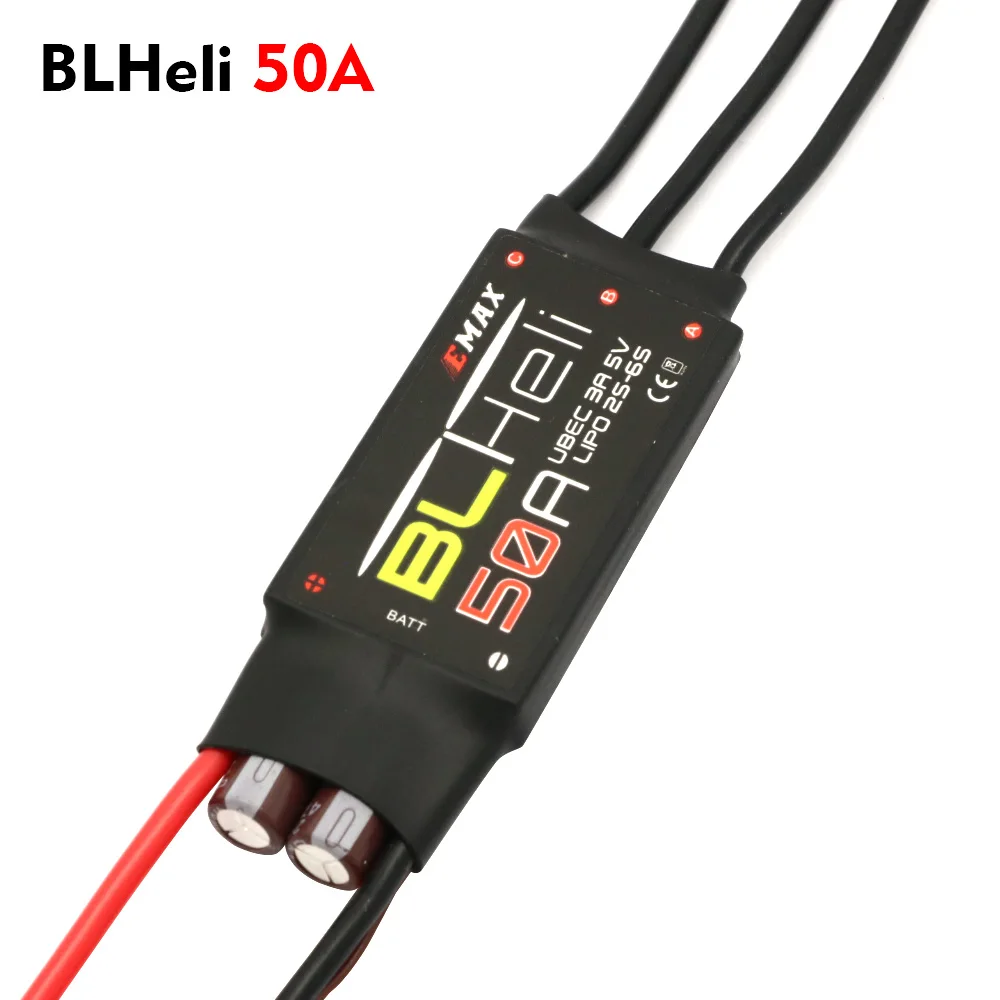

BLHeli-50A UBEC Brushless ESC:
Continuous Current: 50A;
Burst Current (10S): 60A;
Lipo Battery (Cell): 2S-6S;
Dimension L*W*H(mm): 73*28*12mm;
Weight (g) Wire Included: 41;
BEC Output: 3A/5V;
Programable: YES;

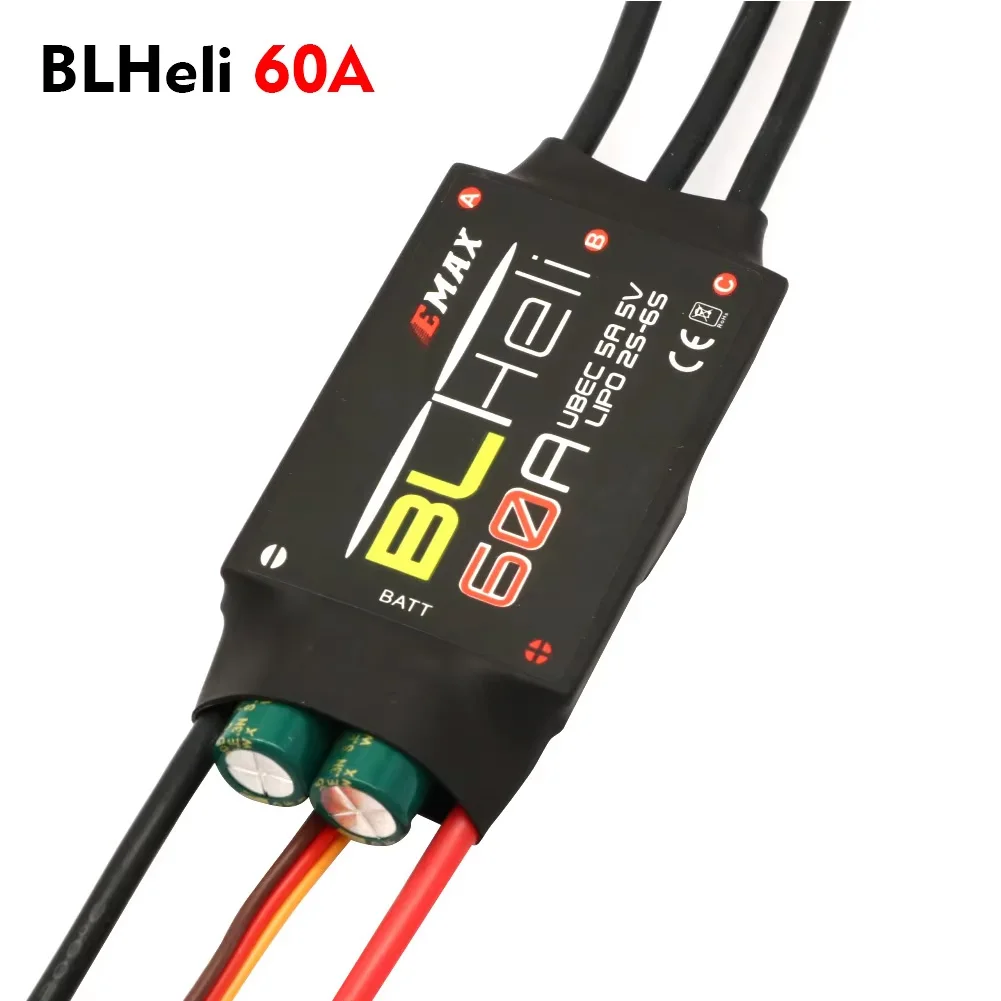

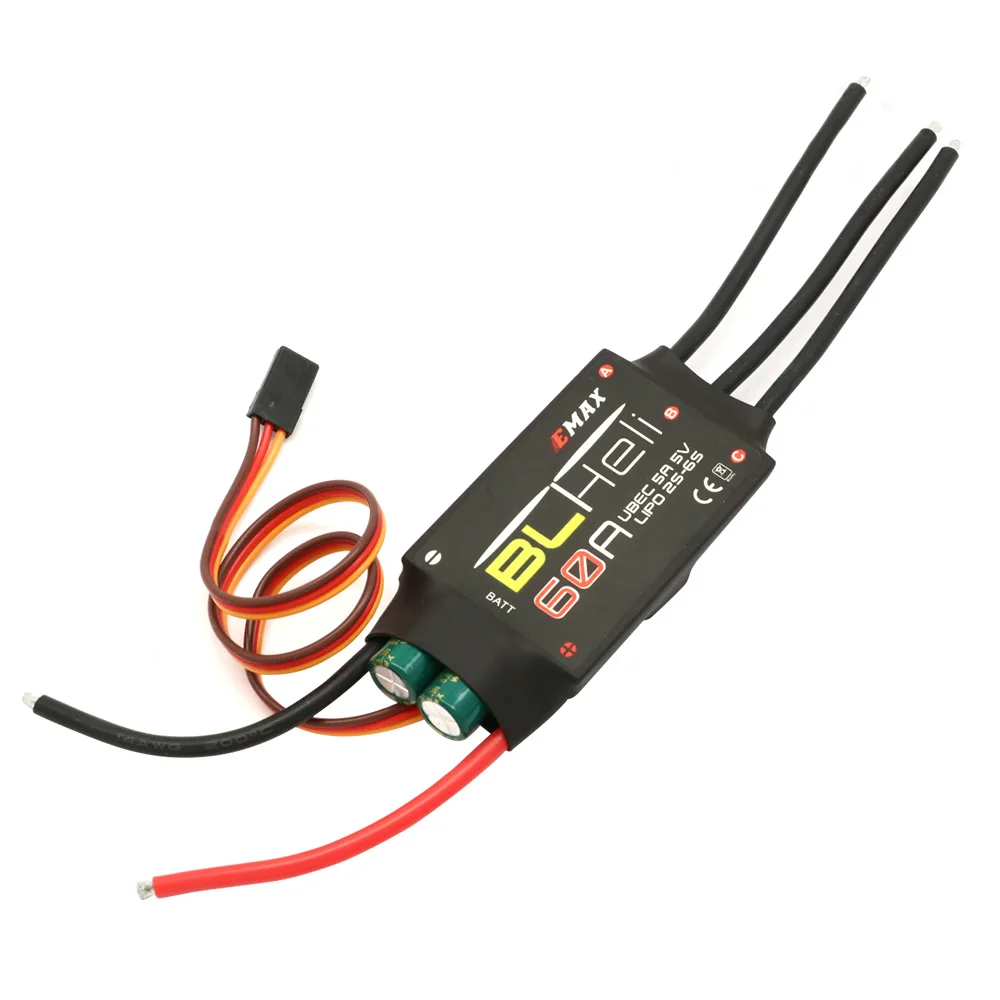

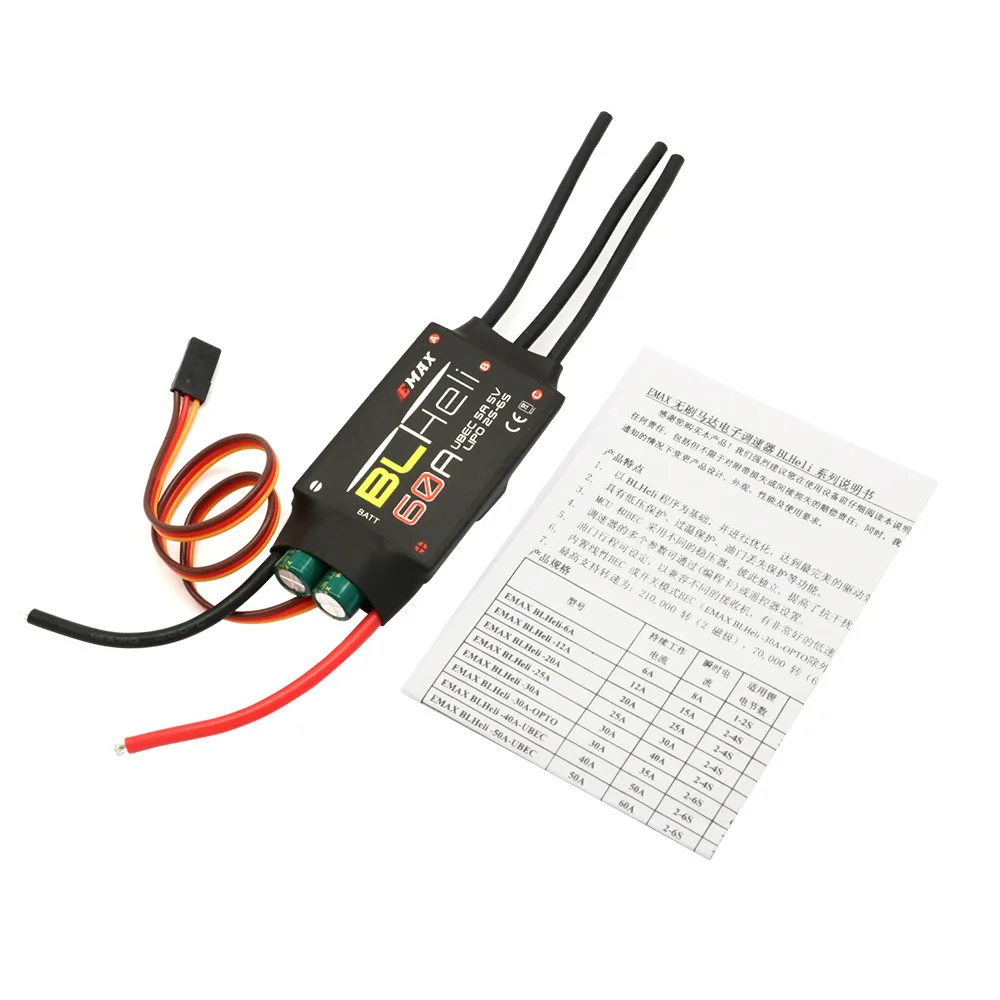

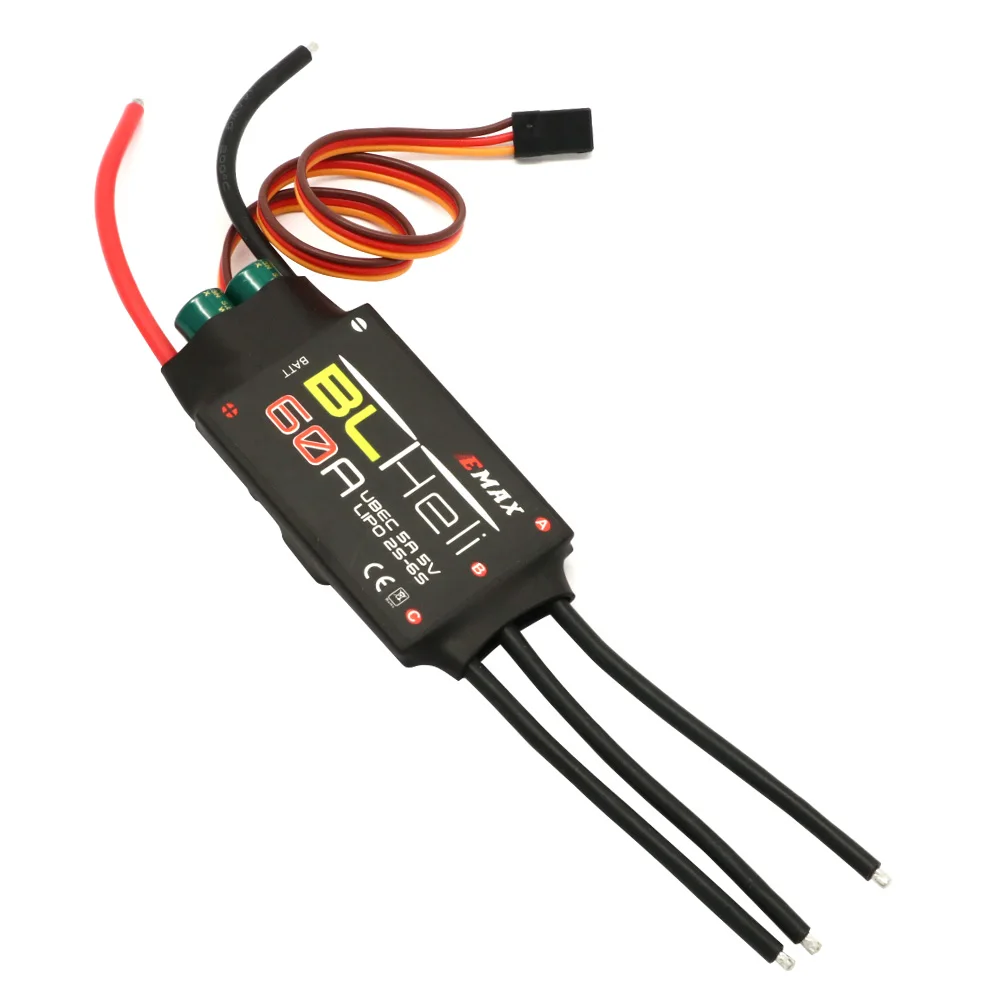

BLHeli-60A UBEC Brushless ESC:
Continuous Current: 60A;
Burst Current (10S): 80A;
Lipo Battery (Cell): 2S-6S;
Dimension L*W*H(mm): 73*28*12mm;
Weight (g) Wire Included: 63;
BEC Output: 5A/5V;
Programable: YES;

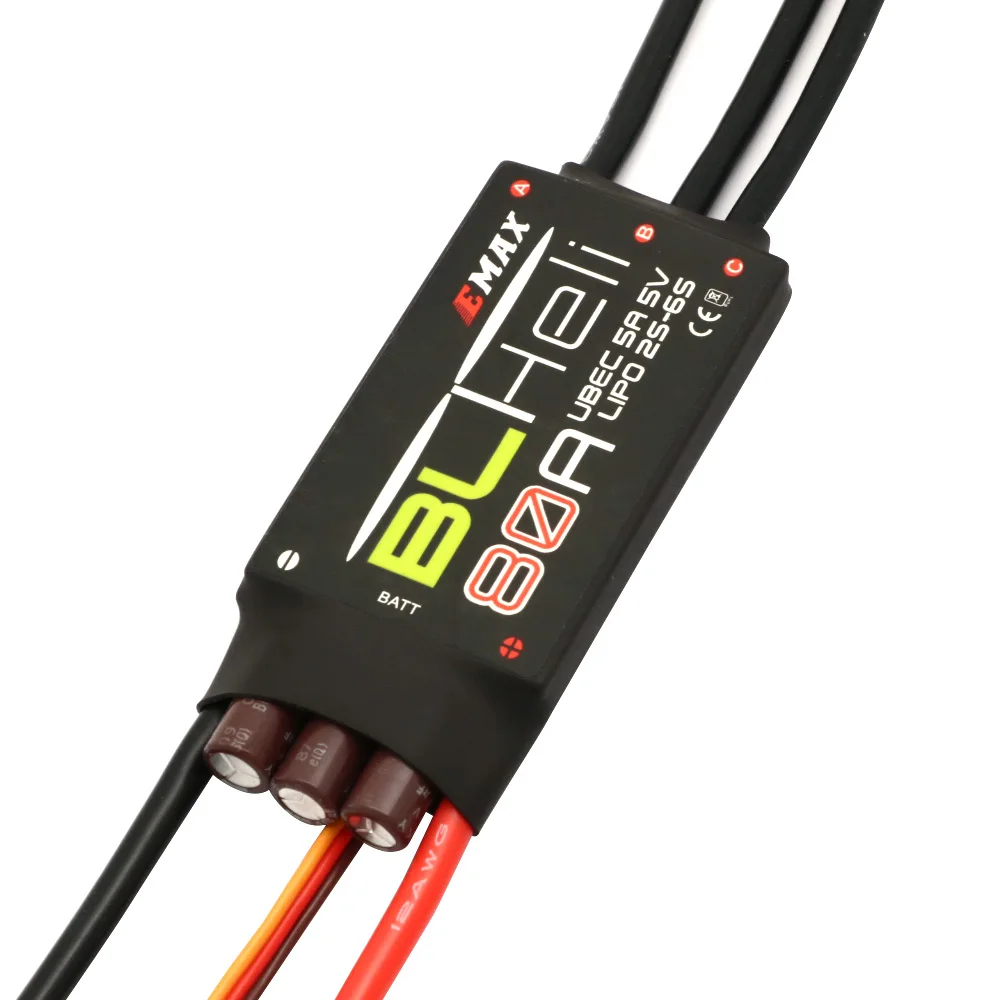

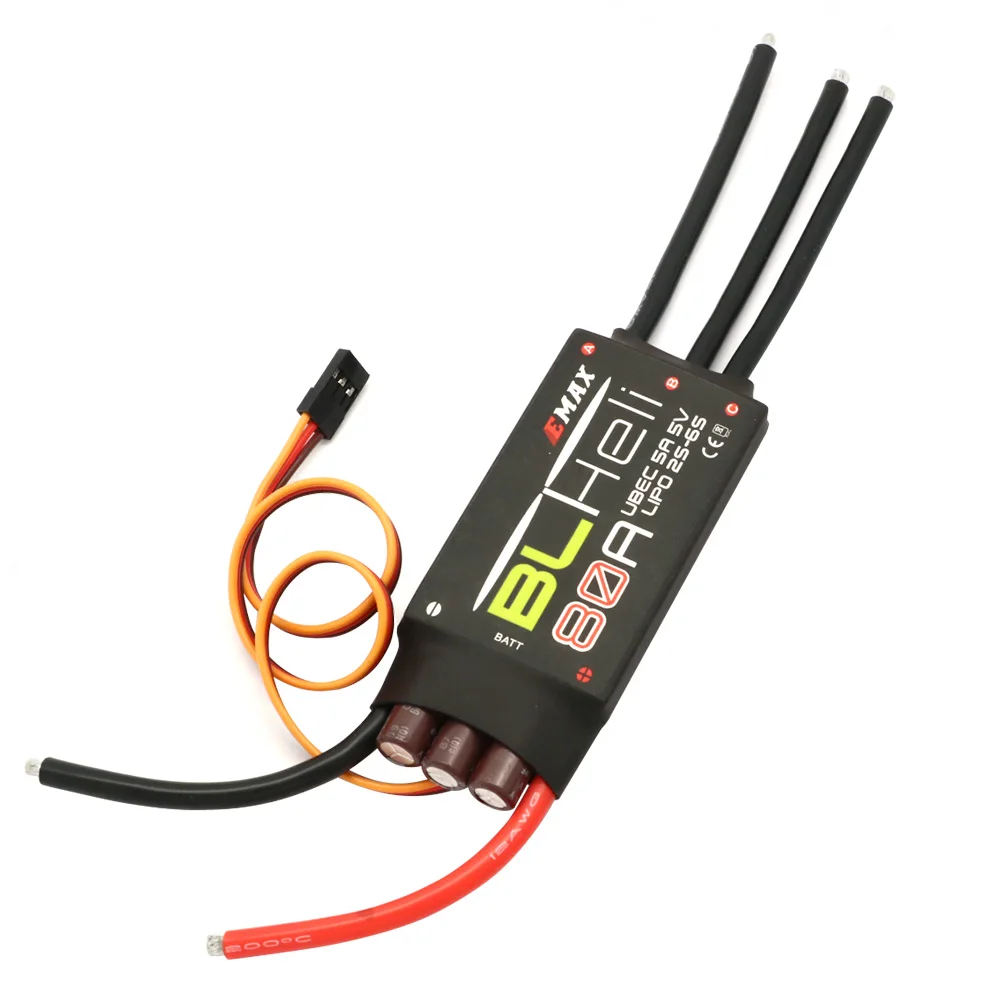

BLHeli-80A UBEC Brushless ESC:
Continuous Current: 80A;
Burst Current (10S): 100A;
Lipo Battery (Cell): 2S-6S;
Dimension L*W*H(mm): 86*38*12mm;
Weight (g) Wire Included: 81;
BEC Output: 5A/5V;
Programable: YES;
| Color | 60A, 40A, 20A, 50A, 30A, 80A, 12A |
|---|
