SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: P6FG Receiver

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: XFX510

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Size: 160*100*205mm

Technical parameters: value 2

Tool Supplies: X6 RC Transmitter

Upgrade Parts/Accessories: DumboRC X6 Transmitter

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

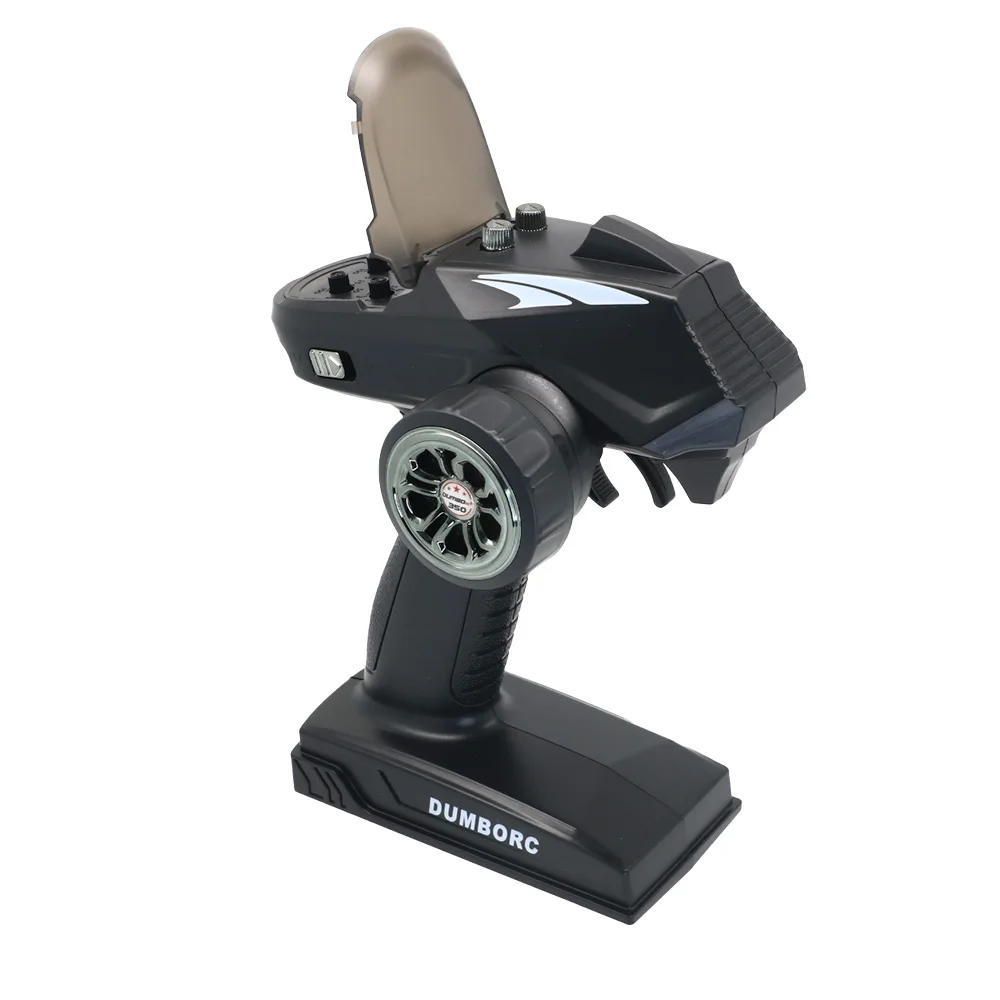

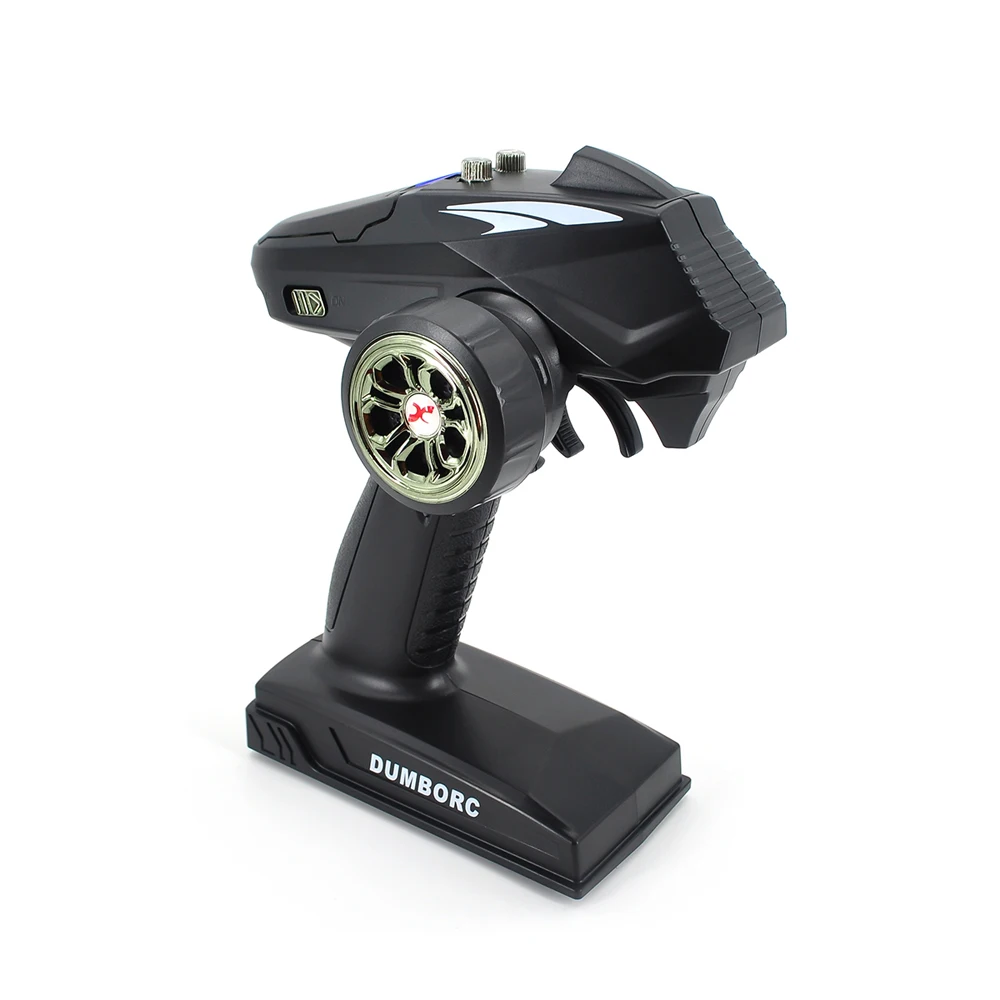

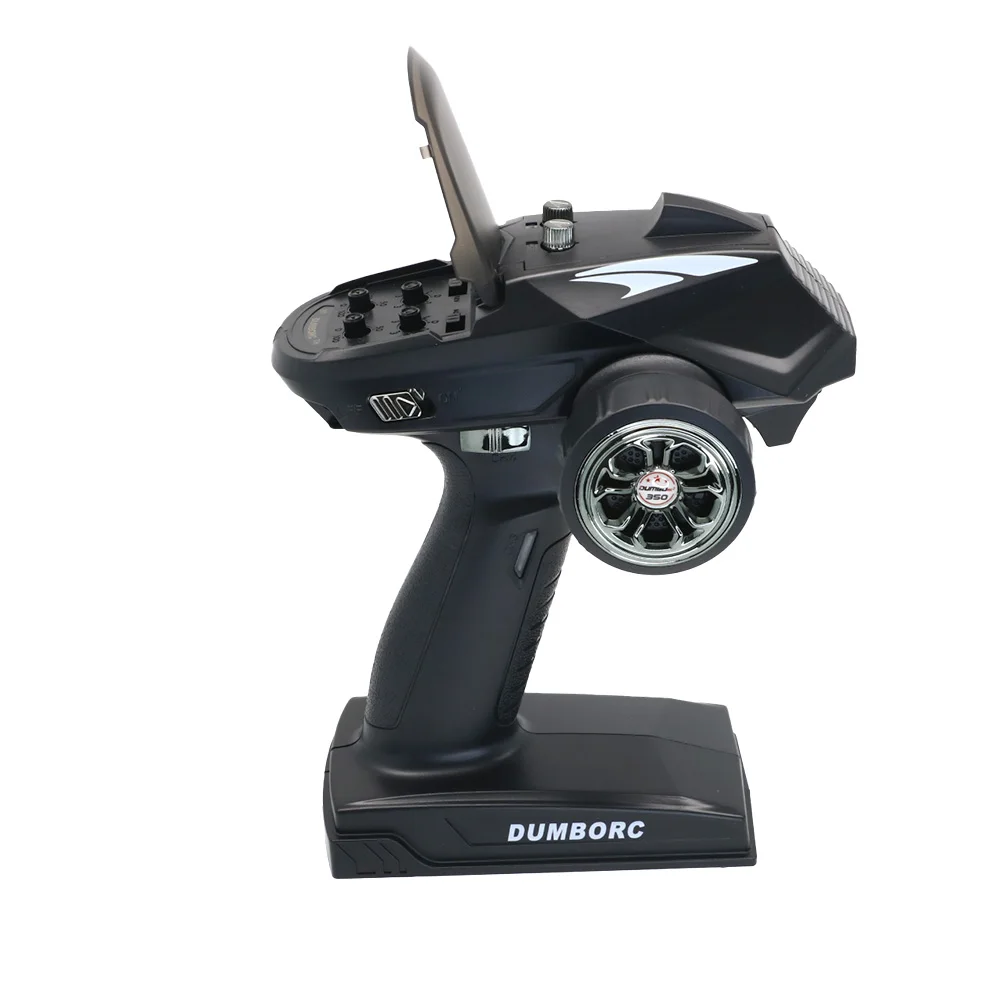

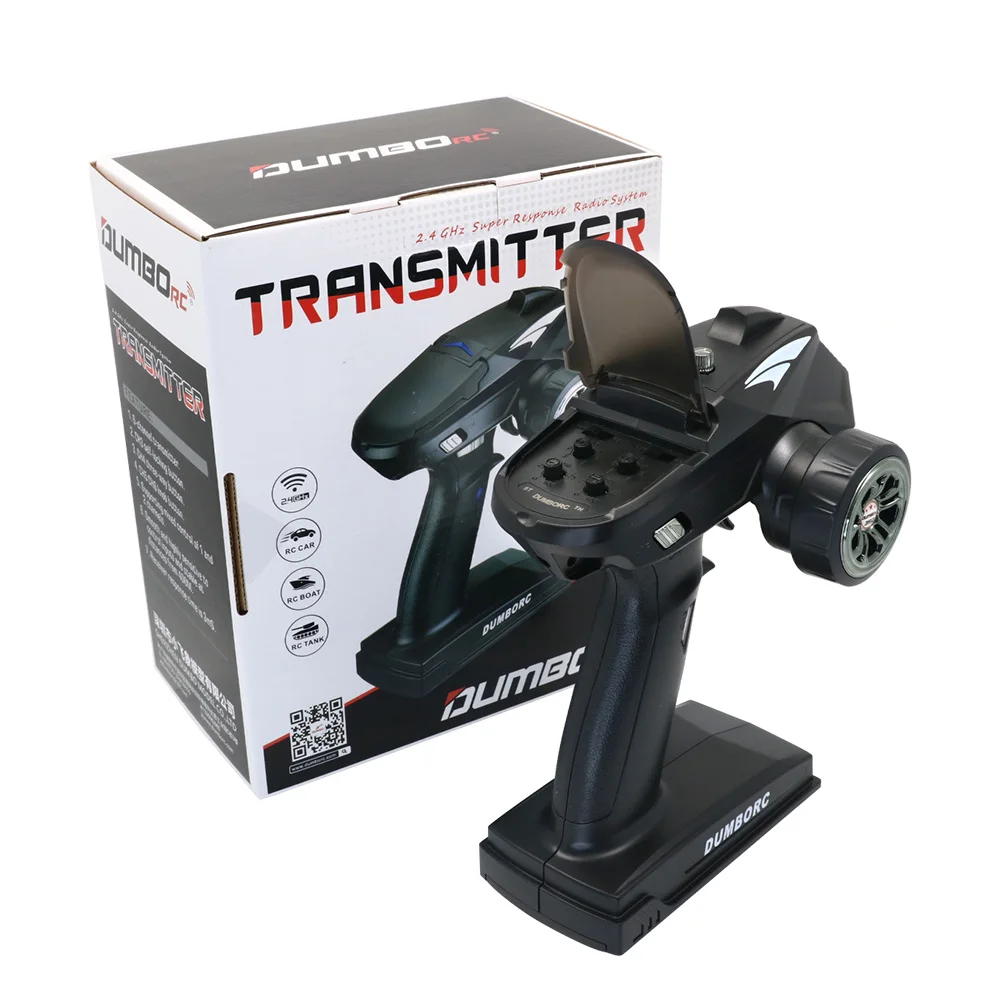

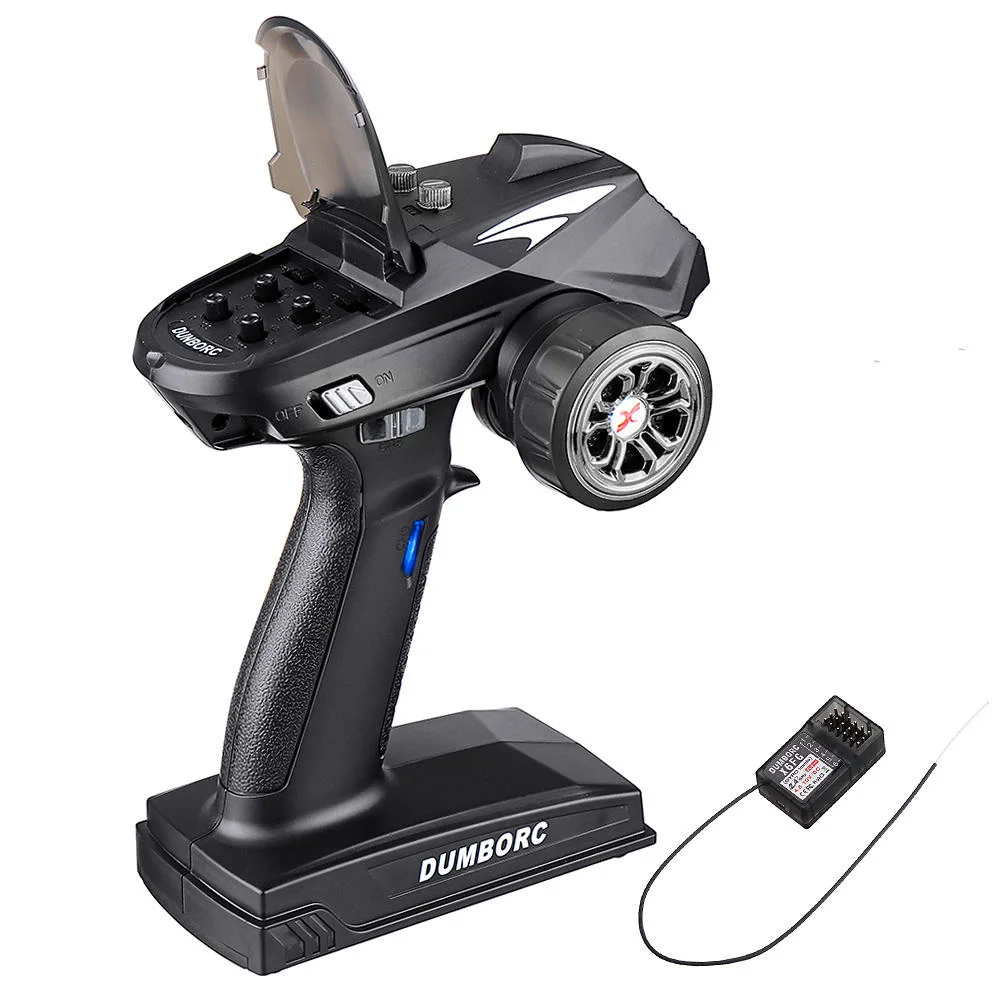

Item Brand:DumboRC

Item Number:X6(transmitter),P6F/P6FG(receiver)

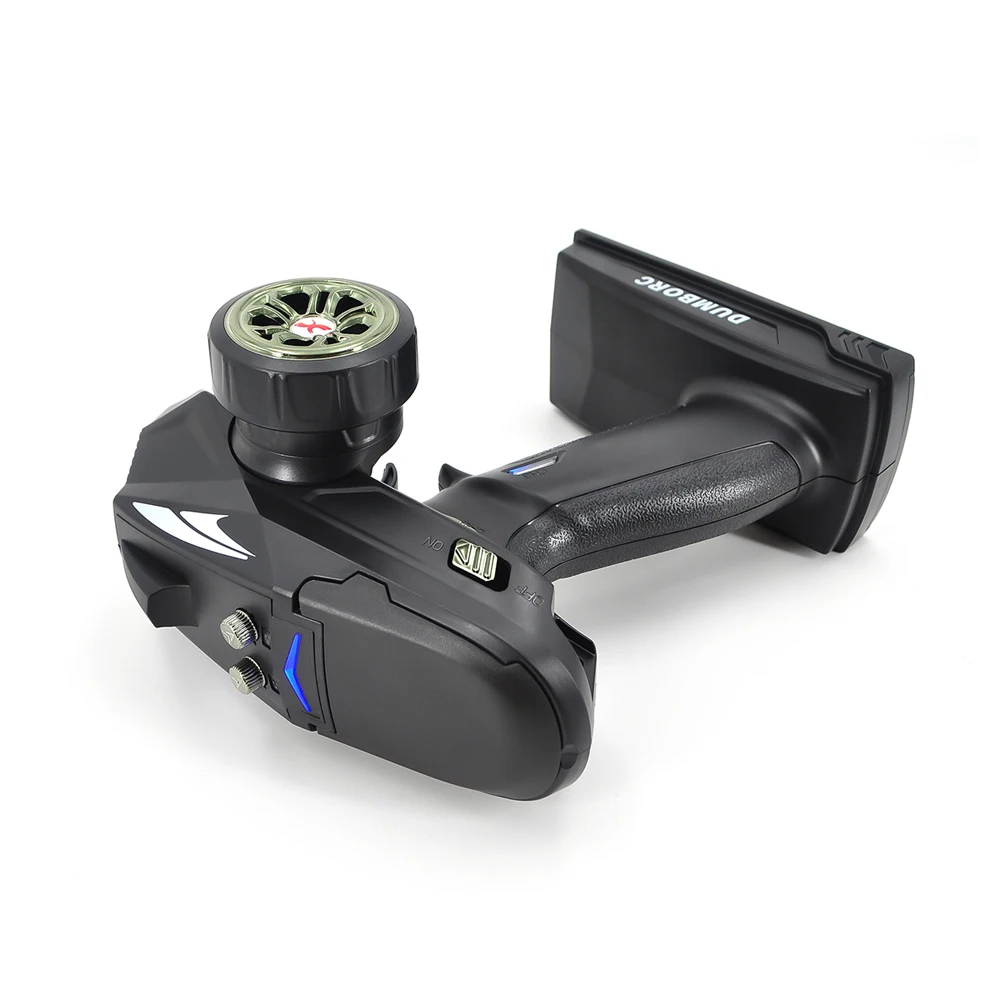

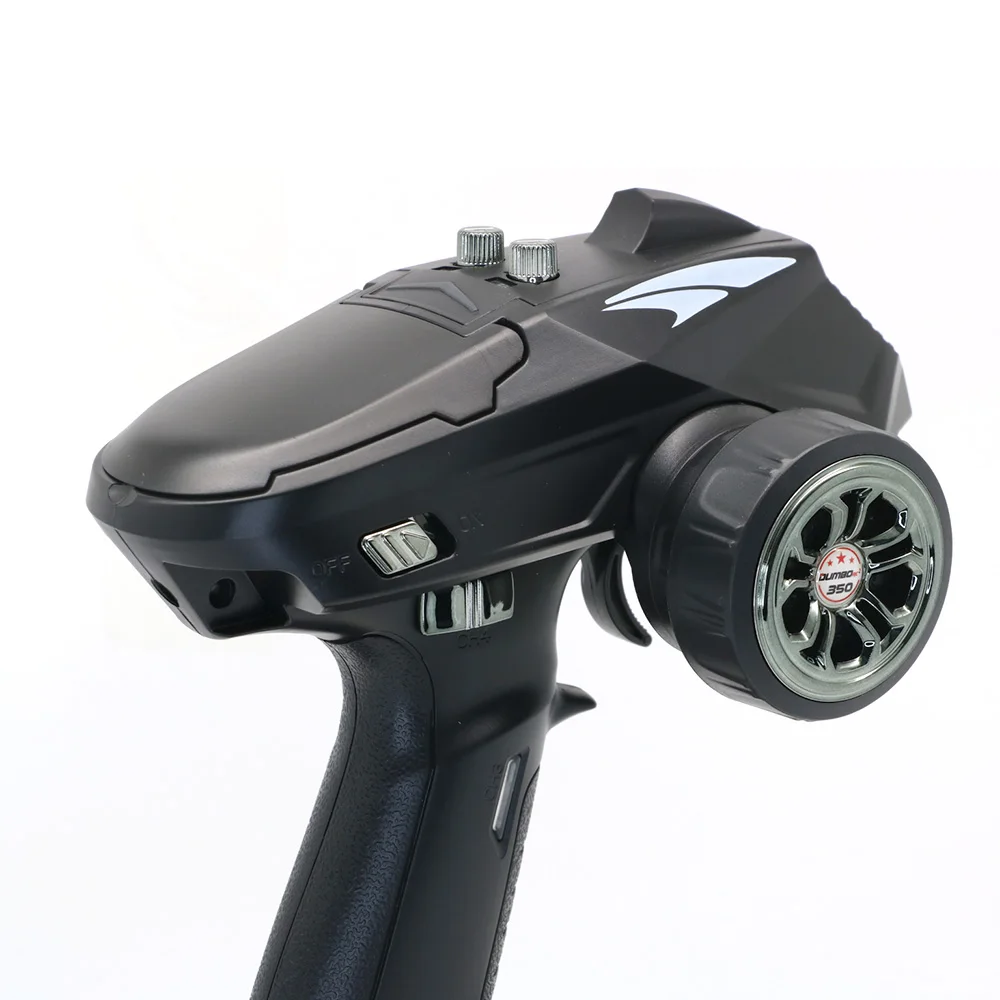

Item Name:Transmitter

Material:Plastic and metal

Color:Blue and gold

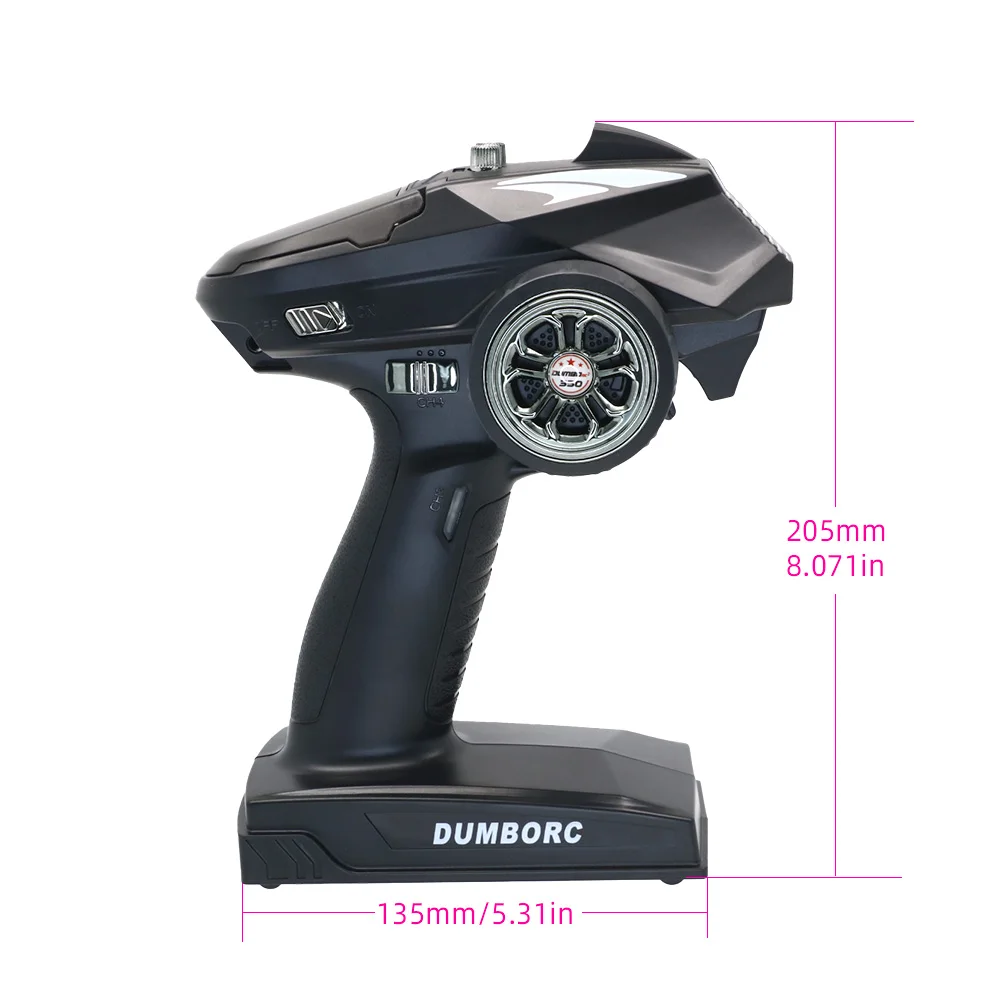

Product Size:160*100*205mm

Receiver Size:35*20*13mm

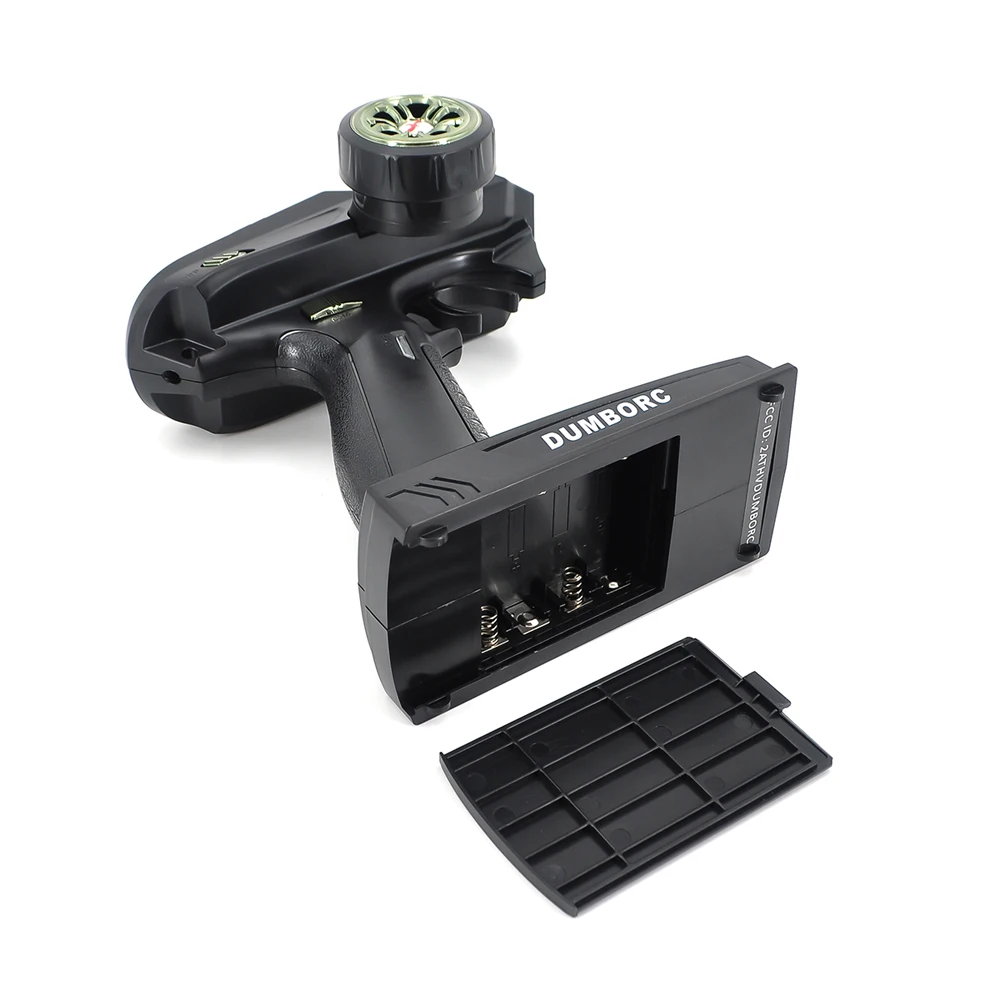

Battery:4X AA(not included)



Specification:

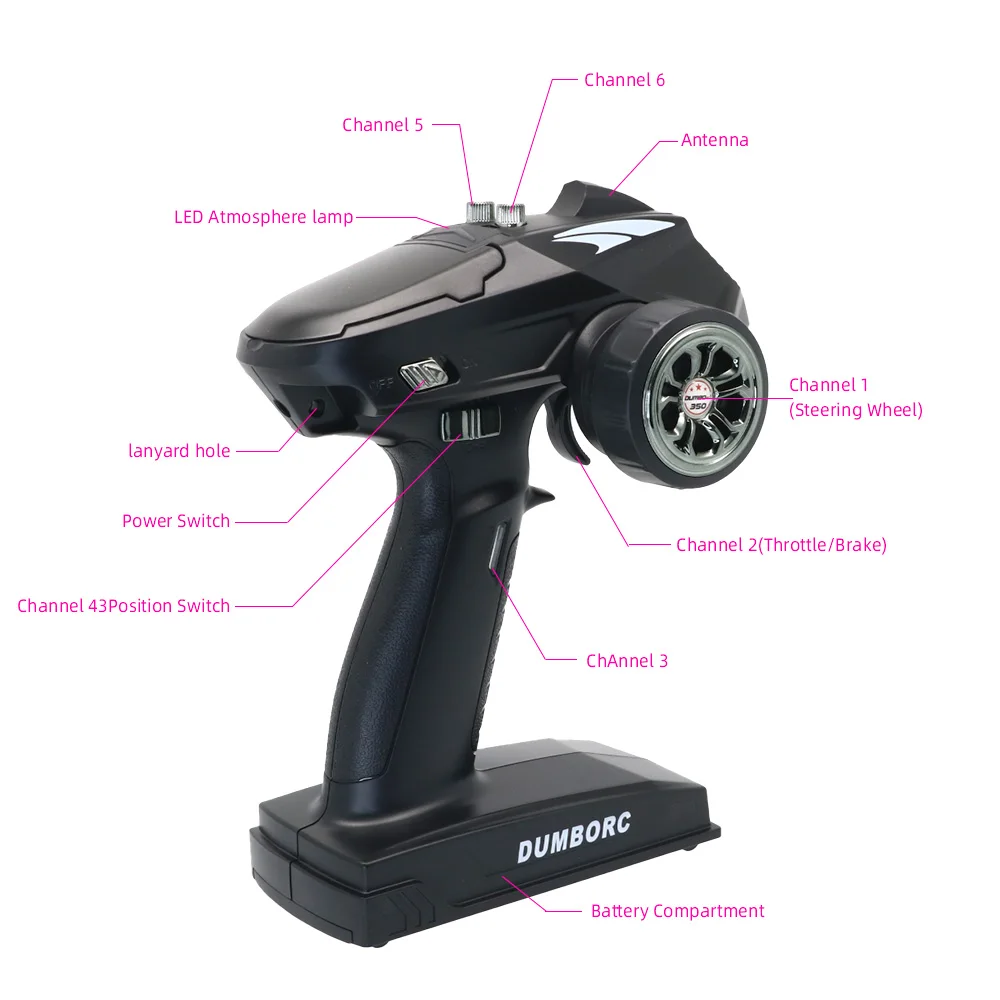

Channel:6CH

Fit For:Rc Car Boat Tank Model,such asmn-90 and so on

Modulation Mode: GFSK

Spreading Mode: FHSS 67 channel pseudo-random frequency hopping

Control Distance: 400-500 meters

Remote Control Voltage Range: 4.8-12v

Remote Control Working Current: 80-120mA

Receiver Voltage Range: 3.3-10V

Receiver Operating Current: 30mA

RF Power: <20dbm

Data Resolution: 4096 levels, 0.5us per level

Voltage Alarm: 7.4v|4.8v

Transmission Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)

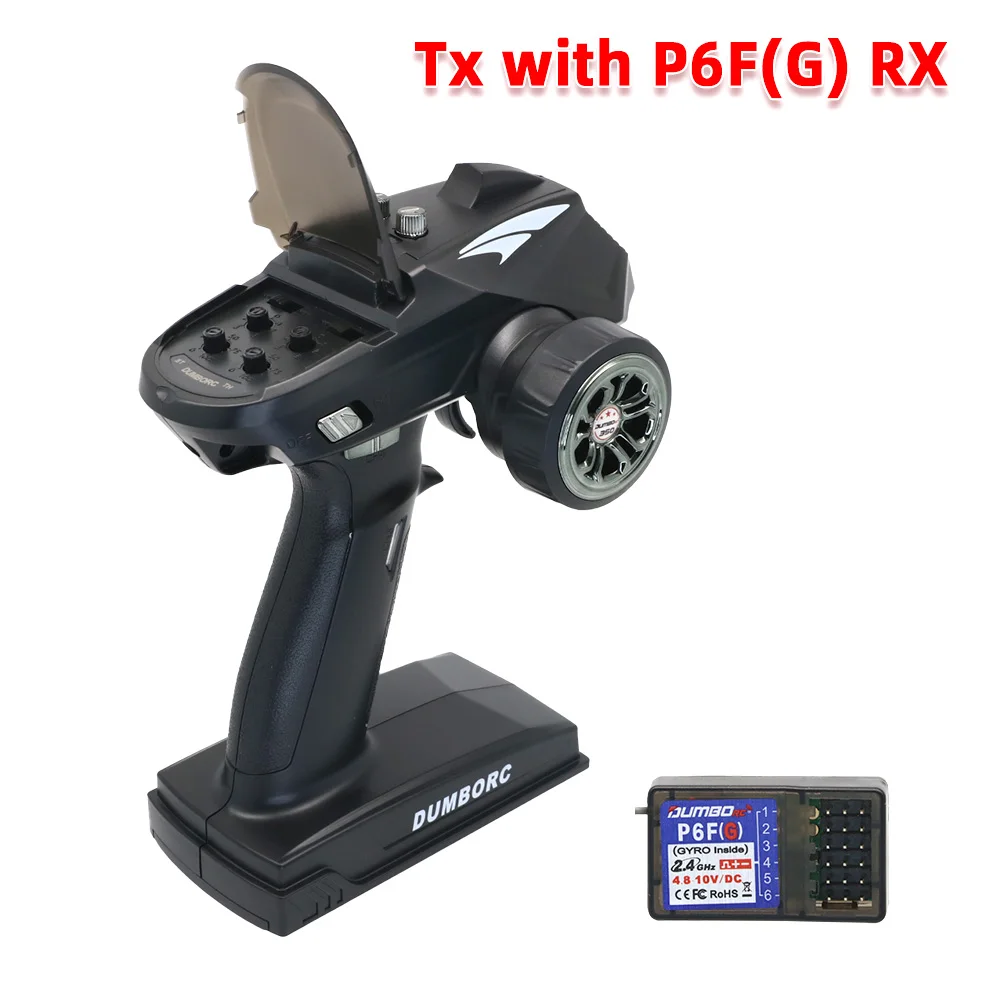

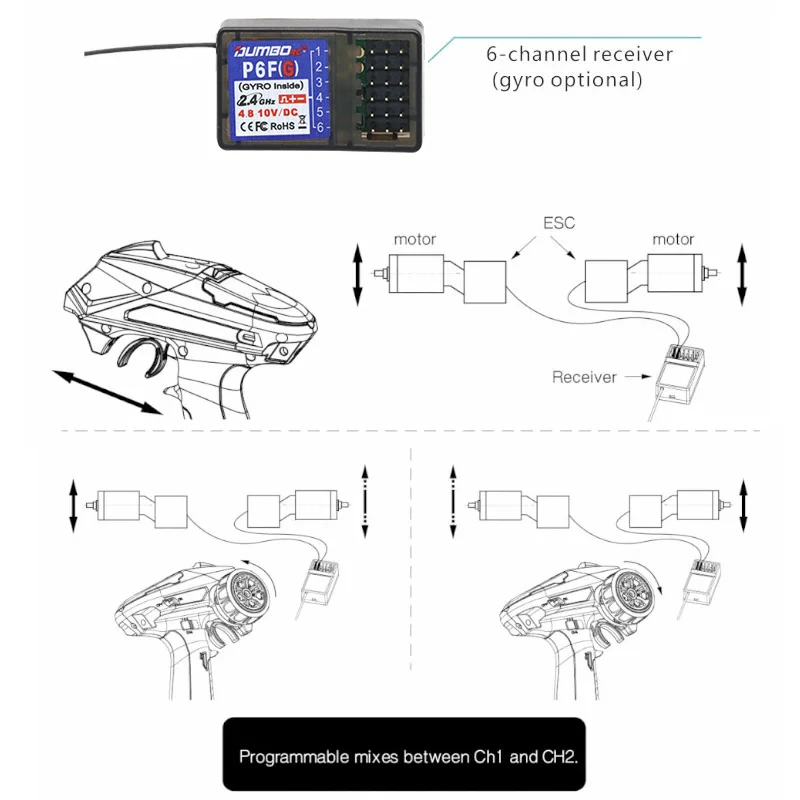

Support Receiver: P6F/P6FG

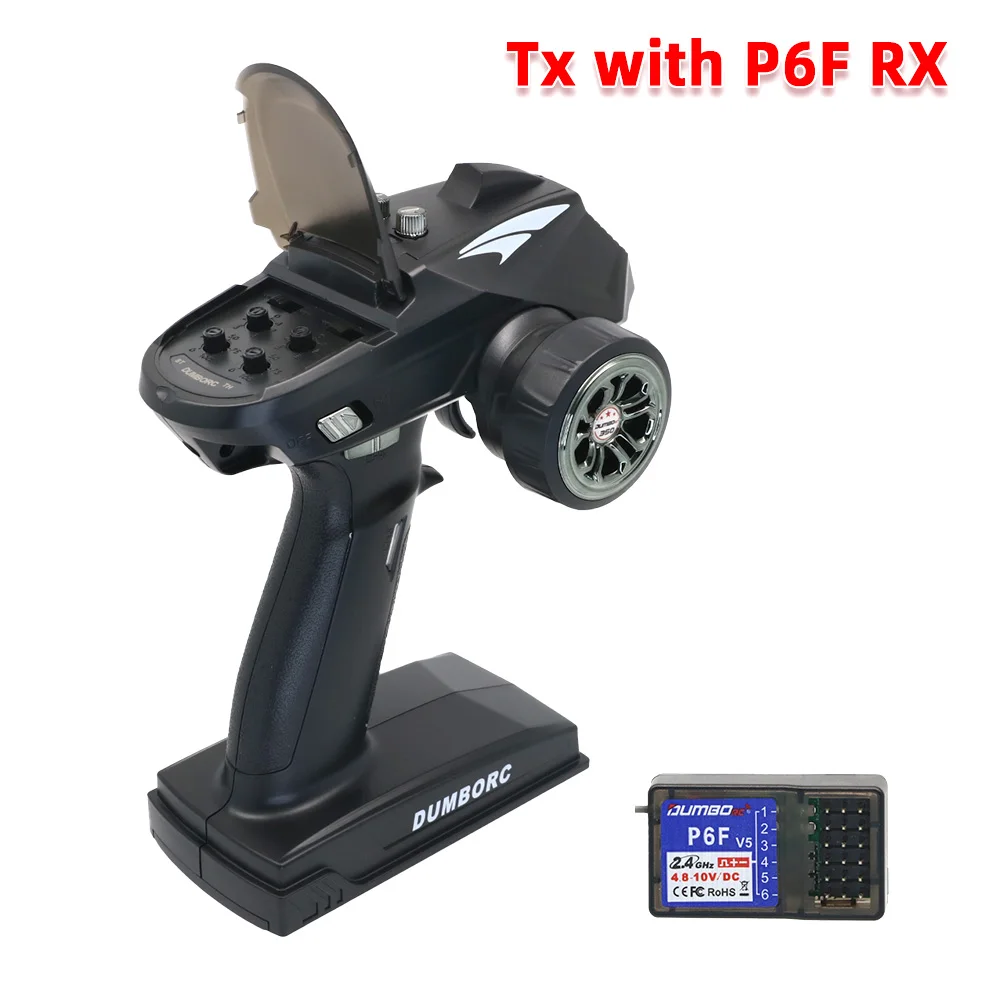

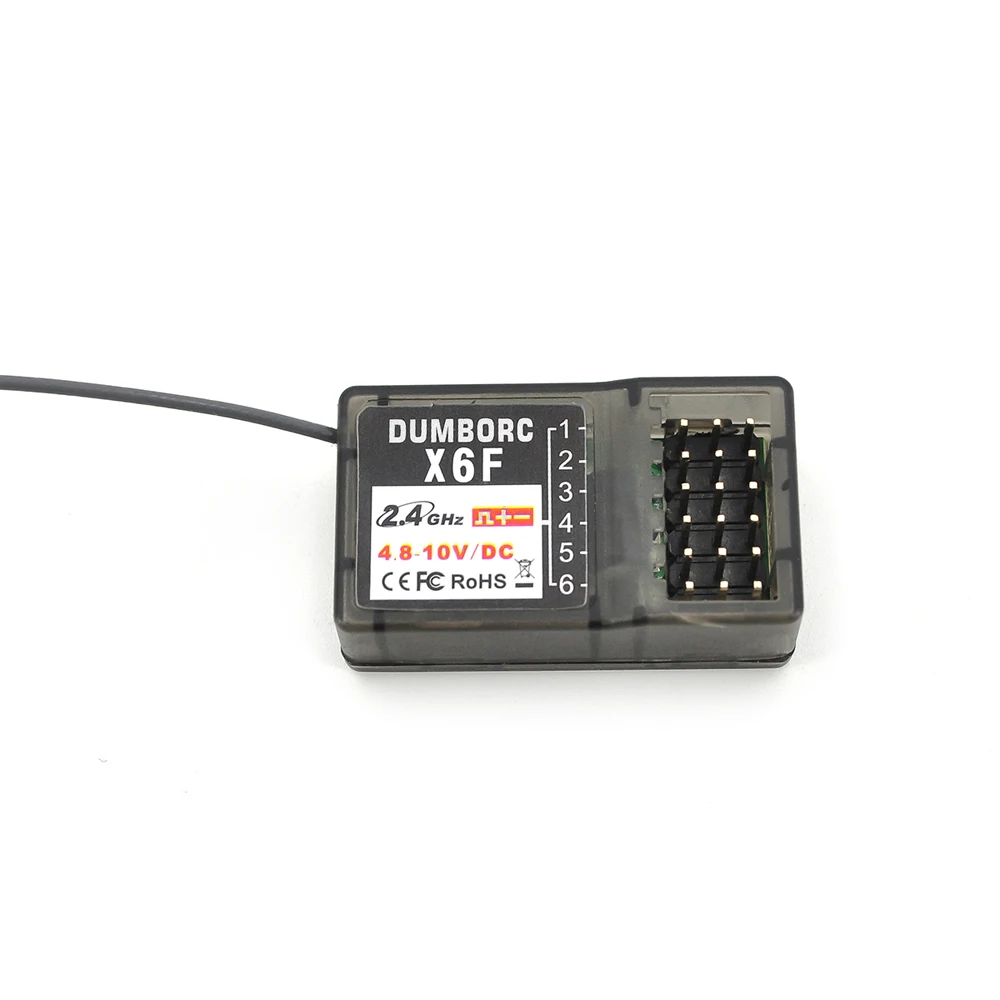

P6F Receiver Specifications:

Channel: 6

Model: Cars/boats/Tanks

Control Distance: more than 400m

Spread Spectrum: FHSS

Antenna Length: 200mm

Work Current: 30mA

Power Supply: 4.8~10.0V DC

RF Power: <10dbm

Channel Resolution: 4096

Size: 1.37*0.79*0.51in

Weight: 6g

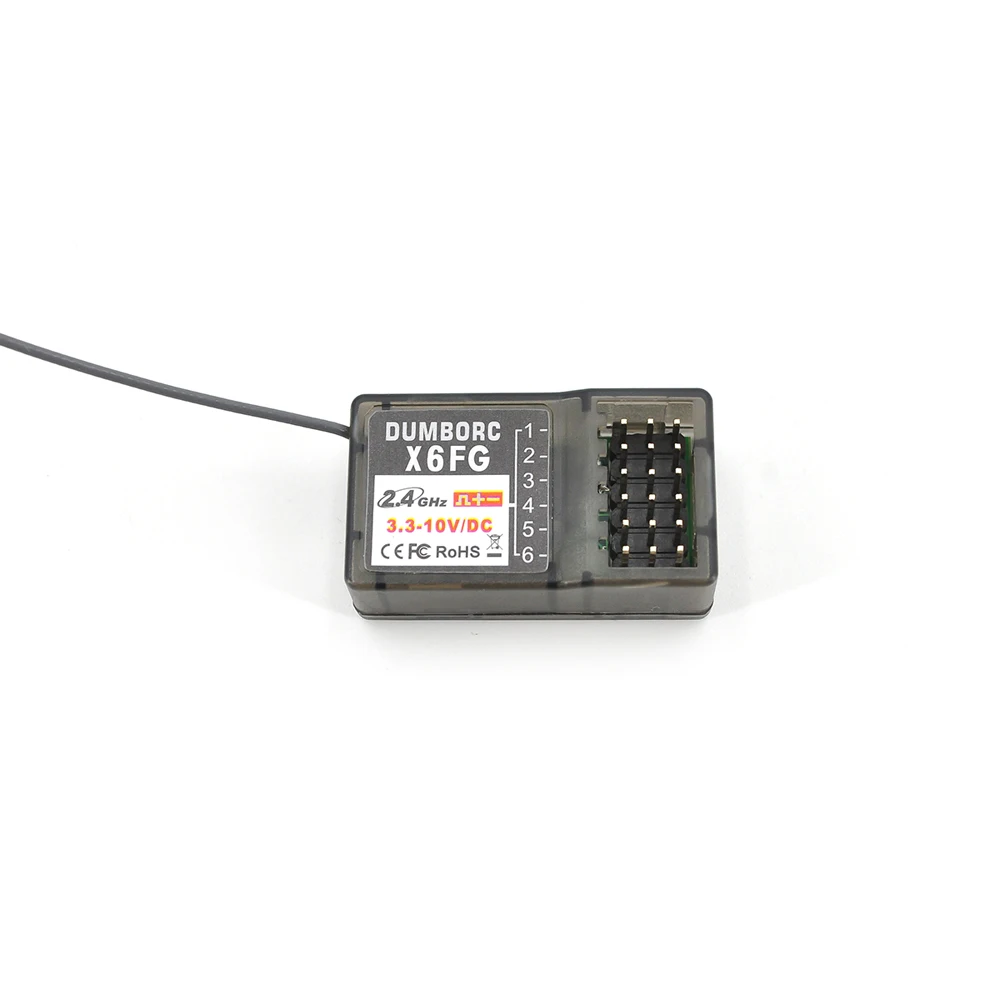

P6FG Receiver Specifications:

Channel: 6

Model: Cars/boats/Tanks

Control Distance: more than 400m

Spread Spectrum: FHSS

Antenna Length: 200mm

Work Current: 30mA

Power Supply: 4.8~10.0V DC

RF Power: <10dbm

Channel Resolution: 4096

Size: 1.37*0.79*0.51in

Weight: 6g

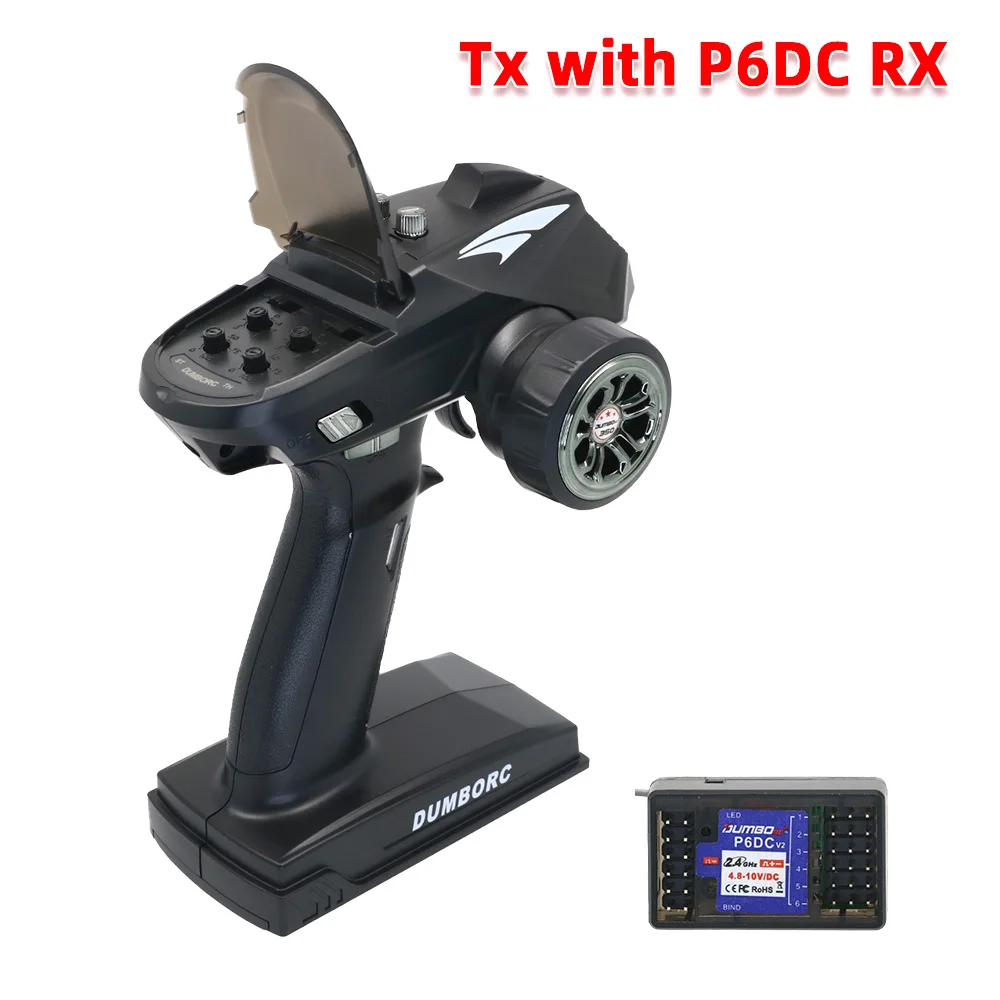

P6DC LED Flashing System Receiver:

AS Receiver and led light system perfect match with DUMBORC Transmitter

AS a individual LED Flashing light system work with other brand .

LED Light system can switch to different modes



P6DC(G) LED Flashing System Receiver: :

Perfect work with RC led Lights,Can good realize steering, headlights, brake, reverse, atmosphere, emergency lights linkage simulation vehicle lights.

Perfect compatible with other brands transmitter :Perfect connection of 1-4ch remote control, compatible with RC remote control cars. You only need to plug the 1-4 channels of the corresponding receiver into the 1-4 channels of the P6DC LED Lighting sets receiver to achieve the same control function.When it as a receiver for use,it only works with DUMBORC Transmitter.

Anti-plug protecting:Plug and unplug the extension cord, which provides a good help for us to easily replace the battery or maintain. LED interface anti – plug, good protection of our electronic products.

Useing under Mixed Mode:Support the use of lighting function in the mixed control mode of remote control. Safe Voltage: 4.8-10V.

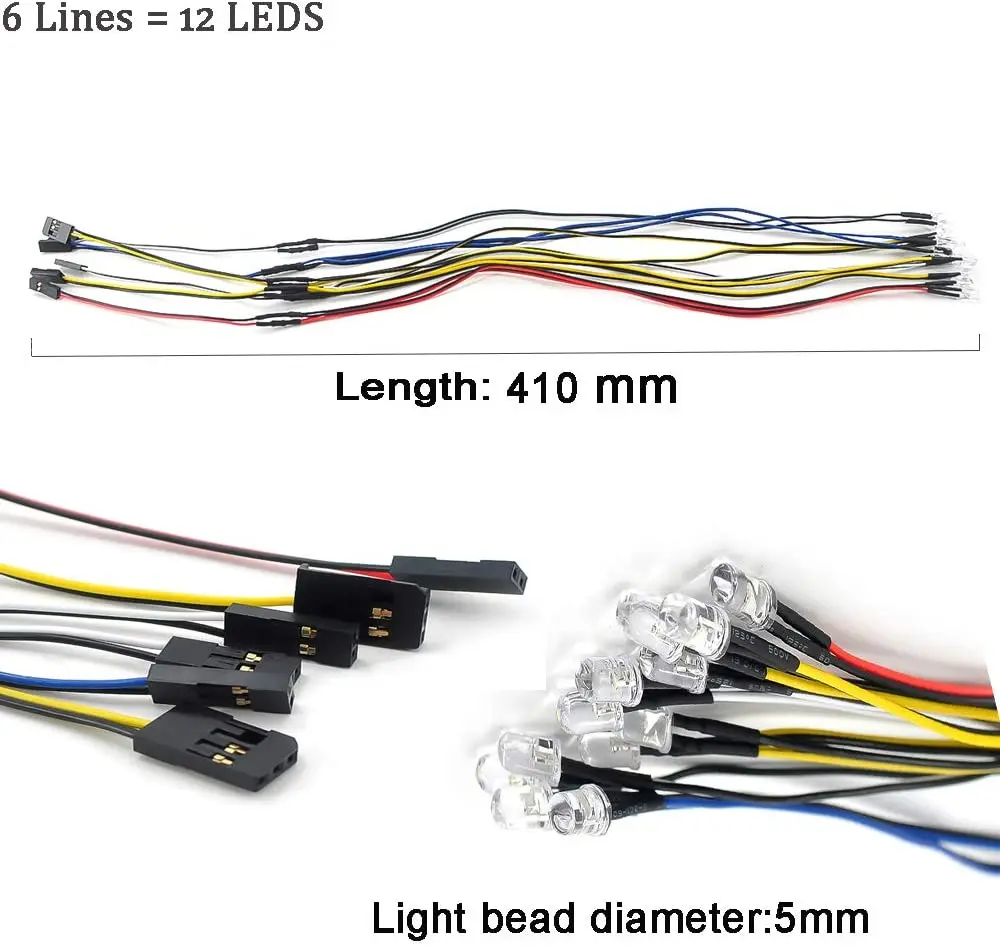

Package : P6DC(G) simulation flashing light Receiver*1, extension cord *1 ,LED Light *12
