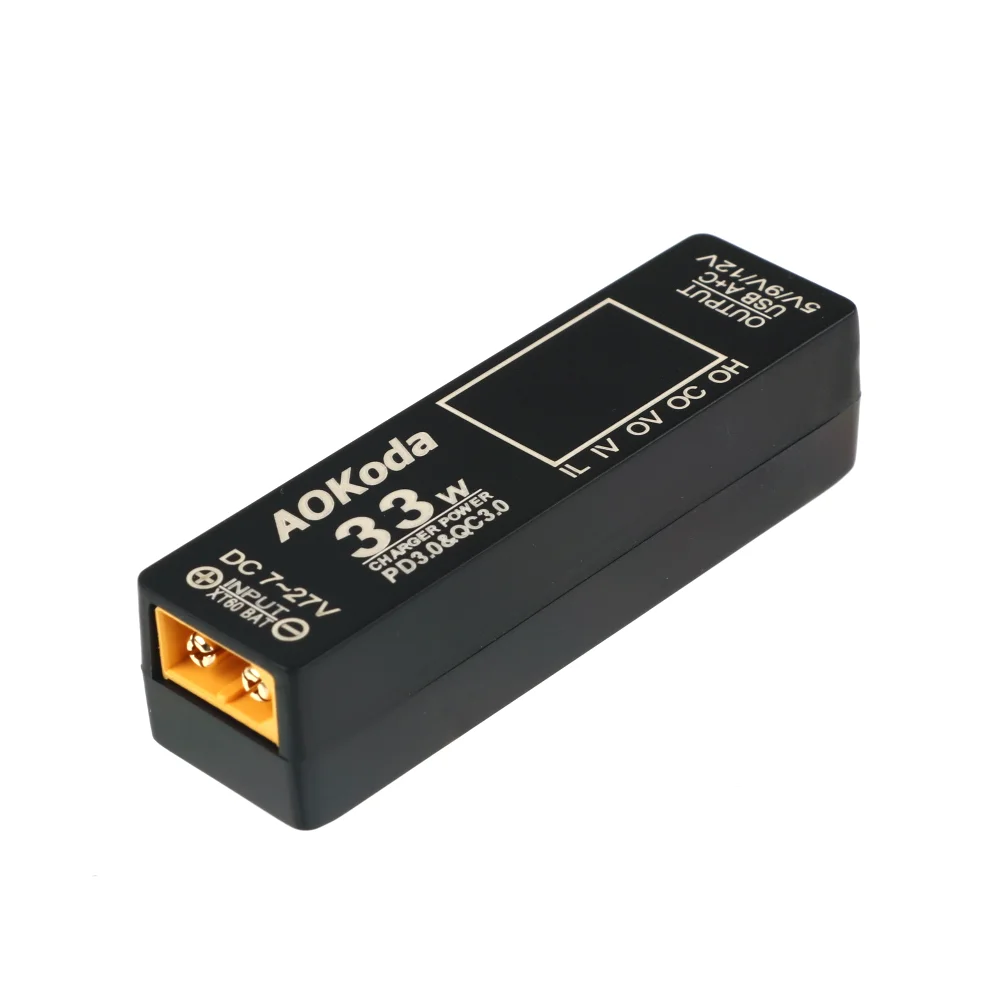

AOKoda Power Converter Adapter AOKoda PD3.0 Quick Lipo Battery XT60 To USB / XT60 to T plug For Smartphone Tablet PC DIY Part
Price range: $70.60 through $72.84
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: AOKoda Quick Charger
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: BC201
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Radio Systems
Recommend Age: 14+y
Remote Control Peripherals/Devices: PD3.0 Lipo Battery Quick Charger
Size: 76x21x19mm
Technical parameters: value 2
Tool Supplies: fms reflex v3 gyro
Upgrade Parts/Accessories: XT60 to PD3.0
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
1. Input: 7~27V (XT60/2~6 series lithium battery pack).
2. Output:
USB-C:5V@3.1A/9V@2.77A/12V@2.08A/3.3~5.9V@3.0A/
3.3~11V@2.25A.
USB-A:5V@3.1A/9V@2A/12V@1.5A.
USB-A+USB-C: the maximum power is 25W and the maximum current is 3.1A.
3. Compatible with multi-protocol fast charging devices such as PD 3.0/PD 2.0/QC 3.0/QC 2.0/FCP/AFC to adapt to Apple/Android devices.
4. Five LEDs respectively indicate five display states: IL (input low voltage protection value), IV (input voltage),
OV (output voltage), OC (output current), OH (output high voltage fast charging).
5. Intelligently judge the number of battery strings input to the lithium battery pack and intelligently set the over-discharge protection voltage value.
6. Support users to set the lithium battery power supply mode or other battery power supply modes (DC), and the lithium battery mode has low voltage protection.
Protection value automatically identifies the number of battery strings and low-voltage protection value (user can define), and other battery power supply modes can be
To manually set the low-voltage protection value.
7. The display screen shows the number of battery strings, input voltage, output voltage and output current in real time; Fast charging and high pressure transmission
An independent green LED light indicates the status; When the battery is input into low-voltage protection, a red indicator light flashes.
, the display screen flashes to show the triggered low voltage protection value.
8. Accurate current limiting output of USB charging port, overload protection, short circuit protection, over-voltage protection and over-temperature protection.
9. Apple fast charge: PD3.0, supporting the full range of iPhone8~15/SE/Plus/Pro/ProMax; IPad system
Column.
10. Support USB Type-A and Type-C dual-port working modes, with fast charging when working independently and self-charging when working at the same time.
Switch to 5V/3.1A output mode by turning off fast charge.
11. When the USB Type-A port is connected to the Apple charging cable but not connected to the Apple mobile phone, the Type-C port still has fast charging.
(PD3.0+QC3.0 double fast charging protocol).
12. USB Type-A port supports protocols QC2.0/3.0/QC3.0+ class A, AFC, FCP and.
LVSCP/HVSCP,BC 1.2 DCP,Apple 5V 2.4A,PE 1.1+.
13. USB Type-C port supports protocols PD3.0, QC2.0/3.0/QC3.0+ class A, AFC, FCP and.
LVSCP/HVSCP,BC 1.2 DCP,Apple 5V 2.4A,PE 1.1+.
14. Support the voltage compensation function of USB cable impedance and USB connector impedance, which can detect the charged electricity in real time.
The maximum dynamic compensation voltage is 0.6V.
15. Support USB DCP short circuit D+/D-, USB charging specification version: 1.2.

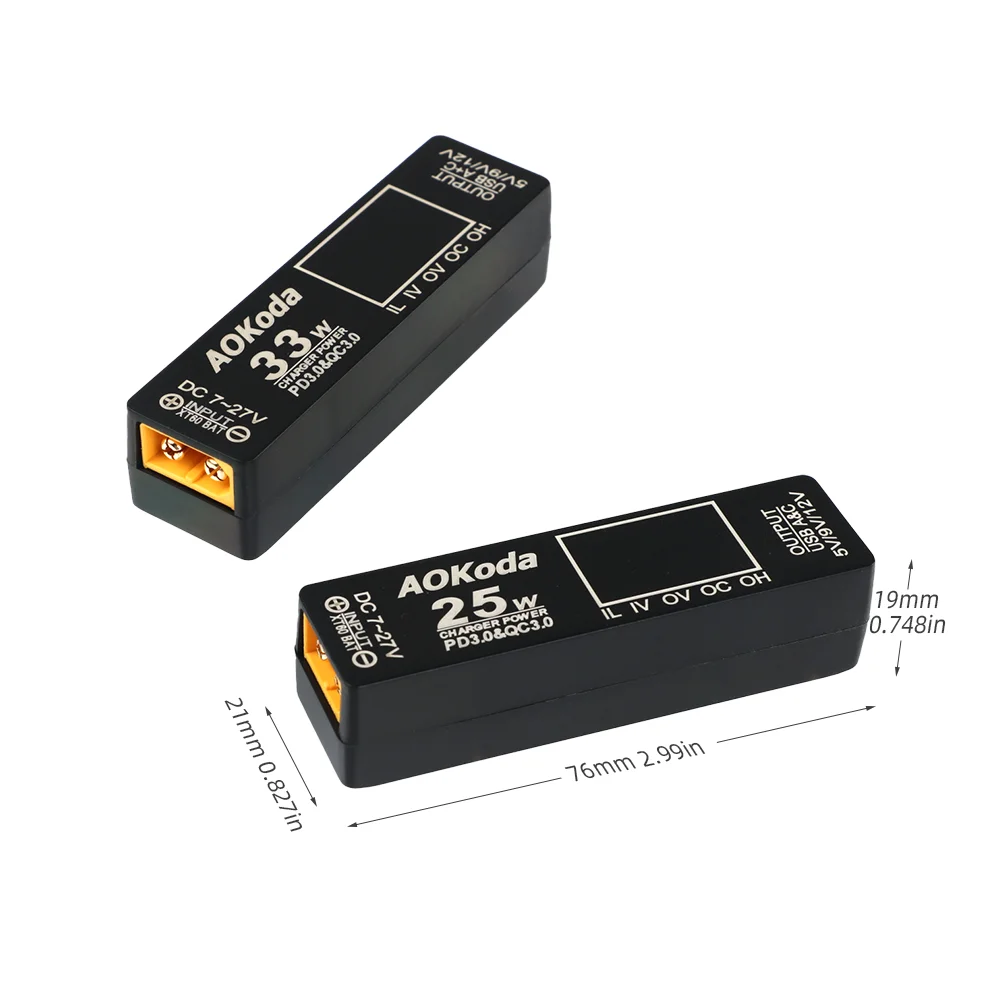

16. Overall dimensions of the product: 76x21x19mm.
17. Product weight: 26g.
work mode.
current flashing low voltage protection value, and quit Setup Mode to return to
the screen flashes 3 times low voltage protection value, automatically save the
again,adjustable low voltage protection value,after completion of adjustment,
current low voltage protection value, press the settings button at the bottom
Press the settings button at the bottom,the digital tube flashes to indicate the
2. Low voltage protection settings
function prevents the automobile battery from discharging).
manually.( When the car cigarette lighter is powered,the low voltage protection
Pb,NiCd,NiMH),this mode allows low voltage protection to be set
adapter or other type of battery(Non lithium battery types, such as
voltage protection mode manually, the XT60 interface is connected to an
DC:dc power supply or other types of battery power supply need to set low
mode.
the low voltage protection value can also be manually adjusted under this
low voltage protection value, prevent battery over discharge of XT60 interface,
the charger will intelligently identify the number of batteries, intelligent setting
BAT:battery mode,the XT60 interface connects the battery, In this power mode,
confirm saving the power mode.
between two modes of BAT and DC,press the settings button at the bottom to
display BAT or DC,press the settings button at the bottom, you can switch
Long press the settings button at the bottom, the digital tube will flash to
1. Power input mode setting
Setting
| Color | 25W, 33W |
|---|
