SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: TBS Receiver

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: HRLH310

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Servos

Recommend Age: 14+y

Remote Control Peripherals/Devices: Servos

Size: 32x28mm

Technical parameters: value 3

Tool Supplies: CRSF to PWM Converter

Upgrade Parts/Accessories: ELRS to PWM Converter

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

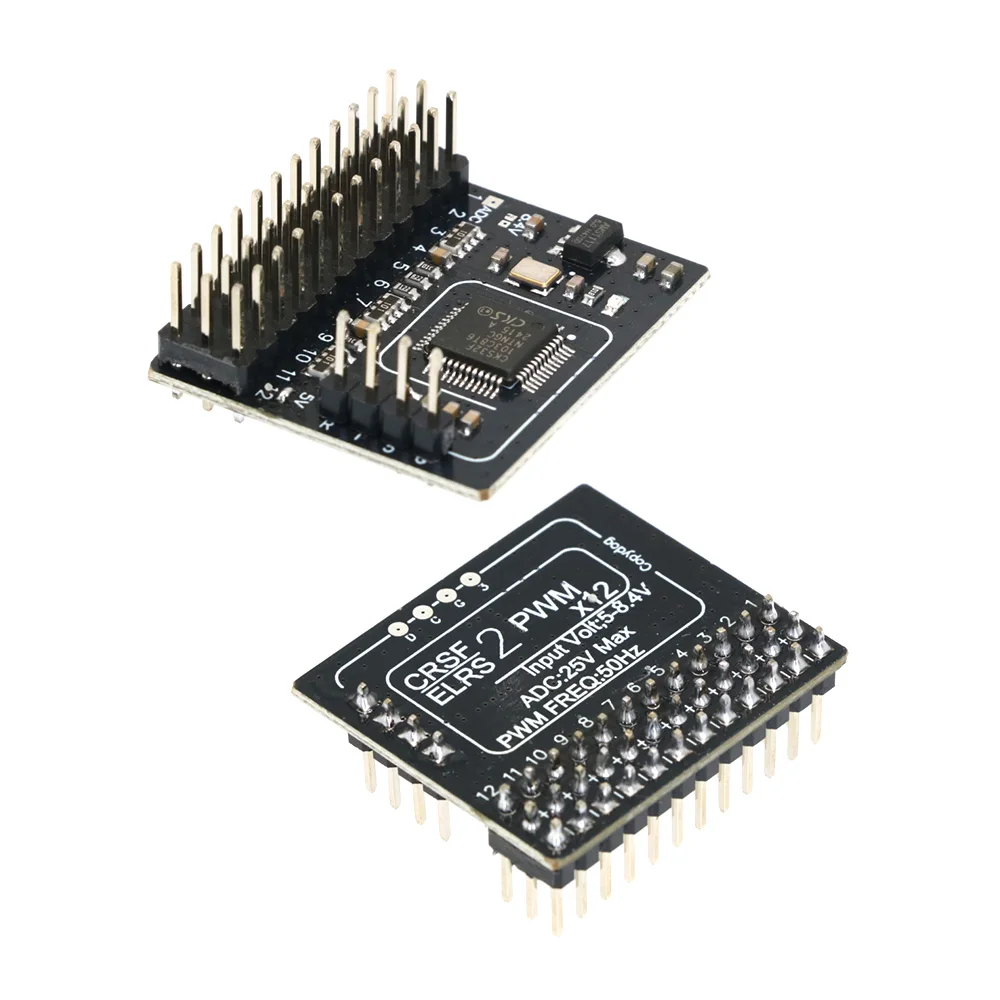

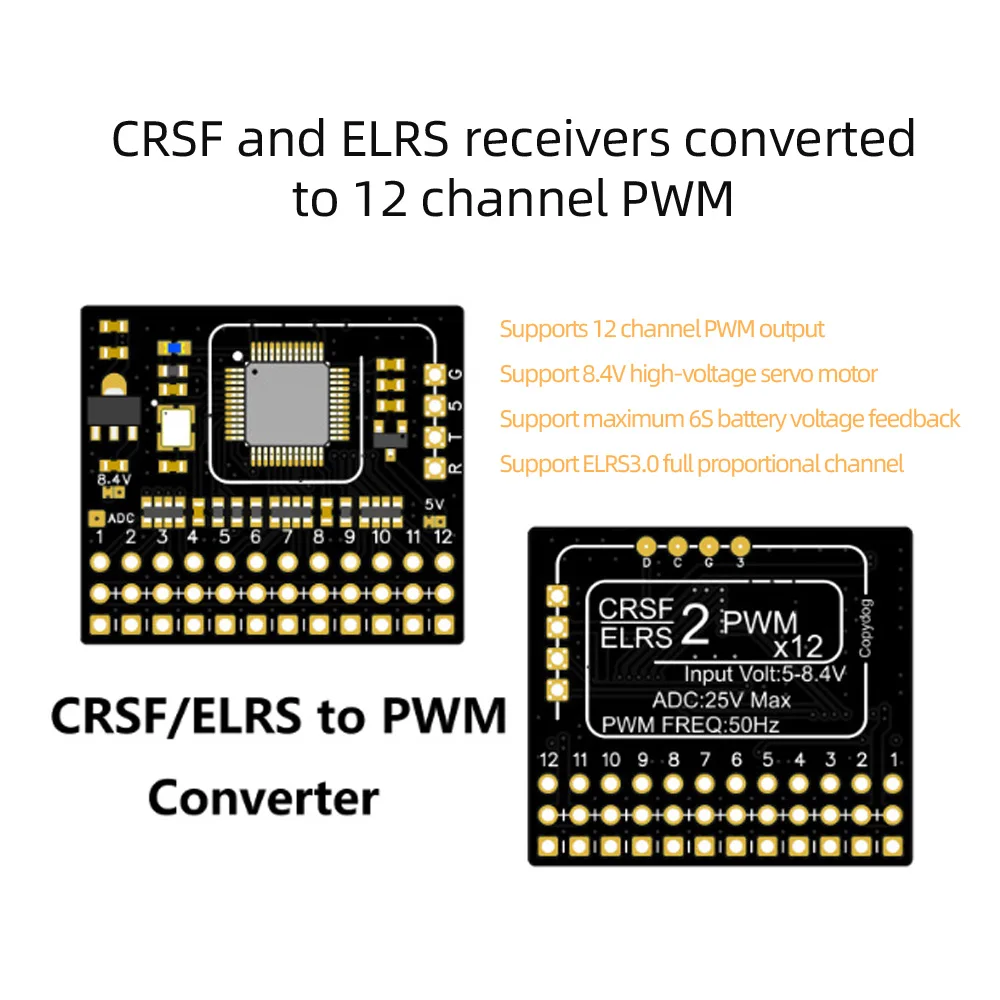

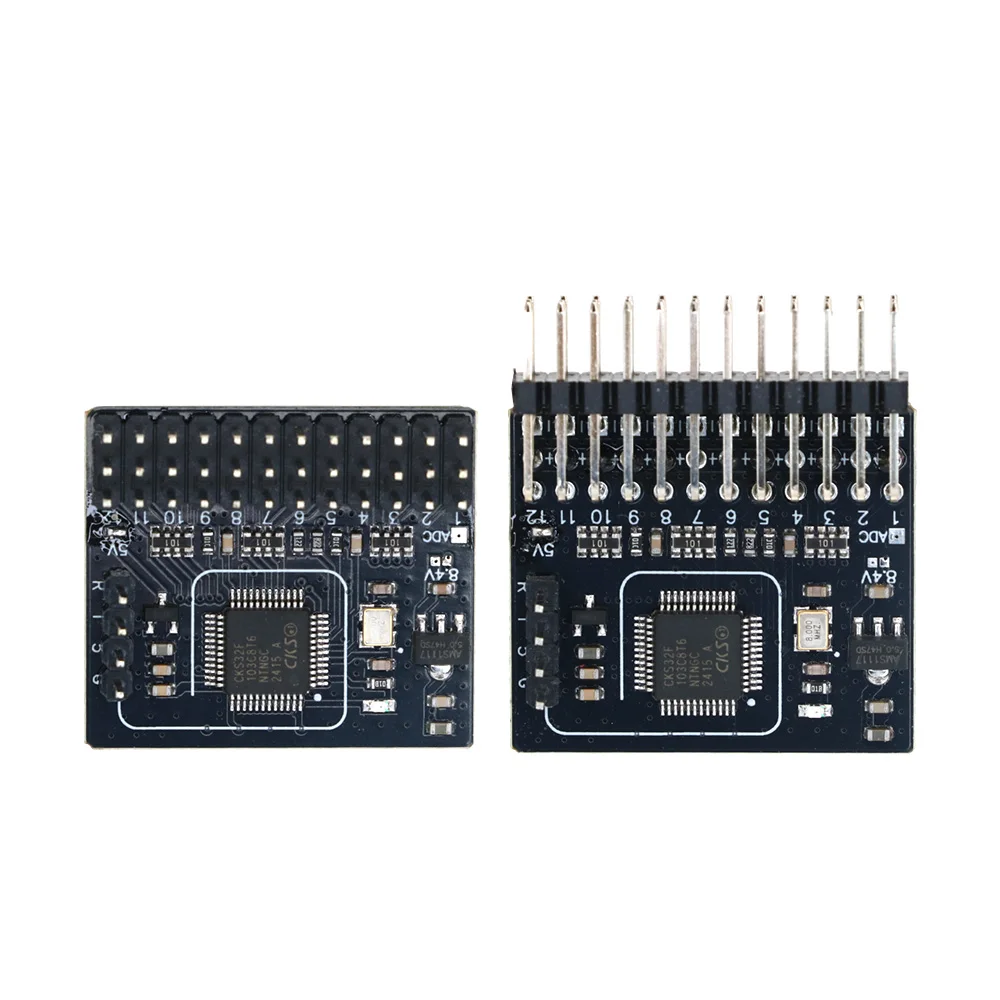

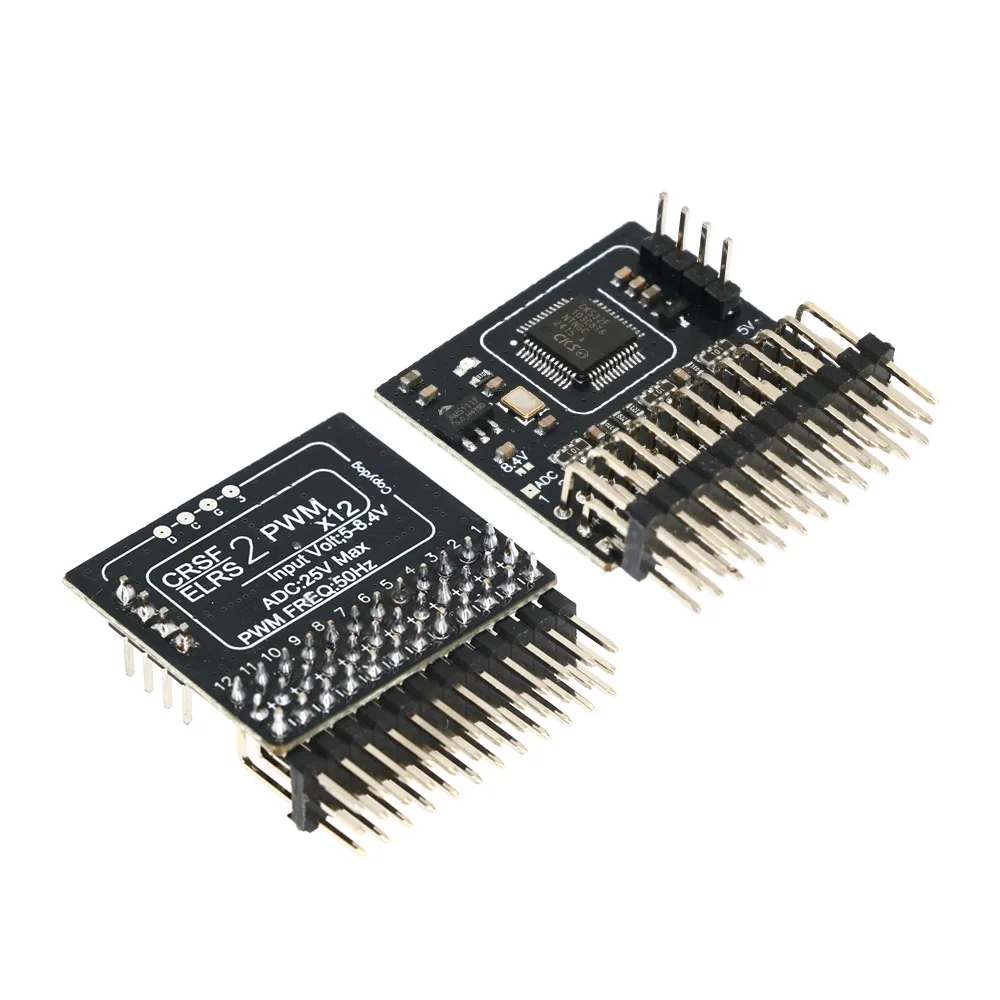

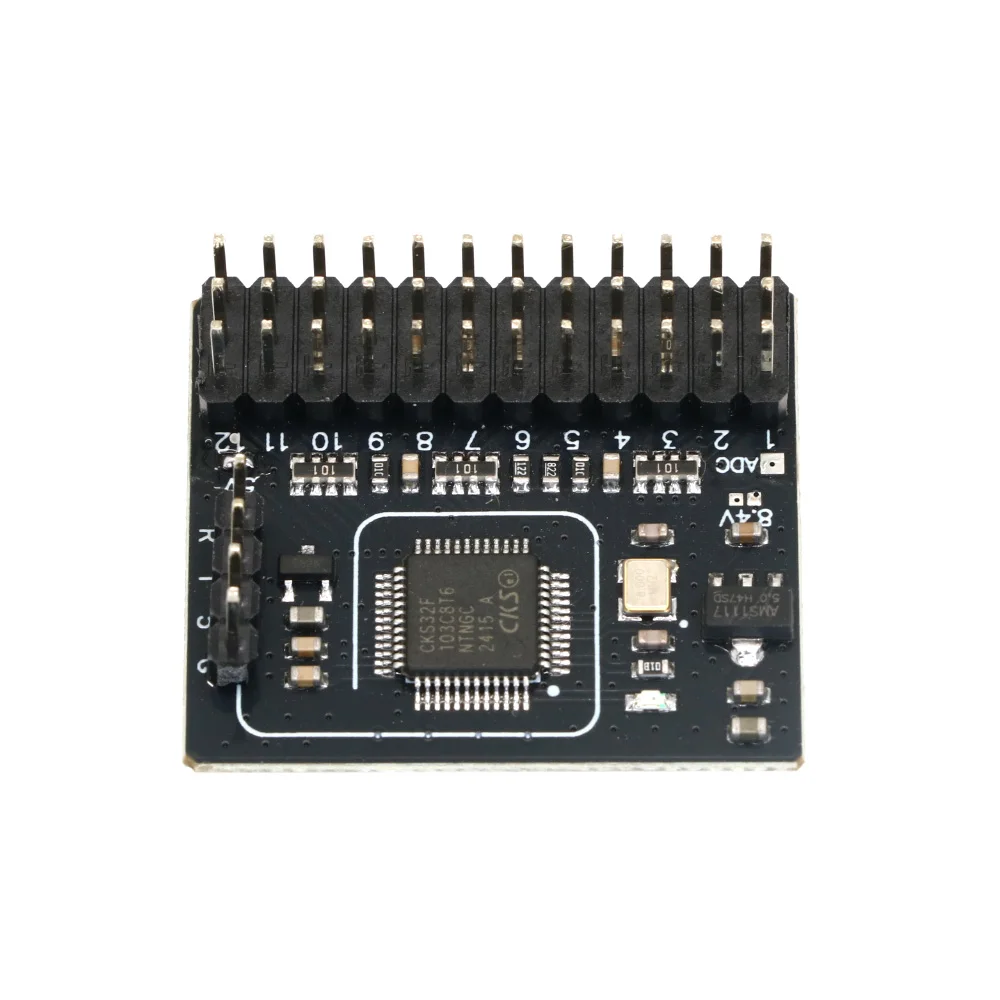

CRSF ELRS 12 channel PWM adapter board, black sheep to PWM CRSF to PWM ELRS to PWM

-Only compatible with CRSF protocol receivers (Black Sheep and ELRS);

-12 PWM outputs (firmware above ELRS 3.0.0 can output 12 proportional channels);

-CRSF signal acquisition LED indication;

-PWM output frequency 50Hz;

-PWM port supports high-voltage servos;

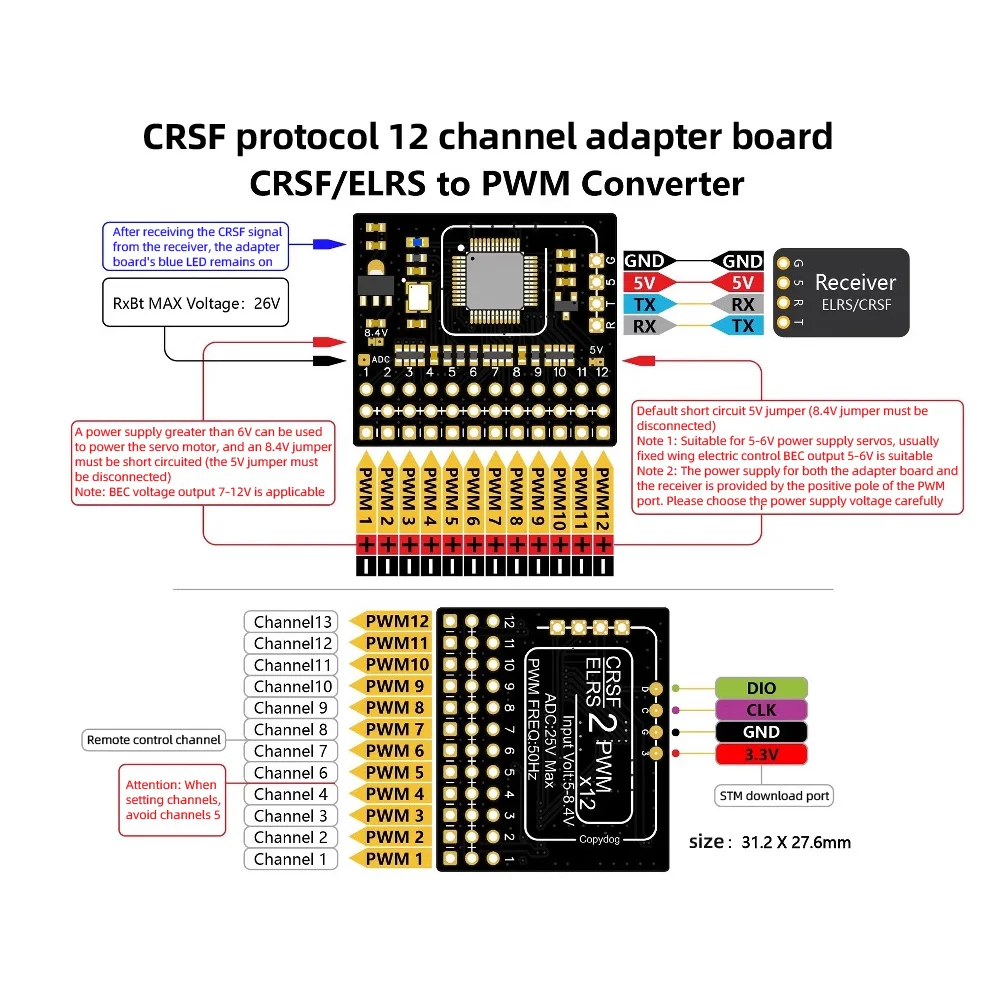

-BEC power supply range 5-12V (determined by jumper);

-Support maximum 6S battery telemetry voltage (RxBt) feedback;

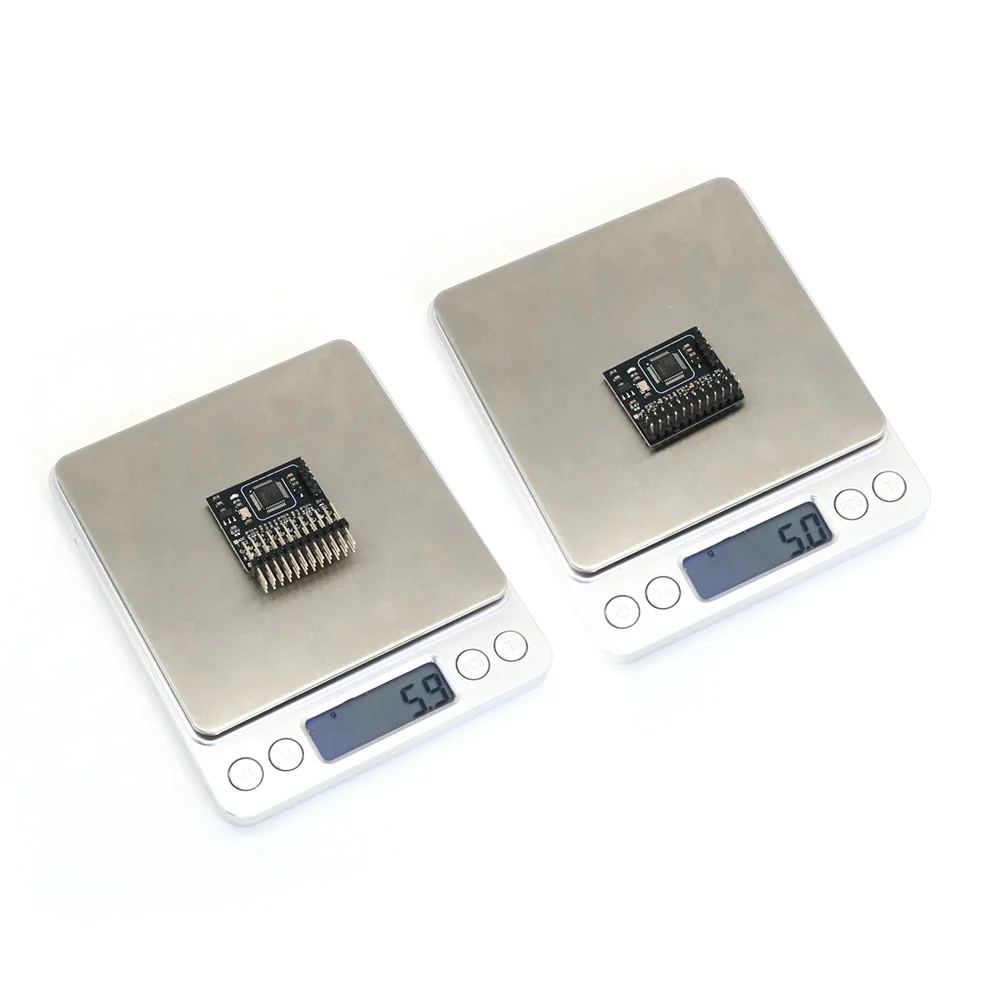

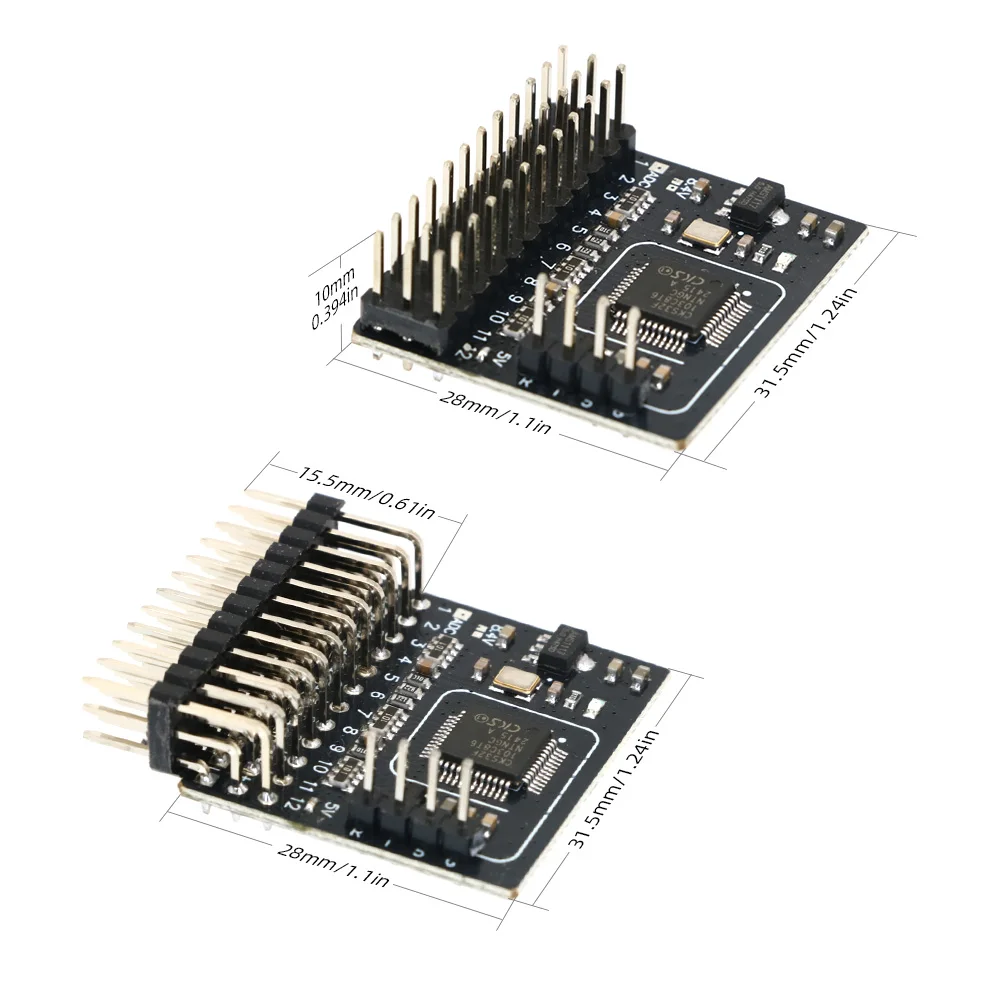

-Size and weight: 32mm X 28mm, 5.2g;

-Can be stacked and combined with our store's ELRS2.4/915 receiver to form a 12 channel receiver;



Connect the receiver TXRX port to the adapter board TXRX through a serial port (please make sure to check the receiver cable yourself)



Does the sequence correspond to the line sequence of the adapter board, and can it be docked with pins;

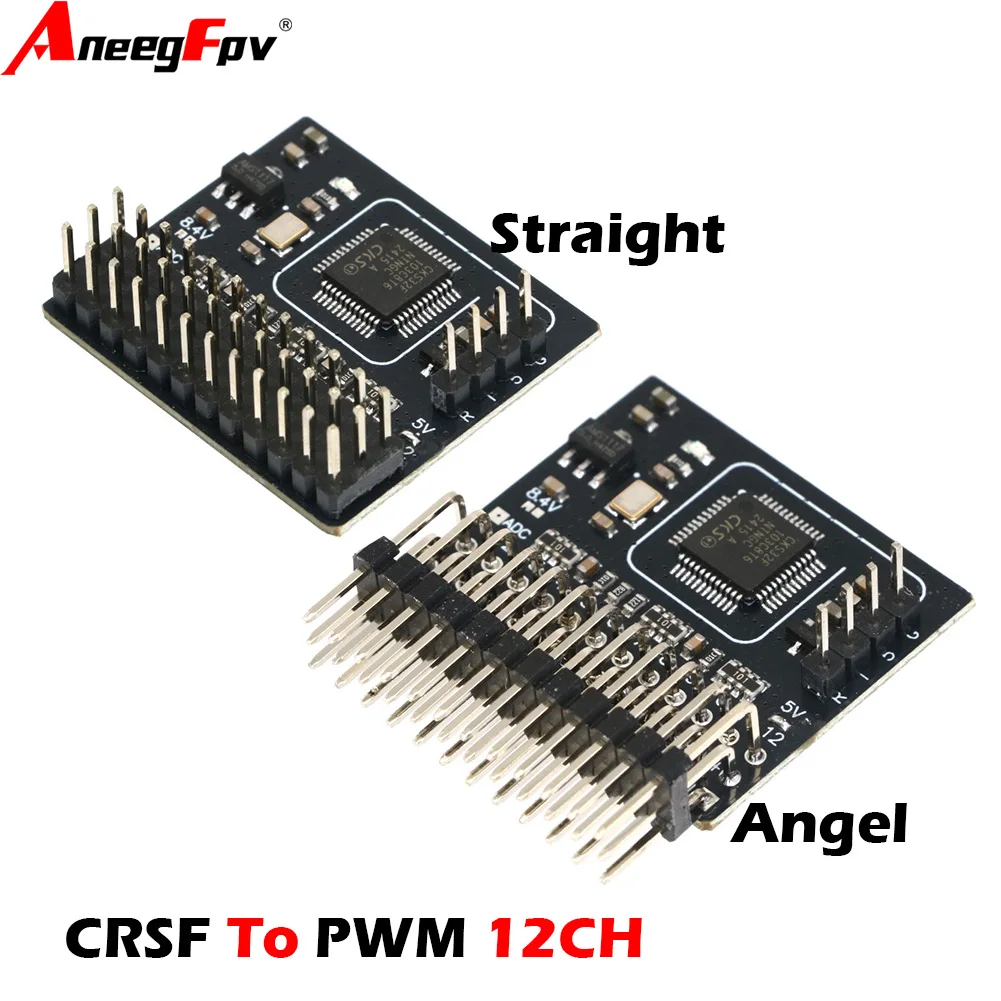

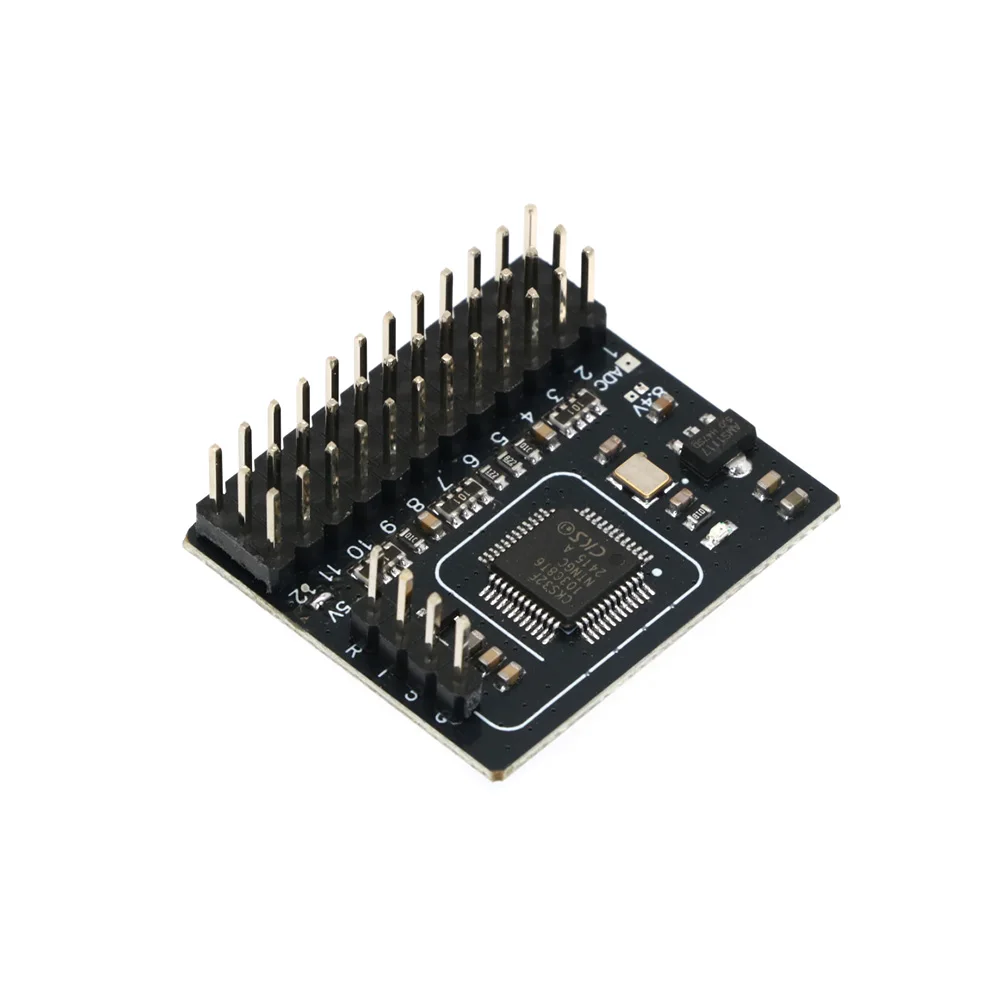

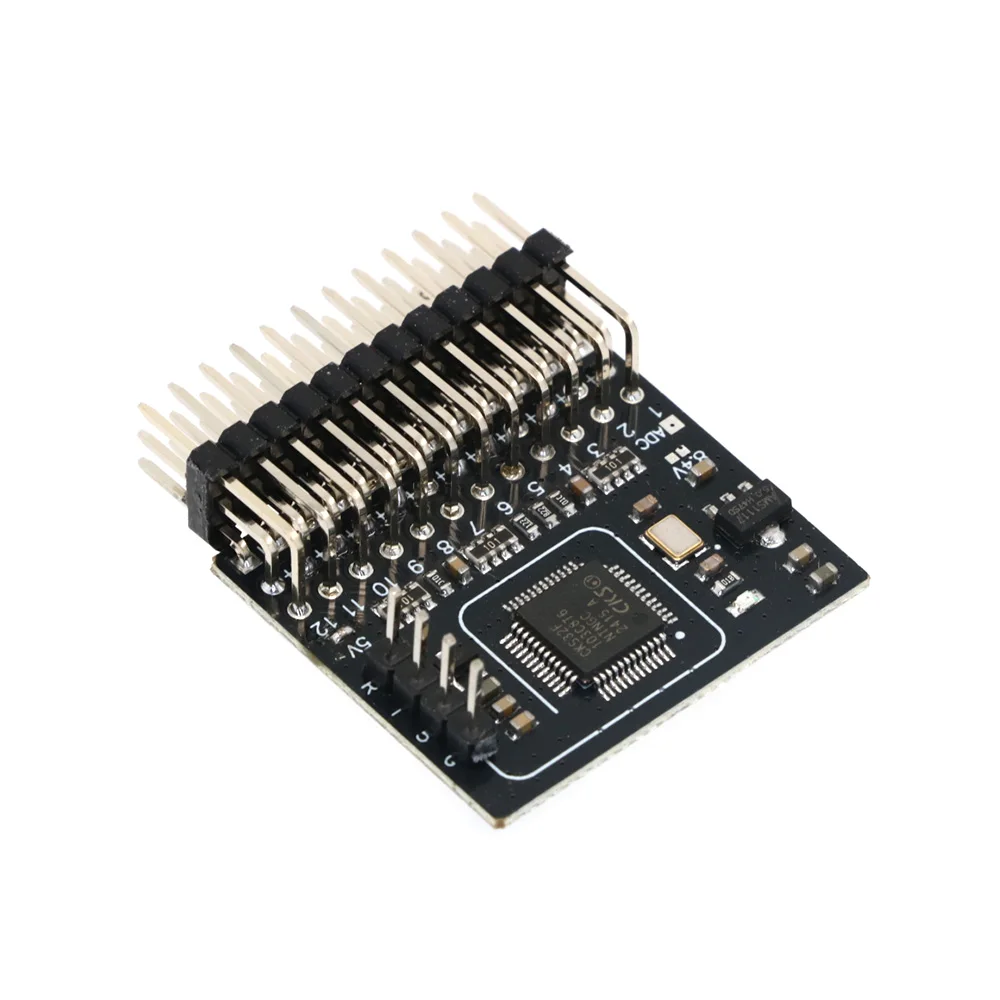

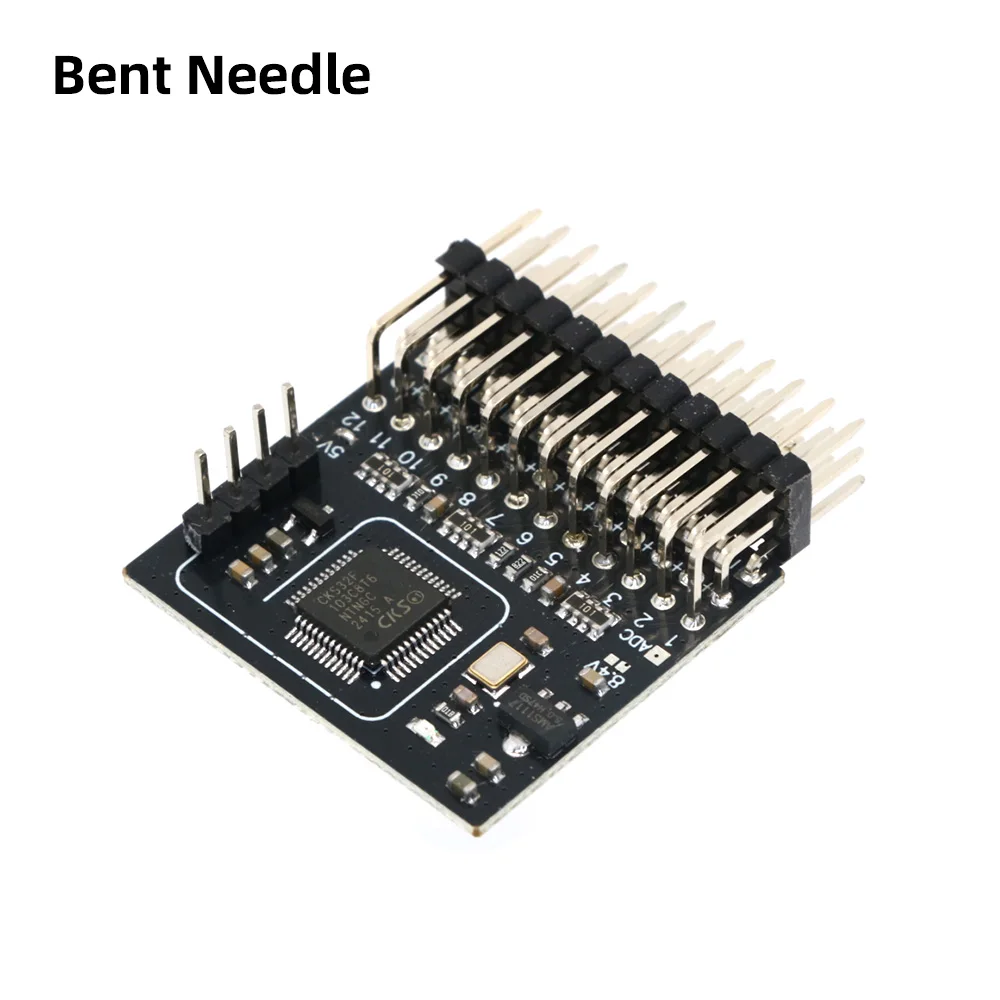

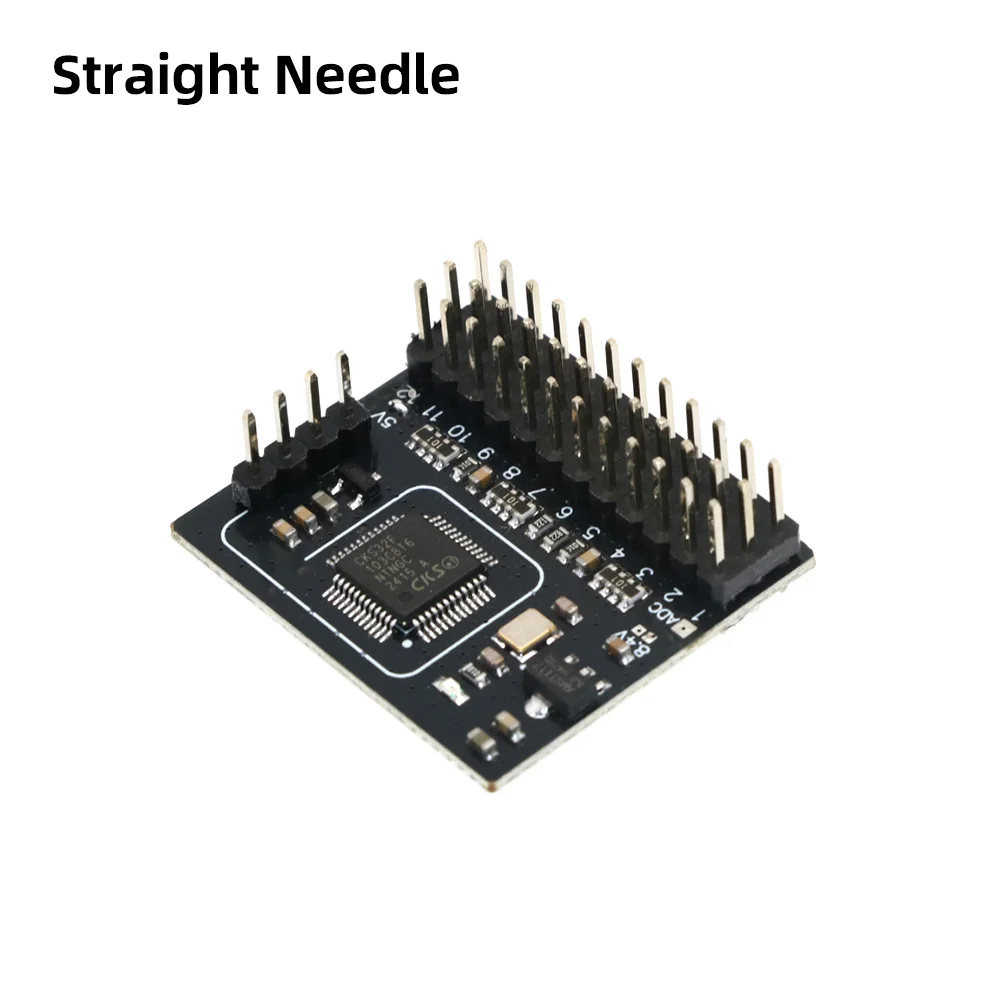

The output needle can choose between straight and curved needles, and can be welded by oneself;



Note: The listed price is only for the adapter board and does not include the receiver shown in the picture
