SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: BLHELI_S 60A 4 in 1 ESC

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: 4 in 1 ESC

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Speed Controllers

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Size: 30.5*30.5mm

Technical parameters: value 2

Tool Supplies: BLHELI_S 45A 4 in 1 ESC

Upgrade Parts/Accessories: BLHELI_S 60A 4 in 1 ESC

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

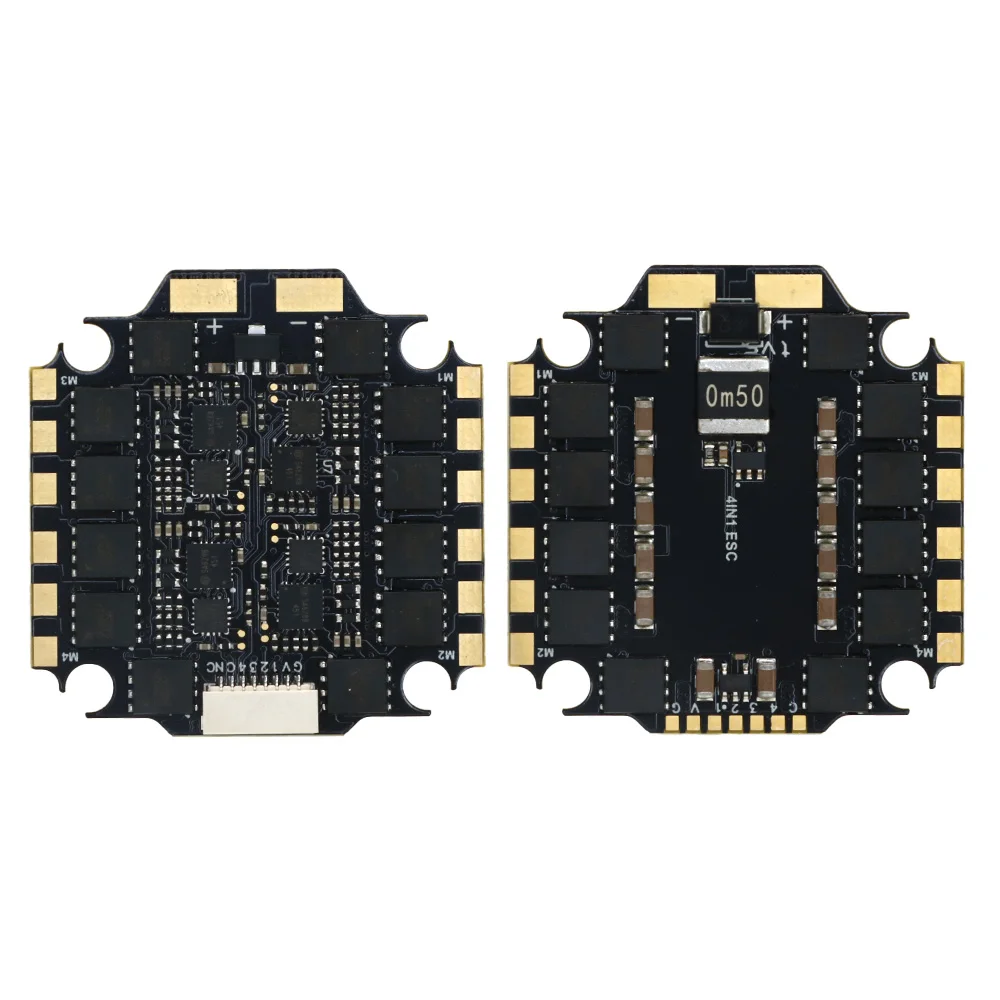

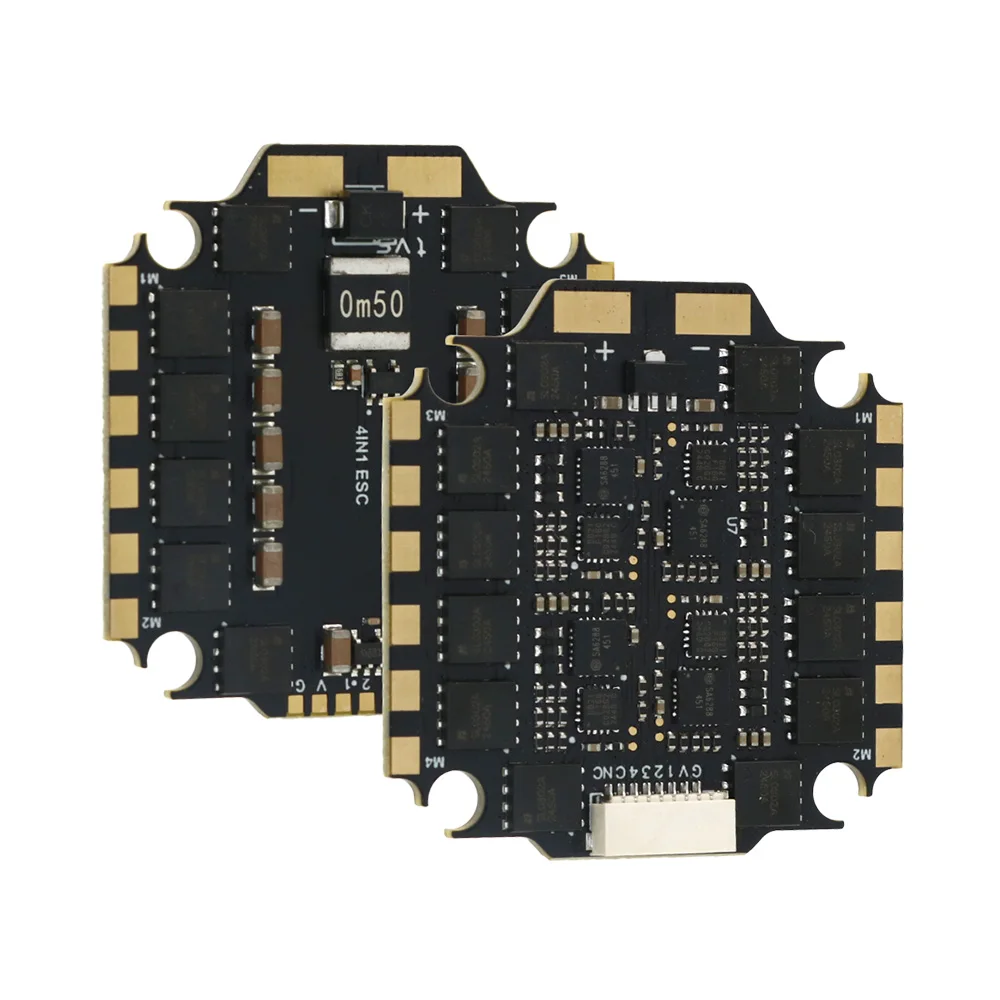

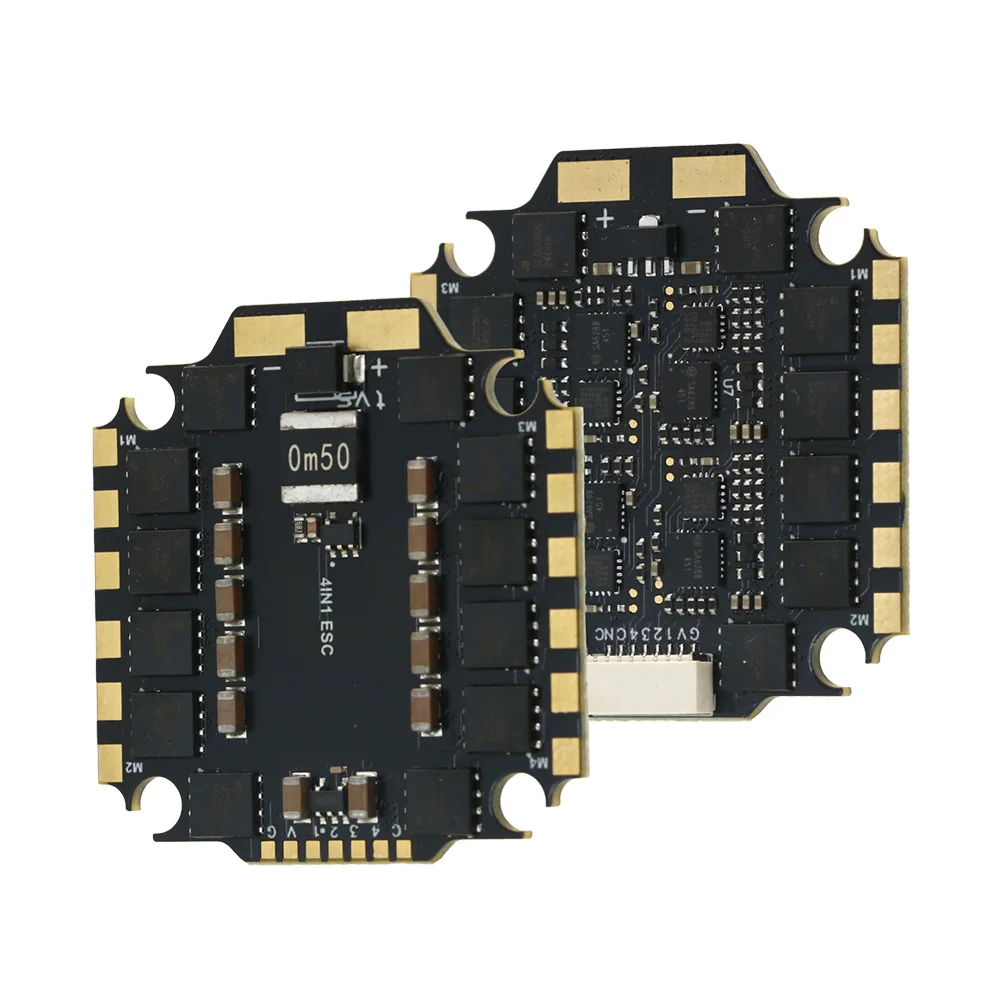

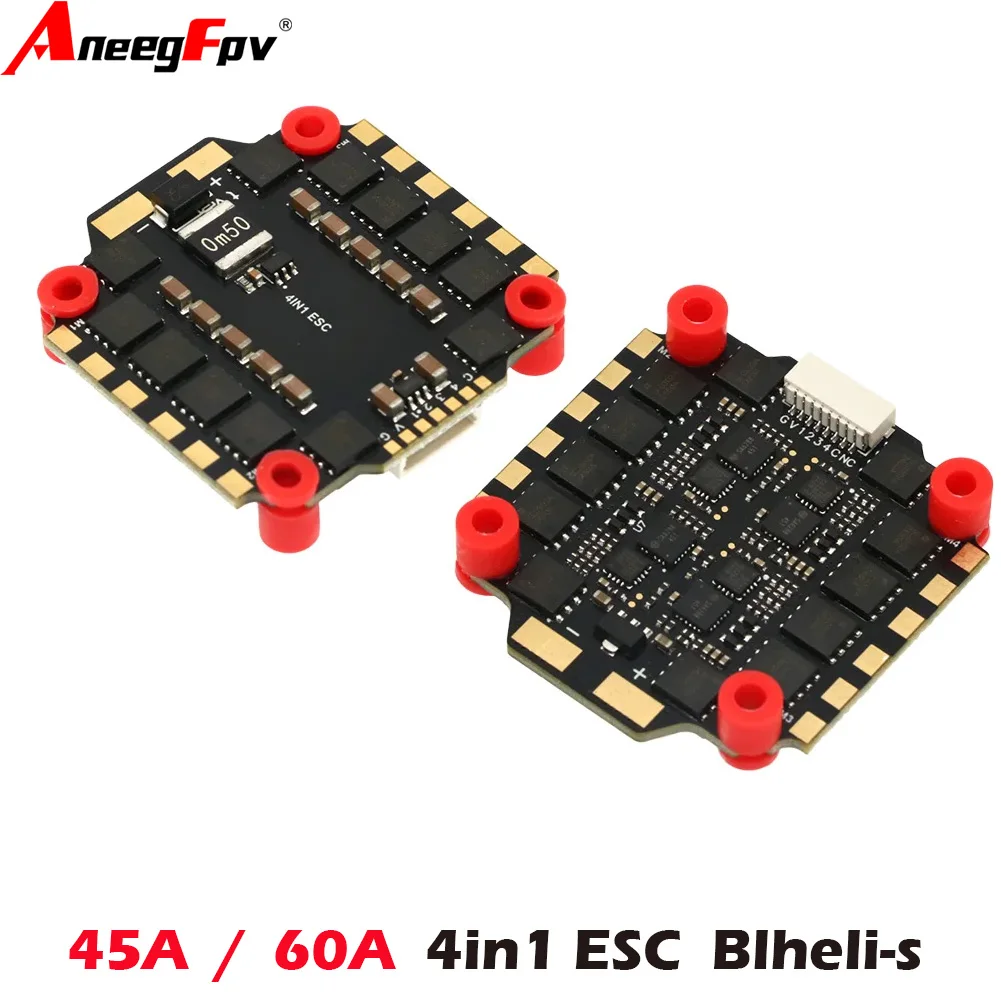

45A / 65A 4in1 ESC BLHeli_s 2-6S Lipo

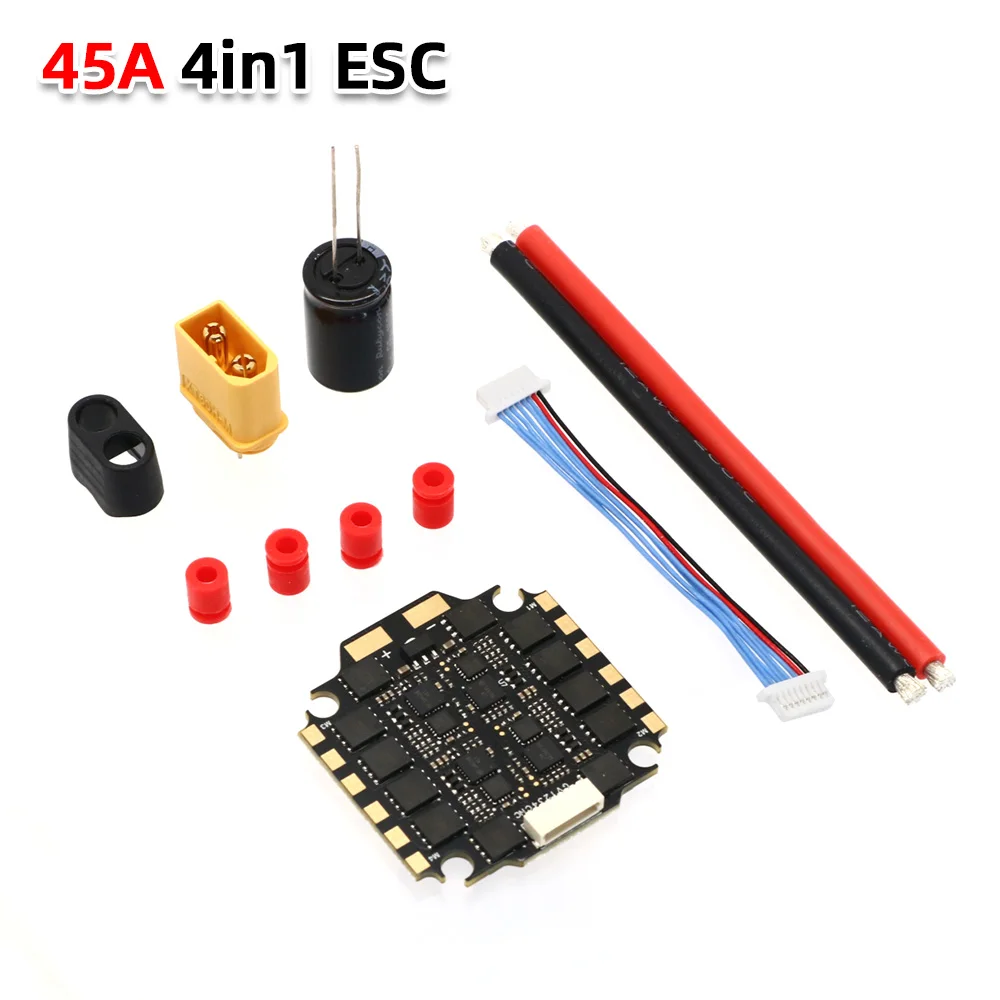

45A ESC

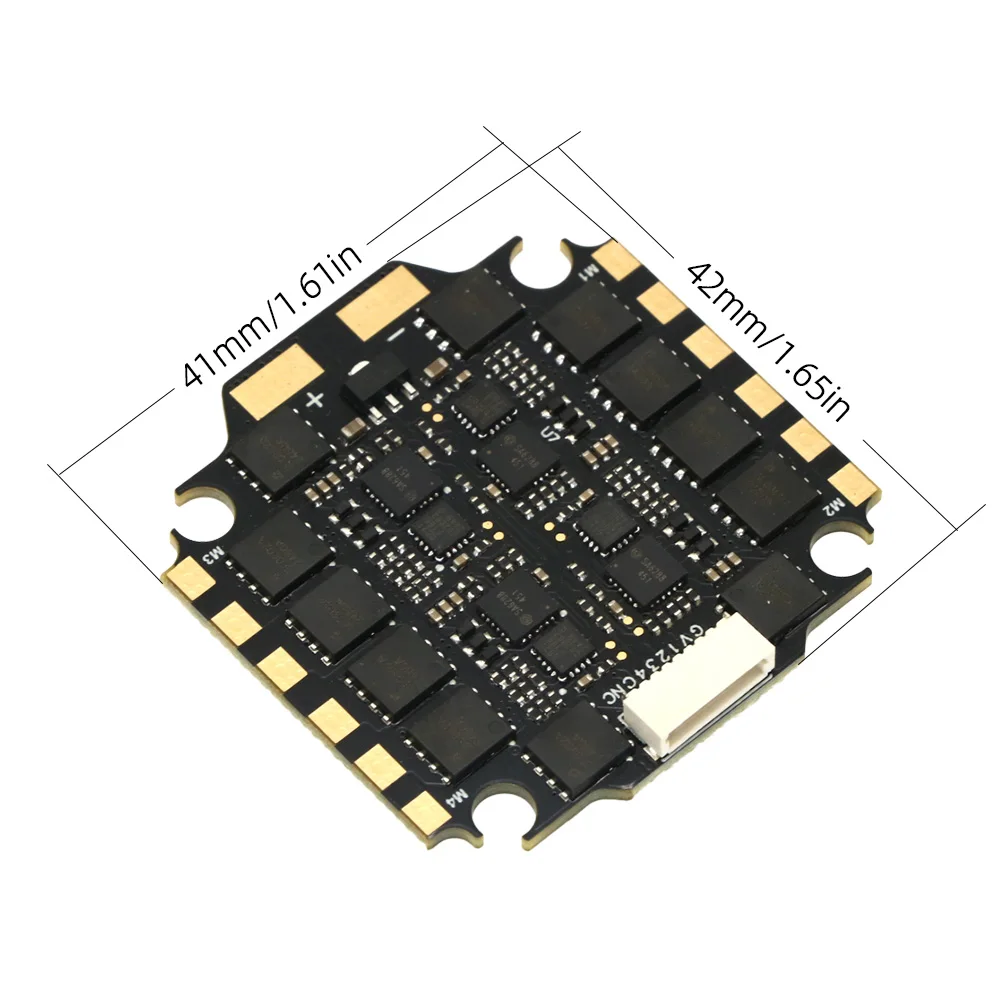

Size: 41*42*5mm

Hole distance: 30.5*30.5/5mm (3mm hole diameter after installing the shock-absorbing ball)

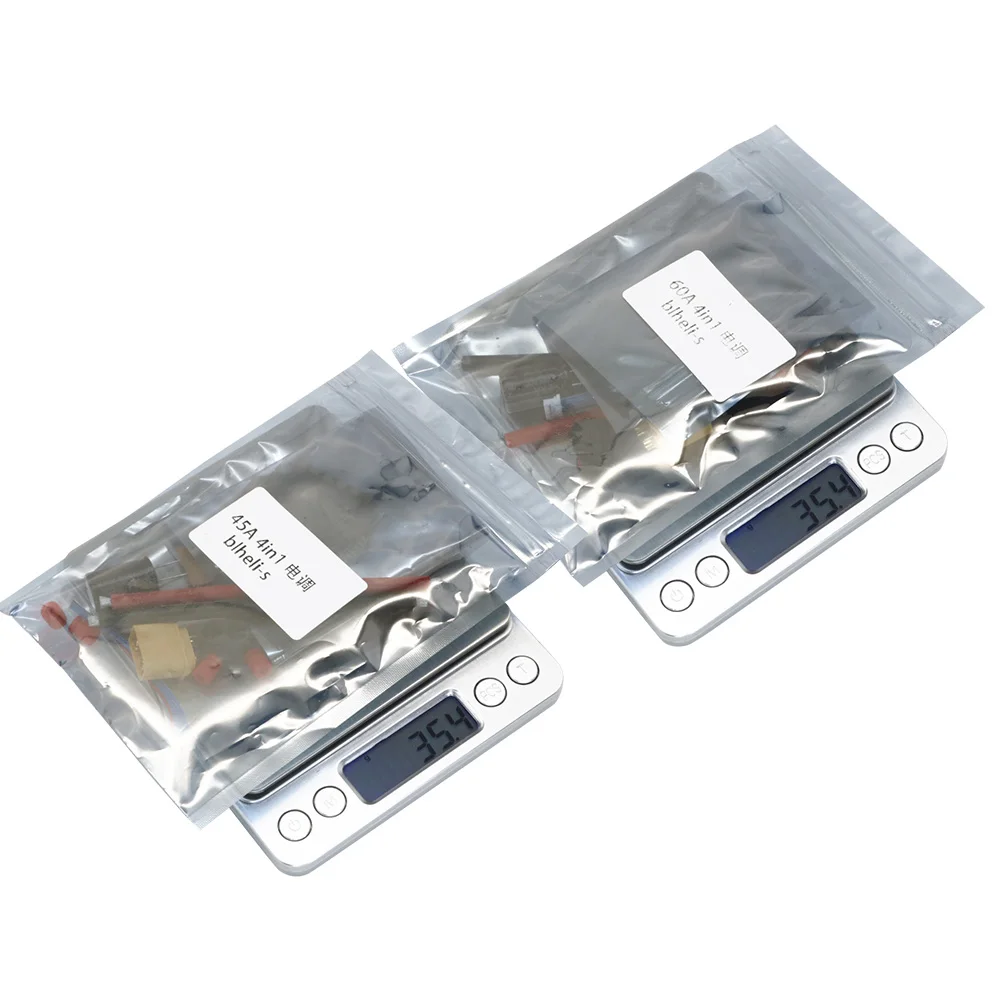

Weight: 13g

Input voltage: LIPO 2-6S

Continuous current: 45A

Maximum current: 50A (10 seconds)

Processor: EFM8BB21F16G

Firmware: BLS J_H_30_REV16_7

Drive signal support: DShot300-600/Multishot/Oneshot/PMW

Current sensor: Support

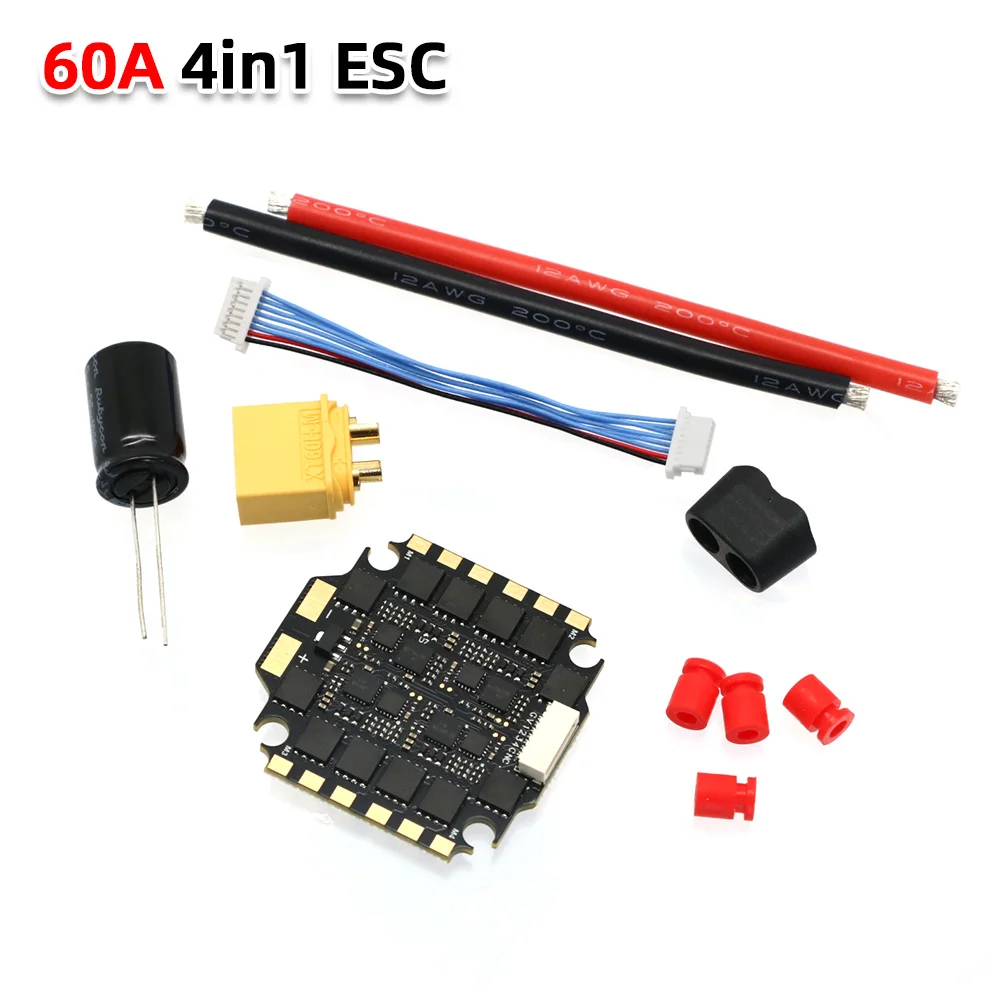

60A ESC



60A 4-in-1 ESC

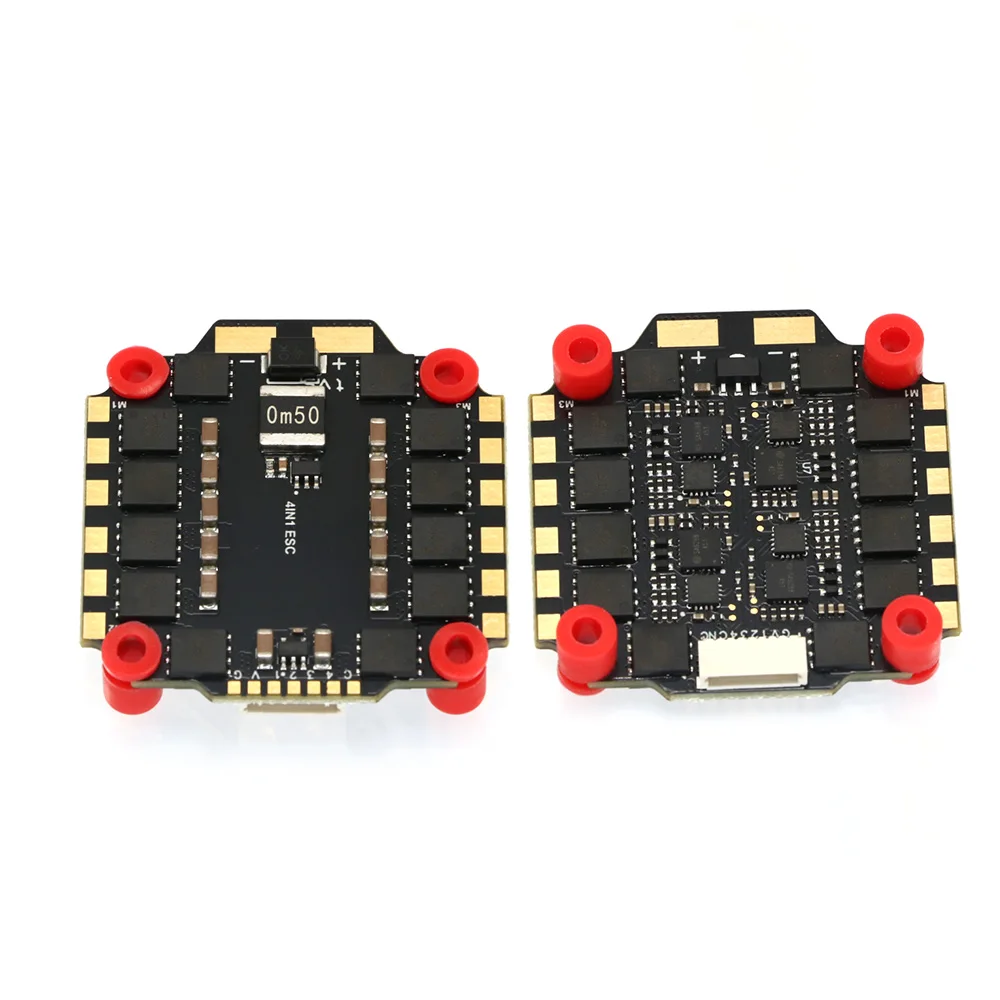

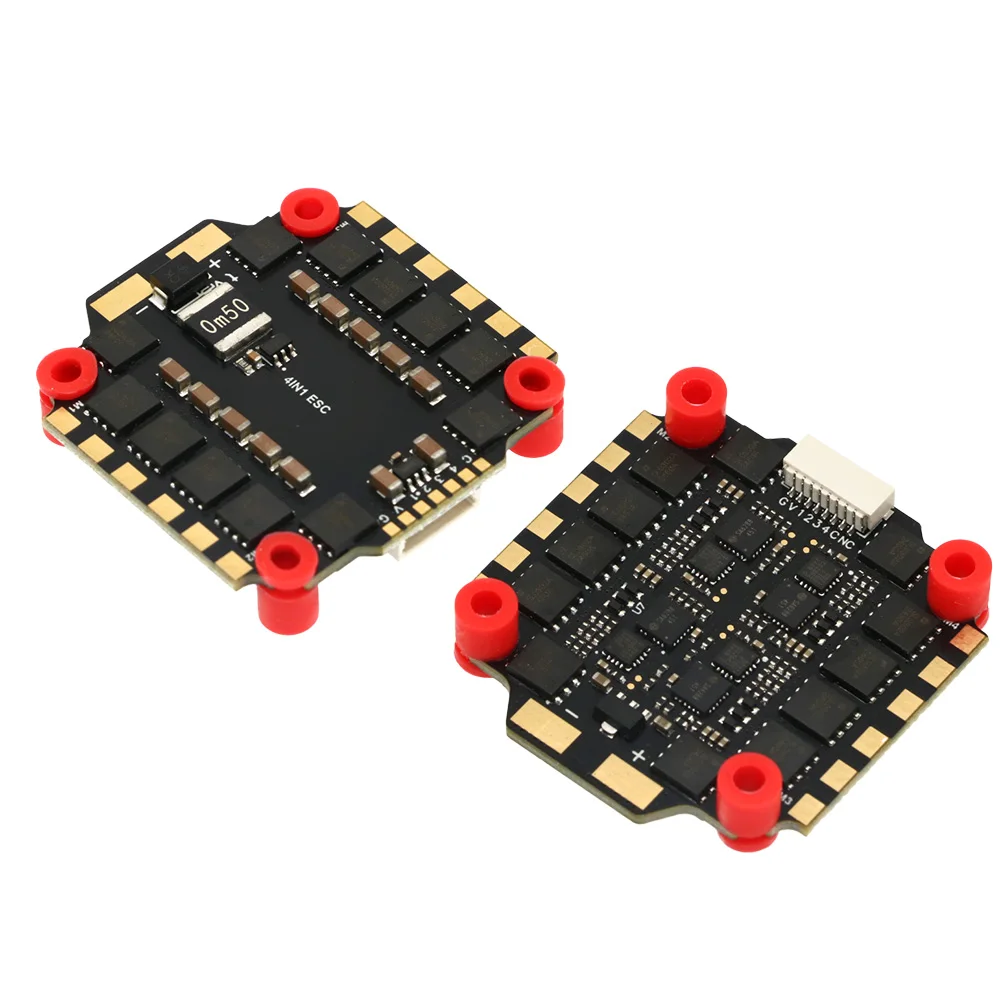

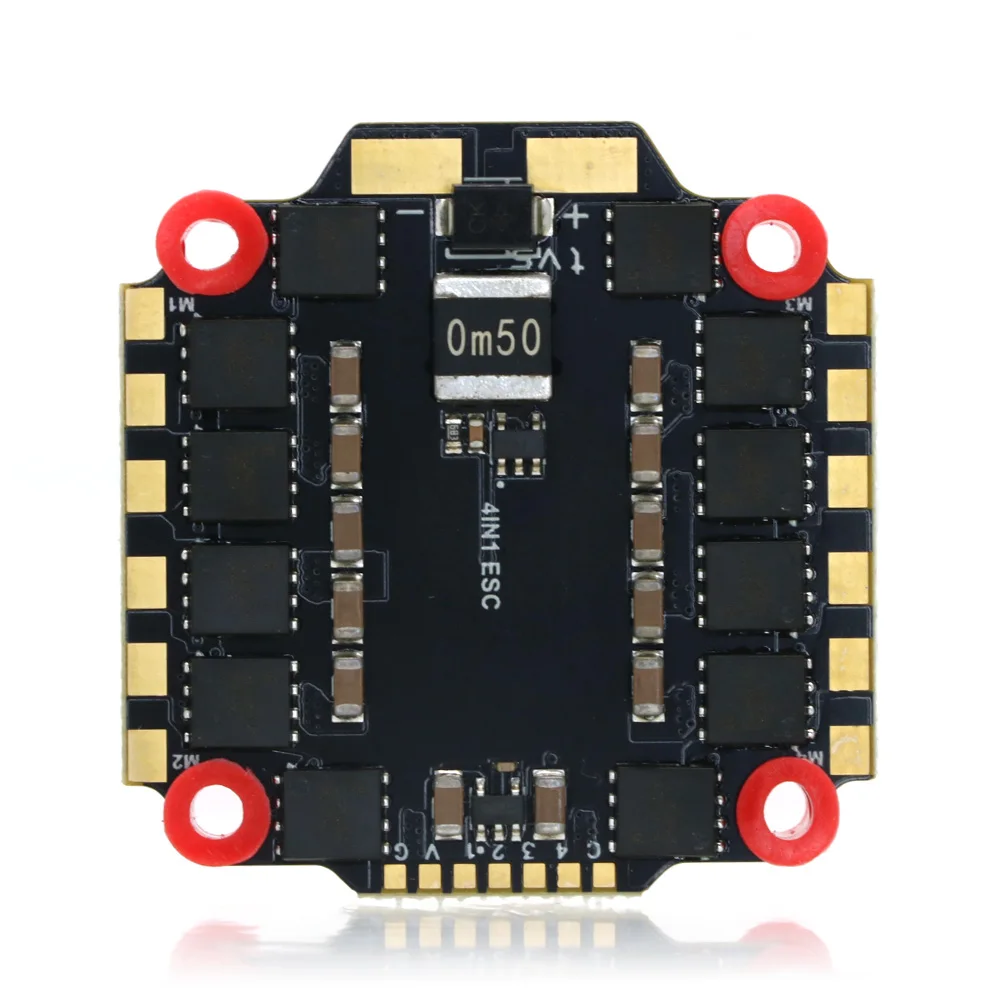

The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation

ESC onboard current sensor.

Continuous current: 60A

Instantaneous current [5 seconds]: 70A

Firmware: BLS J_H_30_REV16_7

The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize

the battery voltage, and protect the precision components of the flight control ESC
