SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: 3.3G 4W VRX

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: 4W VTX

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: Other

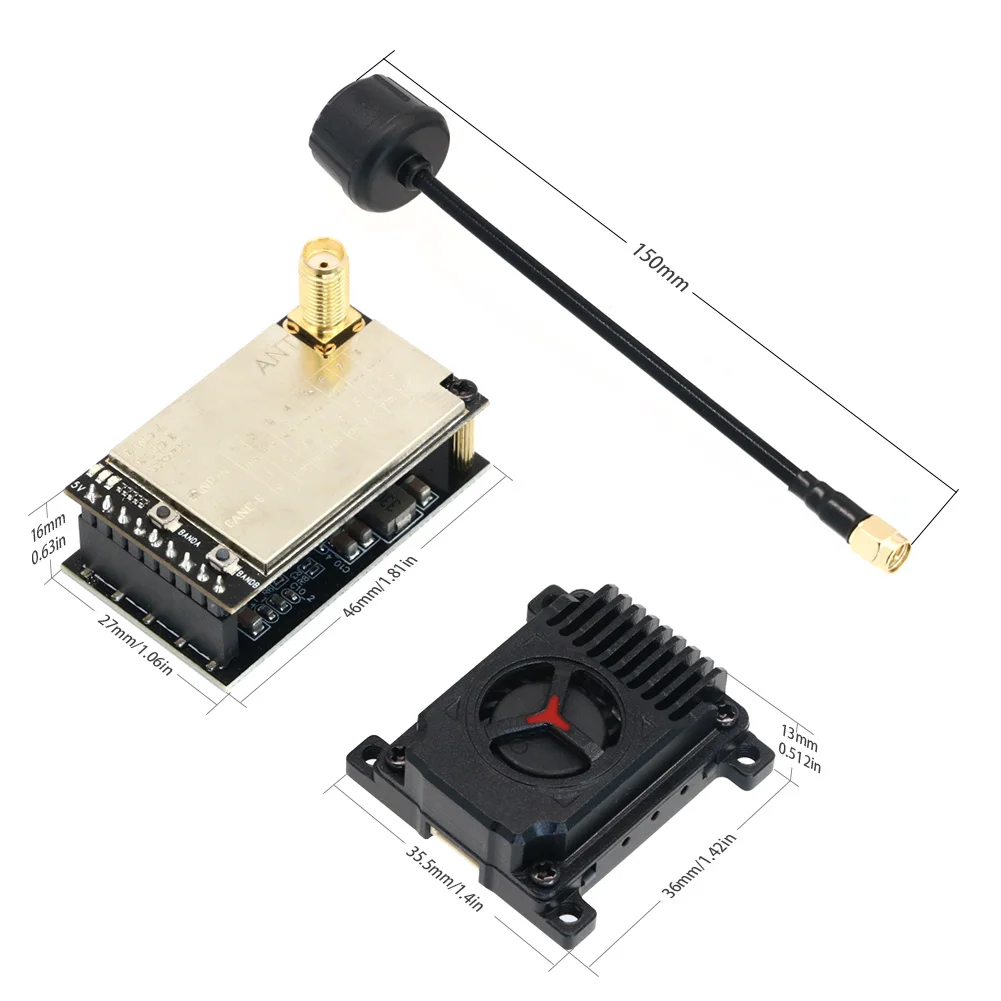

Size: 37.7mm*36.1mm*11mm

Technical parameters: value 2

Tool Supplies: LST 3.3G 4W VTX

Upgrade Parts/Accessories: Other

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

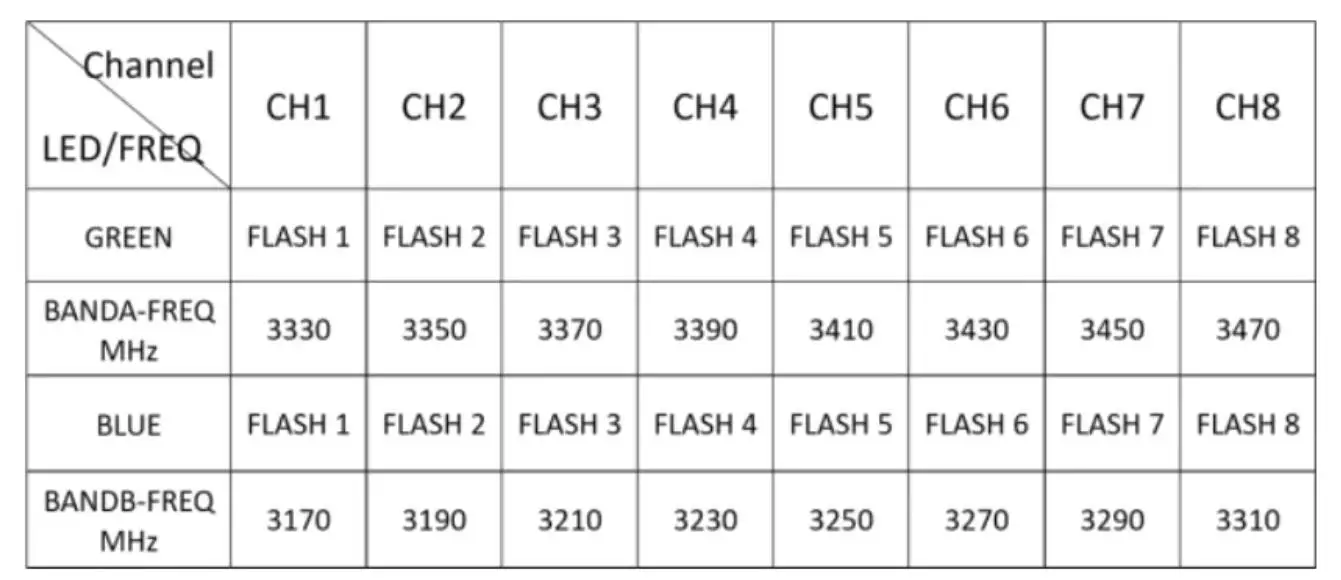

LED and key frequency corresponding table

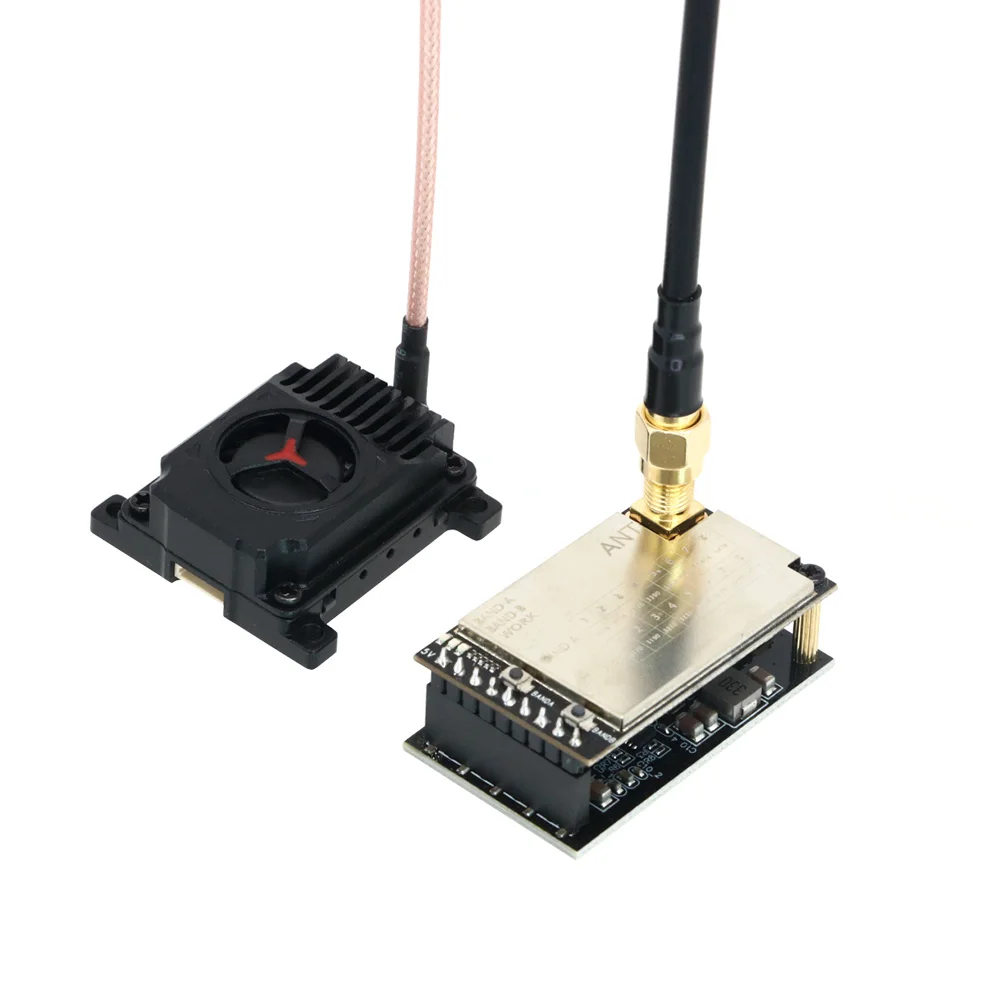

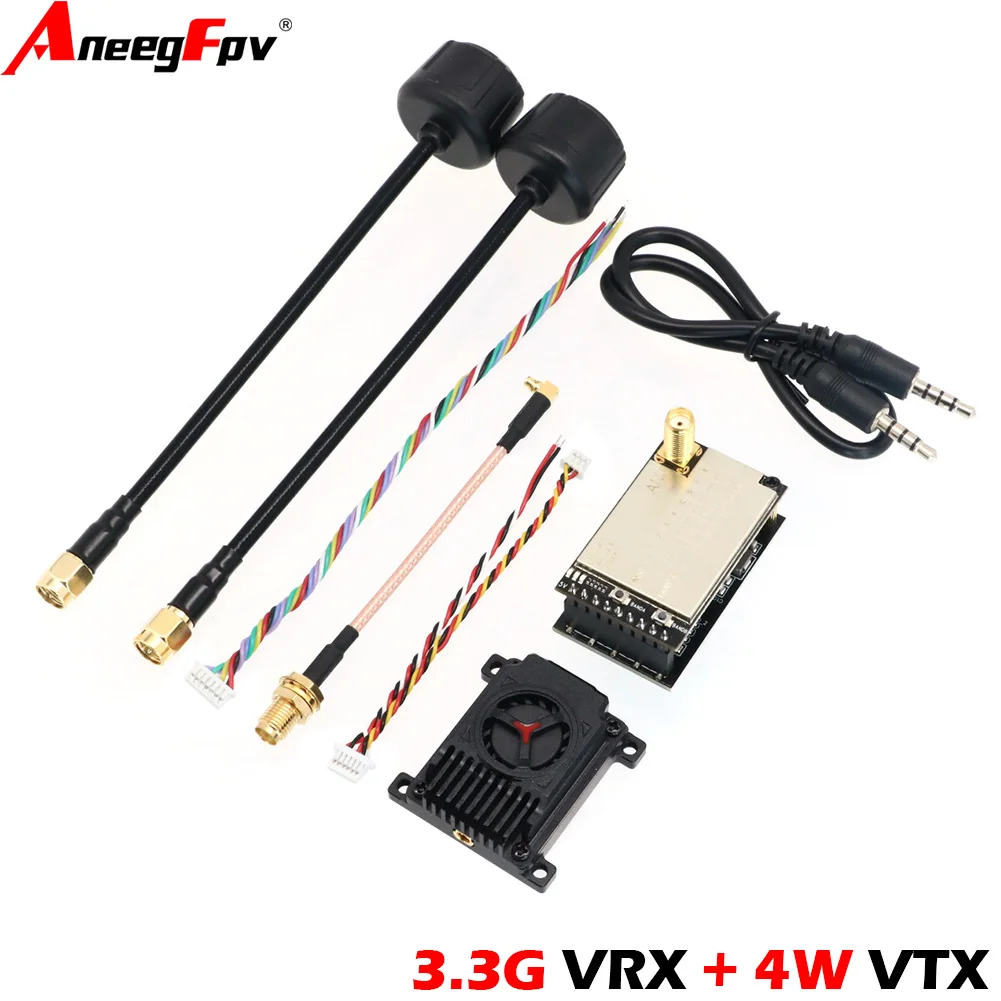

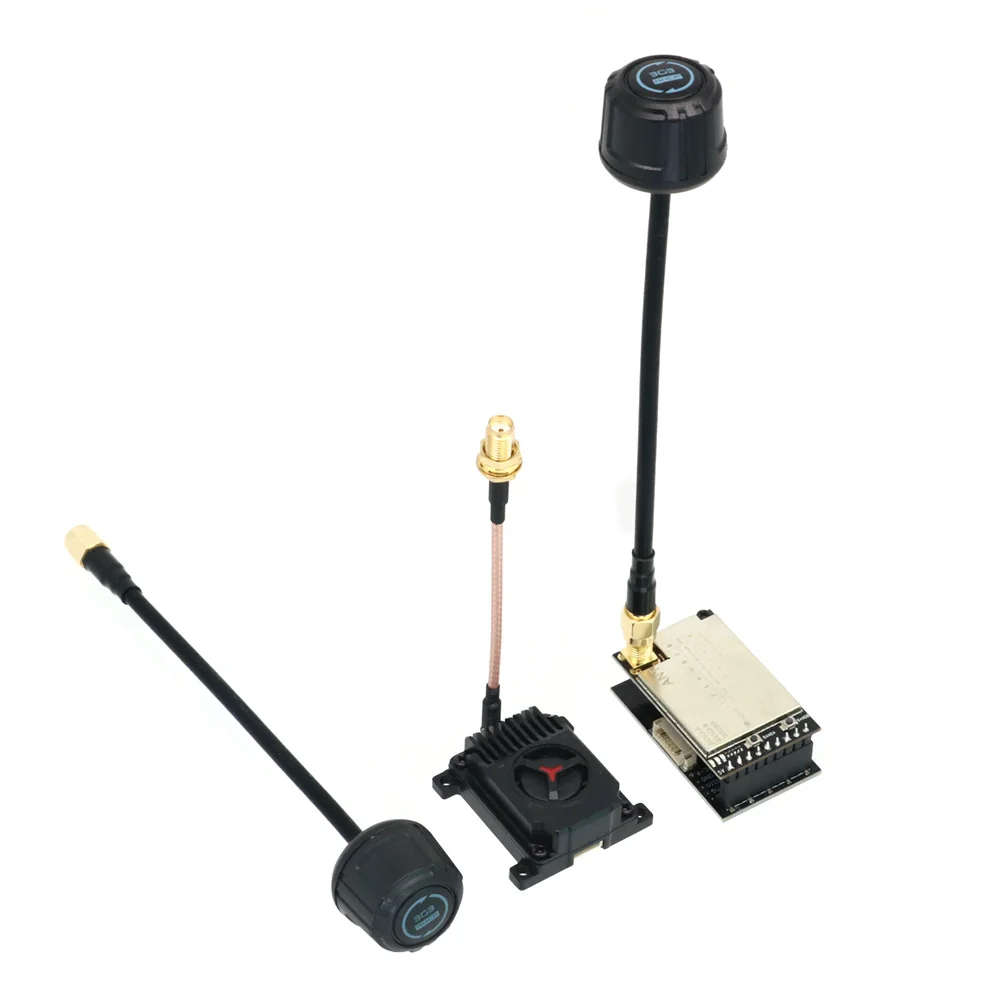

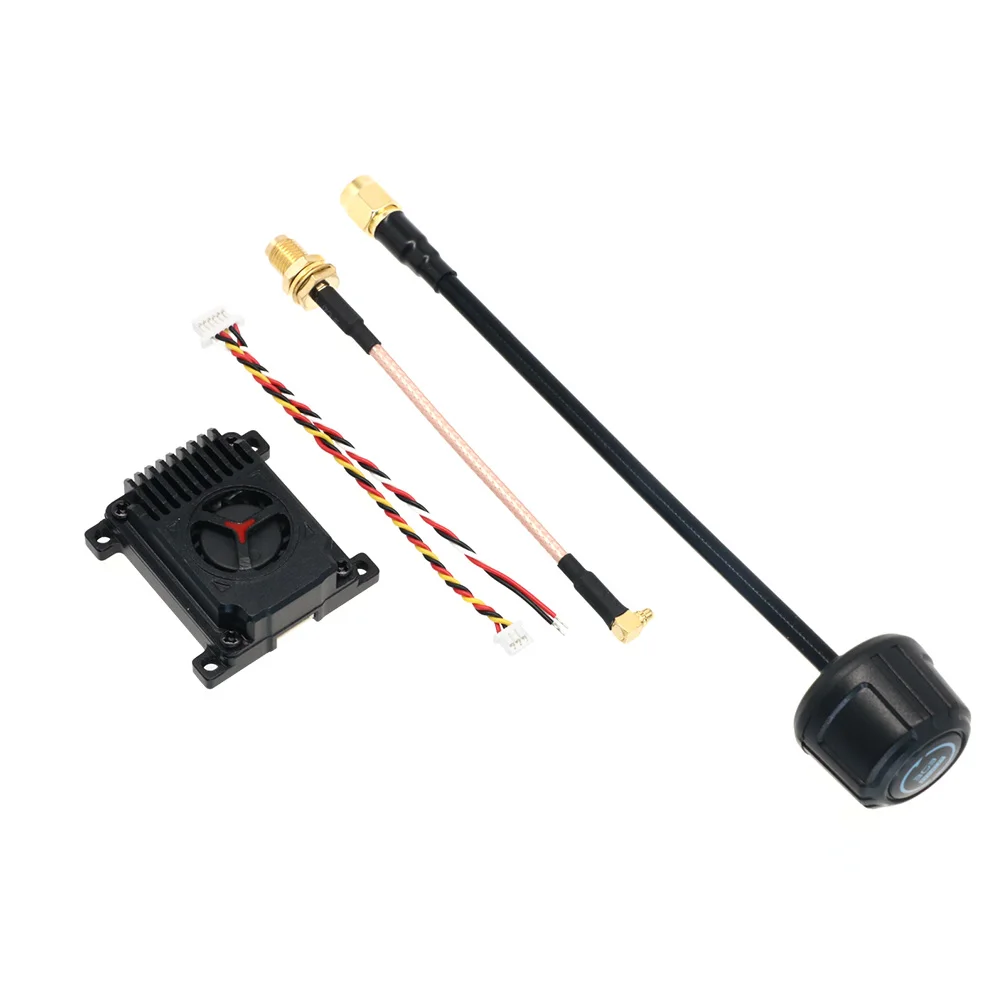

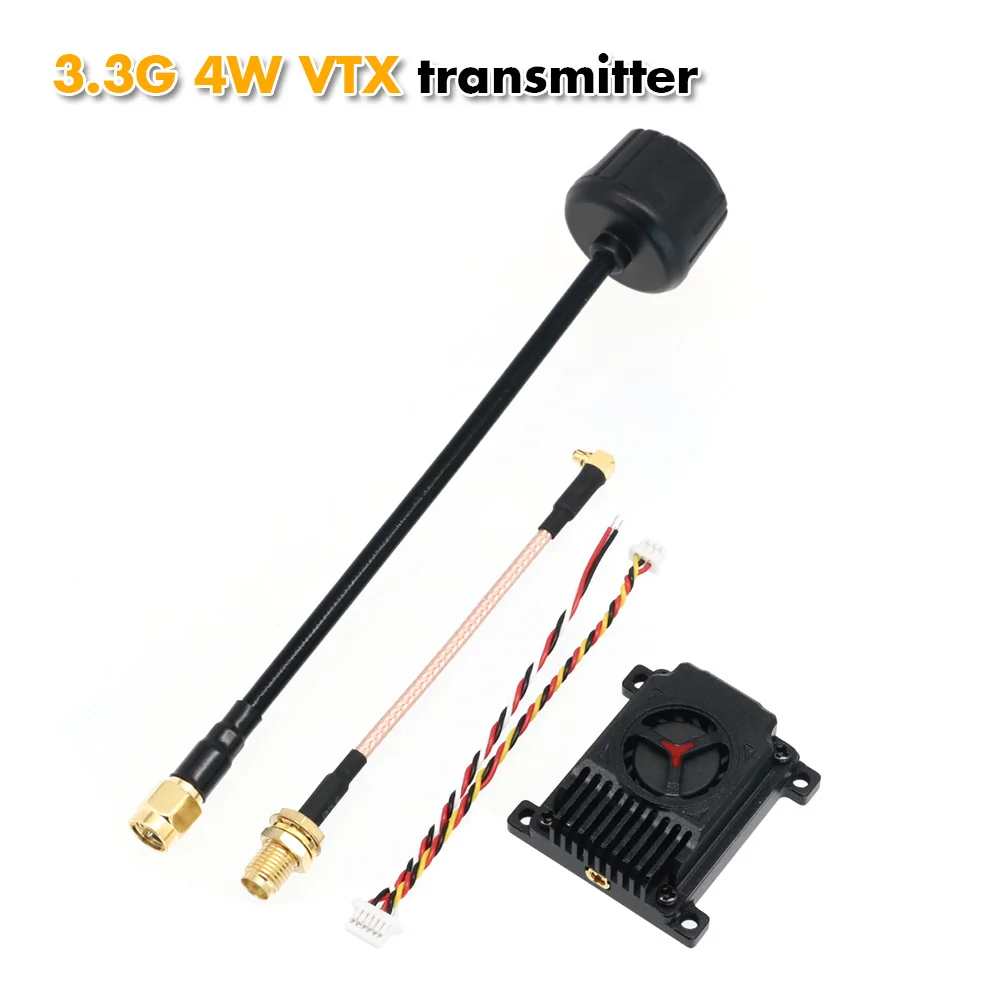

3.3G 4W VTX Feature:

1.Operates in the 3.3GHz frequency, up to 3000mW, suitable for long range flight

2.The well-chosen high-strength aluminum alloy CNC shell assist heat dissipation

3.The built-in micro turbofan dissipates heat actively

4.Wide voltage input supports 7-36V input

5.Temperature control protection function prevent overheat

8.Output Power:35dBm-36.2dBm

9.TRAMP: Support flight control IRC Tramp protocol interaction

1.Key and LED Indicator Interface Specification

1.1Button and Indicator Specification

Key A：Band A andBand B Frequency switching key

1).Long press band A/B to switch, short press frequency to switch

2).Green light on, corresponding to the band A, and the blue light is corresponding to

the band B. The number of green flashes indicates the frequency information

corresponding to the band A.

The number of blinking blue lights indicates the frequency information corresponding to

band B

Key B: Switch between high and low power

A.Red light: red light on, maximum power mode,

B.Red light off, PIT mode (with power off memory function)
