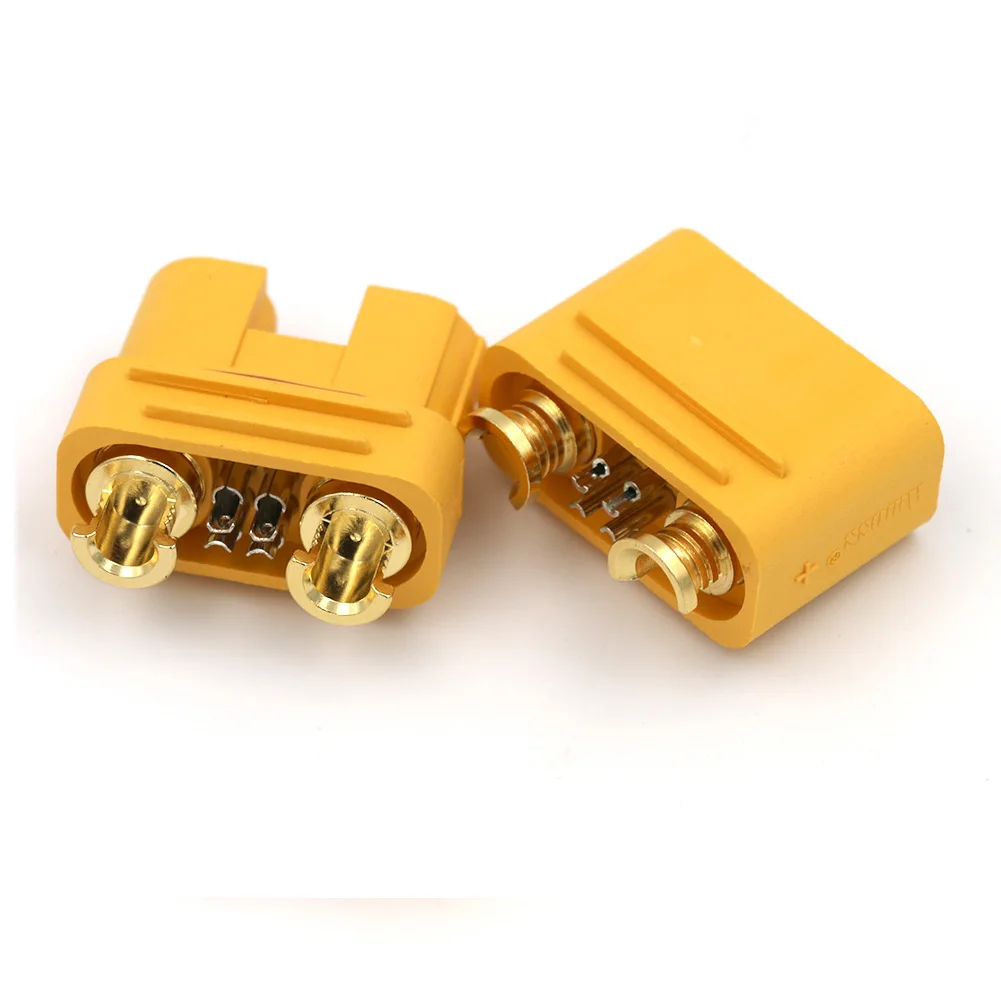

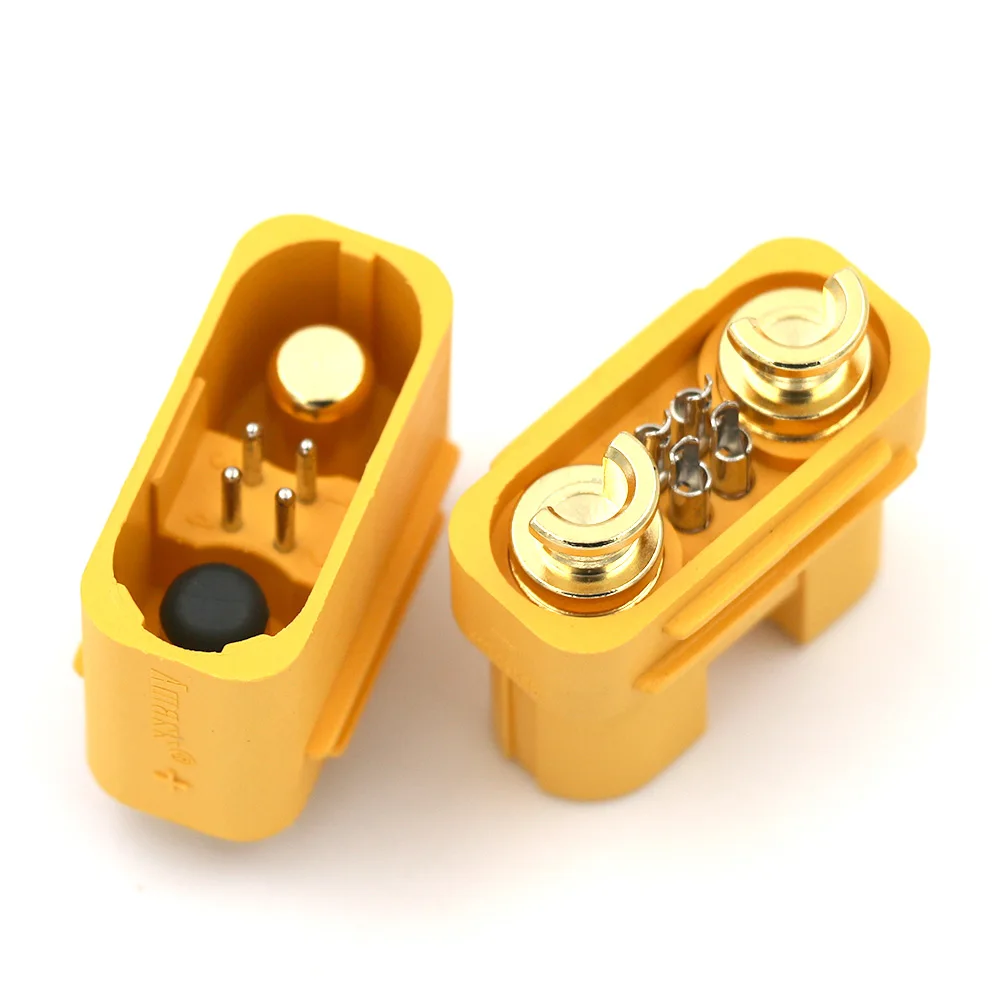

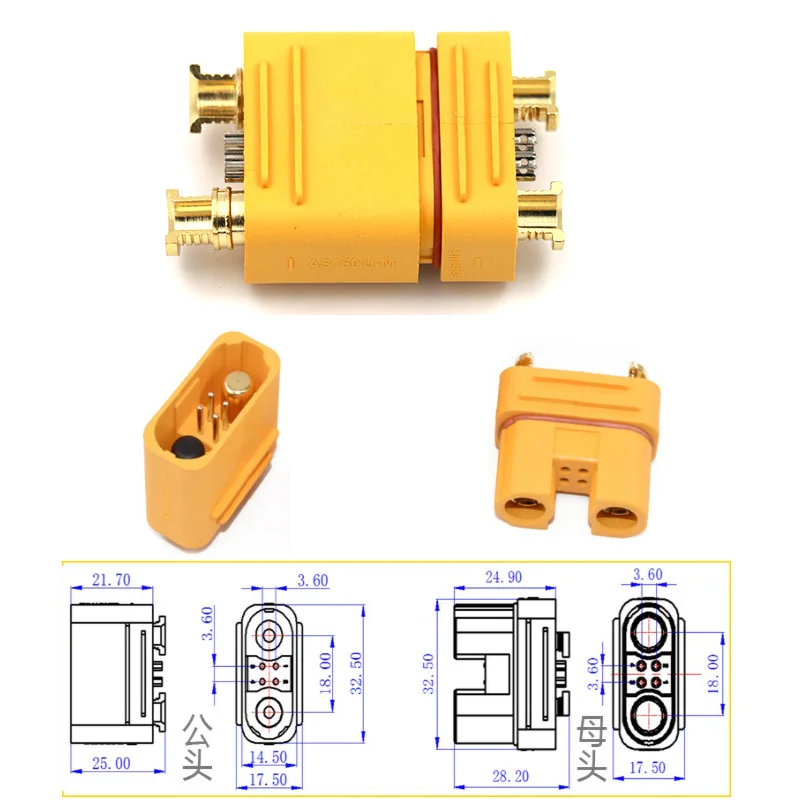

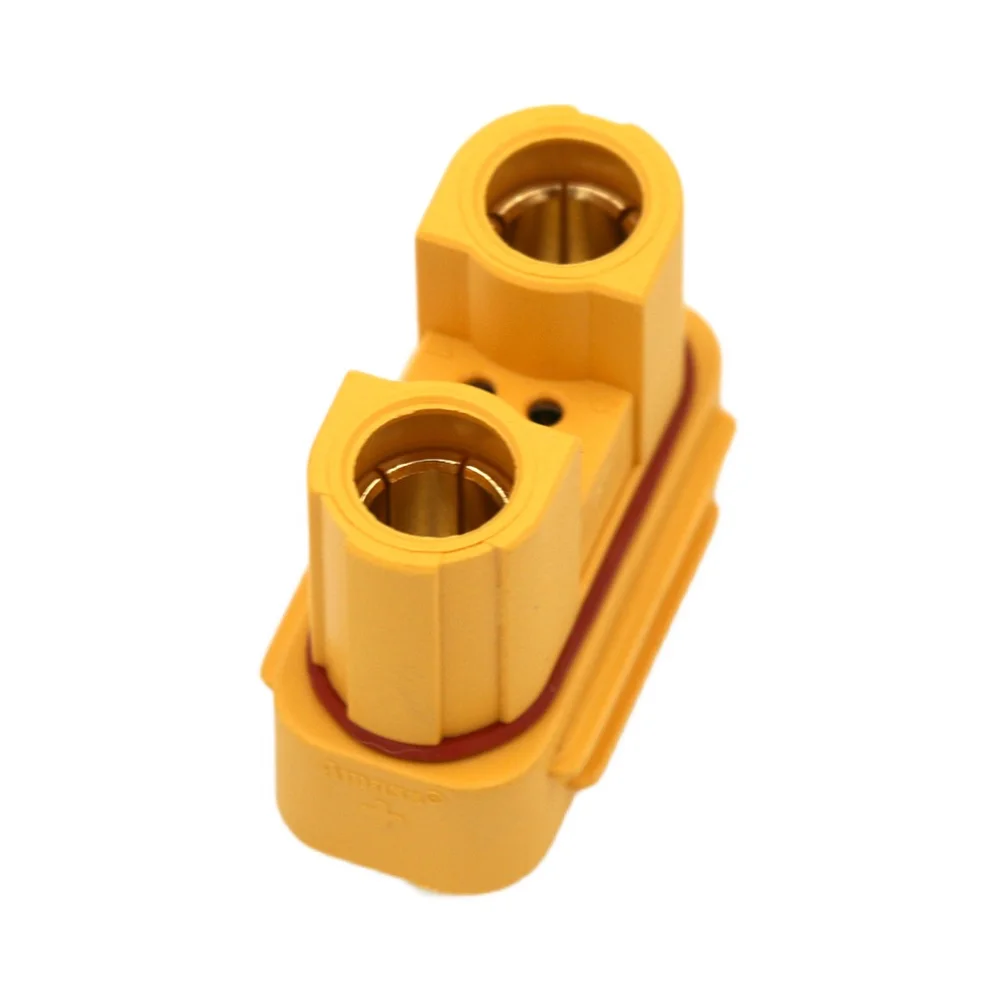

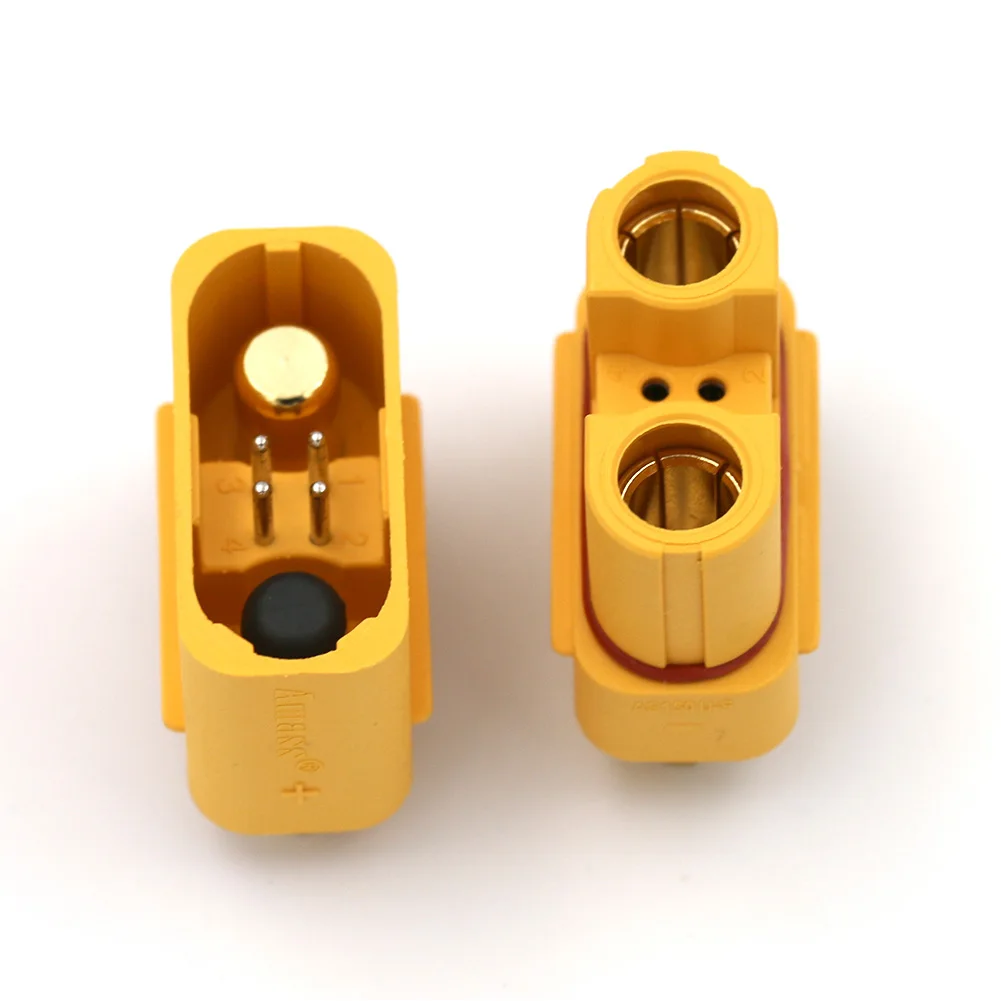

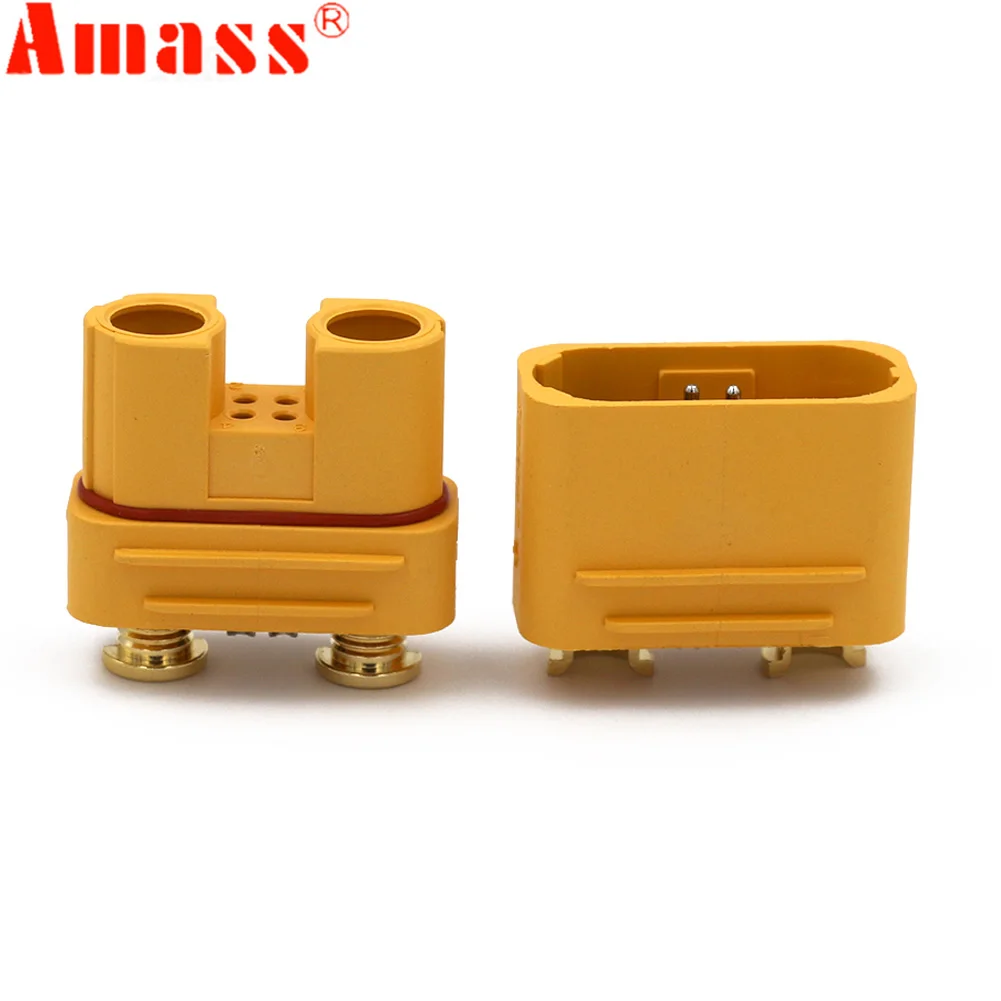

– Item No. : AS150U
– Metal material: Brass gold plated
– Plastic material: PA66
– FR Level: UL94 V0
– Recommend USE: Battery
– Temperature rise: 70A ＜70℃ (1Hour)
– Weld mental: Main copper3.3; Signal pin 2.5
– CR: 0.40mΩ
– Rated voltage: ＜DC 500V
– Rated Current (RC): 70A
– Instantaneous current: 140A
– Use times: 1000 times
– Temperature rise: 140A ＜80℃(1min)
– Insertion Force: 3-5kg
– Temperature: 20℃ to 120℃

All plugs with signal pin versions can be connected to smart batteries or chargers via signal pins to read battery/charger information. Read the battery brand
Name, capacity, full charge voltage, overcharge and overdischarge detection voltage, charge and discharge current limit, battery temperature limit, full charge voltage fine adjustment, storage voltage fine adjustment, preset charge current, self discharge timing, battery charge and discharge cycle record, battery Abnormal work records (overcharge, overdischarge, overtemperature, more abnormal parameter records can be customized), battery automatic protection function, etc.

Application examples:
Ester series charger/tester, DJI series drone, agricultural plant protection machine battery/charger, etc.
