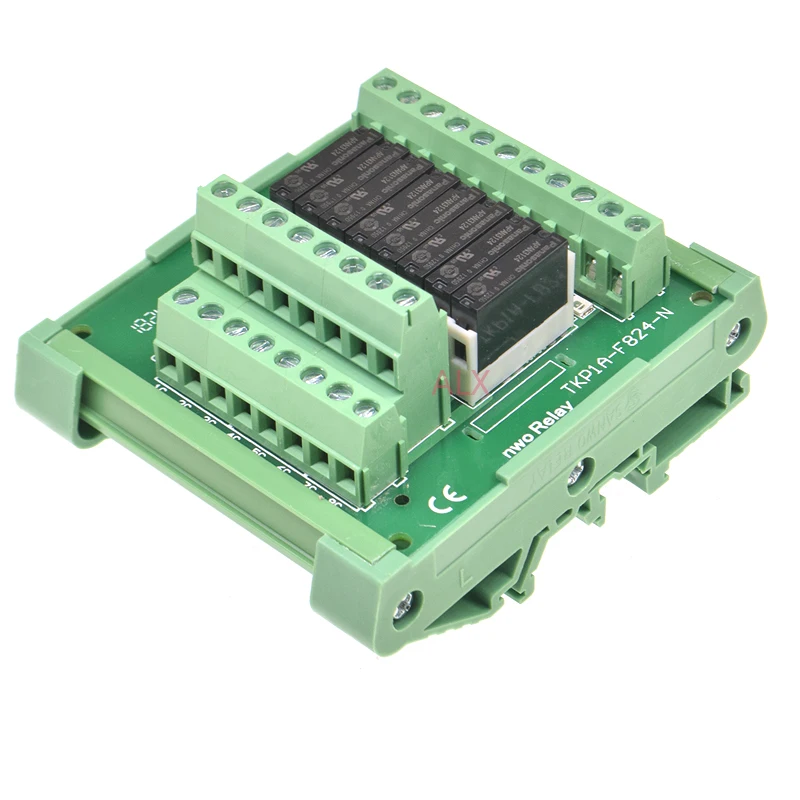

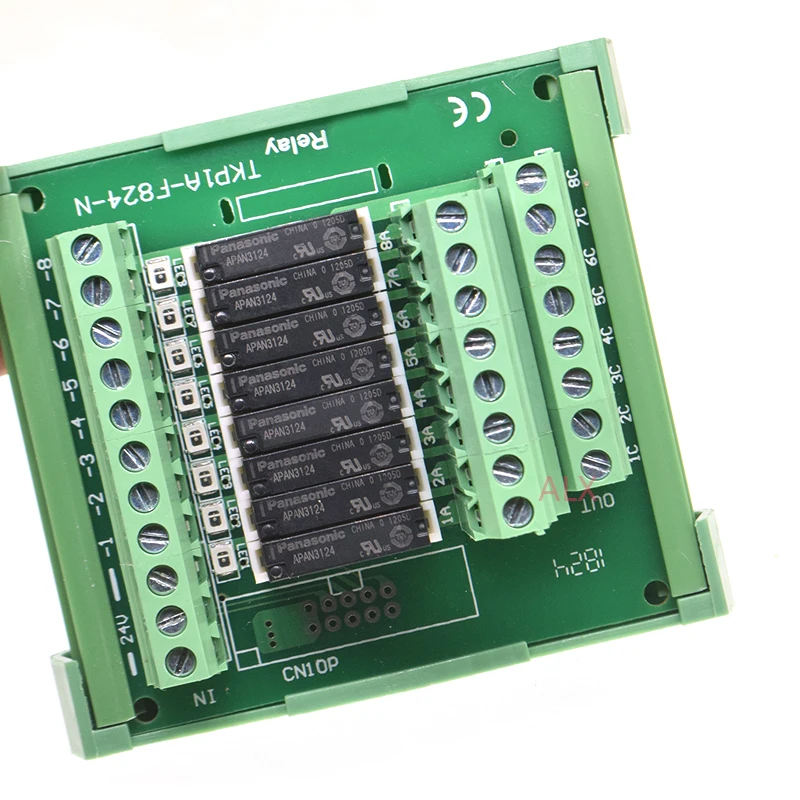

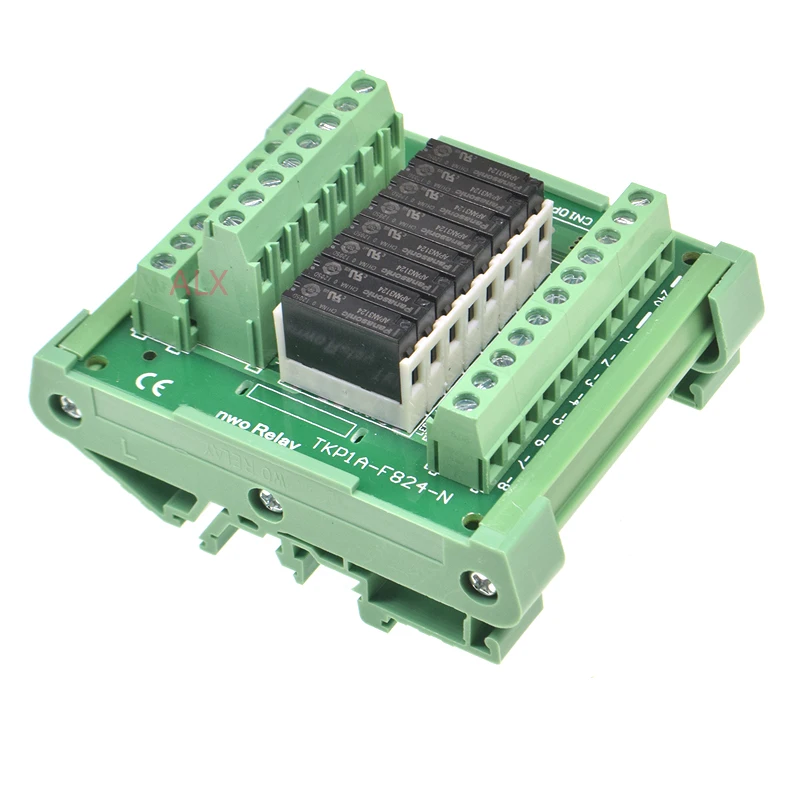

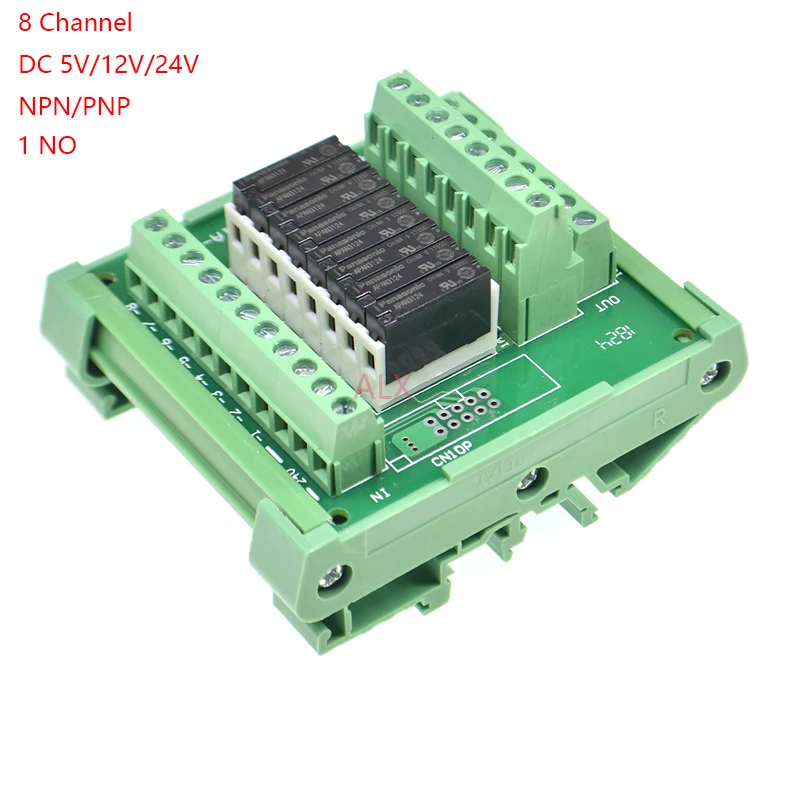

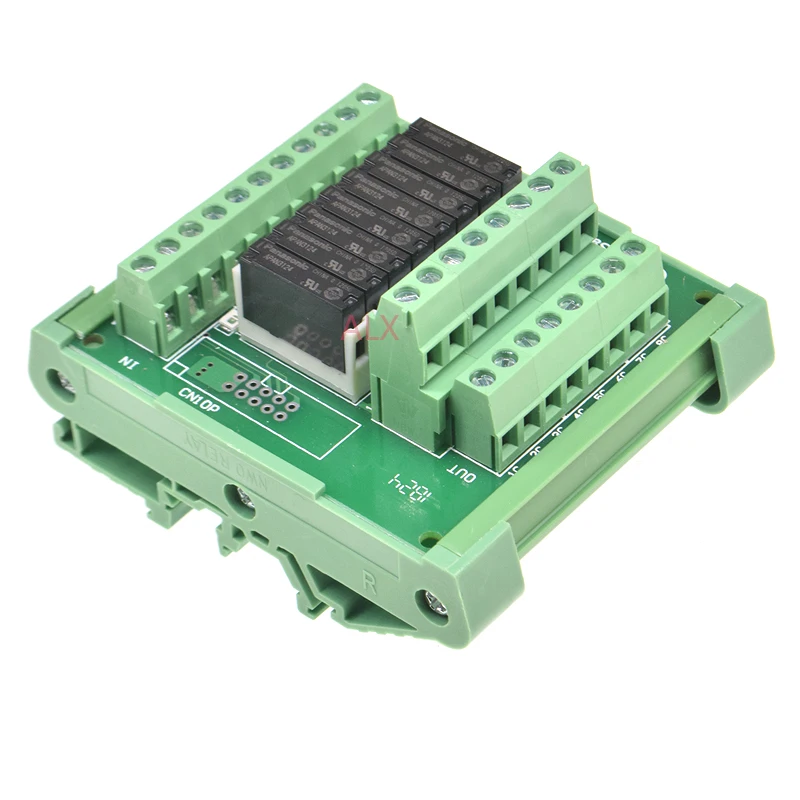

8 Channels relay module C45 DIN Rail Mount APAN3105 APAN3112 APAN3124 1NC 5A 5V 12V 24V DC PNP NPN PLC control
Original price was: $184.08.$85.90Current price is: $85.90.
"*" indicates required fields
SPECIFICATIONS
Brand Name: ALINSIN
Certification: None
Contact Load: Low Power
High-concerned chemical: None
Model Number: ANAP
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Time Relay
Use: General Purpose
Voltage: 5V 12V 24V
is_customized: Yes
Features:
Output model: all common points are separate and independent
Input signal: NPN and PNP
Maximum attached: 5A/250VAC 5A 30VDC
Contact mode: one relay and one normally open
PNP
Input terminal: three -24V are all common points, randomly choose one connection, connect negative charge, 1-N connect positive charge control.
Output end OUT: The common points are independent and separate

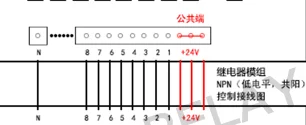

NPN
Input terminal: three -24V are all common points, randomly choose one connection, connected to the positive charge, 1-N to the negative charge control.
Output end OUT: The common points are independent and separate
| Size | NPN, PNP |
|---|---|
| Current Range | DC5V, DC12V, DC24V |
