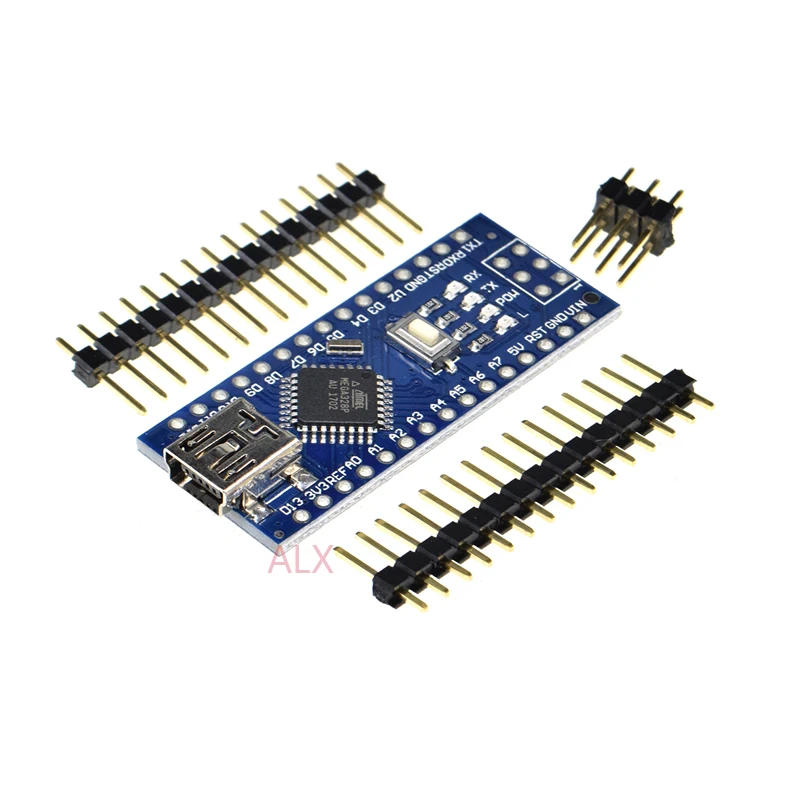

2pcs Mini Usb Nano v3.0 Ch340 Driver Controller Compatible Board Atmega328p With Bootloader For arduino/3.0 Ch340g Atmega328
Original price was: $86.76.$57.84Current price is: $57.84.
Sale

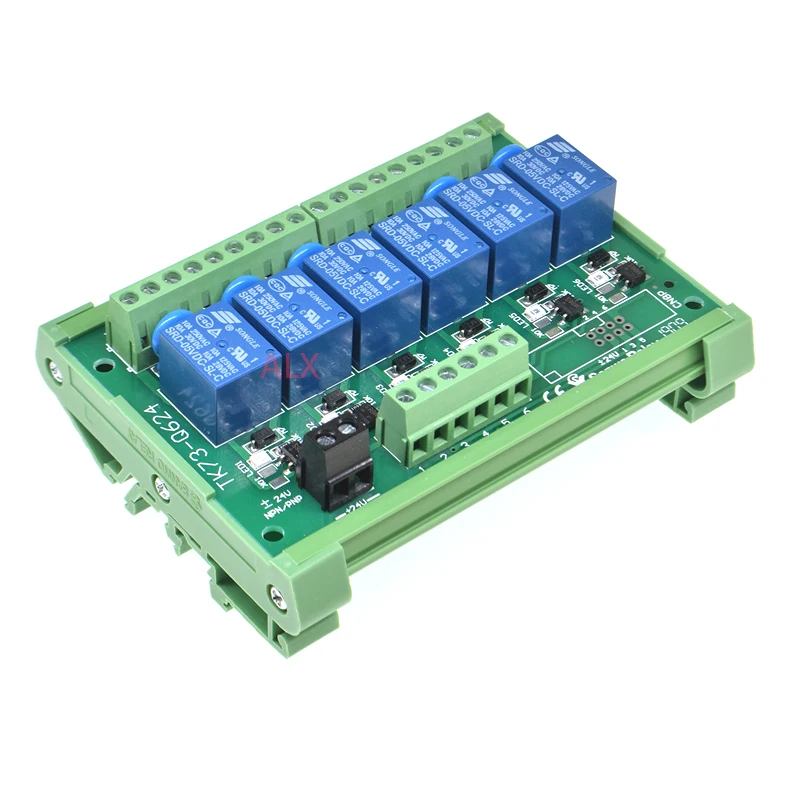

6 Channels relay module DIN Rail Mount SRD-05VDC-SL-C SRD-12VDC-SL-C SRD-24VDC-SL-C 10A 5V 12V 24V DC PNP NPN 1NO 1NC
Original price was: $84.36.$56.24Current price is: $56.24.
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
Certification: CE
Contact Load: Low Power
High-concerned chemical: None
Model Number: SRD
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Time Relay
Use: General Purpose
Voltage: 5V 12V 24V
is_customized: Yes

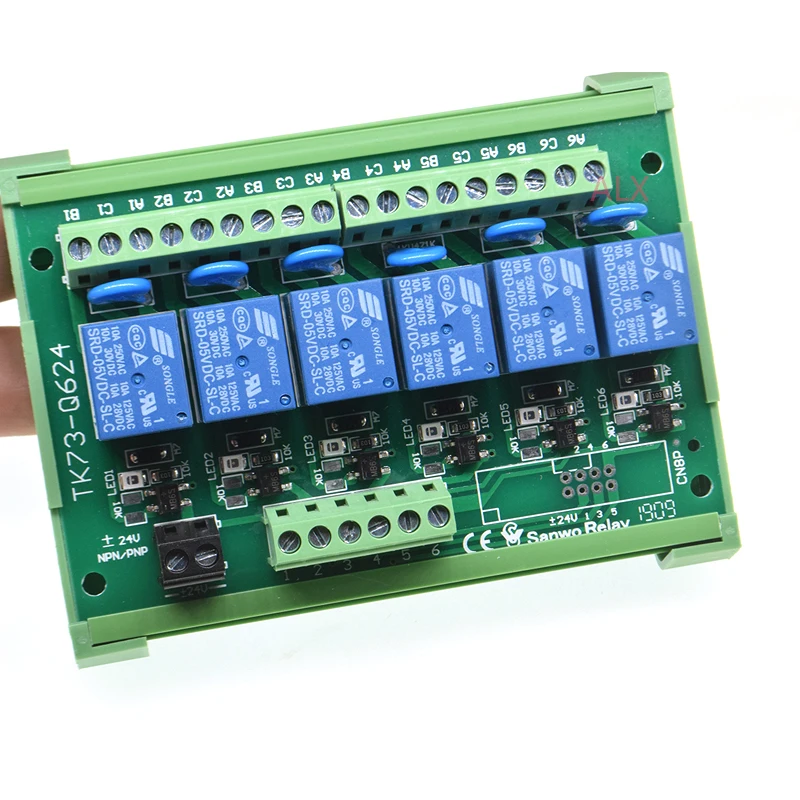

NPN connection mode:Input end :COM and OV are common points, choose one connection at will, connect the positive voltage. 1-N is connected to negative voltage control. N indicates the N route. Output end :A represents normally open, B represents normally closed, and C represents common point.
PNP connection mode:
PNP connection mode:
Input end :COM and OV are common points, choose one connection at will, connect to negative voltage. 1-N connected to positive voltage control. N indicates the N route. Output end :A represents normally open, B represents normally closed, and C represents common point.
Additional information
| Size | DC 12V Relay, DC 24V Relay, DC 5V Relay |
|---|---|
| Current Range | PNP, NPN |
