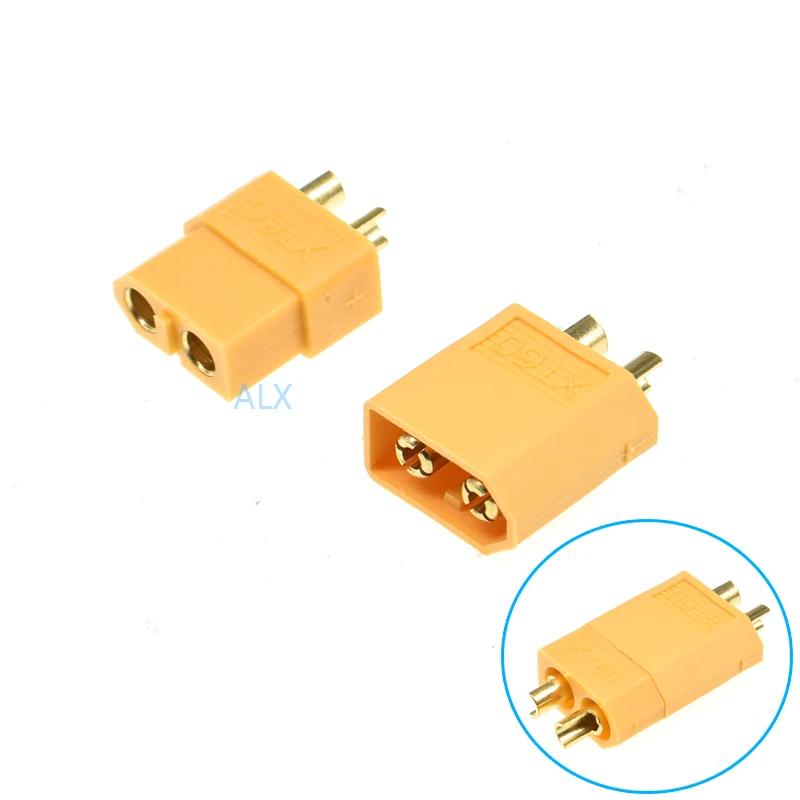

10pcs Xt60 xt-60 Male Female Bullet Plug Connector Banana Plug Socket For Rc Uav Lipo Battery
Original price was: $13.86.$9.24Current price is: $9.24.
Sale

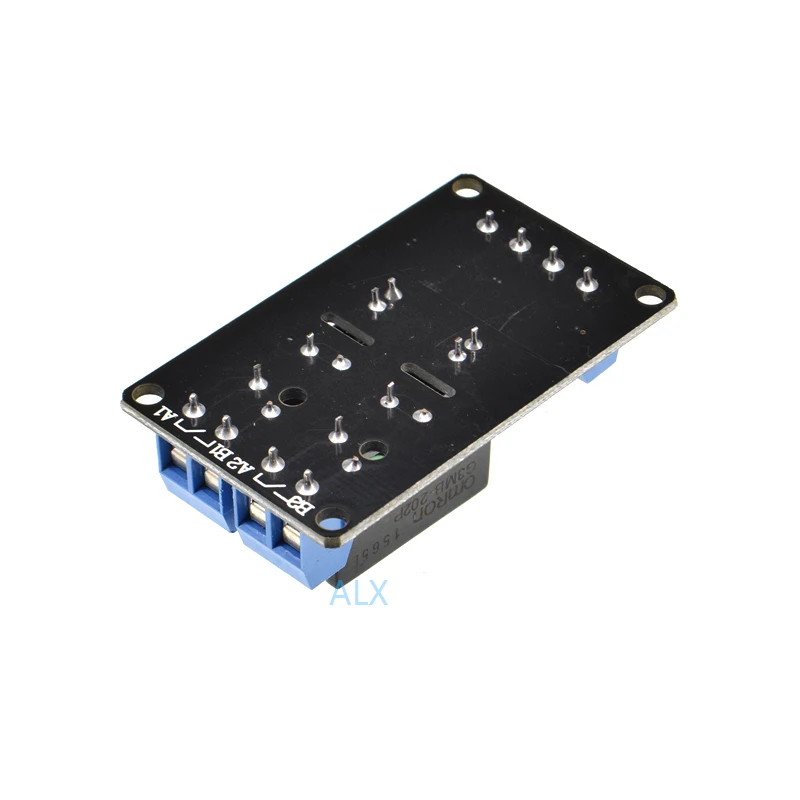

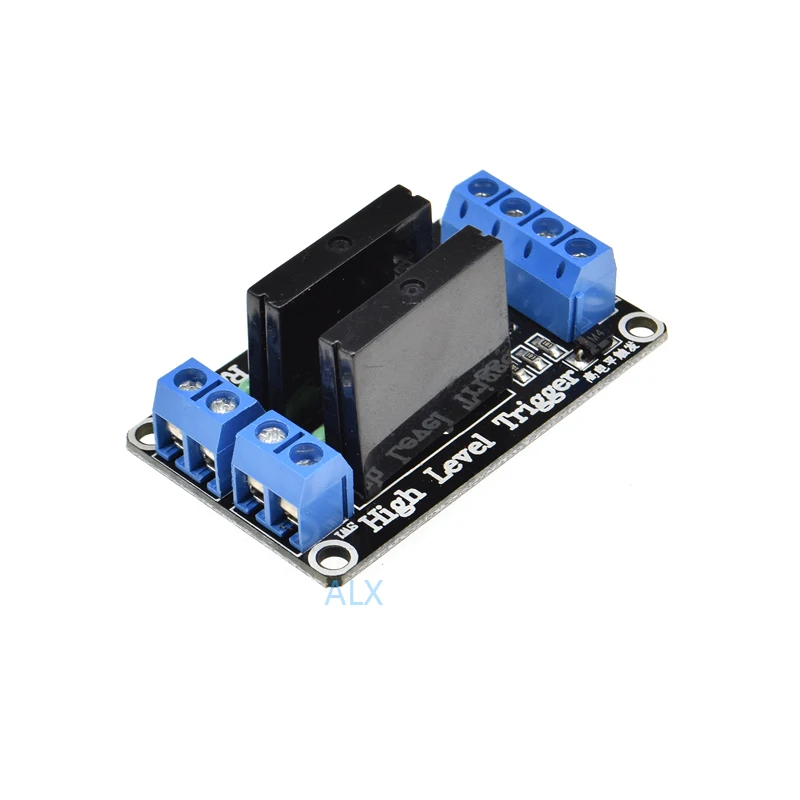

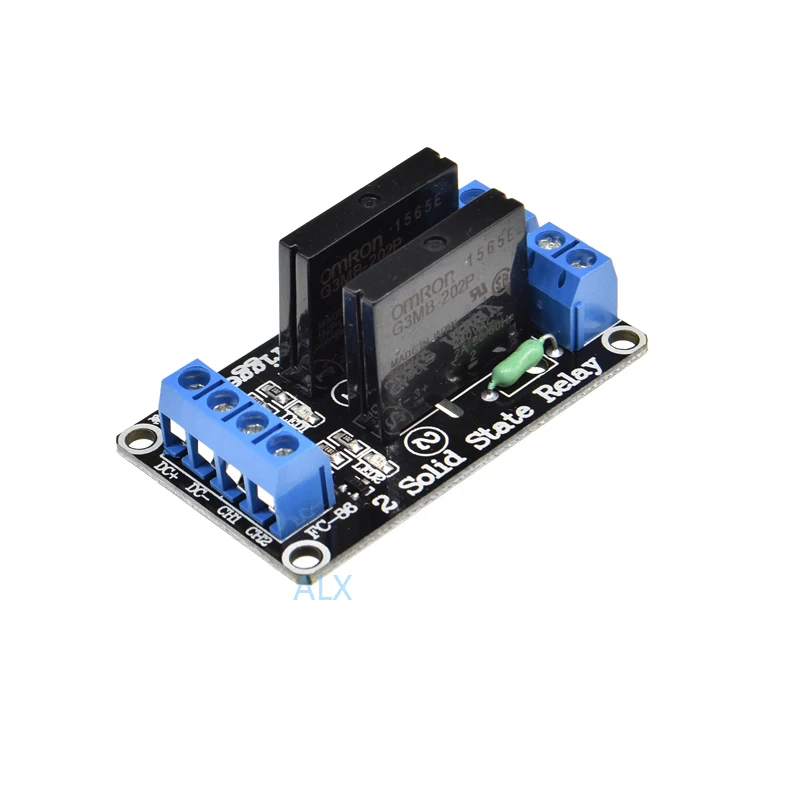

5v Dc 2 Channel Solid State Relay Module High Level g3mb-202p For Scm Household Appliance Control For Arduino Diy Starter Kit
Original price was: $18.30.$12.20Current price is: $12.20.
99975 in stock
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
Contact Load: Low Power
High-concerned chemical: None
Model Number: 5V1A
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Time Relay
Use: General Purpose
Voltage: 5V
is_customized: Yes
Description:

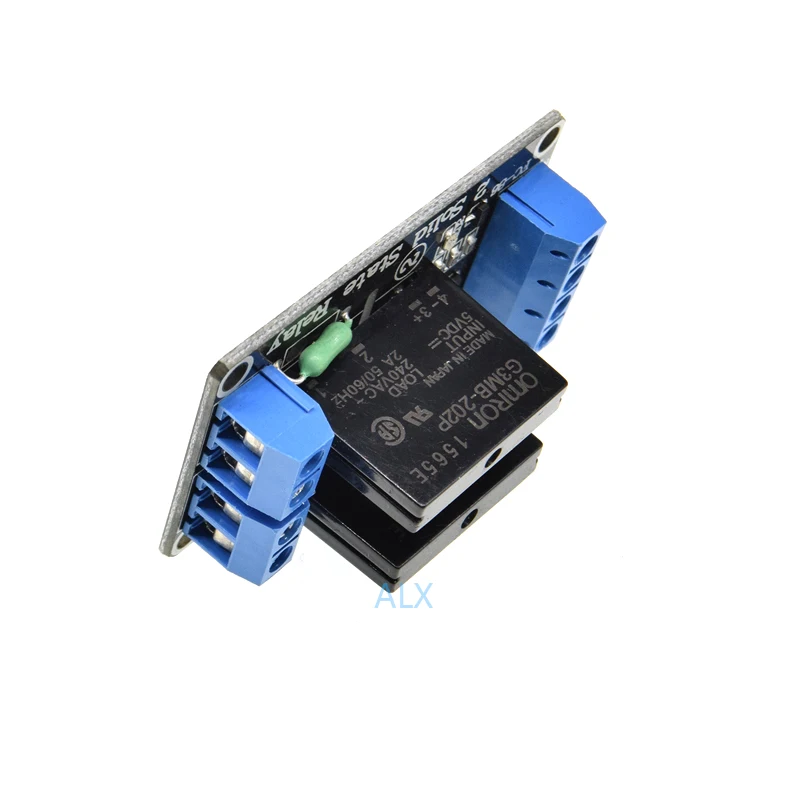

- 5V Omron solid state relay 240V 2A, output with resistive fuse 240V 2A
- Description:
- Size: 53*32*23mm/2.08*1.31*0.9"
- Input Power: 5V DC (160mA)
- Input control signal voltage:
(0-2.5V state low relay OFF)
(3.3-5V state high relay ON) - Module interface:
- Input section:
- DC +: positive power supply (by relay voltage power supply)
- DC-: connect power negative
- CH: relay module signal to trigger the end (high level trigger effective)
- Voltage version static current working current trigger voltage trigger current
1 road 5V 0mA 12.5mA 3.3-5V 2mA
2 road 5V 0mA 22.5mA 3.3-5V 2mA - Quantity:1pc
Packaging:
- 1 x Solid State Relay Module
