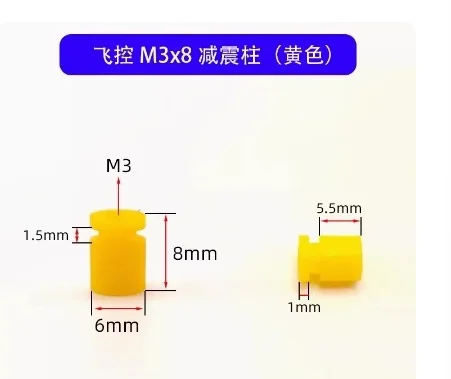

4000Pcs M2 M3 Anti Trillingen Rubber Schokdemper Demping Demper Bal Voor F3 F4 F7 Vlucht Controller FPV RC Drone Multi Rotor
Original price was: $1,200.00.$560.00Current price is: $560.00.

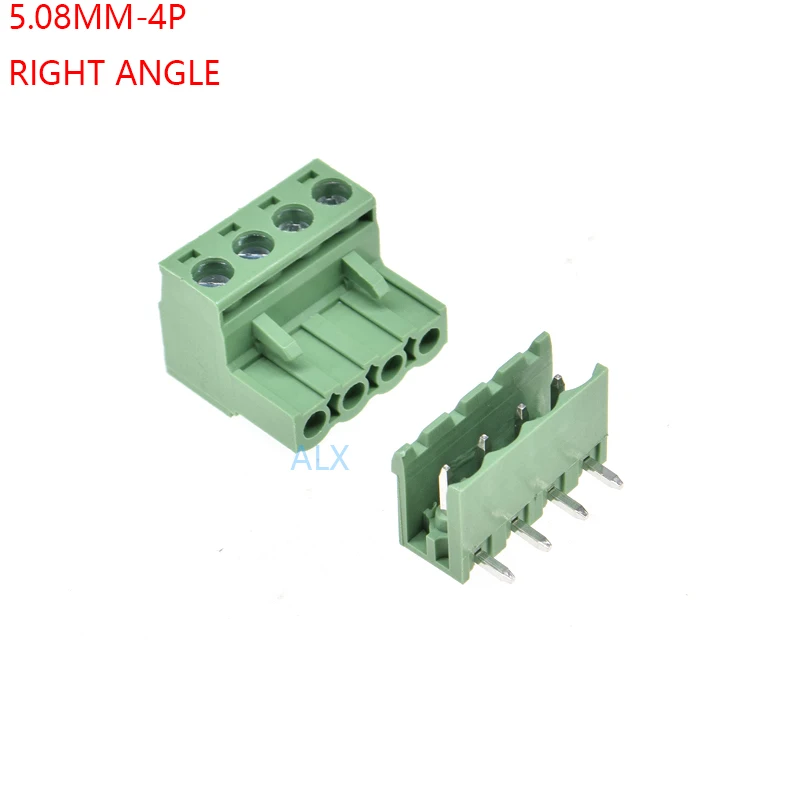

10SETS 2EDG 4pin 5.08MM pitch RIGHT ANGLE pluggable screw terminal block 5.08 4 pin PLUG TYPE pcb connector PLUG + SOCKET 300v
Original price was: $19.68.$9.18Current price is: $9.18.
Sale
5V 4 channel relay module BOARD with optocoupler Output 4 way FOR ARDUINO
Original price was: $15.30.$7.14Current price is: $7.14.
99930 in stock
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
Contact Load: Low Power
High-concerned chemical: None
Model Number: 4 CHANNEL
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Time Relay
Use: General Purpose
Voltage: 5V
is_customized: Yes
- This is a 12V 4-Channel Relay interface board
- Be able to control various appliances, and other equipments with large current
- It can be controlled directly by Micro-controller (for Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
- 12V 4-Channel Relay interface board, and each one needs 50-60mA Driver Current
- Equiped with high-current relay, AC250V 10A ; DC30V 10A
- Indication LED’s for Relay output status
- Input IN1, IN2, IN3, IN4 signal low level effectively
- VCC, GND power input end, can supply power alone
- Support all single-chip control, industrial area, PLC control, household intelligent control
- Application:
- Supports all MCU control
- The industrial field
- PLC control
- Smart home control

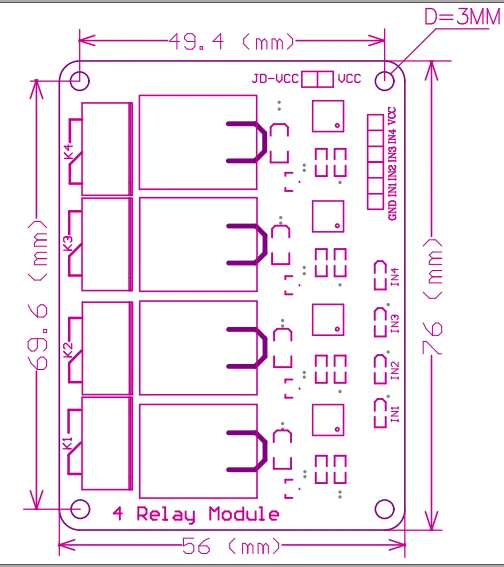

- Size: 7.5*5.6*1.8cm/2.95*2.2*0.7"
- Quantity:1pc
Packaging:
- 1 x 4 Channel Relay Module
