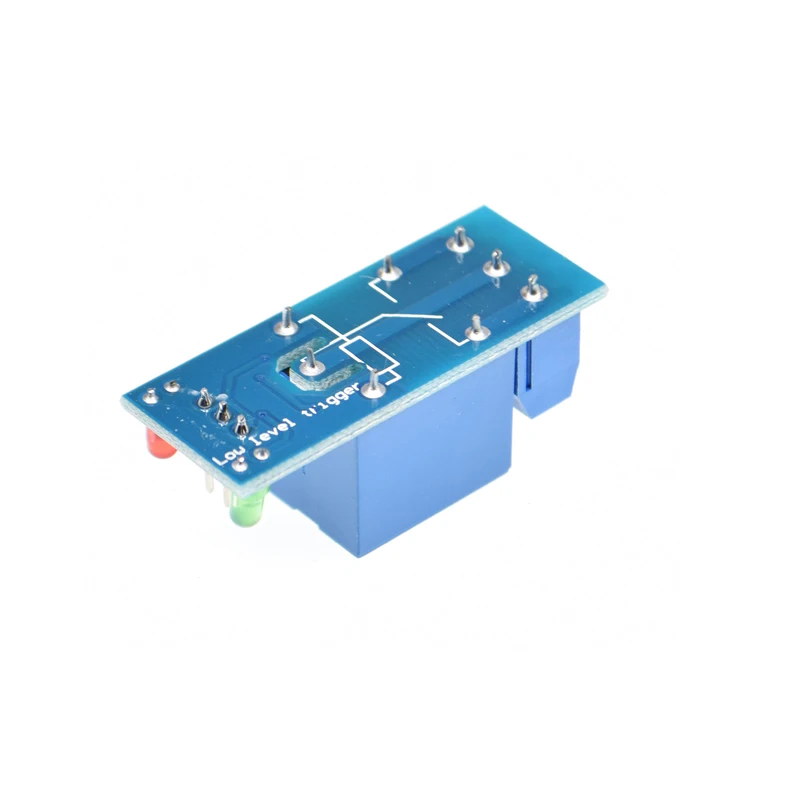

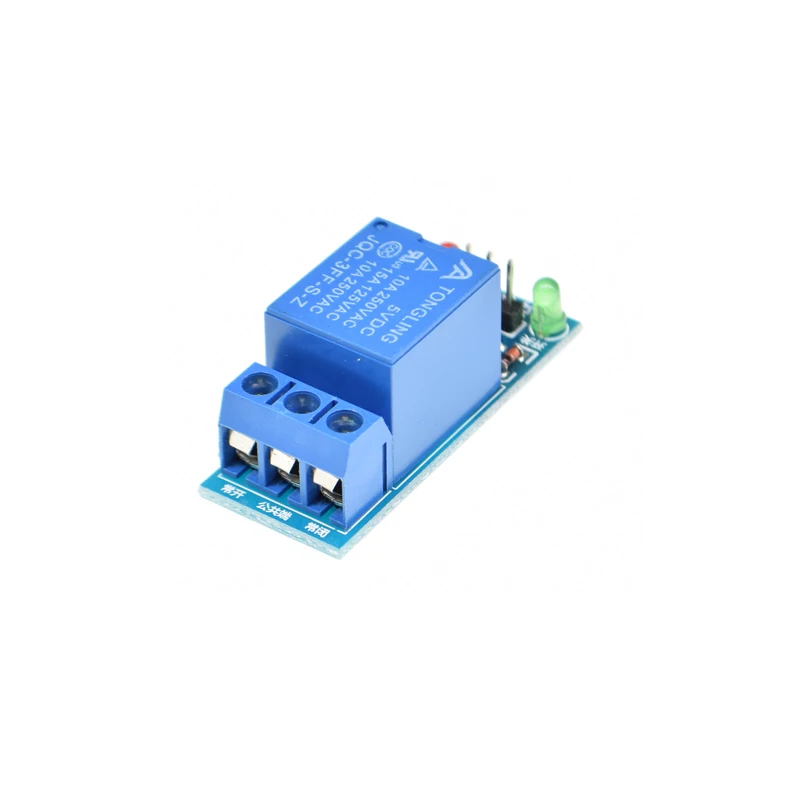

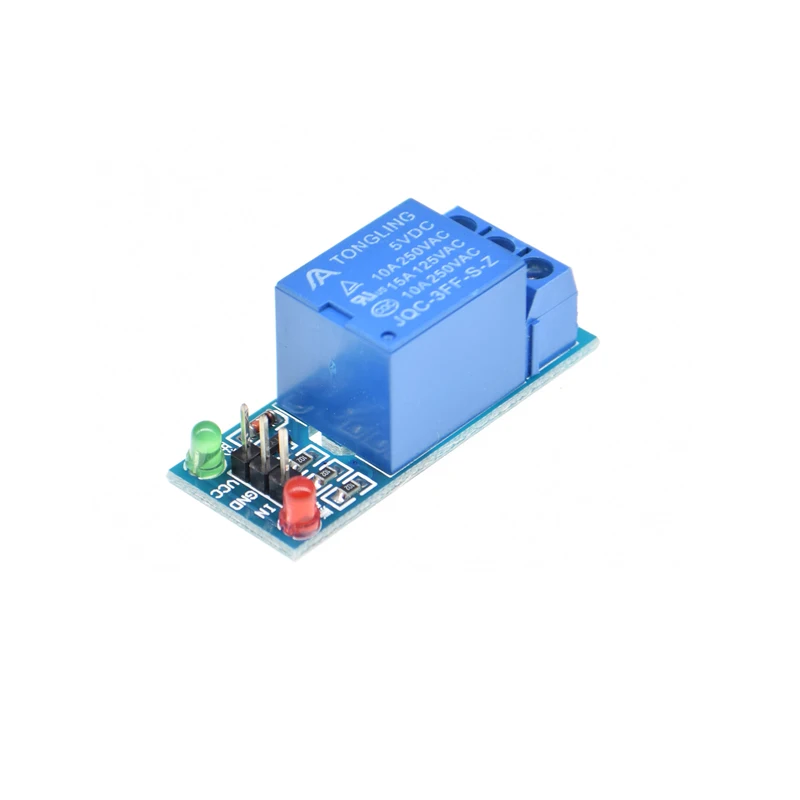

5v 1 One Channel Relay Module Low Level For Scm Household Appliance Control For Arduino Diy Starter Kit
Original price was: $5.52.$3.68Current price is: $3.68.
99985 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: ALINSIN
Contact Load: Low Power
High-concerned chemical: None
Model Number: 5V1A
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Time Relay
Use: General Purpose
Voltage: 5V
is_customized: Yes
Features:
1. With isolation groove in control area and load area.
2. With power and relay action indication, bright when connect and go off when disconnects.
3. When there is a signal in signal input, public side and common side will breakover.
4. It can be not only used as a microcontroller development board module, but also as a home appliance control.
5. It can not only control the DC or AC signal, but the 220V AC load.
6. With a permanent open and close vents contact.
7. It is convenient to connect with blue KF301 terminal access control cable.
Specification:
1. VCC: Power interface ,5V
2. GND: Ground
3. IN: Control interface .Drive Current at least 4mA
4. COM: Control circuit ground ,Connect to GND
5. Size: approx. 41 x 16 x 16mm/ 1.61 x 0.62 x 0.62”
6. Weight: approx. 12g
Note:
1. High level flip-flops shows that there are trigger mode of the voltage between the signal input terminal and the ground; That is to say it is a way of short circuit trigger between signal input and VCC positive pole.
2. Low level flip-flops shows that there are voltage for OV trigger mode between the signal input terminal and the ground. In a word, it is a way of short circuit trigger between signal input and GND negative pole.
3. Please allow 1-3mm differs due to manual measurement.
4. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
1*1 Channel 5V Relay Module Shield
